8-10 — WIRING HARNESS AND FUSE (#123429) — 90 parça

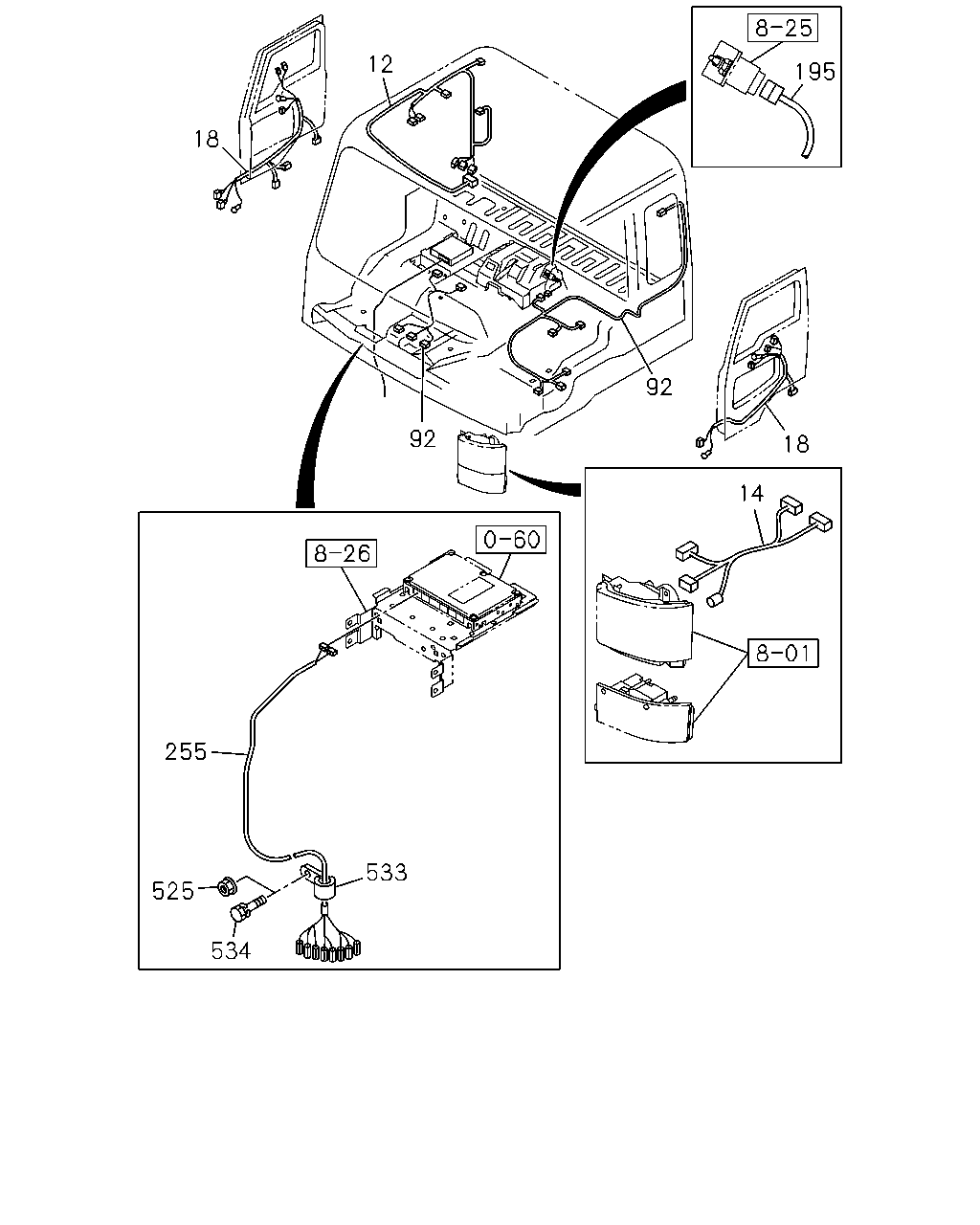

çizim 363770
195 12 18 92 92 18 14 255 525 534 533
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF 8-97646-390-0 01 1 1306-1510 ● ●
12 HARNESS; ROOF 8-97646-390-0 01 1 1511- ● ●
14 HARNESS; HEADLAMP 8-98156-953-2 02 1 1306- ● ●
18 HARNESS; DOOR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97644-084-0 01 1 1306- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97644-084-0 01 1 1306- ●
18 HARNESS; DOOR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97644-083-0 01 1 1306- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97644-083-0 01 1 1306- ●
18 HARNESS; DOOR
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97644-087-0 01 1 1306- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97644-087-0 01 1 1306- ●
18 HARNESS; DOOR
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97644-086-0 01 1 1306- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97644-086-0 01 1 1306- ●
92 HARNESS; FLOOR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97646-393-0 01 1 1306- ● ●
92 HARNESS; FLOOR
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97646-495-0 01 1 1306- ● ●
92 HARNESS; FLOOR
MJT7S M/T(Y3E) 		8-97646-345-0 01 1 1306- ● ●
92 HARNESS; FLOOR
MJX16P M/T(Y3Z) 		8-97646-346-0 01 1 1306- ● ●
195 HARNESS; EXT
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97646-493-0 01 1 1306- ● ●
255 HARNESS; ELEC GOV 8-97646-352-0 01 1 1306- ● ●
525 NUT; CLIP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 1306- ● ●
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 1306- ● ●
533 CLIP
ID=32 L=50 		1-09701-055-1 02 1 1306- ● ●
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1306- ● ●

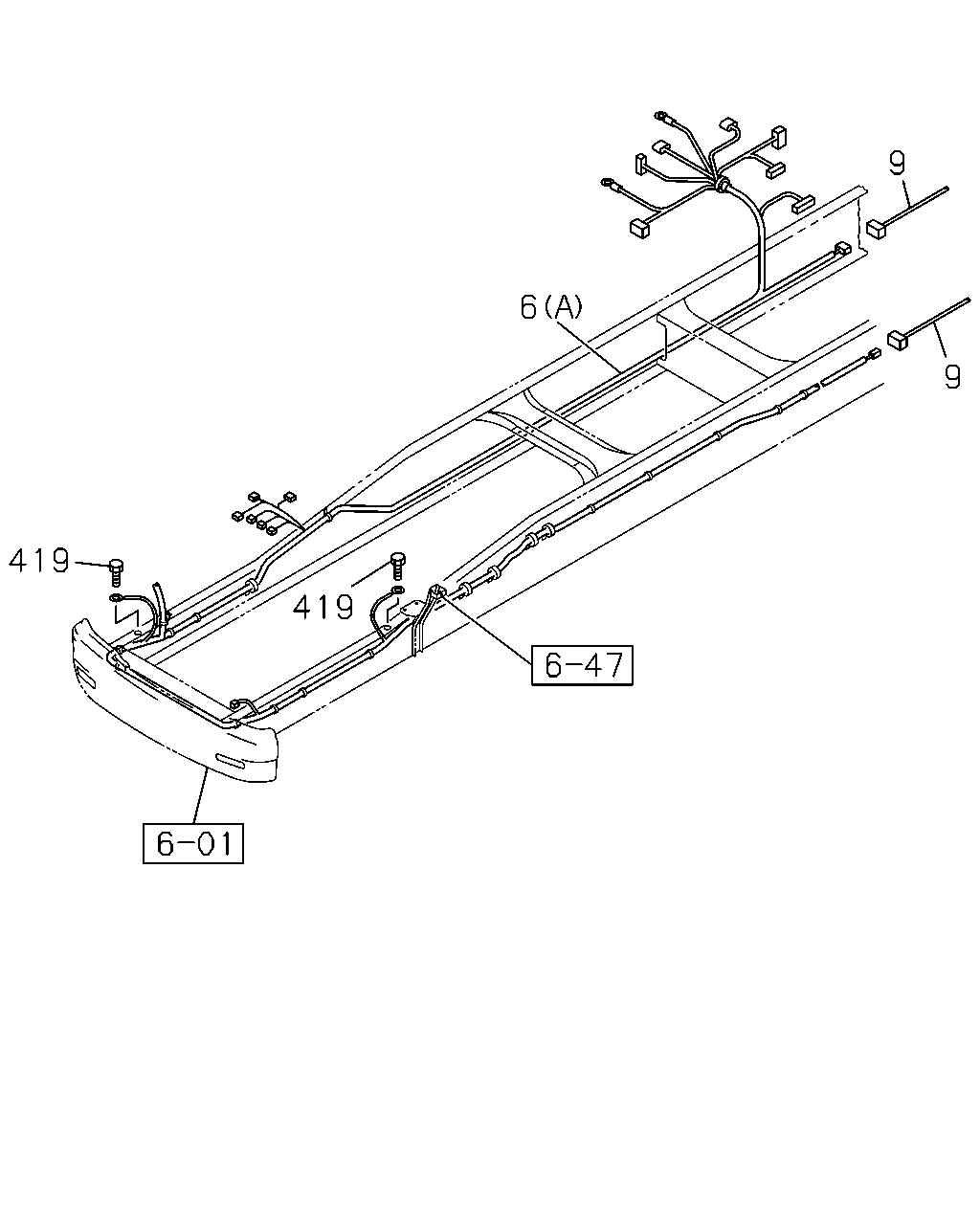

çizim 363937
9 9 6 419 419
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
(A) 		8-98242-630-3 01 1 1306- ●
6 HARNESS; FRAME
EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98242-630-3 01 1 1306- ●
6 HARNESS; FRAME
(B) 		8-98242-637-0 01 1 1306- ● ●
6 HARNESS; FRAME
BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> (A) 		8-98242-632-3 01 1 1306- ●
6 HARNESS; FRAME
FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98242-631-3 01 1 1306- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> 		8-98139-412-1 01 1 1511- ●
9 HARNESS; FRAME,RR 8-98144-772-1 01 1 1306- ●
9 HARNESS; FRAME,RR 8-98240-418-0 01 1 1306- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		8-98240-927-0 01 1 1306- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25> 		8-98139-414-1 01 1 1306- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) 		8-98240-928-0 01 1 1306- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> 		8-98139-418-1 01 1 1306- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> 		8-98139-425-1 01 1 1306- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) 		8-98139-443-1 01 1 1306- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) 		8-98242-639-0 01 1 1306- ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 05 1 1306- ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1306- ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1306- ● ●

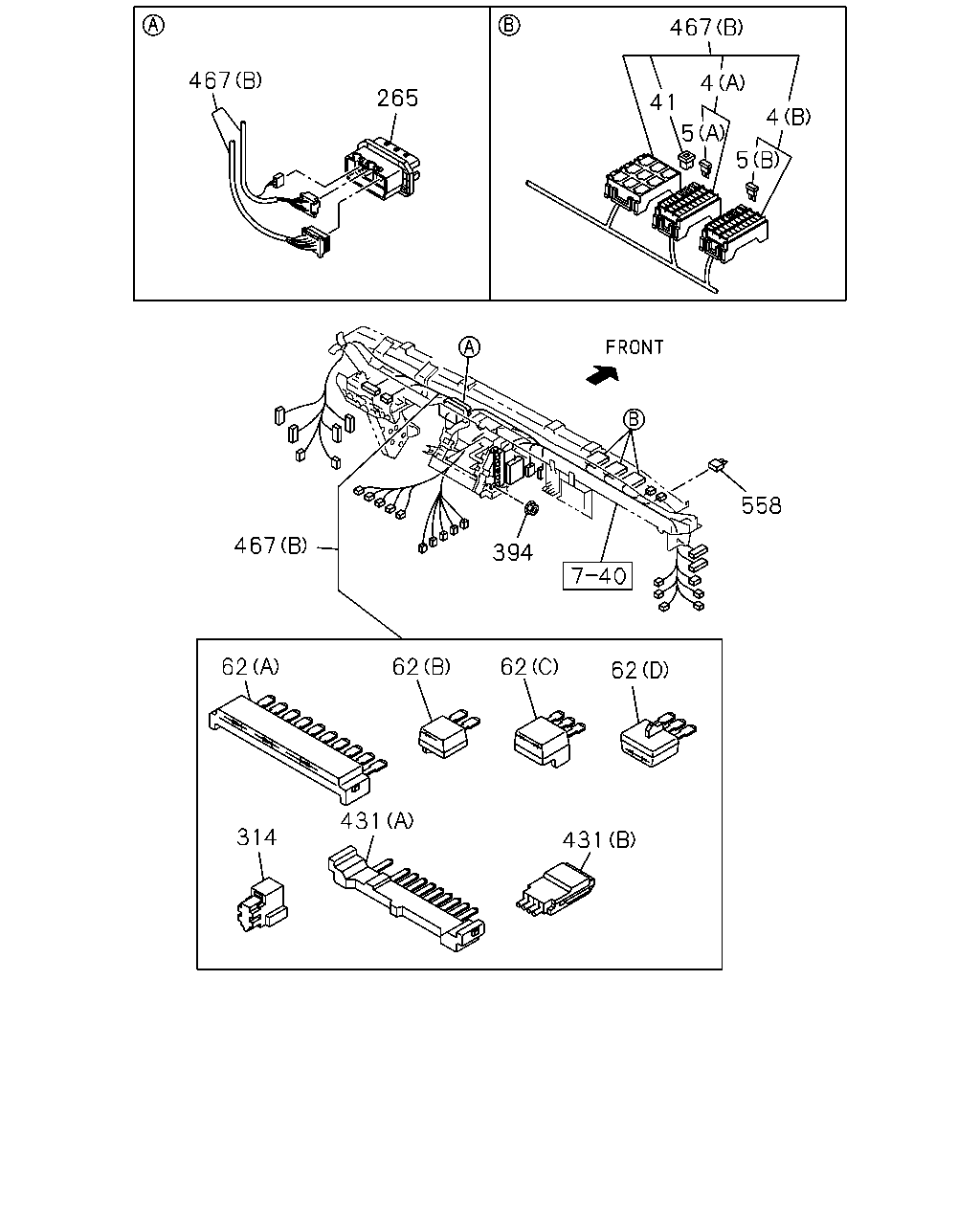

çizim 365177
314 62 62 62 62 431 431 467 394 558 265 467 467 4 41 5 4 5
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX26 		1-82510-624-0 01 1 1306- ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX22 25AX3 		8-98126-046-0 01 1 1306- ● ●
5 FUSE; FACIA HARNESS
(B) 15A BLUE 		5-82516-003-0 22 1 1306- ● ●
5 FUSE; FACIA HARNESS
(B) 25A CLEAR 		5-82516-005-0 02 1 1306- ● ●
5 FUSE; FACIA HARNESS
(A) 7.5A BROWN 		8-94159-007-0 20 1 1306- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1306- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 1306- ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1306- ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1306-1406 ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 06 1 1407-1512 ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1601- ● ●
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 01 1 1306- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1306- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1306- ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 1306- ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 1306- ● ●
431 CONNECTOR; JOINT
(B) 4P 		8-97376-776-0 06 1 1306- ● ●
467 HARNESS; FACIA
(B) LOWER 		8-97646-336-2 01 1 1306- ● ●
467 HARNESS; FACIA
(A) UPPER 		8-97646-373-0 01 1 1306- ● ●
558 CONNECTOR; HARNESS
FOOT BRAKE W/EXHAUST BRAKE<SJB> 4P 		1-82629-690-0 01 1 1306- ● ●

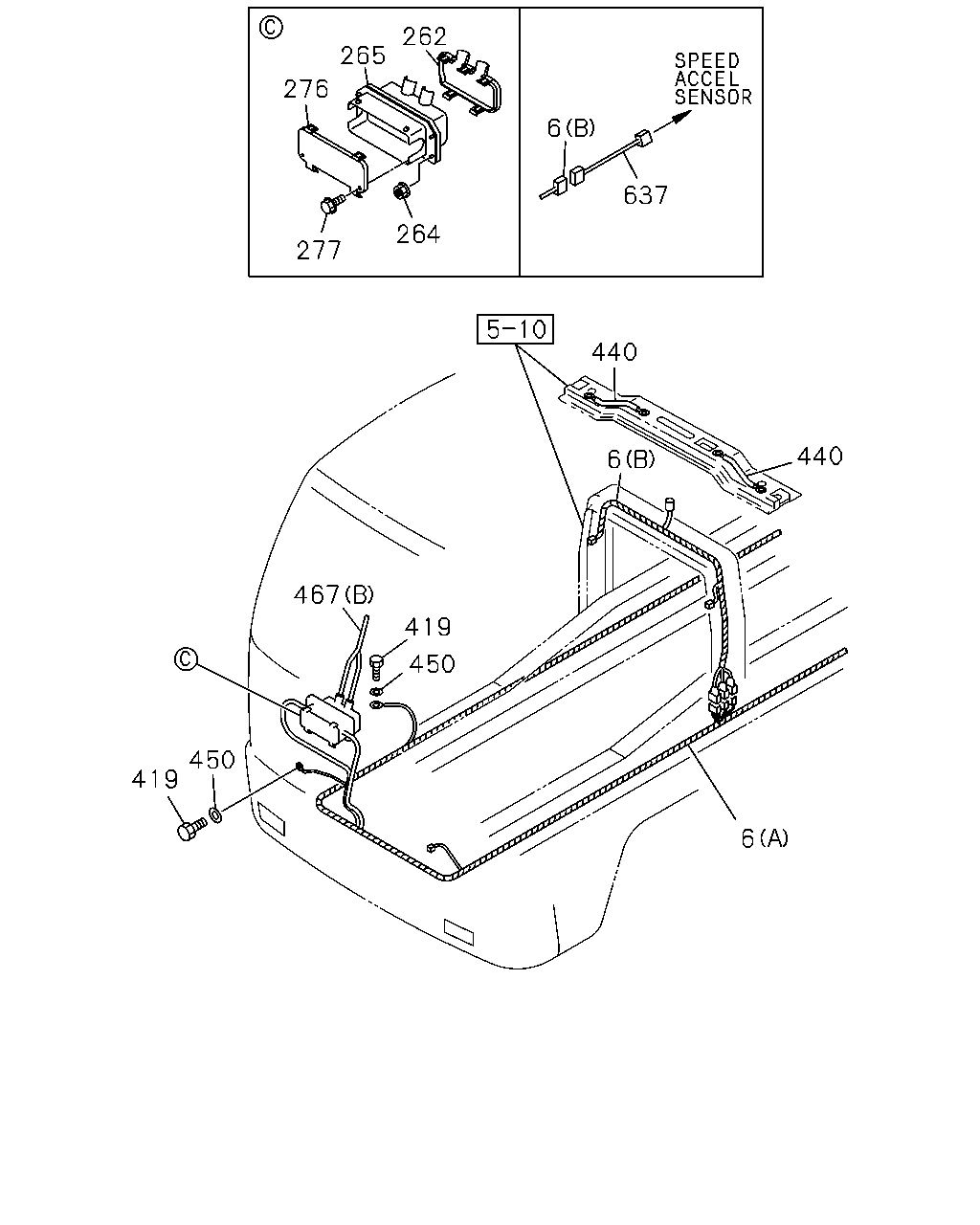

çizim 365259
6 419 450 467 419 450 6 440 440 637 6 264 277 276 265 262
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
(A) 		8-98242-630-3 01 1 1306- ●
6 HARNESS; FRAME
EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98242-630-3 01 1 1306- ●
6 HARNESS; FRAME
(B) 		8-98242-637-0 01 1 1306- ● ●
6 HARNESS; FRAME
BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> (A) 		8-98242-632-3 01 1 1306- ●
6 HARNESS; FRAME
FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98242-631-3 01 1 1306- ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 1306- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1306- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1306- ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-892-1 01 1 1306- ● ●
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1306- ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 05 1 1306- ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1306- ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1306- ● ●
440 CABLE; EARTH 1-82678-273-0 02 1 1306- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1306- ● ●
467 HARNESS; FACIA
(B) LOWER 		8-97646-336-2 01 1 1306- ● ●
467 HARNESS; FACIA
(A) UPPER 		8-97646-373-0 01 1 1306- ● ●
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1306- ● ●

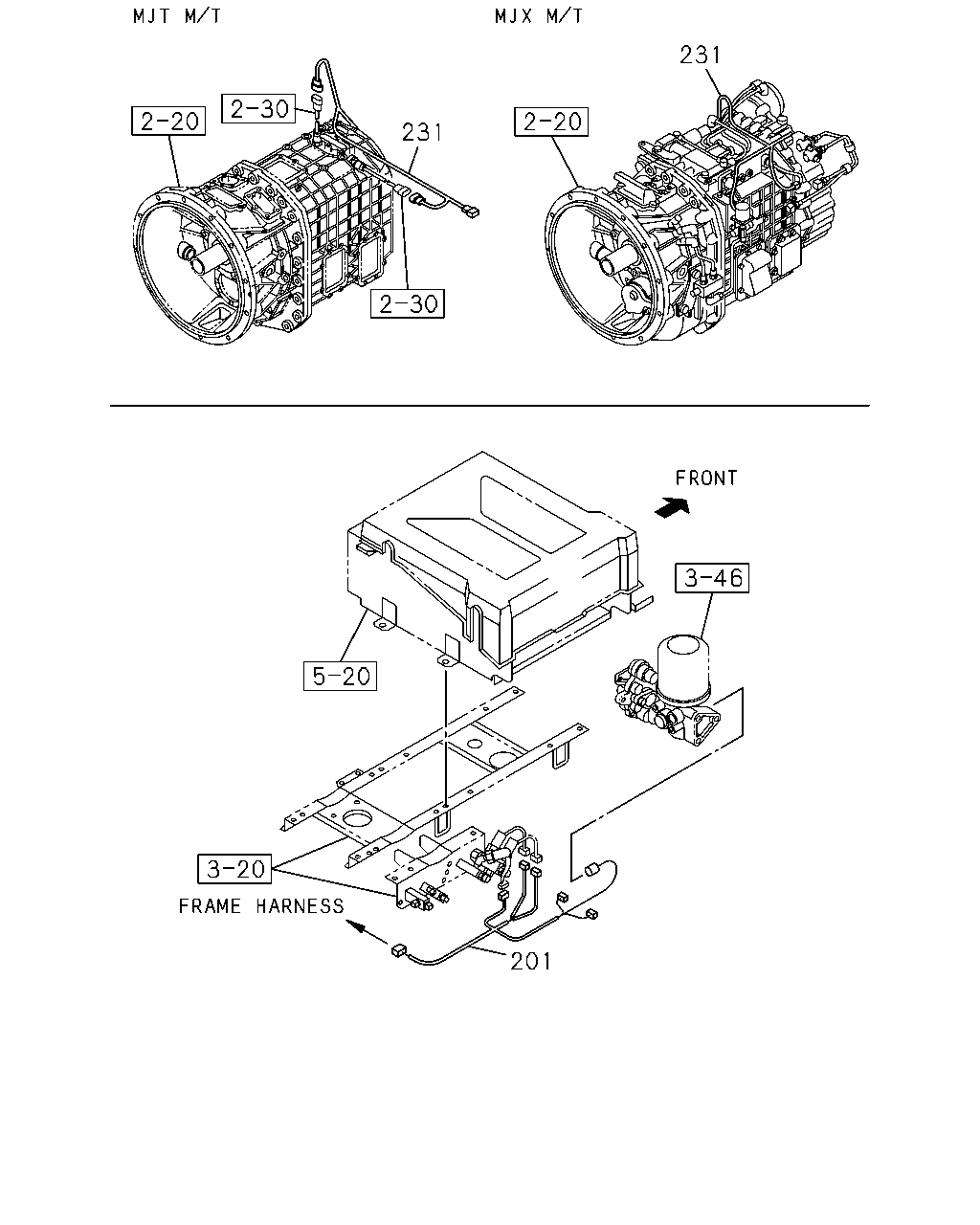

çizim 365637
231 231 201
BalonParca AdiParca NoAdetTipApplied Date A B
201 HARNESS; AIR TANK 8-98240-929-1 01 1 1306- ● ●
231 HARNESS; TRANS
MJT7S M/T(Y3E) 		8-97615-725-1 01 1 1306- ● ●
231 HARNESS; TRANS
MJX16P M/T(Y3Z) 		8-98221-994-2 01 1 1306- ● ●

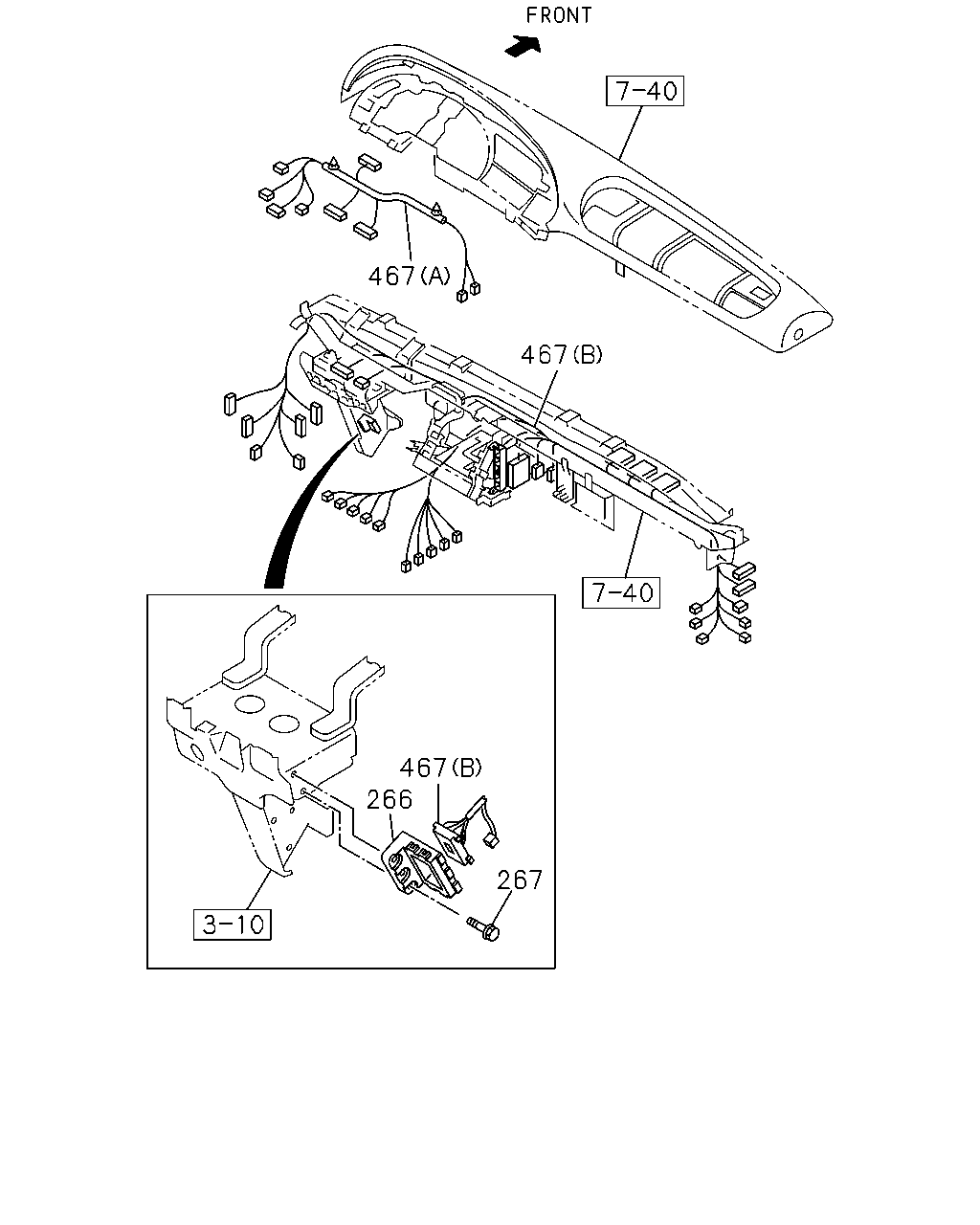

çizim 366829
467 467 467 266 267
BalonParca AdiParca NoAdetTipApplied Date A B
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1306- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1306- ● ●
467 HARNESS; FACIA
(B) LOWER 		8-97646-336-2 01 1 1306- ● ●
467 HARNESS; FACIA
(A) UPPER 		8-97646-373-0 01 1 1306- ● ●

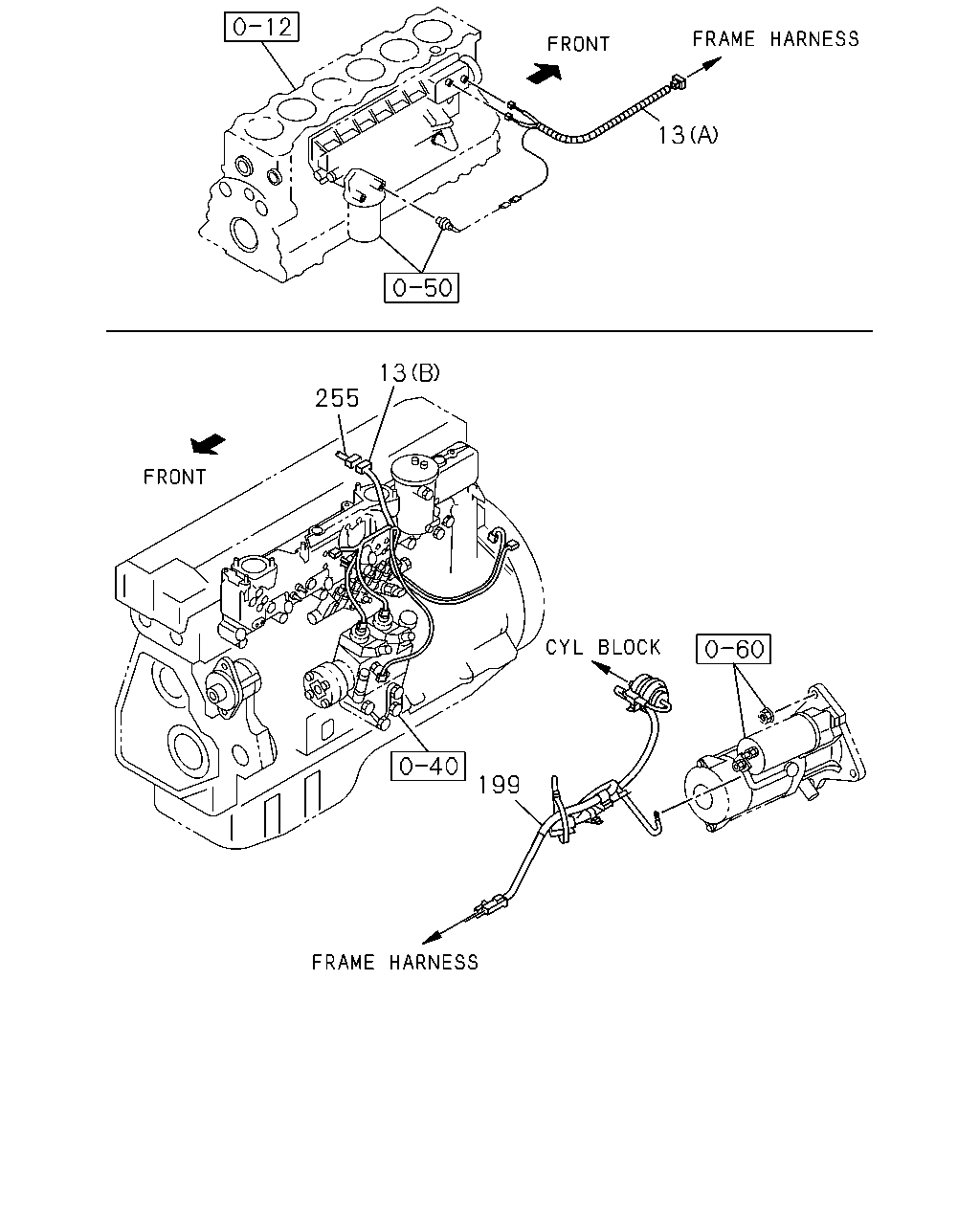

çizim 367114
199 13 255 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 1306- ● ●
13 HARNESS; ENG
(B) 		8-98180-788-0 01 1 1306- ● ●
199 HARNESS; STARTER
ENGINE REAR PTO(SV1) 		8-98147-121-0 01 1 1306- ●
199 HARNESS; STARTER
EXC. ENGINE REAR PTO(SV1) 		8-98139-485-0 01 1 1306- ●
199 HARNESS; STARTER 8-98139-485-0 01 1 1306- ●
255 HARNESS; ELEC GOV 8-97646-352-0 01 1 1306- ● ●
