7-50 — FRONT SEAT (#123423) — 131 parça

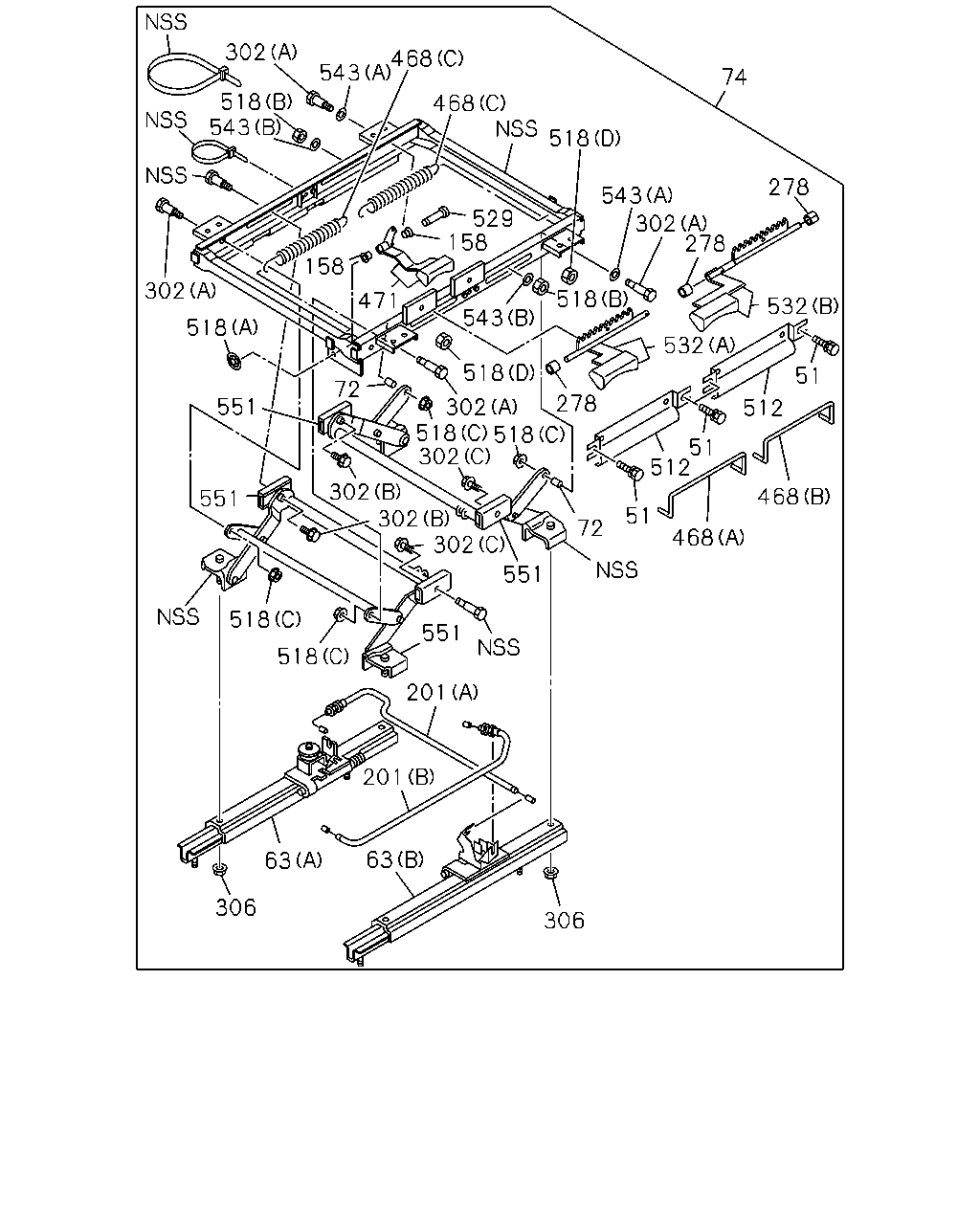

çizim 363933
74 302 543 468 468 518 543 302 278 278 532 532 51 512 468 468 51 512 51 278 518 543 518 302 518 518 302 302 302 302 551 72 551 201 518 518 63 306 201 63 306 551 551 72 471 158 518 302 543 518 158 529
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER 1-75518-325-1 04 1 1306- ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 1306- ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-324-0 01 1 1306- ● ●
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 1306-1502 ● ●
72 SPACER; SEAT ADJ 8-98291-668-0 02 1 1503- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-331-3 01 1 1306-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-646-0 01 1 1503- ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1306- ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1306- ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1306- ● ●
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 1306- ● ●
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 1306- ● ●
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 1306-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
(A) 		8-98291-667-0 04 1 1503- ● ●
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 1306- ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 1306- ● ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1306- ● ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1306- ● ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1306- ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 1306- ● ●
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1306- ● ●
512 COVER; LEVER 1-75518-245-1 02 1 1306- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1306- ● ●
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 1306- ● ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 1306- ● ●
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 1306- ● ●
529 PIN; LINK 1-75518-262-0 01 1 1306- ● ●
532 LEVER ASM; TILT
(A) 		1-75518-221-0 01 1 1306- ● ●
532 LEVER ASM; TILT
(B) 		1-75518-222-1 01 1 1306- ● ●
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 1306-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 		8-98291-669-0 02 1 1503- ● ●
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 1306- ● ●
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 1306- ● ●

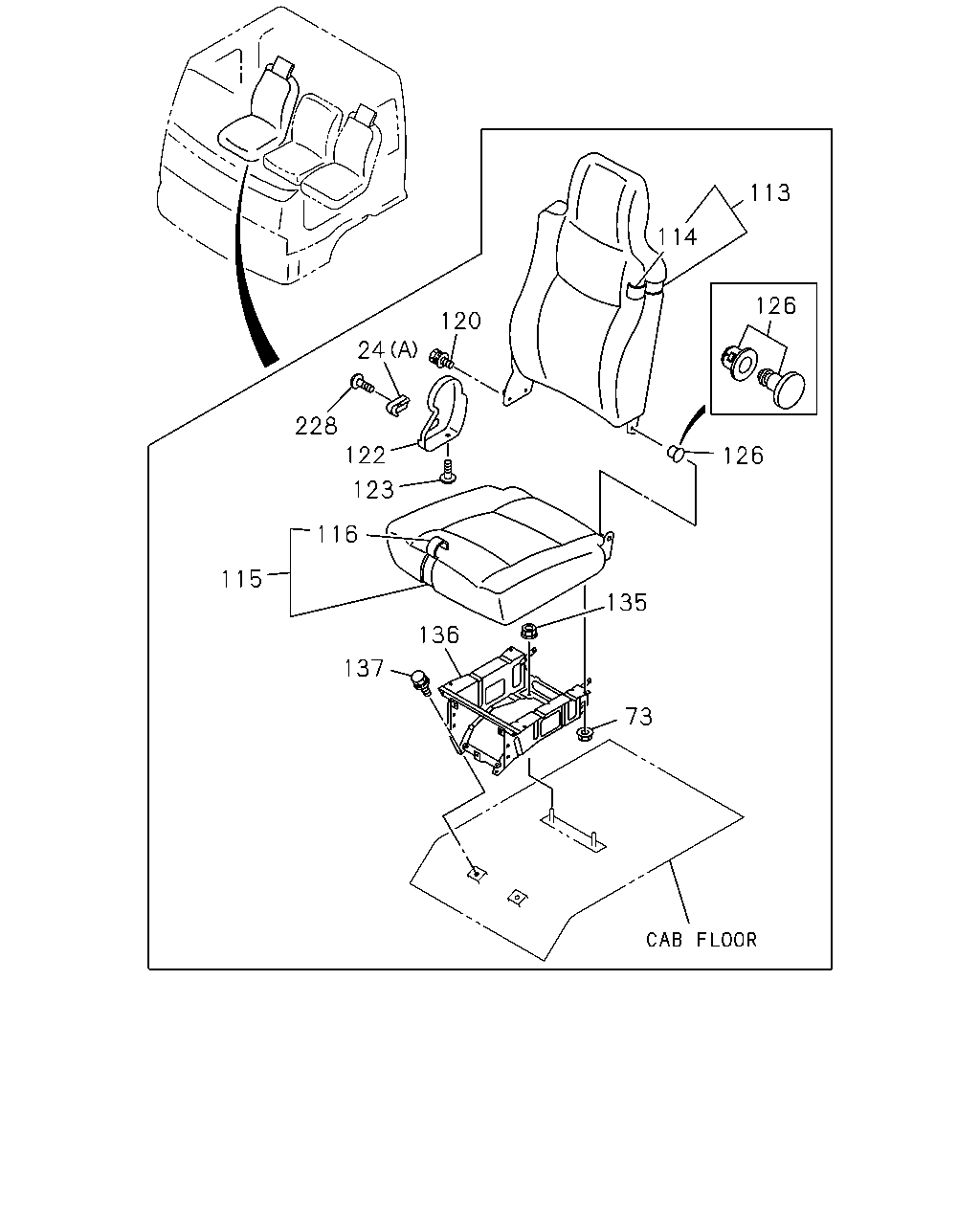

çizim 365169
113 114 126 126 135 73 136 137 115 116 123 122 228 24 120
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 1306- ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 1306- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 1306- ● ●
113 BACK ASM; SEAT 8-98210-856-0 01 1 1306- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 8-98210-857-0 01 1 1306- ● ●
115 CUSHION ASM; PASSENGER SEAT 8-98210-854-0 01 1 1306- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 8-98210-855-0 01 1 1306- ● ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 1306- ● ●
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97867-020-0 01 1 1306- ● ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 1306- ● ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 1306- ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 1306- ● ●
136 STAND; PASSENGER SEAT 8-98242-299-0 01 1 1306- ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 1306- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1306- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1306- ● ●

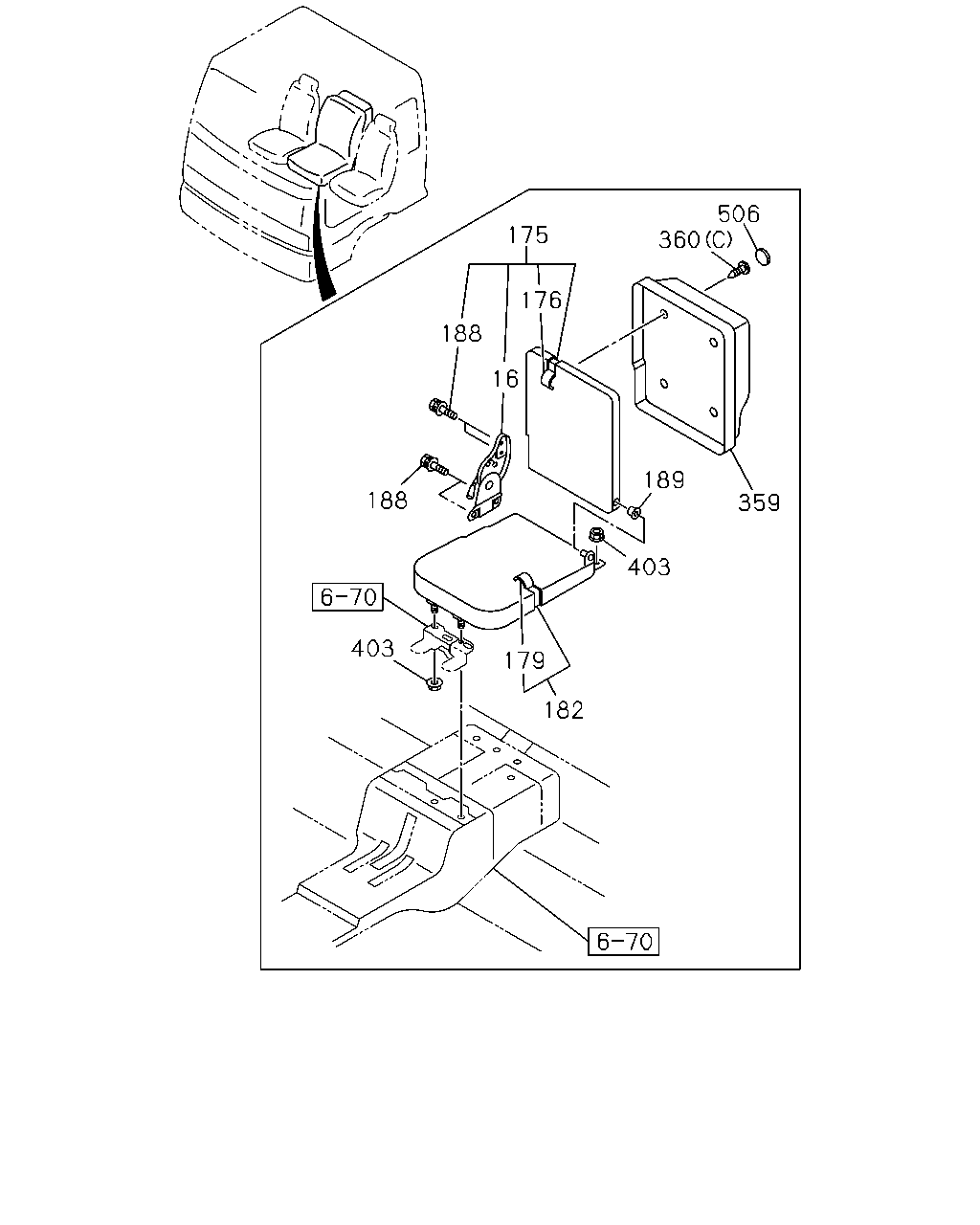

çizim 365284
359 506 360 176 175 188 16 189 403 188 182 179 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 1306- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) 		8-98210-861-0 01 1 1306- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) 		8-98210-862-0 01 1 1306- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) 		8-98210-860-0 01 1 1306- ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) 		8-98210-859-1 01 1 1306- ● ●
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1306- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
CENTER SEAT(SA1) 		8-97854-900-0 01 1 1306- ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1306- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1306- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1306- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1306- ● ●
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 1306- ● ●
506 CAP; PARCEL BOX
CENTER SEAT(SA1) 		1-09983-180-3 02 1 1306- ● ●

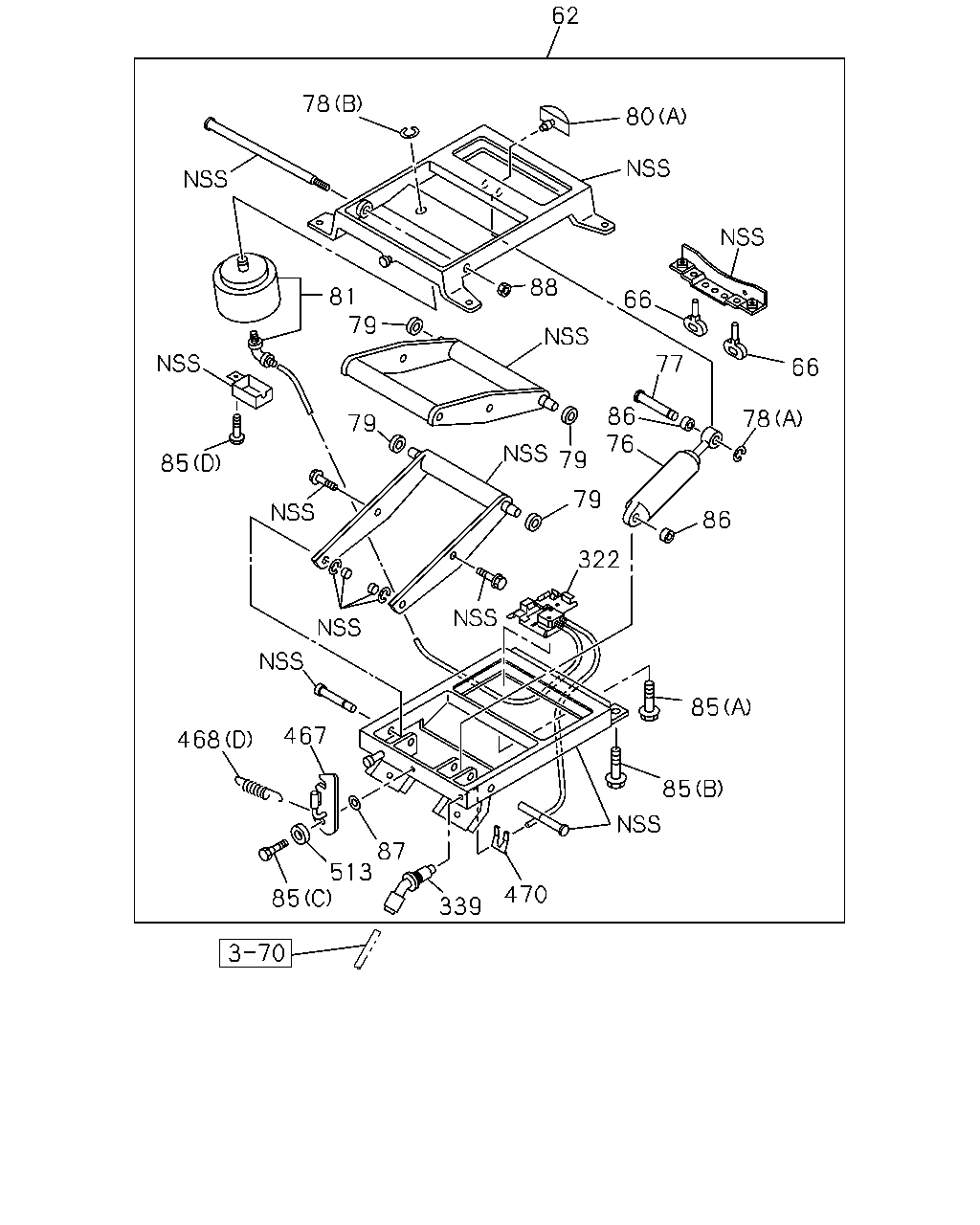

çizim 365304
62 80 66 66 78 86 85 85 470 339 513 85 87 467 468 85 79 81 88 77 86 79 76 79 322 78 79
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-8 01 1 1306-1403 ● ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-453-0 01 1 1404- ● ●
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 1306- ● ●
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 1306- ● ●
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 1306- ● ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 1306- ● ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 1306- ● ●
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 1306-1403 ● ●
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-489-0 04 1 1404- ● ●
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1306- ● ●
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 1306- ● ●
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 1306-1312 ● ●
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98242-816-0 01 1 1401- ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-1 01 1 1306- ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 		1-75538-208-1 02 1 1306- ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1306-1312 ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ● ●
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1306- ● ●
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 1306- ● ●
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		1-75537-273-1 01 1 1306- ● ●
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-187-3 01 1 1306- ● ●
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 1306- ● ●
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 1306- ● ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1306- ● ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1306- ● ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1306- ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 1306- ● ●
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 1306- ● ●
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 1306- ● ●

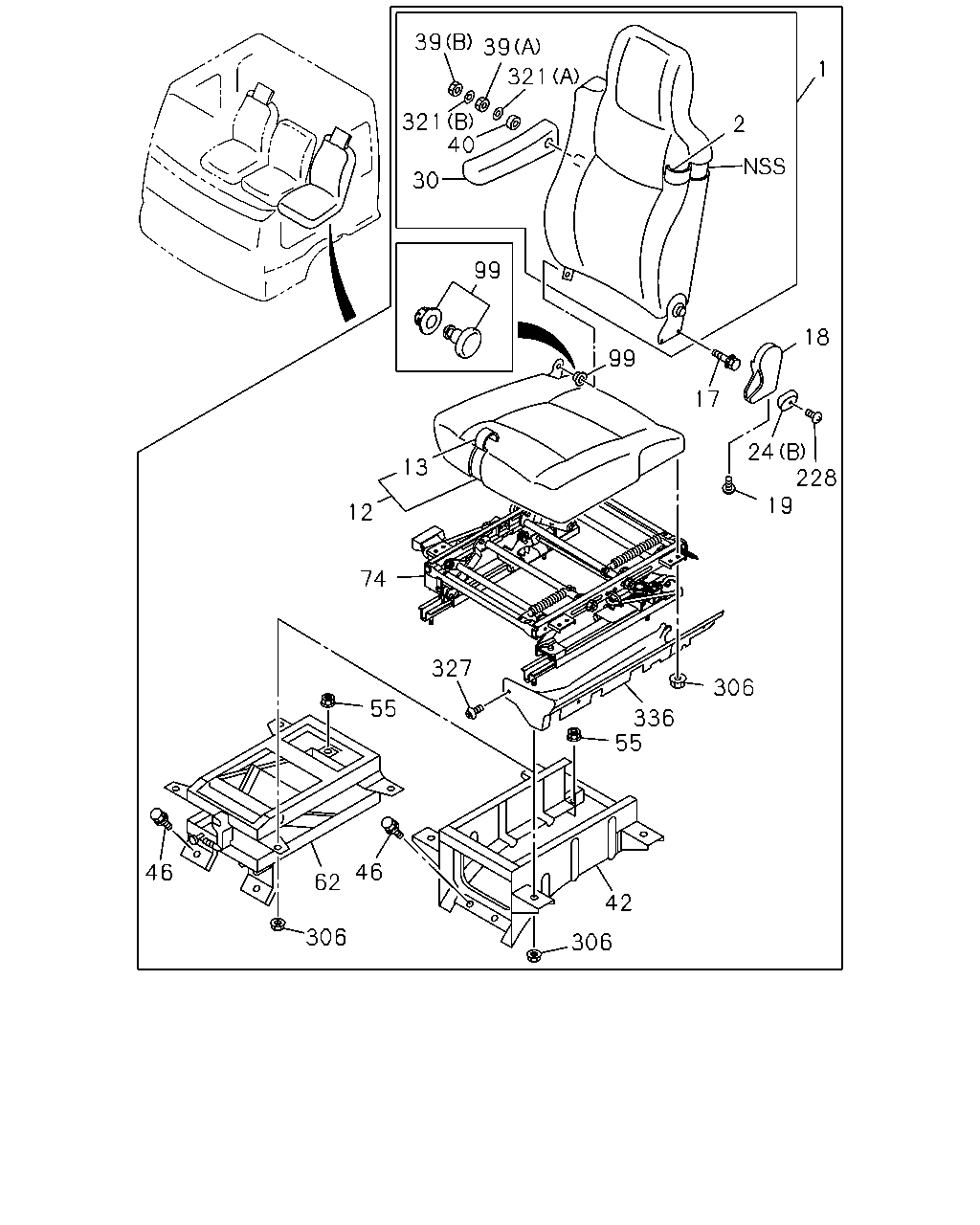

çizim 365377
1 2 39 39 321 321 40 30 99 99 17 18 24 228 19 306 336 55 327 74 12 13 42 306 46 62 306 46 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT 8-98210-851-0 01 1 1306- ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98210-852-0 01 1 1306- ● ●
12 CUSHION; SEAT,FRT 8-98210-849-0 01 1 1306- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98210-850-0 01 1 1306- ● ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 1306- ● ●
18 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 1306- ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 1306- ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 1306- ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 1306- ● ●
30 REST ASM; ARM,FRT SEAT 8-98230-584-0 01 1 1306- ● ●
39 NUT; ARM REST
(B) M8 		1-75147-657-0 01 1 1306- ● ●
39 NUT; ARM REST
(A) M10 		9-09110-410-0 01 1 1306- ● ●
40 SPACER; ARM REST 8-94285-921-0 02 1 1306- ● ●
42 STAND; DRIVER SEAT
RIGID SEAT W/ARM REST(SGC) 		1-75558-604-2 01 1 1306- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1306- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 1306- ● ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-8 01 1 1306-1403 ● ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-453-0 01 1 1404- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-331-3 01 1 1306-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-646-0 01 1 1503- ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 1306- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1306- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1306- ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 1306- ● ●
321 WASHER; PL,ARM REST
(A) ID=10.5 OD=22 		9-09160-610-0 01 1 1306- ● ●
321 WASHER; PL,ARM REST
(B) ID=8.4 OD=22 		9-09164-708-0 01 1 1306- ● ●
327 CLIP; COVER 1-09987-273-0 01 1 1306- ● ●
336 COVER; DRIVER SEAT 1-75518-313-0 01 1 1306- ● ●

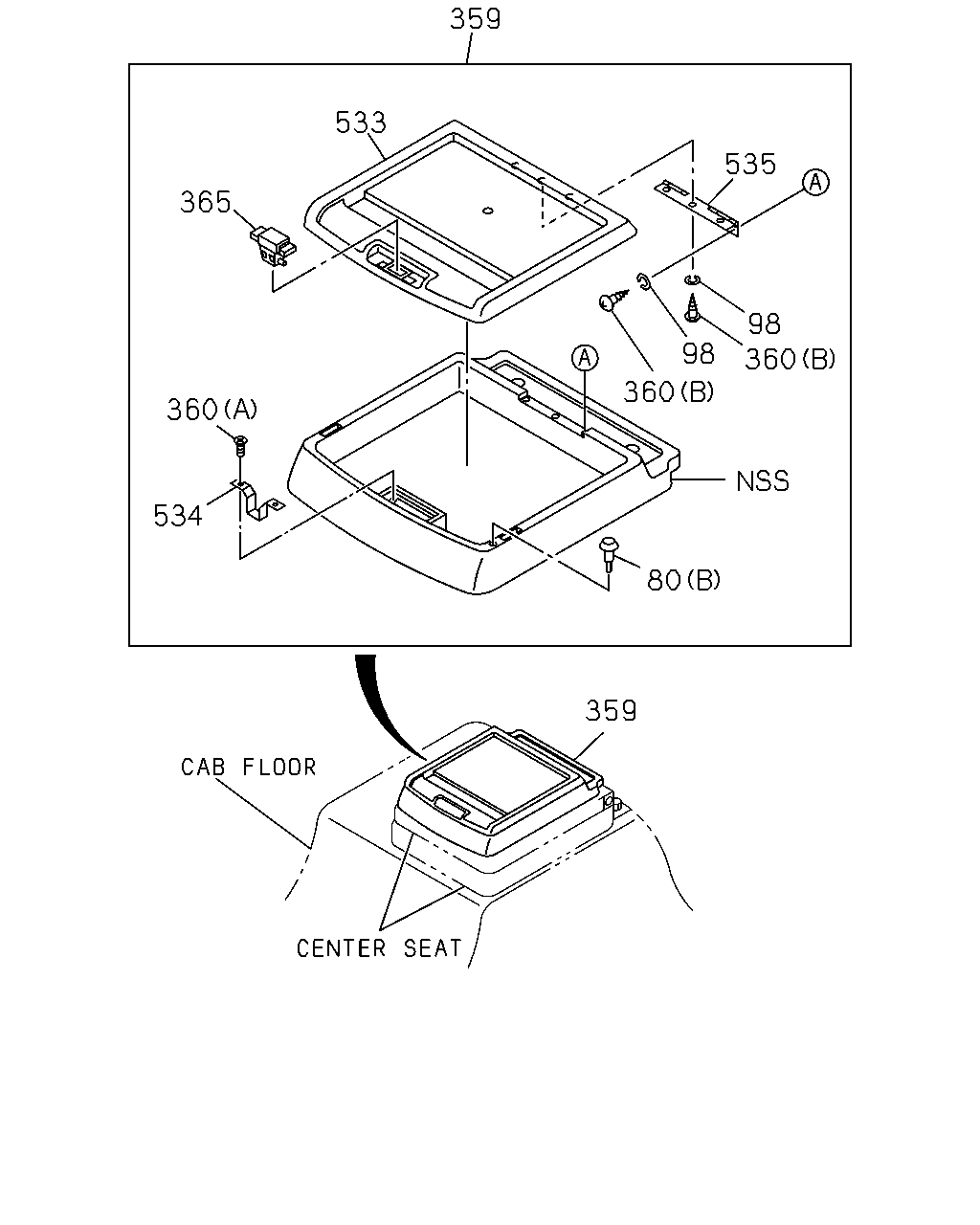

çizim 365378
359 80 360 98 360 98 535 359 533 365 360 534
BalonParca AdiParca NoAdetTipApplied Date A B
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1306- ● ●
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 1306- ● ●
98 WASHER; HINGE
CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 1306- ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1306- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1306- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1306- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1306- ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-180-0 01 1 1306- ● ●
533 LID; PARCEL BOX
CENTER SEAT(SA1) 		8-98145-118-0 01 1 1306- ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) 		1-72538-190-0 01 1 1306- ● ●
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 1306- ● ●
