7-40 — INSTRUMENT PANEL AND BOX (#123420) — 97 parça

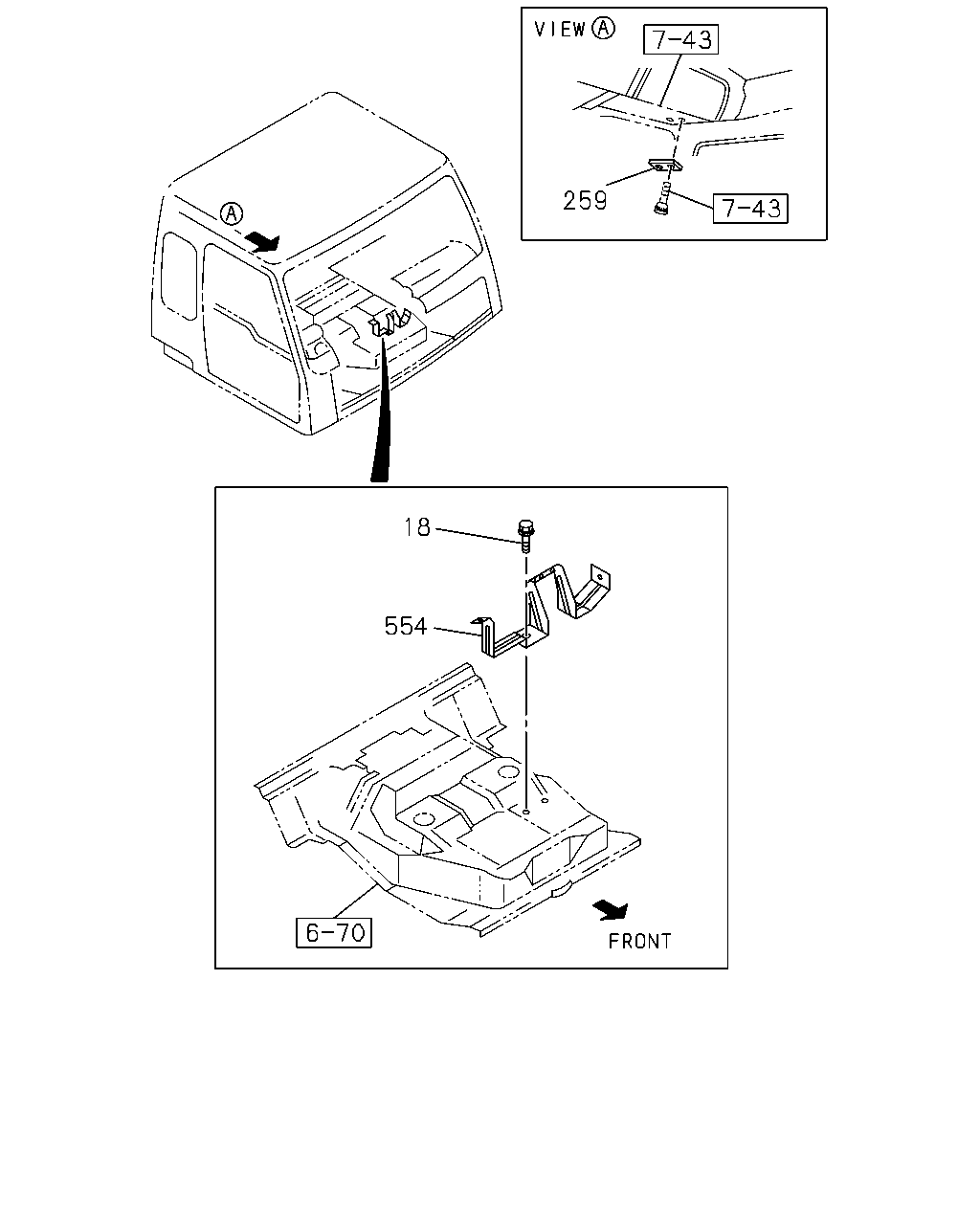

çizim 363421
18 554 259
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306- ● ●
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 1306- ● ●
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 1306- ● ●

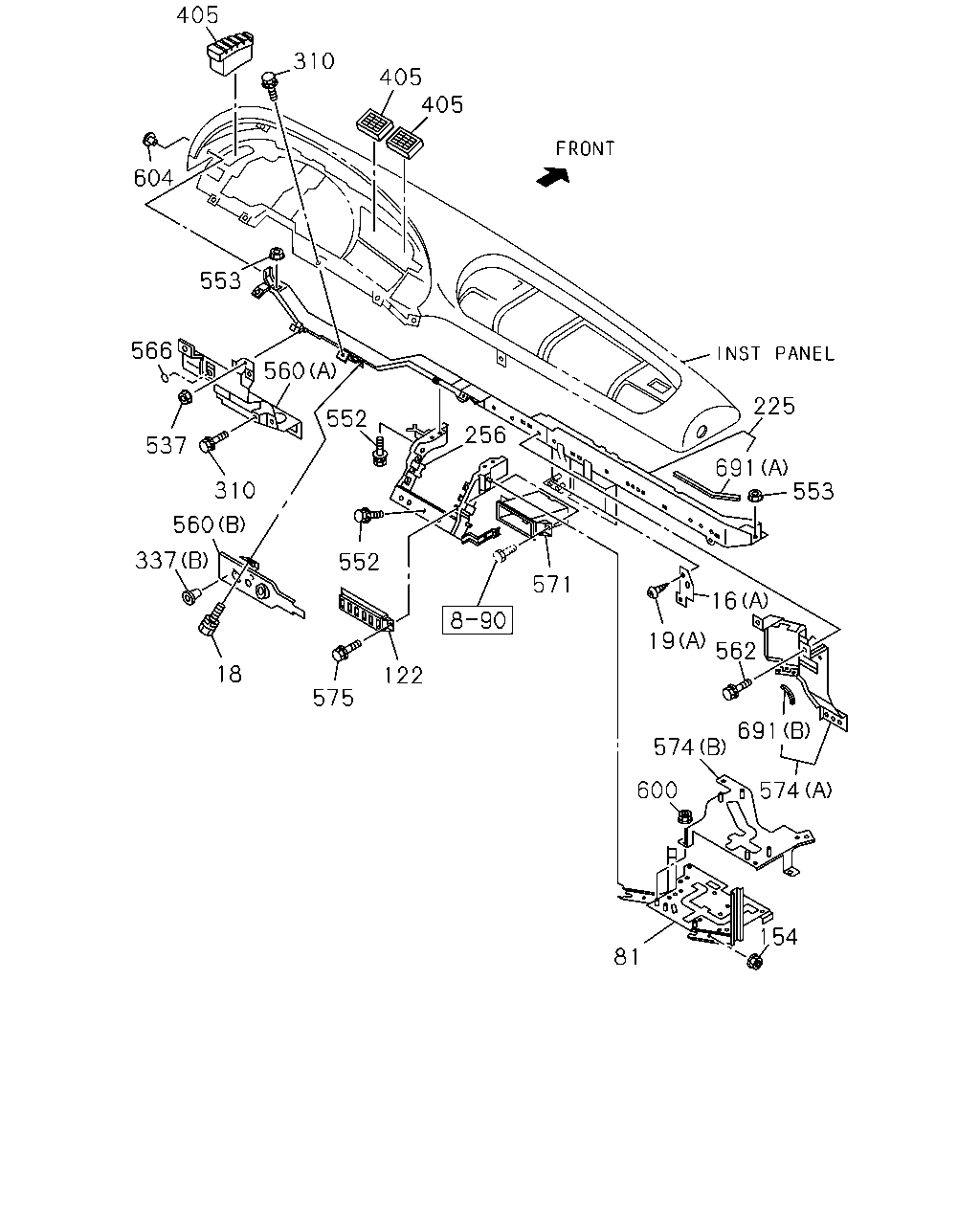

çizim 364988
405 310 405 405 560 552 553 604 571 256 552 122 575 18 337 310 537 566 560 691 562 19 553 225 691 16 574 574 600 154 81
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1306- ● ●
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1306- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306- ● ●
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1306- ● ●
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1306- ● ●
81 BRACKET; ELEC CONT UNIT 8-98217-886-1 01 1 1306- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1306- ● ●
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1306- ● ●
225 FRAME; FACIA 1-65671-727-5 01 1 1306- ● ●
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 1306- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1306- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1306- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1306- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1306- ● ●
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-72438-124-2 03 1 1306-1408 ● ●
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-72438-124-2 03 1 1409- ● ●
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 1306- ● ●
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 1306- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1306- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1306- ● ●
560 BRACKET
(A) 		1-65681-243-0 01 1 1306- ● ●
560 BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-65671-787-2 01 1 1306- ● ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306- ● ●
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306- ● ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1306- ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 1306- ● ●
574 PANEL; RELAY BOX
(B) 		8-98183-937-0 01 1 1306- ●
574 PANEL; RELAY BOX
CAB SUSPENSION-FULL FLOATING(SMK) (B) 		8-98183-937-0 01 1 1306- ●
574 PANEL; RELAY BOX
(A) 		1-73907-737-2 01 1 1306- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306- ● ●
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1306- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 1306- ● ●
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1306- ● ●
691 FINISHER; HARNESS PROTECTOR
(B) L=50 		8-94270-377-1 01 1 1306- ● ●

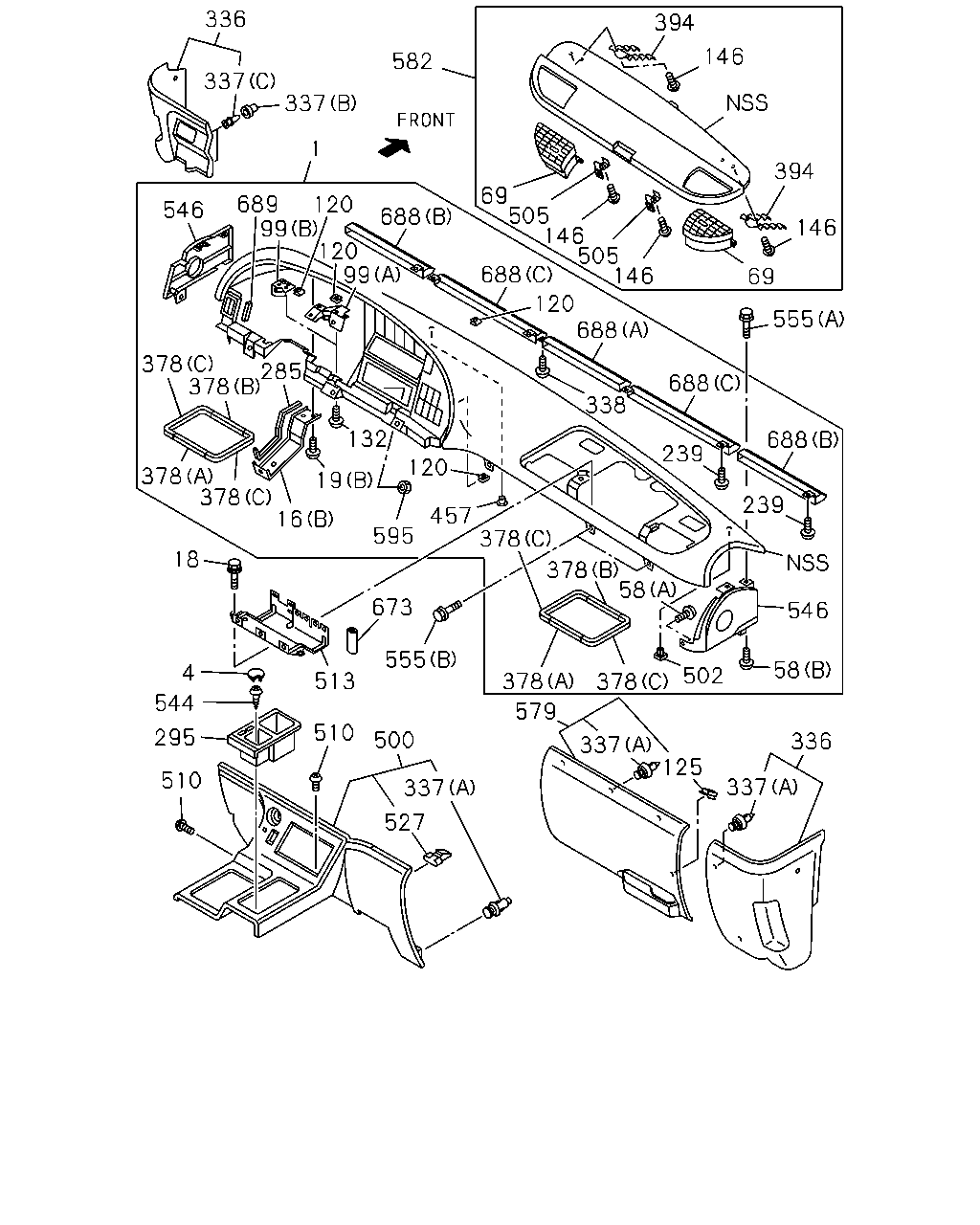

çizim 367296
336 582 394 146 394 146 69 555 146 505 146 505 69 688 120 1 337 337 546 689 120 99 688 688 688 120 338 239 688 546 239 58 502 336 337 125 337 579 378 378 58 378 378 457 555 337 527 510 513 295 510 544 4 18 595 120 19 16 132 285 378 378 378 378 99 673 500
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST 1-72317-370-2 01 1 1306- ● ●
4 COVER; INST PNL 1-72537-106-0 01 1 1306- ● ●
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1306- ● ●
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1306- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306- ● ●
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1306- ● ●
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1306- ● ●
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		0-71040-310-0 01 1 1306- ● ●
58 SCREW; INST PANEL
(B) M5X12 TAPPING 		9-07076-512-0 06 1 1306- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 1306- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 1306- ● ●
99 BRACKET; METER MTG,INST PNL
(A) 		1-72317-361-1 01 1 1306- ● ●
99 BRACKET; METER MTG,INST PNL
(B) 		1-72317-362-2 01 1 1306- ● ●
120 NUT; SPIRE,INST PNL
M5 		1-09984-196-0 09 1 1306- ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 1306- ● ●
132 SCREW; BRKT,INST PANEL
M5X12 TAPPING 		9-07076-512-0 04 1 1306- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1306- ● ●
239 SCREW; DEFROSTER
M5X12 TAPPING 		9-07076-512-0 10 1 1306- ● ●
285 FINISHER; INST PANEL
L=190 SERVICED BY L=314 		8-94262-845-0 02 1 1306- ● ●
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 1306- ● ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 1306- ● ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 1306- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1306- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1306- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1306- ● ●
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-72438-124-2 03 1 1306-1408 ● ●
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-72438-124-2 03 1 1409- ● ●
338 SCREW; COVER
M5X12 TAPPING 		9-07076-512-0 02 1 1306- ● ●
378 SEAL; INST PANEL
(A) 		1-72437-672-2 02 1 1306- ● ●
378 SEAL; INST PANEL
(B) 		1-72437-673-0 02 1 1306- ● ●
378 SEAL; INST PANEL
(C) 		1-72437-674-0 04 1 1306- ● ●
394 HOLDER; PANEL 1-72558-048-0 02 1 1306- ● ●
457 PLATE; INST PANEL 1-72317-363-2 08 1 1306- ● ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72437-642-1 01 1 1306-1408 ● ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72437-642-1 01 1 1409- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER 8-94430-318-1 04 1 1306- ● ●
505 LOCK; LID 1-72558-024-2 02 1 1306- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1306- ● ●
513 BRACKET; RELAY 8-97865-168-3 01 1 1306- ● ●
527 CLIP; INST CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97217-066-0 05 1 1306-1408 ● ●
527 CLIP; INST CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97217-066-0 05 1 1409- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1306- ● ●
546 PANEL; INST,SUB 1-72317-355-4 01 1 1306- ● ●
546 PANEL; INST,SUB 1-72317-354-4 01 1 1306- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1306- ● ●
579 COVER; INST PNL 1-72438-195-1 01 1 1306- ● ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 1306- ● ●
595 NUT; HOOK 1-72418-013-0 06 1 1306- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1306- ● ●
688 NOZZLE; DEFROSTER
(A) 		1-76377-184-1 01 1 1306- ● ●
688 NOZZLE; DEFROSTER
(B) 		1-76378-352-1 01 1 1306- ● ●
688 NOZZLE; DEFROSTER
(C) 		1-76378-381-3 01 1 1306- ● ●
688 NOZZLE; DEFROSTER
(B) 		1-76378-335-2 01 1 1306- ● ●
688 NOZZLE; DEFROSTER
(C) 		1-76378-378-6 01 1 1306- ● ●
689 SEAL; INST 1-72317-364-0 01 1 1306- ● ●
