◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11537 - CYZ LHD EURO2 WITH REFLECTOR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#123418) — 160 parça

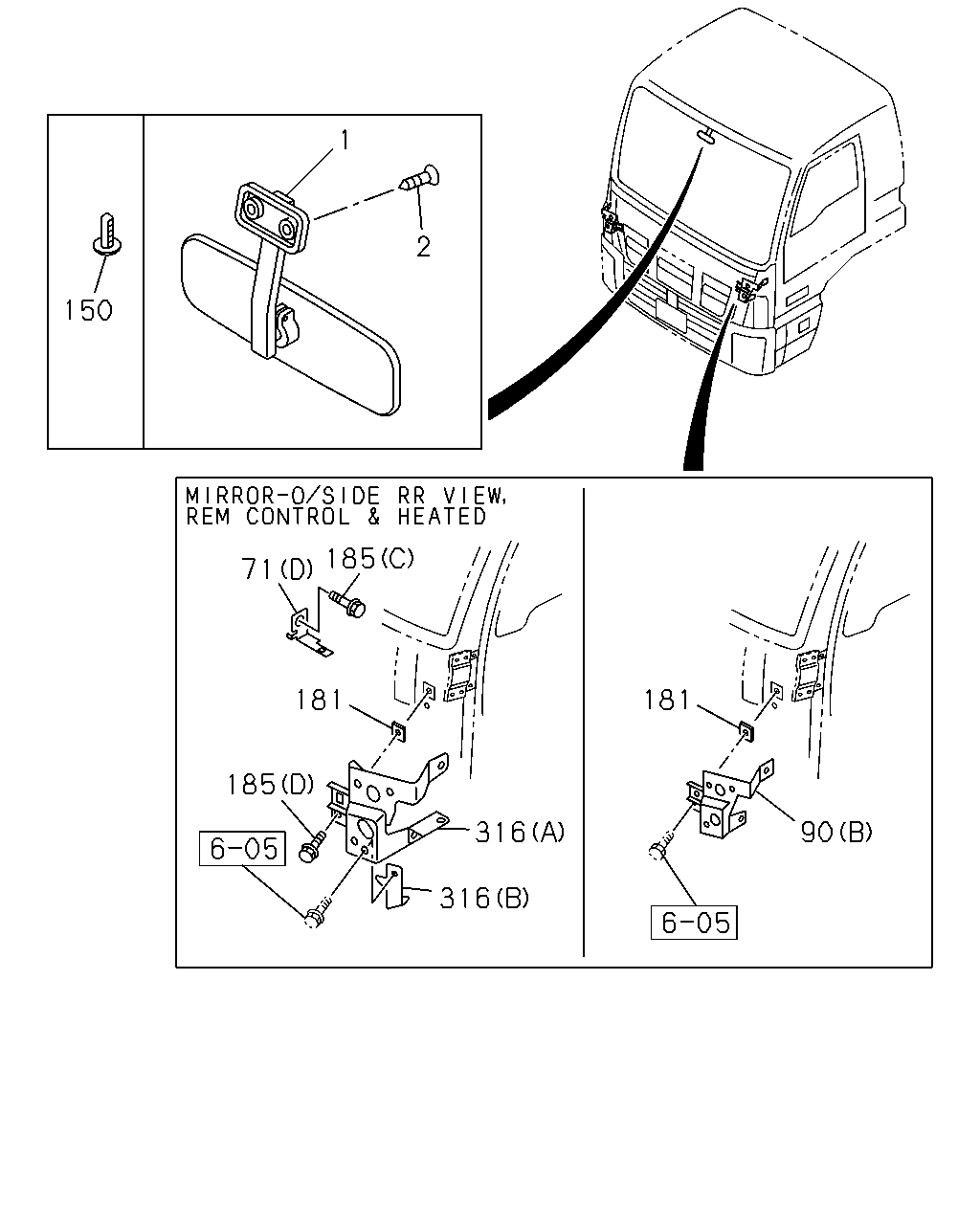

çizim 363629
2 1 150 90 181 181 185 71 316 316 185
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
RR VIEW MIRROR<D31> 		1-73117-033-1 01 1 1306- ● ●
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X20 		1-09981-310-0 02 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98167-111-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-133-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-263-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98154-718-2 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-132-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) 		8-98039-277-2 02 1 1306- ● ●
90 BRACKET; MIRROR STAY
(A) 		8-98147-160-1 02 1 1306- ● ●
90 BRACKET; MIRROR STAY
(B) 		1-71707-237-0 01 1 1306- ● ●
90 BRACKET; MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		1-71798-829-1 01 1 1306- ● ●
150 PLUG; MIRROR HOLE
EXC. RR VIEW MIRROR<D31> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 1306- ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1306- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1306- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 1306- ● ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ● ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE 		0-28660-616-0 01 1 1306- ● ●
316 BRACKET; CONNECTOR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A) 		8-98245-438-0 01 1 1306- ● ●
316 BRACKET; CONNECTOR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		8-98245-440-0 01 1 1306- ● ●

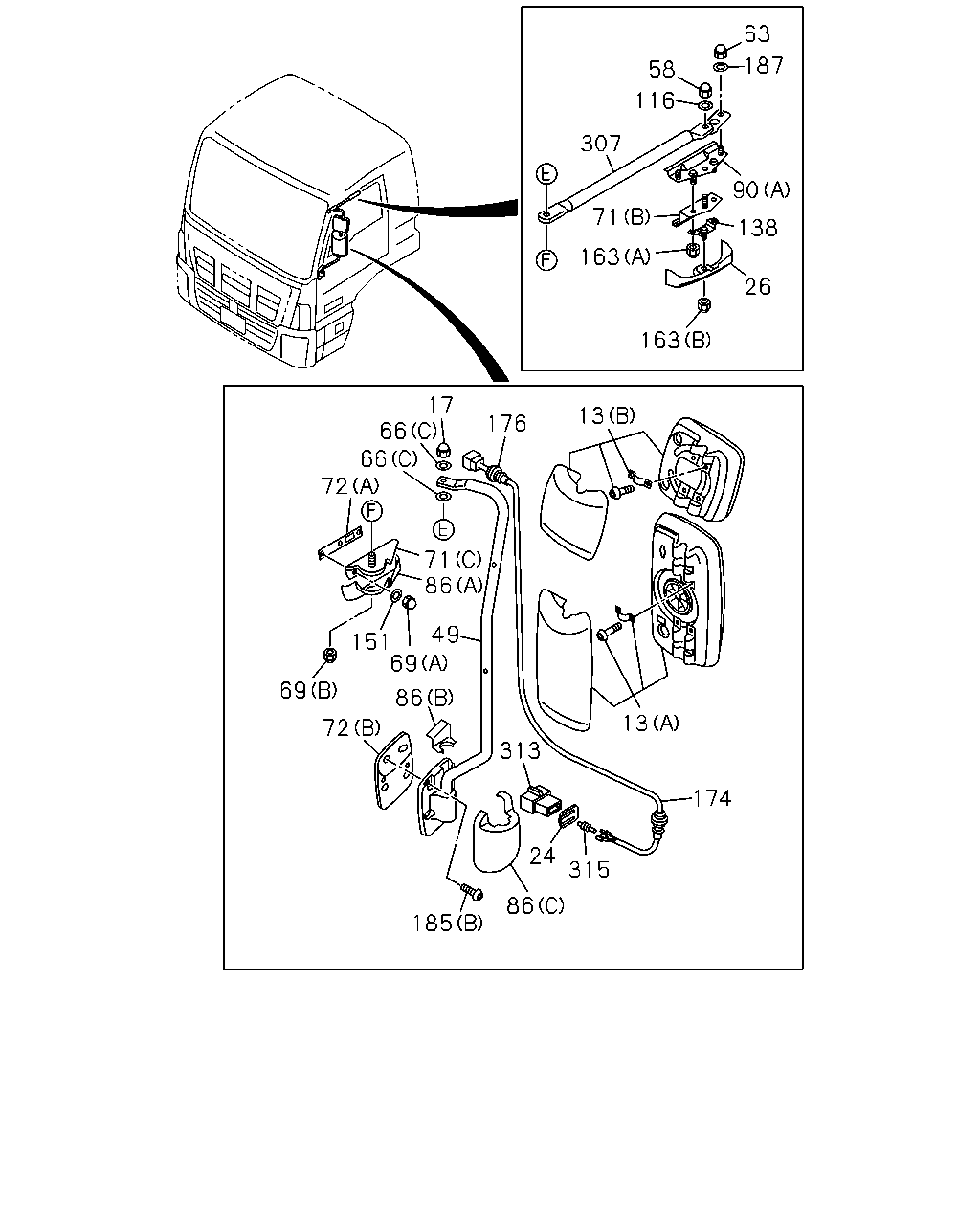

çizim 365017
174 315 86 185 24 313 86 72 69 69 151 49 86 13 71 72 66 66 176 17 13 163 26 138 163 71 90 307 116 187 58 63
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98043-056-2 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98043-172-2 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		8-98162-676-1 02 1 1306- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A) 		8-98043-176-1 01 1 1306- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A) 		8-98043-060-1 01 1 1306- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A) 		8-98055-992-1 01 1 1306- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A) 		8-98055-991-1 01 1 1306- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 02 1 1306- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1306- ● ●
24 HOLDER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-94447-536-0 02 1 1306- ● ●
26 COVER; OUTSIDE MIRROR 8-98171-924-0 02 1 1306- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-98222-325-0 01 1 1306- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-98222-324-0 01 1 1306- ● ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-98234-648-0 01 1 1306- ● ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-98234-647-0 01 1 1306- ● ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 03 1 1306- ● ●
63 NUT; STAY
M8 		1-09984-187-0 06 1 1306- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1306- ● ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1306- ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1306- ● ●
69 NUT; CAP
(A) M8 CAP NUT 		8-98059-914-0 06 1 1306- ● ●
69 NUT; CAP
(B) M8 CAP NUT FLANGE 		8-98197-000-0 02 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98167-111-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-133-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-263-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98154-718-2 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-132-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) 		8-98039-277-2 02 1 1306- ● ●
72 SHEET
(A) 		8-98147-891-0 02 1 1306- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		8-98101-865-0 01 1 1306- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		8-98101-864-0 01 1 1306- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		8-98116-605-0 01 1 1306- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		8-98116-604-0 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98031-803-2 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		8-98031-806-0 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		8-98151-197-0 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98031-802-2 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		8-98031-805-0 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		8-98151-196-0 01 1 1306- ● ●
90 BRACKET; MIRROR STAY
(A) 		8-98147-160-1 02 1 1306- ● ●
90 BRACKET; MIRROR STAY
(B) 		1-71707-237-0 01 1 1306- ● ●
90 BRACKET; MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		1-71798-829-1 01 1 1306- ● ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 03 1 1306- ● ●
138 BRACKET; LWR,OUTSIDE MIRROR 8-98171-926-0 02 1 1306- ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1306- ● ●
163 NUT; MIRROR BRKT
(A) M8 CAP NUT 		8-98059-914-0 04 1 1306- ● ●
163 NUT; MIRROR BRKT
(B) M8 CAP NUT FLANGE 		8-98197-000-0 02 1 1306- ● ●
174 HARNESS; MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97644-030-0 02 1 1306- ● ●
176 GROMMET; HARNESS
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		1-82699-906-0 02 1 1306- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1306- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 1306- ● ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ● ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE 		0-28660-616-0 01 1 1306- ● ●
187 WASHER; LK,BRKT
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 1306- ● ●
307 STAY; MIRROR SUPPORT 8-98154-969-1 01 1 1306- ● ●
307 STAY; MIRROR SUPPORT 8-98154-968-2 01 1 1306- ● ●
313 CONNECTOR; MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-94447-532-0 02 1 1306- ● ●
315 RUBBER ASM; CONNECTOR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		1-82691-026-0 02 1 1306- ● ●

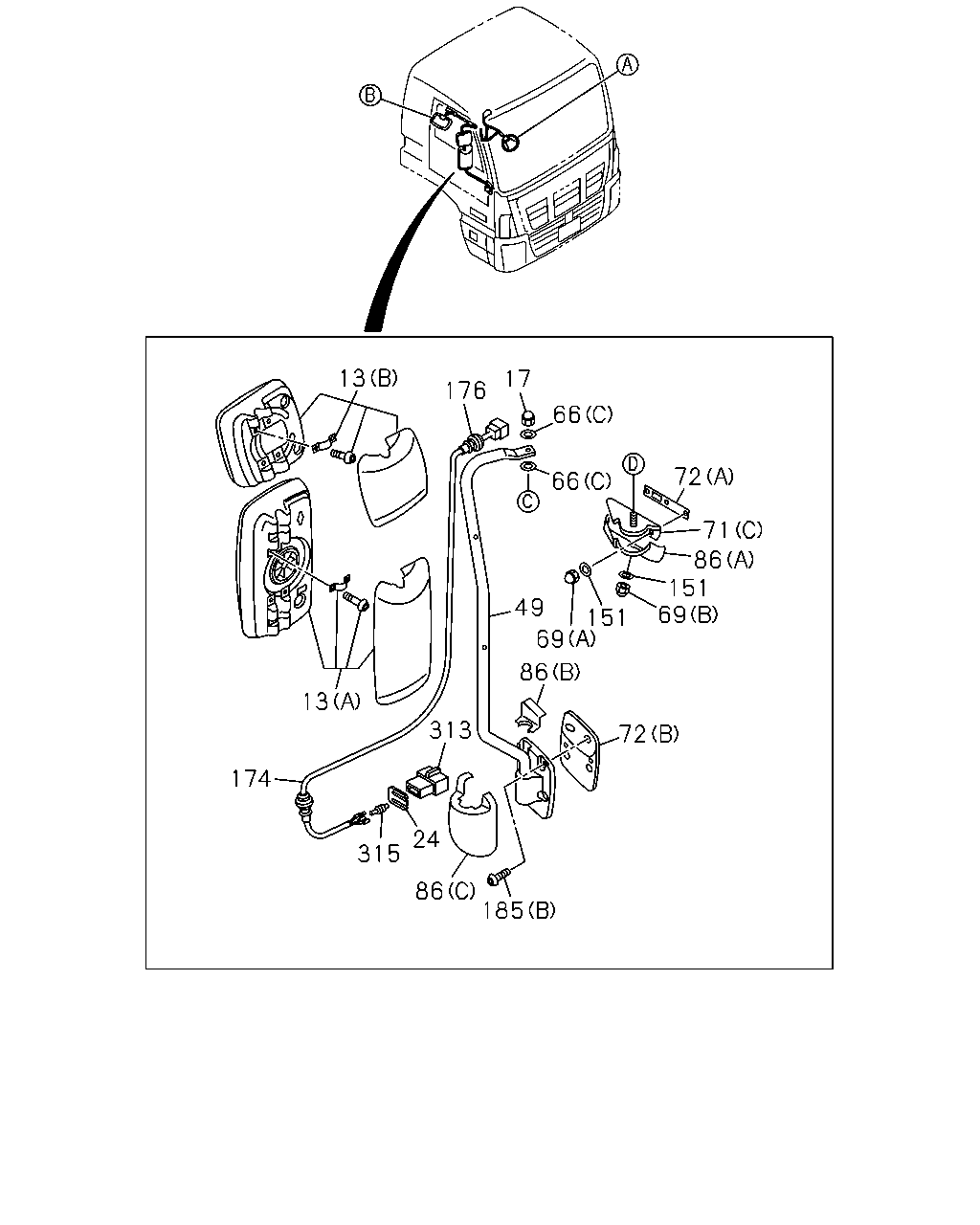

çizim 365085
13 17 176 66 66 72 71 86 69 72 151 151 49 69 86 313 13 174 315 86 24 185
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98043-056-2 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98043-172-2 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		8-98162-676-1 02 1 1306- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A) 		8-98043-176-1 01 1 1306- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A) 		8-98043-060-1 01 1 1306- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A) 		8-98055-992-1 01 1 1306- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A) 		8-98055-991-1 01 1 1306- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 02 1 1306- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1306- ● ●
24 HOLDER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-94447-536-0 02 1 1306- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-98222-325-0 01 1 1306- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-98222-324-0 01 1 1306- ● ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-98234-648-0 01 1 1306- ● ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-98234-647-0 01 1 1306- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1306- ● ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1306- ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1306- ● ●
69 NUT; CAP
(A) M8 CAP NUT 		8-98059-914-0 06 1 1306- ● ●
69 NUT; CAP
(B) M8 CAP NUT FLANGE 		8-98197-000-0 02 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98167-111-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-133-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-263-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98154-718-2 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-132-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) 		8-98039-277-2 02 1 1306- ● ●
72 SHEET
(A) 		8-98147-891-0 02 1 1306- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		8-98101-865-0 01 1 1306- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		8-98101-864-0 01 1 1306- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		8-98116-605-0 01 1 1306- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		8-98116-604-0 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98031-803-2 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		8-98031-806-0 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		8-98151-197-0 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98031-802-2 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		8-98031-805-0 01 1 1306- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		8-98151-196-0 01 1 1306- ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1306- ● ●
174 HARNESS; MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97644-030-0 02 1 1306- ● ●
176 GROMMET; HARNESS
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		1-82699-906-0 02 1 1306- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1306- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 1306- ● ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ● ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE 		0-28660-616-0 01 1 1306- ● ●
313 CONNECTOR; MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-94447-532-0 02 1 1306- ● ●
315 RUBBER ASM; CONNECTOR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		1-82691-026-0 02 1 1306- ● ●

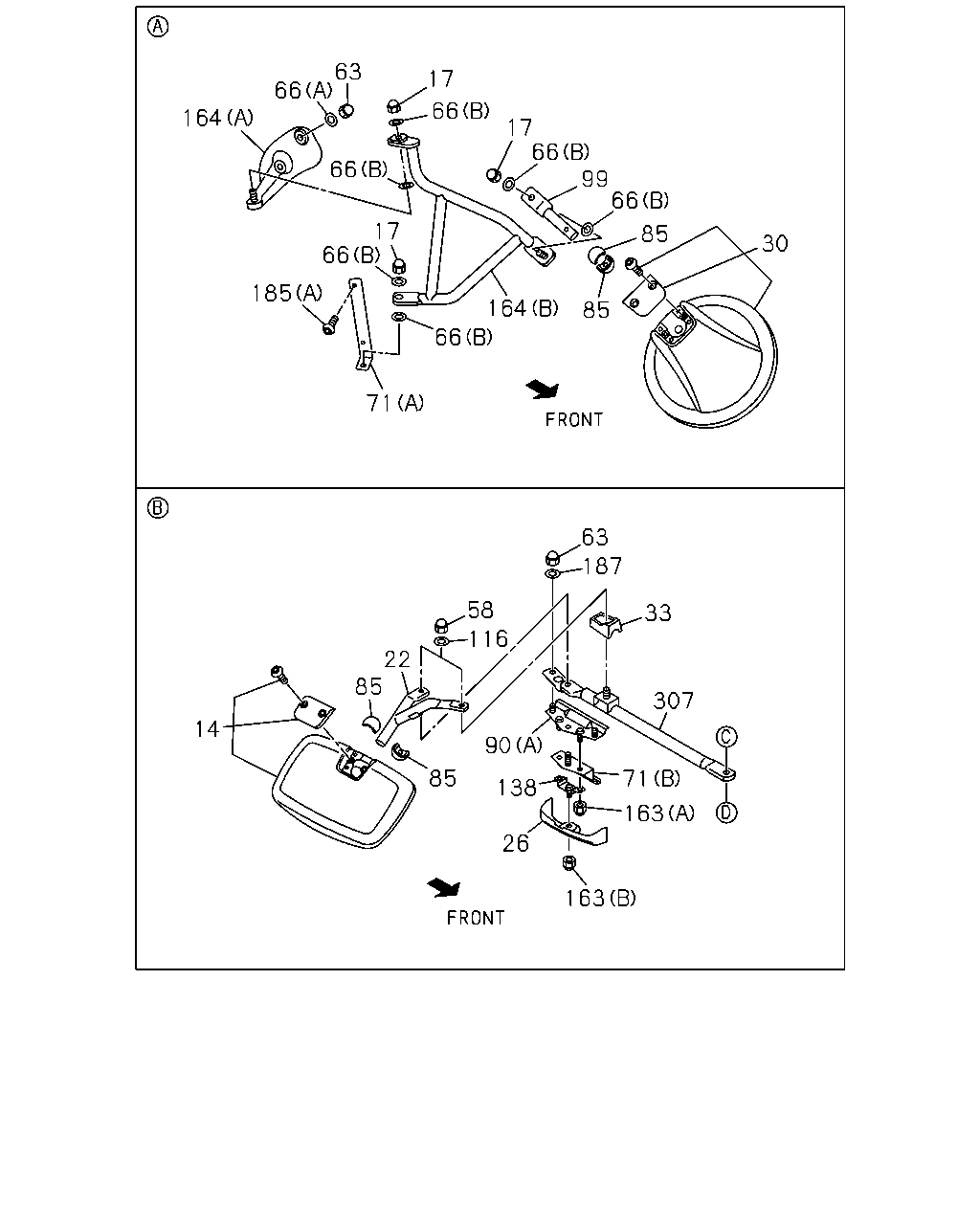

çizim 367335
163 163 71 307 26 138 90 85 33 187 63 116 58 22 85 14 30 85 164 66 71 85 66 99 66 17 17 66 185 66 66 17 63 66 164
BalonParca AdiParca NoAdetTipApplied Date A B
14 MIRROR ASM; OUTSIDE 8-98043-065-0 01 1 1306- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 02 1 1306- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1306- ● ●
22 STAY; OUTSIDE MIRROR 8-98154-821-0 01 1 1306- ● ●
26 COVER; OUTSIDE MIRROR 8-98171-924-0 02 1 1306- ● ●
30 MIRROR; UNDER 8-98055-994-0 01 1 1306-1504 ● ●
30 MIRROR; UNDER 8-98309-725-0 01 1 1505- ● ●
33 COVER; MIRROR 8-98171-925-0 01 1 1306- ● ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 03 1 1306- ● ●
63 NUT; STAY
M8 		1-09984-187-0 06 1 1306- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1306- ● ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1306- ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98167-111-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-133-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-263-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98154-718-2 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-132-0 01 1 1306- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) 		8-98039-277-2 02 1 1306- ● ●
85 PIVOT; MAIN MIRROR
ID=19.1 		1-71737-633-2 02 1 1306- ● ●
85 PIVOT; MAIN MIRROR
ID=19.1 		1-71737-633-2 02 1 1306- ● ●
90 BRACKET; MIRROR STAY
(A) 		8-98147-160-1 02 1 1306- ● ●
90 BRACKET; MIRROR STAY
(B) 		1-71707-237-0 01 1 1306- ● ●
90 BRACKET; MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B) 		1-71798-829-1 01 1 1306- ● ●
99 STAY; MAIN UNDER MIRROR 8-98092-493-0 01 1 1306- ● ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 03 1 1306- ● ●
138 BRACKET; LWR,OUTSIDE MIRROR 8-98171-926-0 02 1 1306- ● ●
163 NUT; MIRROR BRKT
(A) M8 CAP NUT 		8-98059-914-0 04 1 1306- ● ●
163 NUT; MIRROR BRKT
(B) M8 CAP NUT FLANGE 		8-98197-000-0 02 1 1306- ● ●
164 STAY; ROOF
(A) 		1-71798-300-5 01 1 1306- ● ●
164 STAY; ROOF
(B) 		8-98138-918-1 01 1 1306- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1306- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 1306- ● ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ● ●
185 BOLT; BRKT
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE 		0-28660-616-0 01 1 1306- ● ●
187 WASHER; LK,BRKT
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 1306- ● ●
307 STAY; MIRROR SUPPORT 8-98154-969-1 01 1 1306- ● ●
307 STAY; MIRROR SUPPORT 8-98154-968-2 01 1 1306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
