3-80 — BRAKE PIPING; TRAILER (#12341) — 50 parça

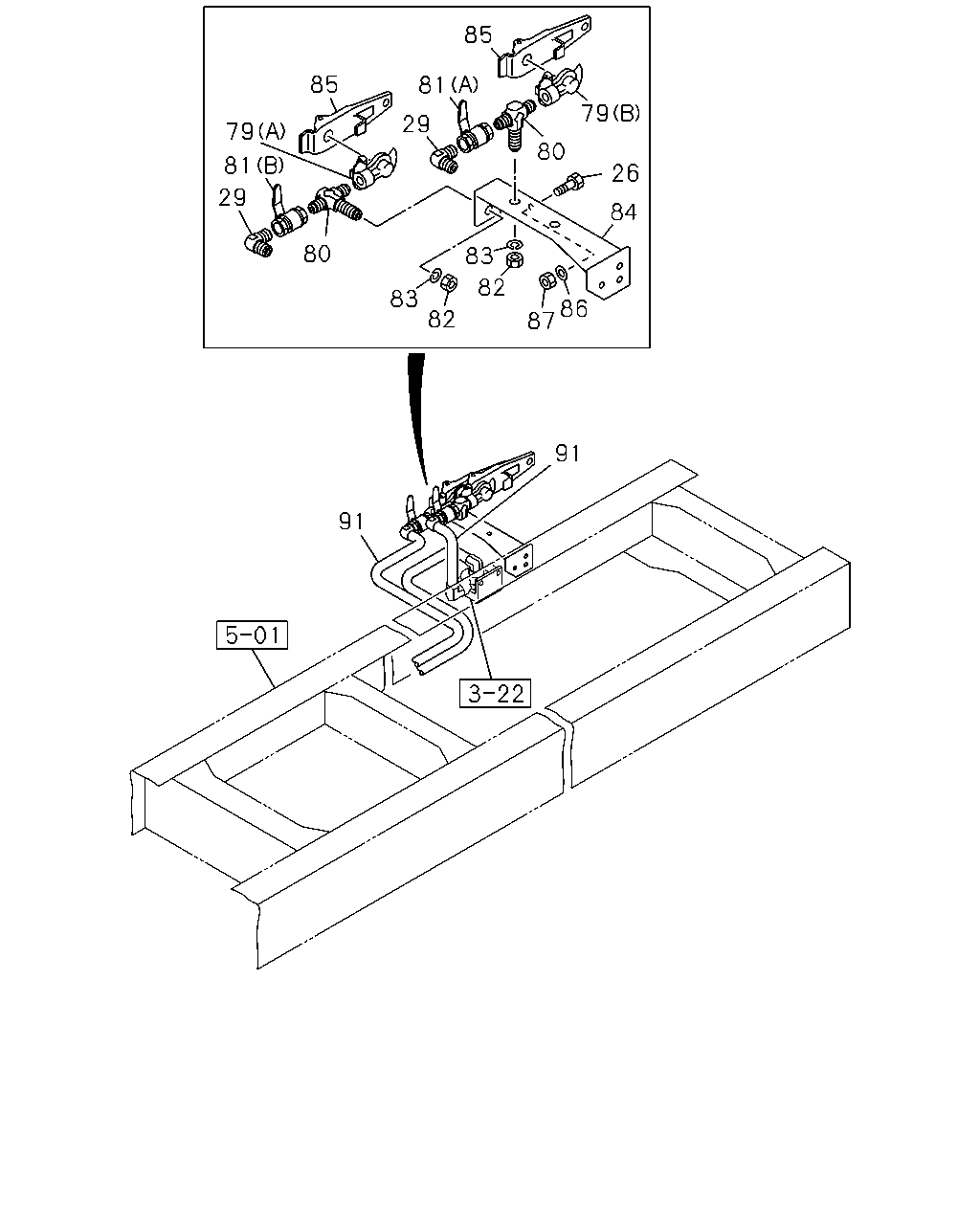

çizim 75240
85 85 81 79 29 81 79 80 26 29 83 84 80 86 87 82 83 82 91 91
BalonParca AdiParca NoAdetTipApplied Date
26 BOLT; CHAIN
M10X33 		9-09808-590-0 02 1 0105-
29 CONNECTOR; COCK
DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0105-
79 COUPLING; AIR,TRAILER
(A) BLUE 		1-47465-151-0 01 1 0105-
79 COUPLING; AIR,TRAILER
(B) RED 		1-47465-152-0 01 1 0105-
80 NIPPLE; AIR COUPLING 1-09656-377-1 02 1 0105-
81 COCK; AIR COUPLING
(A) RED 		1-09680-091-0 01 1 0105-
81 COCK; AIR COUPLING
(B) BLUE 		1-09680-092-0 01 1 0105-
82 NUT; LK,CONNECTOR
M16 		9-99111-416-0 02 1 0105-0512
82 NUT; LK,CONNECTOR
M16 		0-91111-516-0 02 1 0601-
83 WASHER; LK,CONNECTOR
ID=16.2 		9-09150-516-0 02 1 0105-
84 BRACKET; COUPLER 1-47465-883-1 01 1 0105-
85 CHAIN; AIR HOSE 1-47469-010-0 02 1 0105-
86 WASHER; PL
ID=10.5 OD=22 		9-09164-610-0 02 1 0105-
87 NUT
M10 FLANGE 		0-91150-210-0 02 1 0105-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0301
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0301
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302-
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-

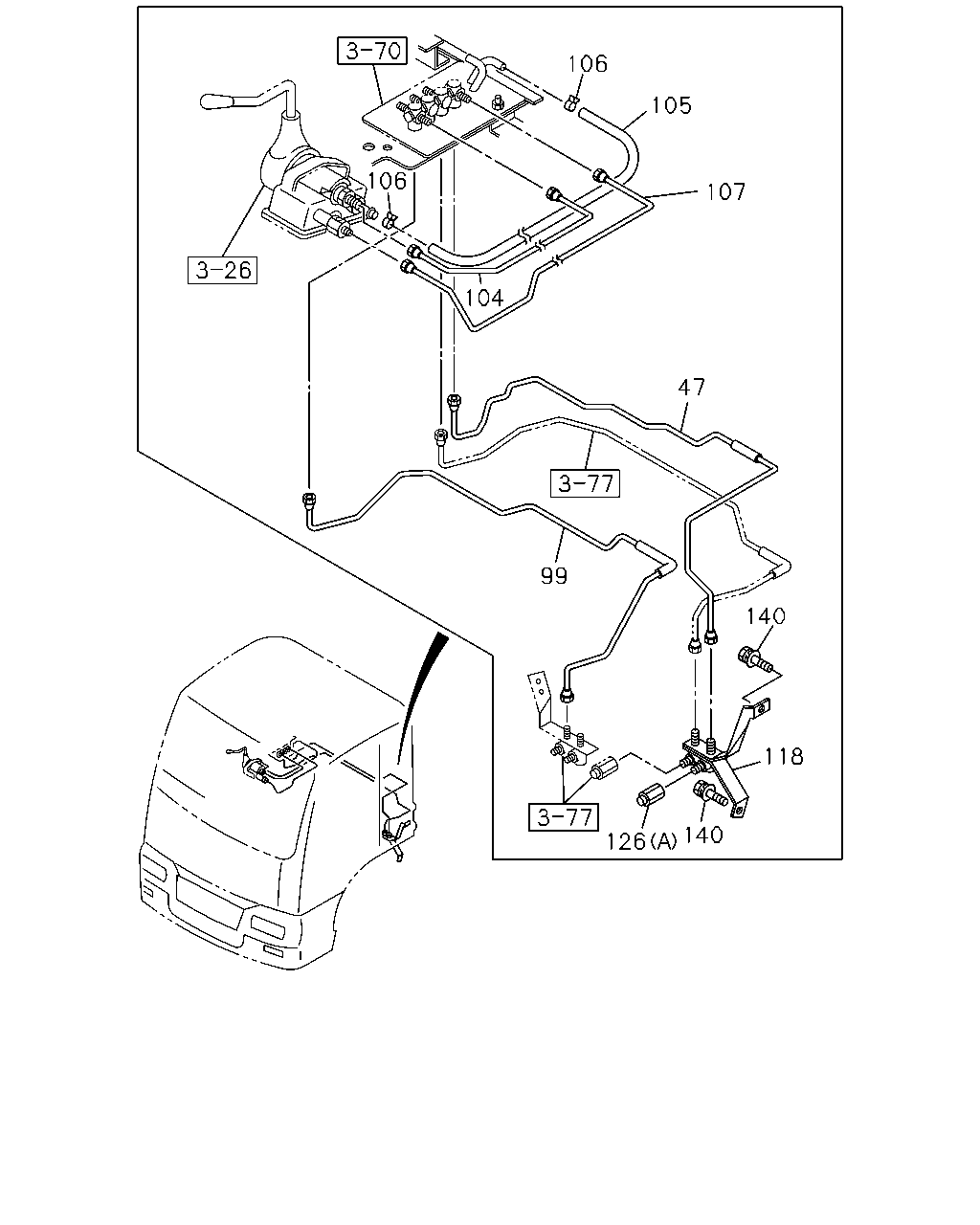

çizim 77913
106 105 106 107 104 47 99 140 118 140 126
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; AIR,UNION TO UNION
L=1936 		1-49121-473-0 01 1 0105-0301
47 PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM> 		1-49121-763-2 01 1 0302-
47 PIPE; AIR,UNION TO UNION
EXC. BAGGAGE BOX CAB RR SIDE<TBM> L=1910 SERVICED BY L=1950 		1-47428-854-0 01 1 0302-
99 PIPE; AIR,JOINT TO JOINT
L=1551 		1-49121-054-0 01 1 0105-0301
99 PIPE; AIR,JOINT TO JOINT
BAGGAGE BOX CAB RR SIDE<TBM> 		1-49122-058-1 01 1 0302-
99 PIPE; AIR,JOINT TO JOINT
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-49122-057-1 01 1 0302-
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-295-0 01 1 0105-0301
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49121-477-0 01 1 0302-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0105-
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-296-0 01 1 0105-0301
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-47495-160-0 01 1 0302-
118 JOINT; AIR PIPE 1-47470-608-1 01 1 0302-
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0105-
126 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0301
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0302-

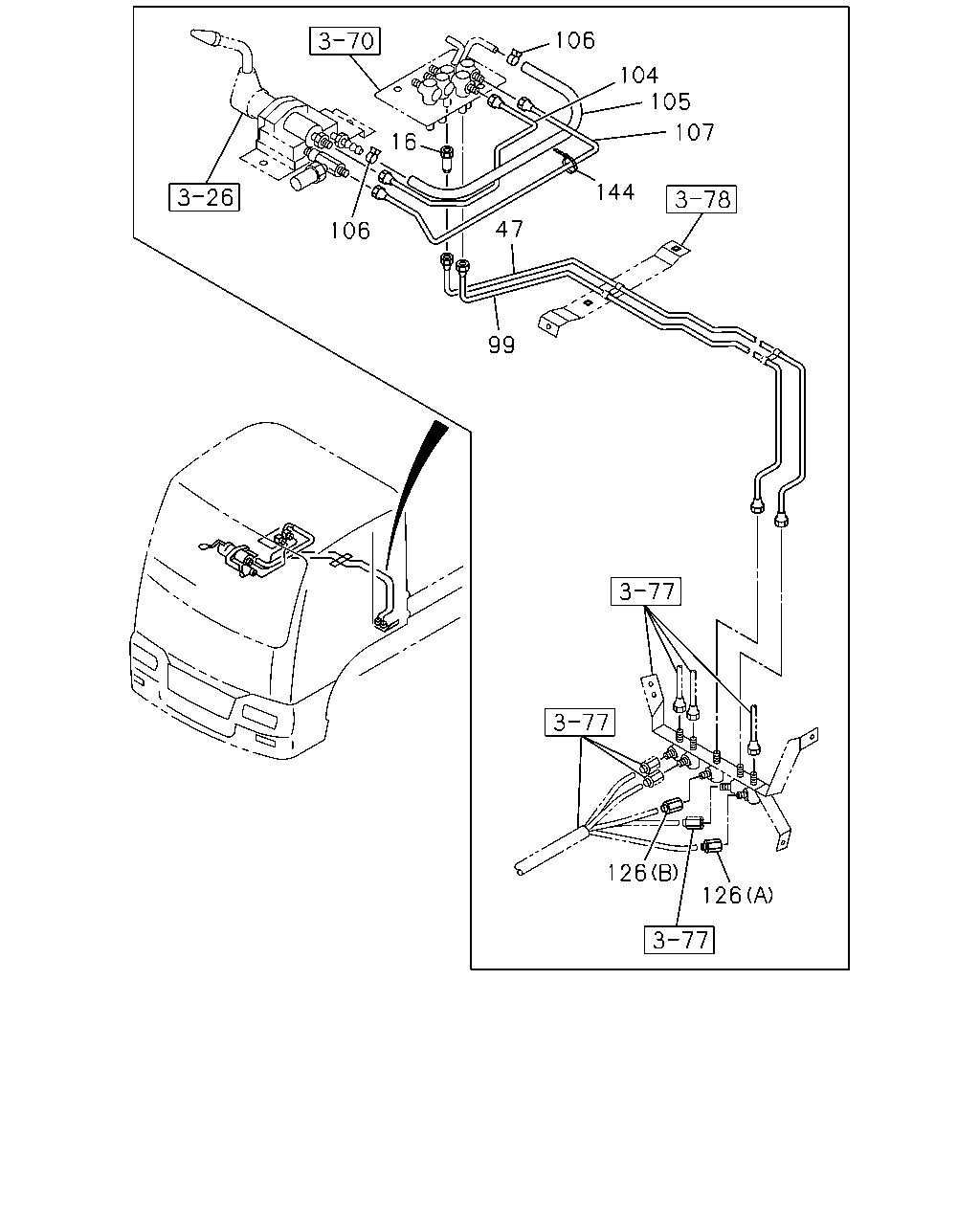

çizim 78404
106 104 105 107 16 144 47 106 99 126 126
BalonParca AdiParca NoAdetTipApplied Date
16 UNION; AIR PIPE 1-09654-258-1 01 1 0105-0301
47 PIPE; AIR,UNION TO UNION
L=1936 		1-49121-473-0 01 1 0105-0301
47 PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM> 		1-49121-763-2 01 1 0302-
47 PIPE; AIR,UNION TO UNION
EXC. BAGGAGE BOX CAB RR SIDE<TBM> L=1910 SERVICED BY L=1950 		1-47428-854-0 01 1 0302-
99 PIPE; AIR,JOINT TO JOINT
L=1551 		1-49121-054-0 01 1 0105-0301
99 PIPE; AIR,JOINT TO JOINT
BAGGAGE BOX CAB RR SIDE<TBM> 		1-49122-058-1 01 1 0302-
99 PIPE; AIR,JOINT TO JOINT
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-49122-057-1 01 1 0302-
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-295-0 01 1 0105-0301
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49121-477-0 01 1 0302-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0105-
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-296-0 01 1 0105-0301
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-47495-160-0 01 1 0302-
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0105-
126 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0301
144 CLIP; BAND
L=140 		5-09707-031-1 01 1 0112-
