◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 10869 - CXY(51) RHD AUSTRALIA ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#12340) — 221 parça

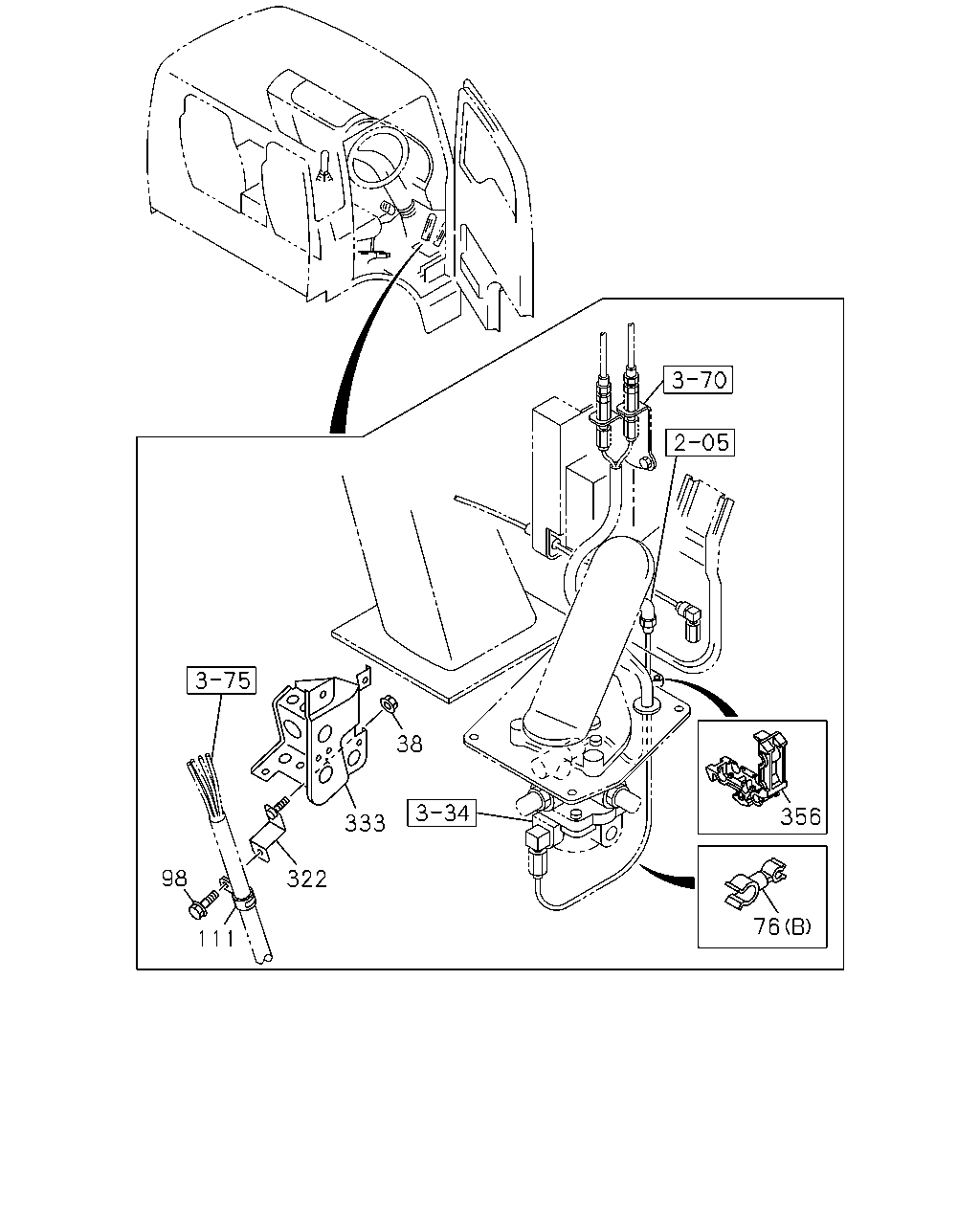

çizim 18674
38 356 333 98 322 76 111
BalonParca AdiParca NoAdetTipApplied Date
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 07 1 0105-
76 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 02 1 0105-
76 CLIP; NYLON TUBE
(B) ID=6 & 8.3 		8-94167-742-0 02 1 0105-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
111 CLIP; AIR PIPE
ID=35 L=33 		1-09700-945-0 01 1 0105-
322 BRACKET; CLIP 1-79996-360-0 01 1 0105-0601
322 BRACKET; CLIP 1-79996-659-1 01 1 0602-
333 BRACKET; BRK AIR PIPE 1-79997-360-6 01 1 0105-
356 CLIP; AIR PIPE
BLACK 		8-94222-876-0 01 1 0105-
çizim 20751
231 303 376 254 300 133 254 298 300 79 108 133 372 316 372 376 316 11 133 21 109 63 98 126 108 34 38 101 80 127 294 295 297 299
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0112-0512
11 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-
63 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
63 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
79 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
79 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
101 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-
108 BOLT; TUBE CLIP
(A) M8X25 FLANGE 		0-28080-825-0 05 1 0105-0107
108 BOLT; TUBE CLIP
(A) M8X25 FLANGE 		0-28080-825-0 04 1 0108-0204
108 BOLT; TUBE CLIP
(A) M8X25 FLANGE 		0-28080-825-0 03 1 0205-0512
108 BOLT; TUBE CLIP
(A) M8X25 FLANGE 		0-28050-825-0 03 1 0601-
108 BOLT; TUBE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
108 BOLT; TUBE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
108 BOLT; TUBE CLIP
(C) M8X20 FLANGE 		0-28080-820-0 01 1 0108-0512
108 BOLT; TUBE CLIP
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
108 BOLT; TUBE CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0205-0512
108 BOLT; TUBE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0105
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0204
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0204
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0205-0301
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0205-0301
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0302-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0204
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0205-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 06 1 0105-0512
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0601-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28080-825-0 01 1 0105-0512
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 01 1 0601-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0204
133 BOLT; BRKT
(C) M10X25 FLANGE 		0-28681-025-0 02 1 0205-0512
133 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0601-
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0108-0512
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
254 BOLT; PIPE CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 05 1 0105-0204
254 BOLT; PIPE CLIP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 05 1 0205-0205
254 BOLT; PIPE CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-0204
254 BOLT; PIPE CLIP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0205-0205
294 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0105-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0112-
298 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0301
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0301
300 BOLT; TUBE CLIP
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0206-
300 BOLT; TUBE CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0206-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
316 BOLT; CLIP
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
316 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
316 BOLT; CLIP
(B) M8X40 FLANGE 		0-28680-840-0 01 1 0105-0512
316 BOLT; CLIP
(B) M8X40 FLANGE 		0-28650-840-0 01 1 0601-
372 BOLT; CLIP BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
372 BOLT; CLIP BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
372 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
372 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
372 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
372 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
372 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28680-830-0 04 1 0105-0512
372 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
376 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
376 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-0206
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0207-
çizim 75805
16 16 16 16 22 22 321 379 321 370 321 22 81 106 321 100 106
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(A) 		1-47478-588-0 02 1 0105-
16 BRACKET; PIPE CLIP
(B) 		1-47478-589-0 01 1 0105-
16 BRACKET; PIPE CLIP
(D) 		1-47479-249-0 01 1 0105-
16 BRACKET; PIPE CLIP
(C) L=95 		1-82699-085-0 02 1 0105-
22 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 01 1 0105-
22 BRACKET; CLIP
(B) L=225 		1-47477-646-3 01 1 0105-
22 BRACKET; CLIP
(C) L=125 		1-47477-975-1 02 1 0105-
22 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 02 1 0112-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0105-
81 BRACKET; CLIP
(B) L=125 		1-47477-975-1 01 1 0105-
100 BRACKET; PIPE CLIP 1-47477-770-0 01 1 0105-
100 BRACKET; PIPE CLIP 1-47477-365-0 01 1 0105-
106 BRACKET; TUBE CLIP
(A) 		1-47476-200-0 01 1 0105-0111
106 BRACKET; TUBE CLIP
(C) 		1-47477-694-0 01 1 0112-
106 BRACKET; TUBE CLIP
(B) L=115 B=25 		1-47476-758-0 01 1 0108-
321 BRACKET; CLIP
(A) 		1-47477-472-1 01 1 0105-0301
321 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0105-
321 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0105-0301
321 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0302-
321 BRACKET; CLIP
(D) 		1-47477-810-0 01 1 0105-
370 BRACKET; PIPE CLIP 1-47477-669-1 01 1 0105-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 0105-
çizim 76893
375 286 78 266 266 107 107 107 270 128 266 110 110 111 270 270 128 110 375 369
BalonParca AdiParca NoAdetTipApplied Date
78 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0105-
107 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09701-047-0 03 1 0105-0107
107 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09701-047-0 02 1 0108-
107 CLIP; NYLON TUBE
(D) ID=35 L=35 		1-09700-895-0 01 1 0108-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0105-
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32 		1-09701-263-0 02 1 0105-0204
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32 		1-09701-263-0 01 1 0205-0301
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35 		1-09700-994-0 01 1 0205-0301
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35 		1-09700-994-0 02 1 0302-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (E) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0302-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 20 1 0105-0204
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 21 1 0205-0301
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 46 1 0302-0304
110 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 46 1 0305-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 22 1 0105-0105
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 24 1 0106-0204
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 25 1 0205-0301
110 CLIP; BAND,NYLON TUBE
FULL TRACTOR TRUCK<RD6> (C) L=140 		5-09707-031-1 02 1 0105-0111
110 CLIP; BAND,NYLON TUBE
(C) L=140 		5-09707-031-1 01 1 0112-
110 CLIP; BAND,NYLON TUBE
EXC. FULL TRACTOR TRUCK<RD6> (C) L=140 		5-09707-031-1 01 1 0105-0111
110 CLIP; BAND,NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (A) ID=35 L=33 		1-09700-945-0 01 1 0105-0301
110 CLIP; BAND,NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (D) ID=28 L=40 		1-09700-995-1 01 1 0302-
110 CLIP; BAND,NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (E) ID=28 L=40 		1-09701-261-0 01 1 0302-
111 CLIP; AIR PIPE
ID=35 L=33 		1-09700-945-0 01 1 0105-
128 CLIP; NYLON TUBE
(A) ID=24 L=27 		1-09700-809-0 04 1 0105-
128 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0105-
128 CLIP; NYLON TUBE
(C) ID=11.8 & 7.5 		1-09709-182-0 02 1 0105-
266 CLIP; NYLON TUBE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 0105-0201
266 CLIP; NYLON TUBE
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 0202-
266 CLIP; NYLON TUBE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0105-
266 CLIP; NYLON TUBE
(C) L=250 		1-09707-126-0 02 1 0105-0304
266 CLIP; NYLON TUBE
(E) L=350 		1-09707-183-0 02 1 0305-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0309-
270 CLIP; NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 0105-0301
270 CLIP; NYLON TUBE
(B) ID=28 L=32 		1-09701-107-1 02 1 0302-0308
270 CLIP; NYLON TUBE
(B) ID=28 L=32 		1-09701-107-1 01 1 0309-
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 02 1 0105-
286 CLIP; NYLON TUBE
(B) ID=18 L=28 H=30 		1-09701-110-0 01 1 0106-
369 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0105-
375 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-0202
375 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0203-0301
375 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 01 1 0105-0301

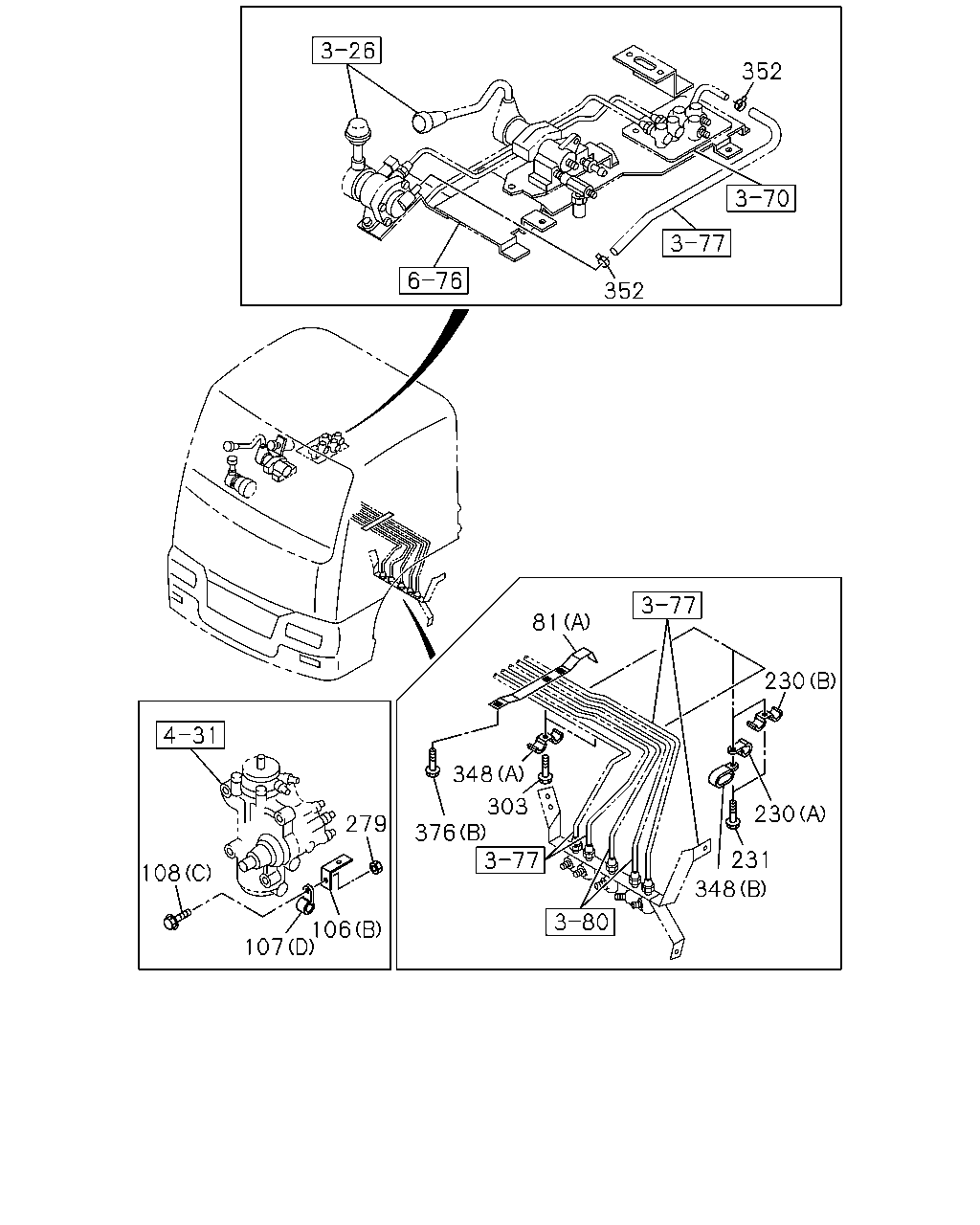

çizim 78278
352 352 81 230 348 303 376 230 279 231 108 348 106 107
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0105-
81 BRACKET; CLIP
(B) L=125 		1-47477-975-1 01 1 0105-
106 BRACKET; TUBE CLIP
(A) 		1-47476-200-0 01 1 0105-0111
106 BRACKET; TUBE CLIP
(C) 		1-47477-694-0 01 1 0112-
106 BRACKET; TUBE CLIP
(B) L=115 B=25 		1-47476-758-0 01 1 0108-
107 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09701-047-0 03 1 0105-0107
107 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09701-047-0 02 1 0108-
107 CLIP; NYLON TUBE
(D) ID=35 L=35 		1-09700-895-0 01 1 0108-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0105-
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32 		1-09701-263-0 02 1 0105-0204
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32 		1-09701-263-0 01 1 0205-0301
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35 		1-09700-994-0 01 1 0205-0301
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35 		1-09700-994-0 02 1 0302-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (E) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0302-
108 BOLT; TUBE CLIP
(A) M8X25 FLANGE 		0-28080-825-0 05 1 0105-0107
108 BOLT; TUBE CLIP
(A) M8X25 FLANGE 		0-28080-825-0 04 1 0108-0204
108 BOLT; TUBE CLIP
(A) M8X25 FLANGE 		0-28080-825-0 03 1 0205-0512
108 BOLT; TUBE CLIP
(A) M8X25 FLANGE 		0-28050-825-0 03 1 0601-
108 BOLT; TUBE CLIP
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
108 BOLT; TUBE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
108 BOLT; TUBE CLIP
(C) M8X20 FLANGE 		0-28080-820-0 01 1 0108-0512
108 BOLT; TUBE CLIP
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
108 BOLT; TUBE CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0205-0512
108 BOLT; TUBE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
230 CLIP; PIPE,AIR
(A) ID=9 L=16 		9-09524-822-0 02 1 0105-0301
230 CLIP; PIPE,AIR
(B) ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0302-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0108-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
348 CLIP; AIR PIPE
(A) ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0105-
348 CLIP; AIR PIPE
(B) ID=13X2 L=16 		9-09535-225-0 02 1 0105-0301
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0105-
376 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
376 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-0206
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0207-
çizim 78966
110 107 128 76 110 266 269 286 76 266
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 07 1 0105-
76 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 02 1 0105-
76 CLIP; NYLON TUBE
(B) ID=6 & 8.3 		8-94167-742-0 02 1 0105-
107 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09701-047-0 03 1 0105-0107
107 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09701-047-0 02 1 0108-
107 CLIP; NYLON TUBE
(D) ID=35 L=35 		1-09700-895-0 01 1 0108-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0105-
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32 		1-09701-263-0 02 1 0105-0204
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32 		1-09701-263-0 01 1 0205-0301
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35 		1-09700-994-0 01 1 0205-0301
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35 		1-09700-994-0 02 1 0302-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (E) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0302-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 20 1 0105-0204
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 21 1 0205-0301
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 46 1 0302-0304
110 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 46 1 0305-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 22 1 0105-0105
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 24 1 0106-0204
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 25 1 0205-0301
110 CLIP; BAND,NYLON TUBE
FULL TRACTOR TRUCK<RD6> (C) L=140 		5-09707-031-1 02 1 0105-0111
110 CLIP; BAND,NYLON TUBE
(C) L=140 		5-09707-031-1 01 1 0112-
110 CLIP; BAND,NYLON TUBE
EXC. FULL TRACTOR TRUCK<RD6> (C) L=140 		5-09707-031-1 01 1 0105-0111
110 CLIP; BAND,NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (A) ID=35 L=33 		1-09700-945-0 01 1 0105-0301
110 CLIP; BAND,NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (D) ID=28 L=40 		1-09700-995-1 01 1 0302-
110 CLIP; BAND,NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (E) ID=28 L=40 		1-09701-261-0 01 1 0302-
128 CLIP; NYLON TUBE
(A) ID=24 L=27 		1-09700-809-0 04 1 0105-
128 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0105-
128 CLIP; NYLON TUBE
(C) ID=11.8 & 7.5 		1-09709-182-0 02 1 0105-
266 CLIP; NYLON TUBE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 0105-0201
266 CLIP; NYLON TUBE
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 0202-
266 CLIP; NYLON TUBE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0105-
266 CLIP; NYLON TUBE
(C) L=250 		1-09707-126-0 02 1 0105-0304
266 CLIP; NYLON TUBE
(E) L=350 		1-09707-183-0 02 1 0305-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 40 1 0105-0111
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 42 1 0112-0204
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 43 1 0205-0304
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 43 1 0305-
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 02 1 0105-
286 CLIP; NYLON TUBE
(B) ID=18 L=28 H=30 		1-09701-110-0 01 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
