Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#1234) — 582 parça

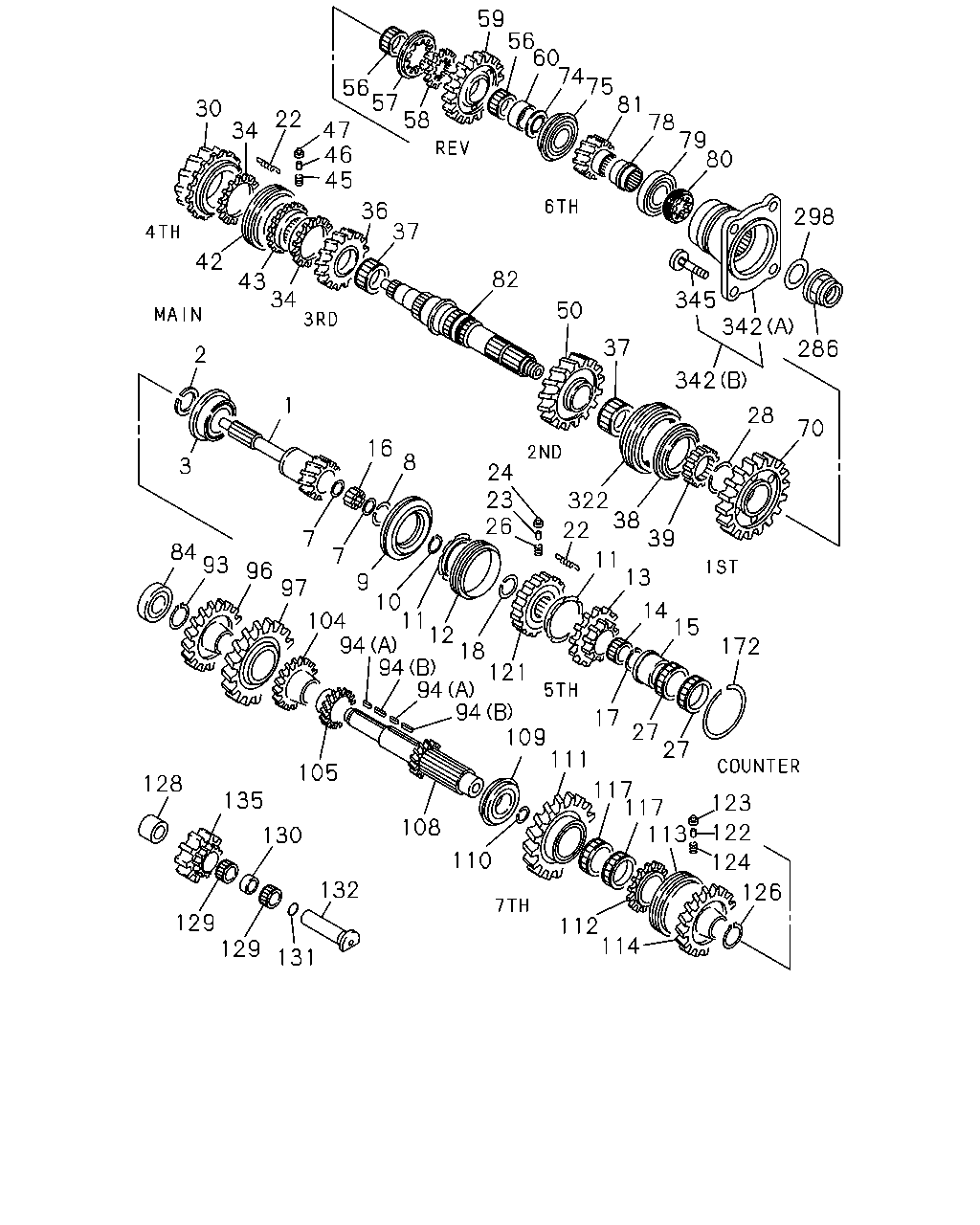

59 56 60 74 75 81 78 79 80 56 57 58 30 34 22 47 46 45 36 37 298 42 82 43 34 345 342 50 286 37 2 342 1 28 70 16 8 3 24 23 26 322 38 39 22 7 84 93 7 11 96 97 13 9 10 104 11 12 94 18 94 121 94 94 109 111 14 15 172 17 27 27 105 128 117 117 113 135 123 108 122 130 110 124 132 126 129 129 112 114 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-502-1	01	1	9202-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-		●	●
1	SHAFT; TOP GEAR,TRANS	1-33211-873-0	01	1	9306-				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT	1-33219-069-0	01	1	9306-				●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-159-0	01	1	9306-				●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9202-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9202-	●	●	●
9	CLUTCH; DOG,TOP GEAR	1-33219-068-0	01	1	9306-				●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9202-	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9202-	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-400-3	01	1	9202-9308	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9309-	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-413-2	01	1	9202-9308		●	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9309-		●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9202-	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9202-	●	●	●
15	COLLAR; 4TH GEAR	1-33259-037-0	01	1	9306-				●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9202-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9202-	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-	●	●	●
18	RING; SNAP,CLU HUB T=2.80	1-33259-024-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.75	1-33259-025-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.70	1-33259-026-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.65	1-33259-027-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.60	1-33259-028-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.55	1-33259-029-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.50	1-33259-030-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.45	1-33259-031-0	01	1	9306-				●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9202-		●
27	BEARING; 4TH GEAR	1-09811-300-0	02	1	9202-	●	●	●
27	BEARING; 4TH GEAR	1-33259-036-0	01	1	9306-				●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9202-9308	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308		●	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-		●	●
30	GEAR; 4TH,MAINSHAFT Z=30	1-33252-429-0	01	1	9306-				●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9202-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-428-0	01	1	9306-				●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9202-	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9202-	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9202-	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-197-0	01	1	9202-9412	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9501-	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-	●	●	●
42	SLEEVE	1-33262-172-0	01	1	9306-				●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-198-1	01	1	9202-9412	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9501-	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209	●	●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=34	1-33251-339-0	01	1	9306-				●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9202-	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9202-	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9202-	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-	●	●	●
59	GEAR; REV MAINSHAFT Z=33	1-33257-071-0	01	1	9306-				●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9202-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=37	1-33251-338-0	01	1	9306-				●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33259-033-0	01	1	9306-				●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT	1-33239-169-0	01	1	9306-				●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	9202-		●
79	BEARING; BALL,MAINSHAFT KOYO	1-09800-150-0	01	1	9202-		●
79	BEARING; BALL,MAINSHAFT NTN	1-09800-151-0	01	1	9202-		●
80	GEAR; SPD DRIVE Z=7	1-33371-040-2	01	1	9202-	●	●	●
80	GEAR; SPD DRIVE Z=25	1-33371-060-0	01	1	9306-				●
81	GEAR; 7TH,MAIN Z=19	1-33254-002-1	01	1	9202-9308		●
81	GEAR; 7TH,MAIN Z=19	1-33254-013-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-	●		●
82	SHAFT; MAIN,TRANS Z=37-26-20-19	1-33231-206-2	01	1	9202-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS	1-33231-272-0	01	1	9306-				●
84	BEARING; COUNTER SHAFT,FRT	1-09810-140-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT	1-33312-004-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.60	1-33319-100-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.50	1-33319-101-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.40	1-33319-102-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.30	1-33319-103-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.20	1-33319-104-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.10	1-33319-105-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.00	1-33319-106-0	01	1	9306-				●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9202-	●	●	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9202-9308		●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-		●	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-074-1	01	1	9202-9308	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9309-	●
97	GEAR; 5TH,COUNTER Z=41	1-33332-081-0	01	1	9202-9308		●	●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9309-		●	●
97	GEAR; 5TH,COUNTER Z=37	1-33338-327-0	01	1	9306-				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-080-0	01	1	9202-9308		●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9309-		●	●
104	GEAR; 4TH,COUNTER Z=32	1-33338-326-0	01	1	9306-				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-	●	●	●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-	●		●
108	SHAFT; COUNTER Z=19	1-33311-182-0	01	1	9202-9308		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9309-		●
108	SHAFT; COUNTER Z=18	1-33311-277-0	01	1	9306-				●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR	1-33312-003-0	01	1	9306-				●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9202-	●	●	●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-228-2	01	1	9202-9301		●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-309-1	01	1	9302-9308		●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-311-1	01	1	9309-		●
112	RING; BLOCK,7TH SYN Z=36	1-33265-281-1	01	1	9202-		●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-111-3	01	1	9202-		●
114	HUB; CLU,7TH	1-33261-159-1	01	1	9202-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-105-0	02	1	9202-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9202-	●	●	●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-		●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-		●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	9202-	●	●	●
126	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	9202-		●
126	RING; SNAP,CLU HUB OD=55.8	1-09588-043-0	01	1	9202-		●
126	RING; SNAP,CLU HUB (A) T=2.80	1-33259-024-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.75	1-33259-025-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.70	1-33259-026-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.65	1-33259-027-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.60	1-33259-028-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.55	1-33259-029-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.50	1-33259-030-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.45	1-33259-031-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (B) T=3.00	1-33269-043-0	01	1	9306-				●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=42	1-33239-079-1	01	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=2	1-33363-024-1	01	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER	1-33369-013-0	02	1	9306-				●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9202-	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9202-	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9202-	●	●	●
132	SHAFT; REV	1-33351-024-0	01	1	9306-				●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-	●	●	●
135	GEAR; REV IDLER Z=20	1-33361-072-0	01	1	9306-				●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9202-	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9202-	●		●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	9202-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	9202-	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	9202-		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9202-	●	●	●
342	FLANGE; OUTPUT (A)	1-37243-176-3	01	1	9202-9510	●		●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-37243-176-3	01	1	9202-9510		●
342	FLANGE; OUTPUT (B)	1-37243-297-0	01	1	9511-	●		●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-37243-297-0	01	1	9511-		●
342	FLANGE; OUTPUT	1-37243-272-0	01	1	9306-				●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9202-9412	●		●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-048-1	04	1	9202-9412		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●		●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-086-0	04	1	9501-		●

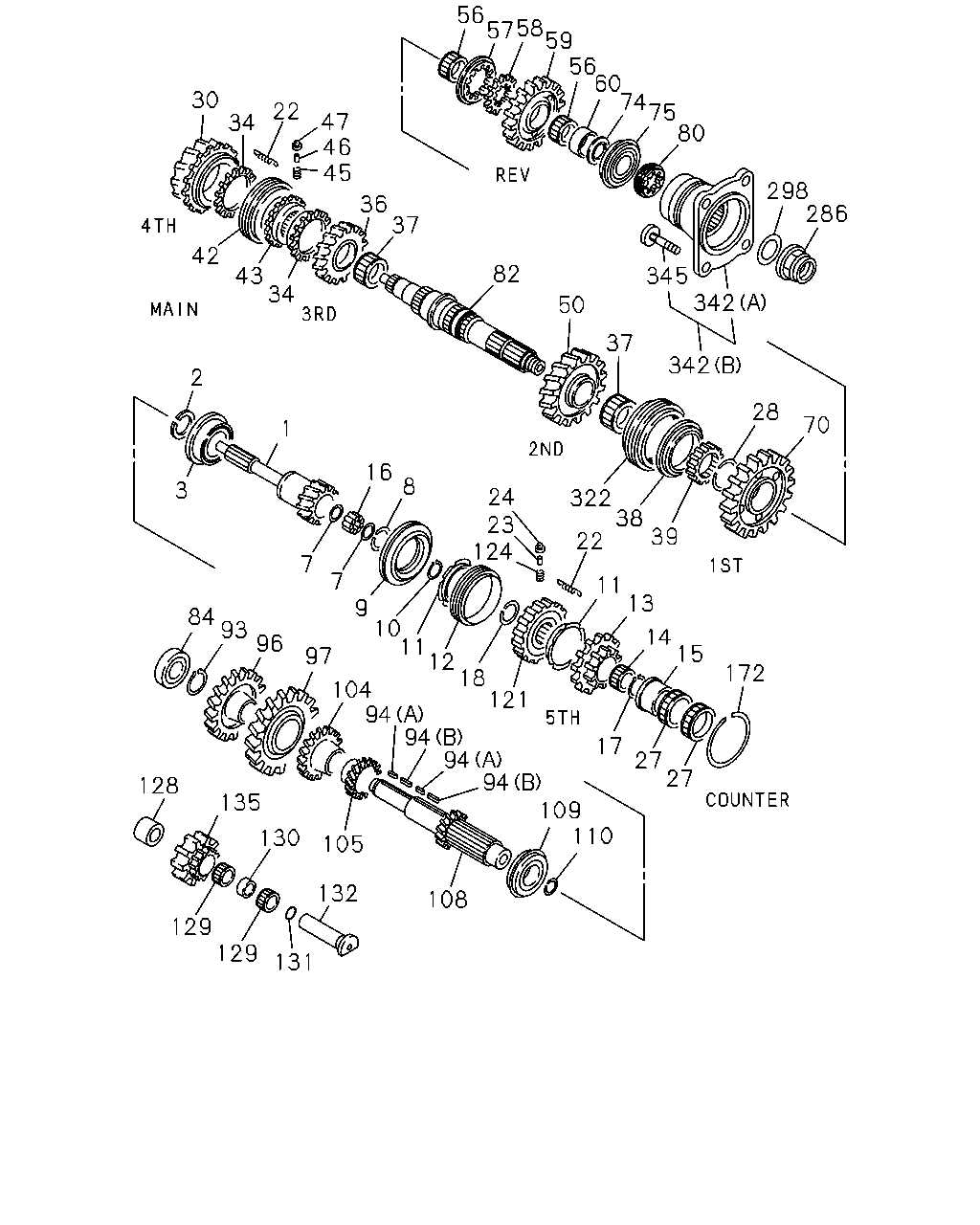

56 57 58 59 56 60 74 75 80 30 34 22 47 46 45 298 286 36 37 42 82 43 34 345 342 50 37 342 2 28 70 1 16 8 3 24 23 124 322 38 39 22 7 7 11 13 9 10 11 12 18 121 84 93 96 14 15 97 172 104 94 94 94 94 109 110 17 27 27 128 135 130 105 132 108 129 129 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-502-1	01	1	9202-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-		●	●
1	SHAFT; TOP GEAR,TRANS	1-33211-873-0	01	1	9306-				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT	1-33219-069-0	01	1	9306-				●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-159-0	01	1	9306-				●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9202-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9202-	●	●	●
9	CLUTCH; DOG,TOP GEAR	1-33219-068-0	01	1	9306-				●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9202-	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9202-	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-400-3	01	1	9202-9308	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9309-	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-413-2	01	1	9202-9308		●	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9309-		●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9202-	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9202-	●	●	●
15	COLLAR; 4TH GEAR	1-33259-037-0	01	1	9306-				●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9202-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9202-	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-	●	●	●
18	RING; SNAP,CLU HUB T=2.80	1-33259-024-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.75	1-33259-025-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.70	1-33259-026-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.65	1-33259-027-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.60	1-33259-028-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.55	1-33259-029-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.50	1-33259-030-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.45	1-33259-031-0	01	1	9306-				●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●
27	BEARING; 4TH GEAR	1-09811-300-0	02	1	9202-	●	●	●
27	BEARING; 4TH GEAR	1-33259-036-0	01	1	9306-				●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9202-9308	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308		●	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-		●	●
30	GEAR; 4TH,MAINSHAFT Z=30	1-33252-429-0	01	1	9306-				●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9202-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-428-0	01	1	9306-				●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9202-	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9202-	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9202-	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-197-0	01	1	9202-9412	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9501-	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-	●	●	●
42	SLEEVE	1-33262-172-0	01	1	9306-				●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-198-1	01	1	9202-9412	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9501-	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209	●	●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=34	1-33251-339-0	01	1	9306-				●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9202-	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9202-	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9202-	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-	●	●	●
59	GEAR; REV MAINSHAFT Z=33	1-33257-071-0	01	1	9306-				●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9202-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=37	1-33251-338-0	01	1	9306-				●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33259-033-0	01	1	9306-				●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT	1-33239-169-0	01	1	9306-				●
80	GEAR; SPD DRIVE Z=7	1-33371-040-2	01	1	9202-	●	●	●
80	GEAR; SPD DRIVE Z=25	1-33371-060-0	01	1	9306-				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-	●		●
82	SHAFT; MAIN,TRANS Z=37-26-20-19	1-33231-206-2	01	1	9202-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS	1-33231-272-0	01	1	9306-				●
84	BEARING; COUNTER SHAFT,FRT	1-09810-140-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT	1-33312-004-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.60	1-33319-100-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.50	1-33319-101-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.40	1-33319-102-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.30	1-33319-103-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.20	1-33319-104-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.10	1-33319-105-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.00	1-33319-106-0	01	1	9306-				●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9202-	●	●	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9202-9308		●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-		●	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-074-1	01	1	9202-9308	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9309-	●
97	GEAR; 5TH,COUNTER Z=41	1-33332-081-0	01	1	9202-9308		●	●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9309-		●	●
97	GEAR; 5TH,COUNTER Z=37	1-33338-327-0	01	1	9306-				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-080-0	01	1	9202-9308		●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9309-		●	●
104	GEAR; 4TH,COUNTER Z=32	1-33338-326-0	01	1	9306-				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-	●	●	●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-	●		●
108	SHAFT; COUNTER Z=19	1-33311-182-0	01	1	9202-9308		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9309-		●
108	SHAFT; COUNTER Z=18	1-33311-277-0	01	1	9306-				●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR	1-33312-003-0	01	1	9306-				●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9202-	●	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9202-	●	●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=42	1-33239-079-1	01	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=2	1-33363-024-1	01	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER	1-33369-013-0	02	1	9306-				●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9202-	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9202-	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9202-	●	●	●
132	SHAFT; REV	1-33351-024-0	01	1	9306-				●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-	●	●	●
135	GEAR; REV IDLER Z=20	1-33361-072-0	01	1	9306-				●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9202-	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9202-	●		●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	9202-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	9202-	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	9202-		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9202-	●	●	●
342	FLANGE; OUTPUT (A)	1-37243-176-3	01	1	9202-9510	●		●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-37243-176-3	01	1	9202-9510		●
342	FLANGE; OUTPUT (B)	1-37243-297-0	01	1	9511-	●		●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-37243-297-0	01	1	9511-		●
342	FLANGE; OUTPUT	1-37243-272-0	01	1	9306-				●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9202-9412	●		●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-048-1	04	1	9202-9412		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●		●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-086-0	04	1	9501-		●

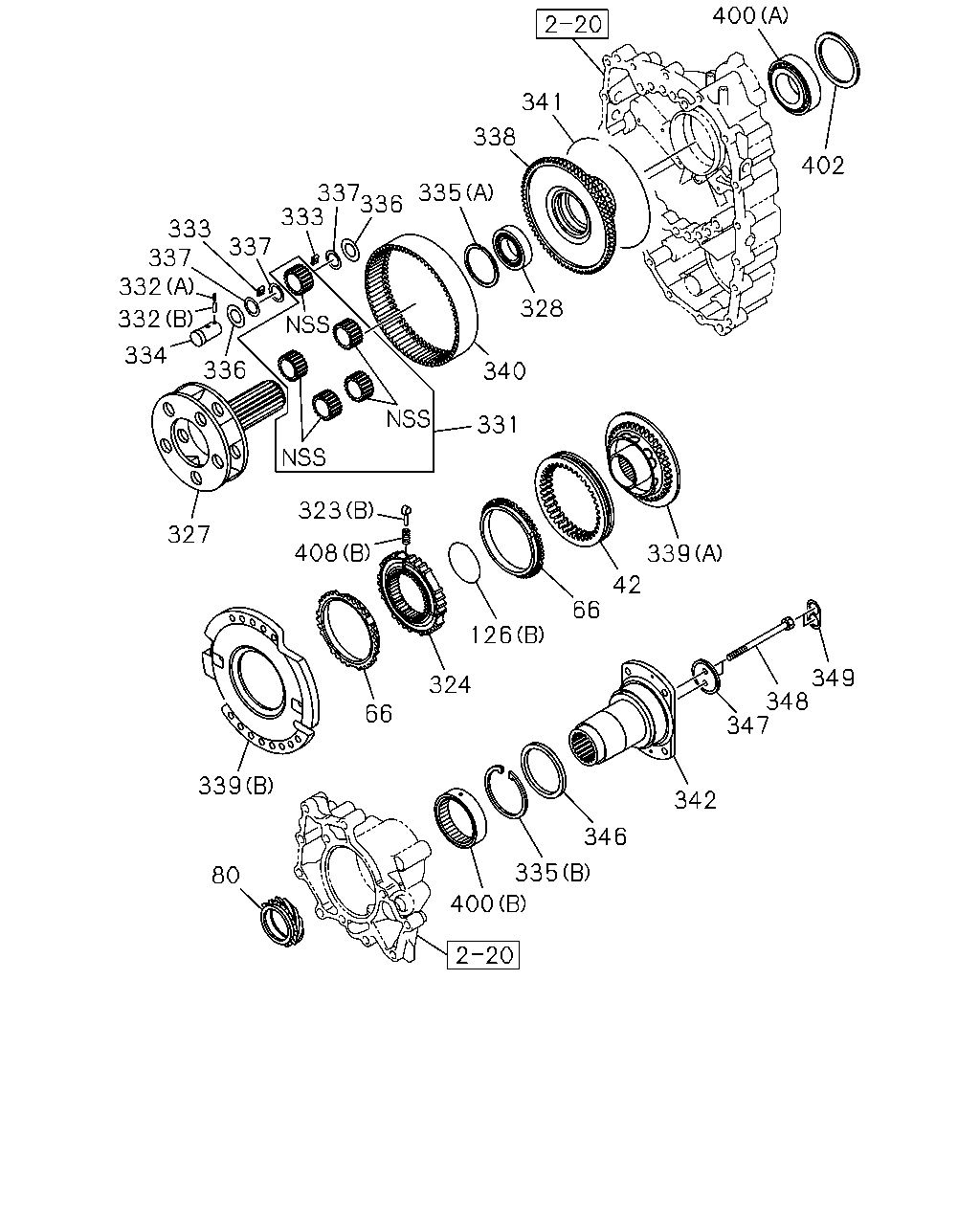

400 341 338 402 335 337 336 333 333 337 332 337 328 332 334 336 340 331 323 327 408 339 42 66 126 349 348 347 324 66 339 342 346 335 80 400

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-	●	●	●
42	SLEEVE	1-33262-172-0	01	1	9306-				●
66	RING; BLOCK,SYN	1-33265-424-0	02	1	9306-				●
80	GEAR; SPD DRIVE Z=7	1-33371-040-2	01	1	9202-	●	●	●
80	GEAR; SPD DRIVE Z=25	1-33371-060-0	01	1	9306-				●
126	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	9202-		●
126	RING; SNAP,CLU HUB OD=55.8	1-09588-043-0	01	1	9202-		●
126	RING; SNAP,CLU HUB (A) T=2.80	1-33259-024-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.75	1-33259-025-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.70	1-33259-026-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.65	1-33259-027-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.60	1-33259-028-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.55	1-33259-029-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.50	1-33259-030-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.45	1-33259-031-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (B) T=3.00	1-33269-043-0	01	1	9306-				●
323	INSERT (A)	1-33263-028-0	06	1	9306-				●
323	INSERT (B)	1-33263-029-0	03	1	9306-				●
324	HUB; CLU	1-33261-215-0	01	1	9306-				●
327	CARRIER; PLANETARY GEAR	1-33231-273-0	01	1	9306-				●
328	BEARING; CARRIER	1-33339-030-0	01	1	9306-				●
331	GEAR SET; PLANETARY	1-33239-173-0	01	1	9306-				●
332	PIN; LOCK,SHAFT (B)	1-33239-178-0	05	1	9306-				●
332	PIN; LOCK,SHAFT (A)	1-33239-179-0	05	1	9306-				●
333	ROLLER; PLANETARY GEAR	1-33239-175-0	AR	1	9306-				●
334	SHAFT; PLANETARY GEAR	1-33239-177-0	05	1	9306-				●
335	RING; SNAP,BEARING (A) T=2.0	1-33339-031-0	01	1	9306-				●
335	RING; SNAP,BEARING (A) T=1.9	1-33339-032-0	01	1	9306-				●
335	RING; SNAP,BEARING (A) T=1.8	1-33339-034-0	01	1	9306-				●
335	RING; SNAP,BEARING (B)	1-33339-037-0	01	1	9306-				●
336	WASHER; THRUST,PLANETARY GEAR	1-33239-174-0	10	1	9306-				●
337	WASHER; PLANETARY GEAR,INNER	1-33239-176-0	15	1	9306-				●
338	CARRIER; RING GEAR	1-33331-232-0	01	1	9306-				●
339	CLUTCH; PLANETARY GEAR (B)	1-33265-423-0	01	1	9306-				●
339	CLUTCH; PLANETARY GEAR (A)	1-33265-425-0	01	1	9306-				●
340	GEAR; RING	1-33339-033-0	01	1	9306-				●
341	WIRE; LOCK,CARRIER	1-33339-035-0	01	1	9306-				●
342	FLANGE; OUTPUT (A)	1-37243-176-3	01	1	9202-9510	●		●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-37243-176-3	01	1	9202-9510		●
342	FLANGE; OUTPUT (B)	1-37243-297-0	01	1	9511-	●		●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-37243-297-0	01	1	9511-		●
342	FLANGE; OUTPUT	1-37243-272-0	01	1	9306-				●
346	GASKET; FLANGE	1-33339-038-0	01	1	9306-				●
347	WASHER; FLANGE	1-09509-058-0	01	1	9306-				●
348	BOLT; SHAFT M12X135	1-09009-163-0	02	1	9306-				●
349	WASHER; LK,SHAFT	1-37249-065-0	01	1	9306-				●
400	BEARING; OUTPUT SHAFT RR (A)	1-33139-037-0	01	1	9306-				●
400	BEARING; OUTPUT SHAFT RR (B)	1-33339-036-0	01	1	9306-				●
402	SHIM T=1.80	1-33139-039-0	01	1	9306-				●
402	SHIM T=1.70	1-33139-041-0	01	1	9306-				●
402	SHIM T=1.60	1-33139-042-0	01	1	9306-				●
402	SHIM T=1.50	1-33139-043-0	01	1	9306-				●
402	SHIM T=1.40	1-33139-045-0	01	1	9306-				●
402	SHIM T=1.30	1-33139-046-0	01	1	9306-				●
402	SHIM T=1.20	1-33139-047-0	01	1	9306-				●
402	SHIM T=1.10	1-33139-050-0	01	1	9306-				●
408	SPRING (A)	1-33269-041-0	06	1	9306-				●
408	SPRING (B)	1-33269-042-0	03	1	9306-				●

9 1 3 301 296 109 296 108 427 104 97 93 135 129 129 132 84 325 437 134 326 438 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-502-1	01	1	9202-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-		●	●
1	SHAFT; TOP GEAR,TRANS	1-33211-873-0	01	1	9306-				●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT	1-33219-069-0	01	1	9306-				●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9202-	●	●	●
9	CLUTCH; DOG,TOP GEAR	1-33219-068-0	01	1	9306-				●
84	BEARING; COUNTER SHAFT,FRT	1-09810-140-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT	1-33312-004-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.60	1-33319-100-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.50	1-33319-101-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.40	1-33319-102-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.30	1-33319-103-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.20	1-33319-104-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.10	1-33319-105-0	01	1	9306-				●
93	RING; SNAP,COUNTER FRT BRG T=2.00	1-33319-106-0	01	1	9306-				●
97	GEAR; 5TH,COUNTER Z=40	1-33332-074-1	01	1	9202-9308	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9309-	●
97	GEAR; 5TH,COUNTER Z=41	1-33332-081-0	01	1	9202-9308		●	●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9309-		●	●
97	GEAR; 5TH,COUNTER Z=37	1-33338-327-0	01	1	9306-				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-080-0	01	1	9202-9308		●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9309-		●	●
104	GEAR; 4TH,COUNTER Z=32	1-33338-326-0	01	1	9306-				●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-	●		●
108	SHAFT; COUNTER Z=19	1-33311-182-0	01	1	9202-9308		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9309-		●
108	SHAFT; COUNTER Z=18	1-33311-277-0	01	1	9306-				●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR	1-33312-003-0	01	1	9306-				●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER	1-33369-013-0	02	1	9306-				●
132	SHAFT; REV	1-33351-017-0	01	1	9202-	●	●	●
132	SHAFT; REV	1-33351-024-0	01	1	9306-				●
134	WASHER; LK,REV SHAFT	1-33369-015-0	01	1	9306-				●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-	●	●	●
135	GEAR; REV IDLER Z=20	1-33361-072-0	01	1	9306-				●
296	WASHER; THRUST (B)	1-33219-070-0	01	1	9306-				●
296	WASHER; THRUST (A)	1-33219-102-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=2.40	1-33219-071-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=2.35	1-33219-072-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=2.30	1-33219-073-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=2.25	1-33219-074-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=2.20	1-33219-075-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=2.15	1-33219-076-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=2.10	1-33219-077-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=2.05	1-33219-078-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=2.00	1-33219-079-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.95	1-33219-080-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.90	1-33219-081-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.85	1-33219-082-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.80	1-33219-083-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.75	1-33219-084-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.70	1-33219-085-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.65	1-33219-086-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.60	1-33219-087-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.55	1-33219-088-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.50	1-33219-089-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.45	1-33219-090-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.40	1-33219-091-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.35	1-33219-092-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.30	1-33219-093-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.25	1-33219-094-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=1.20	1-33219-095-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=0.85	1-33219-096-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=0.80	1-33219-097-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=0.75	1-33219-098-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=0.70	1-33219-099-0	01	1	9306-				●
301	SHIM; TOP GEAR SHAFT T=0.65	1-33219-100-0	01	1	9306-				●
325	SHIM; COUNTER SHAFT BRG T=2.20	1-33315-031-0	01	1	9306-				●
325	SHIM; COUNTER SHAFT BRG T=2.00	1-33315-032-0	01	1	9306-				●
325	SHIM; COUNTER SHAFT BRG T=1.75	1-33315-033-0	01	1	9306-				●
325	SHIM; COUNTER SHAFT BRG T=1.70	1-33315-034-0	01	1	9306-				●
325	SHIM; COUNTER SHAFT BRG T=1.65	1-33315-035-0	01	1	9306-				●
325	SHIM; COUNTER SHAFT BRG T=1.60	1-33315-036-0	01	1	9306-				●
325	SHIM; COUNTER SHAFT BRG T=1.55	1-33315-037-0	01	1	9306-				●
325	SHIM; COUNTER SHAFT BRG T=1.50	1-33315-038-0	01	1	9306-				●
325	SHIM; COUNTER SHAFT BRG T=1.45	1-33315-039-0	01	1	9306-				●
325	SHIM; COUNTER SHAFT BRG T=1.40	1-33315-040-0	01	1	9306-				●
325	SHIM; COUNTER SHAFT BRG T=1.35	1-33315-041-0	01	1	9306-				●
326	BOLT; REV SHAFT M8X16	1-33369-014-0	01	1	9306-				●
427	GEAR; 2ND & 3RD,COUNTER	1-33332-115-0	01	1	9306-				●
437	PLATE; LOCK	1-33119-279-0	01	1	9306-				●
438	WASHER; LOCK PLATE	1-33549-159-0	02	1	9306-				●
439	SCREW; LOCK PLATE M8X20	1-09089-017-0	02	1	9306-				●

27 30 317 7 234 323 428 408 49 50 306 230 233 315 174 21 323 233 428 408 307 75 18 429 33 41 316 36 363 15 44 41 59 314 126 68 67 70 313 306 82 330 393 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-159-0	01	1	9306-				●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9202-	●	●	●
15	COLLAR; 4TH GEAR	1-33259-037-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-	●	●	●
18	RING; SNAP,CLU HUB T=2.80	1-33259-024-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.75	1-33259-025-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.70	1-33259-026-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.65	1-33259-027-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.60	1-33259-028-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.55	1-33259-029-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.50	1-33259-030-0	01	1	9306-				●
18	RING; SNAP,CLU HUB T=2.45	1-33259-031-0	01	1	9306-				●
21	HUB; CLU,4TH & 5TH	1-33261-214-0	01	1	9306-				●
27	BEARING; 4TH GEAR	1-09811-300-0	02	1	9202-	●	●	●
27	BEARING; 4TH GEAR	1-33259-036-0	01	1	9306-				●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9202-9308	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308		●	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-		●	●
30	GEAR; 4TH,MAINSHAFT Z=30	1-33252-429-0	01	1	9306-				●
33	BEARING; NEEDLE,3RD GEAR	1-33259-036-0	01	1	9306-				●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-428-0	01	1	9306-				●
41	RING; BLOCK,2ND & 3RD	1-33265-422-0	02	1	9306-				●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-213-0	01	1	9306-				●
49	BEARING; NEEDLE,2ND GEAR	1-33259-035-0	01	1	9306-				●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=34	1-33251-339-0	01	1	9306-				●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-	●	●	●
59	GEAR; REV MAINSHAFT Z=33	1-33257-071-0	01	1	9306-				●
67	HUB; CLU,1ST TO REV	1-33259-022-0	01	1	9306-				●
68	SLEEVE; 1ST TO REV	1-33259-023-0	01	1	9306-				●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=37	1-33251-338-0	01	1	9306-				●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33259-033-0	01	1	9306-				●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT	1-33239-169-0	01	1	9306-				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-	●		●
82	SHAFT; MAIN,TRANS Z=37-26-20-19	1-33231-206-2	01	1	9202-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS	1-33231-272-0	01	1	9306-				●
126	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	9202-		●
126	RING; SNAP,CLU HUB OD=55.8	1-09588-043-0	01	1	9202-		●
126	RING; SNAP,CLU HUB (A) T=2.80	1-33259-024-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.75	1-33259-025-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.70	1-33259-026-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.65	1-33259-027-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.60	1-33259-028-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.55	1-33259-029-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.50	1-33259-030-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (A) T=2.45	1-33259-031-0	01	1	9306-				●
126	RING; SNAP,CLU HUB (B) T=3.00	1-33269-043-0	01	1	9306-				●
174	SYNCHRONIZER ASM; 2ND-3RD	1-33260-128-0	01	1	9306-				●
230	SLEEVE; 4TH TO 5TH	1-33262-171-0	01	1	9306-				●
233	RING; BLOCK 4TH TO 5TH	1-33265-421-0	02	1	9306-				●
234	SYNCHRONIZER ASM; 4TH TO 5TH	1-33260-129-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (A) T=3.00	1-33239-149-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (A) T=2.95	1-33239-150-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (A) T=2.85	1-33239-151-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (A) T=2.80	1-33239-152-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (A) T=2.75	1-33239-153-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (A) T=2.70	1-33239-154-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (A) T=2.65	1-33239-155-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (A) T=2.60	1-33239-156-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (A) T=2.55	1-33239-157-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (A) T=2.50	1-33239-158-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (B) T=2.80	1-33239-160-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (B) T=2.75	1-33239-161-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (B) T=2.70	1-33239-162-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (B) T=2.65	1-33239-163-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (B) T=2.60	1-33239-164-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (B) T=2.55	1-33239-165-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (B) T=2.50	1-33239-166-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (B) T=2.45	1-33239-167-0	01	1	9306-				●
306	RING; SNAP,MAINSHAFT (B) T=2.40	1-33239-168-0	01	1	9306-				●
307	THROWER; OIL,MAINSHAFT	1-33239-172-0	01	1	9306-				●
313	BEARING; NEEDLE,LOW GEAR	1-33259-021-0	01	1	9306-				●
314	BEARING; NEEDLE,REV GEAR	1-33259-032-0	01	1	9306-				●
315	CLUTCH; DOG,2ND GEAR	1-33265-420-0	01	1	9306-				●
316	CLUTCH; DOG,3RD GEAR	1-33265-420-0	01	1	9306-				●
317	CLUTCH; DOG,4TH GEAR	1-33219-068-0	01	1	9306-				●
323	INSERT (A)	1-33263-028-0	06	1	9306-				●
323	INSERT (B)	1-33263-029-0	03	1	9306-				●
330	GEAR; SUN Z=30	1-33259-034-0	01	1	9306-				●
363	WASHER; THRUST,3RD-4TH	1-33239-159-0	01	1	9306-				●
393	BEARING; MAINSHAFT END	1-33239-148-0	01	1	9306-				●
408	SPRING (A)	1-33269-041-0	06	1	9306-				●
408	SPRING (B)	1-33269-042-0	03	1	9306-				●
428	BALL; LK,SLEEVE	1-33269-040-0	06	1	9306-				●
429	SLEEVE; 2ND & 3RD	1-33262-170-0	01	1	9306-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
