◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11537 - CYZ LHD EURO2 WITH REFLECTOR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#123397) — 196 parça
çizim 364875
471 471 15 469 466 215 9 462 464 463 461 460 215 467 210 92 434 468 472 471 67 2 3 3 168
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-410-2 01 1 1306- ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 1306- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 1306- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 1306- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 1306- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 1306- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 1306- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 1306- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 1306- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 1306- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 1306- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 1306- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 1306- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 1306- ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 1306- ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 1306- ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 1306- ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 1306- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 1306- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 1306- ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 1306- ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 1306- ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 1306- ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 1306- ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1306- ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 1306- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 1306- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 1306- ● ●
467 PANEL; OUTER,BACK CORNER
SAUDI ARABIA EQUIPMENT(GH3) (B) 		1-61281-478-5 01 1 1411- ●
467 PANEL; OUTER,BACK CORNER
(A) 		1-61281-203-4 01 1 1306- ●
467 PANEL; OUTER,BACK CORNER
EXC. COUNTRY ALGERIA<D2G> (A) 		1-61281-203-4 01 1 1306- ●
467 PANEL; OUTER,BACK CORNER
VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA) (A) 		1-61281-204-4 01 1 1306- ●
467 PANEL; OUTER,BACK CORNER
COUNTRY ALGERIA<D2G> (A) 		1-61281-477-3 01 1 1306- ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 1306- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 1306- ● ●
469 ROOF; SIDE 1-61281-199-8 01 1 1306- ● ●
469 ROOF; SIDE 1-61281-198-8 01 1 1306- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 1306- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 1306- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 1306- ● ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 1306- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 1306- ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 1306- ● ●

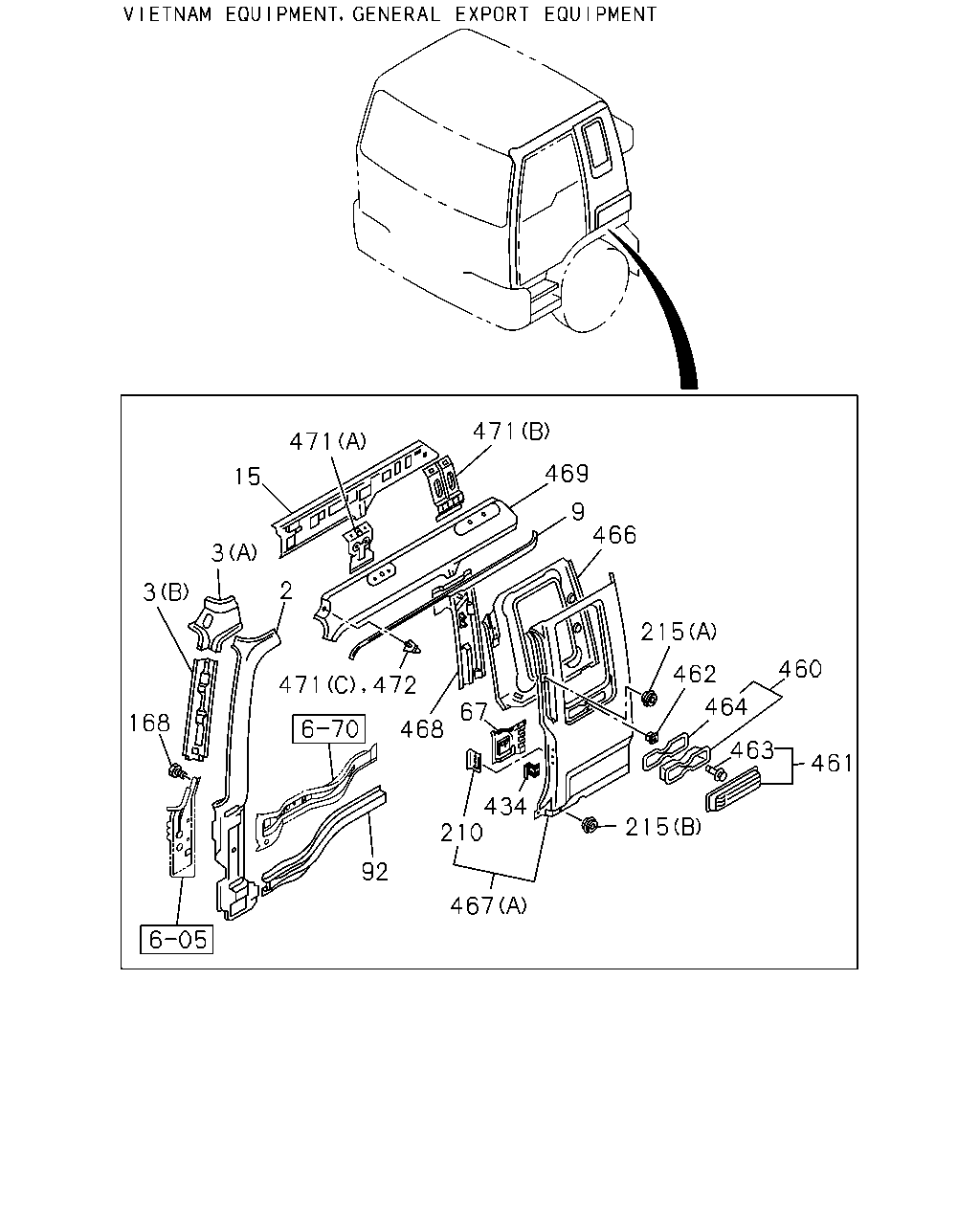

çizim 364922
471 471 466 469 9 215 462 464 463 461 215 434 210 467 92 168 471 472 2 3 3 15 468 67 460
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-410-2 01 1 1306- ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 1306- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 1306- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 1306- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 1306- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 1306- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 1306- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 1306- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 1306- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 1306- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 1306- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 1306- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 1306- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 1306- ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 1306- ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 1306- ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 1306- ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 1306- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 1306- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 1306- ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 1306- ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 1306- ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 1306- ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 1306- ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1306- ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 1306- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 1306- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 1306- ● ●
467 PANEL; OUTER,BACK CORNER
SAUDI ARABIA EQUIPMENT(GH3) (B) 		1-61281-478-5 01 1 1411- ●
467 PANEL; OUTER,BACK CORNER
(A) 		1-61281-203-4 01 1 1306- ●
467 PANEL; OUTER,BACK CORNER
EXC. COUNTRY ALGERIA<D2G> (A) 		1-61281-203-4 01 1 1306- ●
467 PANEL; OUTER,BACK CORNER
VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA) (A) 		1-61281-204-4 01 1 1306- ●
467 PANEL; OUTER,BACK CORNER
COUNTRY ALGERIA<D2G> (A) 		1-61281-477-3 01 1 1306- ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 1306- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 1306- ● ●
469 ROOF; SIDE 1-61281-199-8 01 1 1306- ● ●
469 ROOF; SIDE 1-61281-198-8 01 1 1306- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 1306- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 1306- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 1306- ● ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 1306- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 1306- ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 1306- ● ●

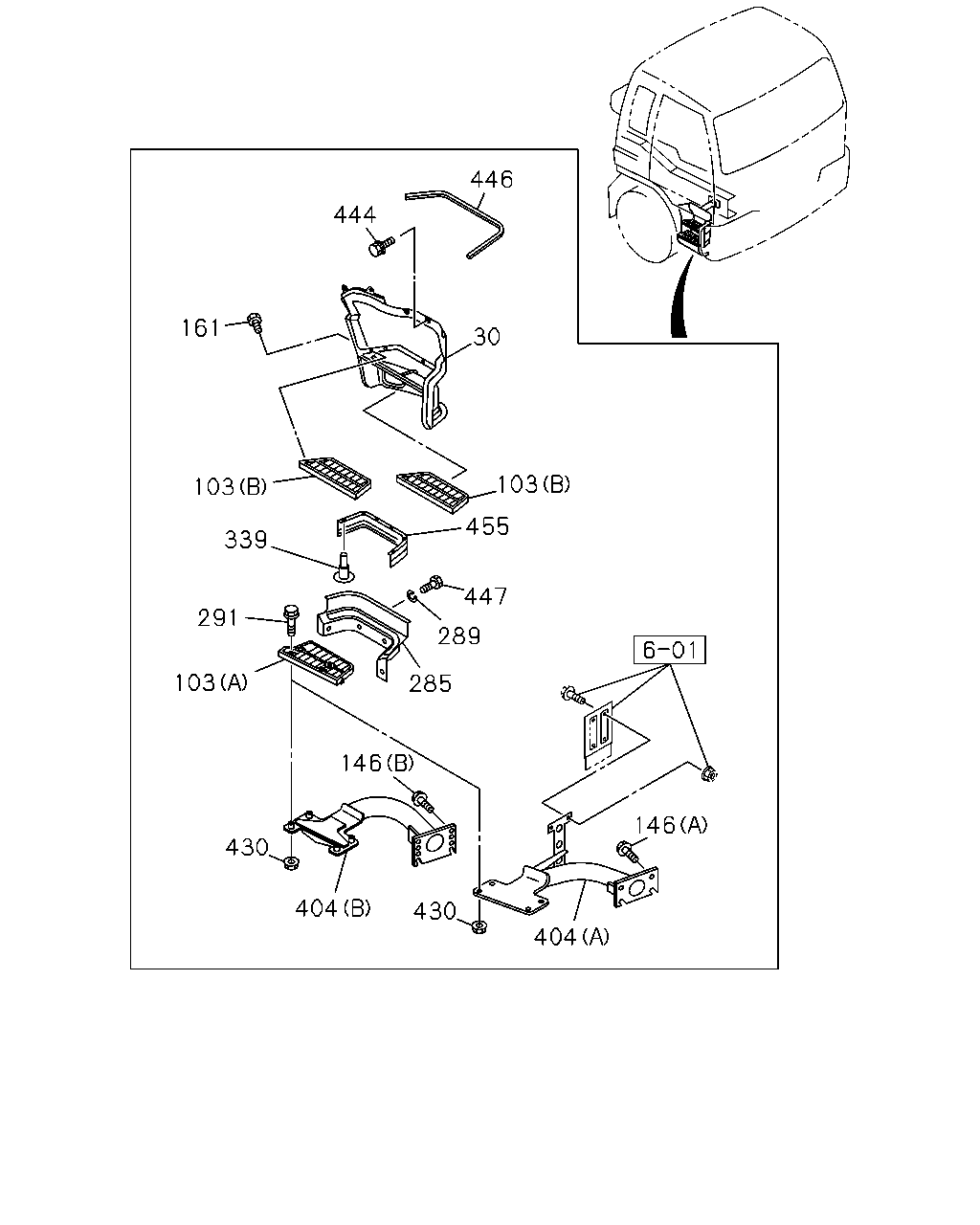

çizim 367310
404 146 430 404 430 146 103 291 339 103 161 444 446 30 103 455 447 289 285
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 8-98157-935-0 01 1 1306- ● ●
30 CLOSING; SIDE STEP 8-98157-934-0 01 1 1306- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1306- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 02 1 1306- ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1306- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 02 1 1306- ● ●
146 BOLT; STEP BRKT
FRONT UNDER RUN PROTECTOR<EBE> (B) M12X35 FLANGE 		0-28051-235-0 08 1 1411-1504 ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 08 1 1306-1410 ● ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 08 1 1411-1504 ●
146 BOLT; STEP BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M12X30 FLANGE 		0-28051-230-0 08 1 1411-1504 ●
146 BOLT; STEP BRKT
(A) M12X40 FLANGE 		0-28051-240-0 08 1 1505- ● ●
161 BOLT; FIX
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 16 1 1306- ● ●
285 PLATE; STEP,1ST STEP 8-98227-948-1 01 1 1306- ● ●
285 PLATE; STEP,1ST STEP 8-98227-947-1 01 1 1306- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1306- ● ●
291 BOLT; STEP PLATE
M8X50 FLANGE 		0-28050-850-0 08 1 1306- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 10 1 1306- ● ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-771-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-771-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-772-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-772-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1511- ●
404 BRACKET
(A) 		8-98227-952-0 01 1 1306-1410 ●
404 BRACKET
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-98227-952-0 01 1 1306-1410 ●
404 BRACKET
(A) 		8-98227-952-0 01 1 1411- ●
404 BRACKET
FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98227-952-0 01 1 1411- ●
404 BRACKET
(A) 		8-98227-951-0 01 1 1306-1410 ●
404 BRACKET
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-98227-951-0 01 1 1306-1410 ●
404 BRACKET
(A) 		8-98227-951-0 01 1 1411- ●
404 BRACKET
FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98227-951-0 01 1 1411- ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1306- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1306- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1306- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1306- ● ●
455 PROTECTOR; STEP 8-98125-808-2 01 1 1306- ● ●
455 PROTECTOR; STEP 8-98125-807-2 01 1 1306- ● ●

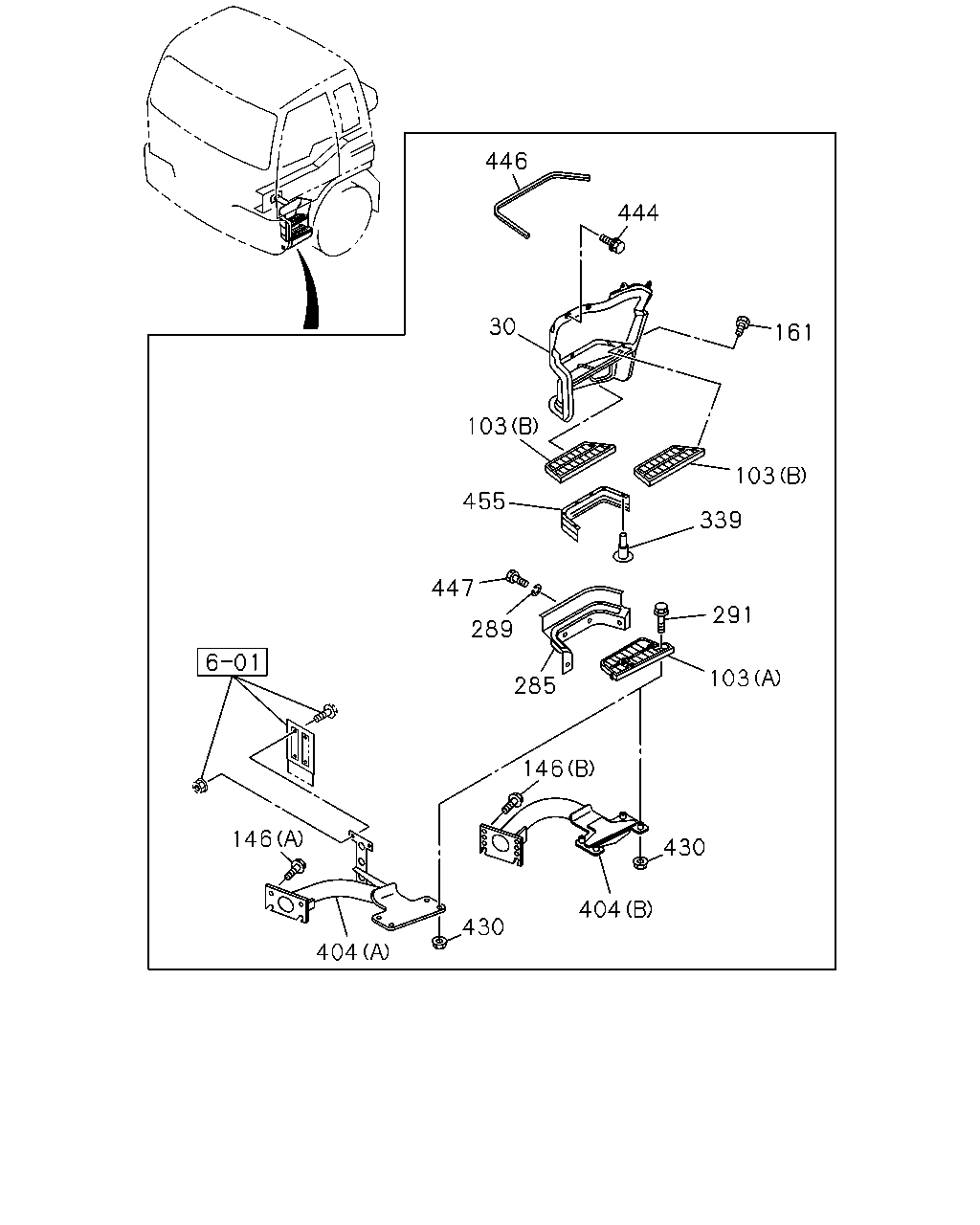

çizim 444224
446 444 161 103 339 291 103 30 103 455 447 289 285 146 430 404 430 146 404
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 8-98157-935-0 01 1 1306- ● ●
30 CLOSING; SIDE STEP 8-98157-934-0 01 1 1306- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1306- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 02 1 1306- ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1306- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 02 1 1306- ● ●
146 BOLT; STEP BRKT
FRONT UNDER RUN PROTECTOR<EBE> (B) M12X35 FLANGE 		0-28051-235-0 08 1 1411-1504 ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 08 1 1306-1410 ● ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 08 1 1411-1504 ●
146 BOLT; STEP BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M12X30 FLANGE 		0-28051-230-0 08 1 1411-1504 ●
146 BOLT; STEP BRKT
(A) M12X40 FLANGE 		0-28051-240-0 08 1 1505- ● ●
161 BOLT; FIX
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 16 1 1306- ● ●
285 PLATE; STEP,1ST STEP 8-98227-948-1 01 1 1306- ● ●
285 PLATE; STEP,1ST STEP 8-98227-947-1 01 1 1306- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1306- ● ●
291 BOLT; STEP PLATE
M8X50 FLANGE 		0-28050-850-0 08 1 1306- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 10 1 1306- ● ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-771-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-771-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-771-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-772-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98268-772-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98268-772-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-166-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-166-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1411-1510 ●
404 BRACKET
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98288-167-0 01 1 1511- ●
404 BRACKET
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> (B) 		8-98288-167-0 01 1 1511- ●
404 BRACKET
(A) 		8-98227-952-0 01 1 1306-1410 ●
404 BRACKET
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-98227-952-0 01 1 1306-1410 ●
404 BRACKET
(A) 		8-98227-952-0 01 1 1411- ●
404 BRACKET
FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98227-952-0 01 1 1411- ●
404 BRACKET
(A) 		8-98227-951-0 01 1 1306-1410 ●
404 BRACKET
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-98227-951-0 01 1 1306-1410 ●
404 BRACKET
(A) 		8-98227-951-0 01 1 1411- ●
404 BRACKET
FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98227-951-0 01 1 1411- ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1306- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1306- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1306- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1306- ● ●
455 PROTECTOR; STEP 8-98125-808-2 01 1 1306- ● ●
455 PROTECTOR; STEP 8-98125-807-2 01 1 1306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
