Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#123393) — 227 parça

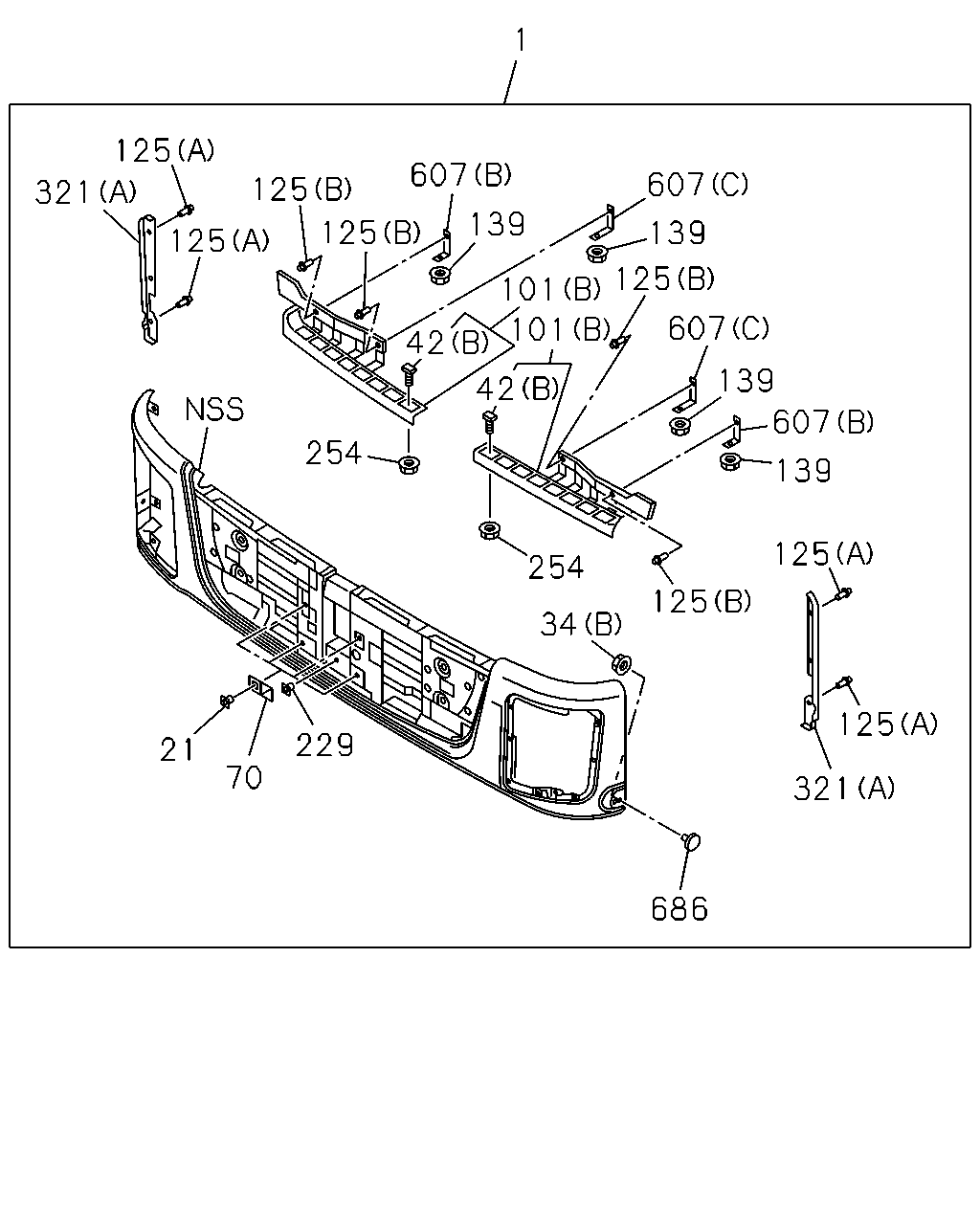

686 321 125 125 125 34 254 139 607 139 607 125 139 607 1 607 139 101 101 42 42 125 125 125 321 125 254 229 70 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97417-846-3	01	1	1306-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR D=9.7X9.7 L=8	8-94222-314-0	04	1	1306-	●	●
34	NUT; BRKT,BUMPER (B) M6 FLANGE	0-91180-106-0	02	1	1306-	●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-110-0	04	1	1306-	●	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (A) M10X30 FLANGE	8-98055-942-0	12	1	1511-		●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT UNDER SPOILER DELETE<SGA> (A) M10X30 FLANGE	8-98055-942-0	12	1	1411-1412		●
42	BOLT; BUMPER (A) M10X30 FLANGE	8-98055-942-0	10	1	1306-1410	●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> (A) M10X30 FLANGE	8-98055-942-0	10	1	1306-1410		●
42	BOLT; BUMPER (A) M10X30 FLANGE	8-98055-942-0	10	1	1411-	●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10X30 FLANGE	8-98055-942-0	10	1	1411-		●
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1306-1410	●	●
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-		●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1306-	●	●
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1306-	●	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1306-	●	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1306-	●	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1306-	●	●
125	CLIP; STEP (B)	8-98157-167-0	04	1	1306-	●	●
125	CLIP; STEP (A)	8-98157-186-0	06	1	1306-	●	●
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1306-	●	●
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1306-	●	●
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1306-	●	●
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1306-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1306-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-458-1	01	1	1306-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1306-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-457-1	01	1	1306-	●	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-542-0	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-543-0	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98290-477-1	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98290-478-1	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-441-0	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-442-0	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET (C)	8-98147-053-0	02	1	1306-	●	●
607	BRACKET (B)	8-98147-054-0	02	1	1306-	●	●
607	BRACKET (A)	8-98211-759-0	01	1	1306-1410	●	●
607	BRACKET (A)	8-98211-759-0	01	1	1411-	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-759-0	01	1	1411-		●
607	BRACKET (A)	8-98211-758-0	01	1	1306-1410	●	●
607	BRACKET (A)	8-98211-758-0	01	1	1411-	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-758-0	01	1	1411-		●
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1306-	●	●

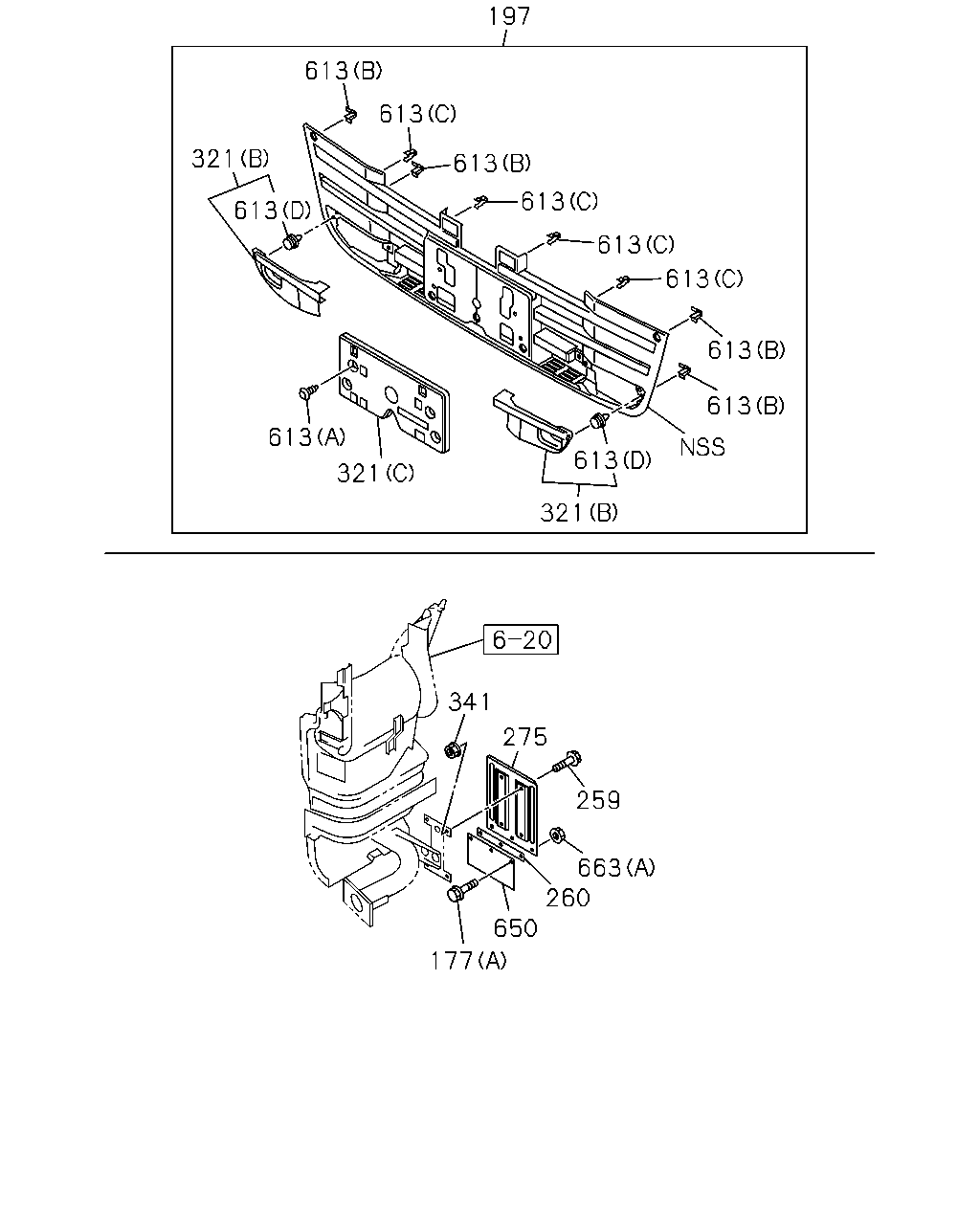

197 613 613 613 613 613 613 613 613 321 613 613 613 321 321 341 275 259 663 260 650 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1411-		●
177	BOLT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12X25 FLANGE	0-28051-225-0	04	1	1306-1410	●
177	BOLT DUMP TRUCK<RA1> (B) M12X25 FLANGE	0-28051-225-0	04	1	1306-1410		●
177	BOLT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12X25 FLANGE	0-28051-225-0	04	1	1411-	●
177	BOLT DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1411-		●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1306-1410	●	●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1411-1510	●
177	BOLT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1411-1510		●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1511-	●
177	BOLT VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA) (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1511-		●
197	GRILLE; BUMPER	8-98144-188-4	01	1	1306-	●	●
259	BOLT; COVER M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1306-1410	●	●
259	BOLT; COVER M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1411-1510	●
259	BOLT; COVER EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1411-1510		●
259	BOLT; COVER M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1511-	●
259	BOLT; COVER VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1511-		●
260	RETAINER; UPR SKIRT	8-98125-829-0	02	1	1306-1410	●	●
260	RETAINER; UPR SKIRT	8-98125-829-0	02	1	1411-1510	●
260	RETAINER; UPR SKIRT EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98125-829-0	02	1	1411-1510		●
260	RETAINER; UPR SKIRT	8-98125-829-0	02	1	1511-	●
260	RETAINER; UPR SKIRT VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA)	8-98125-829-0	02	1	1511-		●
275	GUARD; FRT	8-98125-825-0	02	1	1306-1410	●	●
275	GUARD; FRT	8-98125-825-0	02	1	1411-1510	●
275	GUARD; FRT EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98125-825-0	02	1	1411-1510		●
275	GUARD; FRT	8-98125-825-0	02	1	1511-	●
275	GUARD; FRT VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA)	8-98125-825-0	02	1	1511-		●
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1306-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1306-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-458-1	01	1	1306-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1306-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-457-1	01	1	1306-	●	●
341	NUT; COVER M8 FLANGE	0-91180-108-0	08	1	1306-1410	●	●
341	NUT; COVER M8 FLANGE	0-91180-108-0	08	1	1411-1510	●
341	NUT; COVER EXC. FRONT UNDER RUN PROTECTOR<EBE> M8 FLANGE	0-91180-108-0	08	1	1411-1510		●
341	NUT; COVER M8 FLANGE	0-91180-108-0	08	1	1511-	●
341	NUT; COVER VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	08	1	1511-		●
613	CLIP (D)	8-97581-651-2	04	1	1306-	●	●
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1306-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1306-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1306-	●	●
650	RUBBER; MUD COVER	8-98125-828-0	02	1	1306-1410	●	●
650	RUBBER; MUD COVER	8-98125-828-0	02	1	1411-1510	●
650	RUBBER; MUD COVER EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98125-828-0	02	1	1411-1510		●
650	RUBBER; MUD COVER	8-98125-828-0	02	1	1511-	●
650	RUBBER; MUD COVER VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA)	8-98125-828-0	02	1	1511-		●
663	NUT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12 FLANGE	0-91180-212-0	04	1	1306-	●
663	NUT DUMP TRUCK<RA1> (B) M12 FLANGE	0-91180-212-0	04	1	1306-		●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1306-1410	●	●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1411-1510	●
663	NUT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE	0-91180-108-0	06	1	1411-1510		●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1511-	●
663	NUT VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA) (A) M8 FLANGE	0-91180-108-0	06	1	1511-		●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1306-	●	●

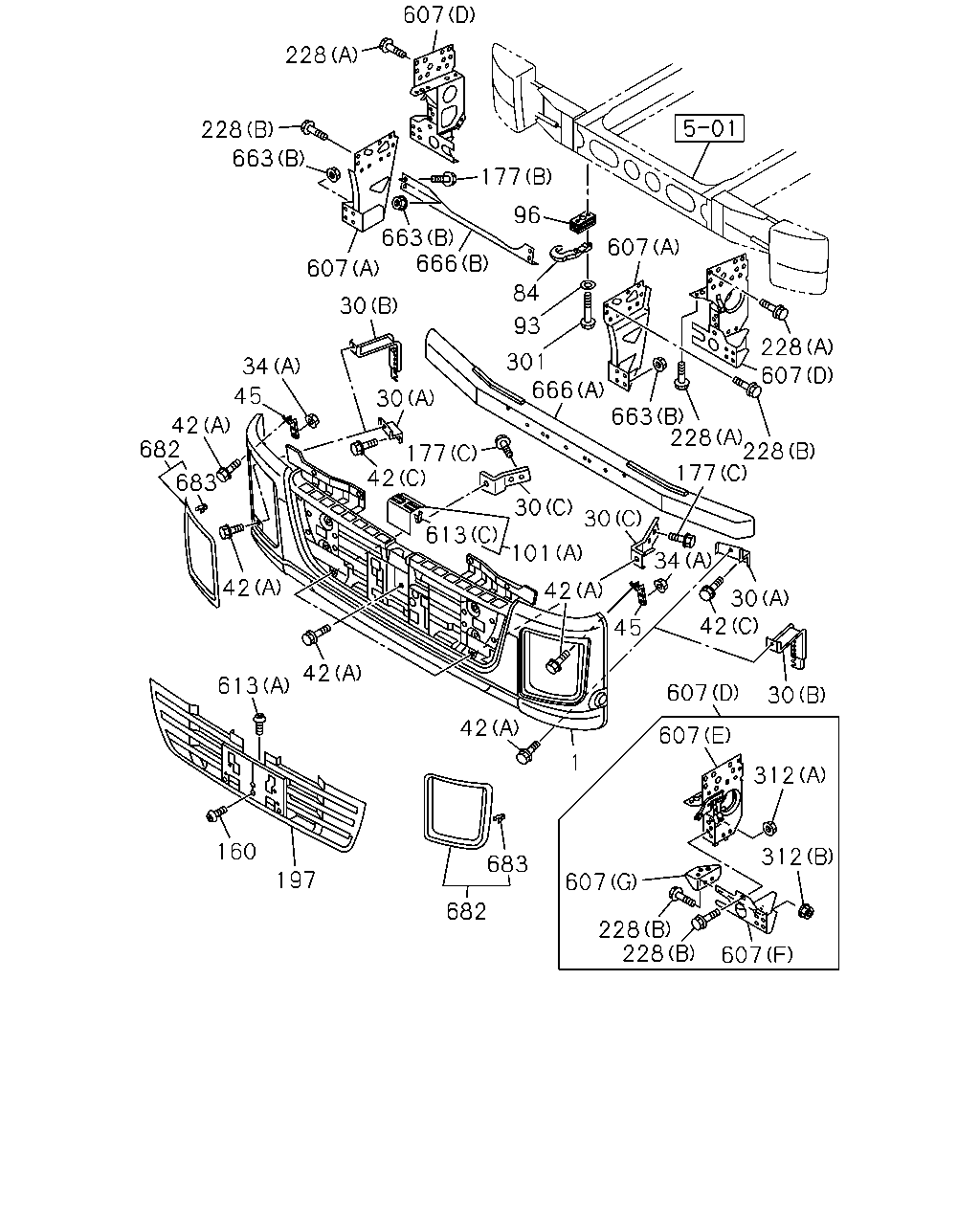

607 228 228 607 663 177 663 30 34 45 42 682 42 42 613 160 197 42 683 682 607 228 228 607 312 312 607 607 30 42 45 96 666 607 84 301 93 228 228 663 228 177 607 177 30 42 613 101 42 30 30 34 30 666 683 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97417-846-3	01	1	1306-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98218-616-3	01	1	1411-		●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98218-617-3	01	1	1411-		●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98236-332-0	01	1	1411-		●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98236-334-0	01	1	1411-		●
30	BRACKET; FRT BUMPER (A)	8-98135-977-1	01	1	1306-1410	●	●
30	BRACKET; FRT BUMPER (A)	8-98135-977-1	01	1	1411-	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98135-977-1	01	1	1411-		●
30	BRACKET; FRT BUMPER (A)	8-98135-978-1	01	1	1306-1410	●	●
30	BRACKET; FRT BUMPER (A)	8-98135-978-1	01	1	1411-	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98135-978-1	01	1	1411-		●
34	NUT; BRKT,BUMPER (B) M6 FLANGE	0-91180-106-0	02	1	1306-	●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-110-0	04	1	1306-	●	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (A) M10X30 FLANGE	8-98055-942-0	12	1	1511-		●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT UNDER SPOILER DELETE<SGA> (A) M10X30 FLANGE	8-98055-942-0	12	1	1411-1412		●
42	BOLT; BUMPER (A) M10X30 FLANGE	8-98055-942-0	10	1	1306-1410	●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> (A) M10X30 FLANGE	8-98055-942-0	10	1	1306-1410		●
42	BOLT; BUMPER (A) M10X30 FLANGE	8-98055-942-0	10	1	1411-	●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10X30 FLANGE	8-98055-942-0	10	1	1411-		●
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1306-1410	●	●
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-		●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1306-	●	●
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1306-	●	●
84	HOOK	8-98126-930-0	01	1	1306-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1306-	●	●
96	PLATE; DIST,HOOK FRONT UNDER RUN PROTECTOR<EBE>	8-98218-989-0	01	1	1411-		●
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1306-1410	●	●
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1411-	●
96	PLATE; DIST,HOOK EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98169-197-0	01	1	1411-		●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1306-	●	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1306-	●	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1306-	●	●
160	SCREW M5X16	8-94380-268-0	01	1	1306-	●	●
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1411-		●
177	BOLT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12X25 FLANGE	0-28051-225-0	04	1	1306-1410	●
177	BOLT DUMP TRUCK<RA1> (B) M12X25 FLANGE	0-28051-225-0	04	1	1306-1410		●
177	BOLT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12X25 FLANGE	0-28051-225-0	04	1	1411-	●
177	BOLT DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1411-		●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1306-1410	●	●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1411-1510	●
177	BOLT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1411-1510		●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1511-	●
177	BOLT VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA) (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1511-		●
197	GRILLE; BUMPER	8-98144-188-4	01	1	1306-	●	●
228	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (B) M16X35 FLANGE	0-28851-635-0	12	1	1504-		●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M16X40 FLANGE	0-28851-640-0	10	1	1411-		●
228	BOLT; BRKT (B) M16X35 FLANGE	0-28851-635-0	06	1	1306-1410	●	●
228	BOLT; BRKT (B) M16X35 FLANGE	0-28851-635-0	06	1	1411-	●
228	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M16X35 FLANGE	0-28851-635-0	06	1	1411-		●
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1306-	●	●
312	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1504-		●
312	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (B) M16 FLANGE	0-91180-216-0	04	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-542-0	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-543-0	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98290-477-1	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98290-478-1	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-441-0	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-442-0	01	1	1504-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET (C)	8-98147-053-0	02	1	1306-	●	●
607	BRACKET (B)	8-98147-054-0	02	1	1306-	●	●
607	BRACKET (A)	8-98211-759-0	01	1	1306-1410	●	●
607	BRACKET (A)	8-98211-759-0	01	1	1411-	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-759-0	01	1	1411-		●
607	BRACKET (A)	8-98211-758-0	01	1	1306-1410	●	●
607	BRACKET (A)	8-98211-758-0	01	1	1411-	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-758-0	01	1	1411-		●
613	CLIP (D)	8-97581-651-2	04	1	1306-	●	●
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1306-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1306-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1306-	●	●
663	NUT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12 FLANGE	0-91180-212-0	04	1	1306-	●
663	NUT DUMP TRUCK<RA1> (B) M12 FLANGE	0-91180-212-0	04	1	1306-		●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1306-1410	●	●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1411-1510	●
663	NUT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE	0-91180-108-0	06	1	1411-1510		●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1511-	●
663	NUT VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA) (A) M8 FLANGE	0-91180-108-0	06	1	1511-		●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1306-	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98220-526-0	01	1	1411-		●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98288-162-0	01	1	1411-		●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B)	8-98194-529-0	01	1	1306-1410	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> (B)	8-98194-529-0	01	1	1306-1410		●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B)	8-98194-529-0	01	1	1411-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98194-529-0	01	1	1411-		●
666	PROTECTOR; UNDER (A)	8-98198-583-0	01	1	1306-1410	●	●
666	PROTECTOR; UNDER (A)	8-98198-583-0	01	1	1411-	●
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98198-583-0	01	1	1411-		●
682	BEZEL; BUMPER	8-98123-445-2	01	1	1306-	●	●
682	BEZEL; BUMPER	8-98123-444-2	01	1	1306-	●	●
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
