◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11537 - CYZ LHD EURO2 WITH REFLECTOR ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#123387) — 167 parça

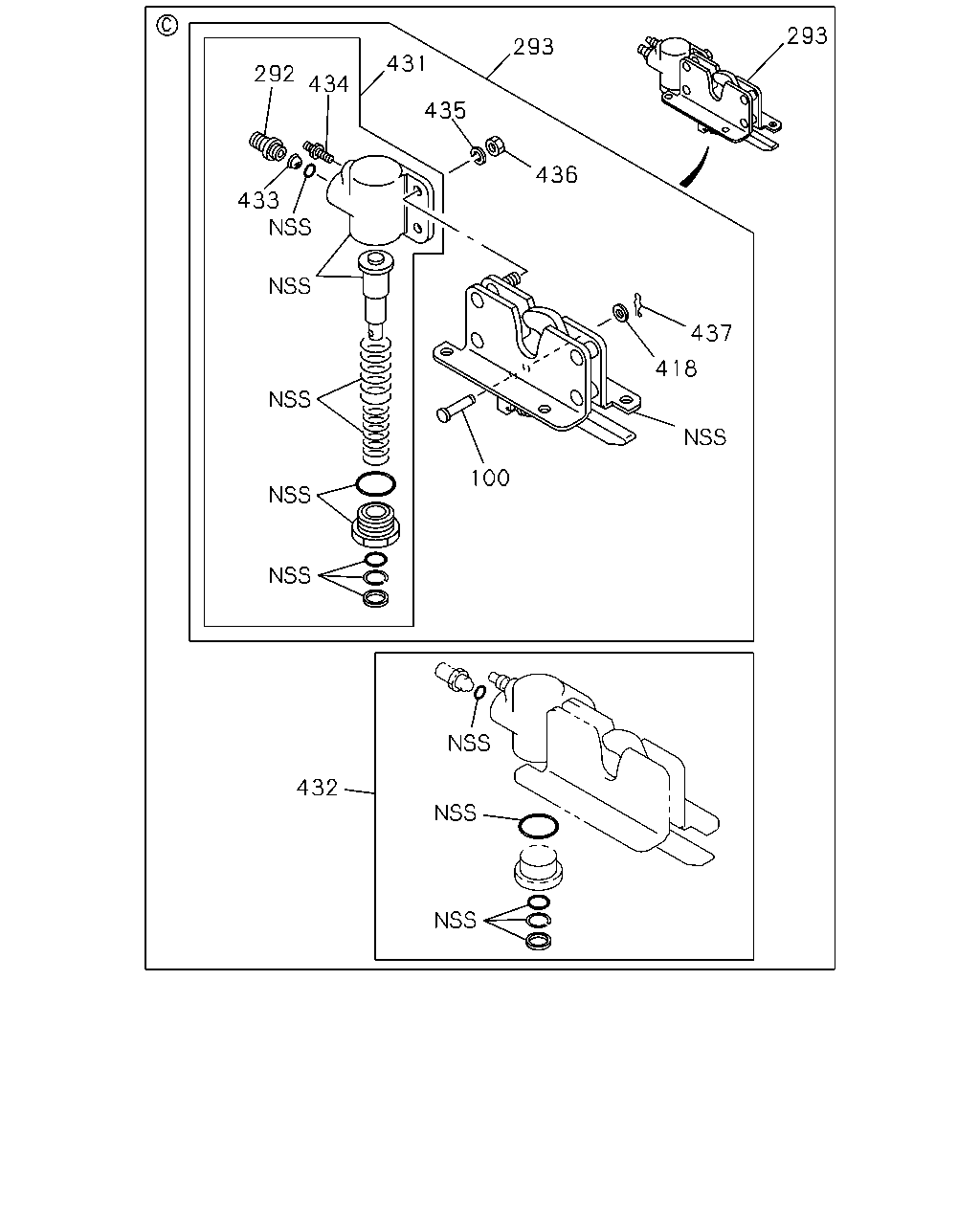

çizim 364652
292 434 433 431 435 436 293 293 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date A B
100 PIN; JOINT 1-53458-831-0 01 1 1306- ● ●
292 CONNECTOR; CAB SUSPENSION
M12 		1-53458-941-0 01 1 1306- ● ●
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 1306- ● ●
418 WASHER; PL,PIN 1-53458-059-0 01 1 1306- ● ●
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 1306- ● ●
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 1306- ● ●
433 FILTER; AIR CYL 1-53458-048-0 01 1 1306- ● ●
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 1306- ● ●
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 1306- ● ●
436 NUT; AIR CYL 1-53458-528-0 02 1 1306- ● ●
437 PIN; SNAP 1-53458-526-0 01 1 1306- ● ●
çizim 364710
294 202 202 203 204 205 204 203 201 173 203 204 205 66 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date A B
66 BRACKET; S/ABS 8-98214-572-0 01 1 1306- ● ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 1306- ● ●
173 MEMBER; CAB MTG RR 8-98166-348-0 01 1 1306-1510 ● ●
173 MEMBER; CAB MTG RR 8-98166-348-0 01 1 1511- ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION-FULL FLOATING(SMK) 		8-98166-348-0 01 1 1511- ●
174 OUTRIGGER 8-97614-275-1 01 1 1306- ● ●
174 OUTRIGGER 8-98198-712-2 01 1 1306- ● ●
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 1306- ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1306- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1306- ● ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1306- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1306- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1306- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1306- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1306- ● ●
294 MEMBER; FLOATING 1-53454-950-3 01 1 1306-1510 ● ●
294 MEMBER; FLOATING 1-53454-950-3 01 1 1511- ● ●

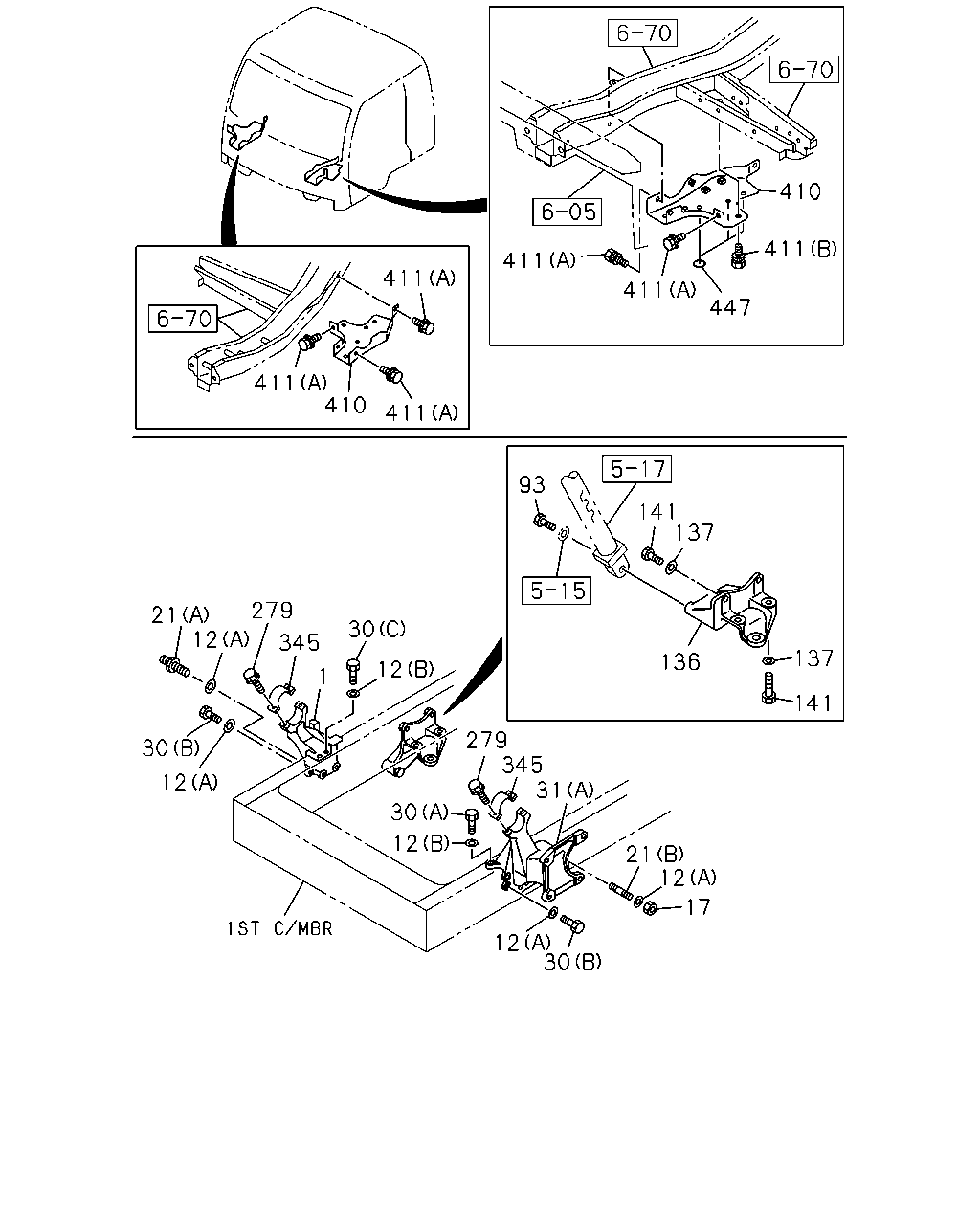

çizim 365825
411 411 447 411 410 93 141 137 137 141 136 411 411 410 411 21 12 345 279 30 12 279 345 31 21 12 17 12 30 12 30 12 30 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 8-98225-458-0 01 1 1306-1510 ● ●
1 BRACKET; CAB MTG 8-98225-458-0 01 1 1511- ● ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 11 1 1306- ● ●
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 1306- ● ●
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1306- ● ●
21 STUD; BRKT,CAB TILT
(A) M10X20,M16X70 L=101 		1-09029-093-0 02 1 1306- ● ●
21 STUD; BRKT,CAB TILT
(B) M16X55 L=79 		8-98200-993-0 01 1 1306-1306 ●
21 STUD; BRKT,CAB TILT
(B) M16X55 L=79 		8-98200-993-0 01 1 1306- ● ●
30 BOLT; CAB FRT FOOT
EXC. SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD),GENERAL EXPORT EQUIPMENT(TAA) (B) M16X50 		0-20951-650-0 05 1 1511- ●
30 BOLT; CAB FRT FOOT
(C) M14X50 		0-20951-450-0 02 1 1306- ● ●
30 BOLT; CAB FRT FOOT
(A) M14X60 		0-20951-460-0 02 1 1306- ● ●
30 BOLT; CAB FRT FOOT
(B) M16X60 		0-20951-660-0 03 1 1306- ● ●
30 BOLT; CAB FRT FOOT
(B) M16X60 		0-20951-660-0 05 1 1306- ● ●
31 BRACKET; CAB
(A) 		8-98209-487-0 01 1 1306- ● ●
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1306-1510 ● ●
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1511- ●
31 BRACKET; CAB
CAB SUSPENSION-FULL FLOATING(SMK) (B) 		1-53453-274-1 01 1 1511- ●
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1306-1510 ● ●
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1511- ●
31 BRACKET; CAB
CAB SUSPENSION-FULL FLOATING(SMK) (B) 		1-53453-280-2 01 1 1511- ●
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 1306- ● ●
136 BRACKET; OIL CYL 1-53458-903-0 01 1 1306- ● ●
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1306- ● ●
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1306- ● ●
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 1306-1510 ● ●
279 BOLT
M12X40 FLANGE 		8-98270-173-0 04 1 1511- ● ●
345 CAP; CAB 1-53458-336-3 02 1 1306- ● ●
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 1306- ● ●
410 REINFORCEMENT; CAB TILT 1-62570-939-0 01 1 1306- ● ●
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 1306- ● ●
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1306- ● ●
447 SEAL
OD=25 BLACK 		1-76798-019-0 03 1 1306- ● ●

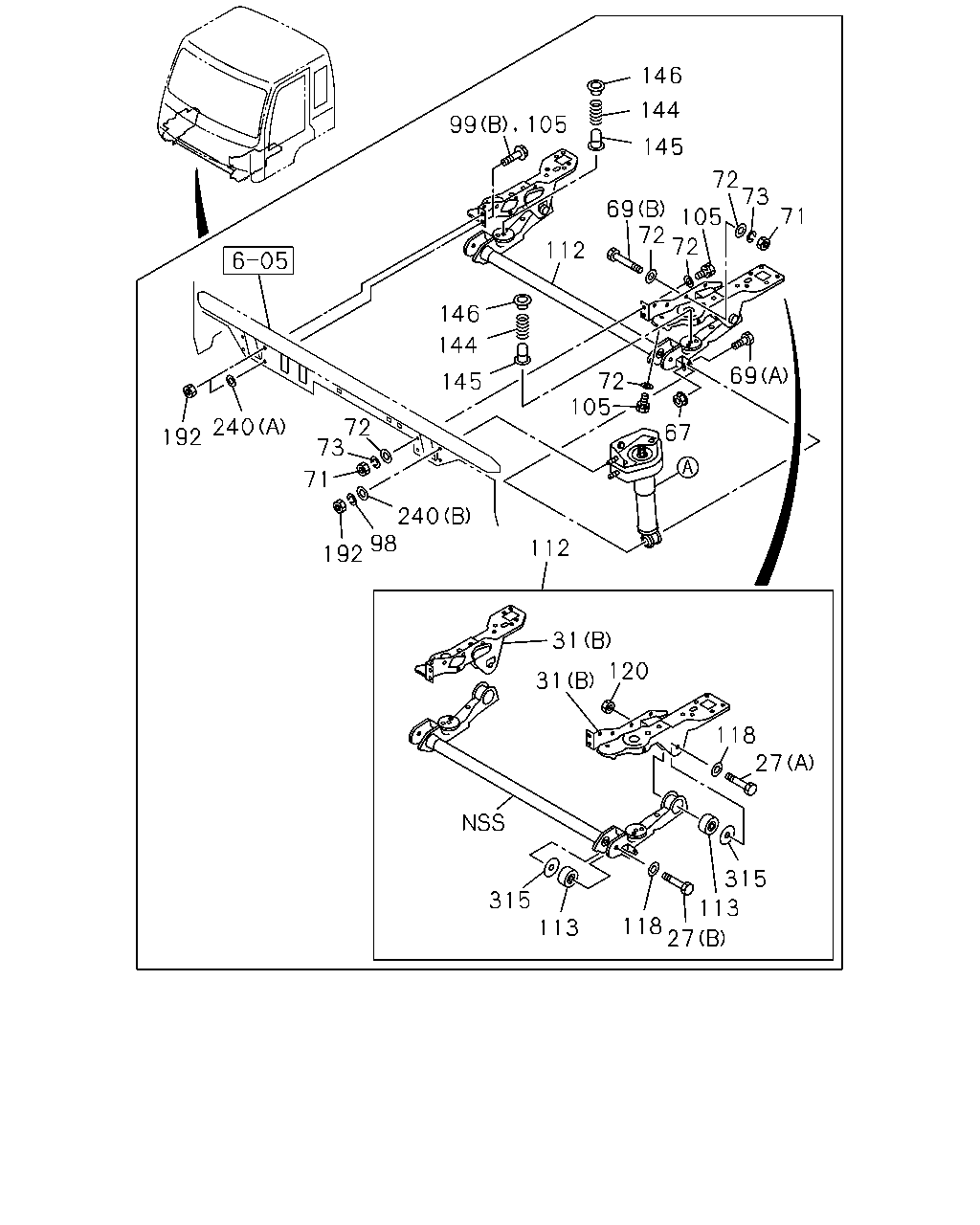

çizim 366050
146 144 145 105 99 72 73 71 69 72 72 105 69 112 146 144 145 72 73 71 192 98 240 240 192 112 31 31 120 118 27 315 113 27 118 113 315 72 67 105
BalonParca AdiParca NoAdetTipApplied Date A B
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 1306-1510 ● ●
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 1511- ●
27 BOLT; BUSHING
CAB SUSPENSION-FULL FLOATING(SMK) (B) M18X120 		1-09000-442-1 02 1 1511- ●
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 1306-1510 ● ●
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 1511- ●
27 BOLT; BUSHING
CAB SUSPENSION-FULL FLOATING(SMK) (A) M18X90 		9-91066-890-0 02 1 1511- ●
31 BRACKET; CAB
(A) 		8-98209-487-0 01 1 1306- ● ●
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1306-1510 ● ●
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1511- ●
31 BRACKET; CAB
CAB SUSPENSION-FULL FLOATING(SMK) (B) 		1-53453-274-1 01 1 1511- ●
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1306-1510 ● ●
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1511- ●
31 BRACKET; CAB
CAB SUSPENSION-FULL FLOATING(SMK) (B) 		1-53453-280-2 01 1 1511- ●
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 1306- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1306- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1306- ● ●
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 1306- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1306- ● ●
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 1306- ● ●
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 1306- ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1306- ● ●
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1306- ● ●
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 14 1 1306- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-567-7 01 1 1306-1510 ● ●
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-567-8 01 1 1511- ●
112 ARM ASM; LINK,CAB FRT SUSP
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53450-567-8 01 1 1511- ●
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 1306-1510 ● ●
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 1511- ●
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53458-714-0 04 1 1511- ●
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 1306-1510 ● ●
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 1511- ●
118 WASHER; PL,STOPPER RUBBER,LINK ARM
CAB SUSPENSION-FULL FLOATING(SMK) ID=19 OD=30 		1-09503-279-0 04 1 1511- ●
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 1306-1510 ● ●
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 1511- ●
120 NUT; STOPPER RUBBER,LINK ARM
CAB SUSPENSION-FULL FLOATING(SMK) M18 		0-91110-518-0 02 1 1511- ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1306-1510 ● ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1511- ● ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1306-1510 ● ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1511- ● ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1306-1510 ● ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1511- ● ●
192 NUT; BRKT FIX
M10 		1-09984-142-0 05 1 1306- ● ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 1306- ● ●
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 1306-1410 ● ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1306- ● ●
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 1306-1510 ● ●
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 1511- ●
315 WASHER; CAB MTG
CAB SUSPENSION-FULL FLOATING(SMK) ID=34.5 		1-53458-281-1 04 1 1511- ●

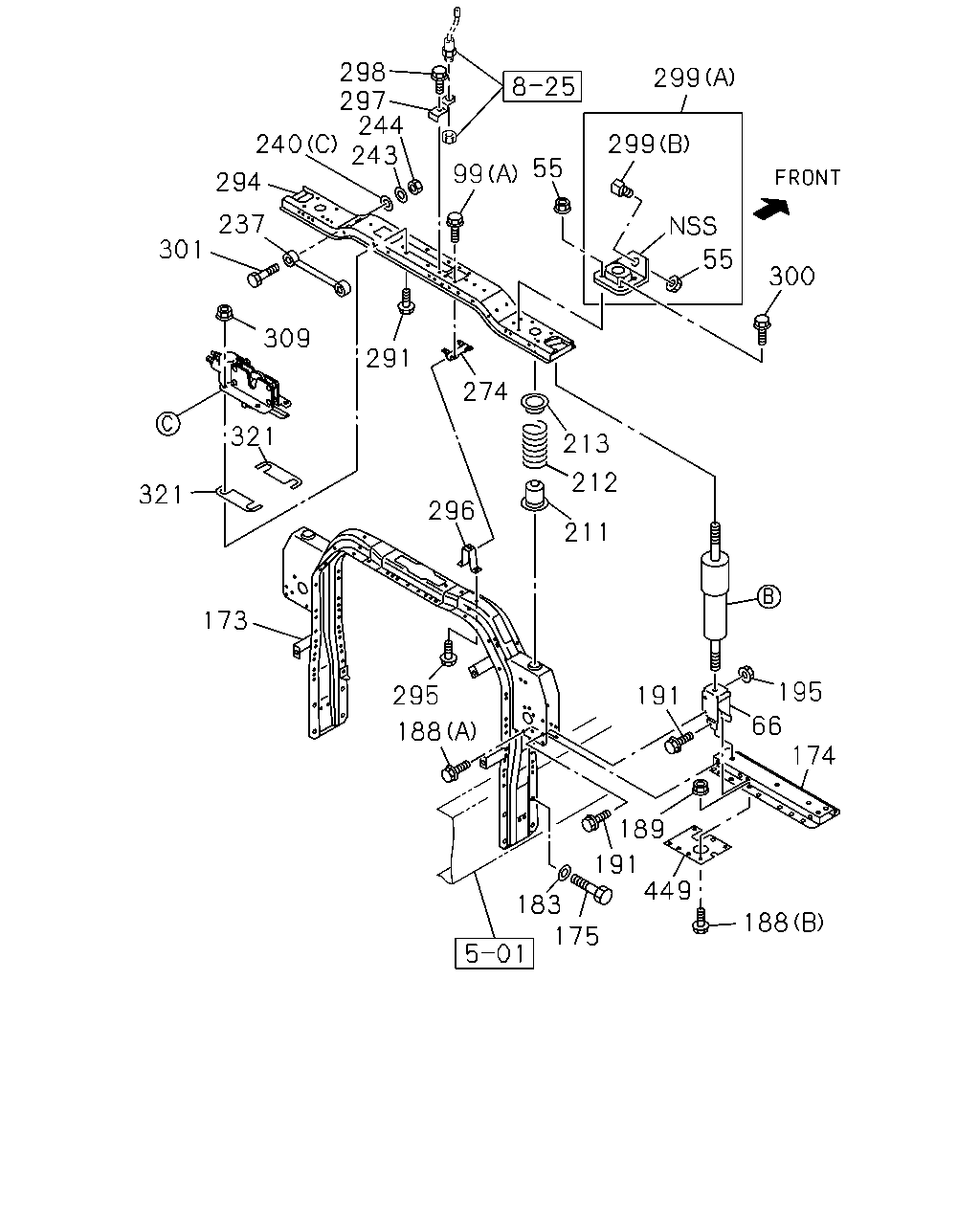

çizim 367147
299 299 55 300 55 99 243 244 297 298 240 294 237 301 309 321 321 173 296 274 291 213 212 211 191 66 195 174 188 449 191 189 183 175 188 295
BalonParca AdiParca NoAdetTipApplied Date A B
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 1306- ● ●
66 BRACKET; S/ABS 8-98214-572-0 01 1 1306- ● ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 1306- ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1306- ● ●
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1306- ● ●
173 MEMBER; CAB MTG RR 8-98166-348-0 01 1 1306-1510 ● ●
173 MEMBER; CAB MTG RR 8-98166-348-0 01 1 1511- ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION-FULL FLOATING(SMK) 		8-98166-348-0 01 1 1511- ●
174 OUTRIGGER 8-97614-275-1 01 1 1306- ● ●
174 OUTRIGGER 8-98198-712-2 01 1 1306- ● ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1306- ● ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1306- ● ●
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 1306-1510 ● ●
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 1511- ● ●
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1306- ● ●
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 1306- ● ●
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 1306- ● ●
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1306- ● ●
211 RUBBER; CUSHION,S/ABS 1-53366-128-0 02 1 1306-1510 ● ●
211 RUBBER; CUSHION,S/ABS 1-53366-128-0 02 1 1511- ● ●
212 SPRING; COIL 1-09580-515-0 02 1 1306-1510 ● ●
212 SPRING; COIL 1-09580-515-0 02 1 1511- ● ●
213 SEAT; SPR,S/ABS 1-53366-132-1 02 1 1306-1510 ● ●
213 SEAT; SPR,S/ABS 1-53366-132-1 02 1 1511- ● ●
237 ROD ASM; LATERAL 1-53458-343-0 01 1 1306- ● ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 1306- ● ●
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 1306-1410 ● ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1306- ● ●
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 1306- ● ●
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 1306- ● ●
274 PIN 1-53458-996-0 01 1 1306- ● ●
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 1306- ● ●
294 MEMBER; FLOATING 1-53454-950-3 01 1 1306-1510 ● ●
294 MEMBER; FLOATING 1-53454-950-3 01 1 1511- ● ●
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 1306- ● ●
296 STOPPER; UPR 1-53458-973-1 01 1 1306- ● ●
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 1306- ● ●
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1306- ● ●
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 1306- ● ●
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 1306- ● ●
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 1306-1510 ● ●
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 1511- ● ●
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 1306- ● ●
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 1306- ● ●
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 1306- ● ●
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 1306- ● ●
çizim 367289
202 202 203 204 205 65 203 204 70 72 69
BalonParca AdiParca NoAdetTipApplied Date A B
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1306- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1306- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1306- ● ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 1306- ● ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 1306- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1306- ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1306- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1306- ● ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1306- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1306- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1306- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1306- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
