◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11537 - CYZ LHD EURO2 WITH REFLECTOR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#123381) — 91 parça

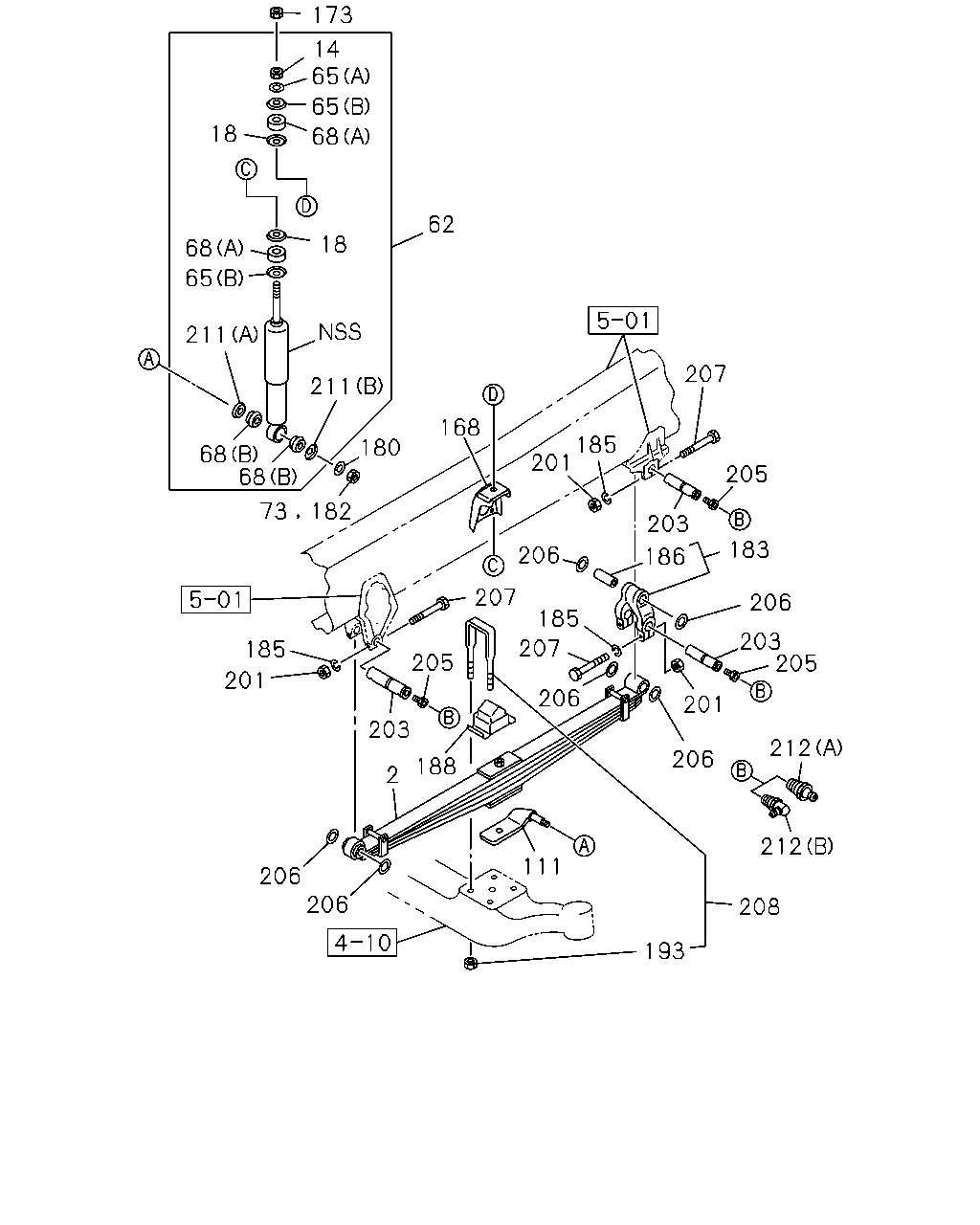

çizim 366132
173 14 65 65 68 18 68 65 18 62 211 211 68 68 73 182 180 185 201 168 201 185 207 206 206 203 2 205 207 206 185 207 206 203 186 205 183 206 203 201 205 111 206 212 212 208 193 188
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98157-779-0 02 1 1306-1510 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98157-779-0 02 1 1306-1510 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5200MM(52W) DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98157-779-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98157-779-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 4-LEAF 		8-97617-349-0 02 1 1306-1407 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1> 4-LEAF 		8-97617-349-0 02 1 1306-1407 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 4-LEAF 		8-98229-520-0 02 1 1408-1510 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1> 4-LEAF 		8-98229-520-0 02 1 1408-1510 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 4-LEAF 		8-98229-520-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 4-LEAF 		8-98229-520-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1> 4-LEAF 		8-98229-520-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5900MM(59W) SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FULL TRACTOR TRUCK<RD6> FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98229-520-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) WHEEL BASE 6600MM(66W) SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,FULL TRACTOR TRUCK<RD6> 4-LEAF 		8-98229-520-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> 4-LEAF 		8-98229-520-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98157-781-0 02 1 1306-1510 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5200MM(52W) DUMP TRUCK<RA1>,MIXER TRUCK<RA2> MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98157-781-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 8-LEAF 		8-98157-781-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98157-781-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5900MM(59W) SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FULL TRACTOR TRUCK<RD6> MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98157-781-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) MULTI LEAF SUSPENSION FRT<SAQ> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> 8-LEAF 		8-98157-781-0 02 1 1511- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1306- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1306- ● ●
62 ABSORBER ASM; SHOCK,FRT
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-836-0 02 1 1306-1510 ●
62 ABSORBER ASM; SHOCK,FRT
DUMP TRUCK<RA1> FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-836-0 02 1 1306-1510 ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5200MM(52W) DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-836-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> SAUDI ARABIA EQUIPMENT(GH3),VIETNAM EQUIPMENT(JCD) ,GENERAL EXPORT EQUIPMENT(TAA) FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-836-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		1-51630-837-0 02 1 1306-1510 ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1> 		1-51630-837-0 02 1 1306-1510 ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		1-51630-837-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-837-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,FULL TRACTOR TRUCK<RD6> 		1-51630-837-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> 		1-51630-837-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1306-1510 ● ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5200MM(52W) DUMP TRUCK<RA1>,MIXER TRUCK<RA2> MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		1-51630-417-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> 		1-51630-417-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> BEST VALUE PARTS 		1-87610-154-0 02 1 1306-1510 ● ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5200MM(52W) DUMP TRUCK<RA1>,MIXER TRUCK<RA2> MULTI LEAF SUSPENSION FRT<SAQ> BEST VALUE PARTS 		1-87610-154-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> BEST VALUE PARTS 		1-87610-154-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> MULTI LEAF SUSPENSION FRT<SAQ> BEST VALUE PARTS 		1-87610-154-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> MULTI LEAF SUSPENSION FRT<SAQ> BEST VALUE PARTS 		1-87610-154-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> BEST VALUE PARTS 		1-87610-154-0 02 1 1511- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1306- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1306- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1306- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1306- ● ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 1306-1405 ● ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 1406- ●
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1406- ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1306-1405 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1406- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1406- ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1306-1405 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1406- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1406- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1306- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1306- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1306- ● ●
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1406- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1306- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1306- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1306- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 1306- ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1306- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1306- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1306- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1306- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1306- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1306- ● ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 04 1 1306-1510 ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 04 1 1306-1510 ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5200MM(52W) DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=210 		1-87870-380-2 04 1 1306-1510 ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1> L=210 		1-87870-380-2 04 1 1306-1510 ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5200MM(52W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=210 		1-87870-380-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,FULL TRACTOR TRUCK<RD6> L=210 		1-87870-380-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5900MM(59W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5> L=210 		1-87870-380-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=240 		1-87870-376-2 04 1 1306-1510 ● ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5200MM(52W) MULTI LEAF SUSPENSION FRT<SAQ> L=240 		1-87870-376-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> MULTI LEAF SUSPENSION FRT<SAQ> L=240 		1-87870-376-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> L=240 		1-87870-376-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> MULTI LEAF SUSPENSION FRT<SAQ> L=240 		1-87870-376-2 04 1 1511- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1306- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1306- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1306- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1306- ● ●

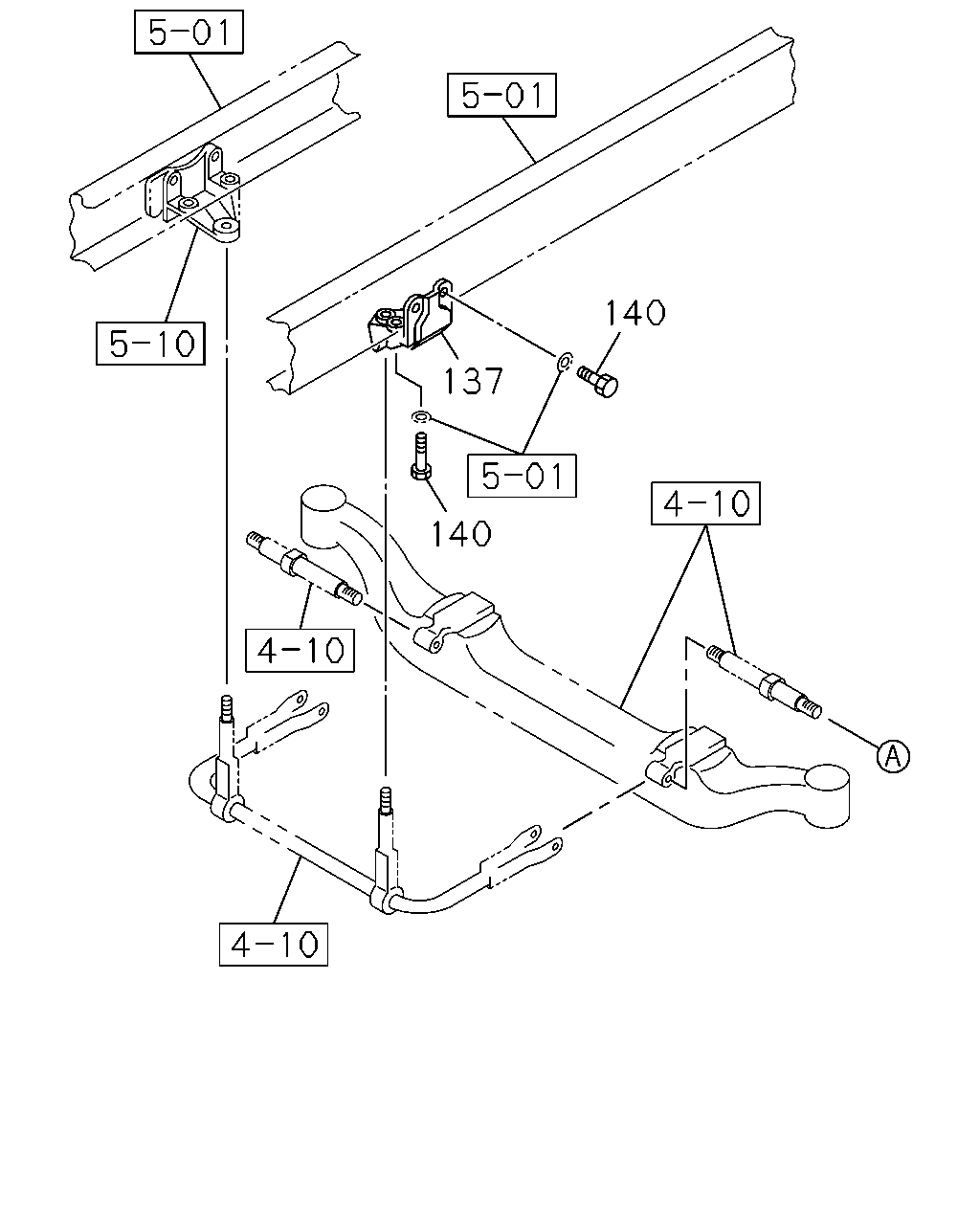

çizim 366733
140 140 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) 		1-51781-112-0 01 1 1306- ●
140 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) M14X50 		0-20951-450-0 04 1 1306- ●
