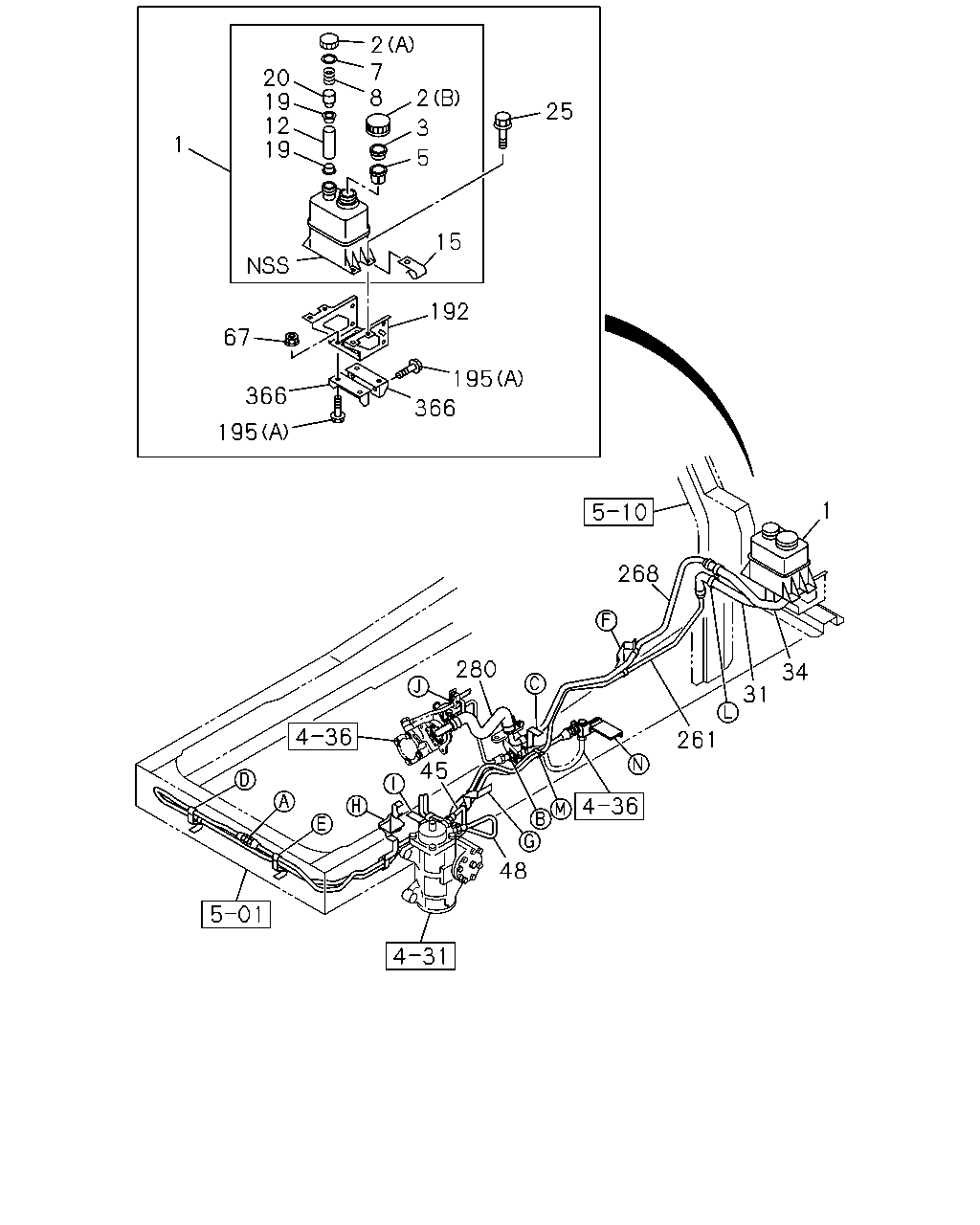

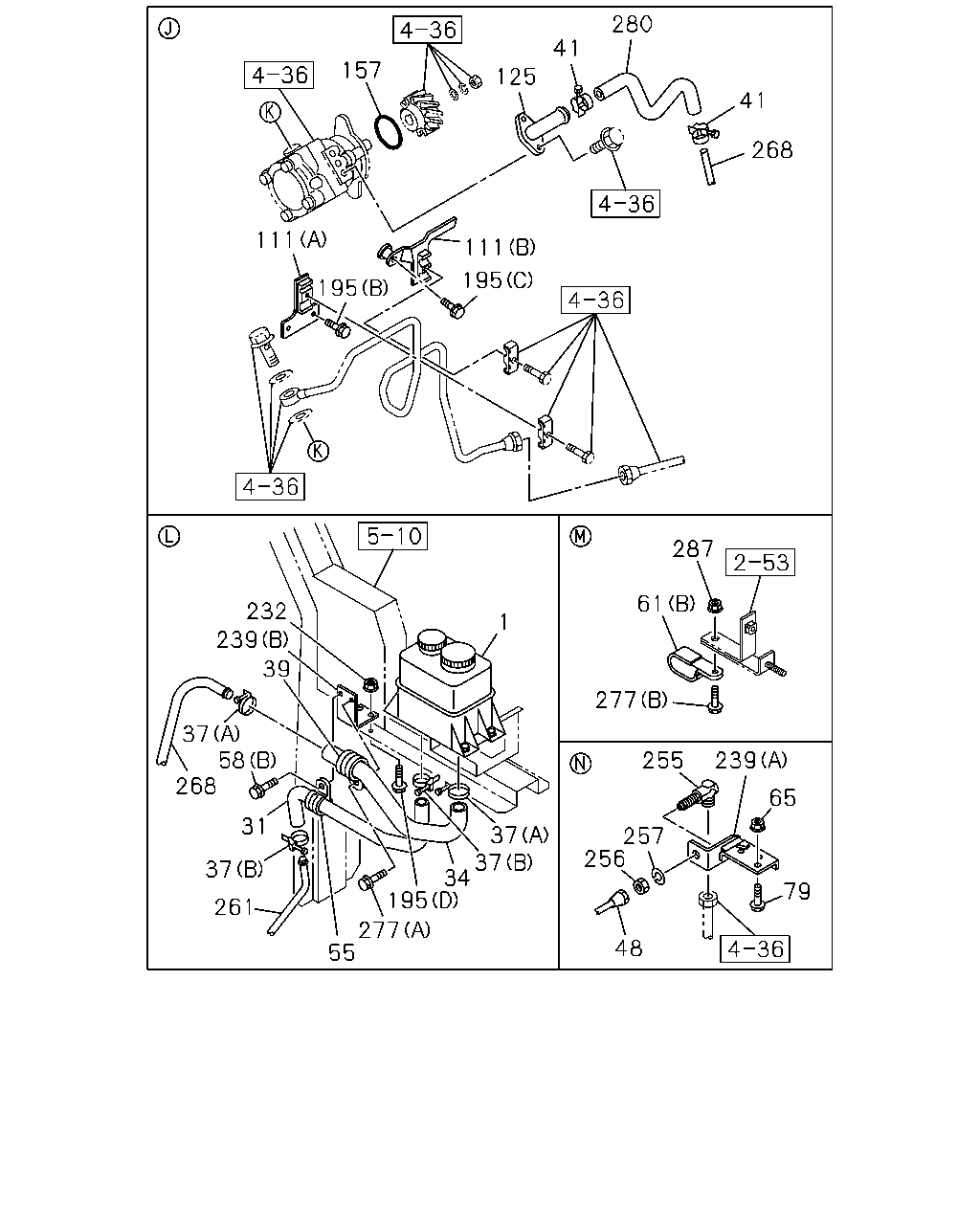

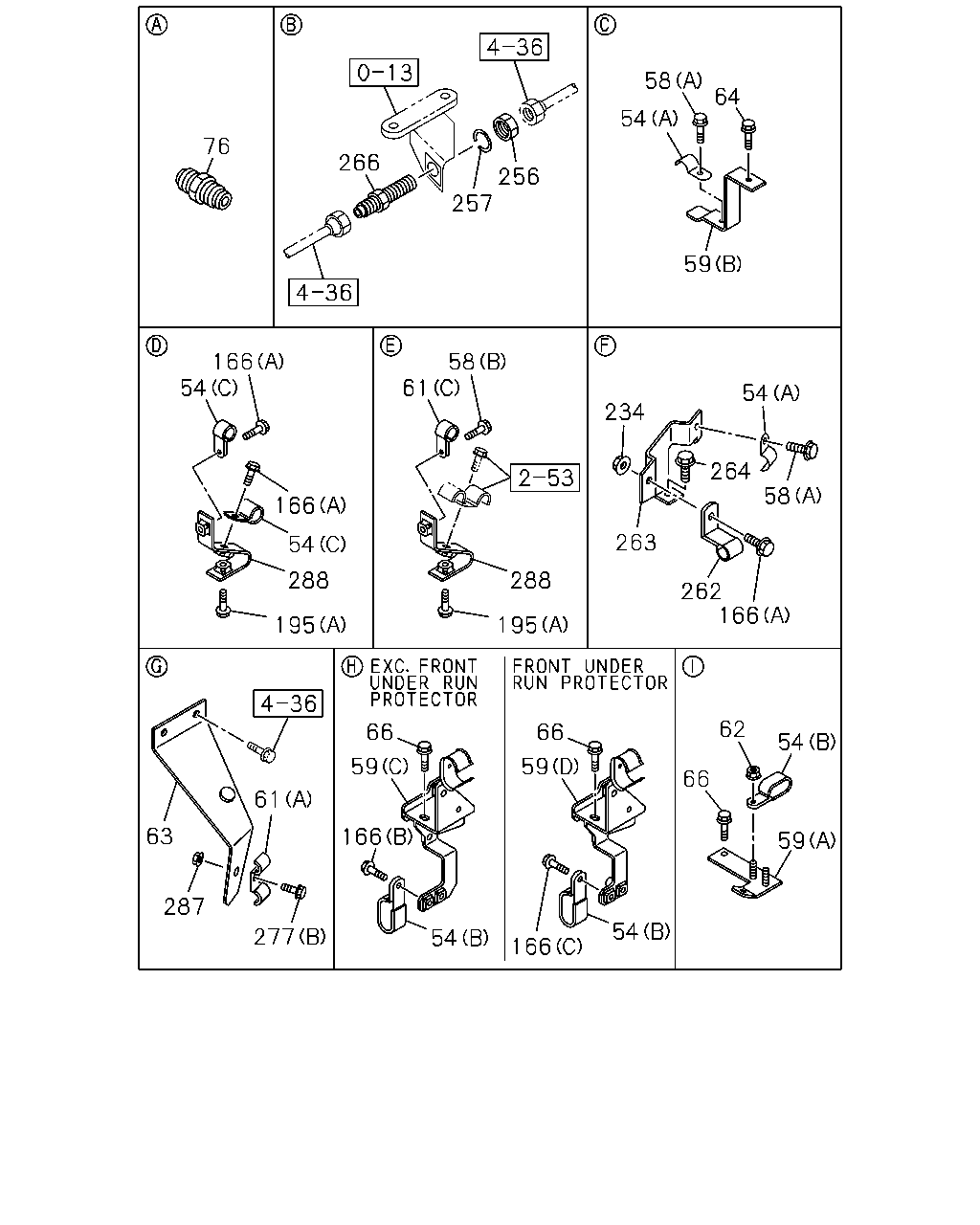

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#123377) — 120 parça

2 20 7 5 3 2 8 19 19 12 25 15 192 195 366 195 366 67 1 1 34 31 268 261 280 45 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1306-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1306-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1306-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1306-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1306-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1306-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1306-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1306-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1306-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	1306-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1306-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1306-	●	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1306-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1306-	●	●
45	PIPE; OIL,P/S UNIT TO UNION FRONT UNDER RUN PROTECTOR<EBE>	8-98287-561-0	01	1	1411-		●
45	PIPE; OIL,P/S UNIT TO UNION	8-98224-869-0	01	1	1306-1410	●	●
45	PIPE; OIL,P/S UNIT TO UNION	8-98224-869-0	01	1	1411-	●
45	PIPE; OIL,P/S UNIT TO UNION EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98224-869-0	01	1	1411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98233-229-0	01	1	1306-	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-	●	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1306-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1306-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1306-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1306-	●	●
261	PIPE; OIL,UNION TO HOSE FRONT UNDER RUN PROTECTOR<EBE>	8-98287-562-0	01	1	1411-		●
261	PIPE; OIL,UNION TO HOSE	8-98233-230-0	01	1	1306-1410	●	●
261	PIPE; OIL,UNION TO HOSE	8-98233-230-0	01	1	1411-	●
261	PIPE; OIL,UNION TO HOSE EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98233-230-0	01	1	1411-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1306-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1306-	●	●
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1306-	●	●

76 266 256 257 58 54 64 59 54 234 264 58 263 262 166 58 61 288 195 166 54 166 54 288 195 61 63 287 277 66 59 166 54 66 59 166 54 66 62 54 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	02	1	1306-	●	●
54	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1306-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	1306-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
58	BOLT; CLIP (A) M10X25 FLANGE	0-28651-025-0	02	1	1306-	●	●
59	BRACKET; CLIP,OIL PIPE FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98287-558-0	01	1	1411-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	1306-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-98224-867-0	01	1	1306-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98239-922-0	01	1	1306-1410	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98239-922-0	01	1	1411-	●
59	BRACKET; CLIP,OIL PIPE EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98239-922-0	01	1	1411-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	1306-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1306-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1306-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
63	BRACKET; CLIP,P/S	1-47471-146-0	01	1	1306-	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1306-	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1306-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1306-	●	●
166	BOLT; CLIP FRONT UNDER RUN PROTECTOR<EBE> (C) M8X45 FLANGE	0-28050-845-0	01	1	1411-		●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1306-1410	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1411-	●
166	BOLT; CLIP EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 FLANGE	0-28650-825-0	01	1	1411-		●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1306-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1306-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1306-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1306-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1306-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1306-	●	●
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	1306-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1306-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	1306-	●	●

41 268 280 41 125 157 111 195 111 195 287 61 277 255 239 65 79 48 256 37 257 37 1 232 239 39 37 58 268 31 37 261 55 195 277 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1306-	●	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1306-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1306-	●	●
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1306-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1306-	●	●
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1306-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1306-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98233-229-0	01	1	1306-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1306-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
58	BOLT; CLIP (A) M10X25 FLANGE	0-28651-025-0	02	1	1306-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	1306-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1306-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1306-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1306-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1306-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1306-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1306-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1306-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1306-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1306-	●	●
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
239	BRACKET; FLEX HOSE (B)	1-21464-780-0	01	1	1306-	●	●
239	BRACKET; FLEX HOSE (A)	8-98144-458-1	01	1	1306-	●	●
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	1306-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1306-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1306-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-	●	●
261	PIPE; OIL,UNION TO HOSE FRONT UNDER RUN PROTECTOR<EBE>	8-98287-562-0	01	1	1411-		●
261	PIPE; OIL,UNION TO HOSE	8-98233-230-0	01	1	1306-1410	●	●
261	PIPE; OIL,UNION TO HOSE	8-98233-230-0	01	1	1411-	●
261	PIPE; OIL,UNION TO HOSE EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98233-230-0	01	1	1411-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1306-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1306-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
