Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#123366) — 427 parça

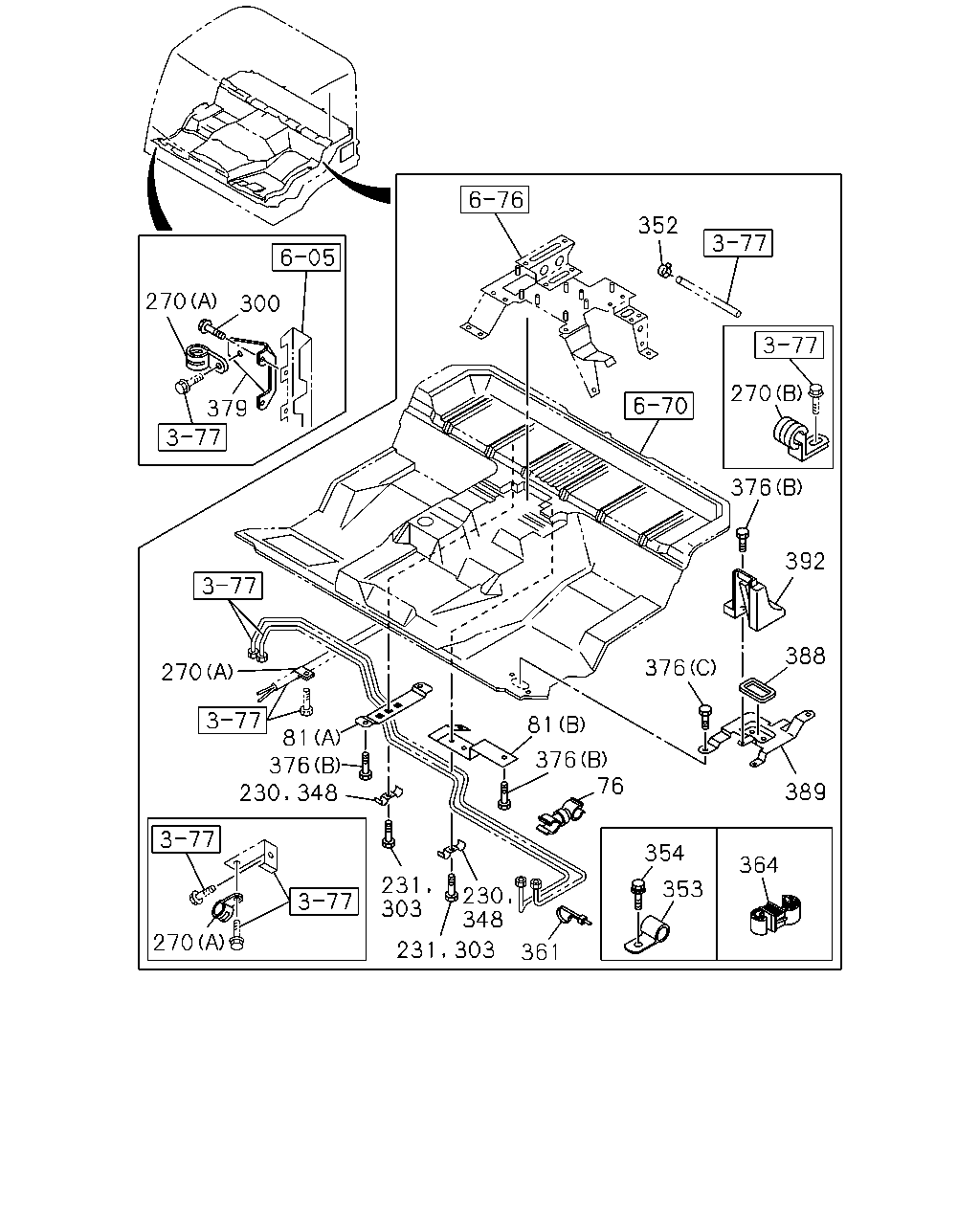

270 300 379 352 270 376 392 388 389 364 353 354 376 76 376 81 361 303 231 348 230 303 231 270 348 230 376 81 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
76	CLIP; NYLON TUBE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=6 & 8.3	8-94167-742-0	01	1	1306-1510	●	●
76	CLIP; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) ID=6 & 8.3	8-94167-742-0	01	1	1511-	●	●
81	BRACKET; CLIP (C) L=150	1-47471-217-0	02	1	1306-	●	●
81	BRACKET; CLIP (D)	1-47478-113-0	01	1	1306-	●	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1306-	●	●
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1306-	●	●
81	BRACKET; CLIP (H)	8-98052-412-0	01	1	1306-	●	●
81	BRACKET; CLIP (F)	8-98052-414-0	01	1	1306-	●	●
81	BRACKET; CLIP (E)	8-98061-758-0	02	1	1306-	●	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1306-	●	●
230	CLIP; PIPE,AIR FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1306-		●
231	BOLT; CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1306-		●
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1306-	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1306-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1306-	●	●
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	1306-	●	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	1306-	●
303	BOLT; PIPE CLIP EXC. FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	1306-		●
303	BOLT; PIPE CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1306-		●
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1306-	●
348	CLIP; AIR PIPE EXC. FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1306-		●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	03	1	1306-	●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1306-	●	●
353	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> ID=9 L=16	0-95234-822-0	01	1	1306-		●
354	BOLT; PIPE CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1306-		●
361	CLIP; FLEX HOSE,AIR PRESS GAGE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=250	5-09707-030-1	01	1	1306-1510	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE TRANSMISSION CONTROL CABLE TYPE(C1A) L=250	5-09707-030-1	01	1	1511-	●	●
364	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> ID=8.3 & 10	8-94176-792-0	01	1	1306-		●
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1306-	●	●
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1306-	●	●
376	BOLT; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-1510	●	●
376	BOLT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1511-	●	●
376	BOLT; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1306-1510	●	●
376	BOLT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1511-	●	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	1306-	●	●
388	SEAL RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=215	1-79738-794-1	01	1	1306-1510	●	●
388	SEAL TRANSMISSION CONTROL CABLE TYPE(C1A) L=215	1-79738-794-1	01	1	1511-	●	●
389	BRACKET; UNION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-79738-790-1	01	1	1306-1510	●	●
389	BRACKET; UNION TRANSMISSION CONTROL CABLE TYPE(C1A)	1-79738-790-1	01	1	1511-	●	●
392	COVER; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-73996-264-1	01	1	1306-1510	●	●
392	COVER; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-73996-264-1	01	1	1511-	●	●

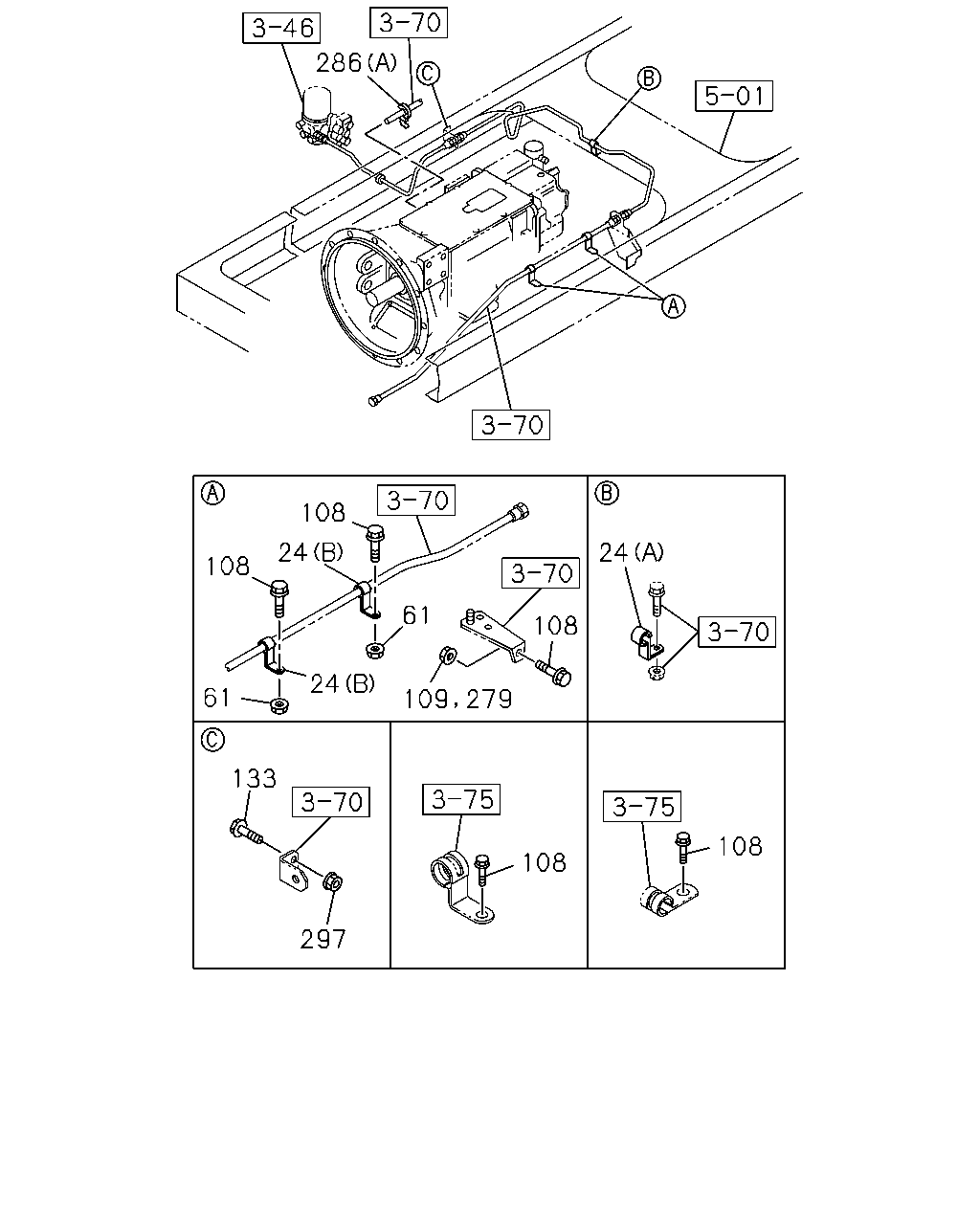

286 108 24 108 61 24 61 108 279 109 24 108 108 297 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1306-	●	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1306-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
109	NUT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1306-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	04	1	1306-		●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1306-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-		●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1306-	●	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1306-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1306-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE	0-28650-835-0	02	1	1306-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1306-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1306-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	03	1	1306-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1306-		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1306-	●
279	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
279	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
279	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1306-		●
286	CLIP; NYLON TUBE MJT7S M/T(Y3E) (A) ID=15 & 7	1-09709-311-0	01	1	1306-	●	●
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (B) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1306-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1306-	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1306-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1306-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1306-		●

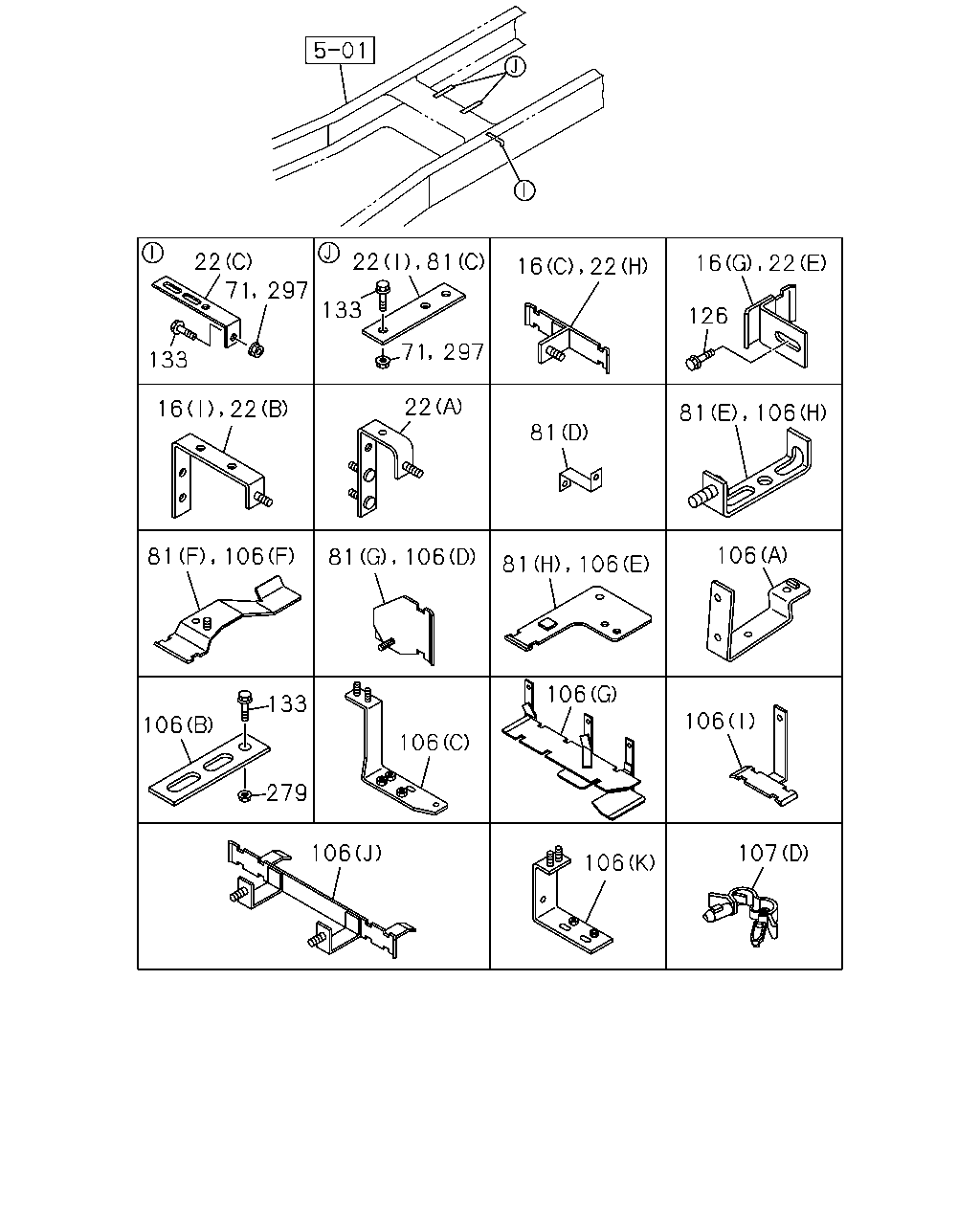

22 133 71 297 22 81 71 297 16 22 16 22 126 16 22 22 81 81 106 81 106 81 106 81 106 106 106 133 279 106 106 106 106 106 107 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP WHEEL BASE 5200MM(52W) (G)	1-47479-693-0	01	1	1306-	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (I)	1-47479-800-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (D)	8-98142-172-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (G)	1-47479-693-0	02	1	1306-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (G)	1-47479-693-0	03	1	1306-		●
22	BRACKET; CLIP (I) L=150	1-47471-217-0	01	1	1306-	●
22	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	1306-	●
22	BRACKET; CLIP EXC. FULL TRAILER PIPING<Z25> (C) L=100 H=30	1-47477-645-2	01	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (A)	1-47479-329-0	01	1	1306-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A)	1-47479-329-0	01	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (E)	1-47479-693-0	01	1	1306-	●
22	BRACKET; CLIP (J)	1-47479-546-0	01	1	1306-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1306-	●	●
22	BRACKET; CLIP (F)	1-47479-720-0	01	1	1306-	●	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1306-	●	●
22	BRACKET; CLIP (D)	1-47479-898-0	01	1	1306-	●	●
22	BRACKET; CLIP (G)	8-98142-173-0	01	1	1306-	●	●
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (C) L=100 H=30	1-47477-645-2	02	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (I) L=150	1-47471-217-0	02	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (I) L=150	1-47471-217-0	02	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (E)	1-47479-693-0	02	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	01	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (E)	1-47479-693-0	03	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (I) L=150	1-47471-217-0	03	1	1306-		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1306-	●	●
81	BRACKET; CLIP (C) L=150	1-47471-217-0	02	1	1306-	●	●
81	BRACKET; CLIP (D)	1-47478-113-0	01	1	1306-	●	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1306-	●	●
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1306-	●	●
81	BRACKET; CLIP (H)	8-98052-412-0	01	1	1306-	●	●
81	BRACKET; CLIP (F)	8-98052-414-0	01	1	1306-	●	●
81	BRACKET; CLIP (E)	8-98061-758-0	02	1	1306-	●	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (C)	1-47471-108-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (I)	1-47479-870-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (I)	1-47479-870-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (G)	8-98243-283-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (G)	8-98243-283-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	1306-	●	●
106	BRACKET; TUBE CLIP (L) L=82 B=20	1-47478-420-0	01	1	1306-1404	●	●
106	BRACKET; TUBE CLIP (L) L=82 B=20	8-98259-390-0	01	1	1405-	●	●
106	BRACKET; TUBE CLIP (J)	1-47479-553-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (E)	8-98052-408-0	01	1	1306-1412	●	●
106	BRACKET; TUBE CLIP (E)	8-98297-188-0	01	1	1501-	●	●
106	BRACKET; TUBE CLIP (F)	8-98052-410-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (H)	8-98061-758-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (A)	8-98224-856-1	01	1	1306-	●	●
106	BRACKET; TUBE CLIP BATTERY LAYOUT REAR VAR1<NCT> (K)	1-47479-754-0	01	1	1306-		●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1306-	●	●
107	CLIP; NYLON TUBE (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	01	1	1306-	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	1306-		●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1306-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1306-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	04	1	1306-		●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1306-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-		●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1306-	●	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1306-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1306-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE	0-28650-835-0	02	1	1306-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1306-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1306-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	03	1	1306-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1306-		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1306-	●
279	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
279	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
279	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1306-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1306-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1306-	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1306-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1306-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1306-		●

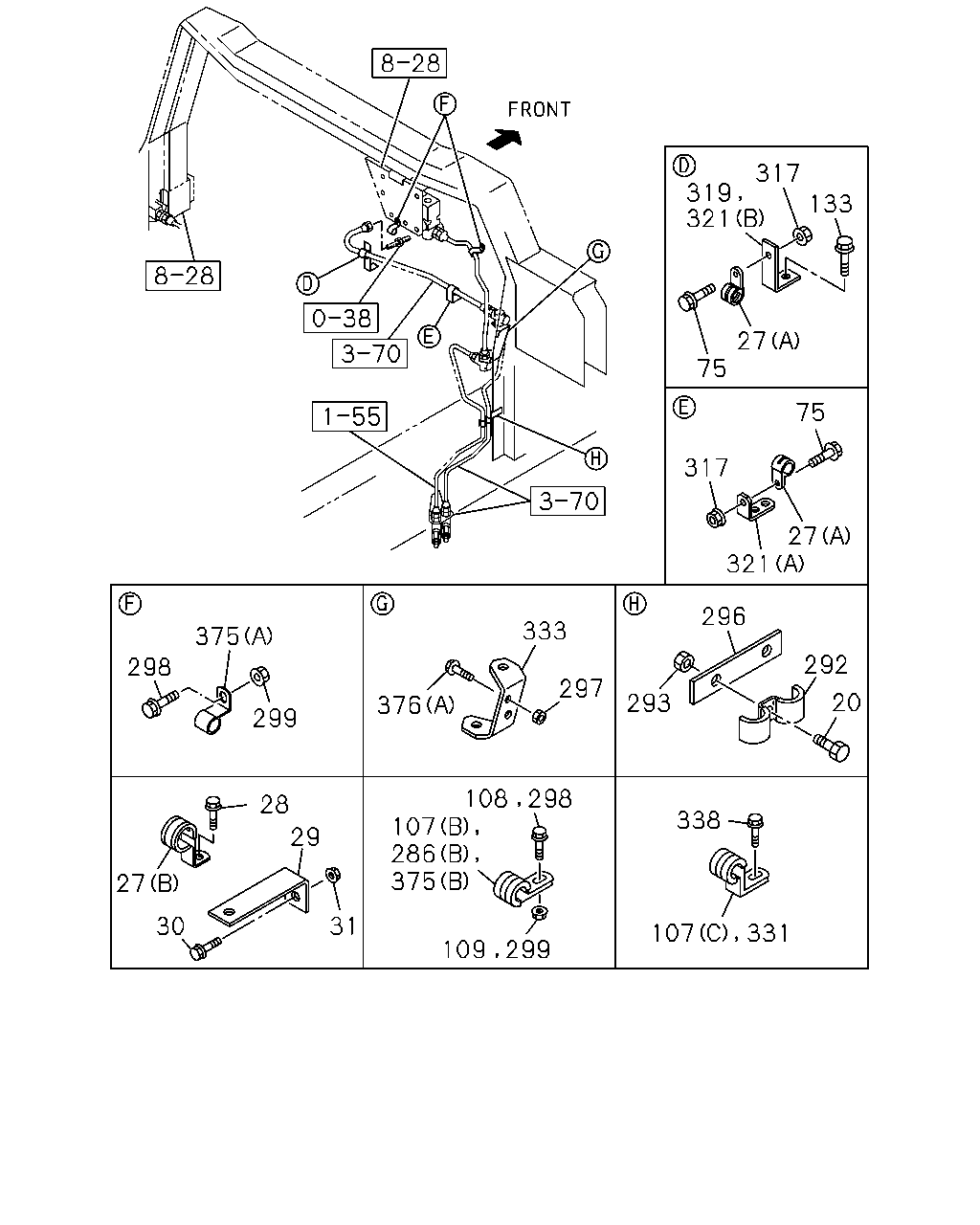

319 317 321 133 27 75 75 317 321 27 298 299 375 376 333 297 27 30 28 29 31 107 286 375 109 108 298 299 338 107 331 20 292 296 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1306-	●
27	CLIP; FLEX HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1306-		●
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	1306-	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	1306-		●
27	CLIP; FLEX HOSE BATTERY LAYOUT REAR VAR1<NCT> (A) ID=26 L=27	1-09701-006-0	01	1	1306-		●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	1306-	●
28	BOLT; CLIP,FLEX HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	02	1	1306-		●
28	BOLT; CLIP,FLEX HOSE BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1306-		●
29	BRACKET; CLIP,AIR PIPE BATTERY LAYOUT REAR VAR1<NCT> L=95	1-82699-085-0	01	1	1306-		●
30	BOLT; CLIP BRKT BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1306-		●
31	NUT; CLIP BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1306-		●
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	1306-	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1306-		●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1306-	●	●
107	CLIP; NYLON TUBE (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
109	NUT; TUBE CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1306-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	04	1	1306-		●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1306-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-		●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1306-	●	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1306-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1306-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE	0-28650-835-0	02	1	1306-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1306-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1306-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	03	1	1306-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1306-		●
286	CLIP; NYLON TUBE MJT7S M/T(Y3E) (A) ID=15 & 7	1-09709-311-0	01	1	1306-	●	●
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (B) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	1306-	●	●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
296	BRACKET; CLIP	1-47475-648-0	01	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1306-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1306-	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1306-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1306-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1306-		●
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	03	1	1306-	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	1306-	●
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	1306-	●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1306-		●
319	BRACKET; CLIP MIXER TRUCK<RA2> L=75	1-47477-119-0	01	1	1306-	●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	1306-	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	1306-		●
321	BRACKET; CLIP MJX16P M/T(Y3Z) (A)	1-47477-337-1	01	1	1306-	●	●
331	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> ID=13 H=75 L=25	1-09700-601-0	02	1	1306-		●
333	BRACKET; BRK AIR PIPE	1-47477-045-0	01	1	1306-	●	●
338	BOLT; PIPE CLIP BATTERY LAYOUT REAR VAR1<NCT> M8X30 FLANGE	0-28650-830-0	02	1	1306-		●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (B) ID=7 L=20	0-95234-635-0	02	1	1306-	●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1306-	●
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1306-	●	●
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1306-	●	●
376	BOLT; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-1510	●	●
376	BOLT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1511-	●	●
376	BOLT; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1306-1510	●	●
376	BOLT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1511-	●	●

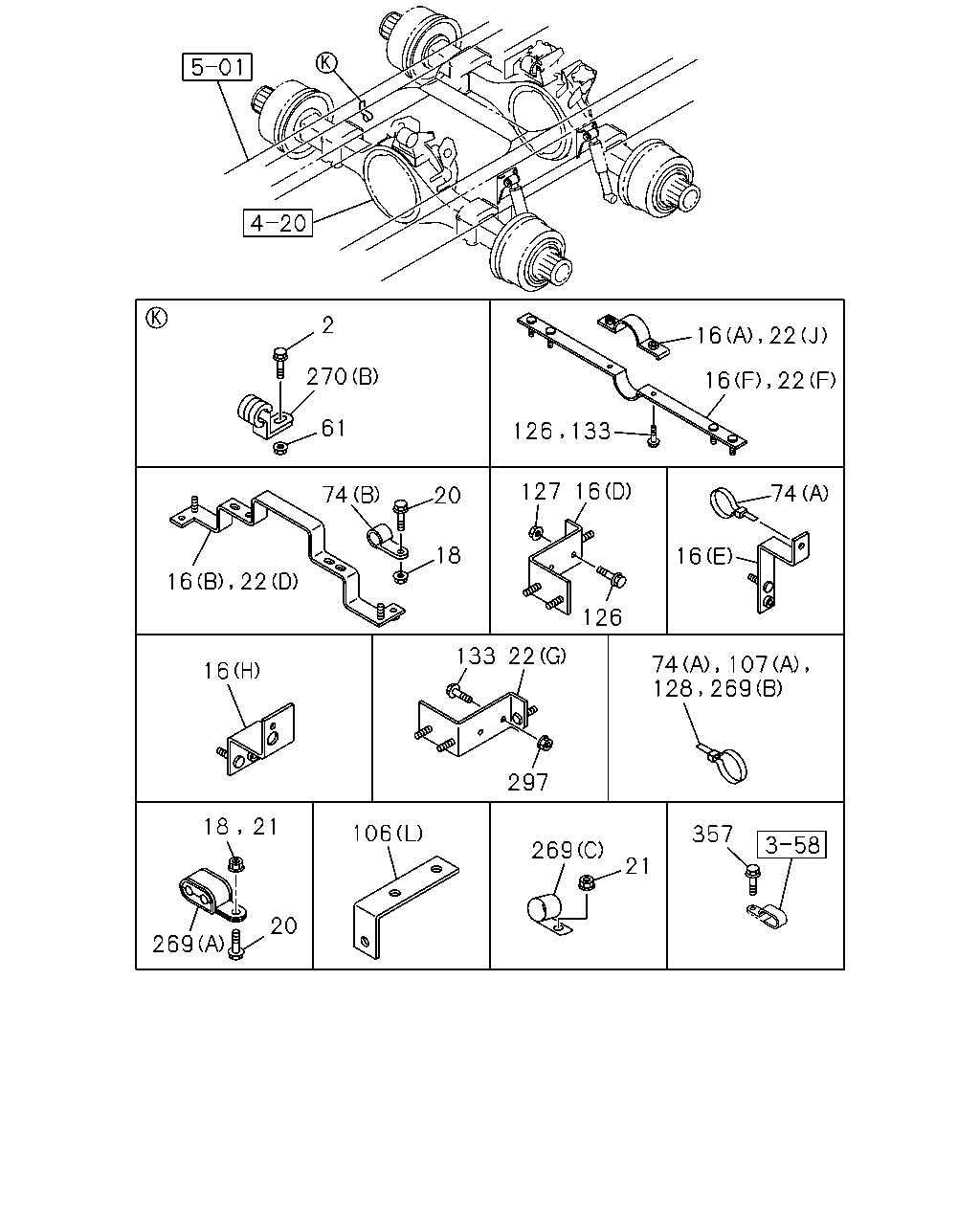

2 270 61 74 20 18 22 16 16 126 133 16 22 16 22 127 16 16 74 74 107 128 269 297 22 133 18 21 106 269 20 269 21 357 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP WHEEL BASE 5200MM(52W) (G)	1-47479-693-0	01	1	1306-	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (I)	1-47479-800-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (D)	8-98142-172-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (G)	1-47479-693-0	02	1	1306-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (G)	1-47479-693-0	03	1	1306-		●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1306-	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	09	1	1306-	●	●
22	BRACKET; CLIP (I) L=150	1-47471-217-0	01	1	1306-	●
22	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	1306-	●
22	BRACKET; CLIP EXC. FULL TRAILER PIPING<Z25> (C) L=100 H=30	1-47477-645-2	01	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (A)	1-47479-329-0	01	1	1306-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A)	1-47479-329-0	01	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (E)	1-47479-693-0	01	1	1306-	●
22	BRACKET; CLIP (J)	1-47479-546-0	01	1	1306-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1306-	●	●
22	BRACKET; CLIP (F)	1-47479-720-0	01	1	1306-	●	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1306-	●	●
22	BRACKET; CLIP (D)	1-47479-898-0	01	1	1306-	●	●
22	BRACKET; CLIP (G)	8-98142-173-0	01	1	1306-	●	●
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (C) L=100 H=30	1-47477-645-2	02	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (I) L=150	1-47471-217-0	02	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (I) L=150	1-47471-217-0	02	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (E)	1-47479-693-0	02	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	01	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (E)	1-47479-693-0	03	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (I) L=150	1-47471-217-0	03	1	1306-		●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	18	1	1306-	●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1306-	●	●
74	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	04	1	1306-1511		●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	04	1	1512-		●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	20	1	1306-		●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=350	1-09707-183-0	21	1	1306-		●
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	24	1	1306-		●
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	23	1	1306-		●
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (C)	1-47471-108-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (I)	1-47479-870-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (I)	1-47479-870-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (G)	8-98243-283-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (G)	8-98243-283-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	1306-	●	●
106	BRACKET; TUBE CLIP (L) L=82 B=20	1-47478-420-0	01	1	1306-1404	●	●
106	BRACKET; TUBE CLIP (L) L=82 B=20	8-98259-390-0	01	1	1405-	●	●
106	BRACKET; TUBE CLIP (J)	1-47479-553-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (E)	8-98052-408-0	01	1	1306-1412	●	●
106	BRACKET; TUBE CLIP (E)	8-98297-188-0	01	1	1501-	●	●
106	BRACKET; TUBE CLIP (F)	8-98052-410-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (H)	8-98061-758-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (A)	8-98224-856-1	01	1	1306-	●	●
106	BRACKET; TUBE CLIP BATTERY LAYOUT REAR VAR1<NCT> (K)	1-47479-754-0	01	1	1306-		●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1306-	●	●
107	CLIP; NYLON TUBE (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350	1-09707-183-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	01	1	1306-	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	1306-		●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1306-		●
127	NUT; CLIP BRKT WHEEL BASE 5200MM(52W) M8 FLANGE	0-91180-108-0	03	1	1306-	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
127	NUT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	04	1	1306-		●
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	05	1	1306-		●
128	CLIP; NYLON TUBE L=350	1-09707-183-0	16	1	1306-	●
128	CLIP; NYLON TUBE ID=13-18 L=18	1-09709-291-0	01	1	1306-	●	●
128	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) L=350	1-09707-183-0	17	1	1306-		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) L=350	1-09707-183-0	18	1	1306-		●
128	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) L=350	1-09707-183-0	20	1	1306-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1306-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	04	1	1306-		●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1306-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-		●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1306-	●	●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1306-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1306-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE	0-28650-835-0	02	1	1306-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1306-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1306-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	03	1	1306-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1306-		●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1306-	●	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	1306-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1306-	●	●
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1306-	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1306-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1306-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1306-	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1306-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1306-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1306-		●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
