◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11537 - CYZ LHD EURO2 WITH REFLECTOR ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#123364) — 198 parça
çizim 363339
149 52 52 52 47 149 56 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
47 BRACKET; PIPE UNION
(B) 		8-98238-525-0 01 1 1306- ● ●
47 BRACKET; PIPE UNION
FULL TRAILER PIPING<Z25> (A) 		1-47471-023-0 01 1 1306-1510 ●
47 BRACKET; PIPE UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) 		1-47471-023-0 01 1 1511- ●
52 CONNECTOR; NYLON TUBE
FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 1511- ●
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1306- ●
52 CONNECTOR; NYLON TUBE
EXC. FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1306- ●
52 CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1306- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 03 1 1306- ● ●
52 CONNECTOR; NYLON TUBE
FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 1306-1510 ●
52 CONNECTOR; NYLON TUBE
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 1511- ●
56 BOLT; UNION BRKT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1306- ● ●
56 BOLT; UNION BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ● ●
56 BOLT; UNION BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
56 BOLT; UNION BRKT
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1306- ● ●
98 TUBE; NYLON
(B) 		8-98169-619-0 02 1 1306- ● ●
98 TUBE; NYLON
(C) 		8-98224-859-0 01 1 1306- ● ●
98 TUBE; NYLON
(E) 		8-98238-522-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-191-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-190-0 01 1 1306- ● ●
149 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
149 BOLT; UNION
EXC. FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
149 BOLT; UNION
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
149 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1306-1510 ● ●
149 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1511- ● ●
149 BOLT; UNION
FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1511- ●
149 BOLT; UNION
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1306- ● ●
149 BOLT; UNION
FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 04 1 1306-1510 ●
149 BOLT; UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ●

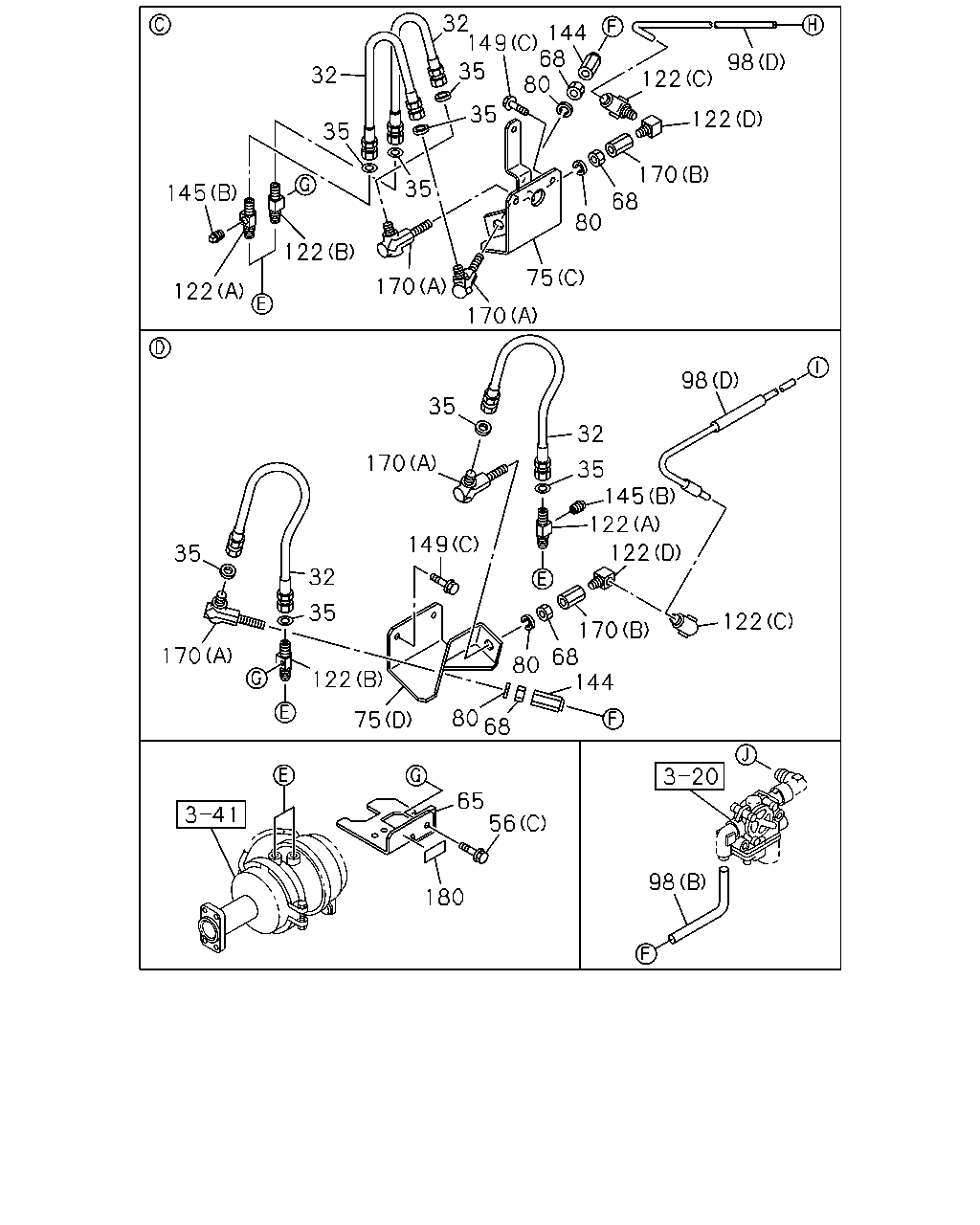

çizim 363639
32 32 35 145 122 122 149 35 35 35 170 144 68 80 170 75 80 68 170 122 122 98 35 170 35 32 35 170 122 149 75 32 35 98 145 122 122 170 122 68 80 144 80 68 65 56 180 98
BalonParca AdiParca NoAdetTipApplied Date A B
32 HOSE; FLEX,FRT
L=470 		0-57847-470-1 04 1 1306- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 08 1 1306- ● ●
56 BOLT; UNION BRKT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1306- ● ●
56 BOLT; UNION BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ● ●
56 BOLT; UNION BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
56 BOLT; UNION BRKT
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1306- ● ●
65 BRACKET; FLEX HOSE 8-98163-032-2 01 1 1306- ● ●
65 BRACKET; FLEX HOSE 8-98163-031-2 01 1 1306- ● ●
68 NUT; UNION
M20 		0-91111-520-0 02 1 1306- ● ●
68 NUT; UNION
M20 		0-91111-520-0 02 1 1306- ● ●
75 BRACKET; UNION
(A) 		1-47471-023-0 01 1 1306-1510 ●
75 BRACKET; UNION
EXC. FULL TRAILER PIPING<Z25> (A) 		1-47471-023-0 01 1 1306-1510 ●
75 BRACKET; UNION
(A) 		1-47471-023-0 01 1 1511- ●
75 BRACKET; UNION
EXC. FULL TRAILER PIPING<Z25> (A) 		1-47471-023-0 01 1 1511- ●
75 BRACKET; UNION
FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A) 		1-47471-023-0 01 1 1511- ●
75 BRACKET; UNION
(B) 		1-47471-145-0 01 1 1306- ● ●
75 BRACKET; UNION
(C) 		8-98176-142-0 01 1 1306- ● ●
75 BRACKET; UNION
(D) 		8-98176-152-0 01 1 1306- ● ●
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 02 1 1306- ● ●
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 02 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1306- ● ●
98 TUBE; NYLON
(B) 		8-98169-619-0 02 1 1306- ● ●
98 TUBE; NYLON
(C) 		8-98224-859-0 01 1 1306- ● ●
98 TUBE; NYLON
(E) 		8-98238-522-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-191-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-190-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(D) PT3/8 ELBOW 		1-09660-696-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(D) PT3/8 ELBOW 		1-09660-696-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(A) 		8-98162-734-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(B) 		8-98162-735-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(A) 		8-98162-043-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(B) 		8-98162-044-0 01 1 1306- ● ●
144 ADAPTER
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1306- ● ●
144 ADAPTER
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1306- ● ●
145 PLUG
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
145 PLUG
(B) PT1/4 		9-99204-513-0 02 1 1306- ● ●
149 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
149 BOLT; UNION
EXC. FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
149 BOLT; UNION
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
149 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1306-1510 ● ●
149 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1511- ● ●
149 BOLT; UNION
FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1511- ●
149 BOLT; UNION
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1306- ● ●
149 BOLT; UNION
FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 04 1 1306-1510 ●
149 BOLT; UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ●
170 UNION; FLARE
(A) M20 & M20 ELBOW 		1-09654-397-1 02 1 1306- ● ●
170 UNION; FLARE
(A) M20 & M20 ELBOW 		1-09654-397-1 02 1 1306- ● ●
170 UNION; FLARE
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1306- ● ●
170 UNION; FLARE
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1306- ● ●
180 PLATE; CAUTION 8-98164-504-0 02 1 1306- ● ●

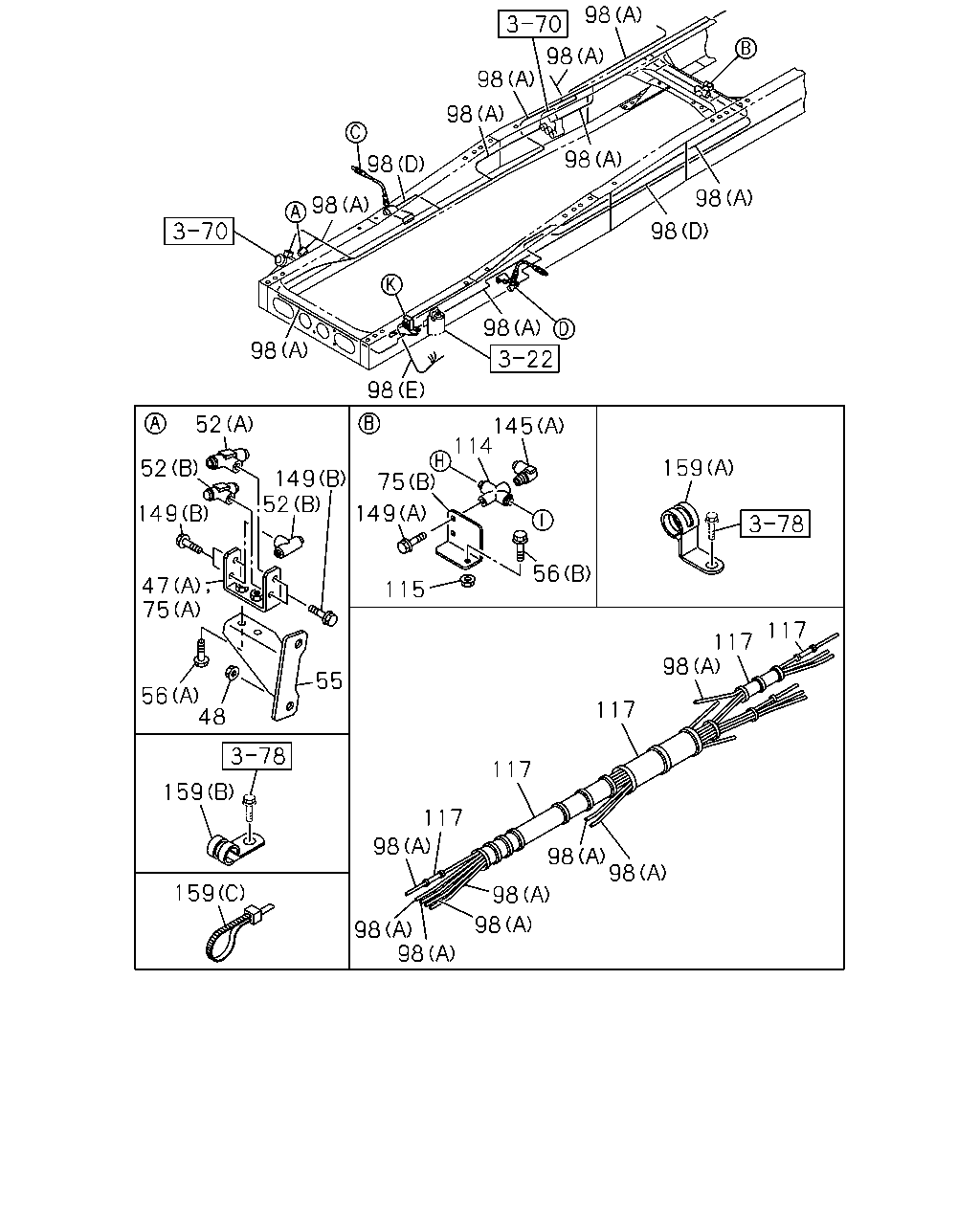

çizim 366940
98 98 98 98 98 98 98 98 98 98 98 98 52 52 149 149 52 47 75 56 48 55 159 159 115 149 75 114 145 56 159 98 98 98 117 98 98 117 98 98 117 98 117 117
BalonParca AdiParca NoAdetTipApplied Date A B
47 BRACKET; PIPE UNION
(B) 		8-98238-525-0 01 1 1306- ● ●
47 BRACKET; PIPE UNION
FULL TRAILER PIPING<Z25> (A) 		1-47471-023-0 01 1 1306-1510 ●
47 BRACKET; PIPE UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) 		1-47471-023-0 01 1 1511- ●
48 NUT; UNION BRKT
M12 FLANGE 		0-91180-212-0 02 1 1306- ● ●
52 CONNECTOR; NYLON TUBE
FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 1511- ●
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1306- ●
52 CONNECTOR; NYLON TUBE
EXC. FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1306- ●
52 CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1306- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 03 1 1306- ● ●
52 CONNECTOR; NYLON TUBE
FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 1306-1510 ●
52 CONNECTOR; NYLON TUBE
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 1511- ●
55 BRACKET; TUBE UNION 8-98199-427-0 01 1 1306- ● ●
56 BOLT; UNION BRKT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1306- ● ●
56 BOLT; UNION BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ● ●
56 BOLT; UNION BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
56 BOLT; UNION BRKT
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1306- ● ●
75 BRACKET; UNION
(A) 		1-47471-023-0 01 1 1306-1510 ●
75 BRACKET; UNION
EXC. FULL TRAILER PIPING<Z25> (A) 		1-47471-023-0 01 1 1306-1510 ●
75 BRACKET; UNION
(A) 		1-47471-023-0 01 1 1511- ●
75 BRACKET; UNION
EXC. FULL TRAILER PIPING<Z25> (A) 		1-47471-023-0 01 1 1511- ●
75 BRACKET; UNION
FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A) 		1-47471-023-0 01 1 1511- ●
75 BRACKET; UNION
(B) 		1-47471-145-0 01 1 1306- ● ●
75 BRACKET; UNION
(C) 		8-98176-142-0 01 1 1306- ● ●
75 BRACKET; UNION
(D) 		8-98176-152-0 01 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1306- ● ●
98 TUBE; NYLON
(B) 		8-98169-619-0 02 1 1306- ● ●
98 TUBE; NYLON
(C) 		8-98224-859-0 01 1 1306- ● ●
98 TUBE; NYLON
(E) 		8-98238-522-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-191-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-190-0 01 1 1306- ● ●
114 UNION; NYLON TUBE
DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1306- ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=22 		1-87411-029-0 03 1 1511-1511 ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) SERVICED BY L=2000 ID=22 		1-87411-029-0 03 1 1511-1511 ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=22 		1-87411-029-0 03 1 1512- ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) SERVICED BY L=2000 ID=22 		1-87411-029-0 03 1 1512- ●
117 TUBE; CORRUGATE
WHEEL BASE 5200MM(52W) SERVICED BY L=2000 ID=19 		1-87411-027-0 01 1 1511- ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=19 		1-87411-027-0 01 1 1511- ●
117 TUBE; CORRUGATE
WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=19 		1-87411-027-0 01 1 1511- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
WHEEL BASE 5200MM(52W) SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1511-1511 ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1511-1511 ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1511-1511 ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1511-1511 ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1511-1511 ●
117 TUBE; CORRUGATE
WHEEL BASE 5200MM(52W) SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1512- ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1512- ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1512- ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1512- ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1512- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
WHEEL BASE 5200MM(52W) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
117 TUBE; CORRUGATE
MJX16P M/T(Y3Z) WHEEL BASE 5200MM(52W) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
117 TUBE; CORRUGATE
WHEEL BASE 5200MM(52W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
117 TUBE; CORRUGATE
MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
117 TUBE; CORRUGATE
WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
117 TUBE; CORRUGATE
MJT7S M/T(Y3E) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
117 TUBE; CORRUGATE
MJX16P M/T(Y3Z) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
MJX16P M/T(Y3Z) WHEEL BASE 5200MM(52W) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1511-1511 ●
117 TUBE; CORRUGATE
WHEEL BASE 5200MM(52W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1511-1511 ●
117 TUBE; CORRUGATE
MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1511-1511 ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W) TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1511-1511 ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1511-1511 ●
117 TUBE; CORRUGATE
MJT7S M/T(Y3E) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1511-1511 ●
117 TUBE; CORRUGATE
MJX16P M/T(Y3Z) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1511-1511 ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1511-1511 ●
117 TUBE; CORRUGATE
MJX16P M/T(Y3Z) WHEEL BASE 5200MM(52W) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1512- ●
117 TUBE; CORRUGATE
WHEEL BASE 5200MM(52W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1512- ●
117 TUBE; CORRUGATE
MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1512- ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W) TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1512- ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1512- ●
117 TUBE; CORRUGATE
MJT7S M/T(Y3E) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1512- ●
117 TUBE; CORRUGATE
MJX16P M/T(Y3Z) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1512- ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1512- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=19 		1-87411-027-0 03 1 1511- ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=22 		1-87411-029-0 01 1 1511- ●
145 PLUG
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
145 PLUG
(B) PT1/4 		9-99204-513-0 02 1 1306- ● ●
149 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
149 BOLT; UNION
EXC. FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
149 BOLT; UNION
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
149 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1306-1510 ● ●
149 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1511- ● ●
149 BOLT; UNION
FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1511- ●
149 BOLT; UNION
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1306- ● ●
149 BOLT; UNION
FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 04 1 1306-1510 ●
149 BOLT; UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 20 1 1306- ●
159 CLIP; NYLON TUBE
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350 		1-09707-183-0 20 1 1306- ●
159 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 01 1 1306- ● ●
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306- ● ●
159 CLIP; NYLON TUBE
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1306- ● ●
159 CLIP; NYLON TUBE
(B) ID=21 L=24 		8-98019-191-0 01 1 1306- ● ●
159 CLIP; NYLON TUBE
BATTERY LAYOUT REAR VAR1<NCT> (C) L=350 		1-09707-183-0 15 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
