◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11537 - CYZ LHD EURO2 WITH REFLECTOR ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#123363) — 292 parça

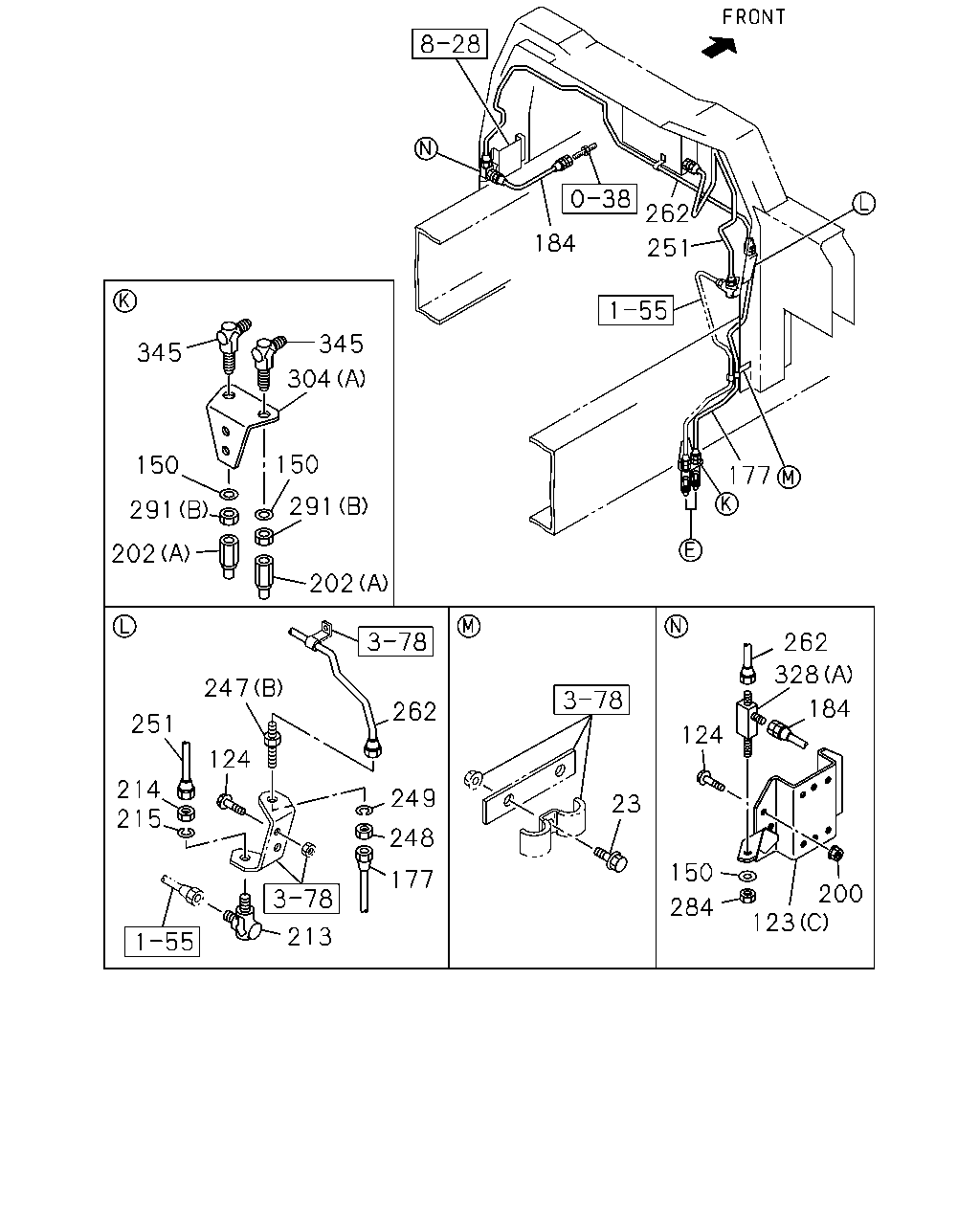

çizim 364376
184 262 251 177 345 345 304 150 150 291 202 291 202 247 251 124 214 215 213 177 248 249 262 23 124 262 328 184 200 123 284 150
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1306- ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1306- ● ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> (B) 		8-98164-194-0 01 1 1306- ●
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 1306- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1306- ● ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 1306- ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1306- ● ●
177 PIPE; AIR,UNION TO UNION
L=660 SERVICED BY L=700 		1-47428-811-0 01 1 1306- ●
177 PIPE; AIR,UNION TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> L=660 SERVICED BY L=700 		1-47428-811-0 01 1 1306- ●
177 PIPE; AIR,UNION TO UNION
BATTERY LAYOUT REAR VAR1<NCT> L=581 SERVICED BY L=600 		1-47428-809-0 01 1 1306- ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1306- ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1306- ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1306- ●
200 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 04 1 1306- ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ●
202 ADAPTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ●
202 ADAPTER
MJX16P M/T(Y3Z) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306- ● ●
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1306- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1306- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1306- ● ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		0-92113-306-0 01 1 1306- ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		0-92125-206-0 01 1 1306- ●
247 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 1306- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1306- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1306- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1306- ● ●
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		8-98130-033-0 01 1 1306- ●
284 NUT; UNION
MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 1306- ●
284 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> M12 		9-09840-280-0 02 1 1306- ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1306- ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1306- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1306- ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1306- ●
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1306- ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-71117-210-0 01 1 1306- ● ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (C) 		1-71117-210-0 01 1 1306- ● ●
328 UNION; AIR PIPE
MIXER TRUCK<RA2> (A) M12 2WAY 		1-09654-059-2 01 1 1306- ●
328 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> (B) M12 ELBOW 		0-92125-206-0 02 1 1306- ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1306- ●
345 UNION; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M12 ELBOW 		0-92125-206-0 02 1 1306- ●

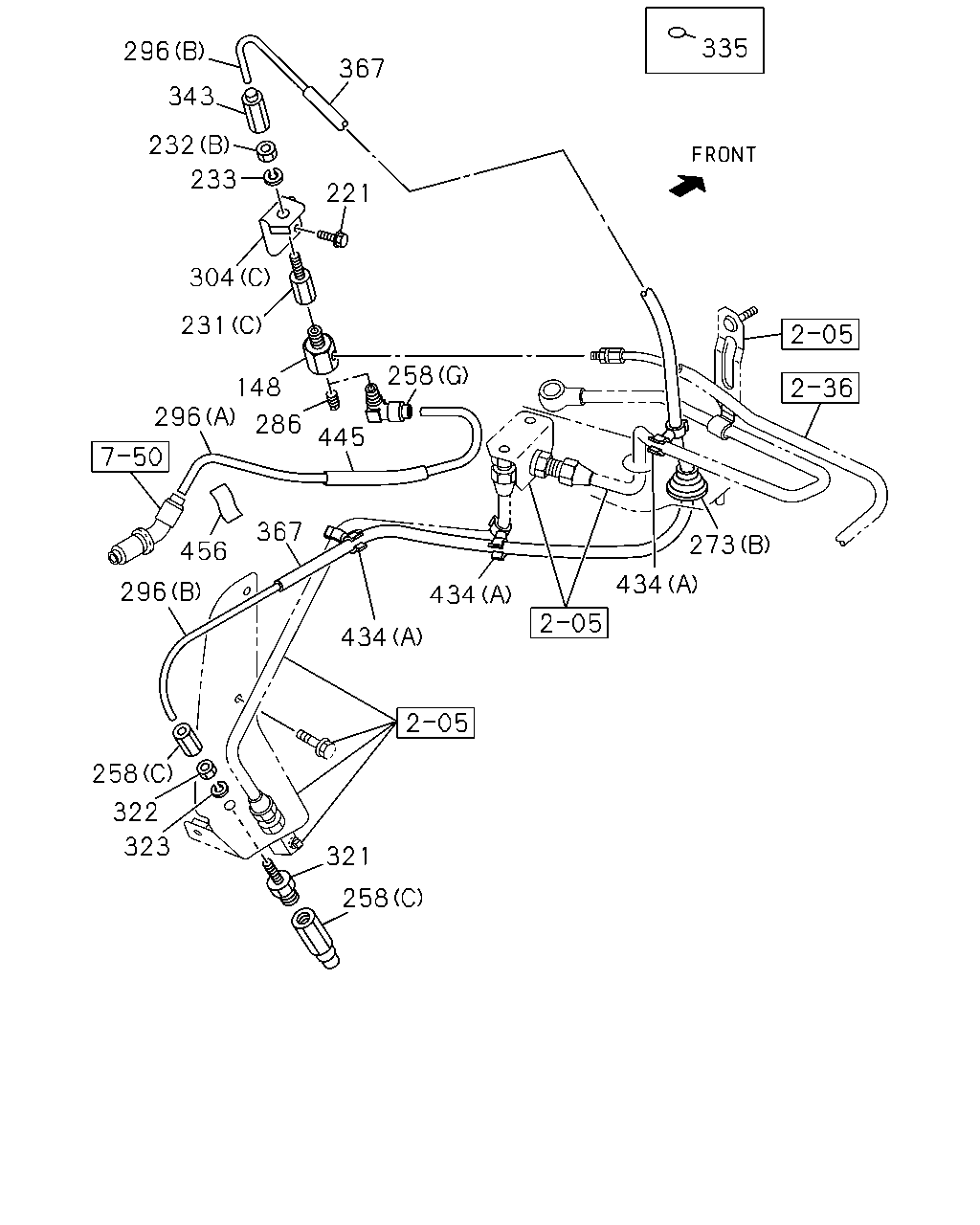

çizim 364401
258 321 323 322 258 296 456 434 367 434 434 273 335 258 445 286 296 231 304 233 232 343 296 221 148 367
BalonParca AdiParca NoAdetTipApplied Date A B
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) 		8-94338-417-0 01 1 1306- ● ●
221 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306- ● ●
221 BOLT; BRKT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306- ● ●
231 UNION; AIR PIPE
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 ELBOW 		1-09654-186-2 01 1 1306-1510 ● ●
231 UNION; AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 ELBOW 		1-09654-186-2 01 1 1511- ● ●
231 UNION; AIR PIPE
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 STRAIGHT 		1-09654-361-0 01 1 1306-1510 ● ●
231 UNION; AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10 STRAIGHT 		1-09654-361-0 01 1 1511- ● ●
231 UNION; AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306- ● ●
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306- ● ●
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1306- ● ●
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 H=8 		1-09400-029-0 01 1 1306- ● ●
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) M10 H=8 		1-09400-029-0 01 1 1306- ● ●
232 NUT; UNION,AIR PIPE
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		0-91110-510-0 01 1 1306-1510 ● ●
232 NUT; UNION,AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10 		0-91110-510-0 01 1 1511- ● ●
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 1306- ● ●
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) ID=10.2 		0-91510-510-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (C) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306- ● ●
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1306- ● ●
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09332-102-0 01 1 1306- ● ●
273 GROMMET
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) 		1-09332-102-0 01 1 1306- ● ●
286 PLUG; AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		9-09204-510-0 01 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1306- ● ●
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306- ● ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1306- ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1306- ●
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1306- ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-71117-210-0 01 1 1306- ● ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (C) 		1-71117-210-0 01 1 1306- ● ●
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 1306- ● ●
321 JOINT; FLEX HOSE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) M12 L=66.5 		0-92113-306-0 01 1 1306- ● ●
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 1306- ● ●
322 NUT; JOINT,FLEX HOSE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) M12 		9-09840-280-0 01 1 1306- ● ●
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 1306- ● ●
323 WASHER; LK,JOINT
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) ID=12.2 		0-91510-512-0 01 1 1306- ● ●
335 SEAL; UNION
MJT7S M/T(Y3E) RIGID SEAT W/ARM REST(SGC) OD=30 BLACK 		1-76798-035-0 01 1 1306- ● ●
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1306-1510 ● ●
343 UNION; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09660-796-1 02 1 1511- ● ●
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1306- ● ●
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		1-09660-796-1 01 1 1306- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1306- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1306- ● ●
434 CLIP
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10 & 10 		1-09709-221-0 01 1 1306-1510 ● ●
434 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=10 & 10 		1-09709-221-0 01 1 1511- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306- ● ●
434 CLIP
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (A) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306- ● ●
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1306- ● ●
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-1 01 1 1306- ● ●

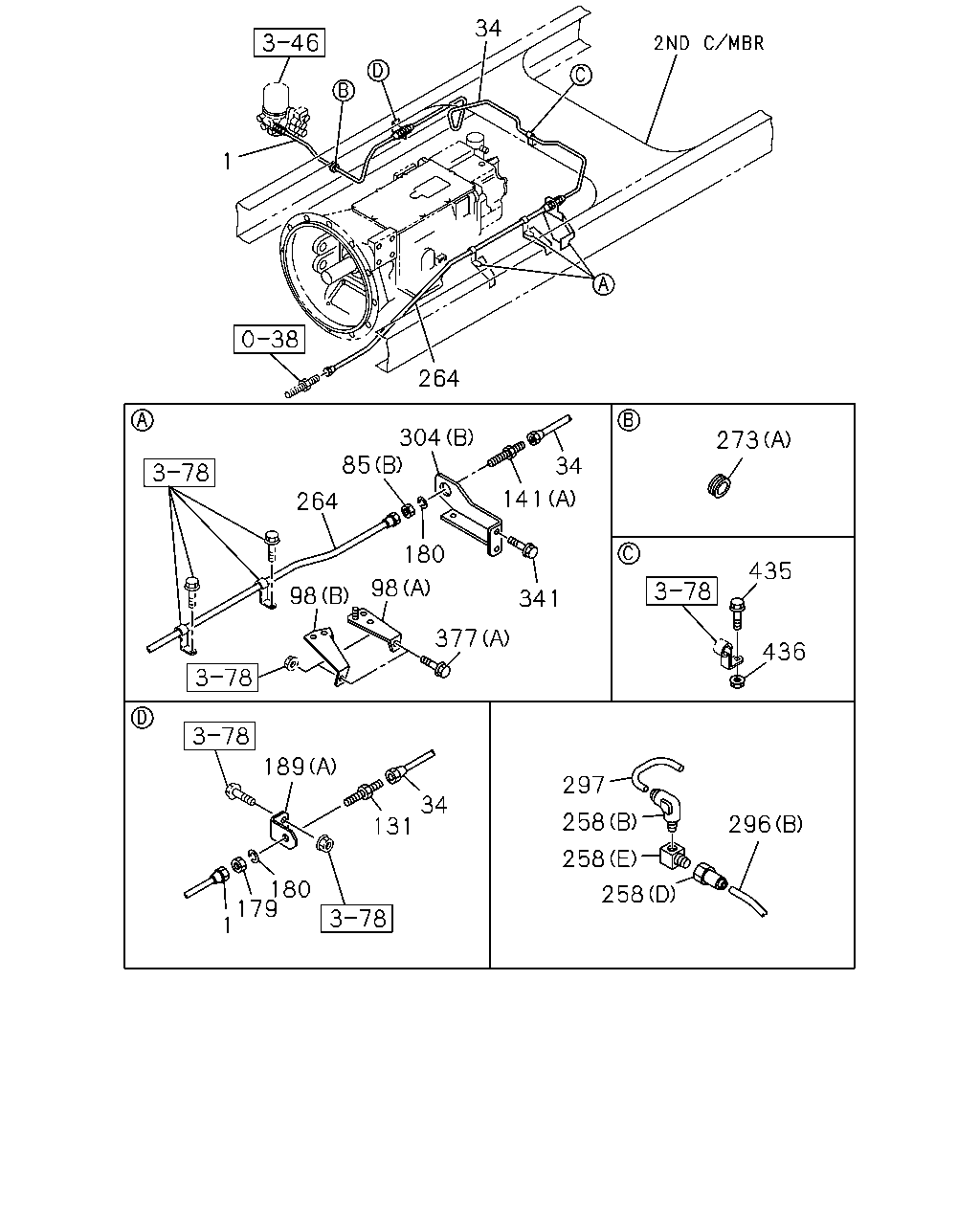

çizim 364441
1 34 264 304 85 264 98 189 179 1 180 131 34 377 98 180 341 141 34 273 435 436 296 258 258 258 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 1306- ●
1 HOSE; FLEX,AIR TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> L=1350 		1-09363-925-0 01 1 1306- ●
1 HOSE; FLEX,AIR TANK
BATTERY LAYOUT REAR VAR1<NCT> L=660 		1-09363-766-0 01 1 1306- ●
34 PIPE; AIR
L=1159 		8-98233-192-0 01 1 1306- ● ●
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1306- ● ●
85 NUT; UNION
MJX16P M/T(Y3Z) (A) M12 		0-91111-512-0 01 1 1306-1308 ● ●
85 NUT; UNION
MJX16P M/T(Y3Z) (A) M12 		9-09840-280-0 01 1 1309- ● ●
98 BRACKET; AIR PIPE
(B) 		1-47471-283-0 01 1 1306- ● ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1306- ● ●
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1306- ● ●
141 UNION; FLEX HOSE
(A) M22 		0-92123-315-0 01 1 1306- ● ●
141 UNION; FLEX HOSE
MJX16P M/T(Y3Z) (B) M12 L=66.5 		0-92113-306-0 01 1 1306- ● ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1306- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1306- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1306- ● ●
189 BRACKET; FLEX HOSE
(A) 		1-47479-473-0 01 1 1306- ● ●
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (B) 		8-97645-648-0 01 1 1306-1308 ● ●
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (B) 		8-97646-842-0 01 1 1309- ● ●
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (C) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306- ● ●
264 HOSE; FLEX
L=980 		1-09363-872-0 01 1 1306- ● ●
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1306- ● ●
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09332-102-0 01 1 1306- ● ●
273 GROMMET
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) 		1-09332-102-0 01 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1306- ● ●
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306- ● ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1306- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306- ● ●
297 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=2000 OD=6 		1-87410-081-0 02 1 1511- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1306- ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1306- ●
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1306- ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-71117-210-0 01 1 1306- ● ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (C) 		1-71117-210-0 01 1 1306- ● ●
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1306- ● ●
377 BOLT; BRKT FIX
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1306- ● ●
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1306- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1306- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
çizim 364492
434 337 232 330 337 231 330 232 343 297 343 334 231 372 120
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE 1-47470-418-2 01 1 1306- ●
120 CONNECTOR; AIR PIPE
EXC. FULL TRAILER PIPING<Z25> 		1-47470-418-2 01 1 1306- ●
120 CONNECTOR; AIR PIPE
FULL TRAILER PIPING<Z25> 		1-47470-655-0 01 1 1306- ●
231 UNION; AIR PIPE
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 ELBOW 		1-09654-186-2 01 1 1306-1510 ● ●
231 UNION; AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 ELBOW 		1-09654-186-2 01 1 1511- ● ●
231 UNION; AIR PIPE
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 STRAIGHT 		1-09654-361-0 01 1 1306-1510 ● ●
231 UNION; AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10 STRAIGHT 		1-09654-361-0 01 1 1511- ● ●
231 UNION; AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306- ● ●
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306- ● ●
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1306- ● ●
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 H=8 		1-09400-029-0 01 1 1306- ● ●
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) M10 H=8 		1-09400-029-0 01 1 1306- ● ●
232 NUT; UNION,AIR PIPE
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		0-91110-510-0 01 1 1306-1510 ● ●
232 NUT; UNION,AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10 		0-91110-510-0 01 1 1511- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1306- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306- ● ●
297 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=2000 OD=6 		1-87410-081-0 02 1 1511- ● ●
330 WASHER; LK,UNION,AIR PIPE
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 02 1 1306-1510 ● ●
330 WASHER; LK,UNION,AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=10.2 		0-91510-510-0 02 1 1511- ● ●
334 SPACER; PIPE UNION
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1306-1510 ● ●
334 SPACER; PIPE UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1511- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=720 		0-57210-720-0 02 1 1306-1510 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
TRANSMISSION CONTROL CABLE TYPE(C1A) L=720 		0-57210-720-0 02 1 1511- ● ●
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1306-1510 ● ●
343 UNION; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09660-796-1 02 1 1511- ● ●
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1306- ● ●
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		1-09660-796-1 01 1 1306- ● ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
434 CLIP
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10 & 10 		1-09709-221-0 01 1 1306-1510 ● ●
434 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=10 & 10 		1-09709-221-0 01 1 1511- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306- ● ●
434 CLIP
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (A) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306- ● ●

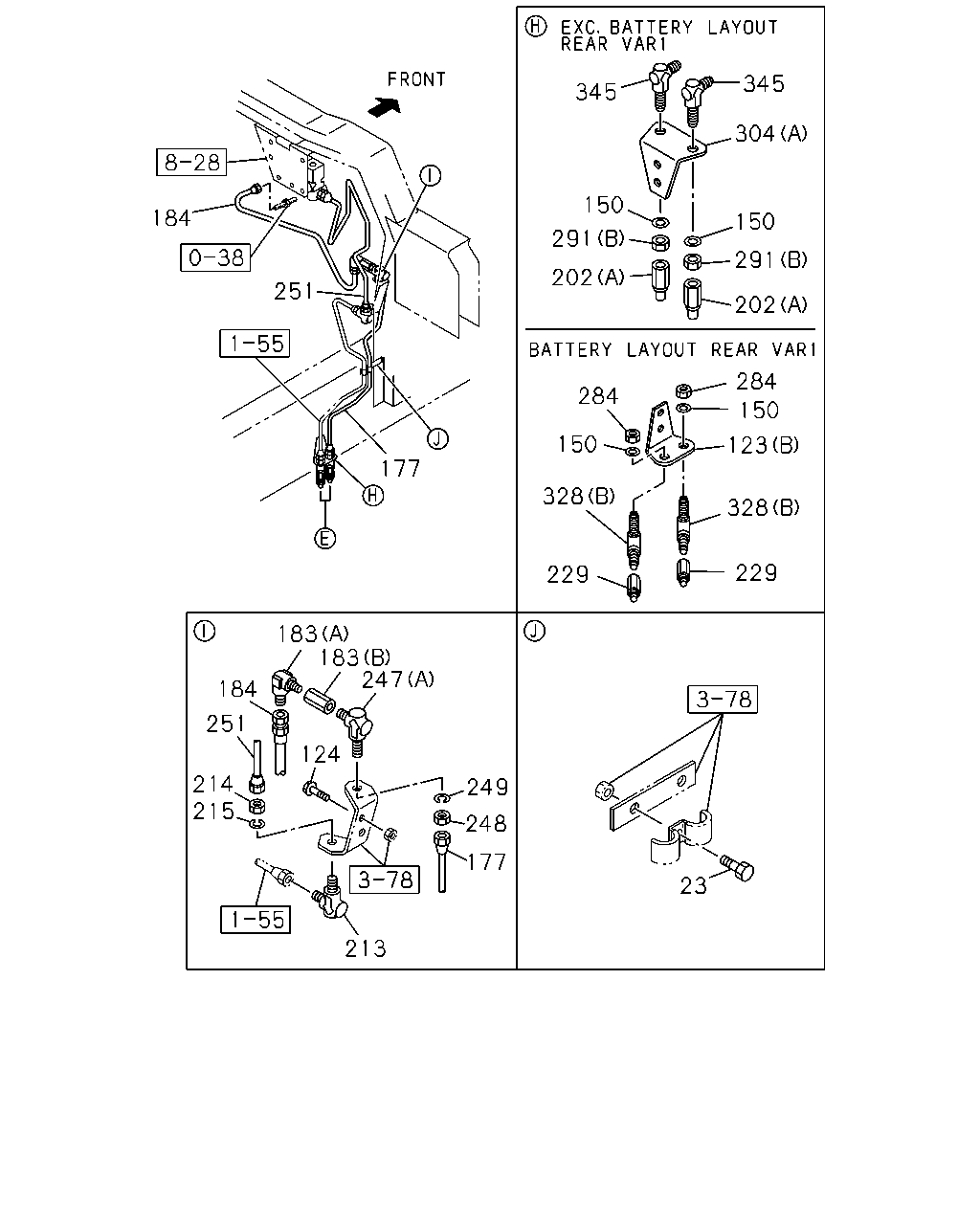

çizim 365625
184 251 177 183 183 247 184 251 214 215 124 249 248 177 213 345 345 304 150 291 202 150 202 291 284 150 328 229 284 150 123 328 229 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1306- ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1306- ● ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> (B) 		8-98164-194-0 01 1 1306- ●
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 1306- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1306- ● ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 1306- ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1306- ● ●
177 PIPE; AIR,UNION TO UNION
L=660 SERVICED BY L=700 		1-47428-811-0 01 1 1306- ●
177 PIPE; AIR,UNION TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> L=660 SERVICED BY L=700 		1-47428-811-0 01 1 1306- ●
177 PIPE; AIR,UNION TO UNION
BATTERY LAYOUT REAR VAR1<NCT> L=581 SERVICED BY L=600 		1-47428-809-0 01 1 1306- ●
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1306- ●
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1306- ●
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1306- ●
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1306- ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1306- ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1306- ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1306- ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ●
202 ADAPTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ●
202 ADAPTER
MJX16P M/T(Y3Z) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306- ● ●
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1306- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1306- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1306- ● ●
229 ADAPTER; NYLON TUBE
BATTERY LAYOUT REAR VAR1<NCT> DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		0-92113-306-0 01 1 1306- ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		0-92125-206-0 01 1 1306- ●
247 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 1306- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1306- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1306- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1306- ● ●
284 NUT; UNION
MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 1306- ●
284 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> M12 		9-09840-280-0 02 1 1306- ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1306- ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1306- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1306- ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1306- ●
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1306- ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-71117-210-0 01 1 1306- ● ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (C) 		1-71117-210-0 01 1 1306- ● ●
328 UNION; AIR PIPE
MIXER TRUCK<RA2> (A) M12 2WAY 		1-09654-059-2 01 1 1306- ●
328 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> (B) M12 ELBOW 		0-92125-206-0 02 1 1306- ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1306- ●
345 UNION; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M12 ELBOW 		0-92125-206-0 02 1 1306- ●

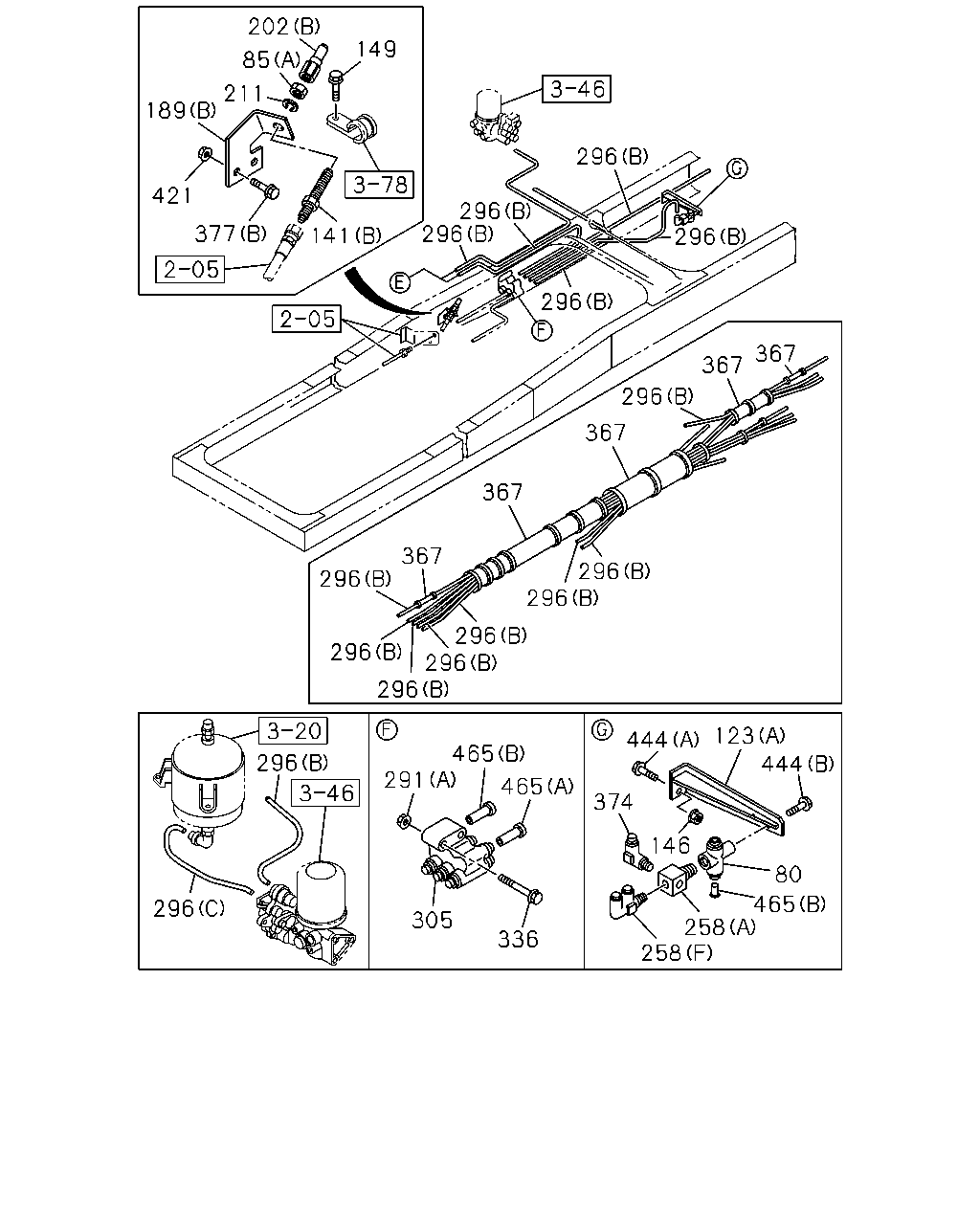

çizim 365817
202 85 211 189 421 377 141 296 296 149 296 296 367 367 296 367 296 367 367 296 296 296 296 296 296 296 465 465 305 444 374 123 444 80 465 258 258 146 336 296 296 291
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1306- ● ●
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1306- ● ●
85 NUT; UNION
MJX16P M/T(Y3Z) (A) M12 		0-91111-512-0 01 1 1306-1308 ● ●
85 NUT; UNION
MJX16P M/T(Y3Z) (A) M12 		9-09840-280-0 01 1 1309- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1306- ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1306- ● ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> (B) 		8-98164-194-0 01 1 1306- ●
141 UNION; FLEX HOSE
(A) M22 		0-92123-315-0 01 1 1306- ● ●
141 UNION; FLEX HOSE
MJX16P M/T(Y3Z) (B) M12 L=66.5 		0-92113-306-0 01 1 1306- ● ●
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
189 BRACKET; FLEX HOSE
(A) 		1-47479-473-0 01 1 1306- ● ●
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (B) 		8-97645-648-0 01 1 1306-1308 ● ●
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (B) 		8-97646-842-0 01 1 1309- ● ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ●
202 ADAPTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ●
202 ADAPTER
MJX16P M/T(Y3Z) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306- ● ●
211 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=12.2 		0-91510-812-0 01 1 1306-1308 ● ●
211 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=12.2 		0-91510-512-0 01 1 1309- ● ●
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (C) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1306- ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1306- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1306- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1306- ● ●
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306- ● ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306- ● ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1306- ● ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 1306- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1306- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1306- ● ●
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1306- ● ●
377 BOLT; BRKT FIX
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1306- ● ●
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1306- ● ●
421 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1306- ● ●
444 BOLT; UNION
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1306- ● ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306- ● ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306- ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1306- ● ●
465 PLUG
MJT7S M/T(Y3E) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1306- ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
