Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#123356) — 196 parça

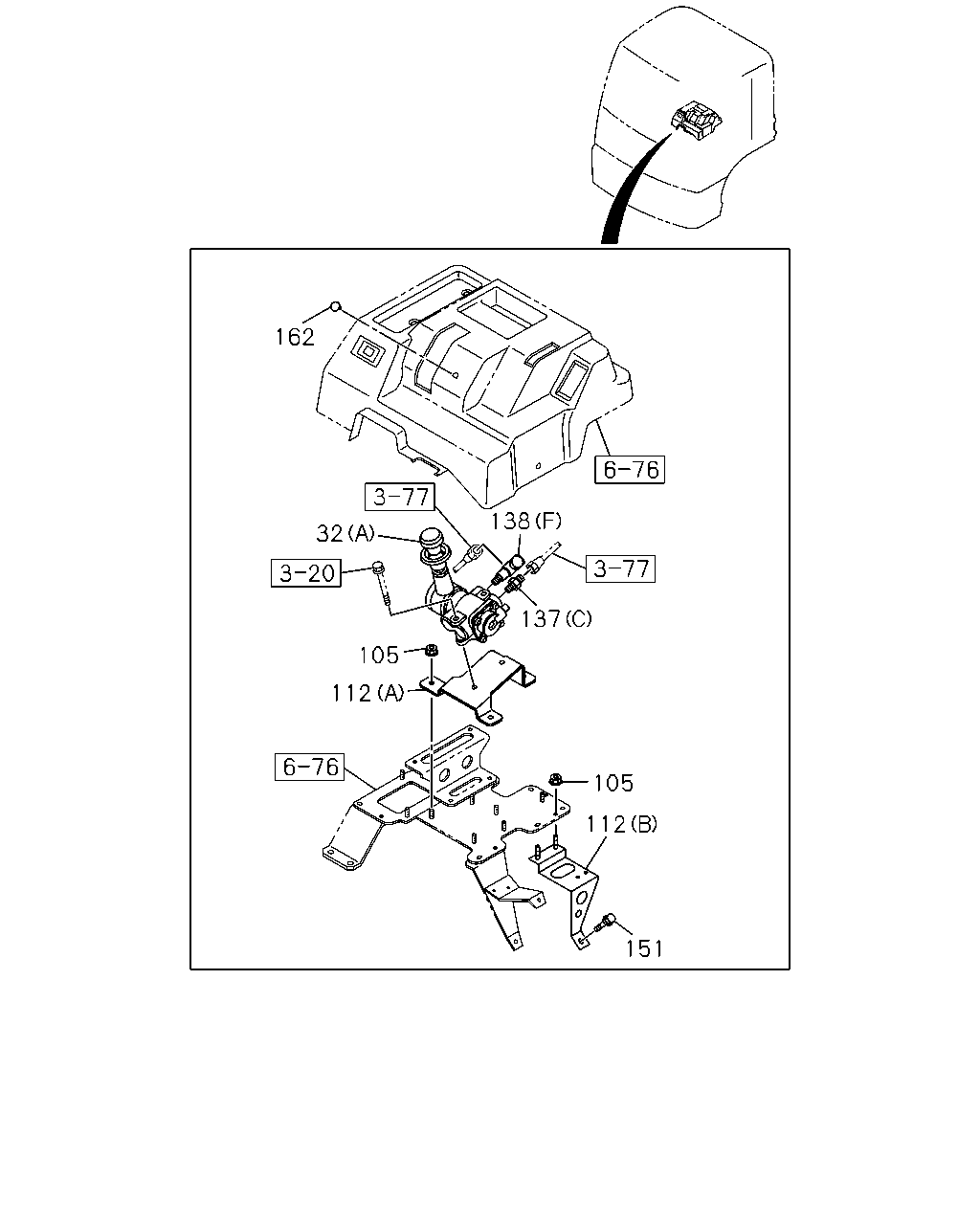

162 32 112 105 138 137 105 112 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	1306-	●
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1306-		●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1306-		●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25> (A)	1-48460-306-0	01	1	1306-		●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1306-	●	●
105	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1306-		●
112	BRACKET; CONT VLV (A)	1-79996-378-1	01	1	1306-	●
112	BRACKET; CONT VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-79996-378-1	01	1	1306-		●
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	1306-	●	●
112	BRACKET; CONT VLV FULL TRAILER PIPING<Z25> (A)	1-79996-112-2	01	1	1306-		●
137	CONNECTOR; SUPPLY (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1306-	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1306-		●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1306-		●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1306-		●
138	CONNECTOR; DELIVERY (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1306-	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1306-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (E) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	1306-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1306-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1306-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (D) M20 & RC1/4 STRAIGHT	1-09660-880-0	01	1	1306-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1306-		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1306-	●	●
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	1306-	●	●

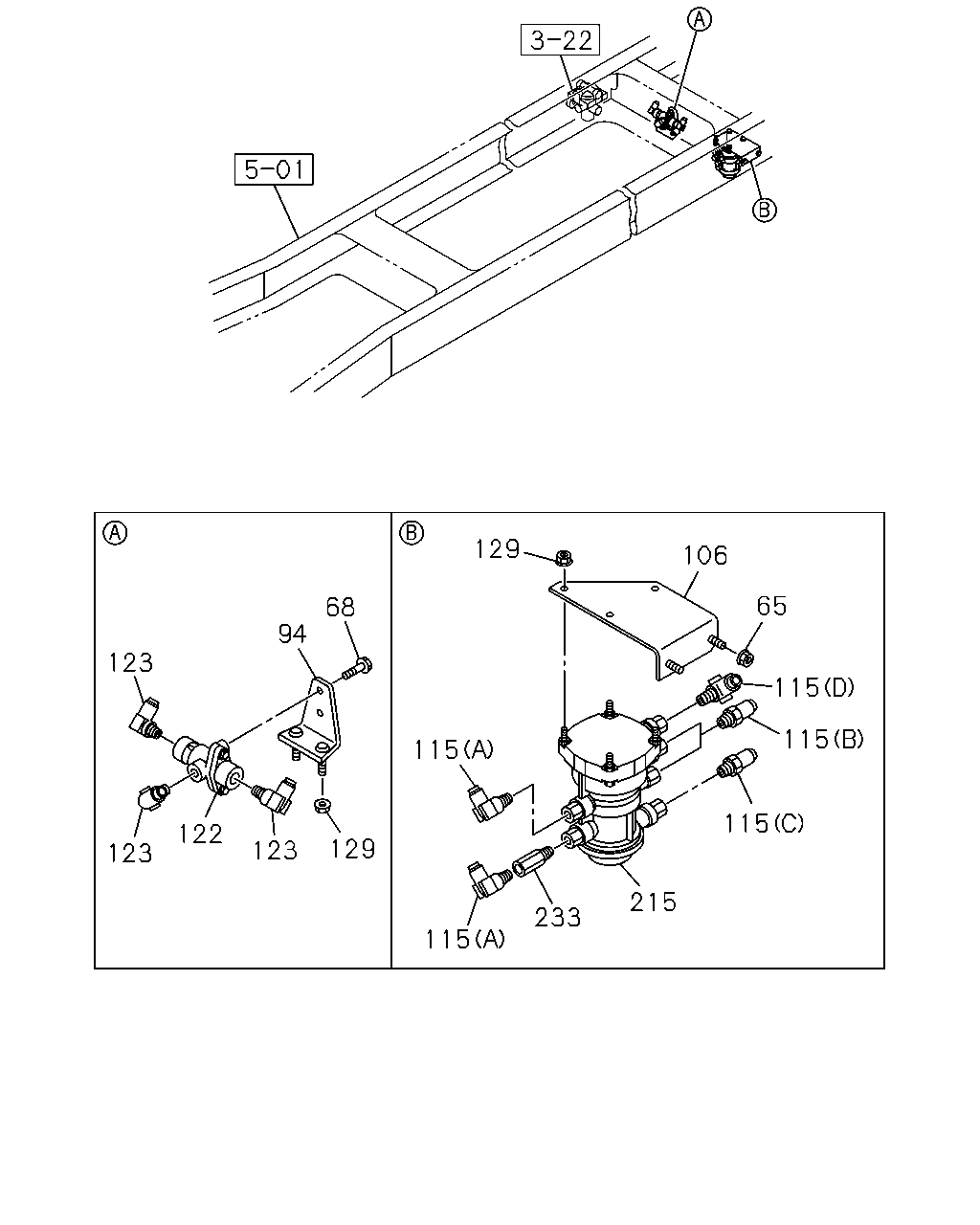

123 94 68 129 123 122 123 129 106 65 115 115 115 215 233 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
65	NUT; RELAY VLV FULL TRAILER PIPING<Z25> M10 FLANGE	0-91180-210-0	02	1	1306-	●
68	BOLT; DOUBLE CHECK VLV FULL TRAILER PIPING<Z25> M8X16 FLANGE	0-28050-816-0	02	1	1306-1404	●
68	BOLT; DOUBLE CHECK VLV FULL TRAILER PIPING<Z25> M8X14 FLANGE	0-28080-814-0	02	1	1405-	●
94	BRACKET; CHECK VLV FULL TRAILER PIPING<Z25>	8-98153-162-0	01	1	1306-	●
106	BRACKET; VLV FULL TRAILER PIPING<Z25>	8-98142-101-1	01	1	1306-	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1306-	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1306-	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	1306-	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1306-	●
122	VALVE ASM; DOUBLE CHECK FULL TRAILER PIPING<Z25>	1-48410-531-1	01	1	1306-	●
123	CONNECTOR; DBL CHECK VLV FULL TRAILER PIPING<Z25> DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1306-	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1306-	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	05	1	1306-	●
215	VALVE; TRAILER CONT FULL TRAILER PIPING<Z25>	8-98091-694-0	01	1	1306-	●
233	ADAPTER; VLV FULL TRAILER PIPING<Z25> PT3/8	1-48319-058-0	01	1	1306-	●

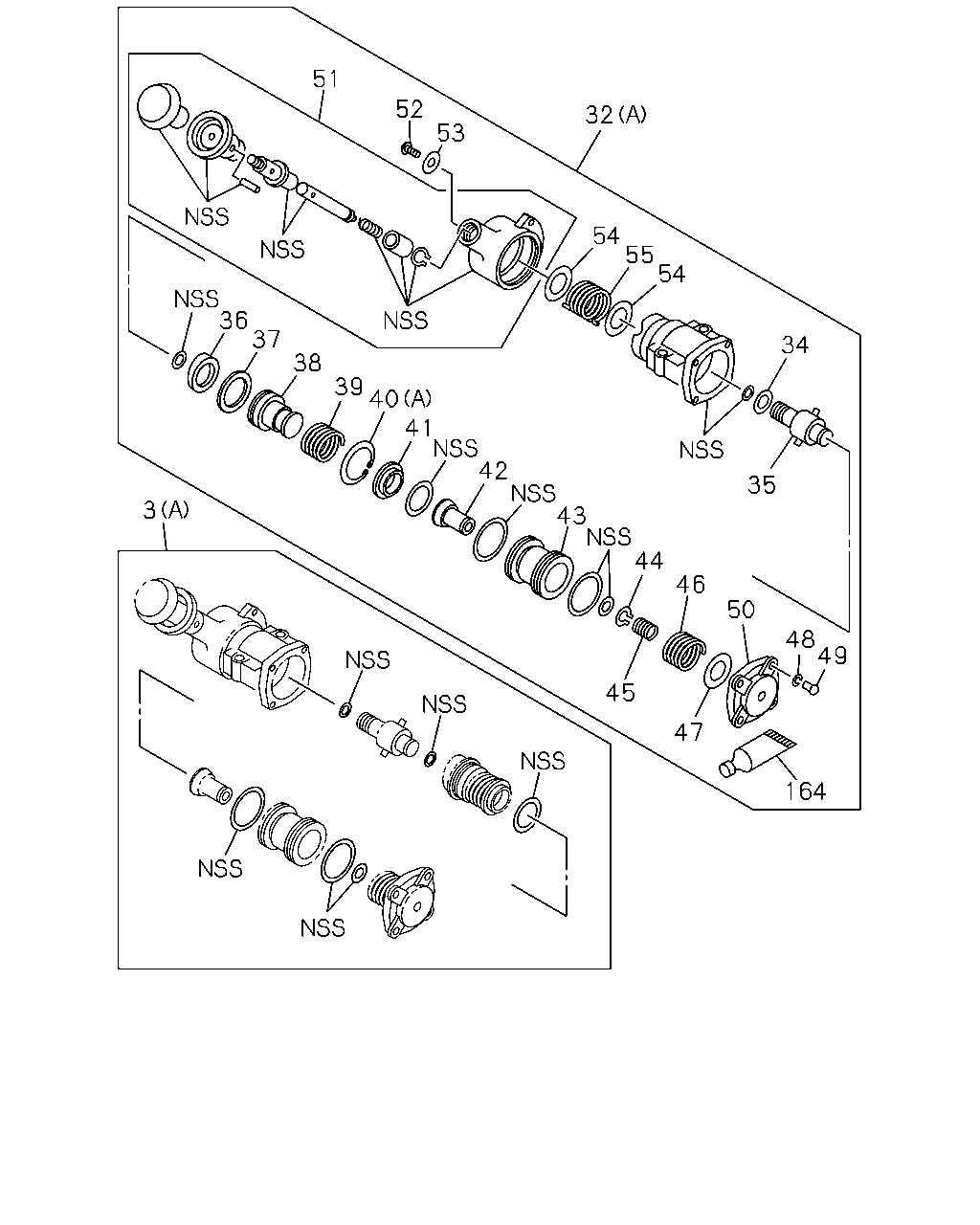

51 52 53 32 54 55 54 34 3 36 37 38 39 40 41 42 43 44 45 46 47 50 48 49 164 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV (A) W/GREASE	1-48469-096-0	01	1	1306-	●
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A) W/GREASE	1-48469-096-0	01	1	1306-		●

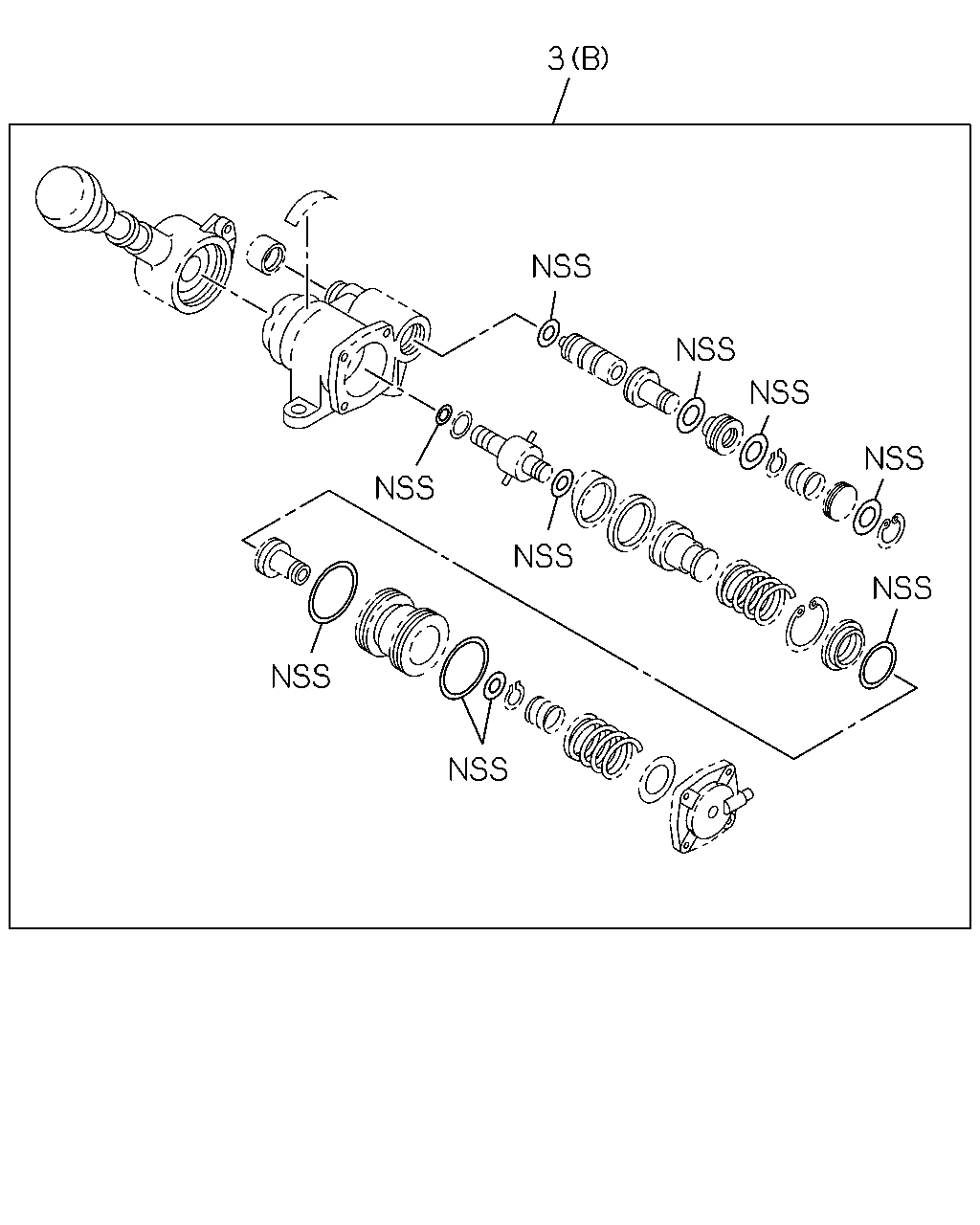

3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B) W/GREASE	1-48469-083-0	01	1	1306-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	1306-	●
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1306-		●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1306-		●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25> (A)	1-48460-306-0	01	1	1306-		●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1306-	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	1306-	●	●
36	RING; CAM	1-48469-056-0	01	1	1306-	●	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	1306-	●	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1306-	●	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1306-	●	●
40	RING; SNAP (A)	1-48469-067-0	01	1	1306-	●	●
40	RING; SNAP FULL TRAILER PIPING<Z25> (B)	1-48469-079-0	01	1	1306-		●
41	SEAT; FEED VLV	1-48469-066-0	01	1	1306-	●	●
42	VALVE; FEED	1-48469-065-0	01	1	1306-	●
42	VALVE; FEED EXC. FULL TRAILER PIPING<Z25>	1-48469-065-0	01	1	1306-		●
42	VALVE; FEED FULL TRAILER PIPING<Z25>	1-48469-065-0	02	1	1306-		●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1306-	●	●
44	RING; SNAP,FEED VLV	1-48469-068-0	01	1	1306-	●
44	RING; SNAP,FEED VLV RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-068-0	01	1	1306-		●
44	RING; SNAP,FEED VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-068-0	02	1	1306-		●
44	RING; SNAP,FEED VLV FULL TRAILER PIPING<Z25>	1-48469-068-0	02	1	1306-		●
45	SPRING; FEED VLV	1-48469-070-0	01	1	1306-	●
45	SPRING; FEED VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-070-0	01	1	1306-		●
45	SPRING; FEED VLV FULL TRAILER PIPING<Z25>	1-48469-070-0	02	1	1306-		●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	1306-	●
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-089-0	01	1	1306-		●
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-119-0	01	1	1306-		●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1306-	●	●
48	WASHER; COVER EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-091-0	04	1	1306-		●
49	SCREW; COVER	1-48469-118-0	04	1	1306-	●
49	SCREW; COVER RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-118-0	04	1	1306-		●
49	SCREW; COVER FULL TRAILER PIPING<Z25>	1-48469-120-0	04	1	1306-		●
49	SCREW; COVER EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-092-0	04	1	1306-		●
50	COVER; HAND BRK VLV	1-48469-222-0	01	1	1306-	●
50	COVER; HAND BRK VLV RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-222-0	01	1	1306-		●
50	COVER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-073-0	01	1	1306-		●
50	COVER; HAND BRK VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-090-0	01	1	1306-		●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	1306-	●
51	HANDLE ASM; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-122-0	01	1	1306-		●
51	HANDLE ASM; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-060-0	01	1	1306-		●
52	SCREW; HANDLE	1-48469-062-0	01	1	1306-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1306-	●	●
54	SEAT; SPRING	1-48469-082-0	02	1	1306-	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1306-	●	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1306-	●	●

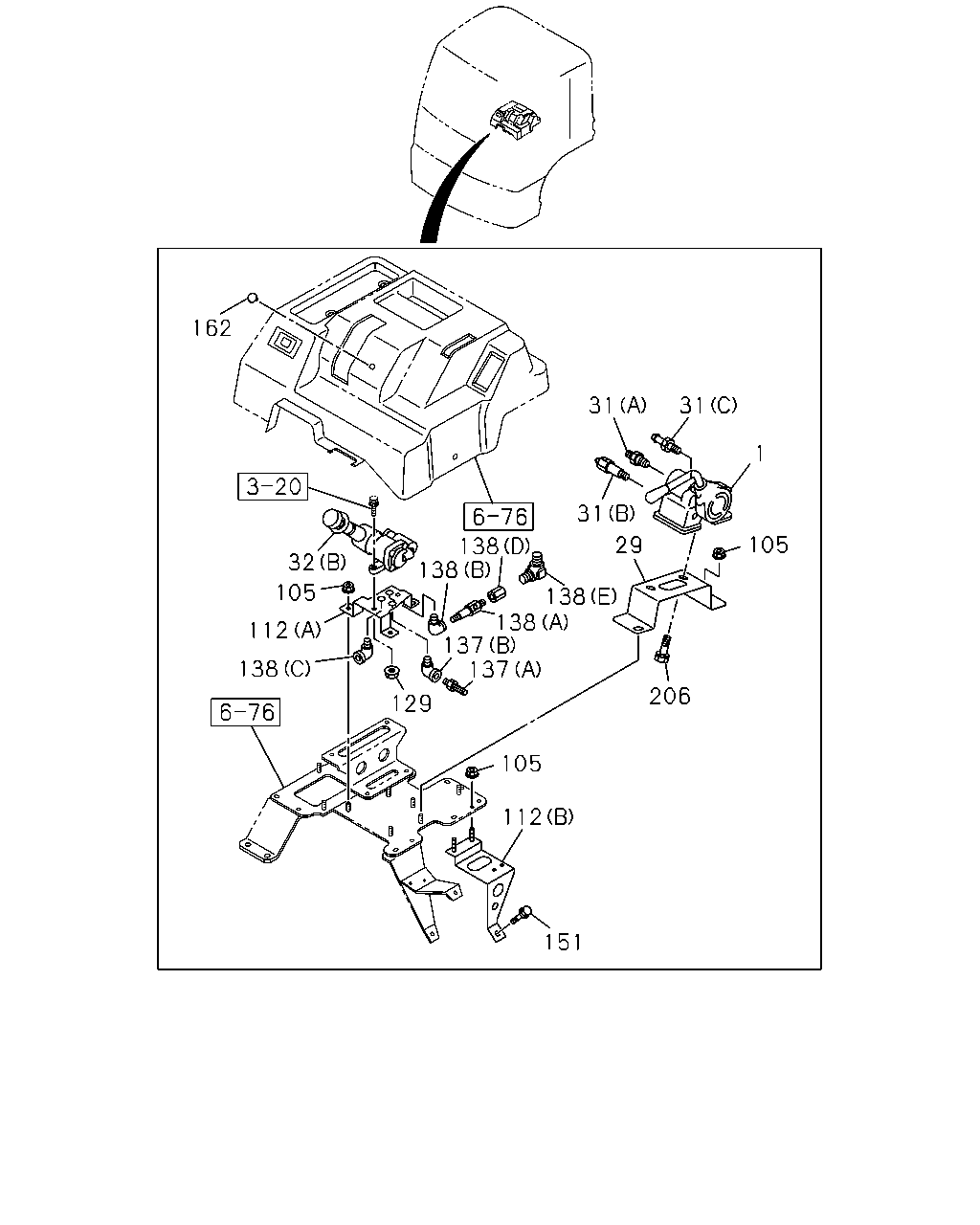

162 32 105 112 138 138 137 137 129 138 138 31 31 31 29 105 1 206 105 112 151 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

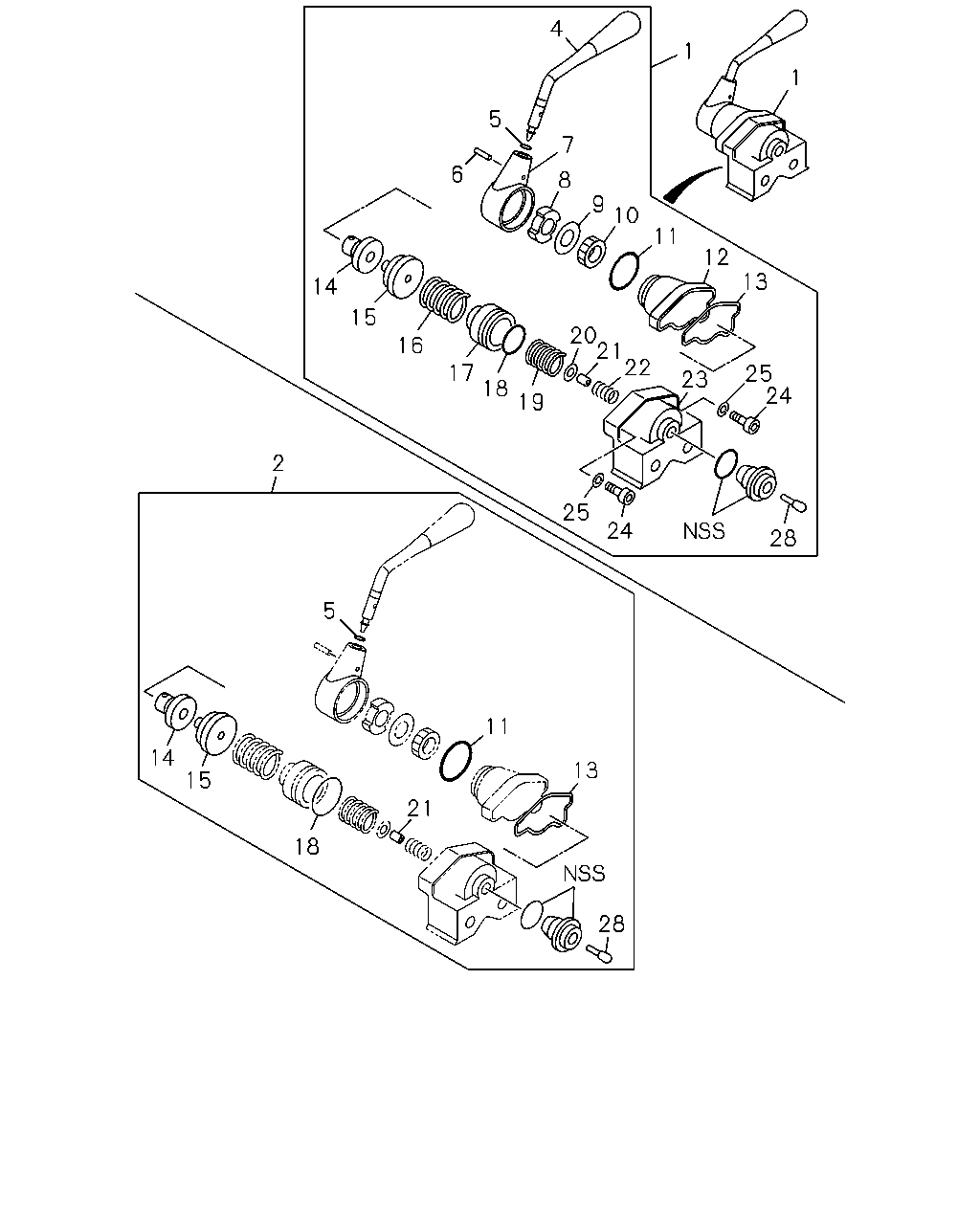

1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL(NLG)	1-48100-849-0	01	1	1306-		●
29	BRACKET; HAND BRK FULL TRAILER PIPING<Z25>	1-79996-131-2	01	1	1306-		●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (A) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1306-		●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (B) M14	1-09656-391-2	01	1	1306-		●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (C) L=45	8-94338-874-0	01	1	1306-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	1306-	●
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1306-		●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1306-		●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25> (A)	1-48460-306-0	01	1	1306-		●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1306-	●	●
105	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1306-		●
112	BRACKET; CONT VLV (A)	1-79996-378-1	01	1	1306-	●
112	BRACKET; CONT VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-79996-378-1	01	1	1306-		●
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	1306-	●	●
112	BRACKET; CONT VLV FULL TRAILER PIPING<Z25> (A)	1-79996-112-2	01	1	1306-		●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1306-		●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	05	1	1306-		●
137	CONNECTOR; SUPPLY (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1306-	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1306-		●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1306-		●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1306-		●
138	CONNECTOR; DELIVERY (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1306-	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1306-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (E) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	1306-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1306-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1306-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (D) M20 & RC1/4 STRAIGHT	1-09660-880-0	01	1	1306-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1306-		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1306-	●	●
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	1306-	●	●
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL(NLG) M10X20 W/LK WASHER	0-50541-020-0	02	1	1306-		●

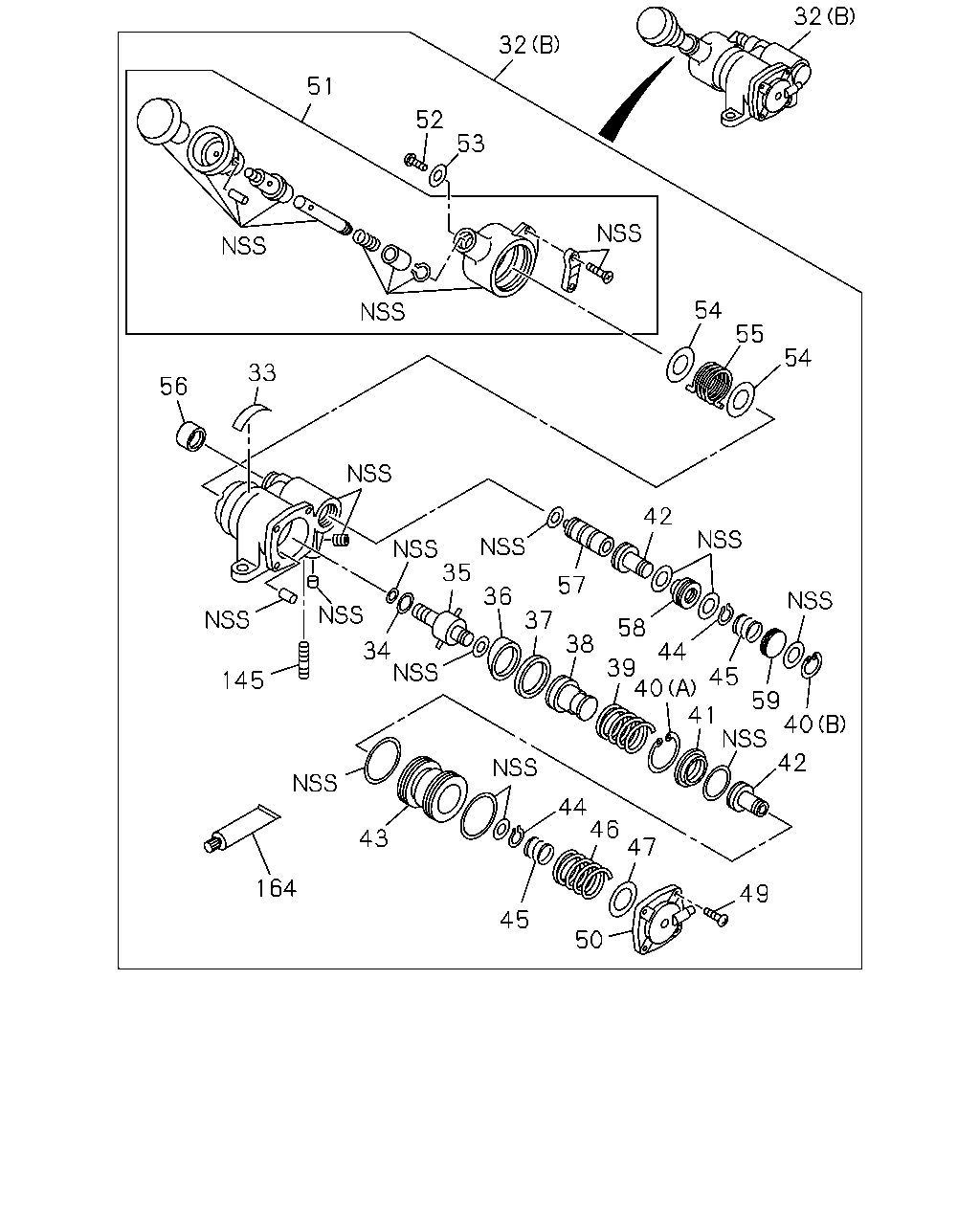

51 52 53 32 32 54 55 54 42 33 56 145 164 43 45 50 49 47 46 44 34 35 36 37 38 39 40 41 42 40 59 45 44 58 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	1306-	●
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1306-		●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1306-		●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25> (A)	1-48460-306-0	01	1	1306-		●
33	PLATE; CAUTION FULL TRAILER PIPING<Z25>	1-48469-121-0	01	1	1306-		●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1306-	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	1306-	●	●
36	RING; CAM	1-48469-056-0	01	1	1306-	●	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	1306-	●	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1306-	●	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1306-	●	●
40	RING; SNAP (A)	1-48469-067-0	01	1	1306-	●	●
40	RING; SNAP FULL TRAILER PIPING<Z25> (B)	1-48469-079-0	01	1	1306-		●
41	SEAT; FEED VLV	1-48469-066-0	01	1	1306-	●	●
42	VALVE; FEED	1-48469-065-0	01	1	1306-	●
42	VALVE; FEED EXC. FULL TRAILER PIPING<Z25>	1-48469-065-0	01	1	1306-		●
42	VALVE; FEED FULL TRAILER PIPING<Z25>	1-48469-065-0	02	1	1306-		●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1306-	●	●
44	RING; SNAP,FEED VLV	1-48469-068-0	01	1	1306-	●
44	RING; SNAP,FEED VLV RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-068-0	01	1	1306-		●
44	RING; SNAP,FEED VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-068-0	02	1	1306-		●
44	RING; SNAP,FEED VLV FULL TRAILER PIPING<Z25>	1-48469-068-0	02	1	1306-		●
45	SPRING; FEED VLV	1-48469-070-0	01	1	1306-	●
45	SPRING; FEED VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-070-0	01	1	1306-		●
45	SPRING; FEED VLV FULL TRAILER PIPING<Z25>	1-48469-070-0	02	1	1306-		●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	1306-	●
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-089-0	01	1	1306-		●
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-119-0	01	1	1306-		●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1306-	●	●
49	SCREW; COVER	1-48469-118-0	04	1	1306-	●
49	SCREW; COVER RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-118-0	04	1	1306-		●
49	SCREW; COVER FULL TRAILER PIPING<Z25>	1-48469-120-0	04	1	1306-		●
49	SCREW; COVER EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-092-0	04	1	1306-		●
50	COVER; HAND BRK VLV	1-48469-222-0	01	1	1306-	●
50	COVER; HAND BRK VLV RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-222-0	01	1	1306-		●
50	COVER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-073-0	01	1	1306-		●
50	COVER; HAND BRK VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-090-0	01	1	1306-		●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	1306-	●
51	HANDLE ASM; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-122-0	01	1	1306-		●
51	HANDLE ASM; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-060-0	01	1	1306-		●
52	SCREW; HANDLE	1-48469-062-0	01	1	1306-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1306-	●	●
54	SEAT; SPRING	1-48469-082-0	02	1	1306-	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1306-	●	●
56	BOOT; PLUNGER FULL TRAILER PIPING<Z25>	1-48469-080-0	01	1	1306-		●
57	PLUNGER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-076-0	01	1	1306-		●
58	HOLDER; FEED VLV FULL TRAILER PIPING<Z25>	1-48469-077-0	01	1	1306-		●
59	HOLDER; SPRING FULL TRAILER PIPING<Z25>	1-48469-078-0	01	1	1306-		●
145	STUD; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-069-0	01	1	1306-		●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1306-	●	●

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

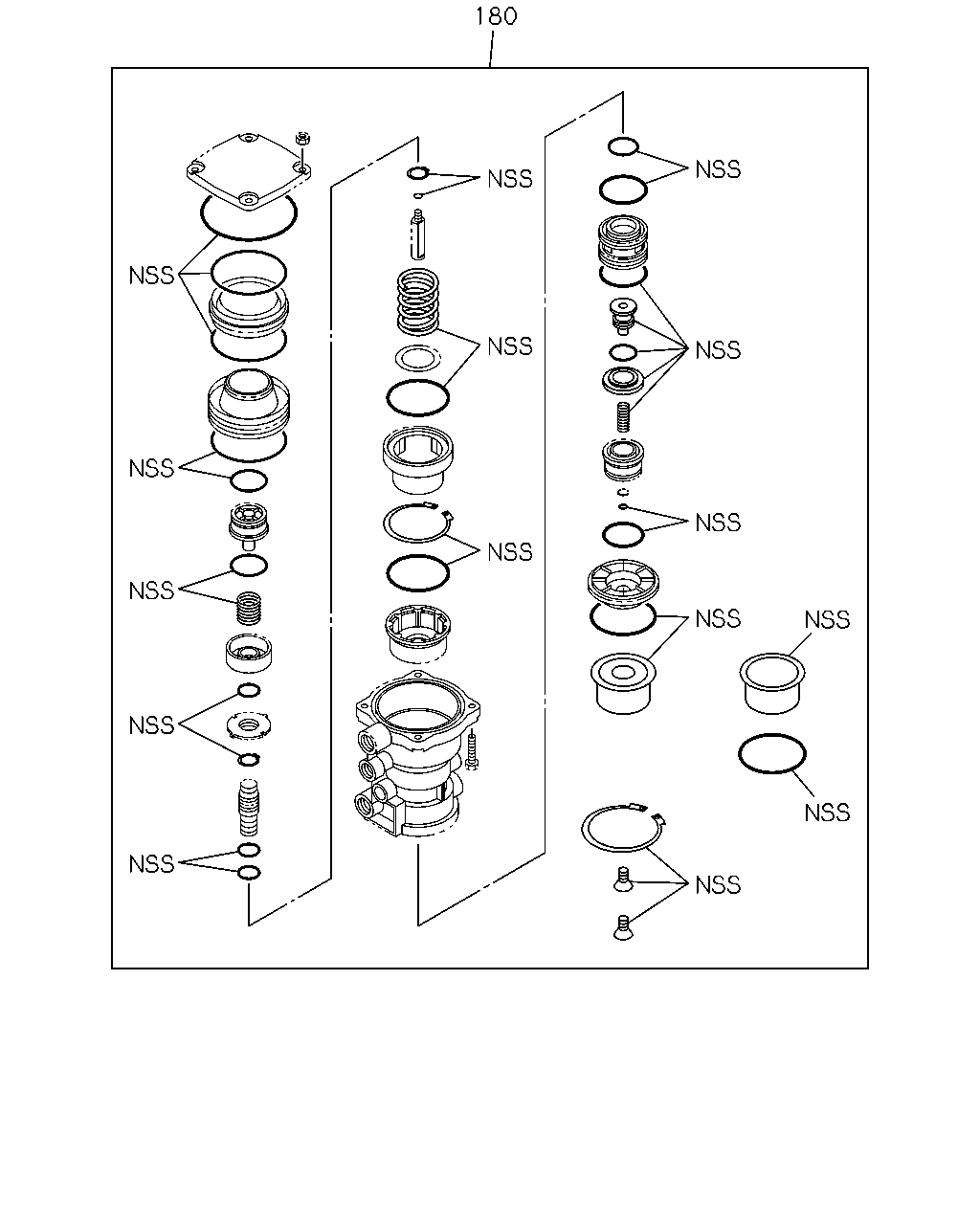

	180	REPAIR KIT; RELAY VLV FULL TRAILER PIPING<Z25>	1-85576-449-0	01	1	1306-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV (A) W/GREASE	1-48469-096-0	01	1	1306-	●
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A) W/GREASE	1-48469-096-0	01	1	1306-		●
3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B) W/GREASE	1-48469-083-0	01	1	1306-		●

1 1 4 5 7 8 9 10 11 12 13 25 24 28 24 25 19 18 17 16 15 14 6 20 21 22 23 2 5 11 13 28 21 18 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL(NLG)	1-48100-849-0	01	1	1306-	●
2	REPAIR KIT; HAND BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-85576-180-0	01	1	1306-	●
4	HANDLE ASM; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48119-517-0	01	1	1306-	●
5	GASKET; HANDLE TRAILER BRAKE HAND CONTROL(NLG)	1-48119-128-0	01	1	1306-	●
6	PIN; SPR TRAILER BRAKE HAND CONTROL(NLG)	1-48119-143-0	01	1	1306-	●
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48119-131-1	01	1	1306-	●
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48119-136-0	01	1	1306-	●
9	WASHER; LK,ADJ TRAILER BRAKE HAND CONTROL(NLG)	1-48119-123-0	01	1	1306-	●
10	RING; ADJ TRAILER BRAKE HAND CONTROL(NLG)	1-48119-122-0	01	1	1306-	●
11	GASKET; HD TO COVER TRAILER BRAKE HAND CONTROL(NLG)	1-48119-130-0	01	1	1306-	●
12	COVER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-097-1	01	1	1306-	●
13	GASKET; BODY TO COVER TRAILER BRAKE HAND CONTROL(NLG)	1-48119-120-0	01	1	1306-	●
14	FOLLOWER; CAM TRAILER BRAKE HAND CONTROL(NLG)	1-48129-109-0	01	1	1306-	●
15	CAM; FOLLOWER TRAILER BRAKE HAND CONTROL(NLG)	1-48129-110-0	01	1	1306-	●
16	SPRING; GRUDUATING TRAILER BRAKE HAND CONTROL(NLG)	1-48129-101-0	01	1	1306-	●
17	PISTON; SPR TRAILER BRAKE HAND CONTROL(NLG)	1-48129-095-0	01	1	1306-	●
18	GASKET; BODY TRAILER BRAKE HAND CONTROL(NLG)	1-48129-096-0	01	1	1306-	●
19	SPRING; PISTON TRAILER BRAKE HAND CONTROL(NLG)	1-48129-094-0	01	1	1306-	●
20	GUIDE; VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-090-0	01	1	1306-	●
21	VALVE; IN & EXH TRAILER BRAKE HAND CONTROL(NLG)	1-48121-017-0	01	1	1306-	●
22	SPRING; VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48123-024-0	01	1	1306-	●
23	BODY; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48111-060-1	01	1	1306-	●
24	BOLT; EXH VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-092-0	02	1	1306-	●
25	WASHER; LK,EXH VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-093-0	02	1	1306-	●
28	STEM ASM; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-089-0	01	1	1306-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
