◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11537 - CYZ LHD EURO2 WITH REFLECTOR ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#123354) — 272 parça

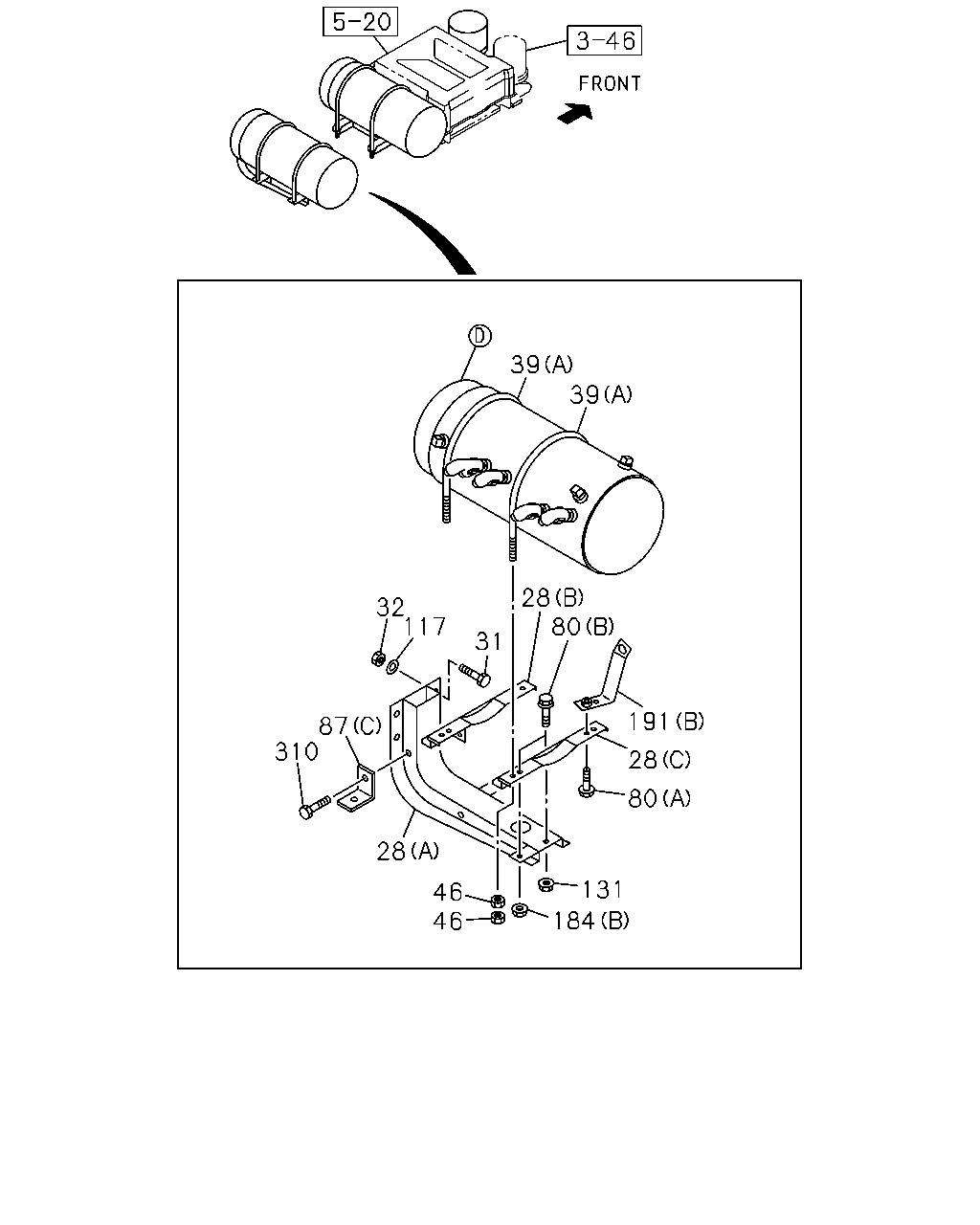

çizim 364011
39 39 32 117 31 28 80 87 310 28 46 46 184 131 80 28 191
BalonParca AdiParca NoAdetTipApplied Date A B
28 BRACKET; AIR TANK
(A) 		1-48316-024-3 01 1 1306- ● ●
28 BRACKET; AIR TANK
(B) 		1-48316-026-0 02 1 1306- ● ●
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 02 1 1306- ● ●
28 BRACKET; AIR TANK
(E) 		8-98145-275-1 01 1 1306- ● ●
28 BRACKET; AIR TANK
(D) 		8-98200-121-2 01 1 1306- ● ●
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 08 1 1306- ● ●
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 08 1 1306- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1306- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1306- ● ●
39 U-BOLT; AIR TANK
(B) L=253 		1-48317-248-1 02 1 1306- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1511- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1306- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1306-1510 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1511- ● ●
80 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306- ● ●
80 BOLT; BRKT
(B) M12X25 FLANGE 		0-28651-225-0 07 1 1306- ● ●
80 BOLT; BRKT
(C) M12X30 FLANGE 		0-28651-230-0 02 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-241-0 01 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(C) 		8-98053-747-0 02 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		8-98054-525-0 01 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(F) 		8-98169-166-0 01 1 1306- ● ●
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 1306- ● ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1306- ● ●
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1306- ● ●
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 02 1 1306- ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1306- ●
191 BRACKET; STOPPER,AIR TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-015-1 01 1 1306- ●
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1306- ● ●
191 BRACKET; STOPPER,AIR TANK
(C) 		8-98167-792-0 01 1 1306- ● ●
191 BRACKET; STOPPER,AIR TANK
BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-023-1 01 1 1306- ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 08 1 1306- ● ●
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●

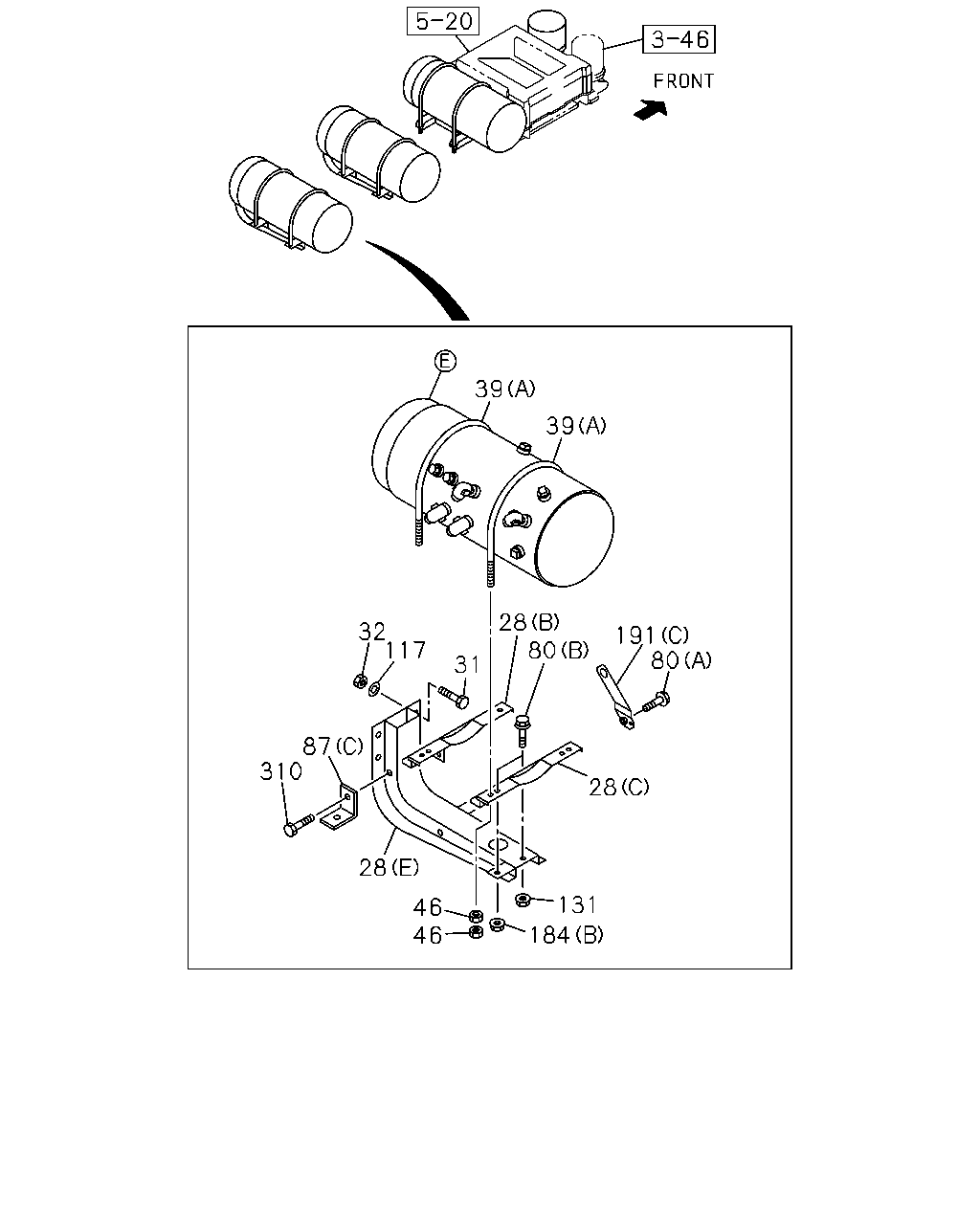

çizim 364090
39 39 32 117 28 80 191 80 28 131 184 46 46 28 310 87 31
BalonParca AdiParca NoAdetTipApplied Date A B
28 BRACKET; AIR TANK
(A) 		1-48316-024-3 01 1 1306- ● ●
28 BRACKET; AIR TANK
(B) 		1-48316-026-0 02 1 1306- ● ●
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 02 1 1306- ● ●
28 BRACKET; AIR TANK
(E) 		8-98145-275-1 01 1 1306- ● ●
28 BRACKET; AIR TANK
(D) 		8-98200-121-2 01 1 1306- ● ●
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 08 1 1306- ● ●
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 08 1 1306- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1306- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1306- ● ●
39 U-BOLT; AIR TANK
(B) L=253 		1-48317-248-1 02 1 1306- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1511- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1306- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1306-1510 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1511- ● ●
80 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306- ● ●
80 BOLT; BRKT
(B) M12X25 FLANGE 		0-28651-225-0 07 1 1306- ● ●
80 BOLT; BRKT
(C) M12X30 FLANGE 		0-28651-230-0 02 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-241-0 01 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(C) 		8-98053-747-0 02 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		8-98054-525-0 01 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(F) 		8-98169-166-0 01 1 1306- ● ●
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 1306- ● ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1306- ● ●
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1306- ● ●
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 02 1 1306- ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1306- ●
191 BRACKET; STOPPER,AIR TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-015-1 01 1 1306- ●
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1306- ● ●
191 BRACKET; STOPPER,AIR TANK
(C) 		8-98167-792-0 01 1 1306- ● ●
191 BRACKET; STOPPER,AIR TANK
BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-023-1 01 1 1306- ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 08 1 1306- ● ●
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
çizim 364106
10 10 10 8 10 10 5 7 5 6 5 1 5 10 10 5 5 5 10 6 1 10 10 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1306- ● ●
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1306- ● ●
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1306- ● ●
5 UNION; AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1306- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1306- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1306- ● ●
5 UNION; AIR TANK
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1306- ● ●
5 UNION; AIR TANK
(A) M22 & M22 ELBOW 		1-09661-550-0 02 1 1306- ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (A) 		1-48312-006-1 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (A) 		1-48312-006-1 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (B) 		1-48312-017-0 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (B) 		1-48312-017-0 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 06 1 1306- ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (B) 		1-48312-017-0 02 1 1306- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1306- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1306- ● ●
8 CONNECTOR; AIR TANK
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306- ● ●
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1306- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1306- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 03 1 1306- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 02 1 1306- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 02 1 1306- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 04 1 1306- ● ●
çizim 364125
131 137 80 30 30 30 2 26 46 46 26 164 27 27 7 6 27 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1306- ● ●
2 TANK; AIR
(B) 		8-98145-093-0 01 1 1306- ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (A) 		1-48312-006-1 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (A) 		1-48312-006-1 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (B) 		1-48312-017-0 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (B) 		1-48312-017-0 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 06 1 1306- ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (B) 		1-48312-017-0 02 1 1306- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1306- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1306- ● ●
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1306- ● ●
27 UNION; ELBOW,AIR TANK
(A) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1306- ● ●
27 UNION; ELBOW,AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
30 BRACKET; AIR TANK,SUB
(A) 		8-98100-865-0 01 1 1306- ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-98100-866-0 01 1 1306- ● ●
30 BRACKET; AIR TANK,SUB
(C) 		8-98177-422-0 01 1 1306- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1306- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1306- ● ●
39 U-BOLT; AIR TANK
(B) L=253 		1-48317-248-1 02 1 1306- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1511- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1306- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1306-1510 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1511- ● ●
80 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306- ● ●
80 BOLT; BRKT
(B) M12X25 FLANGE 		0-28651-225-0 07 1 1306- ● ●
80 BOLT; BRKT
(C) M12X30 FLANGE 		0-28651-230-0 02 1 1306- ● ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1306- ● ●
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 02 1 1306- ● ●
164 CONNECTOR; SUB AIR TANK
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306- ● ●

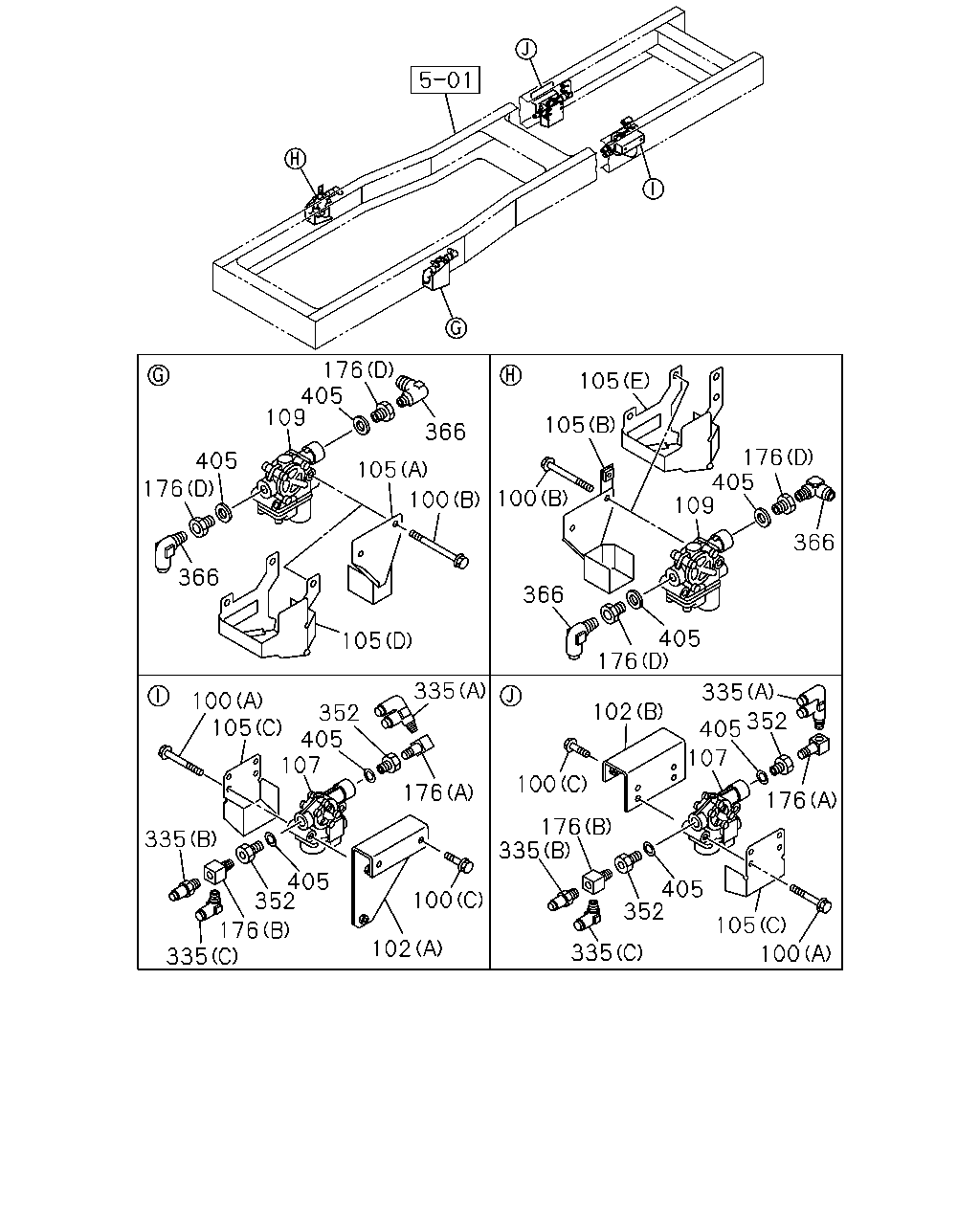

çizim 366051
105 105 405 176 366 109 100 366 405 176 335 352 405 176 405 105 100 352 335 335 100 102 107 176 102 100 176 335 352 405 107 405 352 176 335 335 105 100 105 366 176 405 109 405 176 366 105 100
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1306-1504 ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1306-1504 ● ●
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 02 1 1505- ● ●
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 02 1 1505- ● ●
100 BOLT; MODULATOR
(B) M8X90 FLANGE 		0-28050-890-0 04 1 1306- ● ●
100 BOLT; MODULATOR
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1306- ● ●
102 BRACKET; MODULATOR
WHEEL BASE 5900MM(59W) (B) 		8-98300-017-0 01 1 1505- ●
102 BRACKET; MODULATOR
WHEEL BASE 5200MM(52W) (A) 		1-47471-373-0 01 1 1306-1504 ●
102 BRACKET; MODULATOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A) 		1-47471-373-0 01 1 1306-1504 ●
102 BRACKET; MODULATOR
WHEEL BASE 5200MM(52W) (A) 		8-98300-015-0 01 1 1505- ●
102 BRACKET; MODULATOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A) 		8-98300-015-0 01 1 1505- ●
102 BRACKET; MODULATOR
(B) 		1-47471-372-0 01 1 1306-1504 ● ●
102 BRACKET; MODULATOR
WHEEL BASE 5900MM(59W) (B) 		1-47471-372-0 01 1 1306-1504 ●
102 BRACKET; MODULATOR
(B) 		8-98300-012-0 01 1 1505- ● ●
105 COVER; MODULATOR
(C) 		8-98302-925-0 01 1 1505- ● ●
105 COVER; MODULATOR
(C) 		1-47471-354-0 01 1 1306-1504 ● ●
105 COVER; MODULATOR
(C) 		1-47471-354-0 01 1 1306-1504 ● ●
105 COVER; MODULATOR
(C) 		8-98302-924-0 01 1 1505- ● ●
105 COVER; MODULATOR
(A) 		8-98147-199-0 01 1 1306-1504 ● ●
105 COVER; MODULATOR
(D) 		8-98300-150-0 01 1 1505- ● ●
105 COVER; MODULATOR
(B) 		8-98147-206-0 01 1 1306-1504 ● ●
105 COVER; MODULATOR
(E) 		8-98300-154-0 01 1 1505- ● ●
107 MODULATOR; RR 1-48240-115-0 01 1 1306-1504 ● ●
107 MODULATOR; RR 1-48240-115-0 01 1 1306-1504 ● ●
107 MODULATOR; RR 8-98215-454-0 01 1 1505- ● ●
107 MODULATOR; RR 8-98215-454-0 01 1 1505- ● ●
109 MODULATOR; FRT 1-48240-115-0 02 1 1306-1504 ● ●
109 MODULATOR; FRT 8-98215-454-0 02 1 1505- ● ●
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1306- ● ●
176 ADAPTER
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1306- ● ●
176 ADAPTER
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1306- ● ●
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1306- ● ●
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1306- ● ●
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1306- ● ●
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1306- ● ●
335 CONNECTOR; MODULATOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
335 CONNECTOR; MODULATOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1306- ● ●
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1306- ● ●
335 CONNECTOR; MODULATOR
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306- ● ●
335 CONNECTOR; MODULATOR
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306- ● ●
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1306- ● ●
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1306- ● ●
366 CONNECTOR; NYLON TUBE
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1306- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 02 1 1306- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 02 1 1306- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1306- ● ●

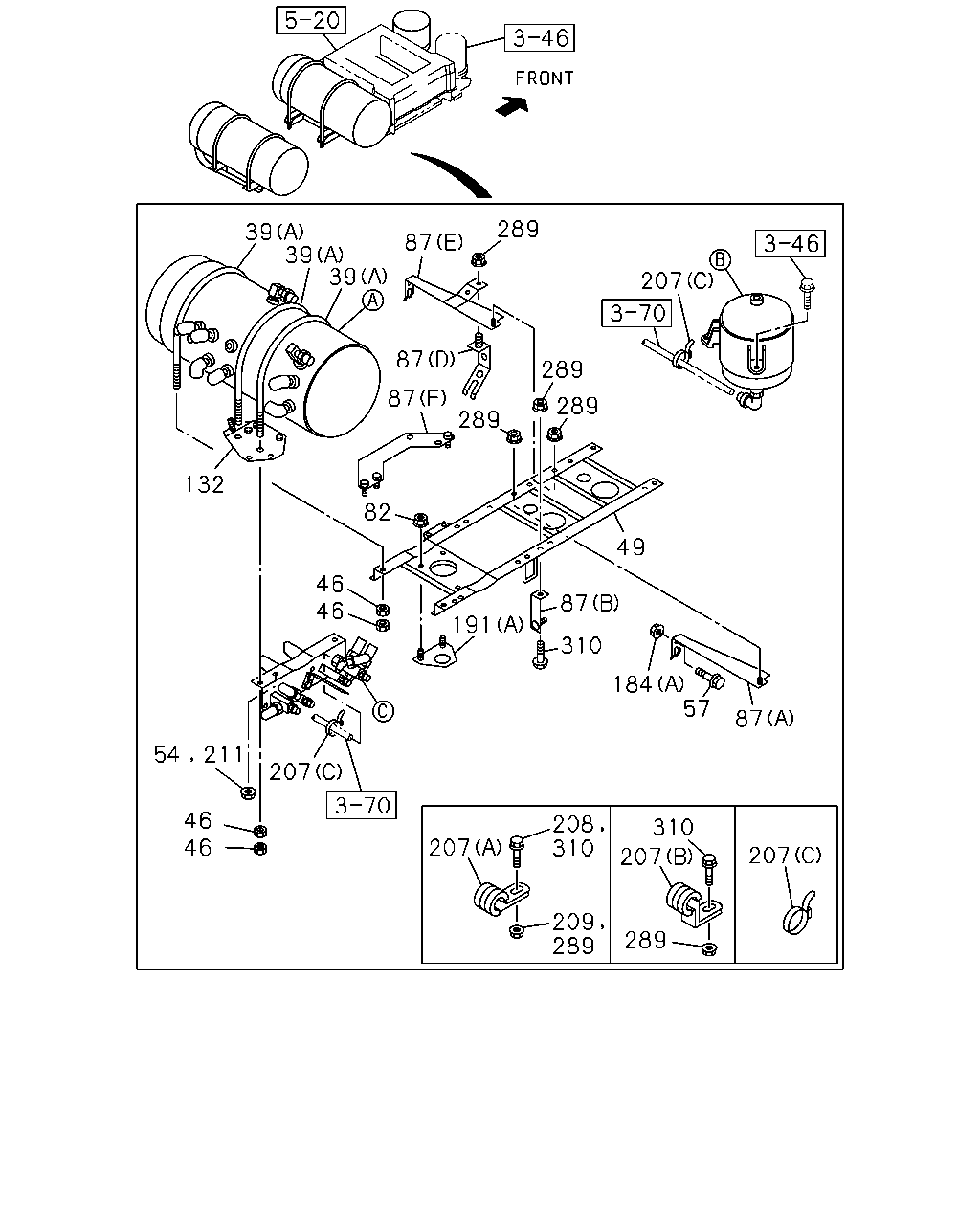

çizim 366101
39 39 39 132 54 211 46 46 207 46 46 82 87 87 87 289 289 289 289 191 49 87 310 184 57 87 207 207 208 310 209 289 310 207 289 207
BalonParca AdiParca NoAdetTipApplied Date A B
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1306- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1306- ● ●
39 U-BOLT; AIR TANK
(B) L=253 		1-48317-248-1 02 1 1306- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1511- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1306- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1306-1510 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1511- ● ●
49 BRACKET; AIR TANK 8-98241-376-0 01 1 1306- ● ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1306- ● ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-241-0 01 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(C) 		8-98053-747-0 02 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		8-98054-525-0 01 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1306- ● ●
87 BRACKET; AIR PIPE JOINT
(F) 		8-98169-166-0 01 1 1306- ● ●
132 BRACKET; STRING GUIDE 8-98200-122-0 01 1 1306- ● ●
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1306- ● ●
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 02 1 1306- ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1306- ●
191 BRACKET; STOPPER,AIR TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-015-1 01 1 1306- ●
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1306- ● ●
191 BRACKET; STOPPER,AIR TANK
(C) 		8-98167-792-0 01 1 1306- ● ●
191 BRACKET; STOPPER,AIR TANK
BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-023-1 01 1 1306- ●
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 14 1 1306- ●
207 CLIP; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350 		1-09707-183-0 14 1 1306- ●
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 1306- ●
207 CLIP; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=256 		1-09707-189-0 02 1 1306- ●
207 CLIP; AIR PIPE
WHEEL BASE 5200MM(52W) (A) ID=7 L=20 		0-95234-635-0 01 1 1306-1510 ●
207 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W) (A) ID=7 L=20 		0-95234-635-0 01 1 1306-1510 ●
207 CLIP; AIR PIPE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) ID=7 L=20 		0-95234-635-0 01 1 1511- ● ●
207 CLIP; AIR PIPE
WHEEL BASE 5200MM(52W) (A) ID=16 L=20 		0-95235-535-0 01 1 1306-1510 ●
207 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W) (A) ID=16 L=20 		0-95235-535-0 01 1 1306-1510 ●
207 CLIP; AIR PIPE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) ID=16 L=20 		0-95235-535-0 01 1 1511- ● ●
207 CLIP; AIR PIPE
(A) ID=35 L=35 		1-09700-895-0 01 1 1306- ● ●
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 01 1 1306- ● ●
207 CLIP; AIR PIPE
(B) ID=35 H=45 L=33 		1-09700-947-0 03 1 1306- ● ●
207 CLIP; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> (C) L=350 		1-09707-183-0 13 1 1306- ●
207 CLIP; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> (C) L=256 		1-09707-189-0 01 1 1306- ●
208 BOLT; CLIP
WHEEL BASE 5200MM(52W) M8X16 FLANGE 		0-28050-816-0 01 1 1306-1510 ●
208 BOLT; CLIP
WHEEL BASE 5500MM(55W) M8X16 FLANGE 		0-28050-816-0 01 1 1306-1510 ●
208 BOLT; CLIP
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
209 NUT; CLIP
WHEEL BASE 5200MM(52W) M8 FLANGE 		0-91180-108-0 02 1 1306-1510 ●
209 NUT; CLIP
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 02 1 1306-1510 ●
209 NUT; CLIP
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 09 1 1306- ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 08 1 1306- ● ●
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●

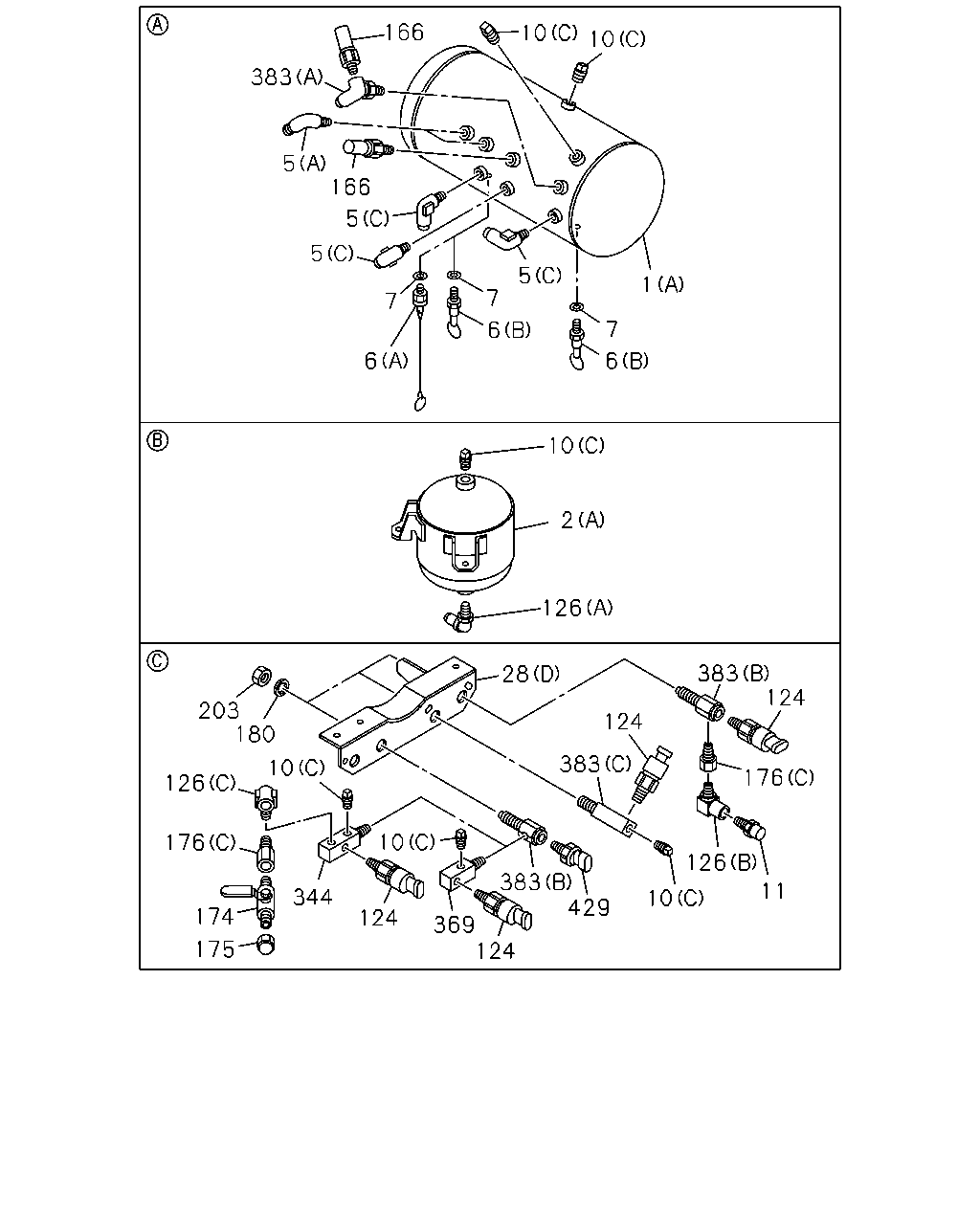

çizim 366933
166 10 383 10 1 7 6 7 6 6 7 5 5 5 166 5 10 2 126 383 124 176 11 126 10 429 383 10 124 28 10 180 203 126 176 174 175 124 344 369 124 383
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1306- ● ●
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1306- ● ●
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1306- ● ●
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1306- ● ●
2 TANK; AIR
(B) 		8-98145-093-0 01 1 1306- ● ●
5 UNION; AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1306- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1306- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1306- ● ●
5 UNION; AIR TANK
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1306- ● ●
5 UNION; AIR TANK
(A) M22 & M22 ELBOW 		1-09661-550-0 02 1 1306- ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (A) 		1-48312-006-1 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (A) 		1-48312-006-1 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (B) 		1-48312-017-0 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (B) 		1-48312-017-0 01 1 1306- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 06 1 1306- ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (B) 		1-48312-017-0 02 1 1306- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1306- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1306- ● ●
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1306- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1306- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 03 1 1306- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 02 1 1306- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 02 1 1306- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 04 1 1306- ● ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1306- ● ●
28 BRACKET; AIR TANK
(A) 		1-48316-024-3 01 1 1306- ● ●
28 BRACKET; AIR TANK
(B) 		1-48316-026-0 02 1 1306- ● ●
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 02 1 1306- ● ●
28 BRACKET; AIR TANK
(E) 		8-98145-275-1 01 1 1306- ● ●
28 BRACKET; AIR TANK
(D) 		8-98200-121-2 01 1 1306- ● ●
124 SWITCH; AIR PRESSURE
STAMP 5.5 		8-97609-249-0 03 1 1306- ● ●
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1306- ● ●
126 CONNECTOR; ELBOW
(B) R1/4 & RC3/8 ELBOW 		8-98227-936-0 01 1 1306- ● ●
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1306- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 02 1 1306- ● ●
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1306- ● ●
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1306- ● ●
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1306- ● ●
176 ADAPTER
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1306- ● ●
176 ADAPTER
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1306- ● ●
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1306- ● ●
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1306- ● ●
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1306- ● ●
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1306- ● ●
180 WASHER; LK
ID=18.2 		0-91510-518-0 03 1 1306- ● ●
203 NUT
M18 		0-91110-518-0 03 1 1306- ● ●
344 CONNECTOR; 4WAY
TIRE INFLATOR DEVICE<SG4> PT1/4 4WAY 		1-09660-358-0 01 1 1306- ● ●
369 CONNECTOR; 3WAY
EXC. TIRE INFLATOR DEVICE<SG4> DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1306- ● ●
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1306- ● ●
383 UNION; 3 WAY
(A) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 1306- ● ●
383 UNION; 3 WAY
(C) 		1-09661-593-0 01 1 1306- ● ●
429 SENSOR
THREAD R1/4 		1-80220-023-1 01 1 1306- ● ●
çizim 366934
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1306- ●
241 BOLT; SET,CONT VLV
EXC. FULL TRAILER PIPING<Z25> M8X70 FLANGE 		0-28050-870-0 02 1 1306- ●
241 BOLT; SET,CONT VLV
FULL TRAILER PIPING<Z25> M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
