◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11537 - CYZ LHD EURO2 WITH REFLECTOR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#123349) — 35 parça

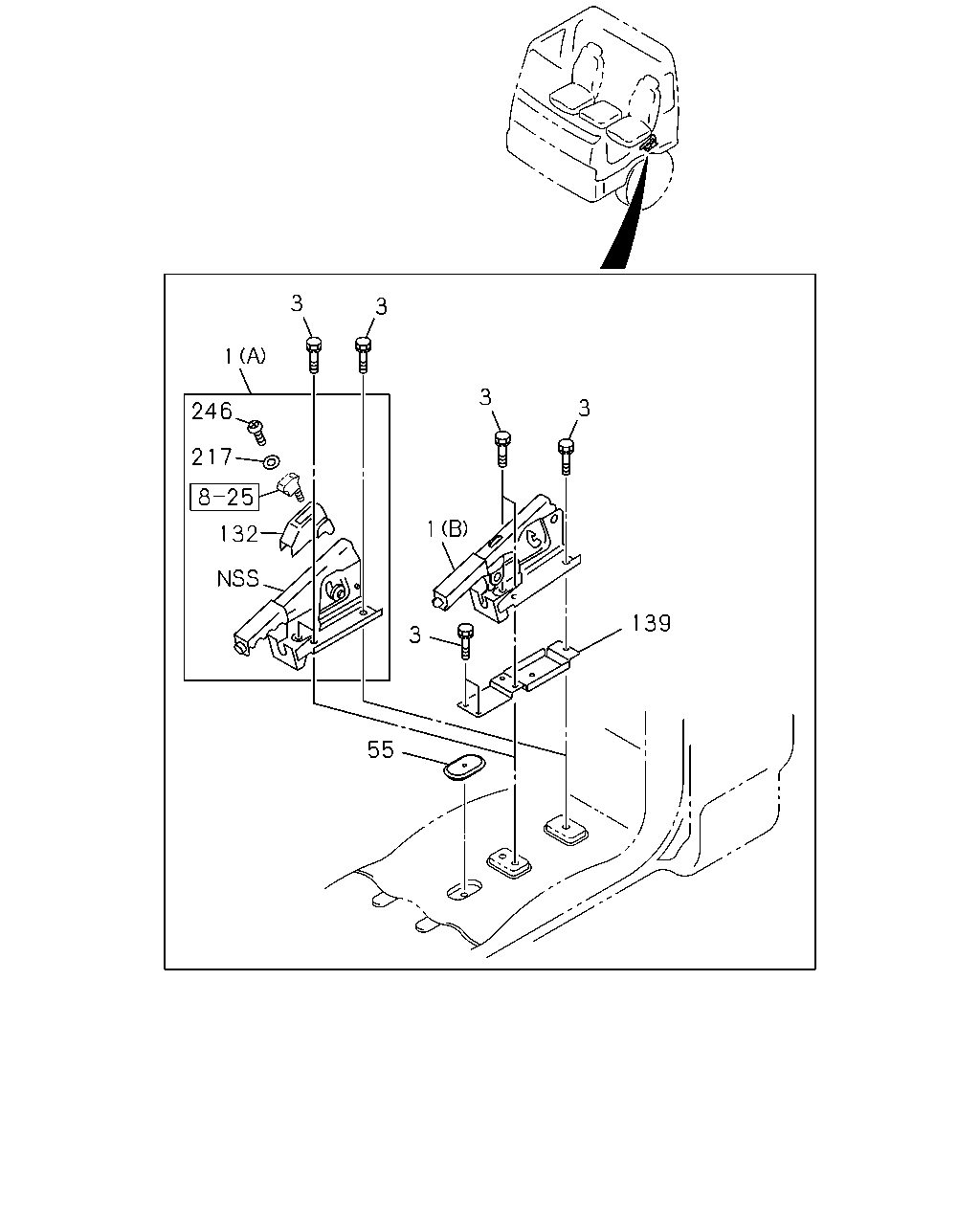

çizim 363296
139 3 3 1 3 55 132 217 246 1 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 1306- ● ●
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL<SV6> (B) 		1-79907-045-1 01 1 1306- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1306- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL<SV6> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1306- ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL<SV6> 		1-09983-068-0 01 1 1306- ● ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 1306- ● ●
139 BRACKET; CONT BOX
PTO CONTROL<SV6> 		1-79907-044-0 01 1 1306- ● ●
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 1306- ● ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71240-408-0 02 1 1306- ● ●

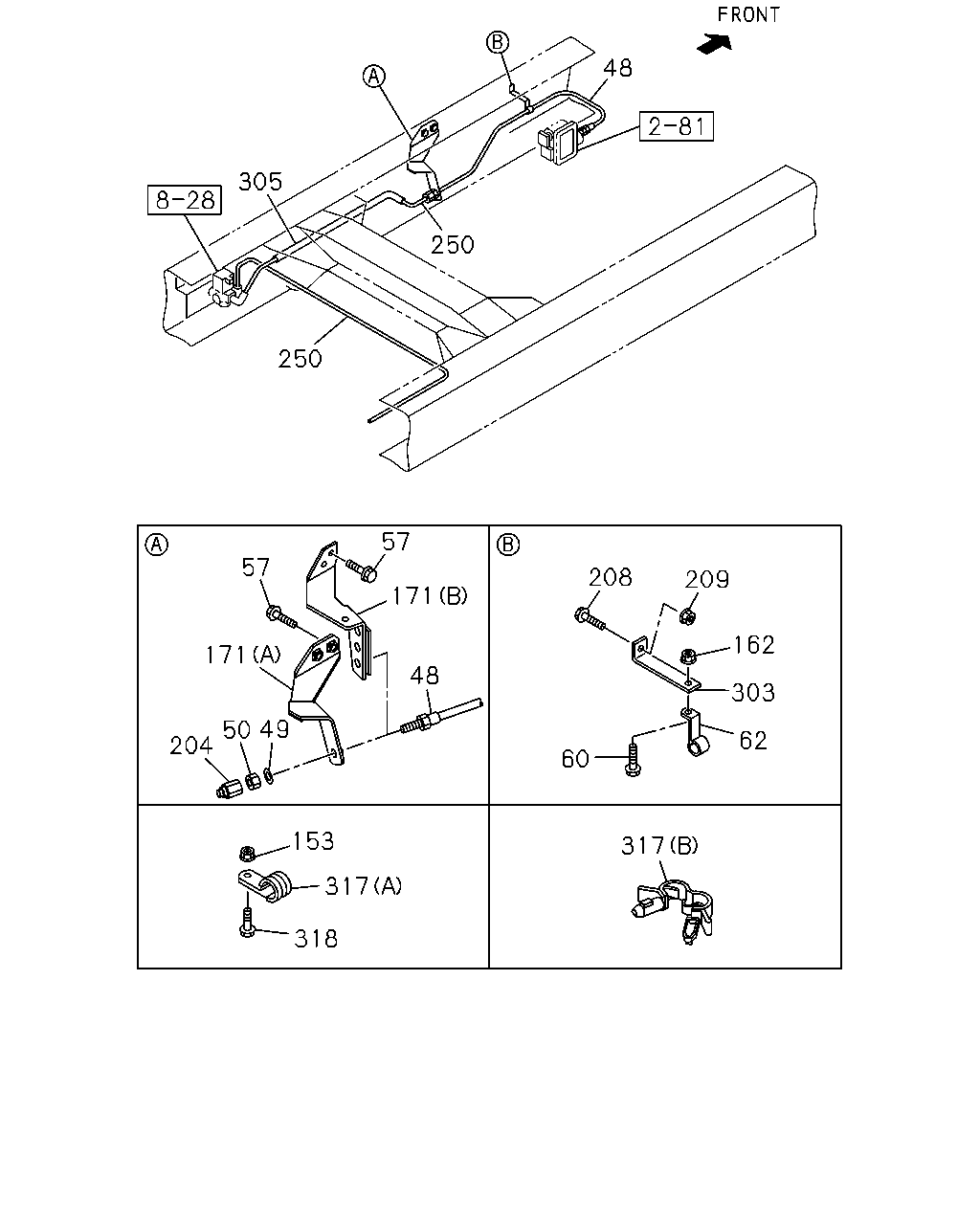

çizim 363837
305 250 250 48 57 57 171 50 204 48 49 171 153 317 318 317 62 60 303 162 209 208
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
MJT7 M/T<Y9E> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=380 		1-09363-884-0 01 1 1511- ● ●
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=800 		1-09363-695-0 01 1 1306- ● ●
48 HOSE; FLEX,PTO
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=300 		1-09363-608-0 01 1 1306- ● ●
49 WASHER; LK,FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1306- ● ●
49 WASHER; LK,FLEX HOSE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=12.2 		0-91510-512-0 01 1 1306- ● ●
50 NUT; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M12 		9-09840-280-0 01 1 1306- ● ●
50 NUT; FLEX HOSE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12 		9-09840-280-0 01 1 1306- ● ●
57 BOLT; BRKT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 1306- ● ●
60 BOLT; CLIP FIX
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ● ●
62 CLIP; PIPE,AIR
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 1306- ● ●
153 NUT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
162 NUT; CLIP
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		8-98171-734-0 01 1 1511- ● ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (A) 		8-98233-613-0 01 1 1306- ● ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1306- ● ●
208 BOLT; BRKT,AIR PIPE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 1306- ● ●
209 NUT; BRKT,AIR PIPE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1306- ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1306- ● ●
303 BRACKET; CLIP
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 1306- ● ●
305 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1306- ● ●
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1306- ● ●
317 CLIP; NYLON TUBE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) ID=5-12 L=18 		1-09709-287-0 01 1 1306- ● ●
317 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) ID=5-12 L=18 		1-09709-287-0 01 1 1306- ● ●
317 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) ID=11 L=16 		0-95235-025-0 01 1 1306- ● ●
318 BOLT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
