2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#123343) — 110 parça

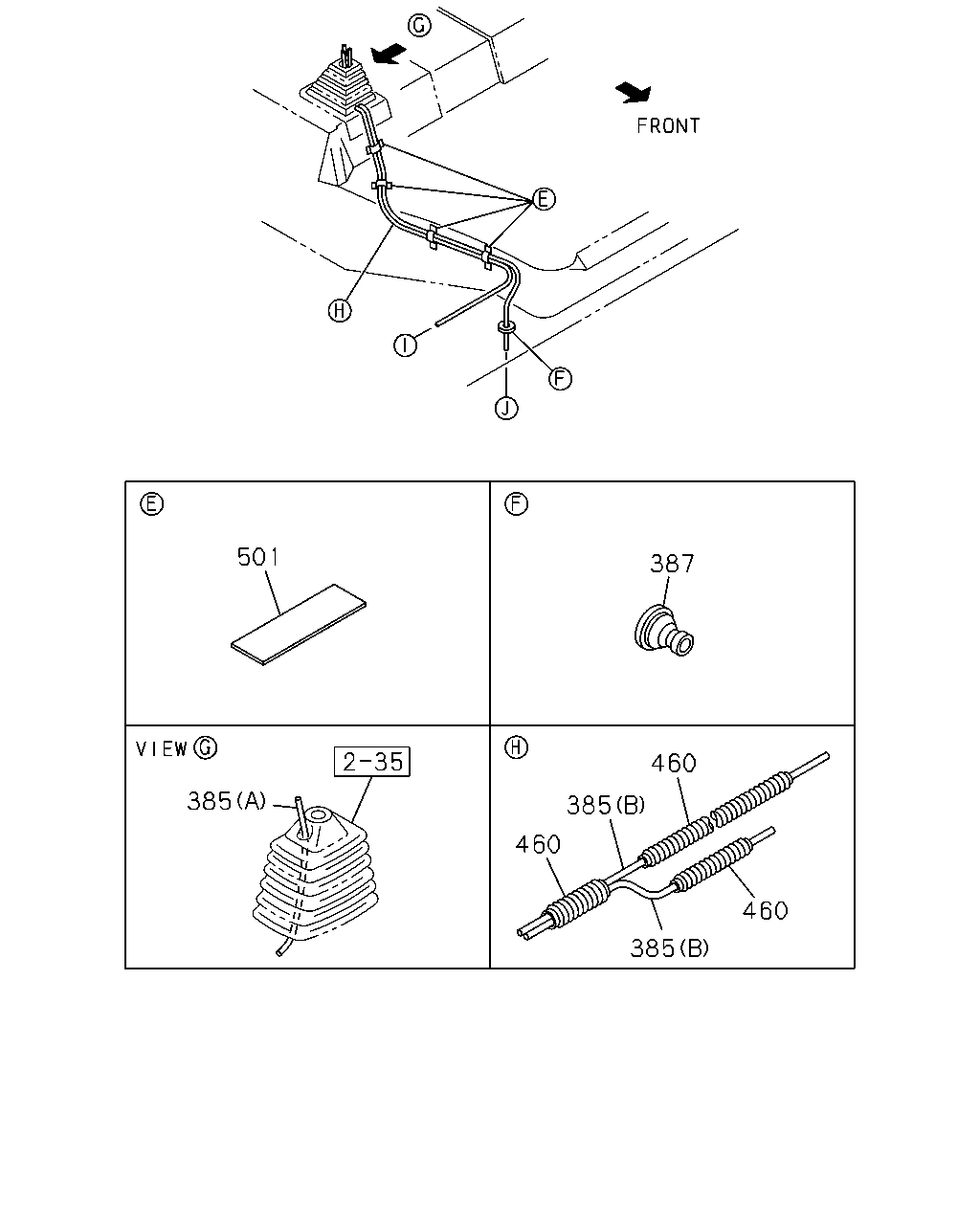

çizim 363075
501 385 387 460 385 460 385 460
BalonParca AdiParca NoAdetTipApplied Date A B
385 TUBE; NYLON
MJX16P M/T(Y3Z) (A) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 1306- ● ●
385 TUBE; NYLON
MJX16P M/T(Y3Z) (B) L=1340 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1306- ● ●
385 TUBE; NYLON
MJX16P M/T(Y3Z) (B) L=1500 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1306- ● ●
387 GROMMET; CONT TUBE,FULLER
MJX16P M/T(Y3Z) 		1-09332-102-0 01 1 1306- ● ●
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1306- ● ●
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1306- ● ●
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) L=960 ID=7 SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 1306- ● ●
501 SEAL; HARNESS PROTECTOR
MJX16P M/T(Y3Z) 100X40 		1-72498-022-1 04 1 1306- ● ●

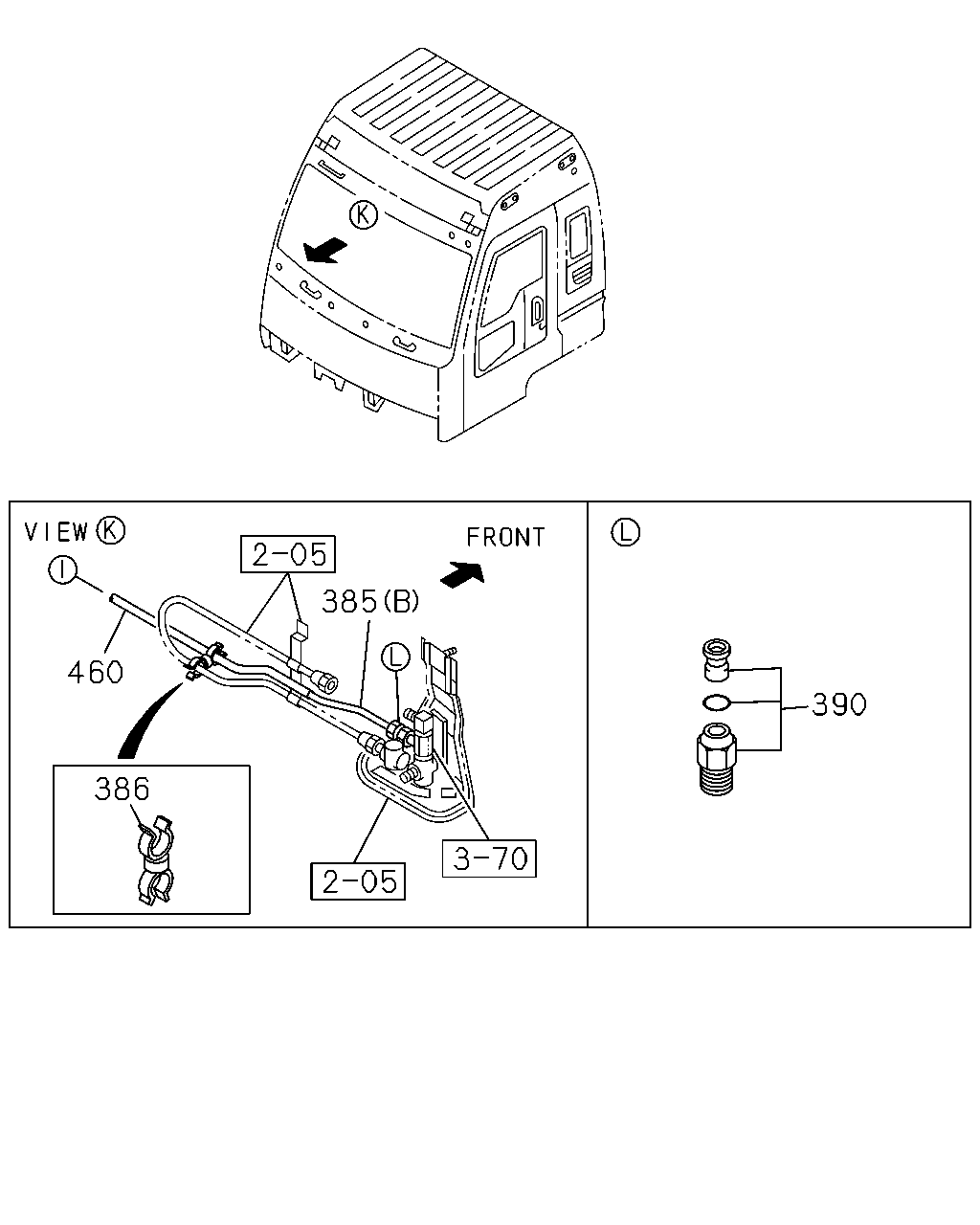

çizim 363083
460 386 385 390
BalonParca AdiParca NoAdetTipApplied Date A B
385 TUBE; NYLON
MJX16P M/T(Y3Z) (A) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 1306- ● ●
385 TUBE; NYLON
MJX16P M/T(Y3Z) (B) L=1340 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1306- ● ●
385 TUBE; NYLON
MJX16P M/T(Y3Z) (B) L=1500 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1306- ● ●
386 CLIP; CONT CABLE & TUBE
MJX16P M/T(Y3Z) ID=8.3 & 8.3 		8-94426-175-0 01 1 1306- ● ●
390 CONNECTOR; STRAIGHT,TRANS SIDE
MJX16P M/T(Y3Z) 		1-09661-174-0 01 1 1306- ● ●
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1306- ● ●
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1306- ● ●
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) L=960 ID=7 SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 1306- ● ●

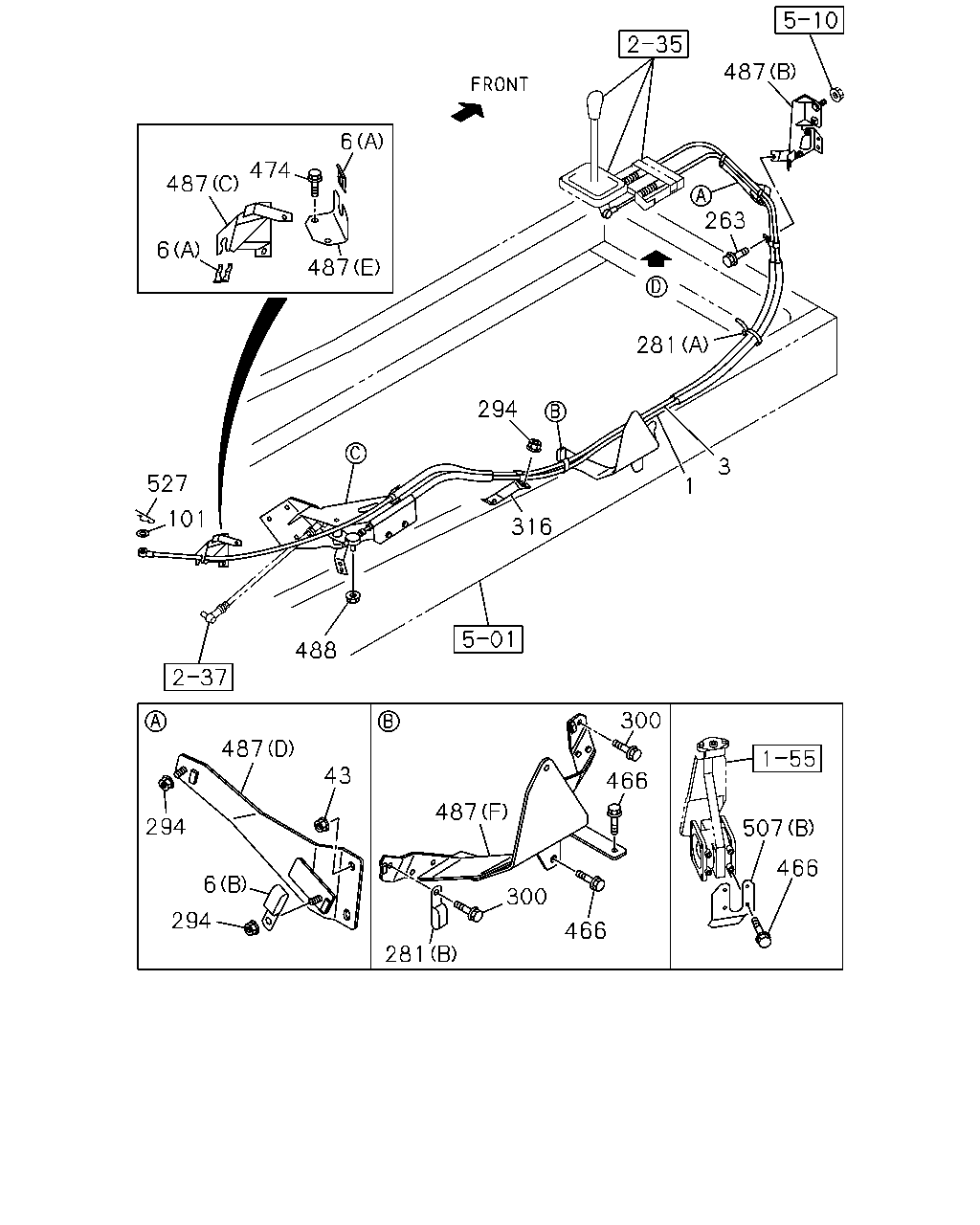

çizim 363174
294 294 487 43 487 281 300 466 466 300 507 466 488 316 294 1 3 281 101 527 6 487 474 6 487 487 263 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MJT7S M/T(Y3E) ENGINE REAR PTO(SV1) L=3387 		8-98222-327-2 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
MJX16P M/T(Y3Z) L=3316 		8-98216-277-2 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
MJT7S M/T(Y3E) EXC. ENGINE REAR PTO(SV1) L=3316 		8-98216-277-2 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
L=3316 		8-98216-277-2 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) ENGINE REAR PTO(SV1) L=4045 		8-98222-328-3 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) EXC. ENGINE REAR PTO(SV1) L=3974 		8-98222-464-2 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) L=3974 		8-98222-464-2 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
MJX16P M/T(Y3Z) L=4125 		8-98222-465-2 01 1 1306- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=22.2 		1-09701-209-1 02 1 1306- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 1306- ● ●
43 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		0-91180-110-0 02 1 1306- ● ●
101 WASHER; PL
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=16 		0-91610-508-0 01 1 1306- ● ●
263 BOLT; CLIP,TRANS CONT WIRE
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ● ●
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350 		1-09707-183-0 01 1 1306- ● ●
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 1306- ● ●
294 NUT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
294 NUT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
300 BOLT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28050-820-0 03 1 1306- ● ●
316 BRACKET; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98150-331-0 01 1 1306- ● ●
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) M6X16 FLANGE 		0-28050-616-0 04 1 1306- ● ●
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE 		0-28651-020-0 01 1 1306- ● ●
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X35 FLANGE 		0-28651-035-0 01 1 1306- ● ●
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) M14X45 FLANGE 		0-28851-445-0 01 1 1306- ● ●
474 BOLT; BRKT
MJX16P M/T(Y3Z) M10X20 FLANGE 		0-28151-020-0 02 1 1306- ● ●
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) ENGINE REAR PTO(SV1) (C) 		8-98232-379-1 01 1 1306- ●
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) EXC. ENGINE REAR PTO(SV1) (C) 		1-33657-872-2 01 1 1306- ●
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) (C) 		1-33657-872-2 01 1 1306- ●
487 BRACKET; CONT CABLE
MJX16P M/T(Y3Z) (E) 		1-33657-873-0 01 1 1306- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98049-854-0 01 1 1306- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98131-521-2 01 1 1306- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-98198-836-1 01 1 1306- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (F) 		8-98216-298-1 01 1 1306- ● ●
488 NUT; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-056-0 01 1 1306- ● ●
507 PROTECTOR; HEAT
ENGINE REAR PTO(SV1) (A) 		8-98127-702-0 01 1 1306- ●
507 PROTECTOR; HEAT
EXC. ENGINE REAR PTO(SV1) (A) 		8-98171-722-0 01 1 1306- ●
507 PROTECTOR; HEAT
(A) 		8-98171-722-0 01 1 1306- ●
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98151-604-0 01 1 1306- ● ●
527 PIN; SNAP
TRANSMISSION CONTROL CABLE TYPE(C1A) L=23 		8-94170-378-0 01 1 1306- ● ●

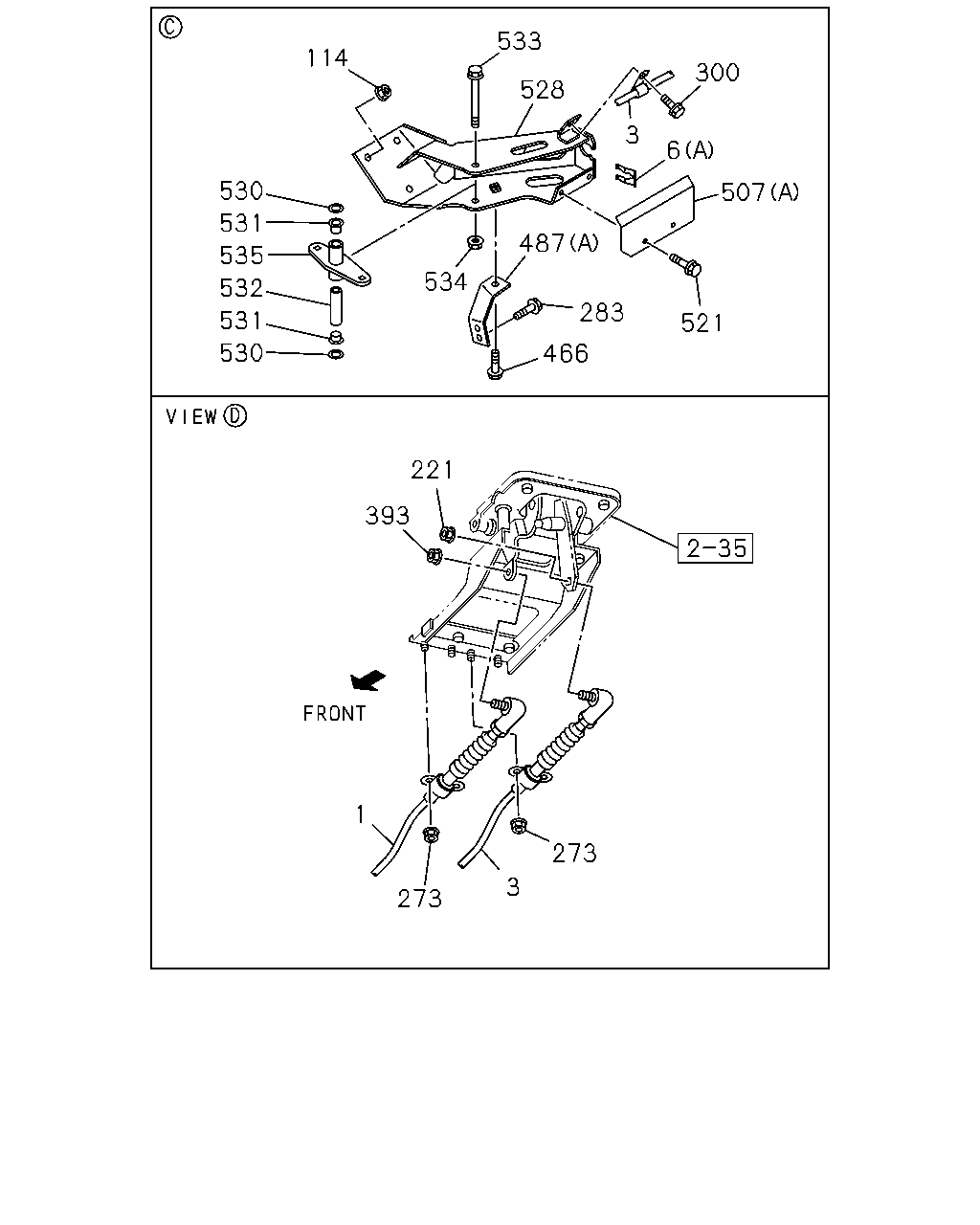

çizim 363184
273 3 273 1 393 221 521 466 283 487 507 6 300 3 528 533 114 534 530 531 532 535 531 530
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MJT7S M/T(Y3E) ENGINE REAR PTO(SV1) L=3387 		8-98222-327-2 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
MJX16P M/T(Y3Z) L=3316 		8-98216-277-2 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
MJT7S M/T(Y3E) EXC. ENGINE REAR PTO(SV1) L=3316 		8-98216-277-2 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
L=3316 		8-98216-277-2 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) ENGINE REAR PTO(SV1) L=4045 		8-98222-328-3 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) EXC. ENGINE REAR PTO(SV1) L=3974 		8-98222-464-2 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) L=3974 		8-98222-464-2 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
MJX16P M/T(Y3Z) L=4125 		8-98222-465-2 01 1 1306- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=22.2 		1-09701-209-1 02 1 1306- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 1306- ● ●
114 NUT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE 		0-91180-212-0 03 1 1306- ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-061-0 01 1 1306- ● ●
273 NUT; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		0-91180-110-0 04 1 1306- ● ●
283 BOLT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE 		0-28151-020-0 02 1 1306- ● ●
300 BOLT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28050-820-0 03 1 1306- ● ●
393 NUT; SELECT CABLE,CAB
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		1-09440-062-1 01 1 1306- ● ●
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) M6X16 FLANGE 		0-28050-616-0 04 1 1306- ● ●
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE 		0-28651-020-0 01 1 1306- ● ●
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X35 FLANGE 		0-28651-035-0 01 1 1306- ● ●
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) M14X45 FLANGE 		0-28851-445-0 01 1 1306- ● ●
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) ENGINE REAR PTO(SV1) (C) 		8-98232-379-1 01 1 1306- ●
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) EXC. ENGINE REAR PTO(SV1) (C) 		1-33657-872-2 01 1 1306- ●
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) (C) 		1-33657-872-2 01 1 1306- ●
487 BRACKET; CONT CABLE
MJX16P M/T(Y3Z) (E) 		1-33657-873-0 01 1 1306- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98049-854-0 01 1 1306- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98131-521-2 01 1 1306- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-98198-836-1 01 1 1306- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (F) 		8-98216-298-1 01 1 1306- ● ●
507 PROTECTOR; HEAT
ENGINE REAR PTO(SV1) (A) 		8-98127-702-0 01 1 1306- ●
507 PROTECTOR; HEAT
EXC. ENGINE REAR PTO(SV1) (A) 		8-98171-722-0 01 1 1306- ●
507 PROTECTOR; HEAT
(A) 		8-98171-722-0 01 1 1306- ●
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98151-604-0 01 1 1306- ● ●
521 BOLT; PROTECTOR
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28050-820-0 02 1 1306- ● ●
528 BRACKET; LOWER,RELAY LEVER
ENGINE REAR PTO(SV1) 		8-98127-718-0 01 1 1306- ●
528 BRACKET; LOWER,RELAY LEVER
EXC. ENGINE REAR PTO(SV1) 		8-98049-809-1 01 1 1306- ●
528 BRACKET; LOWER,RELAY LEVER 8-98049-809-1 01 1 1306- ●
530 RING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09623-636-0 02 1 1306- ● ●
531 BUSHING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09330-119-0 02 1 1306- ● ●
532 COLLAR; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98049-429-0 01 1 1306- ● ●
533 BOLT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X100 FLANGE 		0-28051-000-0 01 1 1306- ● ●
534 NUT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-056-0 01 1 1306- ● ●
535 LEVER; RELAY,SHIFT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98049-430-0 01 1 1306- ● ●

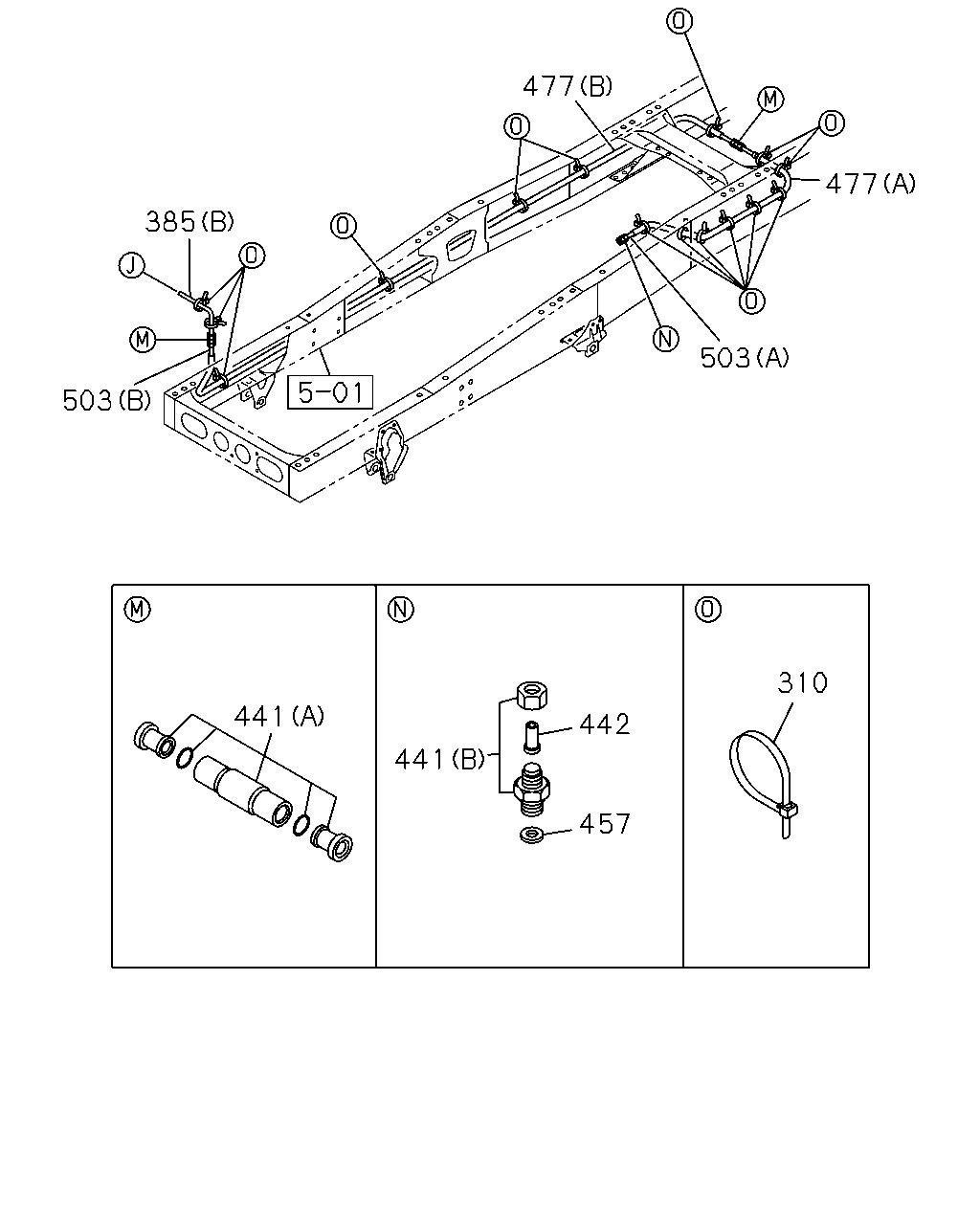

çizim 365759
477 477 503 503 385 441 441 442 457 310
BalonParca AdiParca NoAdetTipApplied Date A B
310 CLIP; TUBE
MJX16P M/T(Y3Z) L=350 		1-09707-183-0 27 1 1306- ● ●
385 TUBE; NYLON
MJX16P M/T(Y3Z) (A) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 1306- ● ●
385 TUBE; NYLON
MJX16P M/T(Y3Z) (B) L=1340 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1306- ● ●
385 TUBE; NYLON
MJX16P M/T(Y3Z) (B) L=1500 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1306- ● ●
441 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (B) 		1-09660-466-0 01 1 1306- ● ●
441 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (A) 		8-98134-660-0 02 1 1306- ● ●
442 INSERT; NYLON TUBE
MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 1306- ● ●
457 GASKET
MJX16P M/T(Y3Z) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1306- ● ●
477 TUBE; CORRUGATE
MJX16P M/T(Y3Z) (A) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1306- ● ●
477 TUBE; CORRUGATE
MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 ID=7 		1-87411-018-0 01 1 1306- ● ●
477 TUBE; CORRUGATE
MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 ID=7 		1-87411-018-0 01 1 1306- ● ●
503 TUBE; NYLON
MJX16P M/T(Y3Z) (A) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1306- ● ●
503 TUBE; NYLON
MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 OD=4 		1-87410-079-0 01 1 1306- ● ●
503 TUBE; NYLON
MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 OD=4 		1-87410-079-0 01 1 1306- ● ●
