2-05 — CLUTCH PIPING (#123334) — 142 parça

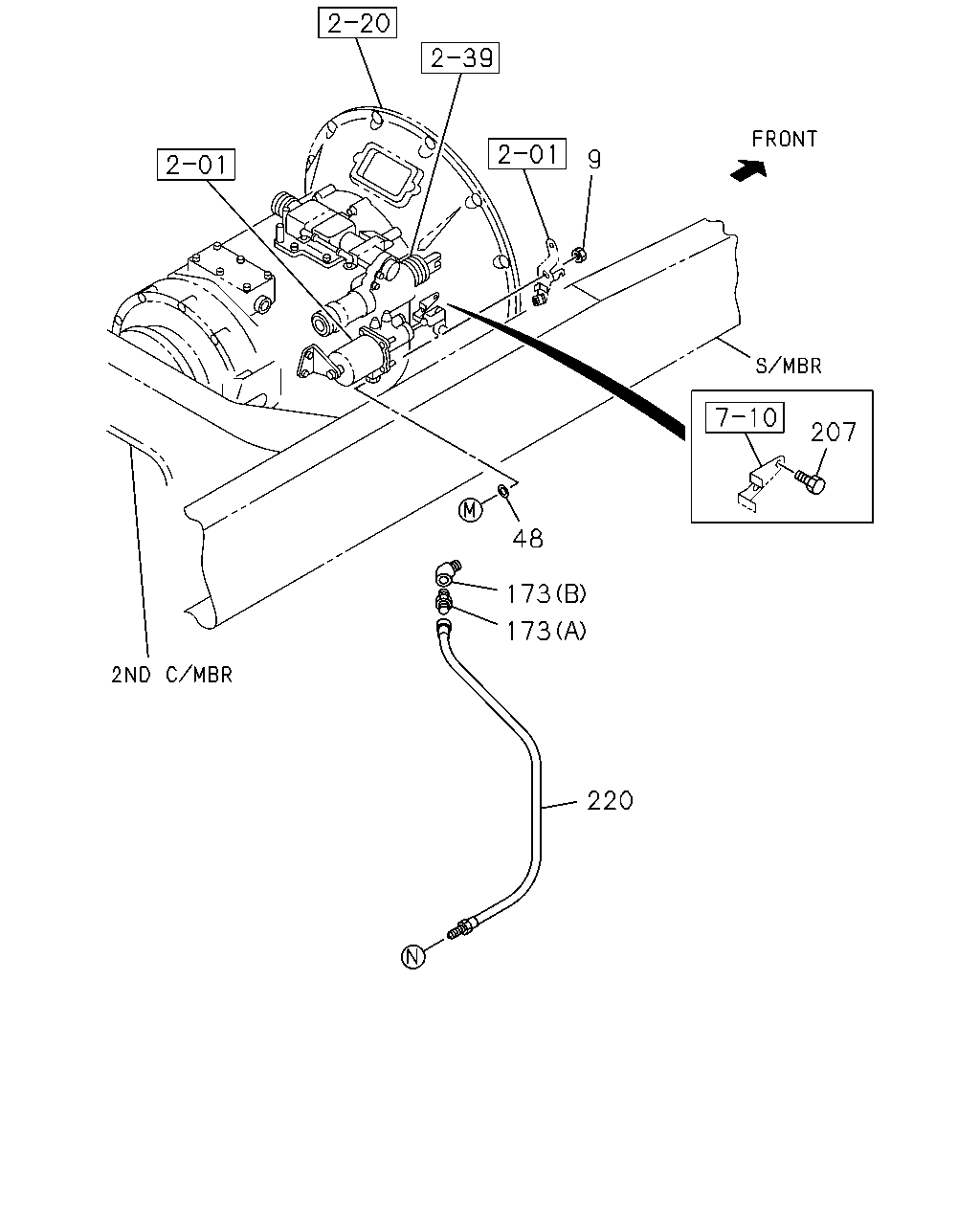

9 207 48 173 173 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1306-	●	●
173	CONNECTOR MJT7S M/T(Y3E) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1306-	●	●
173	CONNECTOR MJT7S M/T(Y3E) (B) R1/4 & RC1/4	1-09664-211-0	01	1	1306-	●	●
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	02	1	1306-	●	●
220	HOSE; FLEX,POWER ASSIST MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=300	1-09363-608-0	01	1	1306-	●
220	HOSE; FLEX,POWER ASSIST MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=350	1-09363-624-0	01	1	1306-	●
220	HOSE; FLEX,POWER ASSIST MJT7S M/T(Y3E) L=350	1-09363-624-0	01	1	1306-		●
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) L=320	1-09363-625-0	01	1	1306-	●	●

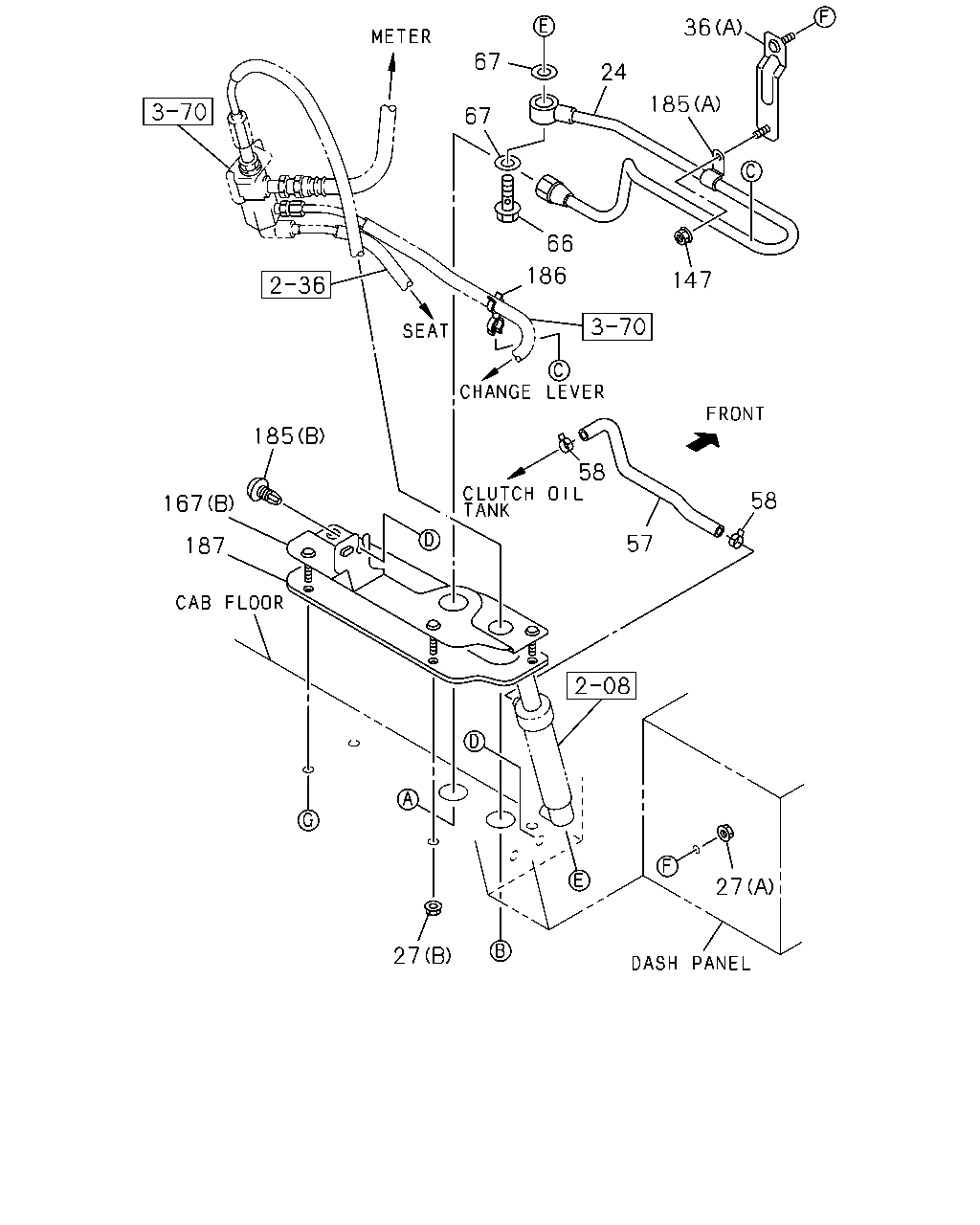

67 67 24 36 185 147 58 57 27 58 66 186 167 187 27 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=621	1-47428-362-1	01	1	1306-1510	●	●
24	PIPE ASM; CLU,M/CYL TO UNION TRANSMISSION CONTROL CABLE TYPE(C1A) L=621	1-47428-362-1	01	1	1511-	●	●
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
27	NUT; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1306-1510	●	●
27	NUT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1511-	●	●
27	NUT; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	1306-1510	●	●
27	NUT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	1511-	●	●
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	1306-	●	●
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B) L=60	8-98162-941-0	01	1	1306-	●	●
36	BRACKET; CLIP RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-191-1	01	1	1306-1510	●	●
36	BRACKET; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-71117-191-1	01	1	1511-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	1306-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	1306-	●	●
66	BOLT; EYE JOINT,CLU M/CYL RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M14X30 EYE-BOLT	8-98037-827-0	01	1	1306-1510	●	●
66	BOLT; EYE JOINT,CLU M/CYL TRANSMISSION CONTROL CABLE TYPE(C1A) M14X30 EYE-BOLT	8-98037-827-0	01	1	1511-	●	●
67	GASKET; EYE JOINT,CLU M/CYL RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=14.2 OD=19.2	1-09630-085-0	02	1	1306-1312	●	●
67	GASKET; EYE JOINT,CLU M/CYL RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1510	●	●
67	GASKET; EYE JOINT,CLU M/CYL TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1511-	●	●
147	NUT; CLIP FIX RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1306-1510	●	●
147	NUT; CLIP FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1511-	●	●
167	BRACKET; UNION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-207-1	01	1	1306-1510	●	●
167	BRACKET; UNION TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-71117-207-1	01	1	1511-	●	●
167	BRACKET; UNION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71907-376-1	01	1	1306-1510	●	●
167	BRACKET; UNION TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-71907-376-1	01	1	1511-	●	●
185	CLIP; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=11 L=16	0-95235-025-0	01	1	1306-1510	●	●
185	CLIP; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=11 L=16	0-95235-025-0	01	1	1511-	●	●
185	CLIP; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) D8X13.5	1-09987-248-1	01	1	1306-1510	●	●
185	CLIP; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) D8X13.5	1-09987-248-1	01	1	1511-	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	1306-	●	●
187	SEAL; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-71117-209-2	01	1	1306-1510	●	●
187	SEAL; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-71117-209-2	01	1	1511-	●	●

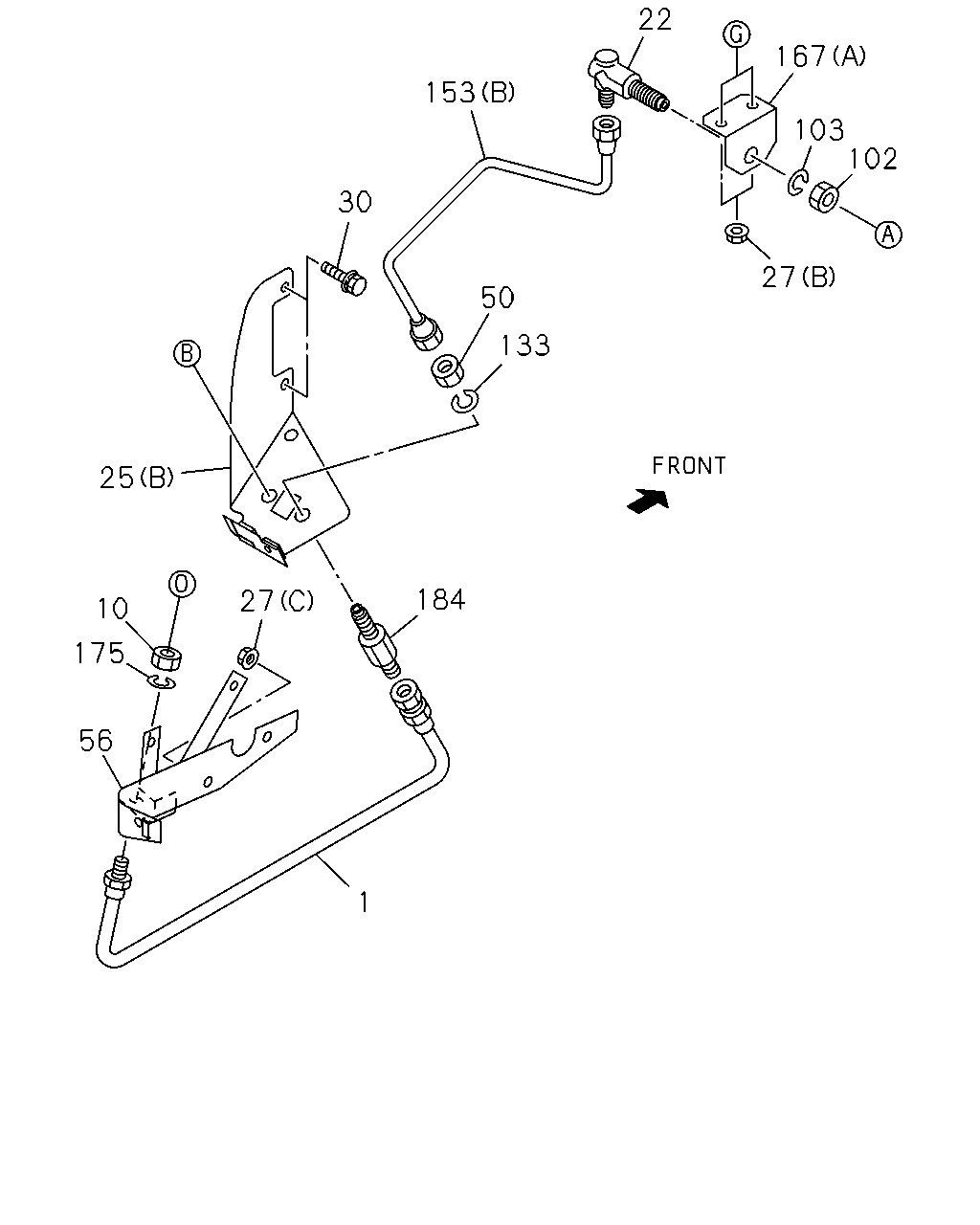

167 103 102 27 133 50 30 25 1 175 56 27 184 153 10 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=620	8-98072-333-0	01	1	1306-1510	●	●
1	HOSE; FLEX,CLU CONT TRANSMISSION CONTROL CABLE TYPE(C1A) L=620	8-98072-333-0	01	1	1511-	●	●
10	NUT; FLEX HOSE,CLU CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M14	0-91111-514-0	01	1	1306-1510	●	●
10	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL CABLE TYPE(C1A) M14	0-91111-514-0	01	1	1511-	●	●
22	UNION; CLU PIPE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M14 ELBOW	0-92125-208-0	01	1	1306-1510	●	●
22	UNION; CLU PIPE TRANSMISSION CONTROL CABLE TYPE(C1A) M14 ELBOW	0-92125-208-0	01	1	1511-	●	●
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	1306-	●	●
25	BRACKET; OIL PIPE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71907-726-0	01	1	1306-1510	●	●
25	BRACKET; OIL PIPE TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-71907-726-0	01	1	1511-	●	●
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
27	NUT; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1306-1510	●	●
27	NUT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1511-	●	●
27	NUT; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	1306-1510	●	●
27	NUT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	1511-	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-	●	●
30	BOLT; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1306-1510	●	●
30	BOLT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1511-	●	●
50	NUT; UNION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M14	0-91111-514-0	01	1	1306-1510	●	●
50	NUT; UNION TRANSMISSION CONTROL CABLE TYPE(C1A) M14	0-91111-514-0	01	1	1511-	●	●
56	BRACKET; FLEX HOSE	8-98225-392-0	01	1	1306-	●	●
102	NUT; FLEX HOSE,CLU CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M14	0-91111-514-0	01	1	1306-1510	●	●
102	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL CABLE TYPE(C1A) M14	0-91111-514-0	01	1	1511-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=14.2	0-91510-514-0	01	1	1306-1510	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14.2	0-91510-514-0	01	1	1511-	●	●
133	WASHER; LK,UNION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=14.2	0-91510-514-0	01	1	1306-1510	●	●
133	WASHER; LK,UNION TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14.2	0-91510-514-0	01	1	1511-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (A) L=2057 SERVICED BY L=2150	1-47428-770-0	01	1	1306-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=1974 SERVICED BY L=2150	1-47428-770-0	01	1	1306-1309	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=2010 SERVICED BY L=2150	1-47428-770-0	01	1	1310-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	1306-1510	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	1511-	●	●
167	BRACKET; UNION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-207-1	01	1	1306-1510	●	●
167	BRACKET; UNION TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-71117-207-1	01	1	1511-	●	●
167	BRACKET; UNION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71907-376-1	01	1	1306-1510	●	●
167	BRACKET; UNION TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-71907-376-1	01	1	1511-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=14.2	0-91510-514-0	01	1	1306-1510	●	●
175	WASER; LK,FLEX HOSE,CLU CONT TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14.2	0-91510-514-0	01	1	1511-	●	●
184	UNION; FLEX HOSE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) STRAIGHT 2WAY	1-09654-435-0	01	1	1306-1510	●	●
184	UNION; FLEX HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) STRAIGHT 2WAY	1-09654-435-0	01	1	1511-	●	●

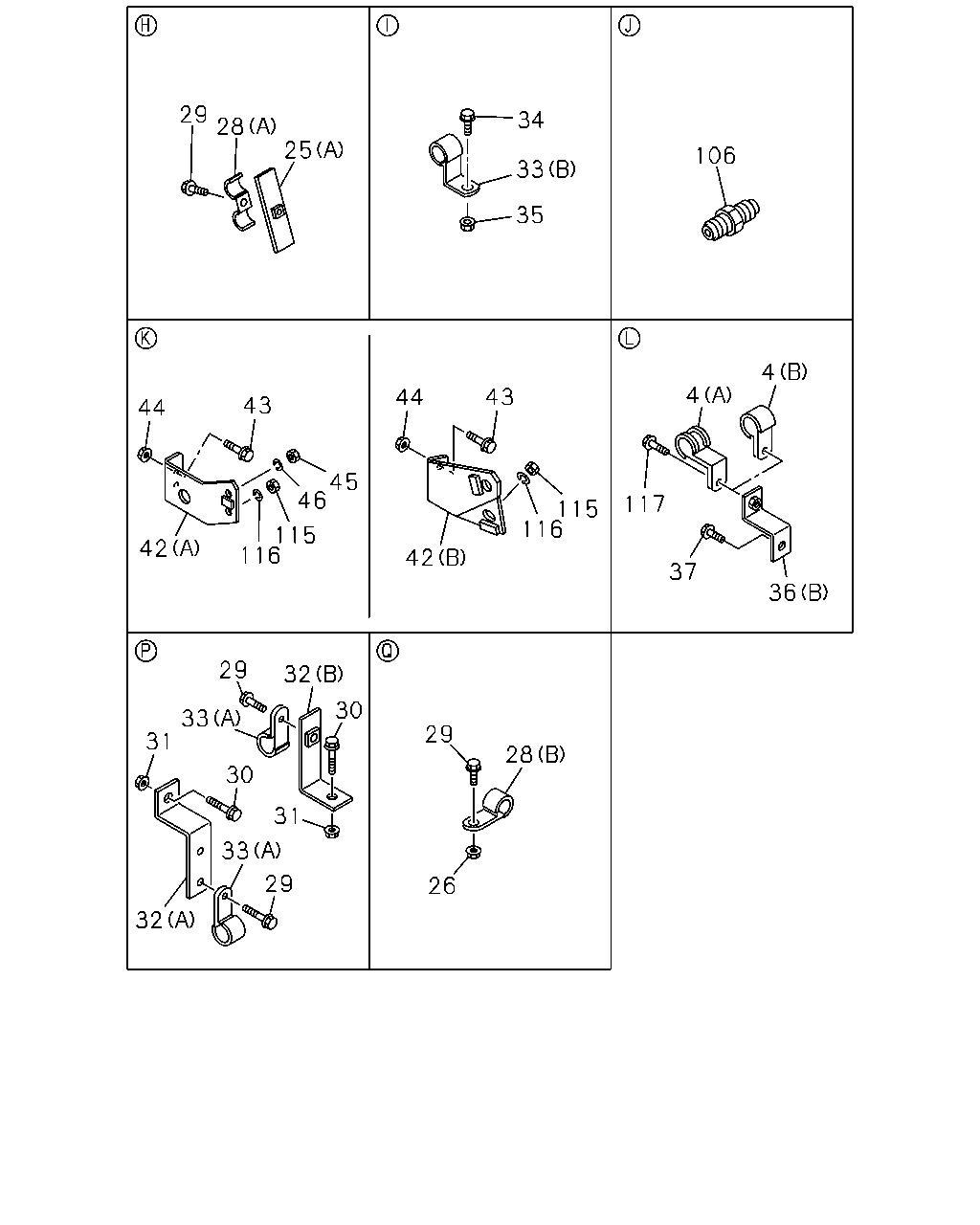

106 34 35 33 25 28 29 4 43 4 44 115 36 117 37 42 116 45 43 44 46 116 115 42 29 28 26 29 32 30 33 31 31 30 33 29 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A) ID=16 H=25 L=25	1-09701-162-0	01	1	1306-	●	●
4	CLIP; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (B) ID=16 L=28	1-09700-872-0	01	1	1306-	●	●
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	1306-	●	●
25	BRACKET; OIL PIPE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71907-726-0	01	1	1306-1510	●	●
25	BRACKET; OIL PIPE TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-71907-726-0	01	1	1511-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1306-	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1306-	●	●
28	CLIP; OIL PIPE (A) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	1306-	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1306-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-	●	●
30	BOLT; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1306-1510	●	●
30	BOLT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1511-	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
32	BRACKET; CLIP OIL PIPE (A)	1-47479-482-0	01	1	1306-	●	●
32	BRACKET; CLIP OIL PIPE (B)	8-98217-564-0	01	1	1306-	●	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	1306-	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1306-	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	04	1	1306-	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
34	BOLT; PIPE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-	●	●
34	BOLT; PIPE CLIP M8X35 FLANGE	0-28650-835-0	04	1	1306-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1306-	●	●
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	1306-	●	●
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B) L=60	8-98162-941-0	01	1	1306-	●	●
36	BRACKET; CLIP RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-191-1	01	1	1306-1510	●	●
36	BRACKET; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-71117-191-1	01	1	1511-	●	●
37	BOLT; CLIP BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28151-020-0	01	1	1306-	●	●
37	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M8X16 FLANGE	0-28050-816-0	01	1	1306-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A)	1-47471-203-0	01	1	1306-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (B)	1-47479-812-0	01	1	1306-1309	●	●
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (B)	8-98251-782-0	01	1	1310-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
45	NUT; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) M12	9-09840-280-0	01	1	1306-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7S M/T(Y3E) ID=12.2	0-91510-512-0	01	1	1306-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1306-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1306-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1306-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1306-	●	●
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	1306-	●	●

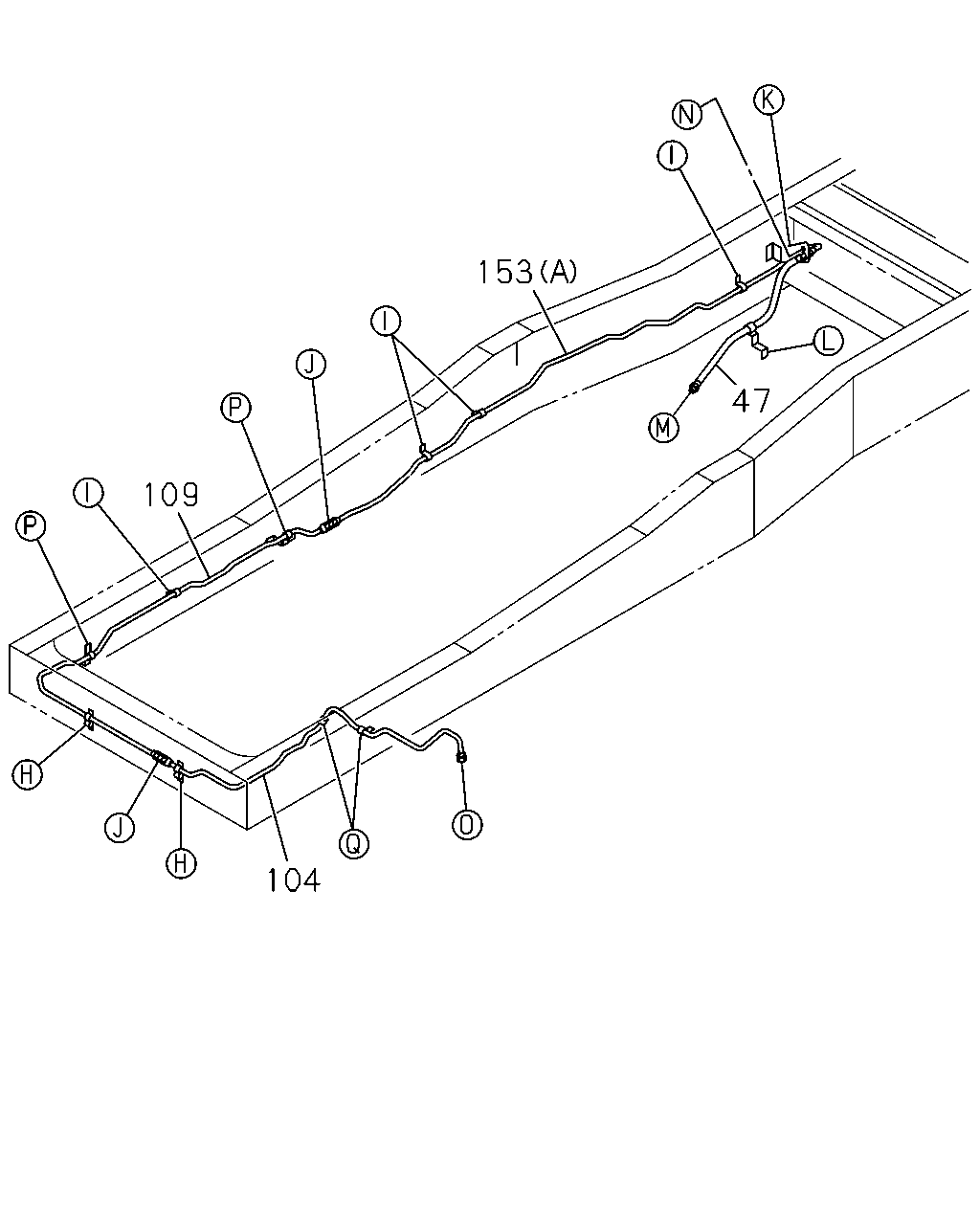

153 109 104 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=600	1-09364-705-0	01	1	1306-1309	●
47	HOSE; FLEX,CLU CONT MJT7S M/T(Y3E) L=600	1-09364-705-0	01	1	1306-1309		●
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) L=600	1-09364-705-0	01	1	1310-	●	●
47	HOSE; FLEX,CLU CONT MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=600	1-09364-705-0	01	1	1310-	●
47	HOSE; FLEX,CLU CONT MJT7S M/T(Y3E) L=600	1-09364-705-0	01	1	1310-		●
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) L=550	1-09364-434-0	01	1	1306-1309	●	●
47	HOSE; FLEX,CLU CONT MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=550	1-09364-434-0	01	1	1306-1309	●
47	HOSE; FLEX,CLU CONT MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=550	1-09364-434-0	01	1	1310-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1223	8-98239-924-0	01	1	1306-	●	●
109	PIPE; AIR,UNION TO UNION FRONT UNDER RUN PROTECTOR<EBE> L=1643 SERVICED BY L=1700	1-47428-767-0	01	1	1411-		●
109	PIPE; AIR,UNION TO UNION L=1643 SERVICED BY L=1700	1-47428-767-0	01	1	1306-1410	●	●
109	PIPE; AIR,UNION TO UNION L=1643 SERVICED BY L=1700	1-47428-767-0	01	1	1411-	●
109	PIPE; AIR,UNION TO UNION EXC. FRONT UNDER RUN PROTECTOR<EBE> L=1643 SERVICED BY L=1700	1-47428-767-0	01	1	1411-		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (A) L=2057 SERVICED BY L=2150	1-47428-770-0	01	1	1306-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=1974 SERVICED BY L=2150	1-47428-770-0	01	1	1306-1309	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=2010 SERVICED BY L=2150	1-47428-770-0	01	1	1310-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	1306-1510	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	1511-	●	●
