◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#1233) — 48 parça

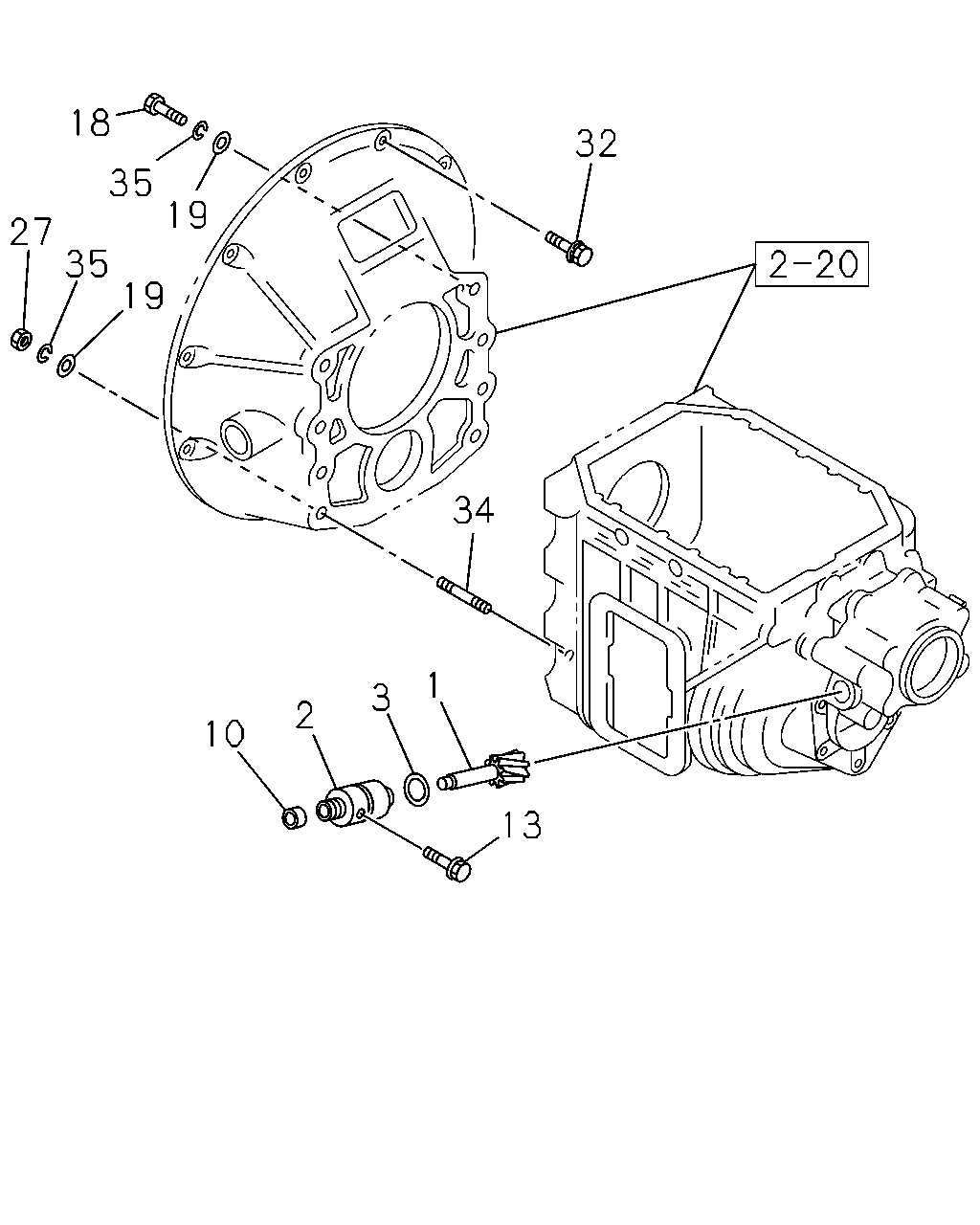

çizim 92300
18 32 35 19 27 35 19 34 1 3 2 10 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/8 17" EATON(W5B) Z=16 		1-33372-111-4 01 1 9202- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 37/7 17" EATON(W5C) TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=18 		1-33372-113-4 01 1 9202- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 39/7 17" EATON(W5D) EXC. TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=18 		1-33372-113-4 01 1 9202- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 37/7 17" EATON(W5C) EXC. TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=17 		1-33372-112-4 01 1 9202- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 41/8 16.5"(W3P) Z=17 		1-33372-112-4 01 1 9202- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 35/6 17" EATON(W5E) TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=20 		1-33372-115-4 01 1 9202- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 35/6 17" EATON(W5E) EXC. TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=19 		1-33372-114-4 01 1 9202- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 39/7 17" EATON(W5D) TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=19 		1-33372-114-4 01 1 9202- ●
1 GEAR; DRIVEN,SPD 1-33372-177-0 01 1 9306- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9202- ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9202- ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-33379-003-1 01 1 9306- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9202- ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9202- ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X35 		0-23801-635-0 06 1 9202-9203 ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9204- ● ● ●
18 BOLT; CLU HSG TO TRANS 1-31119-011-0 08 1 9306- ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9204- ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9202- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X32 W/LK&PL WASHER 		0-50151-032-0 10 1 9202- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X35 W/LK&PL WASHER 		0-50151-035-0 02 1 9202- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X50 W/LK&PL WASHER 		0-50151-050-0 10 1 9306- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X20,M10X45 L=75 		1-09049-015-0 02 1 9306- ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9202- ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 08 1 9202-9203 ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9204- ● ● ●
35 WASHER; LK,CLU HSG TO TRANS 1-31119-012-0 08 1 9306- ●

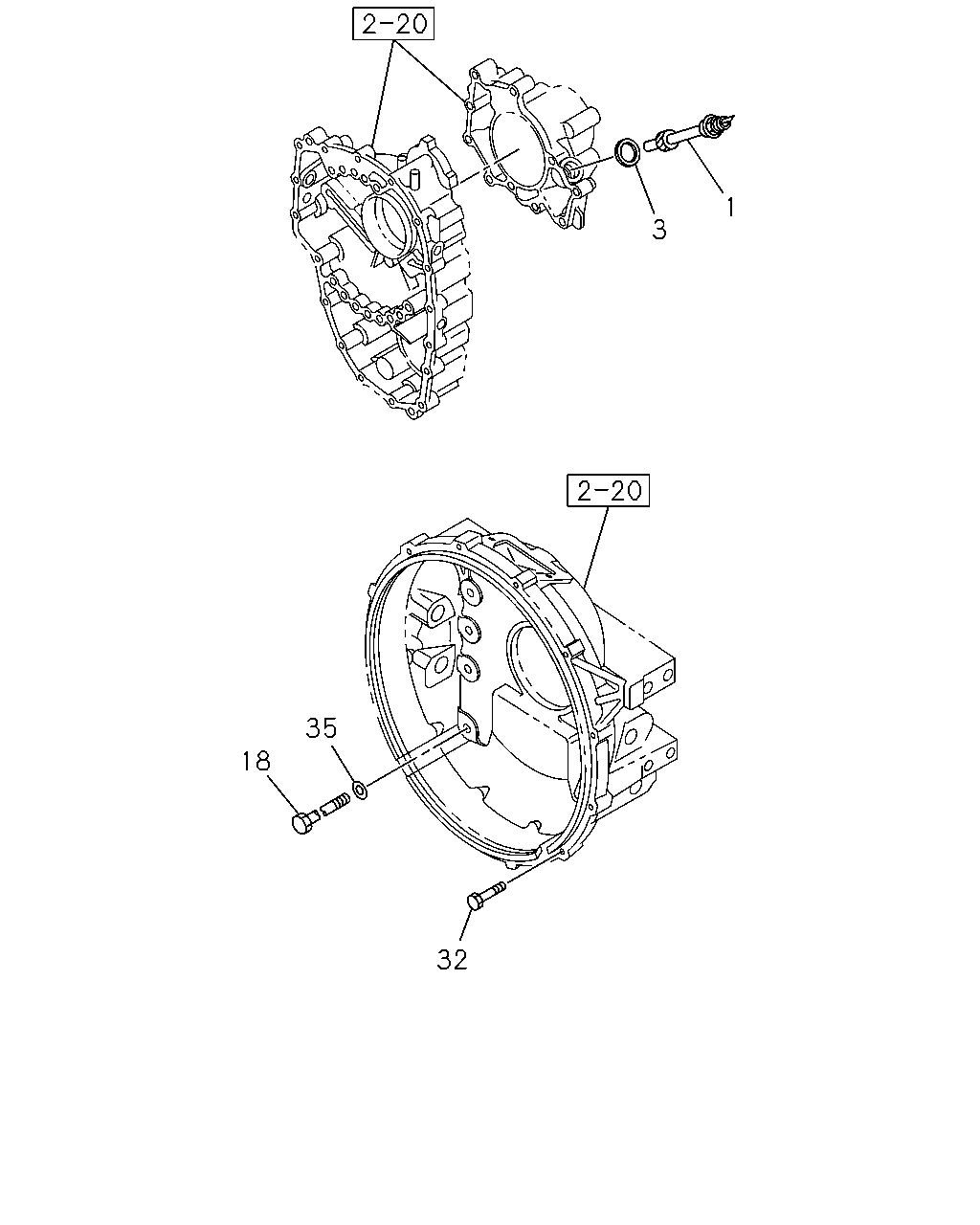

çizim 95542
1 3 35 18 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/8 17" EATON(W5B) Z=16 		1-33372-111-4 01 1 9202- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 37/7 17" EATON(W5C) TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=18 		1-33372-113-4 01 1 9202- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 39/7 17" EATON(W5D) EXC. TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=18 		1-33372-113-4 01 1 9202- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 37/7 17" EATON(W5C) EXC. TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=17 		1-33372-112-4 01 1 9202- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 41/8 16.5"(W3P) Z=17 		1-33372-112-4 01 1 9202- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 35/6 17" EATON(W5E) TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=20 		1-33372-115-4 01 1 9202- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 35/6 17" EATON(W5E) EXC. TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=19 		1-33372-114-4 01 1 9202- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 39/7 17" EATON(W5D) TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) Z=19 		1-33372-114-4 01 1 9202- ●
1 GEAR; DRIVEN,SPD 1-33372-177-0 01 1 9306- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9202- ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-33379-003-1 01 1 9306- ●
18 BOLT; CLU HSG TO TRANS
M16X35 		0-23801-635-0 06 1 9202-9203 ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9204- ● ● ●
18 BOLT; CLU HSG TO TRANS 1-31119-011-0 08 1 9306- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X32 W/LK&PL WASHER 		0-50151-032-0 10 1 9202- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X35 W/LK&PL WASHER 		0-50151-035-0 02 1 9202- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X50 W/LK&PL WASHER 		0-50151-050-0 10 1 9306- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X20,M10X45 L=75 		1-09049-015-0 02 1 9306- ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 08 1 9202-9203 ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9204- ● ● ●
35 WASHER; LK,CLU HSG TO TRANS 1-31119-012-0 08 1 9306- ●
