◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11536 - EXZ LHD EURO2 WITH REFLECTOR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#123282) — 29 parça

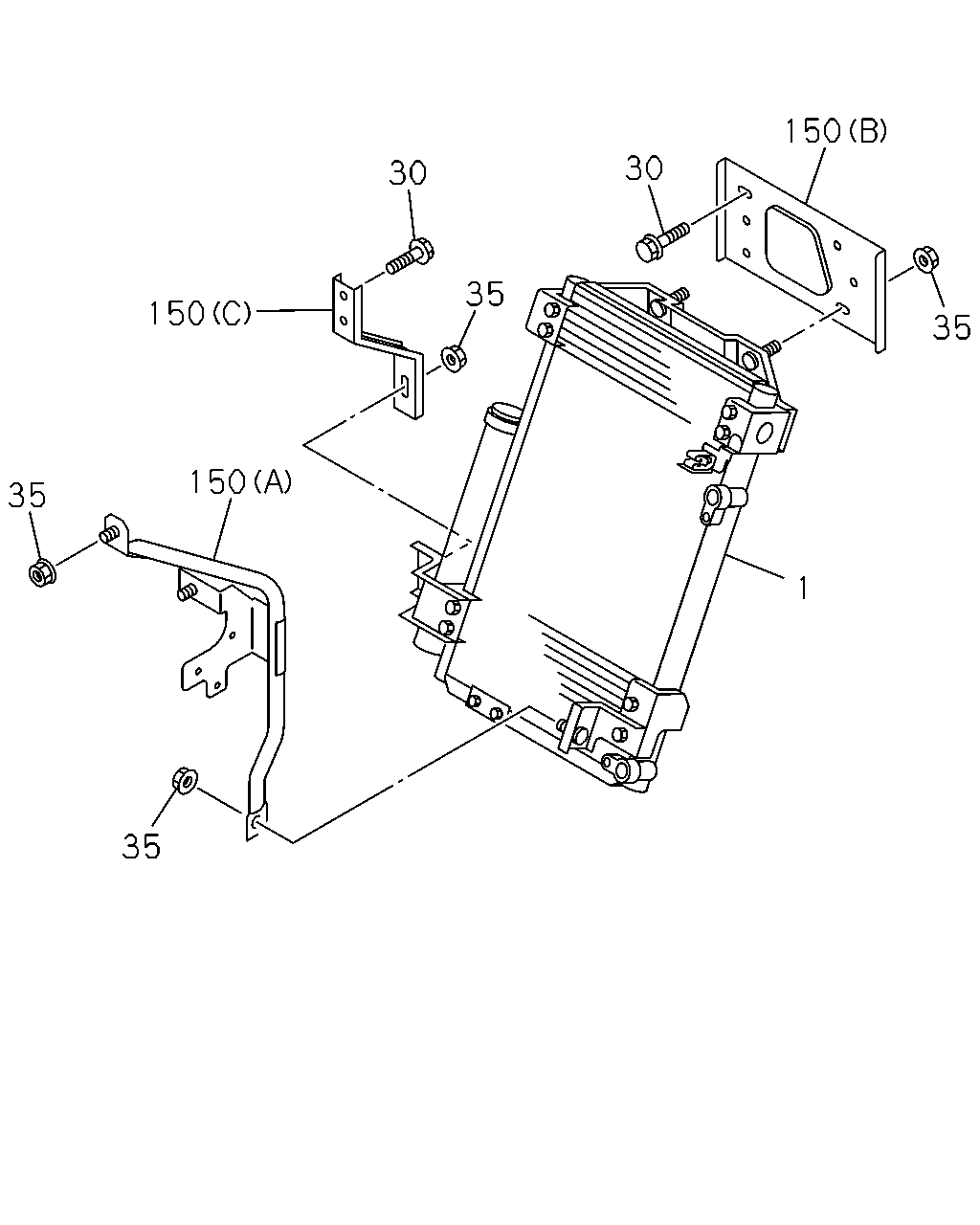

çizim 364082
35 150 30 1 35 30 150 150 35 35
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98220-337-0 01 1 1306-
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1306-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 1306-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-136-0 01 1 1306-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-137-0 01 1 1306-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-138-0 01 1 1306-
çizim 364152
188 129 187 15 12 18 4 65 187 5 29 29 9 60 29 27 29 29 26 9 29 29 27 22 201 29 9 29 1
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98220-337-0 01 1 1306-
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98304-642-0 01 1 1306-
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-093-0 01 1 1306-
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 		8-97096-525-0 04 1 1306-
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25 		8-97178-770-0 02 1 1306-
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-314-0 03 1 1306-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-092-0 01 1 1306-
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-313-0 01 1 1306-
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-245-1 01 1 1306-
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-205-0 01 1 1306-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 04 1 1306-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-010-0 03 1 1306-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-125-0 01 1 1306-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-126-0 01 1 1306-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83573-204-0 01 1 1306-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83573-213-0 01 1 1306-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		8-97180-263-0 02 1 1306-
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-266-0 01 1 1306-
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 01 1 1306-
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-129-1 01 1 1306-
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 1306-
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98228-443-0 01 1 1306-
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-098-0 01 1 1306-
