3-22 — AIR CONTROL PARTS (#12328) — 206 parça

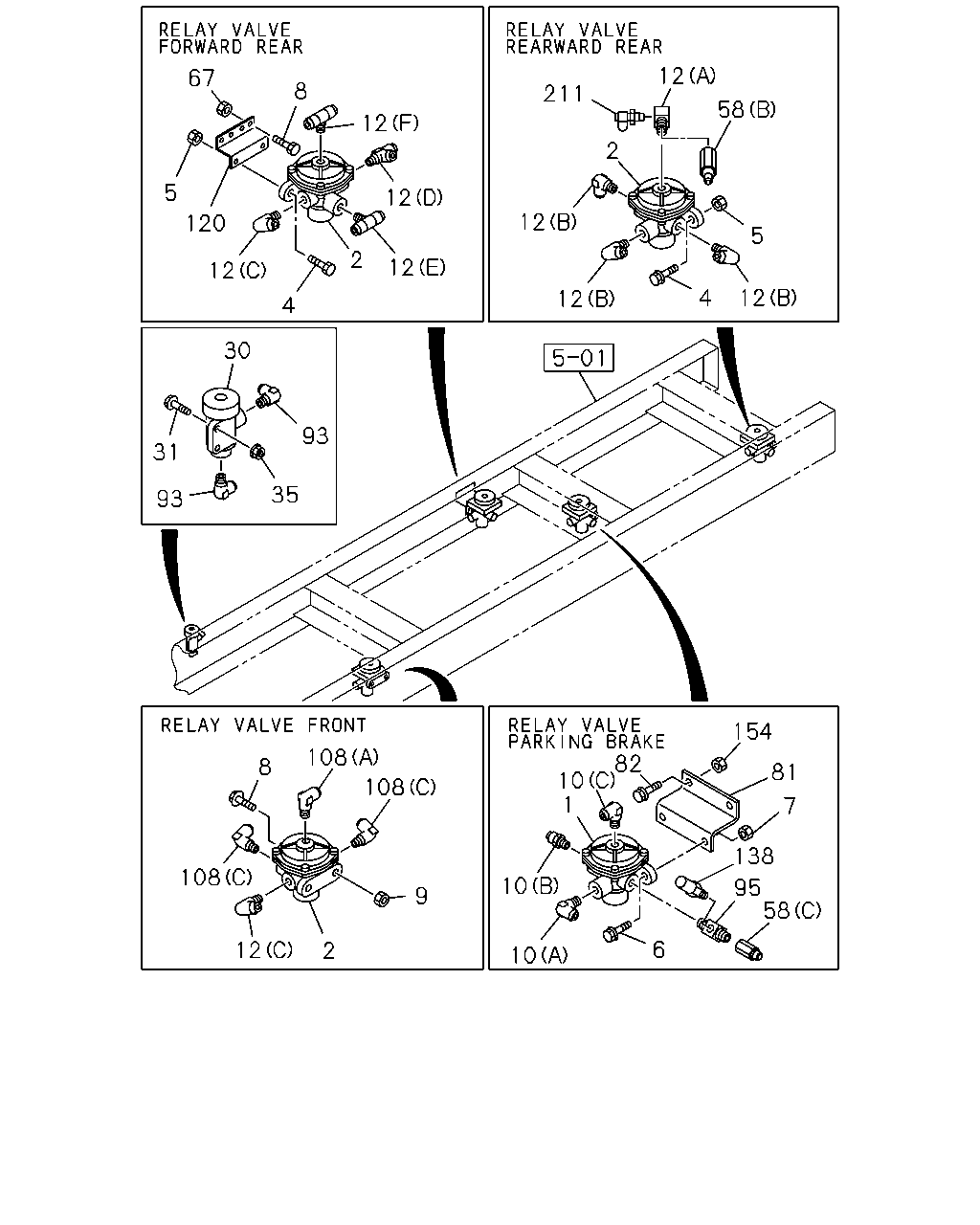

12 67 8 211 58 12 2 5 12 12 120 5 2 12 12 12 4 12 4 30 93 31 35 93 82 10 1 154 108 8 81 108 7 138 108 10 95 58 9 6 12 2 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48210-500-0	01	1	0105-
2	VALVE; RELAY	1-48210-500-0	01	1	0105-
2	VALVE; RELAY	1-48210-500-0	02	1	0105-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	04	1	0105-0512
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28651-040-0	04	1	0601-
5	NUT M10 FLANGE	0-91150-210-0	04	1	0105-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
6	BOLT; VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-
6	BOLT; VLV M8X25 FLANGE	0-28680-825-0	08	1	0112-0512
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	08	1	0601-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0105-
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
8	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
8	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
9	NUT M10 FLANGE	0-91150-210-0	02	1	0105-
10	CONNECTOR (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
10	CONNECTOR (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0105-
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0105-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0105-
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
12	CONNECTOR; RELAY VLV (D) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0105-
12	CONNECTOR; RELAY VLV (E) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0105-
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0105-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0601-
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0105-
58	ADAPTER (A)	1-09660-778-1	01	1	0105-
58	ADAPTER (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
58	ADAPTER (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	0105-
81	BRACKET; RELAY VLV,PARKING BRK	1-47477-964-0	01	1	0105-
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28681-030-0	02	1	0105-0512
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-
93	CONNECTOR; GOV DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0105-
95	UNION; AIR VLV	1-09656-446-0	01	1	0105-
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
108	CONNECTOR; ELBOW (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
108	CONNECTOR; ELBOW (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0105-
120	BRACKET; VLV	1-47477-964-0	01	1	0105-
138	SWITCH; RELAY VALVE	1-48340-057-1	01	1	0105-0312
138	SWITCH; RELAY VALVE	1-48340-068-0	01	1	0401-
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-
211	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-
211	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-

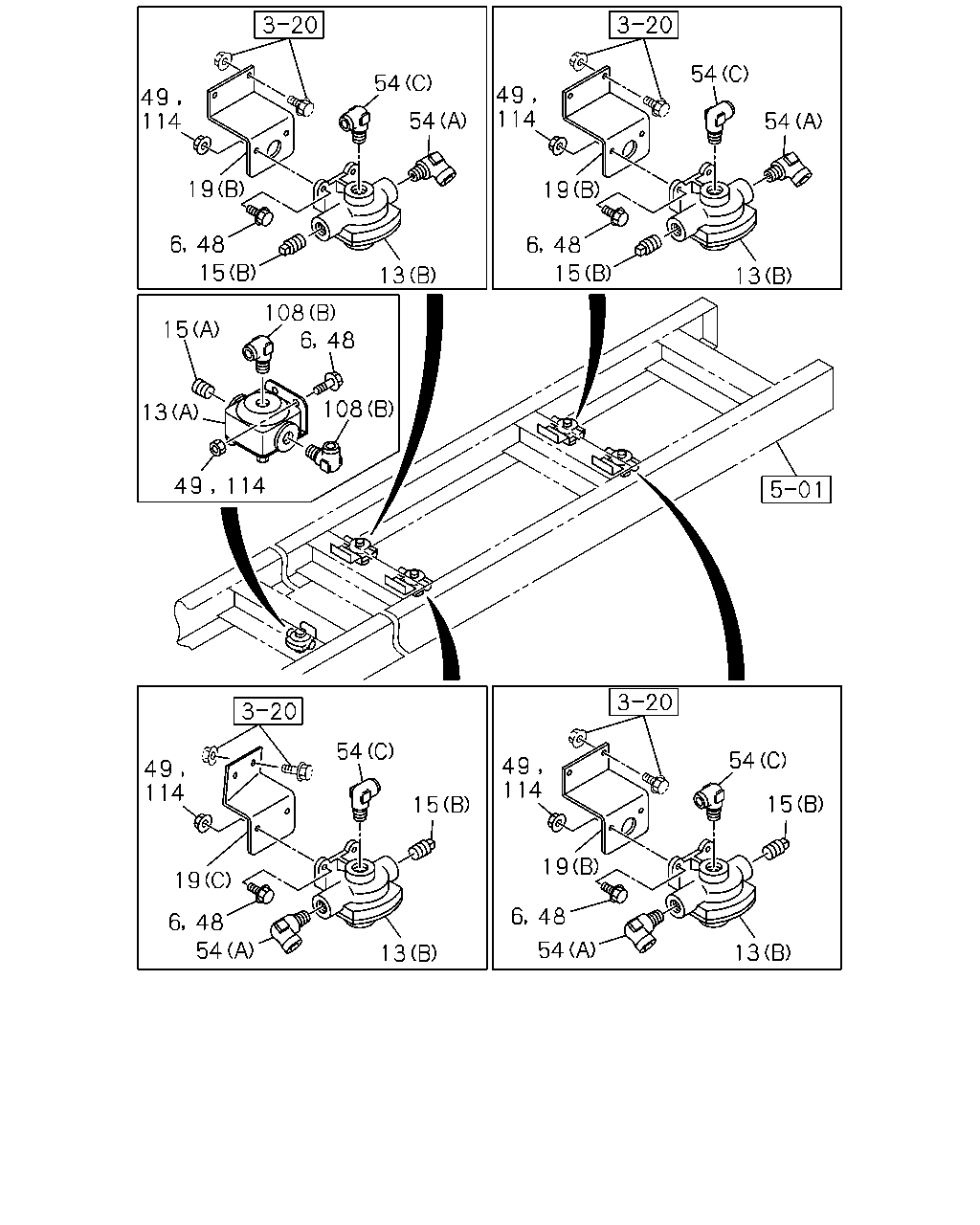

54 54 49 114 49 114 54 54 19 19 6 48 15 6 48 15 13 13 108 15 108 13 49 114 54 54 49 114 49 114 15 15 19 19 6 48 6 48 54 54 13 13 6 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
6	BOLT; VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-
6	BOLT; VLV M8X25 FLANGE	0-28680-825-0	08	1	0112-0512
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	08	1	0601-
13	VALVE ASM; QUICK RELEASE (A)	1-48410-234-0	01	1	0105-
13	VALVE ASM; QUICK RELEASE (B)	1-48410-320-0	06	1	0105-0109
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	06	1	0110-0111
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	01	1	0112-0601
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	06	1	0602-
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	05	1	0112-0601
15	PLUG; VALVE (A) NPTF3/8-18	8-94231-272-1	01	1	0105-
15	PLUG; VALVE (B) PT3/8	9-09204-517-0	04	1	0105-
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	02	1	0105-0111
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0112-0601
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0112-0601
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	02	1	0602-
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	03	1	0105-
19	BRACKET; QUICK RELEASE VLV (C)	1-47479-005-0	01	1	0105-
48	BOLT; QUICK RELEASE VLV M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
48	BOLT; QUICK RELEASE VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-
48	BOLT; QUICK RELEASE VLV M8X25 FLANGE	0-28680-825-0	08	1	0105-0111
49	NUT; QUICK RELEASE VLV M8 FLANGE	0-91150-108-0	02	1	0105-
49	NUT; QUICK RELEASE VLV M8 FLANGE	0-91150-108-0	08	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	0105-
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0112-0601
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
108	CONNECTOR; ELBOW (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
108	CONNECTOR; ELBOW (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0105-
114	NUT; VLV M8 FLANGE	0-91150-108-0	08	1	0112-

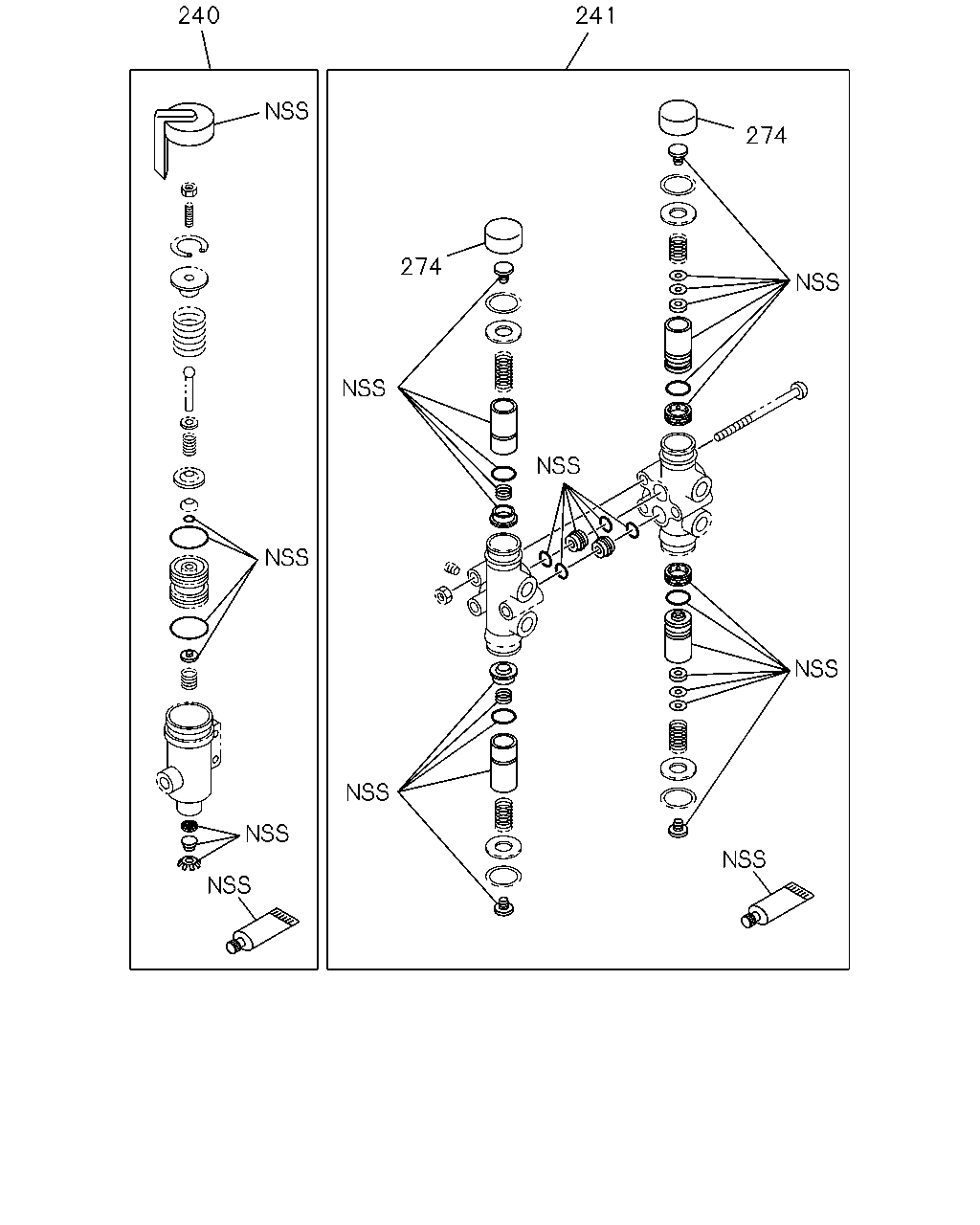

240 241 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0302-
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	0105-0301
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0105-
274	COVER; DUST	1-48119-450-0	02	1	0302-

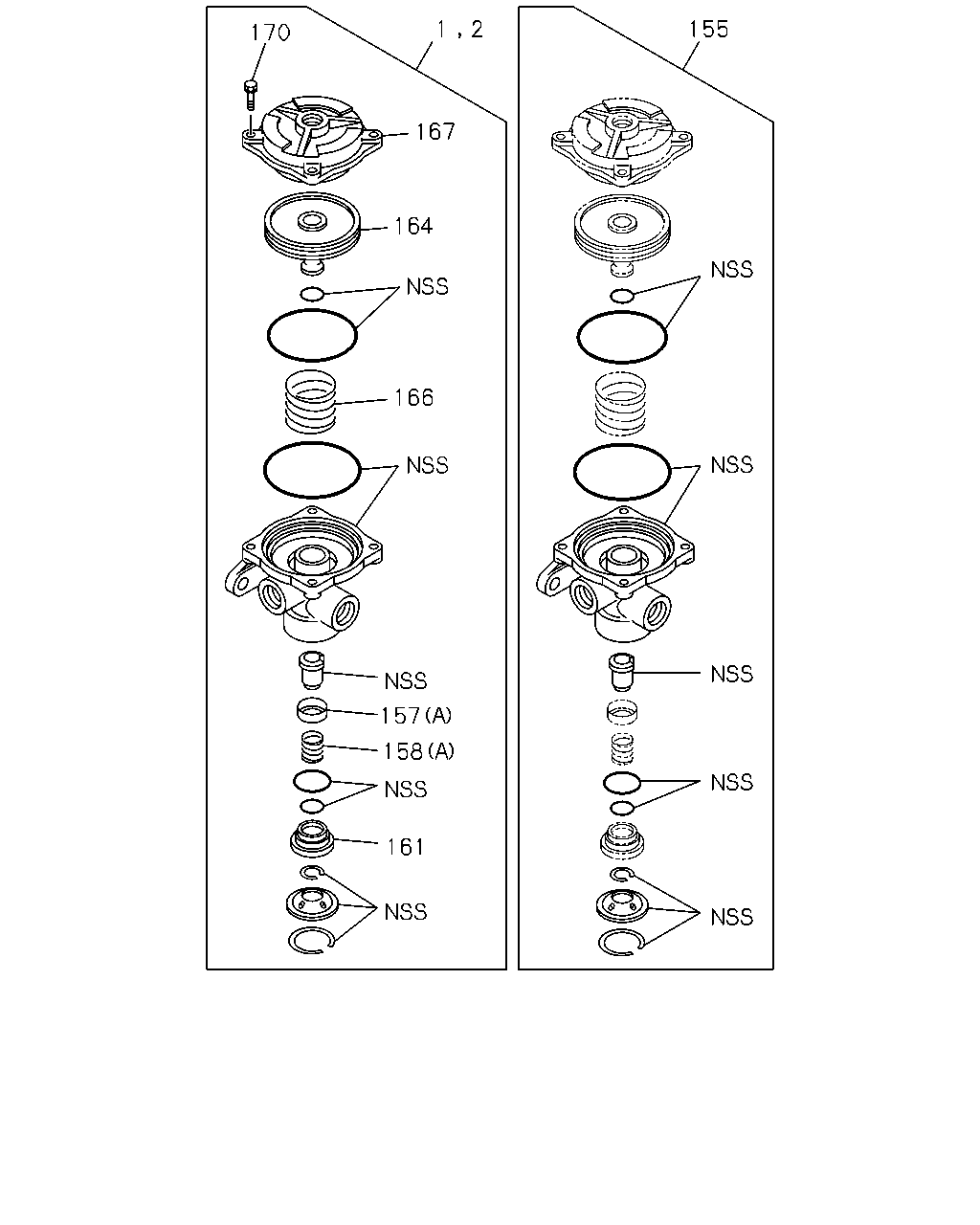

2 155 1 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48210-500-0	01	1	0105-
2	VALVE; RELAY	1-48210-500-0	01	1	0105-
2	VALVE; RELAY	1-48210-500-0	02	1	0105-
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	0105-
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0105-
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0105-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0302-0601
157	RETAINER; VALVE (B)	1-48419-020-0	06	1	0602-
157	RETAINER; VALVE (B)	1-48419-020-0	05	1	0302-0601
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0105-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE (B)	1-48419-020-0	06	1	0110-0301
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0302-0601
158	SPRING; VALVE (B)	9-48419-003-0	06	1	0602-
158	SPRING; VALVE (B)	9-48419-003-0	05	1	0302-0601
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0105-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE (B)	9-48419-003-0	06	1	0110-0301
161	GUIDE; VALVE	1-48129-014-0	02	1	0105-
161	GUIDE; VALVE	1-48129-014-0	01	1	0105-
161	GUIDE; VALVE	1-48129-014-0	01	1	0105-
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0105-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0105-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0105-
166	SPRING; PISTON	1-47819-165-0	02	1	0105-
166	SPRING; PISTON	1-47819-165-0	01	1	0105-
166	SPRING; PISTON	1-47819-165-0	01	1	0105-
167	COVER; VALVE	1-48219-070-0	02	1	0105-
167	COVER; VALVE	1-48219-070-0	01	1	0105-
167	COVER; VALVE	1-48219-070-0	01	1	0105-
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0105-
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0105-
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0105-

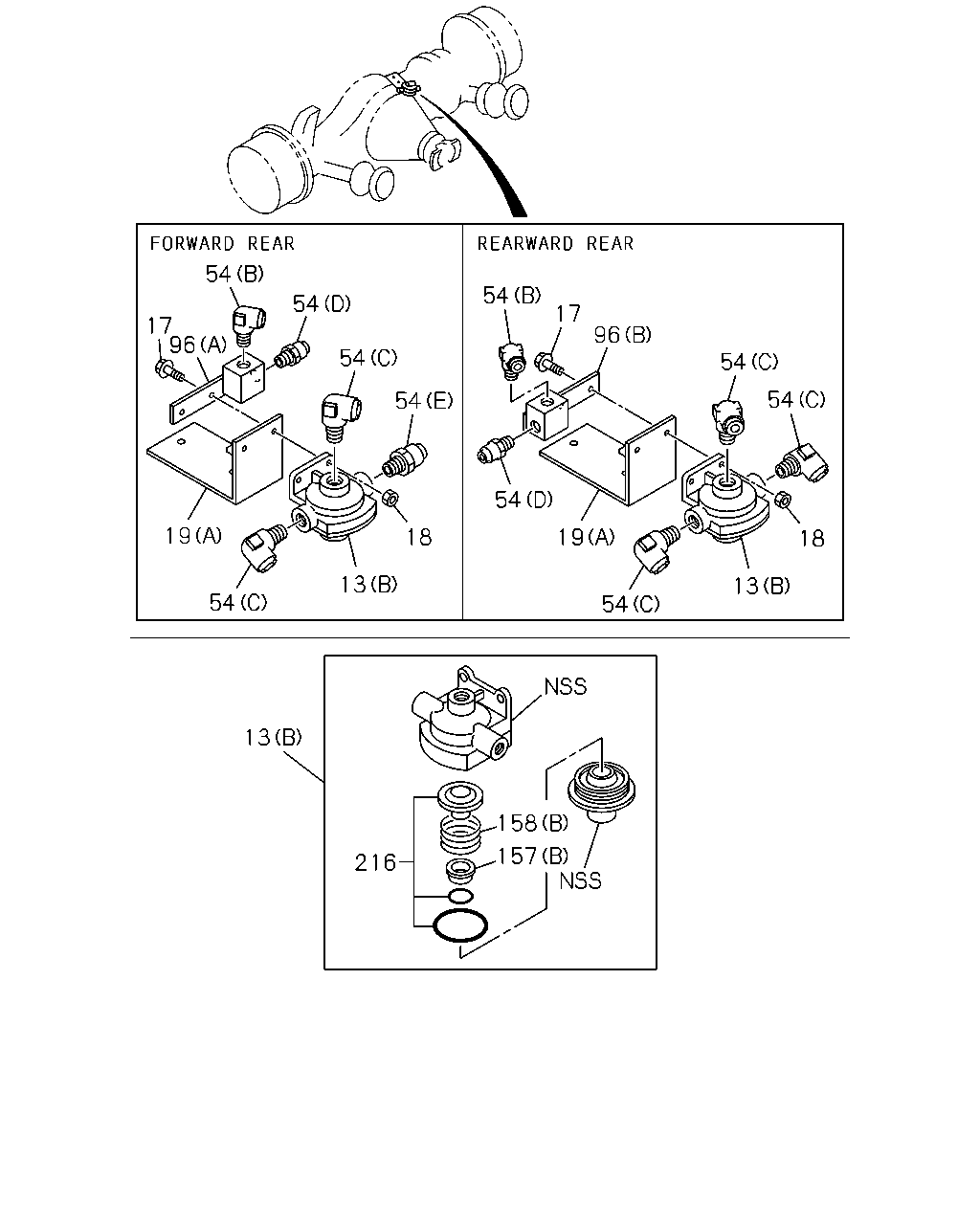

54 54 54 17 17 96 96 54 54 54 54 54 19 18 19 18 13 13 54 54 13 158 157 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE (A)	1-48410-234-0	01	1	0105-
13	VALVE ASM; QUICK RELEASE (B)	1-48410-320-0	06	1	0105-0109
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	06	1	0110-0111
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	01	1	0112-0601
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	06	1	0602-
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	05	1	0112-0601
17	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	0105-0111
17	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0112-0512
17	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0112-0512
17	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-0601
17	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-0601
17	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	0602-
18	NUT; BRKT REARWARD M8 FLANGE	0-91180-108-0	02	1	0602-
18	NUT; BRKT M8	9-09110-408-0	04	1	0105-0109
18	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0110-0111
18	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0112-0601
18	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0112-0601
18	NUT; BRKT FORWARD M8 FLANGE	0-91150-108-0	02	1	0602-
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	02	1	0105-0111
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0112-0601
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0112-0601
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	02	1	0602-
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	03	1	0105-
19	BRACKET; QUICK RELEASE VLV (C)	1-47479-005-0	01	1	0105-
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	0105-
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0112-0601
96	BRACKET (A)	1-47470-597-0	01	1	0105-
96	BRACKET (B)	1-47470-598-0	01	1	0105-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0302-0601
157	RETAINER; VALVE (B)	1-48419-020-0	06	1	0602-
157	RETAINER; VALVE (B)	1-48419-020-0	05	1	0302-0601
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0105-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE (B)	1-48419-020-0	06	1	0110-0301
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0302-0601
158	SPRING; VALVE (B)	9-48419-003-0	06	1	0602-
158	SPRING; VALVE (B)	9-48419-003-0	05	1	0302-0601
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0105-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE (B)	9-48419-003-0	06	1	0110-0301
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	06	1	0110-0301
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	05	1	0302-0601
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	06	1	0602-
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0302-0601

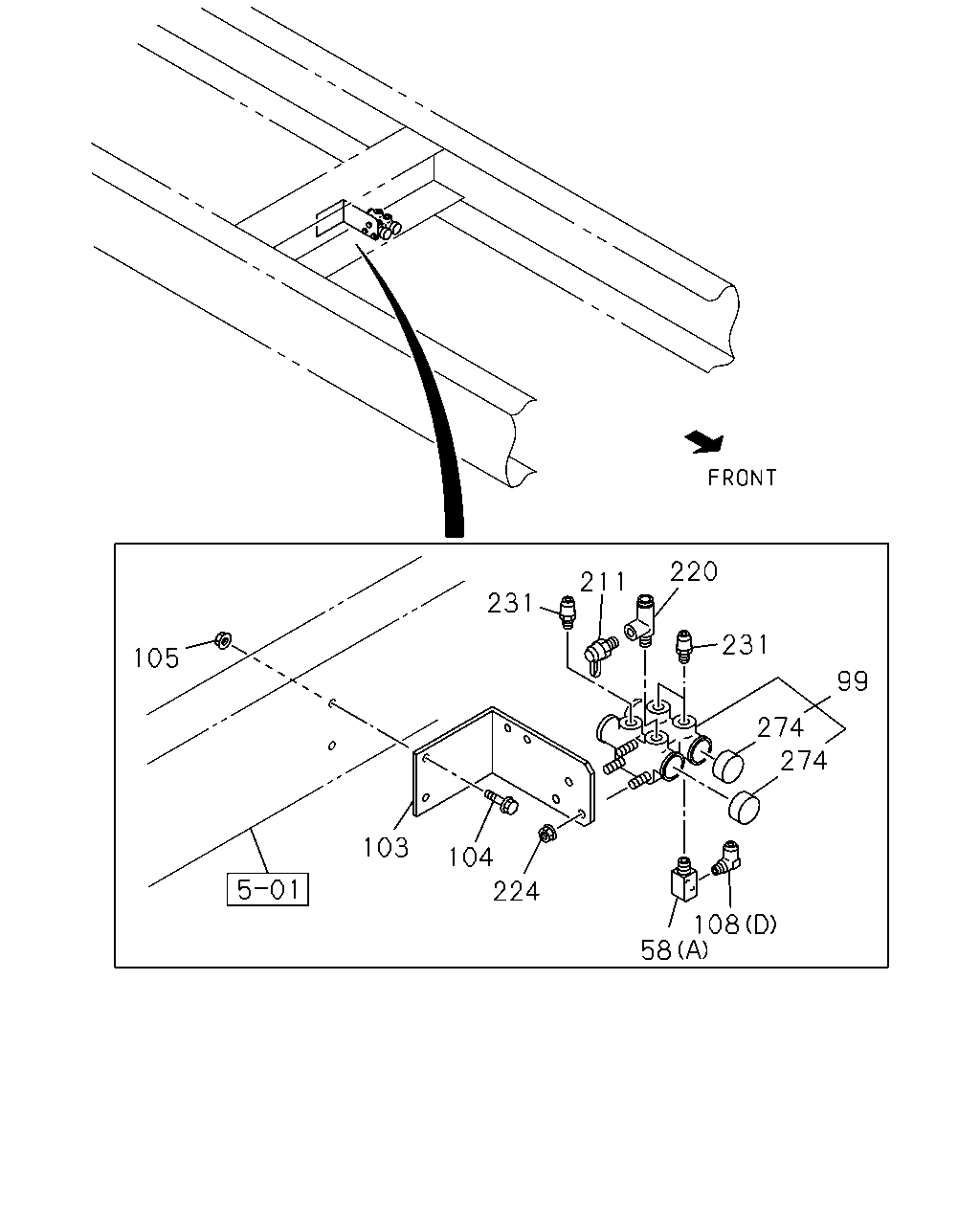

220 211 231 231 105 99 274 274 103 104 224 108 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	ADAPTER (A)	1-09660-778-1	01	1	0105-
58	ADAPTER (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
58	ADAPTER (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
99	VALVE; PROTECTION	1-48110-113-5	01	1	0105-
103	BRACKET; PROTECTION VALVE	1-47478-407-0	01	1	0105-
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28650-830-0	02	1	0601-
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	0105-
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
108	CONNECTOR; ELBOW (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
108	CONNECTOR; ELBOW (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0105-
211	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-
211	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-
220	CONNECTOR; 3WAY	1-09661-027-0	01	1	0105-
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	0105-
231	CONNECTOR; NYLON TUBE DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0105-
274	COVER; DUST	1-48119-450-0	02	1	0302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
