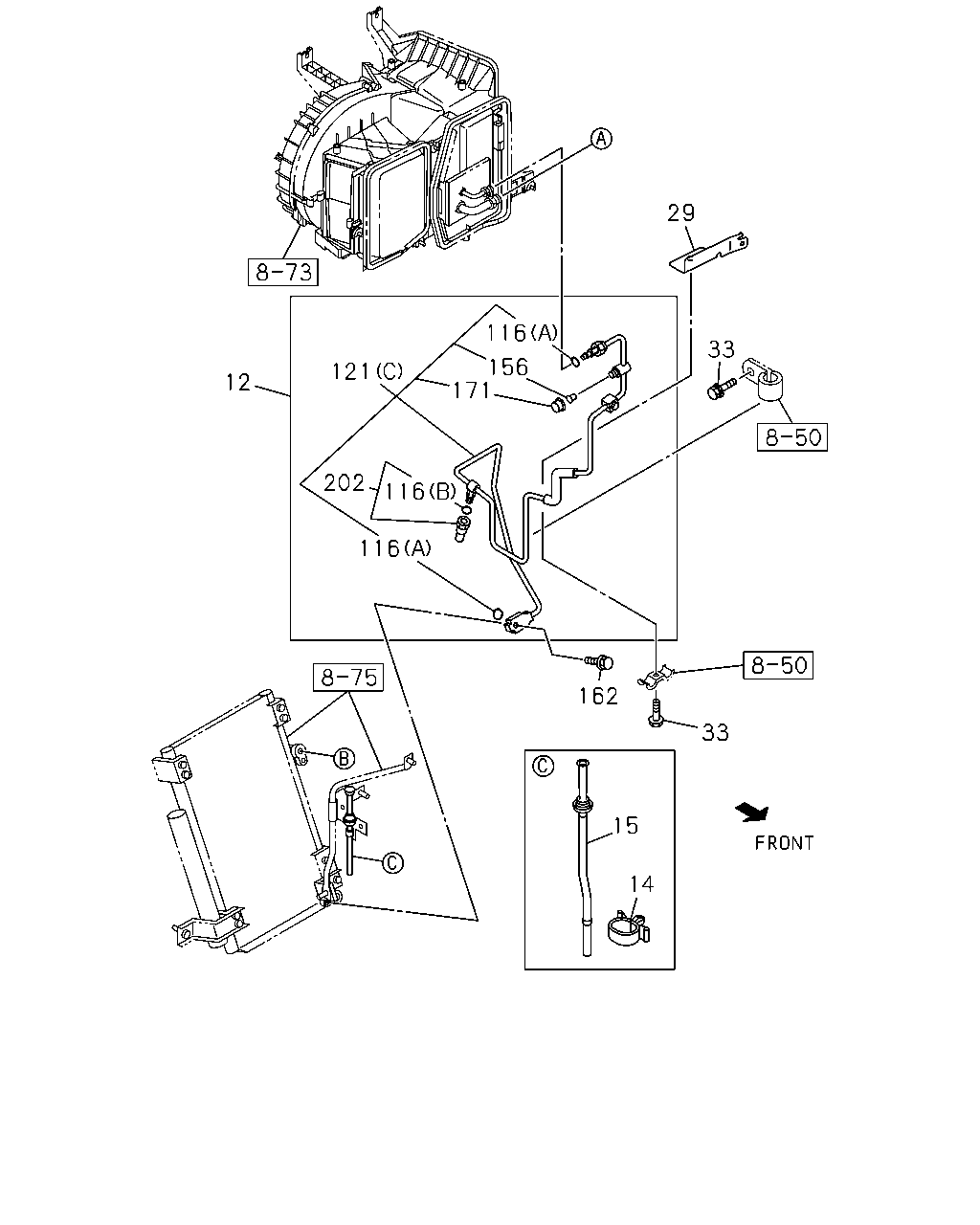

8-52 — PIPING; AIR CONDITIONING (#123277) — 51 parça

33 29 33 162 15 14 116 202 121 12 116 171 156 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98228-386-0	01	1	1306-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	1306-
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	1306-
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	1306-
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98228-480-1	01	1	1306-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1306-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1306-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	1306-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97178-772-0	01	1	1306-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1306-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98241-660-0	01	1	1306-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98241-661-0	01	1	1306-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98242-700-0	01	1	1306-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98242-701-0	01	1	1306-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1306-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	1306-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1306-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-1	01	1	1306-

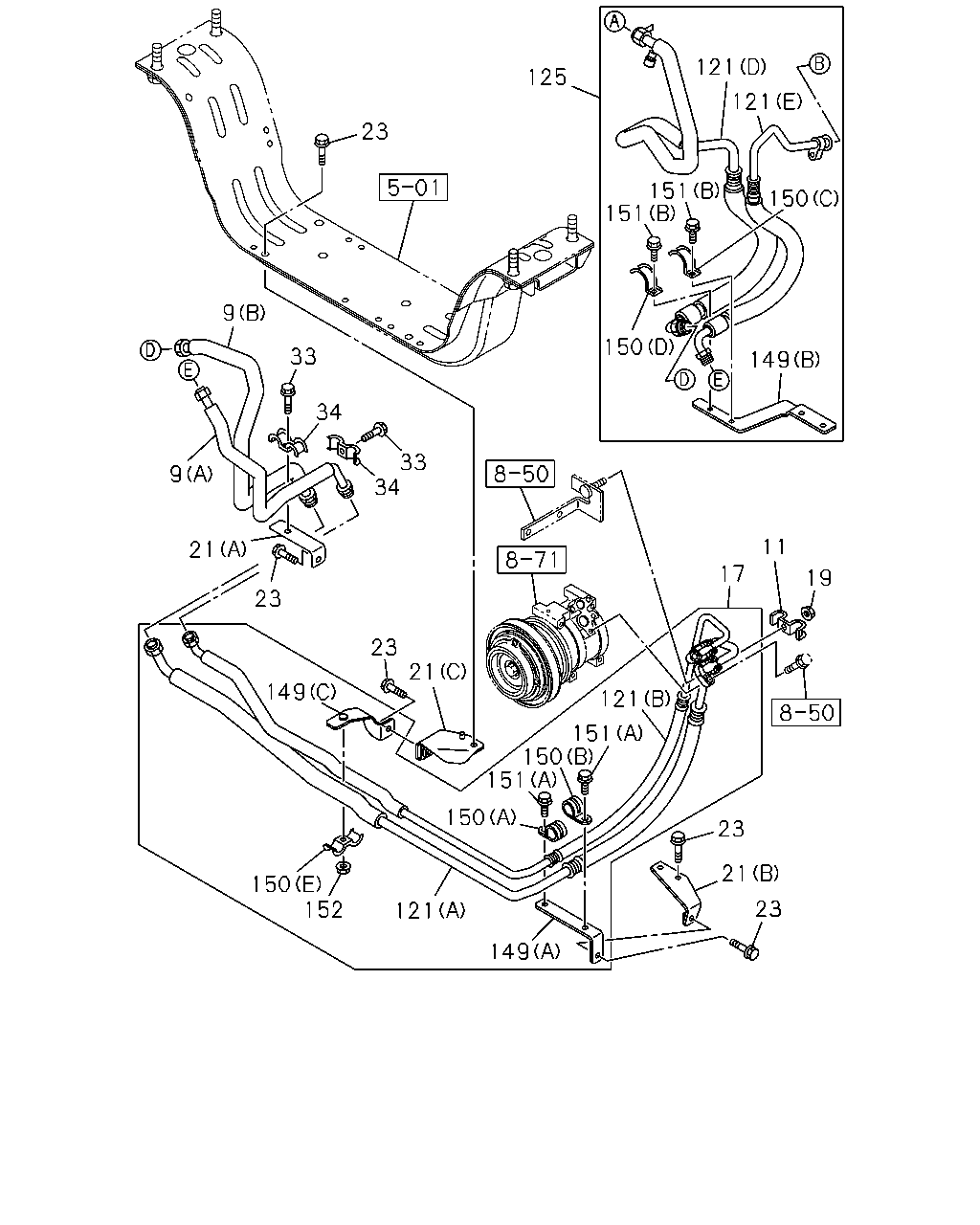

23 125 9 33 34 9 21 23 34 33 23 21 149 150 152 121 149 150 151 150 151 121 23 21 23 17 11 19 150 151 149 151 150 121 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98233-443-0	01	1	1306-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98233-444-0	01	1	1306-
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12 & 14.5	1-83574-257-0	01	1	1306-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98233-440-0	01	1	1306-
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1306-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98227-084-0	01	1	1306-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-463-0	01	1	1306-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98239-925-0	01	1	1306-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1411-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	03	1	1306-1410
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	1411-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X25 FLANGE	0-28651-025-0	02	1	1306-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1306-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1306-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1306-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	02	1	1306-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1306-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98241-660-0	01	1	1306-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98241-661-0	01	1	1306-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98242-700-0	01	1	1306-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98242-701-0	01	1	1306-
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98247-291-0	01	1	1306-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-206-1	01	1	1306-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98232-117-0	01	1	1306-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98243-874-0	01	1	1306-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	1306-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-254-0	01	1	1306-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-255-0	01	1	1306-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1306-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83574-288-0	01	1	1306-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	1306-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83578-098-0	02	1	1306-
152	NUT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8	1-83539-319-0	01	1	1306-
