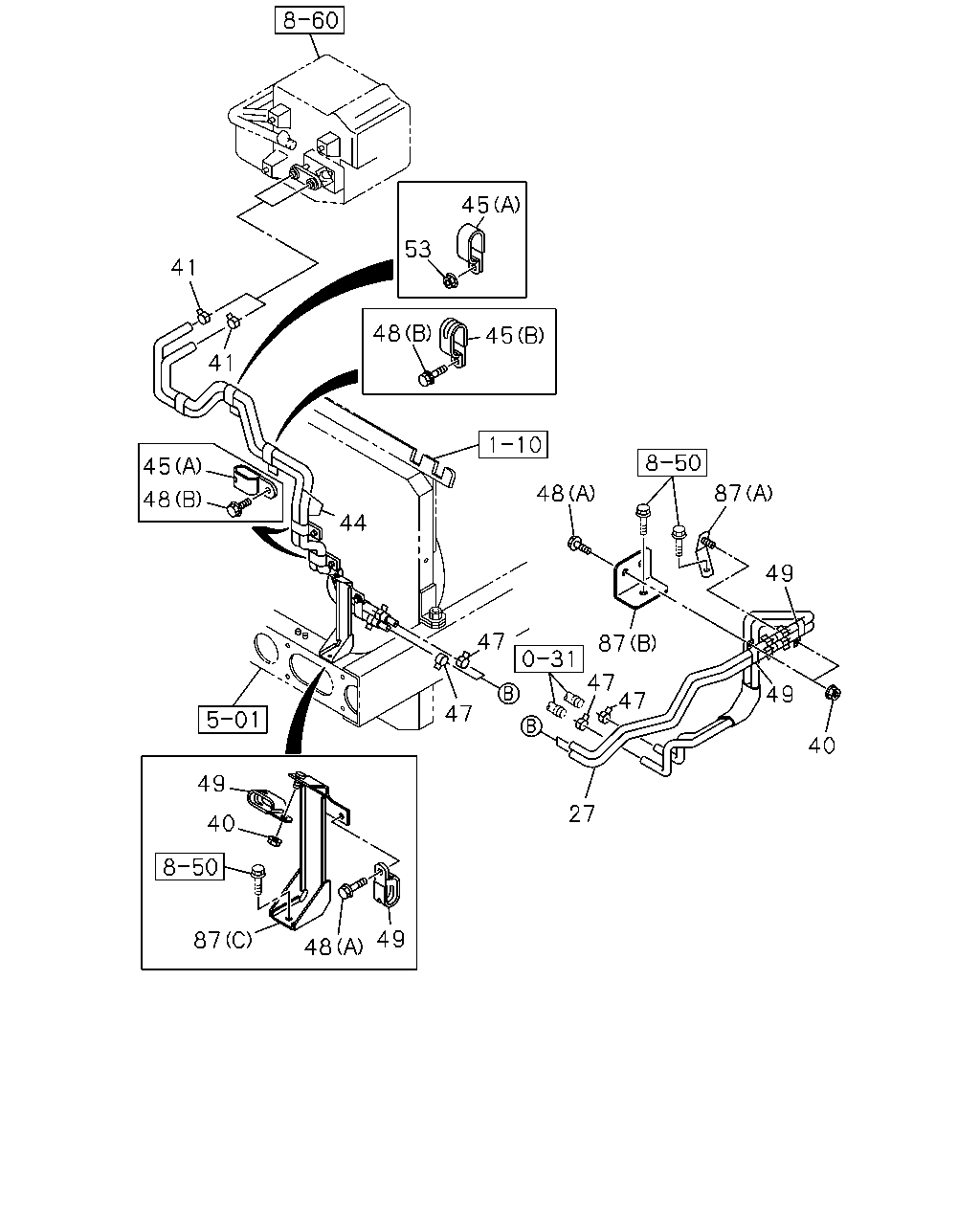

8-45 — HEATER PIPING
(#123275) — 14 parça
41
41
53
45
48
45
44
45
48
48
87
49
49
40
27
47
47
87
47
47
49
48
87
40
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98223-223-1
01
1
1306-
40
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
03
1
1306-
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
1306-
44
HOSE; WATER,HTR,INL
8-98226-524-2
01
1
1306-
45
CLIP; WATER PIPE
(B) WO/SCREW
1-09701-143-1
01
1
1306-
45
CLIP; WATER PIPE
(A)
1-09701-238-0
02
1
1306-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
1306-
48
BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1306-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28650-820-0
02
1
1306-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25
1-09700-710-0
04
1
1306-
53
NUT; HOSE CLIP
M8 FLANGE
0-91180-108-0
01
1
1306-
87
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83573-251-1
01
1
1306-
87
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98225-548-0
01
1
1306-
87
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98239-443-0
01
1
1306-
