Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11536 - EXZ LHD EURO2 WITH REFLECTOR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#123274) — 38 parça
◀
[840A] CONTROL ASM (6 parça)
[840A] FRONT PANEL SIDE (8 parça)
[840A] DUCT NO.1 (11 parça)
[840A] DUCT NO.2 (13 parça)
▶

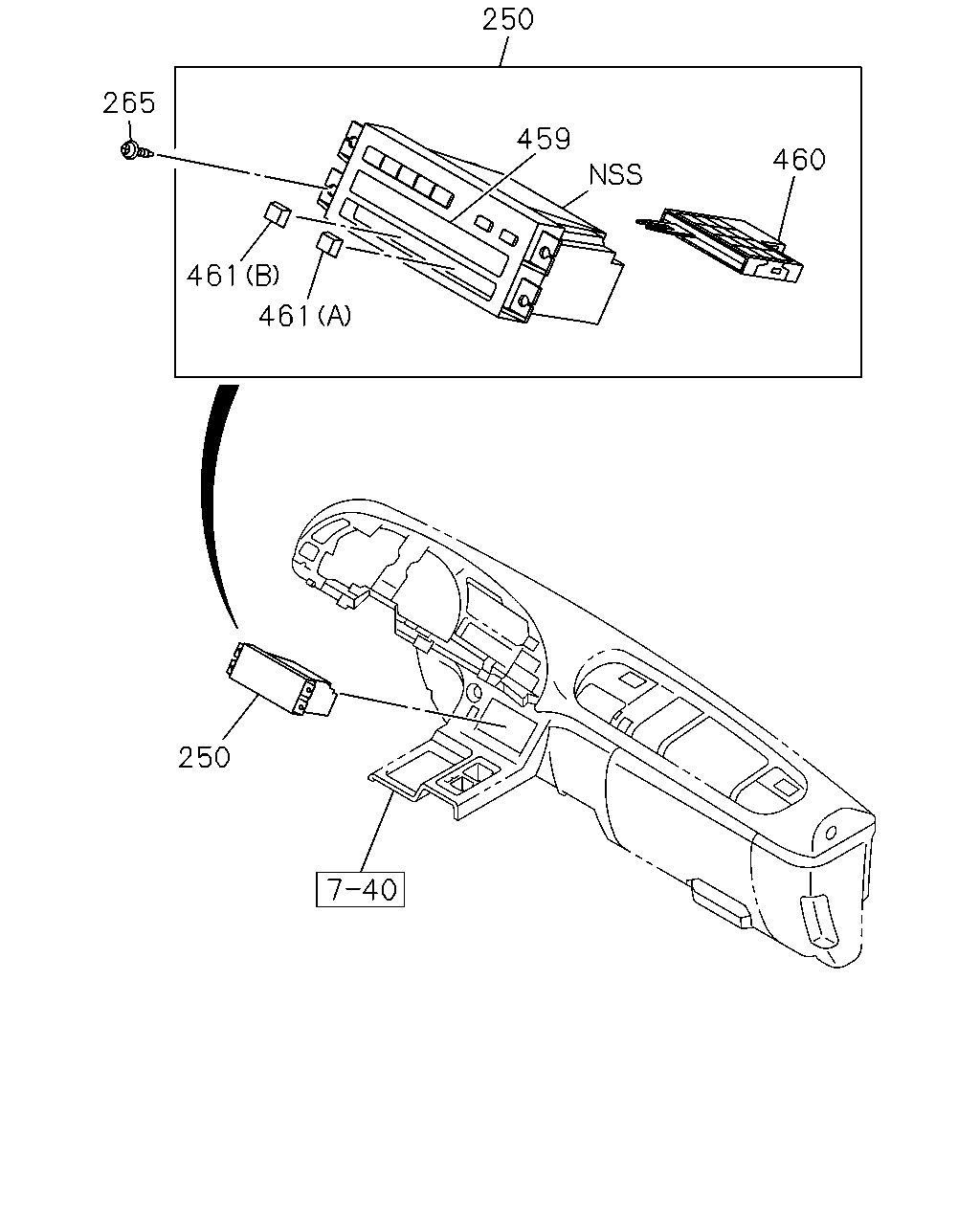

265
461
461
250
459
460
250
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
250
CONTROL ASM; A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98034-326-0
01
1
1306-
265
SCREW; A/C CONT UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X20 TAPPING W/PL WASHER
0-74160-620-0
02
1
1306-
459
PANEL; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83549-013-0
01
1
1306-
460
SWITCH; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-82489-006-0
01
1
1306-
461
KNOB; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83549-015-0
01
1
1306-
461
KNOB; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83549-016-0
01
1
1306-

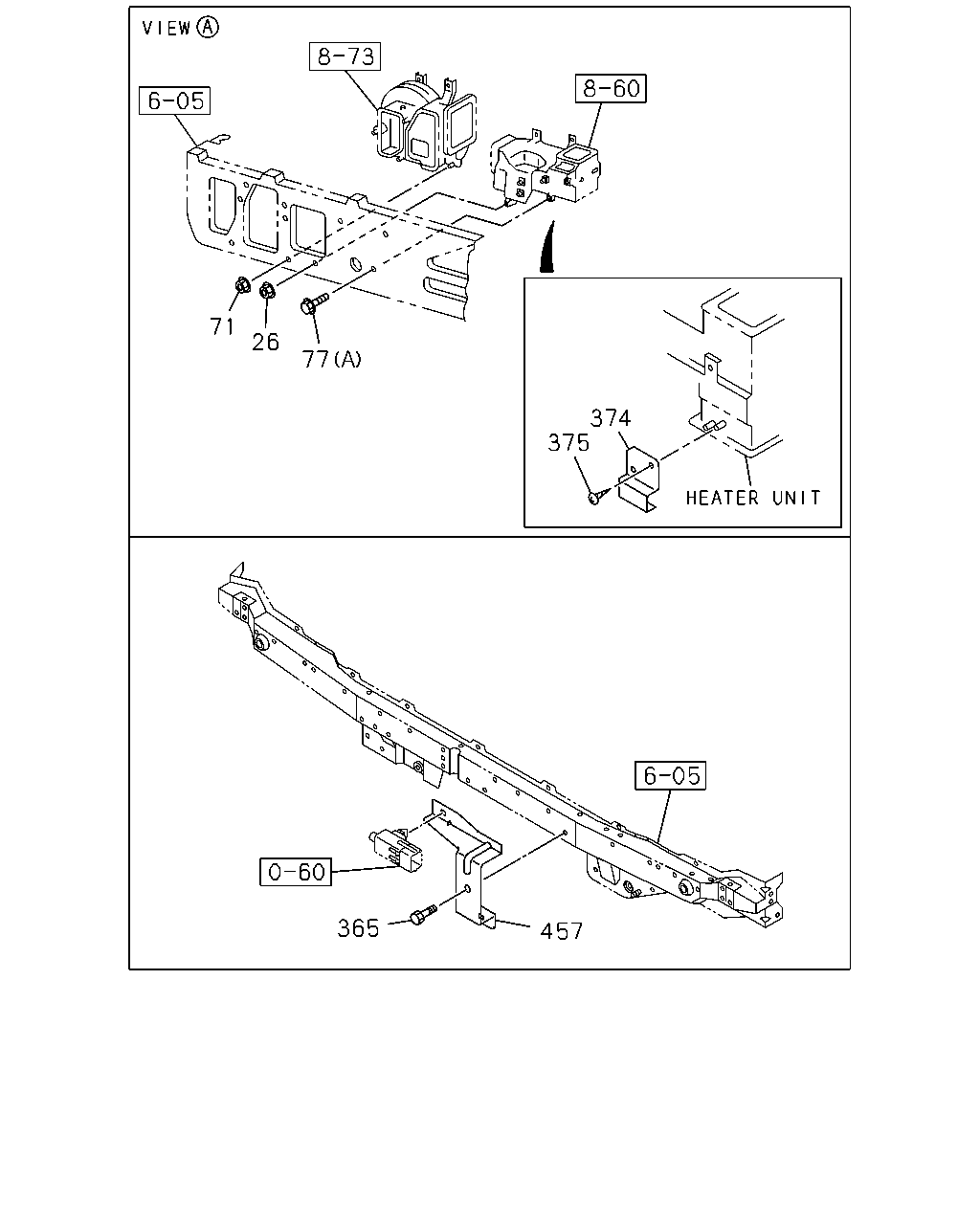

375
374
457
365
71
77
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1306-
71
NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER
1-09984-180-0
04
1
1306-
77
BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16
1-09980-598-1
02
1
1306-
77
BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1306-
365
BOLT; SENSOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
1306-
374
HOLDER; DUCT
1-76398-012-1
01
1
1306-
375
SCREW; HOLDER
M5X14
8-94279-325-0
02
1
1306-
457
BRACKET; SENSOR
1-71907-603-1
01
1
1306-

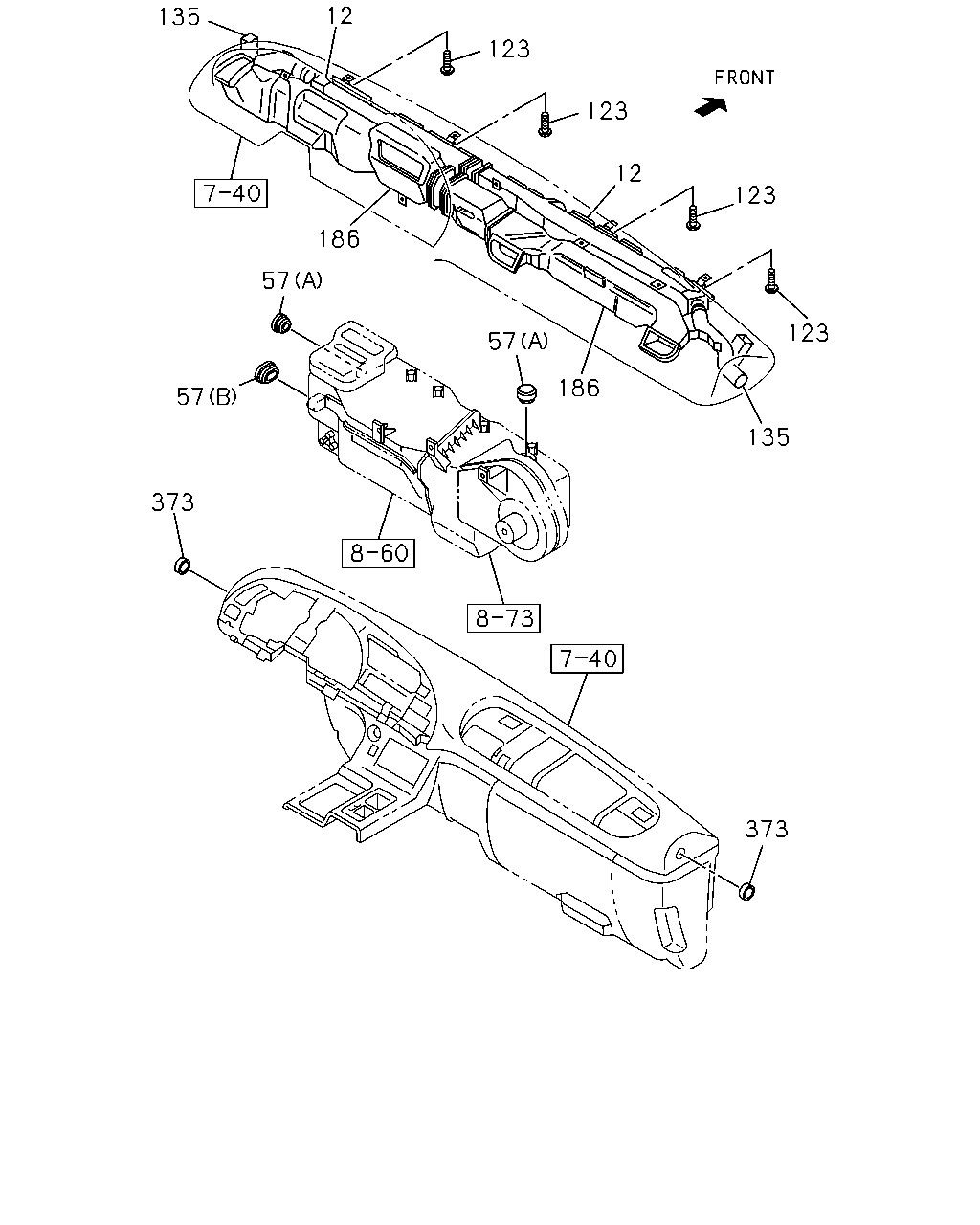

373
373
57
57
186
57
186
135
123
123
12
123
123
12
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
1-76378-360-2
01
1
1306-
12
NOZZLE; DEFROSTER
1-76377-196-1
01
1
1306-
57
COVER; INL DUCT
CENTER SEAT(SA1) (A)
1-83579-617-0
02
1
1306-1403
57
COVER; INL DUCT
CENTER SEAT(SA1) (B)
1-83579-618-0
01
1
1306-1403
123
SCREW; DUCT
M5X14
8-94279-325-0
03
1
1306-
123
SCREW; DUCT
M5X14
8-94279-325-0
08
1
1306-
135
HOSE; DEFROSTER
1-76378-364-3
01
1
1306-
135
HOSE; DEFROSTER
1-76377-231-0
01
1
1306-
186
DUCT; VENTILATOR
1-76378-362-4
01
1
1306-
186
DUCT; VENTILATOR
1-76377-197-2
01
1
1306-
373
RUBBER; JOINT
1-76378-291-0
02
1
1306-

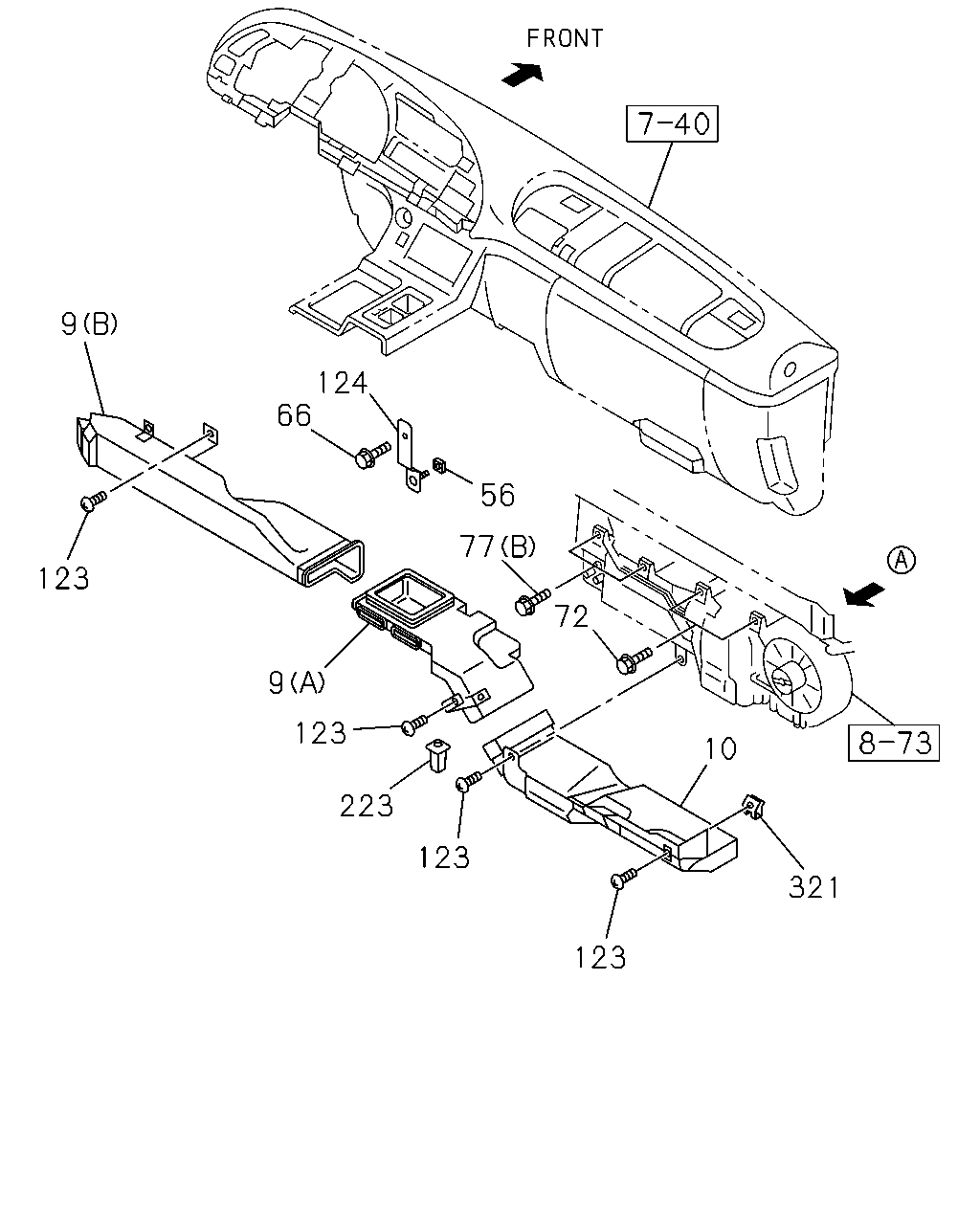

321
123
123
223
123
9
123
9
66
124
56
77
72
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
DUCT; HTR AIR,FOOT CENTER
(B)
1-76377-199-1
01
1
1306-
9
DUCT; HTR AIR,FOOT CENTER
(A)
1-76377-228-2
01
1
1306-
10
DUCT; HTR AIR,ASSIST FOOT
1-76377-200-1
01
1
1306-
56
NUT; INL DUCT
M6 FLANGE W/RUBBER
1-09984-180-0
01
1
1306-
66
BOLT; DUCT
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
1306-
72
BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1306-
77
BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16
1-09980-598-1
02
1
1306-
77
BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1306-
123
SCREW; DUCT
M5X14
8-94279-325-0
03
1
1306-
123
SCREW; DUCT
M5X14
8-94279-325-0
08
1
1306-
124
BRACKET ASM; VENT DUCT
1-79738-186-1
01
1
1306-
223
GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1306-
321
NUT; DUCT FIX
M5
1-09984-196-0
01
1
1306-
