Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11536 - EXZ LHD EURO2 WITH REFLECTOR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#123273) — 77 parça
◀
[828A] INST PANEL SIDE NO.2 (11 parça)
[828A] FRAME SIDE NO.3 (19 parça)
[828A] FRAME SIDE NO.1 (14 parça)
[828A] FRAME SIDE NO.2 (20 parça)
[828A] INST PANEL SIDE NO.1 (13 parça)
▶

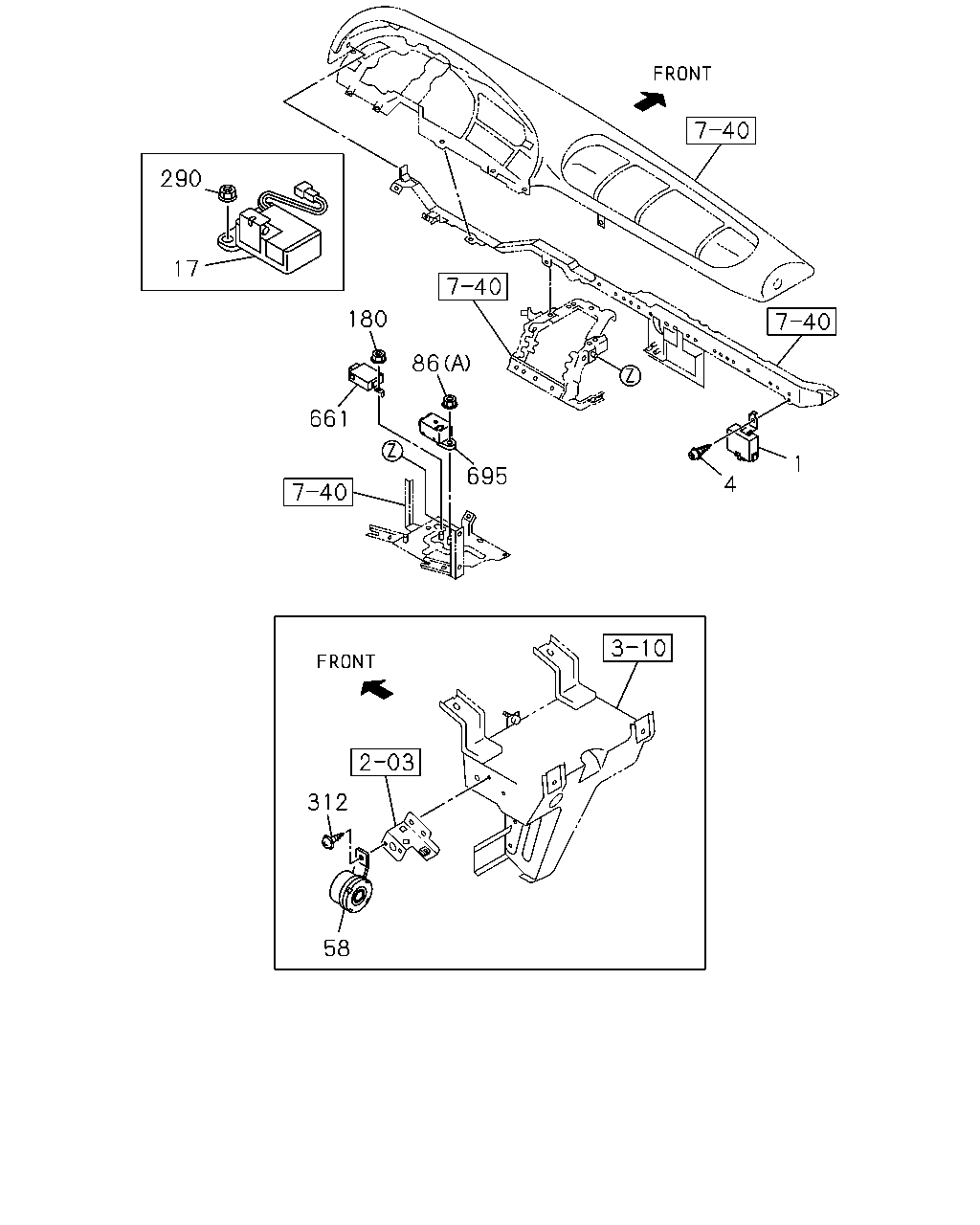

290
17
180
661
86
695
4
1
312
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-97613-970-1
01
1
1306-
4
SCREW; FLASHER UNIT
M5X14
8-94279-325-0
01
1
1306-
17
TIMER; SEAT BELT
1-82550-183-1
01
1
1306-
58
BUZZER; AIR PRESSURE WARNING
METRO DENSO
8-98069-859-0
01
1
1306-
86
NUT; BUZZER
(A) M6 FLANGE
0-91180-106-0
01
1
1306-
86
NUT; BUZZER
(B) M8 FLANGE
0-91180-108-0
01
1
1306-
180
NUT; FLASHER UNIT
M6 FLANGE
0-91180-106-0
01
1
1306-
290
NUT
M6 FLANGE
0-91180-106-0
02
1
1306-
312
BOLT; BUZZER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
1306-
661
CONTROL UNIT; FLASHER
1-83470-066-1
01
1
1306-
695
ALARM; OVER HEAT
1-83460-051-1
01
1
1306-

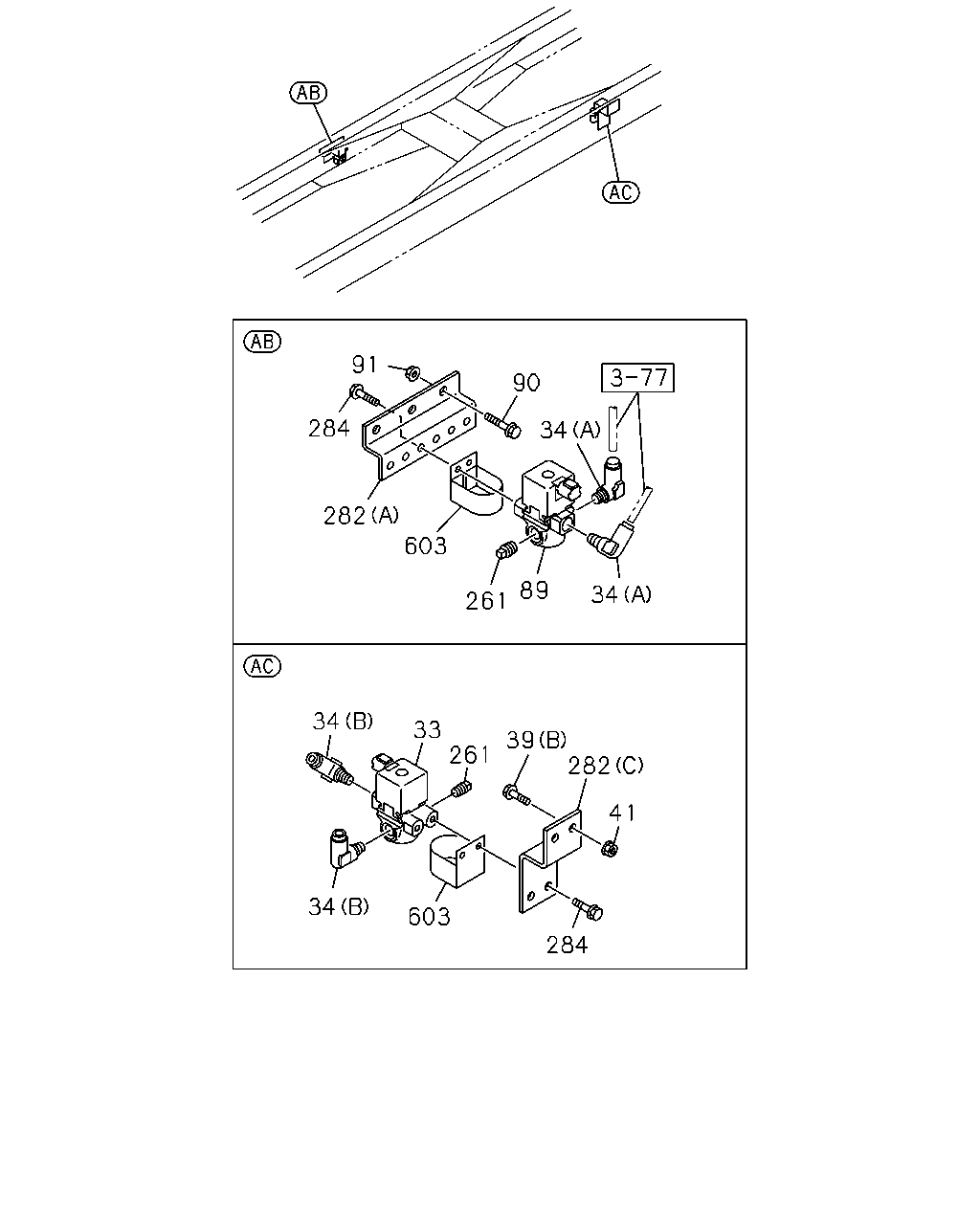

91
284
282
603
261
89
34
34
90
34
33
34
603
261
39
282
41
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)
1-82563-871-2
01
1
1306-
34
CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
1306-
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) DIN6 & R1/4 ELBOW
1-09661-067-0
02
1
1306-
39
BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE
0-28650-820-0
02
1
1306-
39
BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X25 FLANGE
0-28650-825-0
02
1
1306-
41
NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8 FLANGE
0-91180-108-0
02
1
1306-
89
VALVE; MAG,DIFF LOCK
8-97641-594-0
01
1
1306-
90
BOLT; MAG VLV
M8X25 FLANGE
0-28650-825-0
02
1
1306-
91
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
1306-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1306-
261
PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4
9-99204-513-0
01
1
1306-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1306-
282
BRACKET; MAG VLV
(B)
1-82569-277-2
01
1
1306-
282
BRACKET; MAG VLV
(A)
1-82569-421-0
01
1
1306-
282
BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C)
1-47471-175-0
01
1
1306-
284
BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X20 FLANGE
0-28650-820-0
02
1
1306-
284
BOLT; MAG VLV
M8X20 FLANGE
0-28650-820-0
02
1
1306-
603
PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)
1-47471-046-0
01
1
1306-
603
PROTECTOR; MAG VLV
1-47471-046-0
01
1
1306-

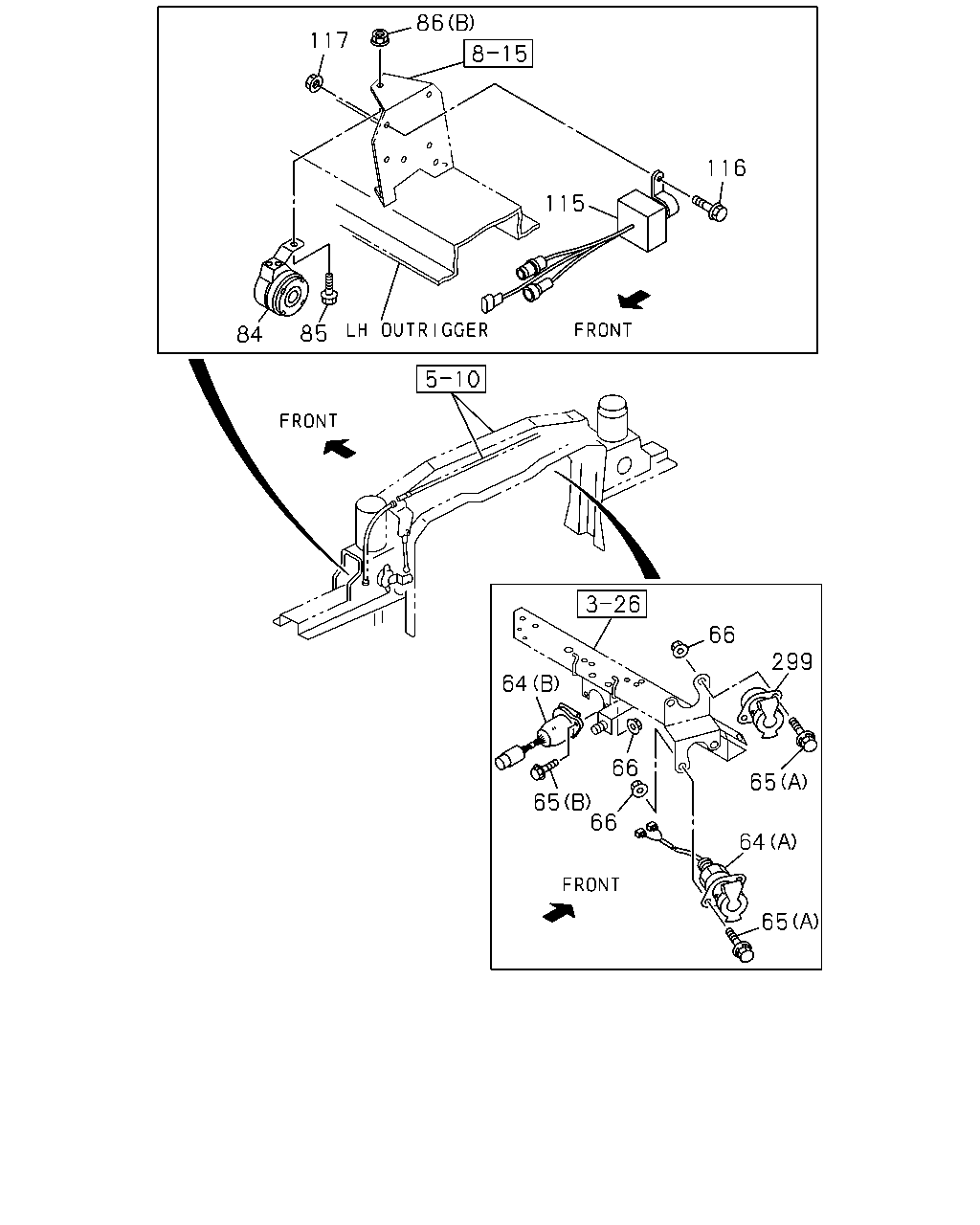

86
117
84
85
115
116
64
65
66
65
64
65
299
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SOCKET; TRAILER
(B) 7P
1-82523-014-0
01
1
1306-1510
64
SOCKET; TRAILER
(B) 7P
1-82523-019-0
01
1
1511-
64
SOCKET; TRAILER
(A) L=860
8-98172-008-0
01
1
1306-
65
BOLT; SOCKET FIX
(A) M8X25 FLANGE
0-28650-825-0
04
1
1306-
65
BOLT; SOCKET FIX
(B) M8X30 FLANGE
0-28650-830-0
02
1
1306-
66
NUT; SOCKET FIX
M8 FLANGE
0-91180-108-0
05
1
1306-
84
BUZZER; POWER CAB TILT
METRO DENSO
8-98069-860-0
01
1
1306-
85
BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE
0-28650-820-0
01
1
1306-
86
NUT; BUZZER
(A) M6 FLANGE
0-91180-106-0
01
1
1306-
86
NUT; BUZZER
(B) M8 FLANGE
0-91180-108-0
01
1
1306-
115
RELAY; POWER CAB TILT UNIT
NIKKO
1-81171-075-1
01
1
1306-
116
BOLT; RELAY FIX
M8X16 FLANGE
0-28050-816-0
02
1
1306-
117
NUT; RELAY FIX
M8 FLANGE
0-91180-108-0
02
1
1306-
299
SOCKET; PARKING
1-82699-396-2
01
1
1306-

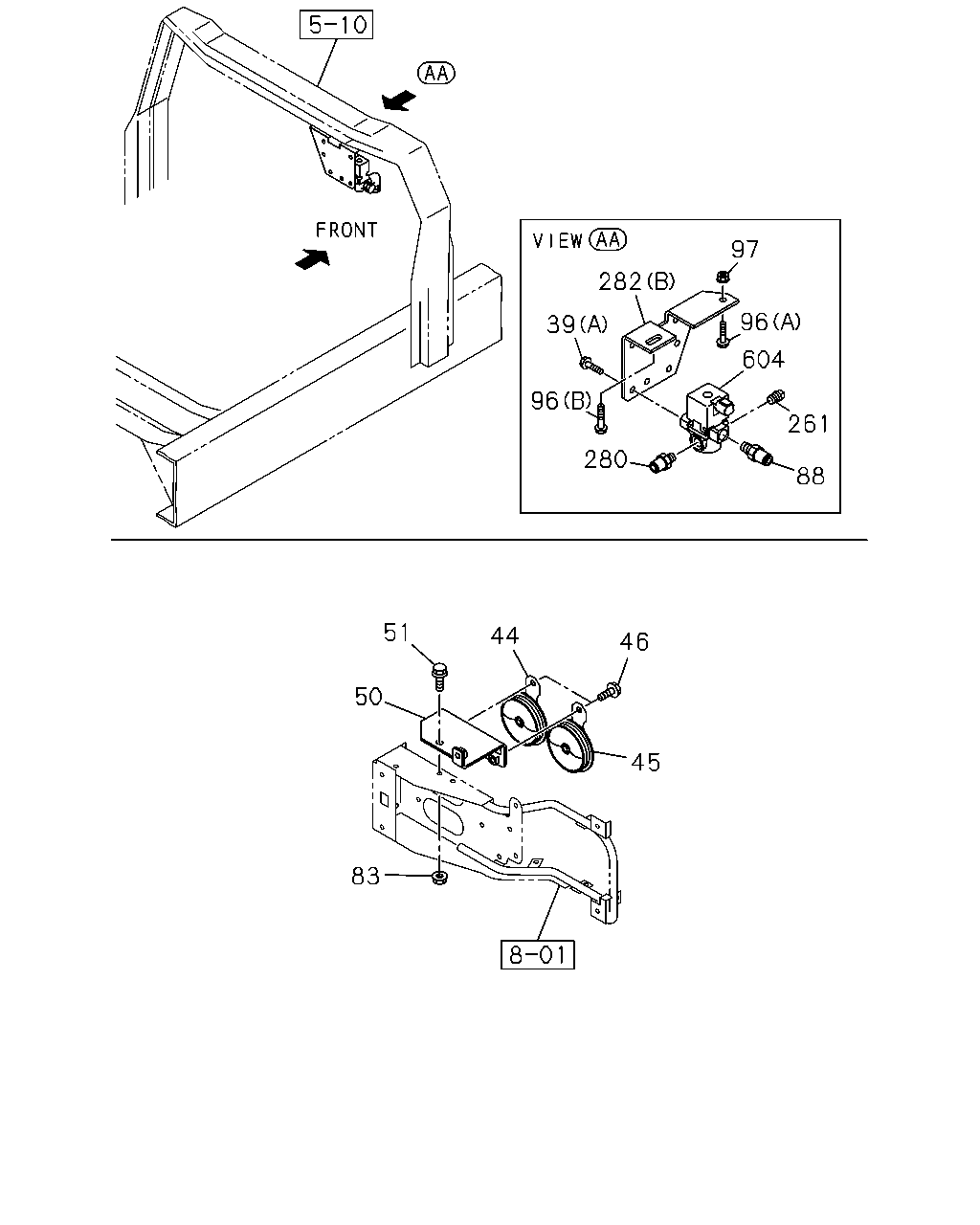

282
39
96
280
88
261
604
96
97
46
45
83
50
51
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE
0-28650-820-0
02
1
1306-
39
BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X25 FLANGE
0-28650-825-0
02
1
1306-
44
HORN; HIGH NOTE
1-83410-061-1
01
1
1306-
45
HORN; LOW NOTE
1-83410-062-1
01
1
1306-
46
BOLT; HORN TO BODY
M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1306-
50
BRACKET; HORN
8-98198-870-1
01
1
1306-
51
BOLT; HORN TO BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1306-
83
NUT; BRKT,HORN
M8 FLANGE
0-91180-108-0
02
1
1306-
88
CONNECTOR; MAG VLV
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1306-
96
BOLT; BRKT FIX
(A) M8X25 FLANGE
0-28650-825-0
01
1
1306-
96
BOLT; BRKT FIX
(B) M10X30 FLANGE
0-28651-030-0
01
1
1306-
97
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
1306-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1306-
261
PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4
9-99204-513-0
01
1
1306-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1306-
280
CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1306-
282
BRACKET; MAG VLV
(B)
1-82569-277-2
01
1
1306-
282
BRACKET; MAG VLV
(A)
1-82569-421-0
01
1
1306-
282
BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C)
1-47471-175-0
01
1
1306-
604
VALVE; MAG,ENG CONT
1-82563-871-2
01
1
1306-

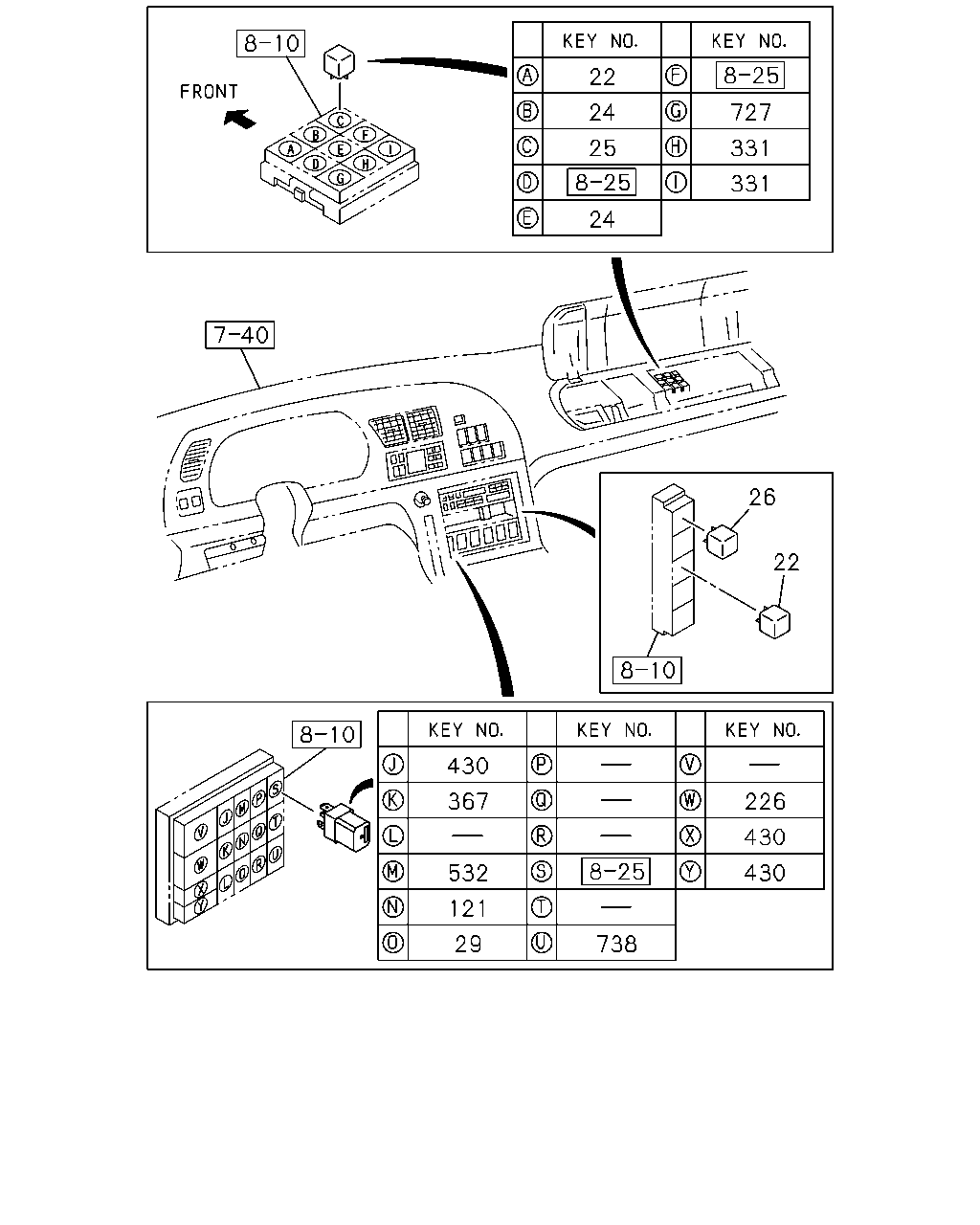

22
24
25
24
727
331
331
26
22
430
367
532
121
29
738
226
430
430
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
02
1
1306-
24
RELAY; LIGHTING
24V 12.5A PANASONIC
8-97262-933-0
02
1
1306-
25
RELAY; TAIL LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
26
RELAY; CONSENT
24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
29
RELAY; HORN
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
121
RELAY; PARKING BRK
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
226
RELAY; EXH BRK
24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
331
RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC
8-97262-933-0
02
1
1306-
367
RELAY; NEUTRAL
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
430
RELAY; RANGE
24V 10A PANASONIC
8-97173-035-1
03
1
1306-
532
RELAY; SEAT BELT WARNING
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
727
RELAY; START CUT
24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
738
RELAY; EXH & RETARDER CUT
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
