3-20 — AIR TANK (#12327) — 82 parça
çizim 18675
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0105-0512
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0601-

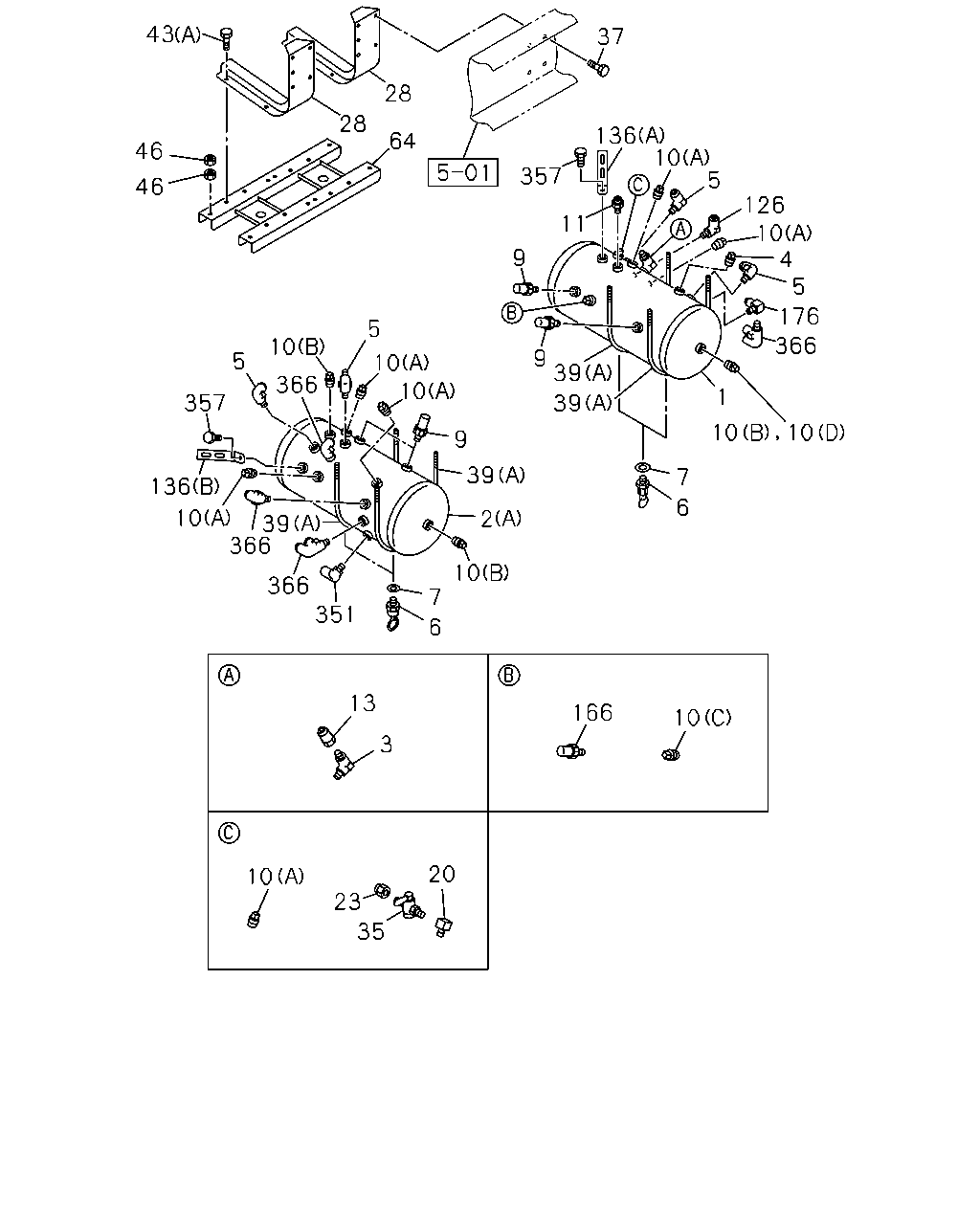

çizim 18676
37 28 28 136 10 64 46 5 357 46 126 10 4 5 11 9 176 5 366 10 9 39 5 10 10 366 1 357 39 10 10 9 39 7 136 6 10 39 366 2 10 366 7 351 6 13 166 10 3 20 10 23 35 43
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
TRAILER BRAKE HAND CONTROL<NLG> 		1-48370-885-0 01 1 0105-
2 TANK; AIR
(B) 		1-48371-146-0 01 1 0105-
2 TANK; AIR
TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-48370-884-0 01 1 0105-
3 VALVE; CHECK,AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 0105-
4 CONNECTOR; FLARE
TRAILER BRAKE HAND CONTROL<NLG> DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0105-0301
5 UNION; AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0105-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0105-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0105-
6 COCK; DRAIN,AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> 		1-48312-015-0 03 1 0105-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0105-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0105-
7 GASKET; DRAIN COCK
TRAILER BRAKE HAND CONTROL<NLG> ID=14 		1-09630-145-0 03 1 0105-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> 530KPA 		1-48340-054-1 04 1 0105-
10 PLUG; AIR TANK
EXC. FULL FLOATING CAB(W16) (C) PT1/4 		9-99204-513-0 01 1 0105-
10 PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<W47> (A) PT3/8 		9-09204-517-0 01 1 0105-
10 PLUG; AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> (A) PT3/8 		9-09204-517-0 05 1 0105-
10 PLUG; AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> (B) PT3/4 		9-09204-526-0 03 1 0105-0301
10 PLUG; AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> (D) PT3/4 		9-09204-526-0 01 1 0302-
11 VALVE; SAFETY,AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> 		1-48320-012-2 01 1 0105-
13 ADAPTER; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
20 NIPPLE; AIR TANK
TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0105-
23 CAP; COCK,AIR TANK
TIRE INFLATOR DEVICE<W47> 		9-48319-102-0 01 1 0105-
28 BRACKET; AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> 		1-48317-826-5 02 1 0105-
35 COCK; AIR,AIR TANK
TIRE INFLATOR DEVICE<W47> 		1-09680-099-0 01 1 0105-
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28681-240-0 08 1 0105-0512
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 08 1 0601-
39 U-BOLT; AIR TANK
(B) 		1-48317-675-0 02 1 0105-
39 U-BOLT; AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-48317-675-0 04 1 0105-
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0201
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0202-0512
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
43 BOLT; STAY,AIR TANK,MAIN
TRAILER BRAKE HAND CONTROL<NLG> (B) M12X30 FLANGE 		0-28681-230-0 08 1 0105-0512
43 BOLT; STAY,AIR TANK,MAIN
TRAILER BRAKE HAND CONTROL<NLG> (B) M12X30 FLANGE 		0-28651-230-0 08 1 0601-
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0105-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0601-
46 NUT; U-BOLT
TRAILER BRAKE HAND CONTROL<NLG> M8 		9-09110-408-0 16 1 0105-0512
46 NUT; U-BOLT
TRAILER BRAKE HAND CONTROL<NLG> M8 		0-91110-508-0 16 1 0601-
64 STAY; AIR TANK,MAIN
TRAILER BRAKE HAND CONTROL<NLG> 		1-48317-801-1 01 1 0105-
126 CONNECTOR; ELBOW
TRAILER BRAKE HAND CONTROL<NLG> DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
136 BRACKET; CLIP
TRAILER BRAKE HAND CONTROL<NLG> (A) L=150 H=30 		1-47477-629-2 01 1 0105-
136 BRACKET; CLIP
TRAILER BRAKE HAND CONTROL<NLG> (B) L=100 H=30 		1-47477-645-2 01 1 0105-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
FULL FLOATING CAB(W16) 650KPA 		1-48340-059-1 01 1 0105-
176 ADAPTER
TRAILER BRAKE HAND CONTROL<NLG> PT3/8 ELBOW 		1-09660-696-0 01 1 0105-
351 CONNECTOR; TEST
TRAILER BRAKE HAND CONTROL<NLG> R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 02 1 0105-
357 BOLT; BRKT
TRAILER BRAKE HAND CONTROL<NLG> M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
357 BOLT; BRKT
TRAILER BRAKE HAND CONTROL<NLG> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
366 CONNECTOR; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 04 1 0105-
çizim 76157
39 26 27 26 31 32 67 39 30 7 2 82 6 30 43
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
(B) 		1-48371-146-0 01 1 0105-
2 TANK; AIR
TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-48370-884-0 01 1 0105-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0105-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0105-
6 COCK; DRAIN,AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> 		1-48312-015-0 03 1 0105-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0105-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0105-
7 GASKET; DRAIN COCK
TRAILER BRAKE HAND CONTROL<NLG> ID=14 		1-09630-145-0 03 1 0105-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 04 1 0105-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0105-
30 BRACKET; AIR TANK,SUB 1-48317-910-1 02 1 0105-0201
30 BRACKET; AIR TANK,SUB 1-48317-988-0 02 1 0202-
31 BOLT; BRKT TO FRAME
M12X40 FLANGE 		0-28681-240-0 04 1 0105-0512
31 BOLT; BRKT TO FRAME
M12X40 FLANGE 		0-28651-240-0 04 1 0601-
32 NUT; BRKT TO FRAME
M12 FLANGE 		0-91150-212-0 02 1 0105-
39 U-BOLT; AIR TANK
(B) 		1-48317-675-0 02 1 0105-
39 U-BOLT; AIR TANK
TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-48317-675-0 04 1 0105-
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0201
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0202-0512
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
43 BOLT; STAY,AIR TANK,MAIN
TRAILER BRAKE HAND CONTROL<NLG> (B) M12X30 FLANGE 		0-28681-230-0 08 1 0105-0512
43 BOLT; STAY,AIR TANK,MAIN
TRAILER BRAKE HAND CONTROL<NLG> (B) M12X30 FLANGE 		0-28651-230-0 08 1 0601-
67 STAY; SUB TANK 1-48317-911-0 01 1 0105-0201
67 STAY; SUB TANK 1-48317-989-0 01 1 0202-
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-
çizim 80741
121 95 104 111 111 111 103 104 103
BalonParca AdiParca NoAdetTipApplied Date
95 VALVE; DOUBLE CHECK 1-48410-531-1 01 1 0105-
103 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0105-0512
103 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0601-
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 0105-
111 CONNECTOR; CHECK VLV
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 0105-
111 CONNECTOR; CHECK VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0105-
121 BOLT; DOUBLE CHECK VLV
M8X16 FLANGE 		0-28080-816-0 02 1 0105-0512
121 BOLT; DOUBLE CHECK VLV
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
