◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11536 - EXZ LHD EURO2 WITH REFLECTOR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#123268) — 295 parça
çizim 363822
423 515 515 294 219 524 515 340 119
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1306-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1306-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 1306-
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 1306-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306-
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1306-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306-
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1306-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1306-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1306-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1306-
515 NUT; BRKT
(C) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 06 1 1306-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 1306-
çizim 363942
375 342 335 334
BalonParca AdiParca NoAdetTipApplied Date
334 BRACKET 8-98212-895-0 01 1 1306-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1306-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 1306-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1306-

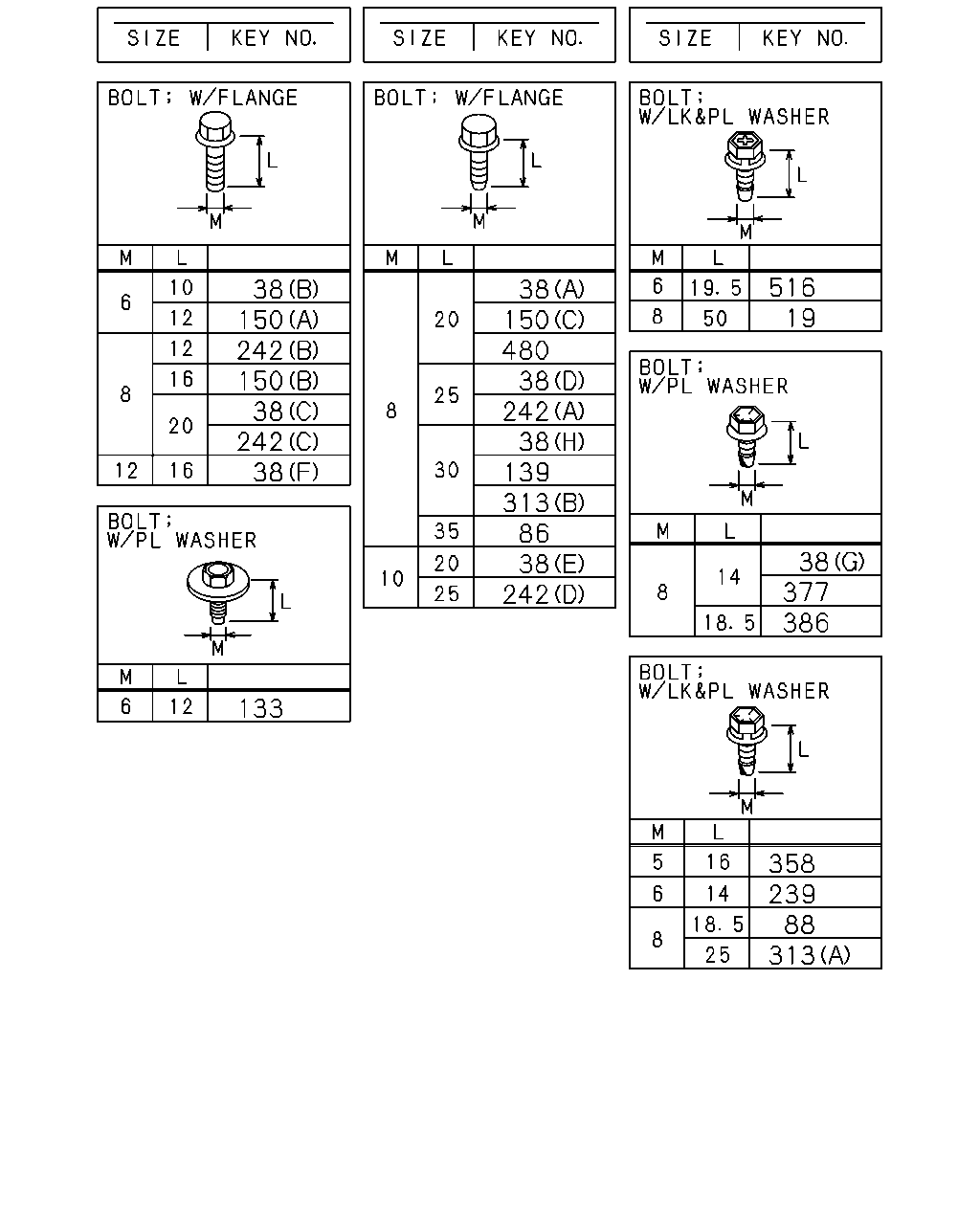

çizim 365138
133 38 242 38 150 242 150 38 242 38 86 313 139 38 242 38 480 150 38 38 377 386 19 516 358 239 88 313
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; PROTECTOR
M8X50 W/LK&PL WASHER 		0-50640-850-0 02 1 1306-
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 1306-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28650-830-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28650-830-0 06 1 1306-
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 1306-
38 BOLT; CLIP,HARNESS
(G) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1306-
86 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1306-
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1306-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1306-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1306-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1306-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1306-
150 BOLT; CLIP
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1306-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1306-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1306-
242 BOLT; BRKT,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28651-025-0 01 1 1306-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
313 BOLT; BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1306-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1306-
377 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1306-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1306-
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1306-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-

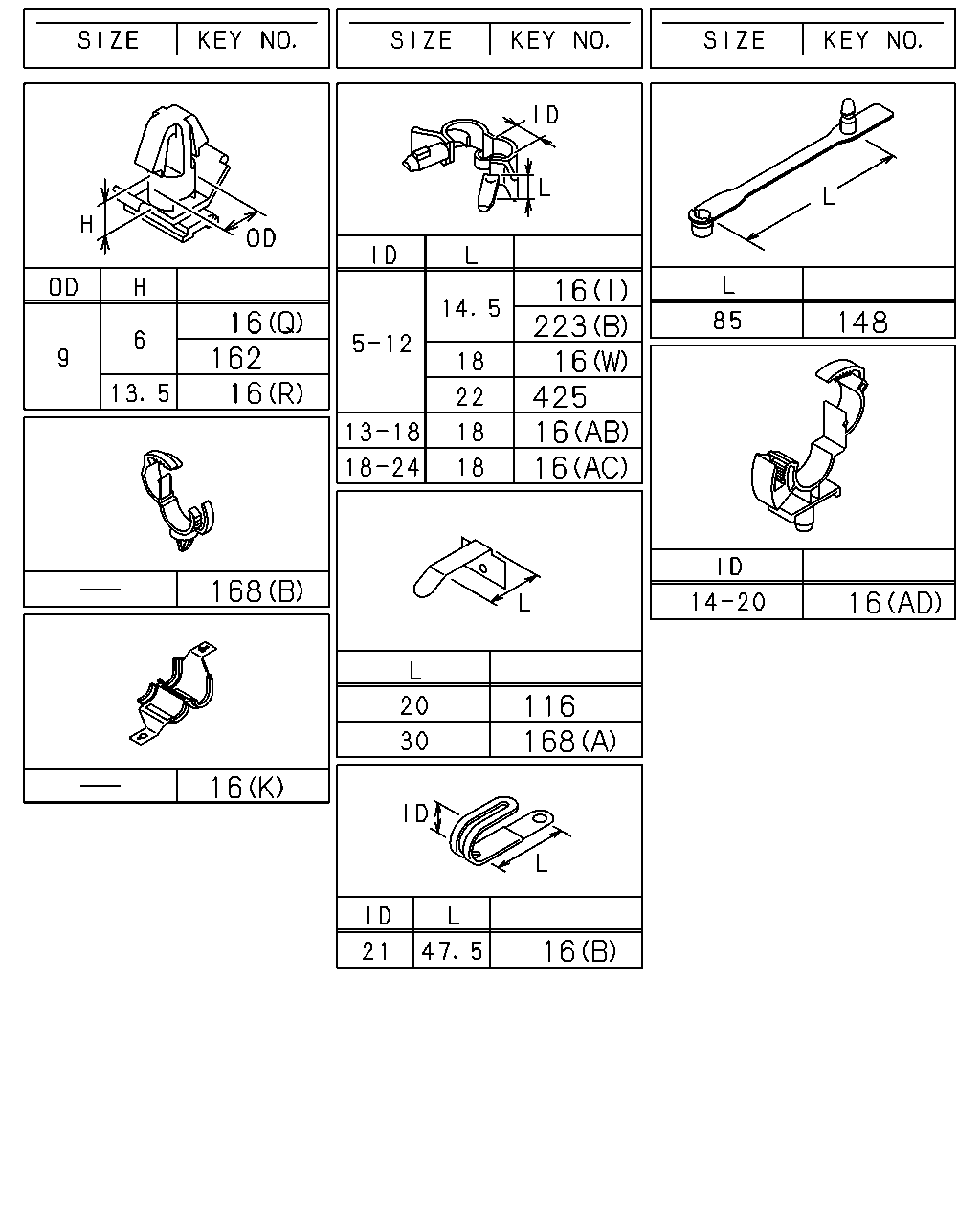

çizim 365299
16 162 16 168 16 16 16 425 16 223 16 148 16 116 168 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1306-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1306-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1306-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1306-
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1306-
16 CLIP; HARNESS
(X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1306-
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 02 1 1306-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1306-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1306-
16 CLIP; HARNESS
(C) ID=28 L=58 		1-09700-400-0 02 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1306-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
16 CLIP; HARNESS
(N) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1306-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1306-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306-
16 CLIP; HARNESS
(J) L=175 		1-09707-176-1 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1306-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1306-1506
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(R) OD=9 H=13.5 		1-09709-180-0 01 1 1306-
16 CLIP; HARNESS
(W) ID=5-12 L=18 		1-09709-287-0 02 1 1306-1510
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 01 1 1306-1510
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (AB) ID=13-18 L=18 		1-09709-291-0 01 1 1306-1510
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (AB) ID=13-18 L=18 		1-09709-291-0 01 1 1511-
16 CLIP; HARNESS
(AC) ID=18-24 L=18 		1-09709-294-0 02 1 1306-
16 CLIP; HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306-
16 CLIP; HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 04 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 06 1 1306-
16 CLIP; HARNESS
(AA) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
(AA) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1306-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 1306-
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 1306-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1306-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 1306-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 1306-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1306-
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 1306-
168 CLIP; DASH HARNESS
HEATER & DEFROSTER(C41) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1306-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1306-
425 CLIP; MODULATOR
ID=5-12 L=22 		1-09709-288-0 01 1 1306-

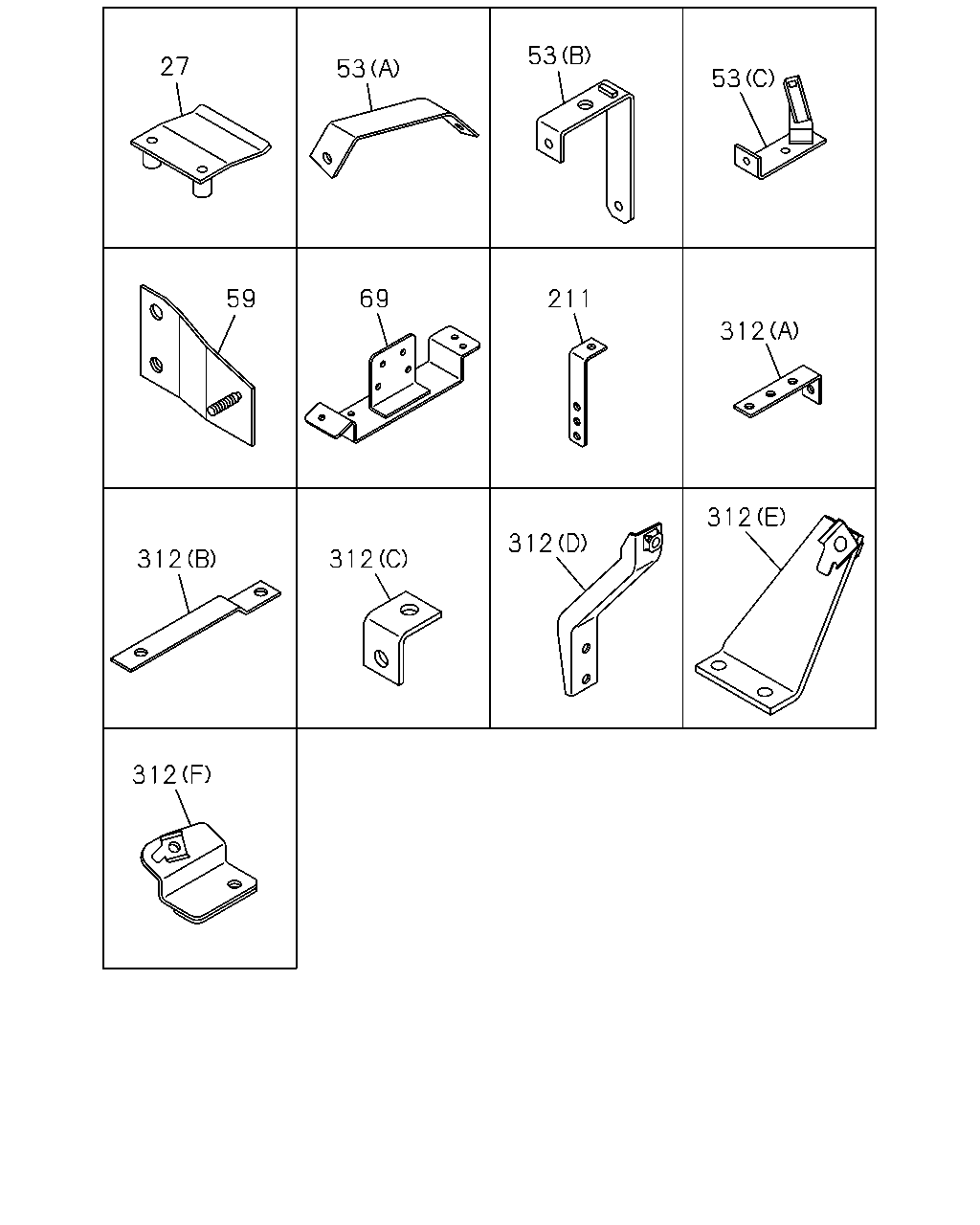

çizim 365357
312 312 312 312 312 312 211 69 59 53 53 53 27
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE 8-98201-145-0 01 1 1306-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1306-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1306-
53 BRACKET; HARNESS
(B) 		8-98212-499-0 01 1 1306-
53 BRACKET; HARNESS
(C) 		8-98212-500-1 01 1 1306-
59 BRACKET; FRAME HARNESS 8-98061-135-1 01 1 1306-
59 BRACKET; FRAME HARNESS
BURRS AND SHARP EDGES 		8-98201-144-0 01 1 1306-
69 BRACKET; CLIP 8-98171-829-0 01 1 1306-
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 1306-
312 BRACKET; CLIP HARNESS
(C) 		1-47477-694-0 02 1 1306-
312 BRACKET; CLIP HARNESS
(A) L=120 H=35 		1-82698-088-0 01 1 1306-
312 BRACKET; CLIP HARNESS
(D) 		8-97636-868-1 02 1 1306-
312 BRACKET; CLIP HARNESS
(B) 		8-98201-136-0 01 1 1306-
312 BRACKET; CLIP HARNESS
(E) 		8-98225-560-0 01 1 1306-
312 BRACKET; CLIP HARNESS
(F) 		8-98233-397-0 01 1 1306-

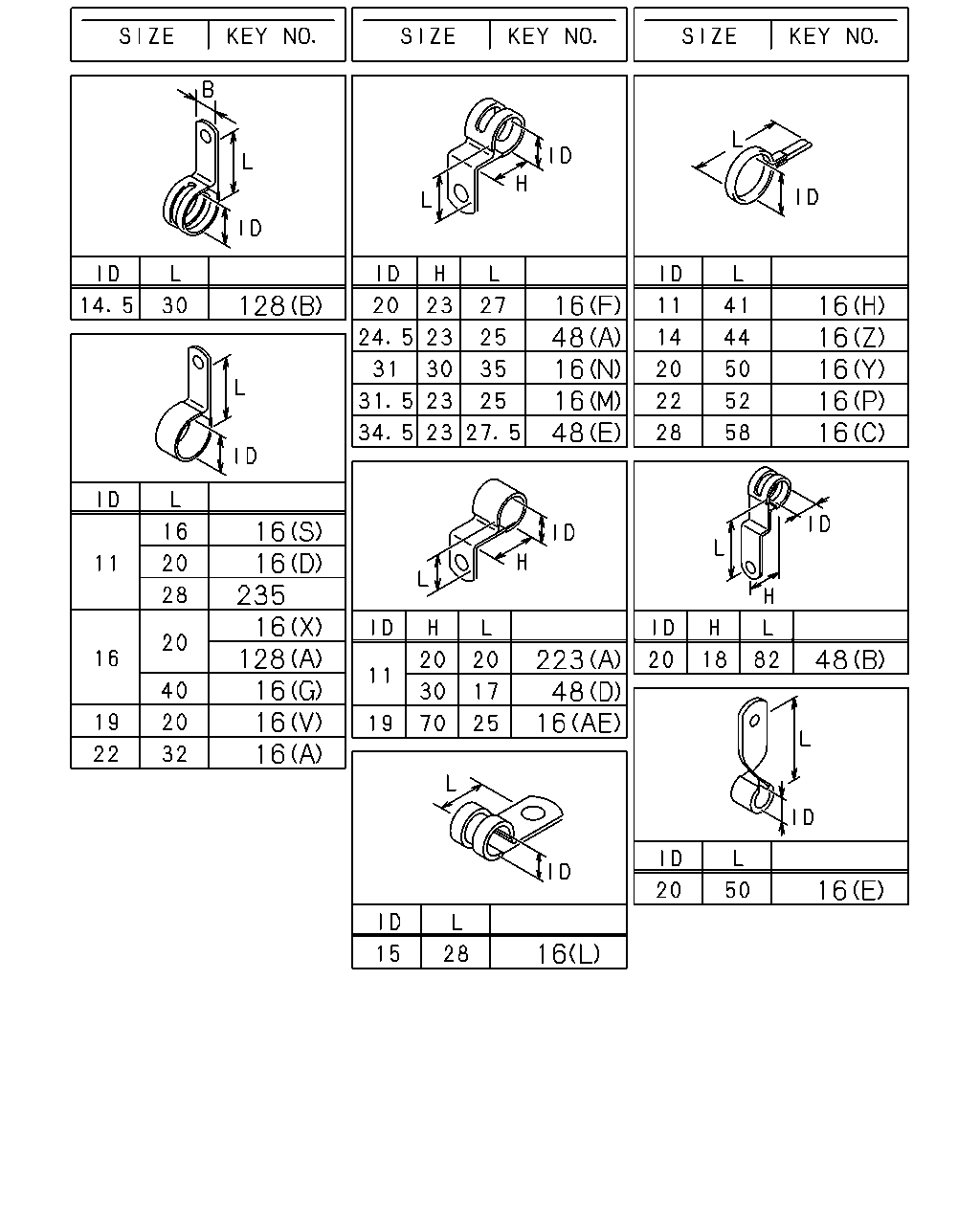

çizim 365388
16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 128 235 128 48 48 223 48 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1306-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1306-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1306-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1306-
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1306-
16 CLIP; HARNESS
(X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1306-
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 02 1 1306-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1306-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1306-
16 CLIP; HARNESS
(C) ID=28 L=58 		1-09700-400-0 02 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1306-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
16 CLIP; HARNESS
(N) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1306-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1306-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306-
16 CLIP; HARNESS
(J) L=175 		1-09707-176-1 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1306-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1306-1506
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(R) OD=9 H=13.5 		1-09709-180-0 01 1 1306-
16 CLIP; HARNESS
(W) ID=5-12 L=18 		1-09709-287-0 02 1 1306-1510
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 01 1 1306-1510
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (AB) ID=13-18 L=18 		1-09709-291-0 01 1 1306-1510
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (AB) ID=13-18 L=18 		1-09709-291-0 01 1 1511-
16 CLIP; HARNESS
(AC) ID=18-24 L=18 		1-09709-294-0 02 1 1306-
16 CLIP; HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306-
16 CLIP; HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 04 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 06 1 1306-
16 CLIP; HARNESS
(AA) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
(AA) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1306-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 1306-
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 1306-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1306-
48 CLIP; FRAME HARNESS
(D) ID=11 H=30 L=17 		1-09700-113-0 01 1 1306-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1306-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1306-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1306-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1306-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1306-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1306-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1306-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=11 L=28 		9-09917-544-0 01 1 1306-

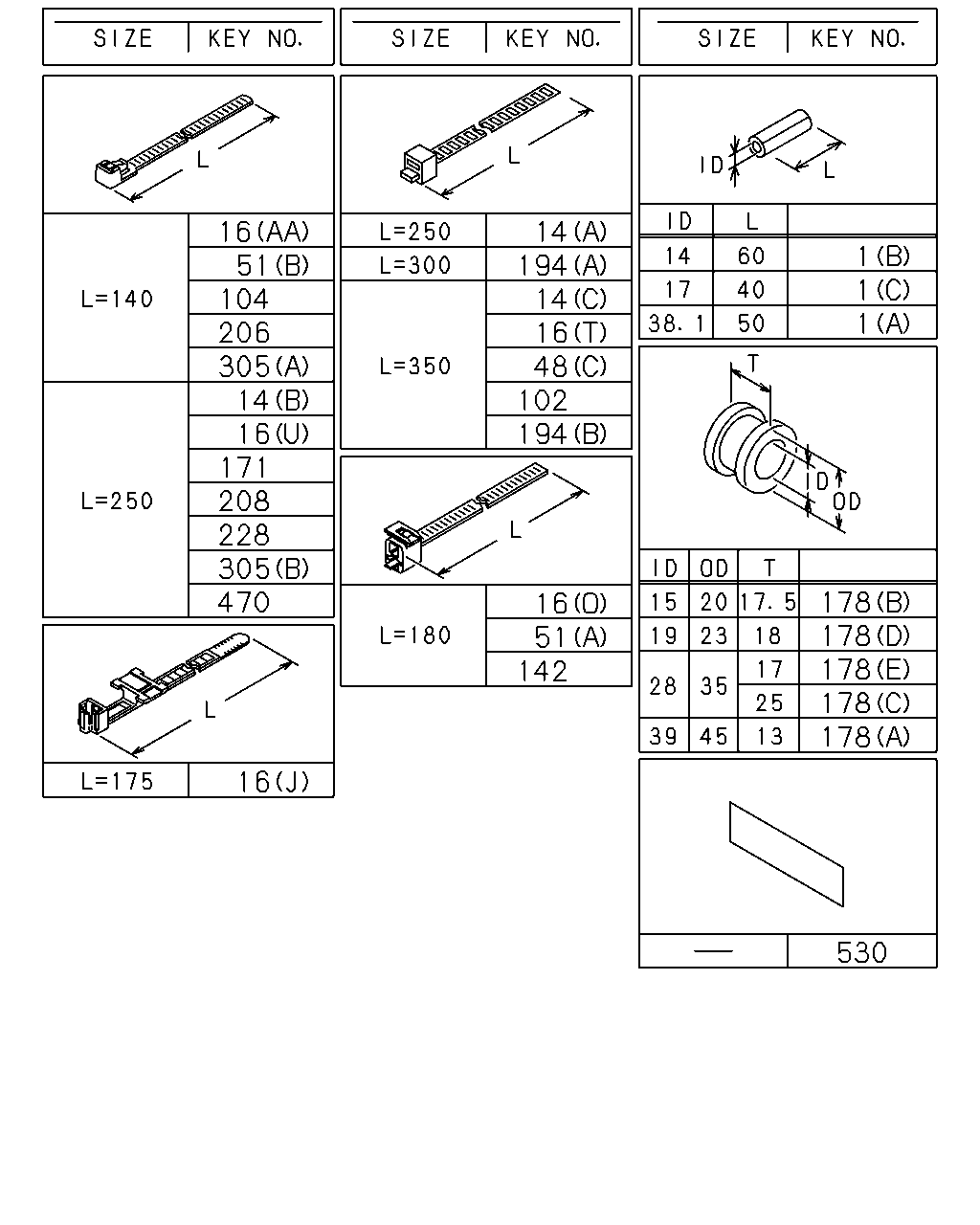

çizim 365404
178 178 178 178 178 1 1 1 530 142 51 16 194 102 48 16 14 194 14 16 470 305 228 208 171 16 14 305 206 104 51 16
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(C) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1306-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1306-
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1306-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 1306-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 1306-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1306-
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1306-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1306-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1306-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1306-
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1306-
16 CLIP; HARNESS
(X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1306-
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 02 1 1306-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1306-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1306-
16 CLIP; HARNESS
(C) ID=28 L=58 		1-09700-400-0 02 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1306-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1306-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
16 CLIP; HARNESS
(N) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1306-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1306-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1306-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306-
16 CLIP; HARNESS
(J) L=175 		1-09707-176-1 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350 		1-09707-183-0 01 1 1306-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1306-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1306-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1306-1506
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(R) OD=9 H=13.5 		1-09709-180-0 01 1 1306-
16 CLIP; HARNESS
(W) ID=5-12 L=18 		1-09709-287-0 02 1 1306-1510
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 01 1 1306-1510
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (AB) ID=13-18 L=18 		1-09709-291-0 01 1 1306-1510
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (AB) ID=13-18 L=18 		1-09709-291-0 01 1 1511-
16 CLIP; HARNESS
(AC) ID=18-24 L=18 		1-09709-294-0 02 1 1306-
16 CLIP; HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306-
16 CLIP; HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 04 1 1306-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 06 1 1306-
16 CLIP; HARNESS
(AA) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
(AA) L=140 		5-09707-031-1 03 1 1306-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1306-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 1306-
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 1306-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 1306-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1306-
48 CLIP; FRAME HARNESS
(D) ID=11 H=30 L=17 		1-09700-113-0 01 1 1306-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1306-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1306-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1306-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1306-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1306-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1306-
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 1306-
104 CLIP; HEADLAMP HARNESS
L=140 		5-09707-031-1 02 1 1306-
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1306-
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 03 1 1306-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1306-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1306-
178 GROMMET; HARNESS
(A) ID=39 OD=45 T=13 		1-09332-076-0 01 1 1306-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1306-
178 GROMMET; HARNESS
(D) ID=19 OD=23 T=18 		9-09956-130-1 01 1 1306-
178 GROMMET; HARNESS
(E) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1306-
178 GROMMET; HARNESS
(E) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1306-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 1306-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 05 1 1306-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1306-
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 1306-
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1306-
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 03 1 1306-
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1306-
470 CLIP; HARNESS,LICENSE LAMP
L=250 		5-09707-030-1 04 1 1306-
530 SEAL; HARNESS
180X40 		1-72498-019-1 12 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1306-
530 SEAL; HARNESS
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 180X40 		1-72498-019-1 01 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
