Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11536 - EXZ LHD EURO2 WITH REFLECTOR
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#123259) — 72 parça
◀

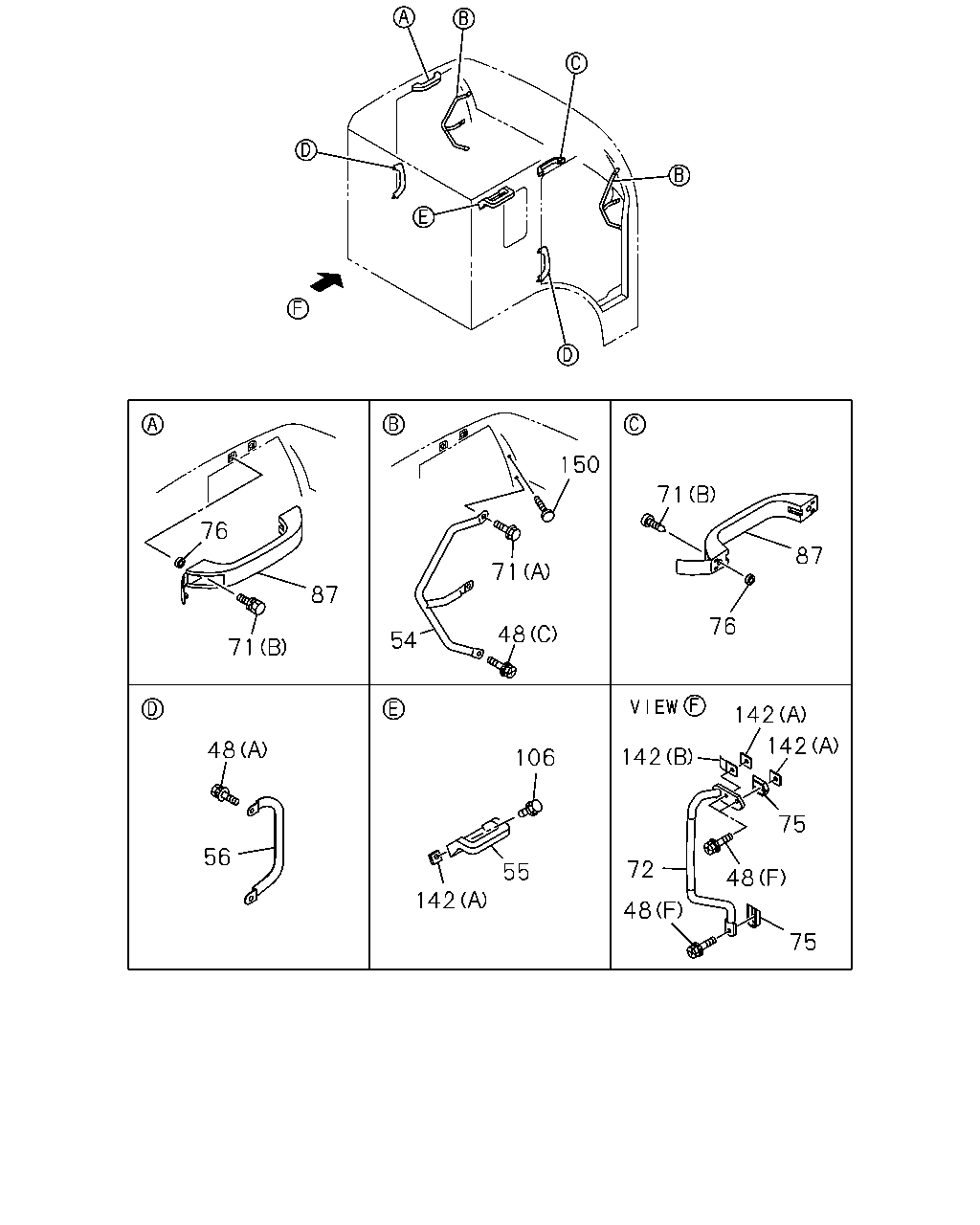

[743A] ASSIST GRIP;CAB OUTSIDE (26 parça)
[743A] ASSIST GRIP;CAB INSIDE (27 parça)

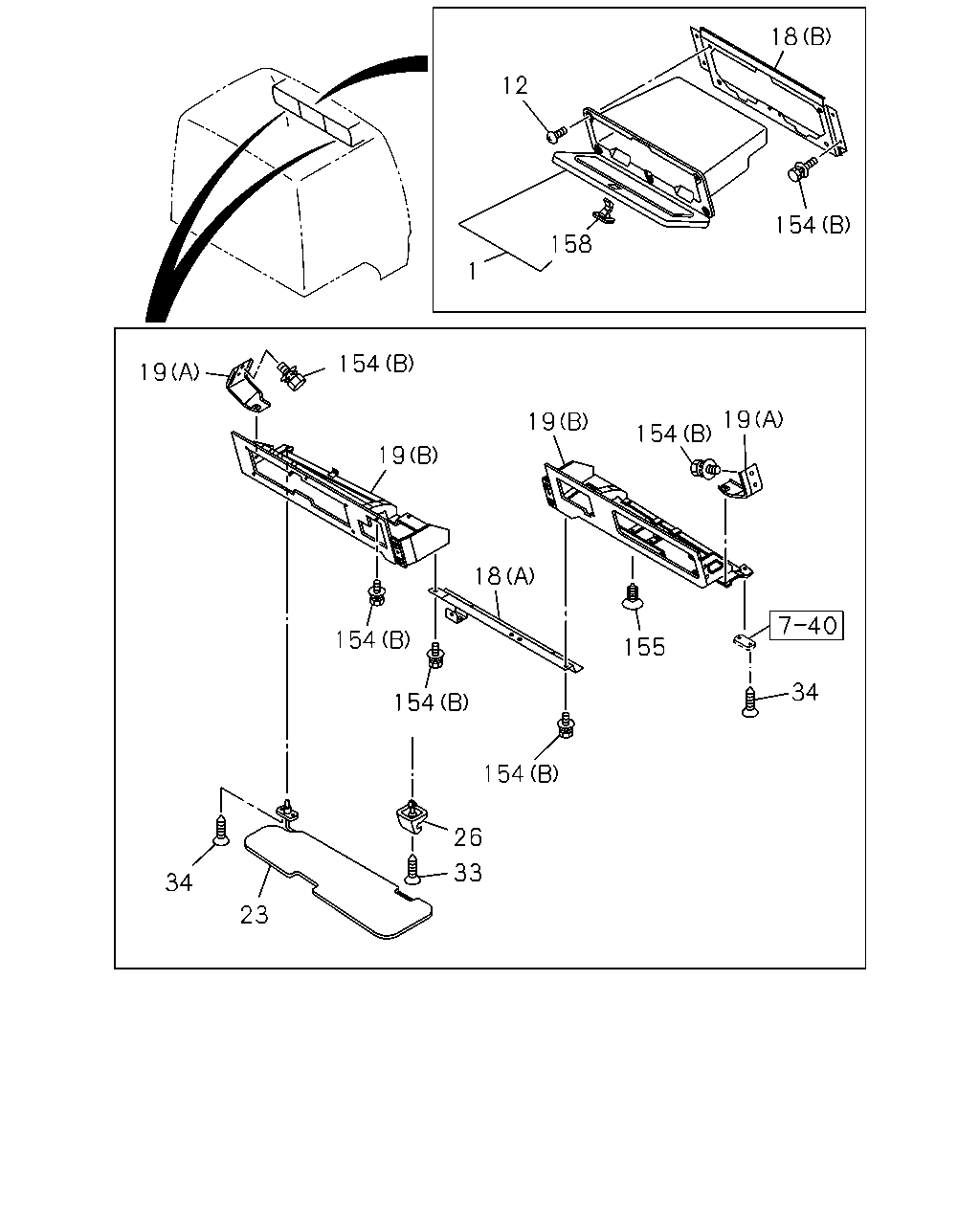

[743A] SUN VISOR AND SUPPORT ASM (19 parça)
▶
154
142
64
64
64
64
62
48
48
48
48
62
66
69
69
66
103
48
59
59
48
48
48
59
48
48
59
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1306-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1306-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1306-
48
BOLT; ASSIST GRIP
(F) M8X29.5 W/LK+PL WASHER
8-94279-218-0
03
1
1306-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1306-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1306-
59
COVER; ASSIST GRIP
(A)
1-71998-789-2
02
1
1306-
59
COVER; ASSIST GRIP
(B)
1-71998-790-2
02
1
1306-
62
GRIP; ASSIST,ROOF PANEL
8-97630-819-0
02
1
1306-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
1306-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
1306-
69
BRACKET; ASSIST GRIP
1-65570-243-0
01
1
1306-
69
BRACKET; ASSIST GRIP
1-65570-242-0
01
1
1306-
103
GRIP; ASSIST,FRT PNL
1-71998-940-3
01
1
1306-
103
GRIP; ASSIST,FRT PNL
1-71998-939-3
01
1
1306-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25
8-94272-533-0
04
1
1403-
142
SEAL; ASSIST GRIP
(B)
1-71997-691-1
01
1
1306-
142
SEAL; ASSIST GRIP
(A) 25X25
8-94272-533-0
02
1
1306-1402
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25
8-94272-533-0
02
1
1403-
142
SEAL; ASSIST GRIP
(A) 25X25
8-94272-533-0
02
1
1403-
142
SEAL; ASSIST GRIP
(C) OD=25 BLACK
1-76798-019-0
01
1
1306-
154
BOLT; SUPPORT
GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
1403-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1403-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1306-1402
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
06
1
1403-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1306-
75
75
72
142
142
142
142
71
71
71
48
48
106
55
56
48
54
76
87
48
87
76
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1306-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1306-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1306-
48
BOLT; ASSIST GRIP
(F) M8X29.5 W/LK+PL WASHER
8-94279-218-0
03
1
1306-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1306-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1306-
54
GRIP; ASSIST,QUARTER SIDE
8-98139-071-2
01
1
1306-
54
GRIP; ASSIST,QUARTER SIDE
8-98139-070-2
01
1
1306-
55
GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52>
1-73618-169-1
01
1
1403-
55
GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE,DRIVER & PASSENGER<W63>
1-73618-169-1
02
1
1403-
56
GRIP; ASSIST,SIDE SILL
8-98139-073-1
01
1
1306-
56
GRIP; ASSIST,SIDE SILL
8-98139-072-1
01
1
1306-
71
SCREW
(B) M6X30 W/LK WASHER
5-09981-064-0
04
1
1306-
71
SCREW
(A) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
1306-
72
GRIP; ASSIST,CAB ENTRY,BACK
1-71907-543-0
01
1
1306-
75
SHEET; ASSIST GRIP,CAB ENTRY
1-71997-548-0
02
1
1306-
76
SPACER; ASSIST GRIP
OD=13 T=4.5
8-94230-464-1
04
1
1306-
87
GRIP; ASSIST,CANT RAIL SIDE
DARK GRAY
8-97098-476-2
02
1
1306-
106
SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER
8-94279-210-0
02
1
1403-
106
SCREW; ASSIST GRIP
GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1403-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25
8-94272-533-0
04
1
1403-
142
SEAL; ASSIST GRIP
(B)
1-71997-691-1
01
1
1306-
142
SEAL; ASSIST GRIP
(A) 25X25
8-94272-533-0
02
1
1306-1402
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25
8-94272-533-0
02
1
1403-
142
SEAL; ASSIST GRIP
(A) 25X25
8-94272-533-0
02
1
1403-
142
SEAL; ASSIST GRIP
(C) OD=25 BLACK
1-76798-019-0
01
1
1306-
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY
1-73996-364-0
02
1
1306-
34
19
154
19
155
18
154
154
154
19
154
1
19
23
34
33
26
158
154
18
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
1-72447-968-0
01
1
1306-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1306-
18
SUPPORT; HEADER SHELF CENTER
(B)
1-72447-824-2
01
1
1306-
18
SUPPORT; HEADER SHELF CENTER
(A)
1-72447-937-0
01
1
1306-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-938-4
01
1
1306-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-324-1
01
1
1306-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-878-4
01
1
1306-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-323-1
01
1
1306-
23
SUN VISOR
1-73138-157-1
01
1
1306-
26
HOLDER; SUN VISOR
1-73137-175-0
01
1
1306-
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
01
1
1306-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
1306-
154
BOLT; SUPPORT
GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
1403-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1403-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1306-1402
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
06
1
1403-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1306-
155
FASTENER; HOLDER
1-09983-181-0
01
1
1306-
158
LOCK; HEADER SHELF
1-72538-312-0
01
1
1306-
