7-20 — MIRROR AND MIRROR STAY (#123256) — 156 parça

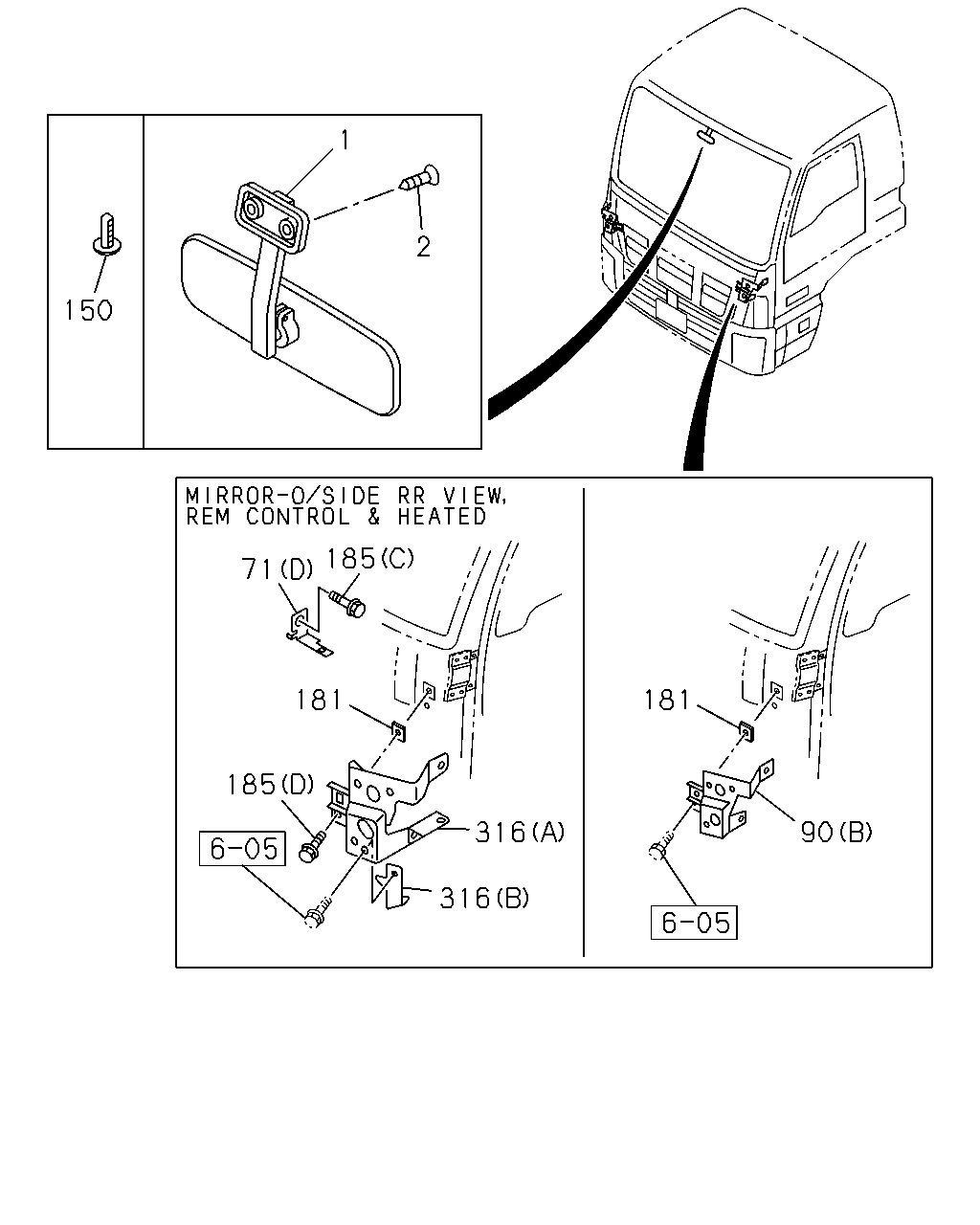

90 181 316 316 185 181 185 71 2 1 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM RR VIEW MIRROR<D31>	1-73117-033-1	01	1	1306-
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X20	1-09981-310-0	02	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D)	8-98039-277-2	02	1	1306-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1306-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1306-
90	BRACKET; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	1-71798-829-1	01	1	1306-
150	PLUG; MIRROR HOLE EXC. RR VIEW MIRROR<D31> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1306-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1306-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1306-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE	0-28050-816-0	02	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1306-
316	BRACKET; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98245-438-0	01	1	1306-
316	BRACKET; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98245-440-0	01	1	1306-

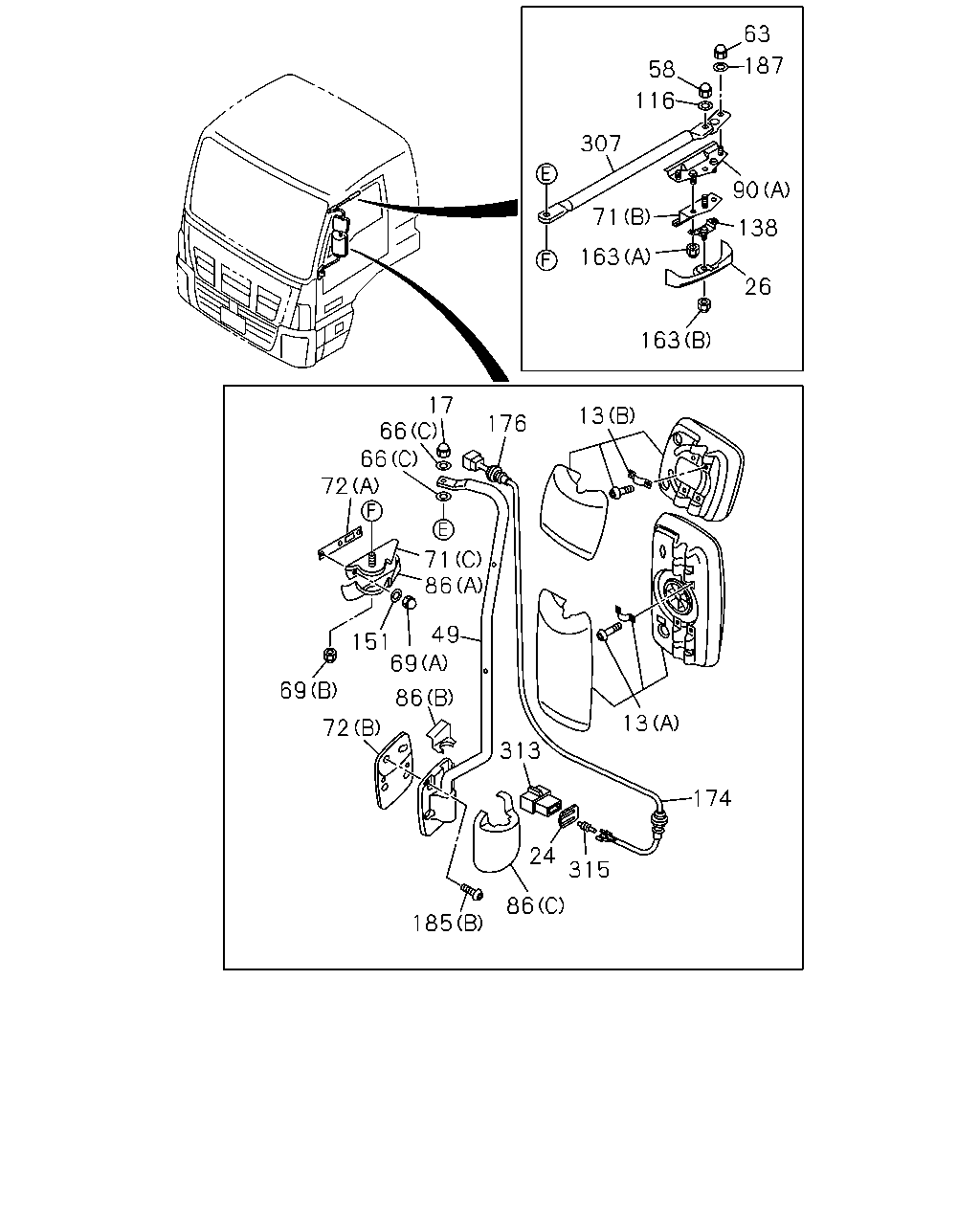

174 315 24 86 185 313 13 72 86 69 69 151 49 86 71 72 66 176 17 66 13 163 26 138 163 71 90 307 187 116 58 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (B)	8-98162-676-1	02	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98043-176-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98043-060-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98055-992-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98055-991-1	01	1	1306-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	1306-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	03	1	1306-
24	HOLDER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-94447-536-0	02	1	1306-
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1306-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98222-325-0	01	1	1306-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98222-324-0	01	1	1306-
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98234-648-0	01	1	1306-
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98234-647-0	01	1	1306-
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1306-
63	NUT; STAY M8	1-09984-187-0	06	1	1306-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1306-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1306-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1306-
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1306-
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D)	8-98039-277-2	02	1	1306-
72	SHEET (A)	8-98147-891-0	02	1	1306-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98101-865-0	01	1	1306-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98101-864-0	01	1	1306-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98116-605-0	01	1	1306-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98116-604-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1306-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1306-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1306-
90	BRACKET; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	1-71798-829-1	01	1	1306-
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1306-
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1306-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1306-
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1306-
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1306-
174	HARNESS; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-97644-030-0	02	1	1306-
176	GROMMET; HARNESS MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	1-82699-906-0	02	1	1306-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1306-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE	0-28050-816-0	02	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1306-
187	WASHER; LK,BRKT ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1306-
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1306-
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1306-
313	CONNECTOR; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-94447-532-0	02	1	1306-
315	RUBBER ASM; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	1-82691-026-0	02	1	1306-

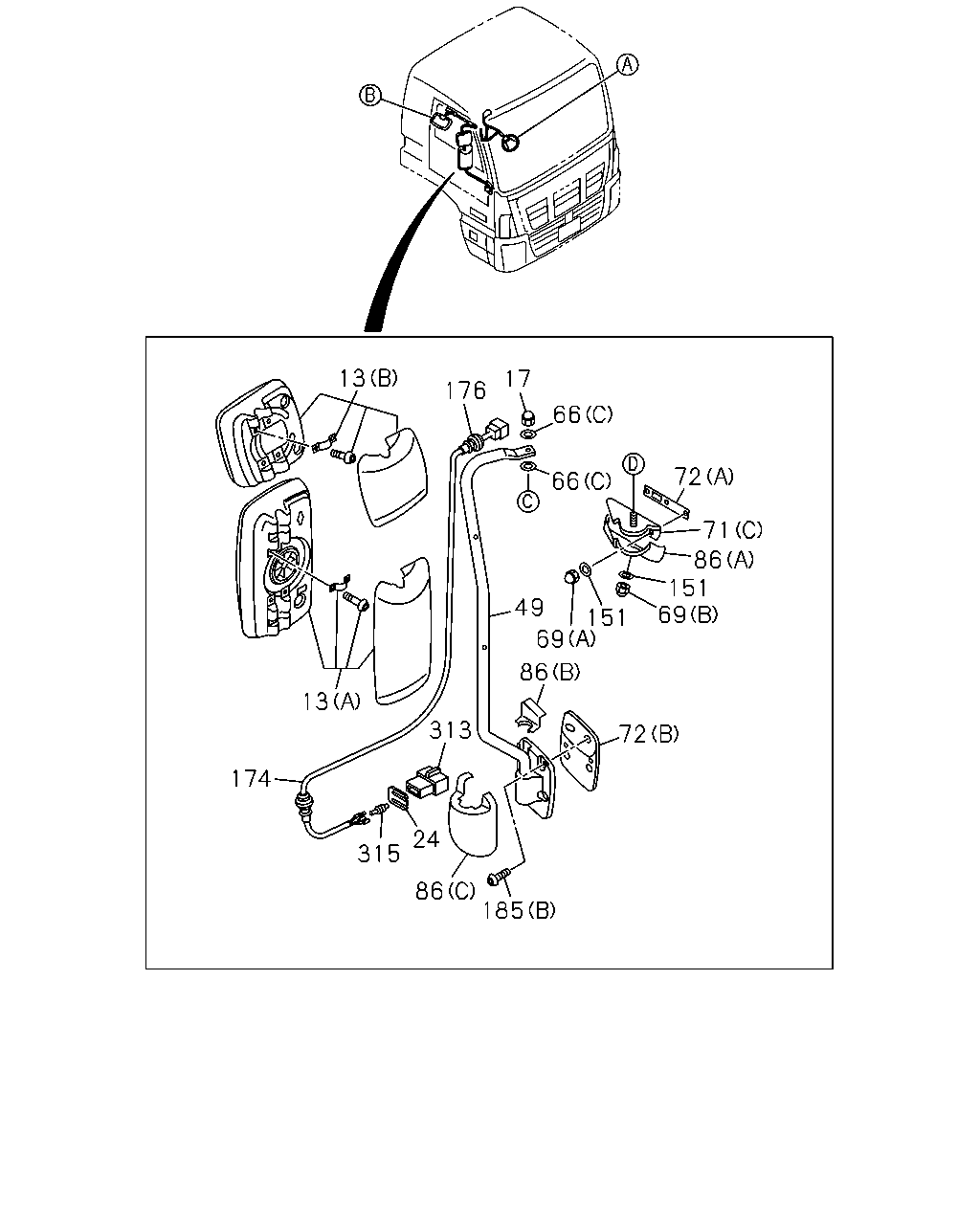

185 86 315 174 13 13 176 17 66 72 71 66 86 69 151 49 69 86 313 72 151 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (B)	8-98162-676-1	02	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98043-176-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98043-060-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98055-992-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98055-991-1	01	1	1306-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	1306-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	03	1	1306-
24	HOLDER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-94447-536-0	02	1	1306-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98222-325-0	01	1	1306-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98222-324-0	01	1	1306-
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98234-648-0	01	1	1306-
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98234-647-0	01	1	1306-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1306-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1306-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1306-
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1306-
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D)	8-98039-277-2	02	1	1306-
72	SHEET (A)	8-98147-891-0	02	1	1306-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98101-865-0	01	1	1306-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98101-864-0	01	1	1306-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98116-605-0	01	1	1306-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98116-604-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1306-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1306-
174	HARNESS; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-97644-030-0	02	1	1306-
176	GROMMET; HARNESS MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	1-82699-906-0	02	1	1306-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1306-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE	0-28050-816-0	02	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1306-
313	CONNECTOR; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-94447-532-0	02	1	1306-
315	RUBBER ASM; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	1-82691-026-0	02	1	1306-

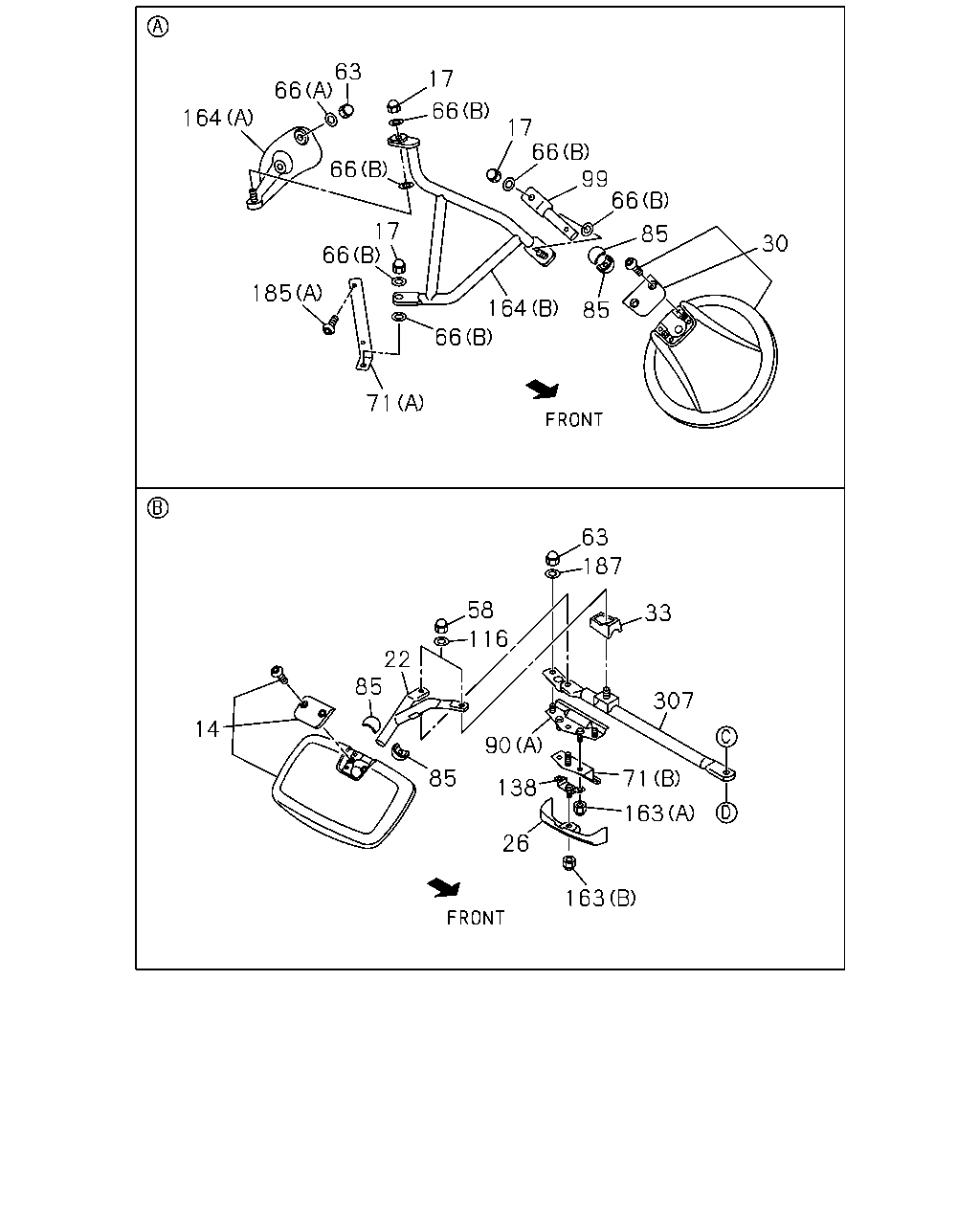

163 163 71 307 26 138 90 33 187 63 116 58 22 85 85 14 30 85 85 164 66 71 185 66 17 66 99 66 17 66 17 66 63 66 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	MIRROR ASM; OUTSIDE	8-98043-065-0	01	1	1306-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	1306-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	03	1	1306-
22	STAY; OUTSIDE MIRROR	8-98154-821-0	01	1	1306-
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1306-
30	MIRROR; UNDER	8-98055-994-0	01	1	1306-1504
30	MIRROR; UNDER	8-98309-725-0	01	1	1505-
33	COVER; MIRROR	8-98171-925-0	01	1	1306-
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1306-
63	NUT; STAY M8	1-09984-187-0	06	1	1306-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1306-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1306-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D)	8-98039-277-2	02	1	1306-
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1306-
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1306-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1306-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1306-
90	BRACKET; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	1-71798-829-1	01	1	1306-
99	STAY; MAIN UNDER MIRROR	8-98092-493-0	01	1	1306-
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1306-
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1306-
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1306-
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1306-
164	STAY; ROOF (A)	1-71798-300-5	01	1	1306-
164	STAY; ROOF (B)	8-98138-918-1	01	1	1306-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1306-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE	0-28050-816-0	02	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1306-
187	WASHER; LK,BRKT ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1306-
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1306-
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1306-
