Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11536 - EXZ LHD EURO2 WITH REFLECTOR
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶
6-76 — FLOOR EQUIPMENT AND SEALING
(#123247) — 26 parça
◀

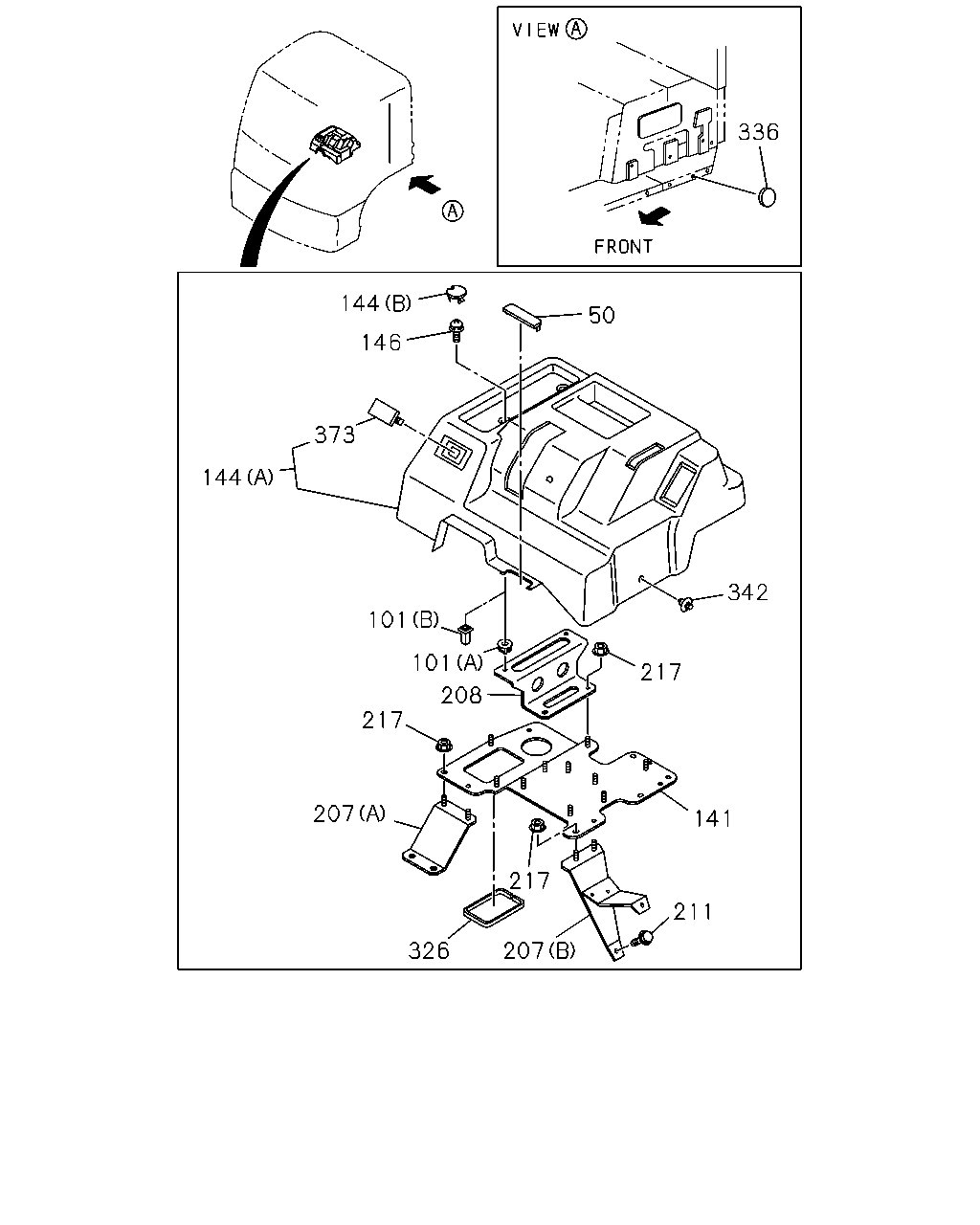

[676A] HAND BRAKE VALVE COVER (21 parça)

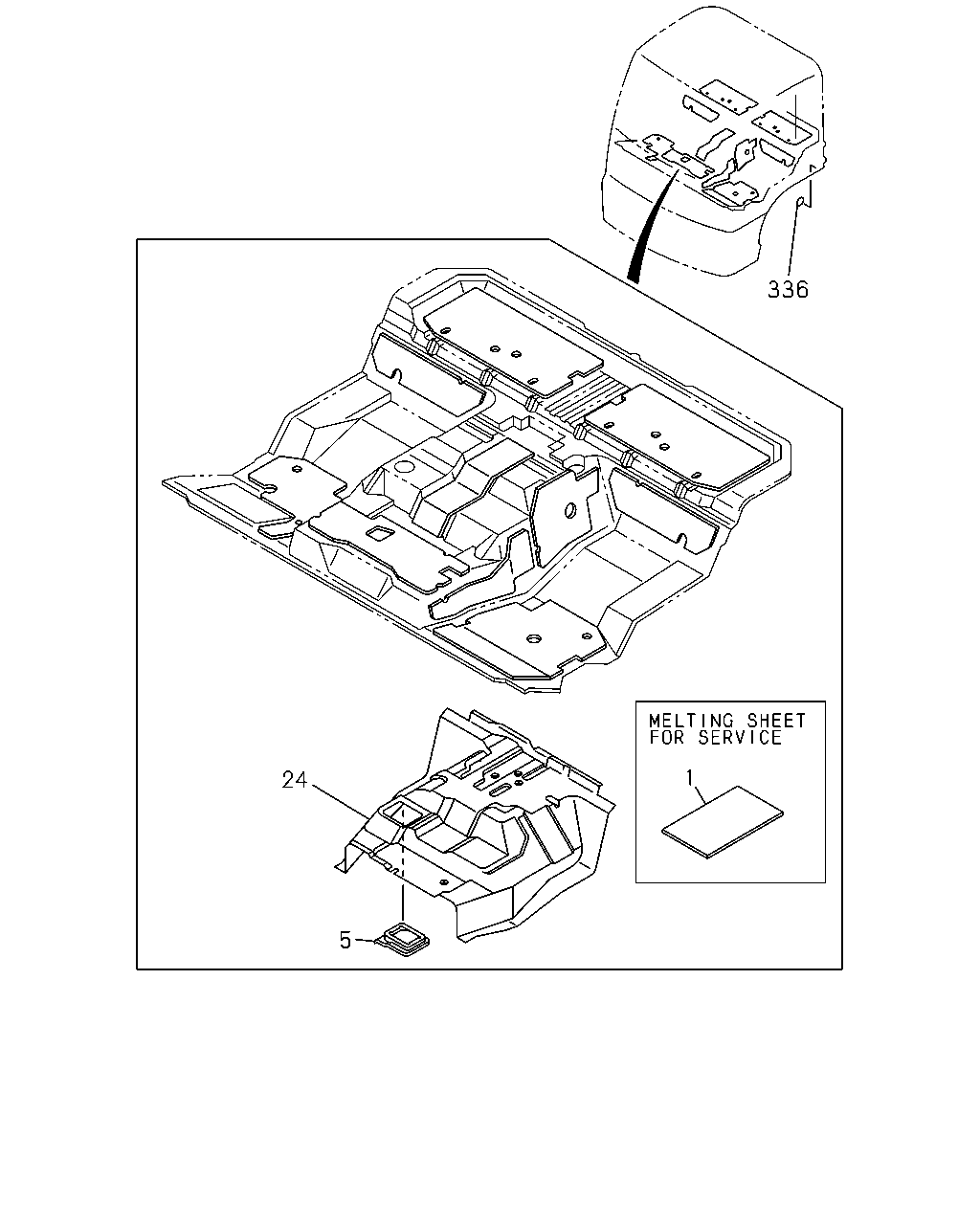

[676A] MELTING SHEET,COVER AND INSULATOR (5 parça)
▶
336
50
144
146
373
144
342
217
141
211
101
101
208
217
207
207
326
217
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
COVER ASM; SUPPORT,SIDE
1-72537-124-0
01
1
1306-
101
GROMMET; SCREW,FLOOR BOARD
(A) D=7X7 L=7.5
5-09983-007-0
02
1
1306-
101
GROMMET; SCREW,FLOOR BOARD
(B) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
01
1
1306-
141
HOLDER
1-79996-438-1
01
1
1306-
144
COVER; HAND BRK VLV
(B)
1-76337-461-0
02
1
1306-
144
COVER; HAND BRK VLV
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)
8-98239-970-0
01
1
1306-
144
COVER; HAND BRK VLV
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)
1-72417-408-0
01
1
1306-
146
BOLT; COVER BRKT
M5X16 W/PL WASHER TAPPING
8-94279-123-0
03
1
1306-
207
BRACKET ASM; HAND BRAKE VALVE
(A)
1-79996-129-1
01
1
1306-
207
BRACKET ASM; HAND BRAKE VALVE
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)
8-98244-889-0
01
1
1306-
207
BRACKET ASM; HAND BRAKE VALVE
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)
1-79996-130-1
01
1
1306-
208
BRACKET ASM; COVER & BRK VLV
1-79996-347-1
01
1
1306-
211
BOLT; COVER
M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1306-
211
BOLT; COVER
M8X30 W/LK&PL WASHER
8-94279-210-0
01
1
1306-
211
BOLT; COVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
1306-
217
NUT
M8 FLANGE
0-91180-108-0
06
1
1306-
326
SEAL; COVER
1-79996-132-0
01
1
1306-
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
01
1
1306-
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
02
1
1306-
342
FASTENER
D8X13.5
1-09987-270-0
01
1
1306-
373
COVER; HOLE
1-72417-409-0
01
1
1306-
336
24
5
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0
1-61970-039-0
AR
1
1306-
5
COVER; CHANGE LEVER
1-33619-163-0
01
1
1306-
24
INSULATOR; HEAT,FRT
8-98198-651-0
01
1
1306-
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
01
1
1306-
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
02
1
1306-
