◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11536 - EXZ LHD EURO2 WITH REFLECTOR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#123246) — 15 parça

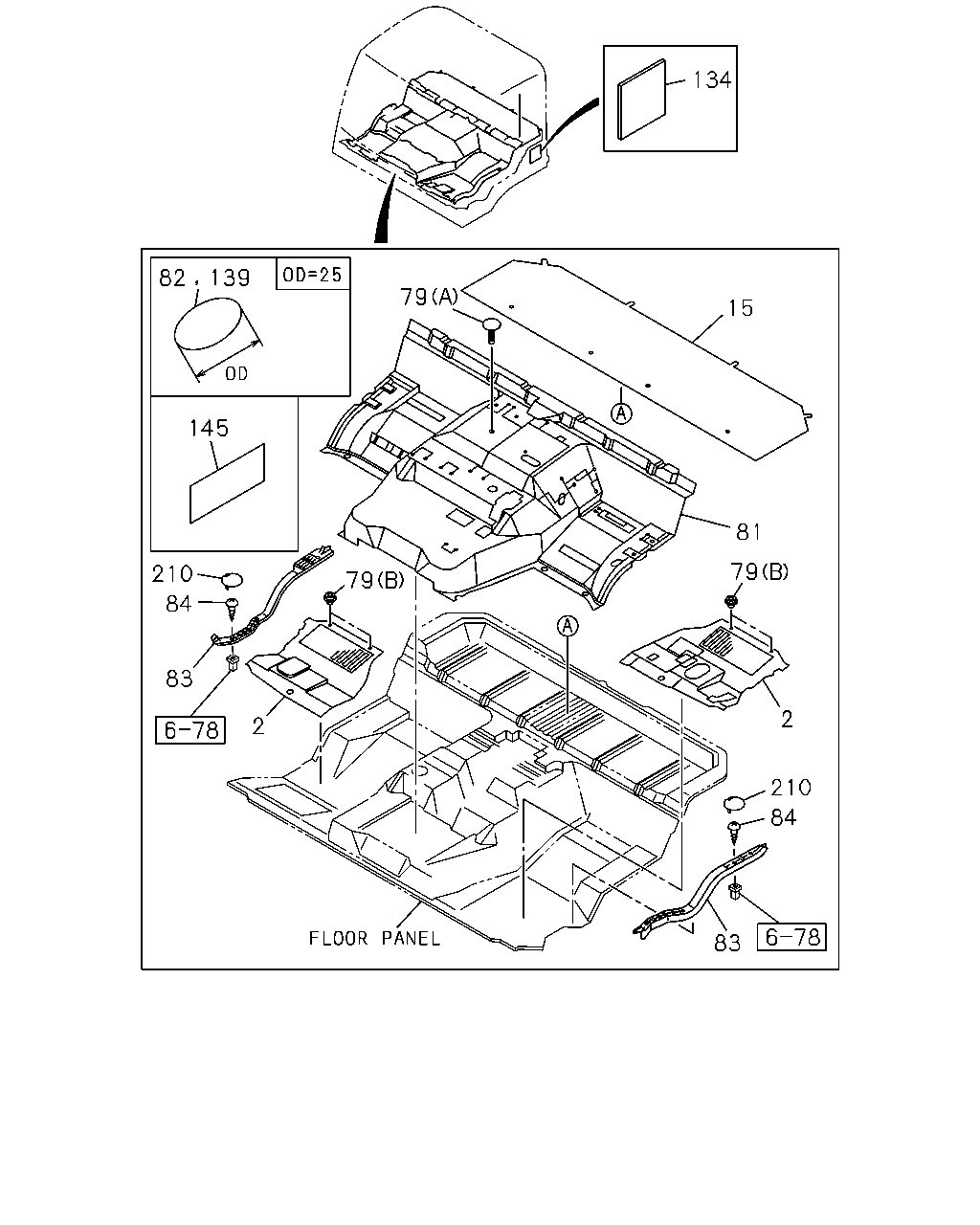

çizim 364968
81 2 210 84 83 79 15 134 79 79 2 83 84 210 145 82 139
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR 1-73237-787-1 01 1 1306-
2 MAT; FLOOR 1-73237-785-1 01 1 1306-
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 1306-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 01 1 1306-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1306-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) 		1-73237-830-2 01 1 1306-
81 MAT; FLOOR,CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-73237-813-3 01 1 1306-
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 01 1 1306-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1306-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1306-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1306-
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 1306-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 1306-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1306-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
