6-47 — MUD GUARD AND INSULATOR (#123242) — 114 parça

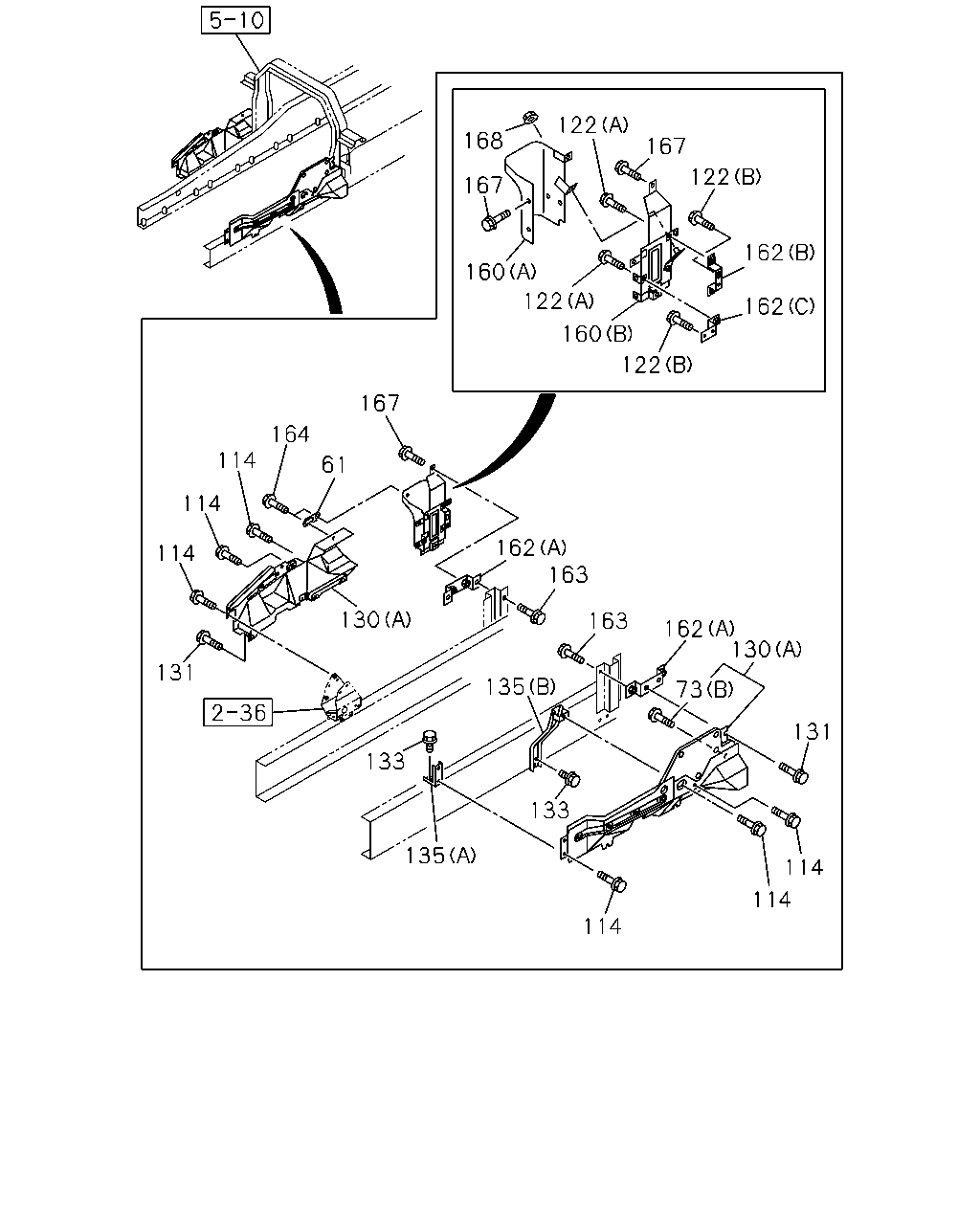

çizim 365620
168 167 160 122 122 160 167 122 122 162 162 167 61 164 114 114 114 131 130 162 163 163 162 130 73 131 114 114 114 133 135 133 135
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> 		8-98039-501-1 01 1 1306-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1306-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1306-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1306-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1306-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 1306-
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE 		0-28650-820-0 03 1 1306-
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1306-
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1306-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1306-
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1306-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1306-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1306-
130 PANEL; SHUTTER NOISE
(D) 		8-98243-959-0 01 1 1306-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1306-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 1306-
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1306-
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-79931-411-2 01 1 1306-
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-412-1 01 1 1306-
162 BRACKET
SILENCER SINGLE VERTICAL<N28> (A) 		1-53441-520-0 01 1 1306-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53441-520-0 02 1 1306-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53441-521-2 01 1 1306-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C) 		1-53441-522-0 01 1 1306-
163 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 02 1 1306-
163 BOLT; BRKT
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 04 1 1306-
164 BOLT; FLEX COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 02 1 1306-
167 BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 05 1 1306-
168 NUT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 01 1 1306-

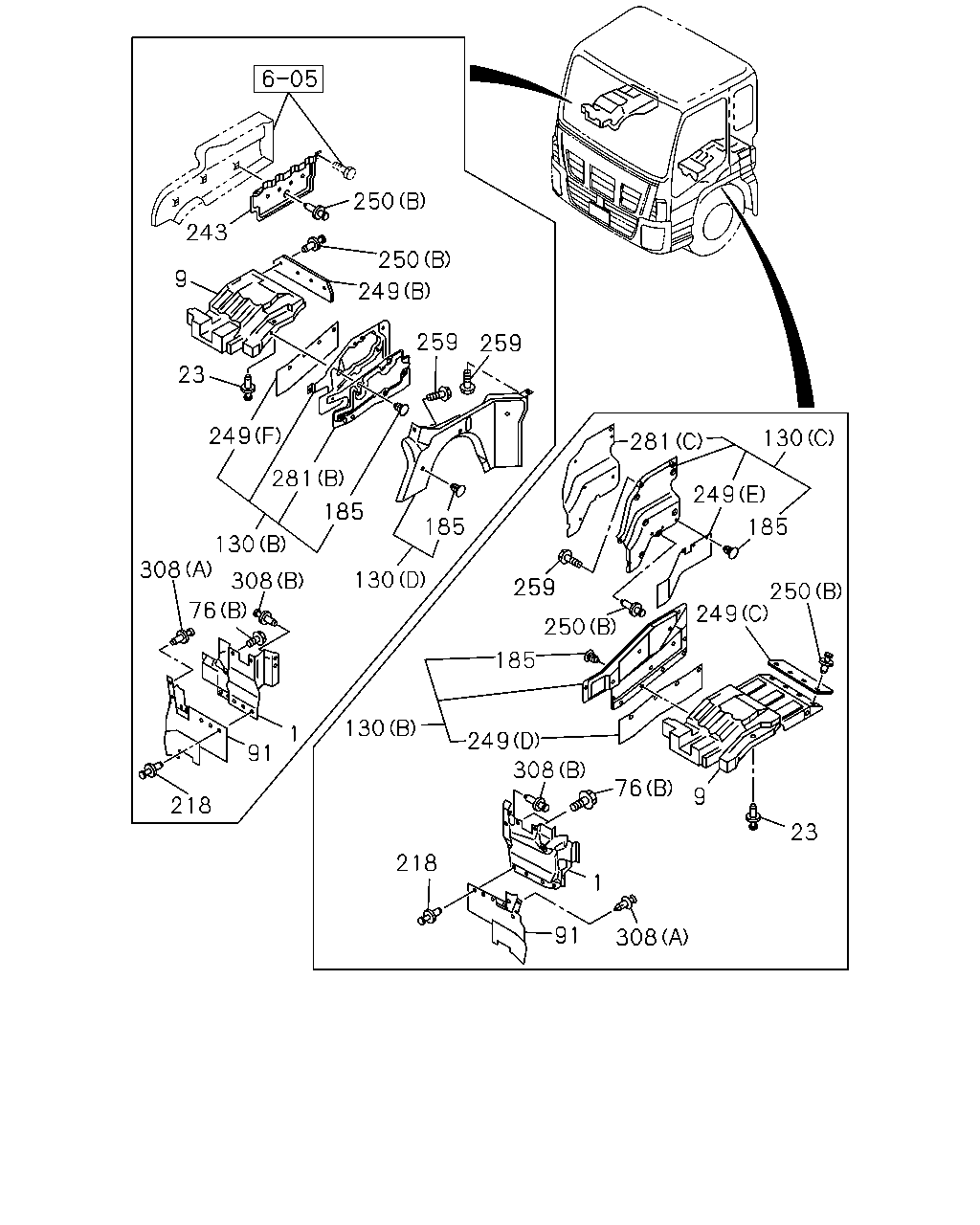

çizim 367112
250 250 249 259 259 243 9 23 249 281 185 185 130 130 308 308 76 1 91 218 281 130 249 185 250 249 250 259 185 130 249 308 76 9 23 1 308 91 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1306-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1306-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1306-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1306-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1306-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1306-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1306-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1306-
91 COVER; MUD,FRT 8-98134-826-2 01 1 1306-
91 COVER; MUD,FRT 8-98134-825-2 01 1 1306-
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1306-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1306-
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1306-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1306-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1306-
130 PANEL; SHUTTER NOISE
(D) 		8-98243-959-0 01 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 1306-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1306-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1306-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1306-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1306-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1306-
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1306-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1306-
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1306-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1306-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1306-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1306-1510
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1511-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1511-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1306-
281 INSULATOR; NOISE
(C) 		1-71907-825-0 01 1 1306-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1306-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 1306-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1306-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1306-

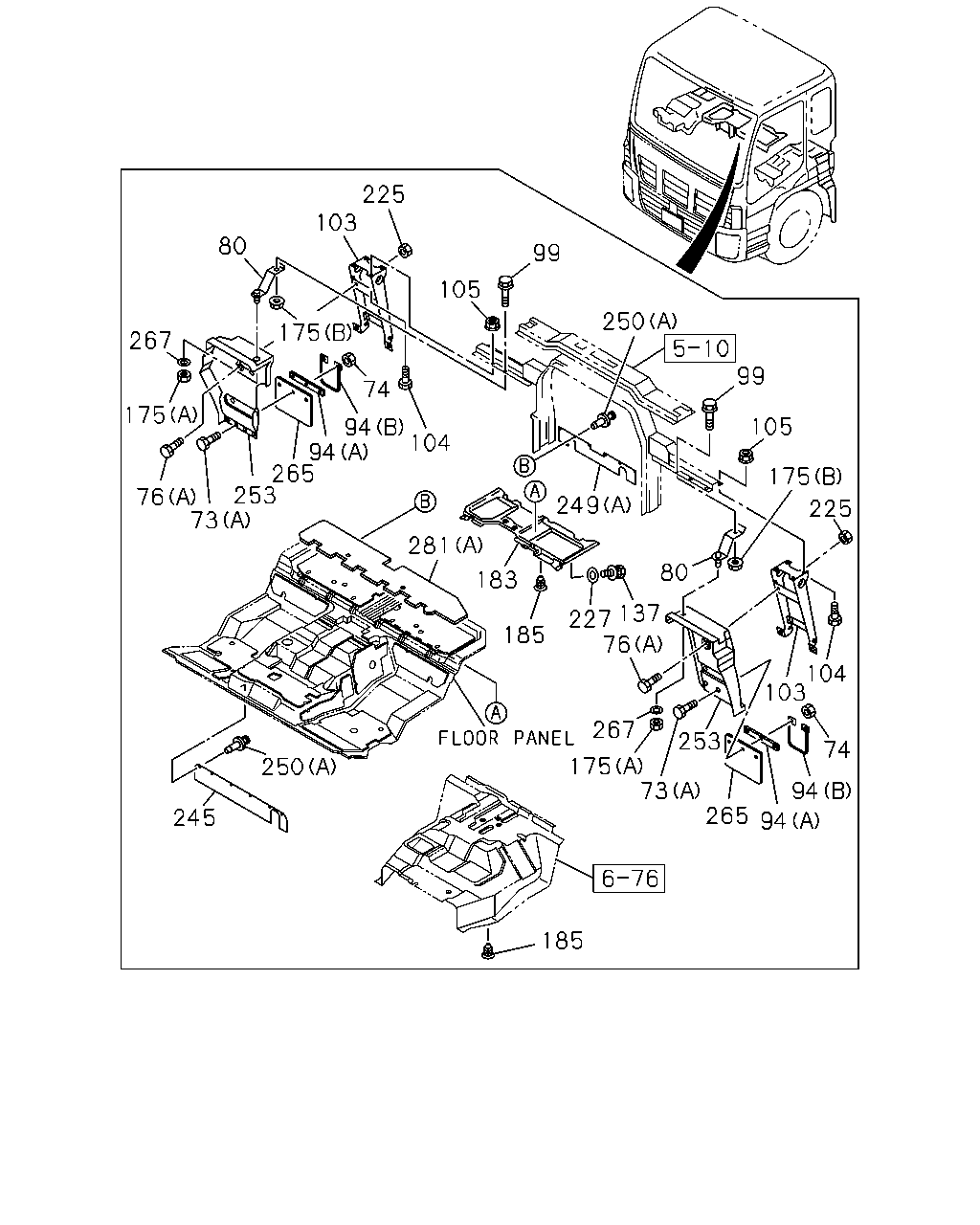

çizim 367237
185 245 250 104 103 74 94 94 265 73 253 175 267 76 137 227 185 80 225 175 105 99 249 183 281 250 99 105 225 103 80 175 74 104 94 94 265 253 73 76 175 267
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1306-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1306-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1306-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1306-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1306-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1306-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1306-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1306-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1306-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1306-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1306-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1306-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1306-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1306-
103 BRACKET ASM; RR MUD FLAP 1-79931-446-0 01 1 1306-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-894-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 1306-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1306-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1306-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1306-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1306-
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 1306-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1306-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1306-
245 RUBBER; SHUTTER,RAD 8-98198-739-0 01 1 1306-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1306-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1306-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1306-
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1306-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1306-
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1306-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1306-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1306-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1306-1510
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1511-
253 GUARD; MUD 8-98134-766-1 01 1 1306-
253 GUARD; MUD 8-98134-759-0 01 1 1306-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1306-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1306-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1306-
281 INSULATOR; NOISE
(C) 		1-71907-825-0 01 1 1306-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1306-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 1306-
