Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11536 - EXZ LHD EURO2 WITH REFLECTOR
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#123225) — 128 parça
◀
[510A] SHOCK ABSORBER;FRONT (13 parça)
[510A] RATCH (11 parça)
[510A] SHOCK ABSORBER;REAR (14 parça)
[510A] CAB MOUNTING;FRONT (25 parça)
[510A] CAB SUSPENSION;REAR (38 parça)
[510A] CAB SUSPENSION;FRONT (27 parça)
▶
202
202
203
204
205
65
204
203
70
72
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
ABSORBER; SHOCK,CAB FRT SUSPENSION
1-51630-604-1
02
1
1306-
69
BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60
0-20801-260-0
02
1
1306-
69
BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105
1-79198-008-1
08
1
1306-
70
BRACKET; S/ABS,CAB FRT SUSP
1-53458-493-1
01
1
1306-
70
BRACKET; S/ABS,CAB FRT SUSP
1-53458-492-1
01
1
1306-
72
WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6
1-09985-184-0
22
1
1306-
202
NUT; S/ABS
(C) M10 FLANGE
0-91180-110-0
02
1
1306-
202
NUT; S/ABS
(A) M10
9-09110-410-0
04
1
1306-
202
NUT; S/ABS
(B) M10
9-09111-410-0
06
1
1306-
203
WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6
1-51631-005-0
10
1
1306-
203
WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5
1-51631-104-0
02
1
1306-
204
RUBBER; CUSHION,SHOCK
1-51631-004-0
12
1
1306-
205
WASHER; RUBBER,SHOCK
1-51631-079-0
08
1
1306-

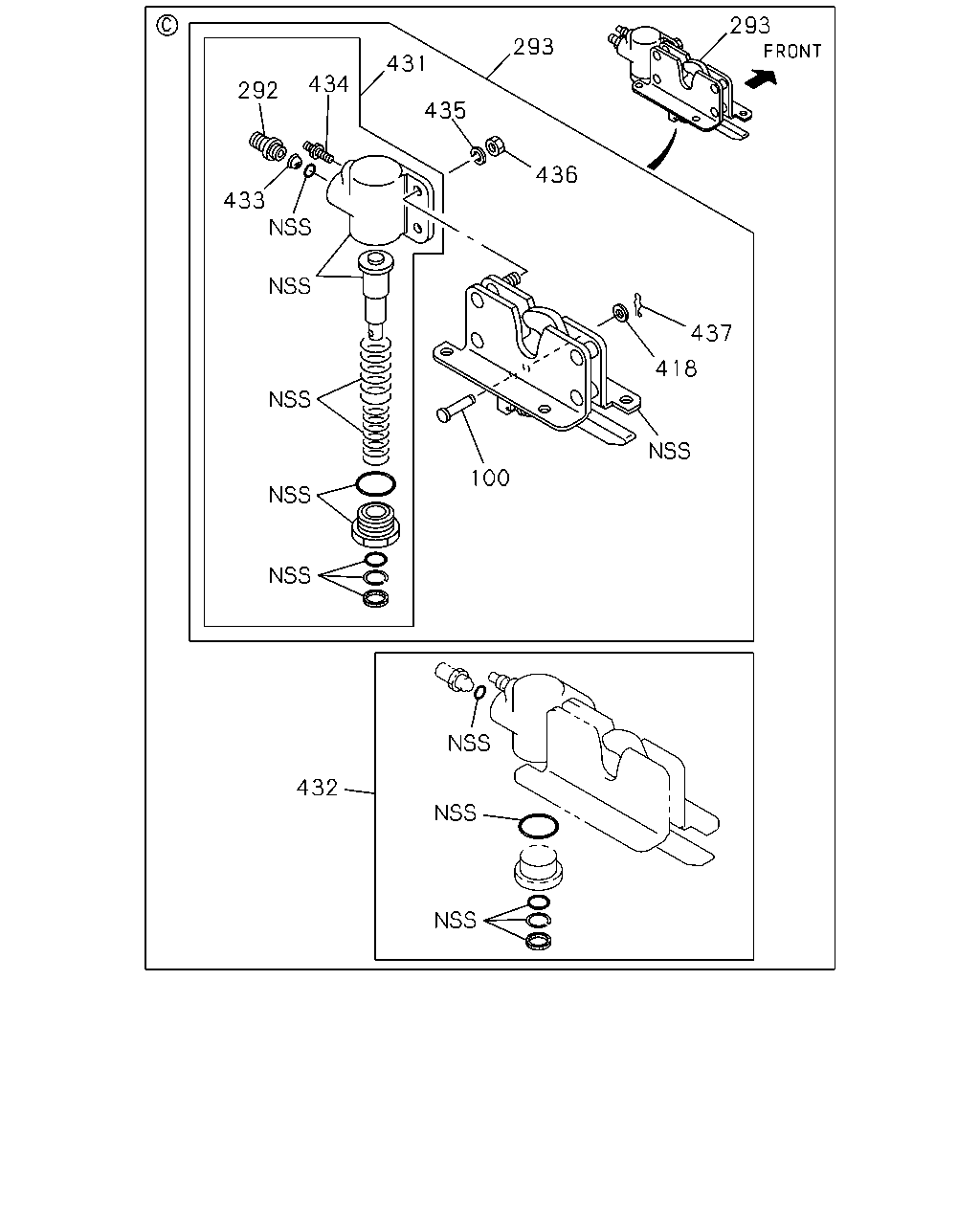

292
433
434
431
435
436
293
293
437
418
100
432
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
PIN; JOINT
1-53458-831-0
01
1
1306-
292
CONNECTOR; CAB SUSPENSION
M12
1-53458-941-0
01
1
1306-
293
RATCH; CAB SUSP,RR
1-53458-918-0
01
1
1306-
418
WASHER; PL,PIN
1-53458-059-0
01
1
1306-
431
CYLINDER; AIR,RATCH
1-53457-013-0
01
1
1306-
432
REPAIR KIT; AIR CYL
1-85579-052-0
01
1
1306-
433
FILTER; AIR CYL
1-53458-048-0
01
1
1306-
434
SCREW; AIR BLEEDER
1-53458-529-0
01
1
1306-
435
WASHER; LK,AIR CYL
ID=10.2
9-09150-510-0
02
1
1306-
436
NUT; AIR CYL
1-53458-528-0
02
1
1306-
437
PIN; SNAP
1-53458-526-0
01
1
1306-
294
202
202
203
204
205
204
203
201
173
203
204
205
66
174
205
204
203
202
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
66
BRACKET; S/ABS
8-98214-572-0
01
1
1306-
66
BRACKET; S/ABS
1-53458-786-0
01
1
1306-
173
MEMBER; CAB MTG RR
8-98166-348-0
01
1
1306-
174
OUTRIGGER
8-97614-275-1
01
1
1306-
174
OUTRIGGER
8-98198-712-2
01
1
1306-
201
ABSORBER ASM; SHOCK,RR MTG
1-51630-728-1
02
1
1306-
202
NUT; S/ABS
(C) M10 FLANGE
0-91180-110-0
02
1
1306-
202
NUT; S/ABS
(A) M10
9-09110-410-0
04
1
1306-
202
NUT; S/ABS
(B) M10
9-09111-410-0
06
1
1306-
203
WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6
1-51631-005-0
10
1
1306-
203
WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5
1-51631-104-0
02
1
1306-
204
RUBBER; CUSHION,SHOCK
1-51631-004-0
12
1
1306-
205
WASHER; RUBBER,SHOCK
1-51631-079-0
08
1
1306-
294
MEMBER; FLOATING
1-53454-950-3
01
1
1306-

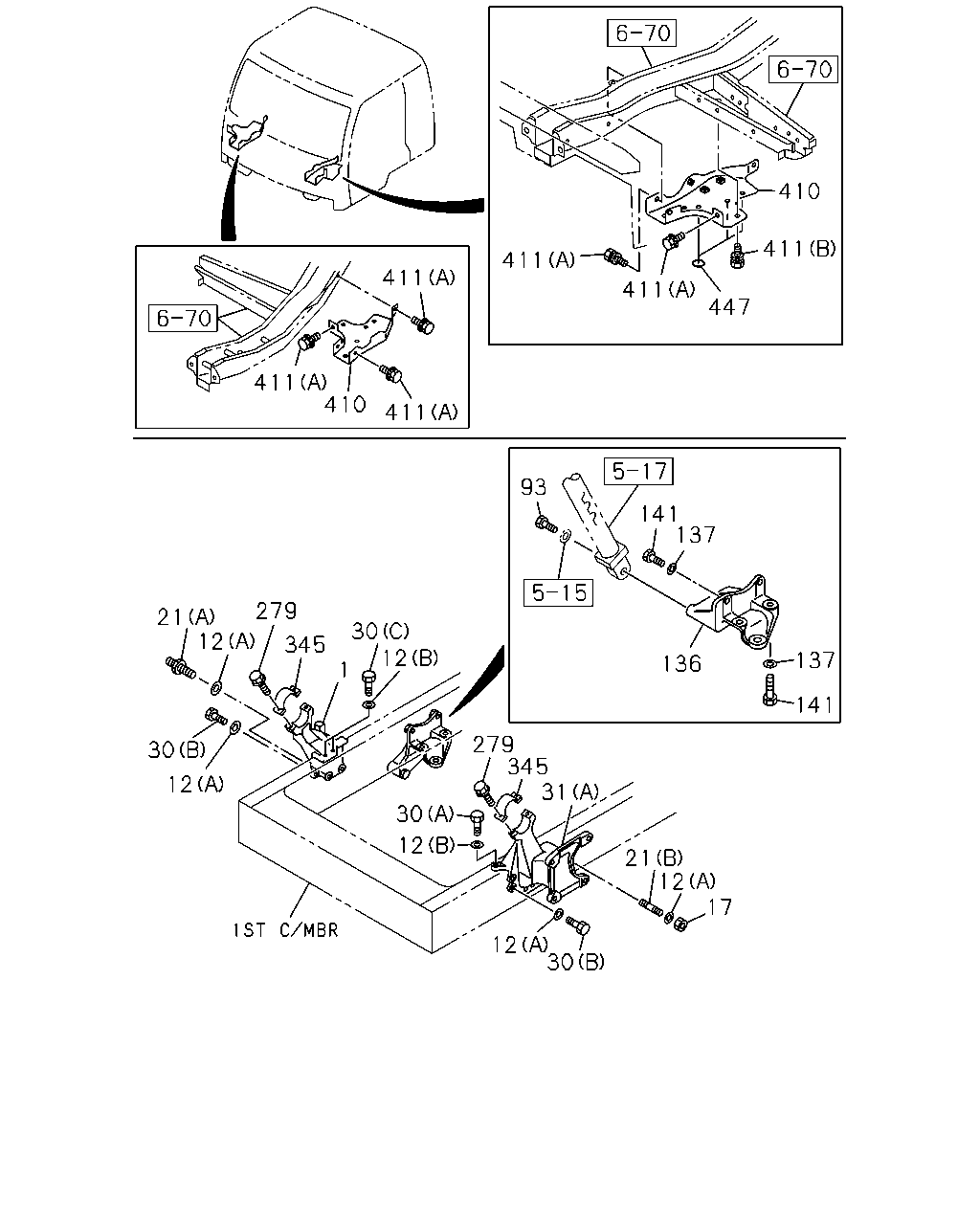

410
411
411
447
411
411
411
410
411
21
12
279
345
1
30
12
279
345
31
21
12
17
30
12
12
30
30
12
141
93
137
137
141
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
8-98225-458-0
01
1
1306-
12
WASHER; LK,BRKT
(A) ID=16.2
1-09503-316-0
11
1
1306-
12
WASHER; LK,BRKT
(B) ID=15
8-98010-627-1
04
1
1306-
17
NUT; BRKT,CAB TILT
M16
0-91110-516-0
01
1
1306-
21
STUD; BRKT,CAB TILT
(A) M10X20,M16X50 L=81
1-09029-069-0
02
1
1306-
21
STUD; BRKT,CAB TILT
(B) M16X50 L=74
1-09300-117-0
01
1
1306-
30
BOLT; CAB FRT FOOT
(C) M14X50
0-20951-450-0
02
1
1306-
30
BOLT; CAB FRT FOOT
(A) M14X60
0-20951-460-0
02
1
1306-
30
BOLT; CAB FRT FOOT
(B) M16X50
0-20951-650-0
03
1
1306-
30
BOLT; CAB FRT FOOT
(B) M16X50
0-20951-650-0
05
1
1306-
31
BRACKET; CAB
(A)
8-98209-487-0
01
1
1306-
31
BRACKET; CAB
(B)
1-53453-274-1
01
1
1306-
31
BRACKET; CAB
(B)
1-53453-280-2
01
1
1306-
93
BOLT; PIN
M10X30
1-09000-283-0
01
1
1306-
136
BRACKET; OIL CYL
1-53458-903-0
01
1
1306-
137
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1306-
141
BOLT; BRKT
M14X50
0-20951-450-0
04
1
1306-
279
BOLT
M12X40 FLANGE
0-28061-240-0
04
1
1306-1510
279
BOLT
M12X40 FLANGE
8-98270-173-0
04
1
1511-
345
CAP; CAB
1-53458-336-3
02
1
1306-
410
REINFORCEMENT; CAB TILT
1-62570-864-0
01
1
1306-
410
REINFORCEMENT; CAB TILT
1-62570-939-0
01
1
1306-
411
BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER
8-94279-211-0
01
1
1306-
411
BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
06
1
1306-
447
SEAL
OD=25 BLACK
1-76798-019-0
03
1
1306-

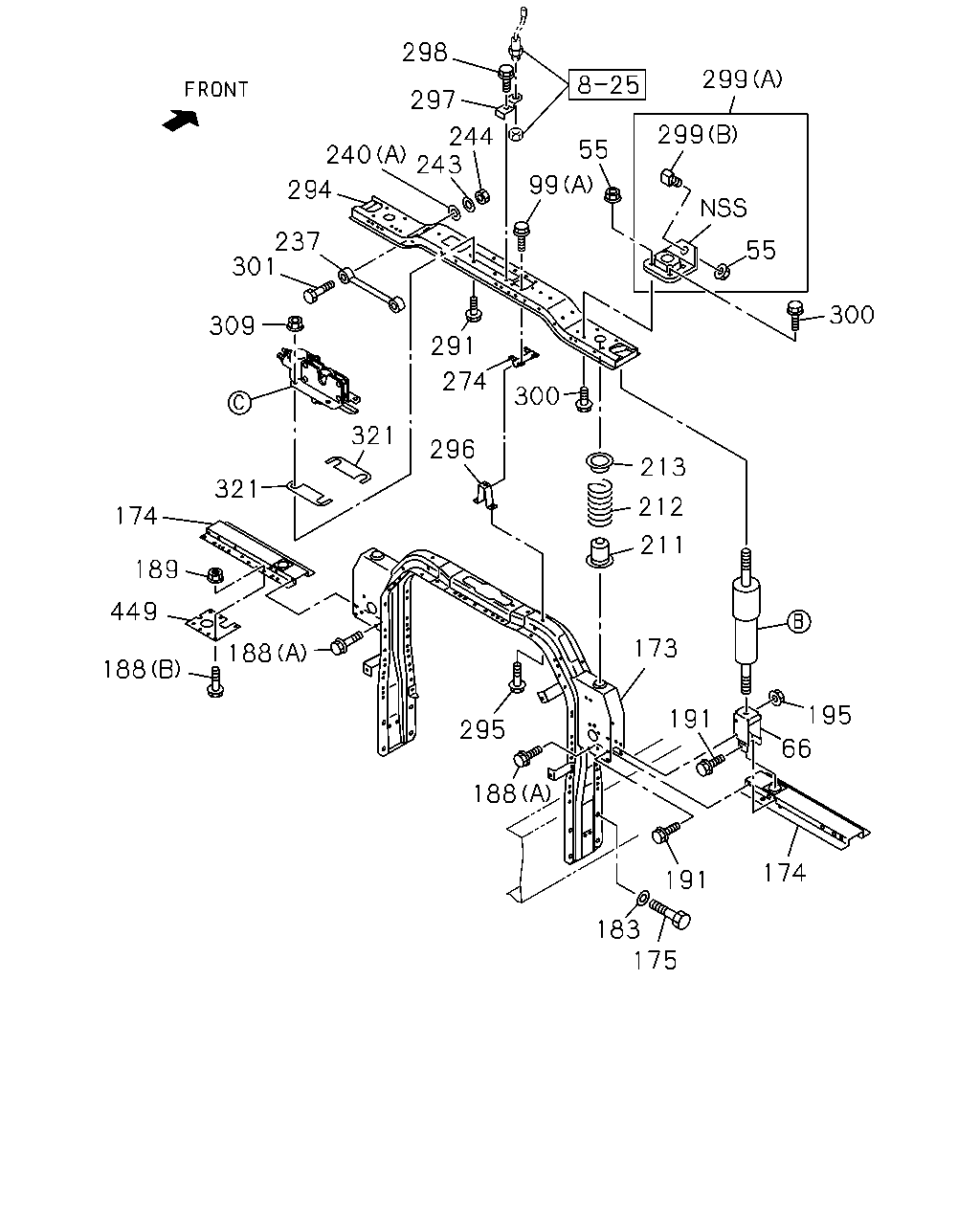

298
297
240
294
237
301
309
321
174
189
449
188
188
321
291
296
274
243
244
55
99
299
299
55
300
213
212
211
300
295
188
183
175
191
174
66
173
191
195
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
NUT; RUBBER
M8 FLANGE
0-91180-108-0
06
1
1306-
66
BRACKET; S/ABS
8-98214-572-0
01
1
1306-
66
BRACKET; S/ABS
1-53458-786-0
01
1
1306-
99
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
04
1
1306-
99
BOLT; BRKT
(B) M10X30 W/SP WASHER
1-09980-546-0
01
1
1306-
173
MEMBER; CAB MTG RR
8-98166-348-0
01
1
1306-
174
OUTRIGGER
8-97614-275-1
01
1
1306-
174
OUTRIGGER
8-98198-712-2
01
1
1306-
175
BOLT; MEMBER TO FRAME
M14X40
0-20951-440-0
08
1
1306-
183
WASHER; PL,MEMBER
ID=15
8-98010-627-1
08
1
1306-
188
BOLT; OUTRIGGER
(B) M10X20 FLANGE
0-28651-020-0
04
1
1511-
188
BOLT; OUTRIGGER
(A) M10X25 FLANGE
0-28651-025-0
08
1
1306-
189
NUT; OUTRIGGER
M10 FLANGE
0-91180-210-0
04
1
1511-
191
BOLT; BRKT FIX
M10X25 FLANGE
0-28651-025-0
07
1
1306-
195
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
04
1
1306-
211
RUBBER; CUSHION,S/ABS
1-53366-128-0
02
1
1306-
212
SPRING; COIL
1-09580-515-0
02
1
1306-
213
SEAT; SPR,S/ABS
1-53366-132-1
02
1
1306-
237
ROD ASM; LATERAL
1-53458-343-0
01
1
1306-
240
WASHER; PL,BRKT
(A) ID=12.5 OD=22
0-91610-512-0
02
1
1306-
240
WASHER; PL,BRKT
(C) ID=10.5 OD=18
1-09985-173-0
01
1
1306-1410
240
WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
04
1
1306-
243
WASHER; LK,LATERAL ROD
ID=12.2
0-91510-512-0
02
1
1306-
244
NUT; LATERAL ROD
M12
0-91110-512-0
02
1
1306-
274
PIN
1-53458-996-0
01
1
1306-
291
BOLT; RATCH
M10X25 FLANGE
0-28651-025-0
04
1
1306-
294
MEMBER; FLOATING
1-53454-950-3
01
1
1306-
295
BOLT; STOPPER,UPR
M10X20 FLANGE
0-28651-020-0
02
1
1306-
296
STOPPER; UPR
1-53458-973-1
01
1
1306-
297
BRACKET; LIMIT SW
1-53458-782-0
01
1
1306-
298
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
01
1
1306-
299
RUBBER; MTG
(B)
1-53366-155-0
02
1
1306-
299
RUBBER; MTG
(A)
1-53366-194-0
02
1
1306-
300
BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER
1-09030-027-0
08
1
1306-
301
PIN; LATERAL ROD
M12X57.5
1-53459-498-1
02
1
1306-
309
NUT
M10 FLANGE
0-91180-210-0
04
1
1306-
321
SHIM; FRT CAB MTG
1-53458-629-1
04
1
1306-
449
BRACKET; OUTRIGGER
1-53456-279-0
01
1
1511-

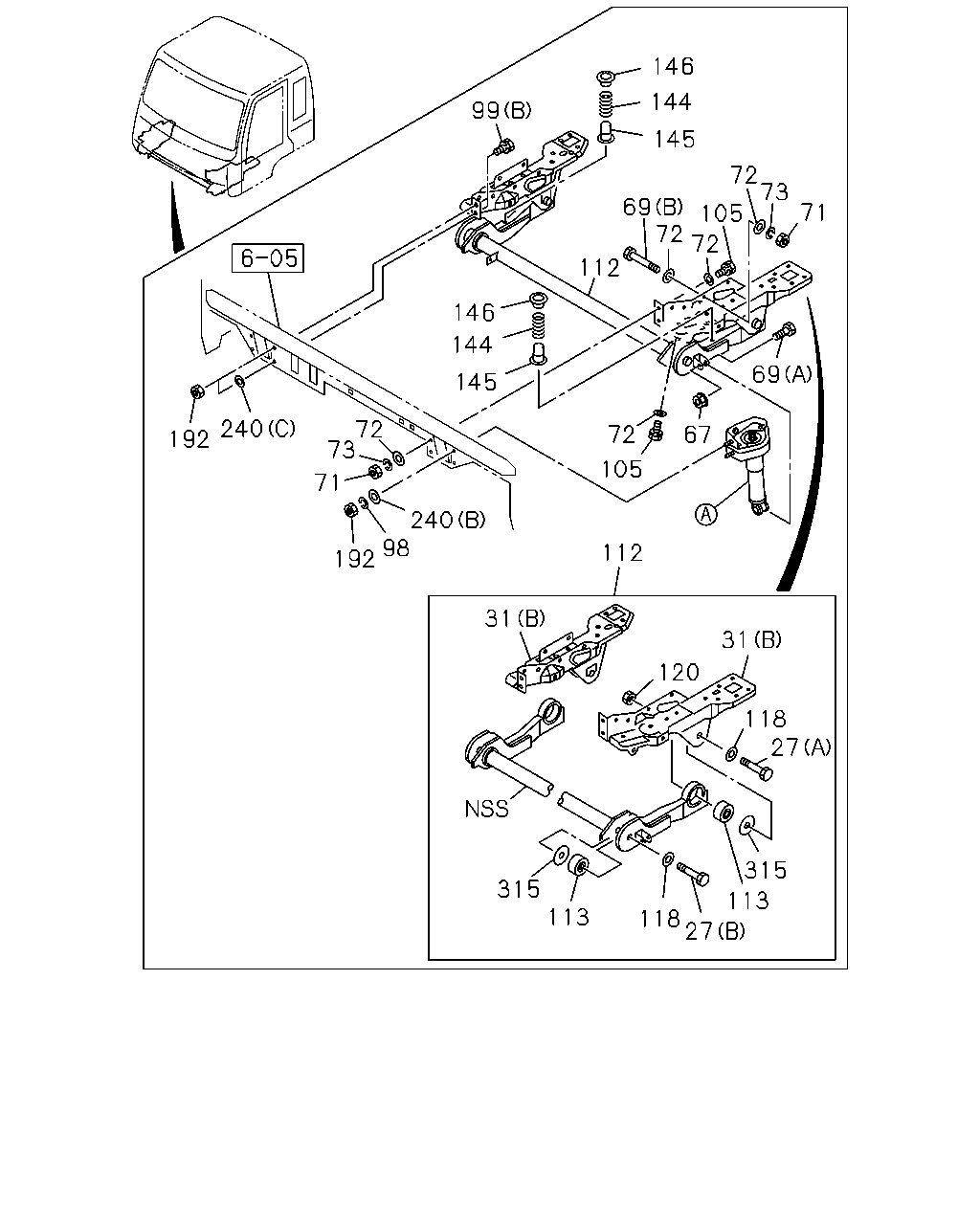

99
146
144
145
72
73
71
105
72
69
72
112
67
69
72
105
112
146
144
145
240
192
240
72
73
71
98
192
31
31
120
118
27
315
113
27
118
113
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
BOLT; BUSHING
(B) M18X120
1-09000-442-1
02
1
1306-
27
BOLT; BUSHING
(A) M18X90
9-91066-890-0
02
1
1306-
31
BRACKET; CAB
(A)
8-98209-487-0
01
1
1306-
31
BRACKET; CAB
(B)
1-53453-274-1
01
1
1306-
31
BRACKET; CAB
(B)
1-53453-280-2
01
1
1306-
67
NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE
0-91180-212-0
02
1
1306-
69
BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60
0-20801-260-0
02
1
1306-
69
BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105
1-79198-008-1
08
1
1306-
71
NUT; BRKT TO CAB FRAME
M10
1-09984-142-0
06
1
1306-
72
WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6
1-09985-184-0
22
1
1306-
73
WASHER; LK,BRKT TO CAB FRAME
ID=10
1-09985-185-0
12
1
1306-
98
WASHER; LK,BRKT
ID=10
1-09985-185-0
04
1
1306-
99
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
04
1
1306-
99
BOLT; BRKT
(B) M10X30 W/SP WASHER
1-09980-546-0
01
1
1306-
105
BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER
1-09980-546-0
14
1
1306-
112
ARM ASM; LINK,CAB FRT SUSP
1-53450-567-8
01
1
1306-
113
BUSHING; RUBBER,FLOATING LINK ARM,W/PI
1-53458-714-0
04
1
1306-
118
WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30
1-09503-279-0
04
1
1306-
120
NUT; STOPPER RUBBER,LINK ARM
M18
0-91110-518-0
02
1
1306-
144
SPRING; COIL,CAB FRT SUSPENSION
1-09580-537-0
02
1
1306-
145
RUBBER; CUSHION,CAB FRT SUSPENSION
1-53366-139-0
02
1
1306-
146
SEAT; SPRING,CAB FRT SUSPENSION
1-53366-138-0
02
1
1306-
192
NUT; BRKT FIX
M10
1-09984-142-0
05
1
1306-
240
WASHER; PL,BRKT
(A) ID=12.5 OD=22
0-91610-512-0
02
1
1306-
240
WASHER; PL,BRKT
(C) ID=10.5 OD=18
1-09985-173-0
01
1
1306-1410
240
WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
04
1
1306-
315
WASHER; CAB MTG
ID=34.5
1-53458-281-1
04
1
1306-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
