◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11536 - EXZ LHD EURO2 WITH REFLECTOR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#123215) — 105 parça

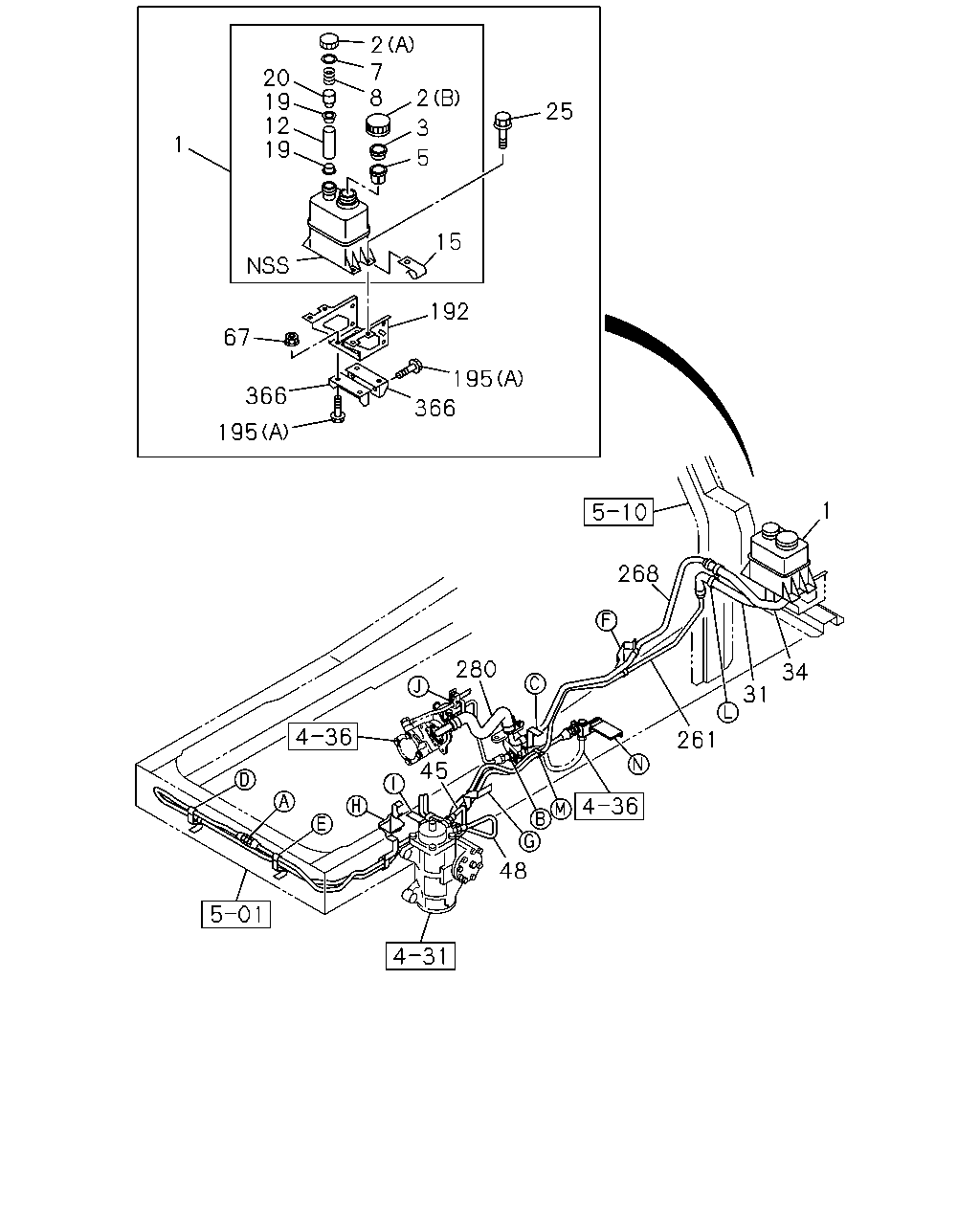

çizim 364234
2 25 3 2 8 7 19 20 12 5 15 192 19 67 195 366 366 195 1 268 31 261 34 48 280 45 1
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-235-1 01 1 1306-
2 CAP; OIL TANK,P/S
(A) WO/GAUGE 		1-21241-003-6 01 1 1306-
2 CAP; OIL TANK,P/S
(B) W/GAUGE 		1-21241-006-4 01 1 1306-
3 GASKET; OIL TANK,P/S 1-21249-006-2 01 1 1306-
5 STRAINER; OIL TANK,P/S 1-21235-006-1 01 1 1306-
7 RING; GASKET,OIL TANK,P/S 1-21249-005-0 01 1 1306-
8 SPRING; OIL TANK,P/S 1-09580-599-0 01 1 1306-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 1306-
15 PLATE; FILTER,OIL TANK 1-21249-016-0 04 1 1306-
19 SEAT; OIL TANK 1-21262-001-0 02 1 1306-
20 HOLDER; FILTER,OIL TANK,P/S 1-21239-001-2 01 1 1306-
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
31 HOSE; P/S OIL TANK,INL 8-98203-561-0 01 1 1306-
34 HOSE; P/S OIL TANK,OUTLET 8-98127-737-0 01 1 1306-
45 PIPE; OIL,P/S UNIT TO UNION 8-98224-869-0 01 1 1306-
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-98233-229-0 01 1 1306-
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1306-
192 BRACKET; P/S OIL TANK 1-21489-200-1 01 1 1306-
195 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1306-
195 BOLT; BRKT
(C) M10X35 FLANGE 		0-28151-035-0 01 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 1306-
195 BOLT; BRKT
(D) M10X20 FLANGE 		0-28651-020-0 02 1 1306-
261 PIPE; OIL,UNION TO HOSE 8-98233-230-0 01 1 1306-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98226-736-0 01 1 1306-
280 HOSE; P/S OIL PUMP,INL 1-21117-831-0 01 1 1306-
366 SPACER; BRKT TO MEMBER 1-21489-196-1 02 1 1306-

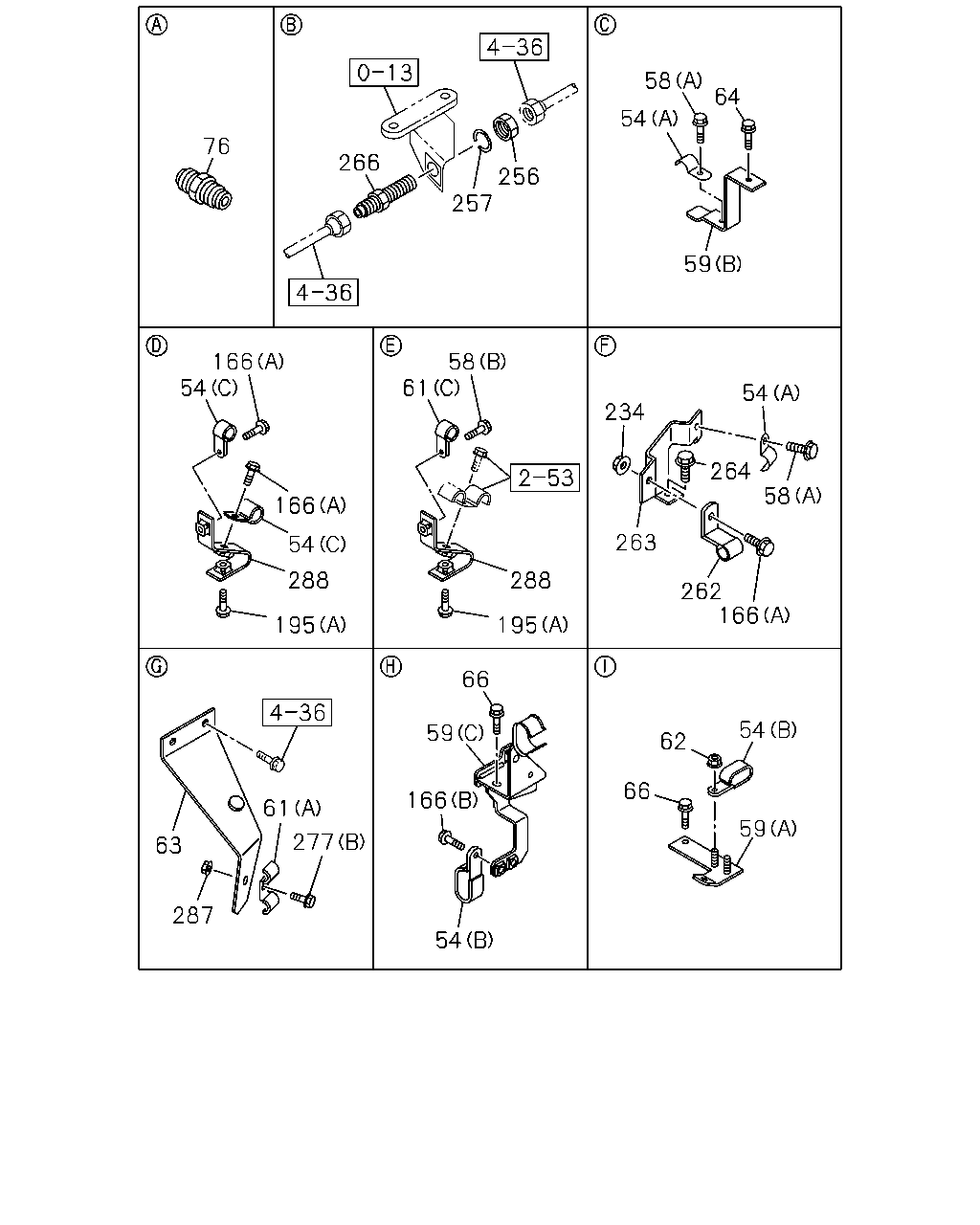

çizim 366960
76 266 257 256 59 54 58 64 58 61 288 195 166 54 166 54 288 195 234 54 264 58 263 262 166 54 62 59 66 66 59 166 54 61 277 287 63
BalonParca AdiParca NoAdetTipApplied Date
54 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-535-0 02 1 1306-
54 CLIP; OIL PIPE
(B) ID=16X2 L=20 		0-95325-535-0 02 1 1306-
54 CLIP; OIL PIPE
(A) ID=23.6 L=35 		1-09700-634-0 02 1 1306-
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
58 BOLT; CLIP
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1306-
59 BRACKET; CLIP,OIL PIPE
(B) 		1-47477-145-0 01 1 1306-
59 BRACKET; CLIP,OIL PIPE
(A) 		8-98224-867-0 01 1 1306-
59 BRACKET; CLIP,OIL PIPE
(C) 		8-98239-922-0 01 1 1306-
61 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-535-0 01 1 1306-
61 CLIP; OIL PIPE
(B) ID=16X2 L=20 		0-95325-535-0 01 1 1306-
61 CLIP; OIL PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 1306-
62 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1306-
63 BRACKET; CLIP,P/S 1-47471-146-0 01 1 1306-
64 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28050-830-0 01 1 1306-
66 BOLT; BRKT,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 1306-
76 UNION; OIL PIPE
M22 L=51 		0-92123-015-0 01 1 1306-
166 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
166 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
166 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
195 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1306-
195 BOLT; BRKT
(C) M10X35 FLANGE 		0-28151-035-0 01 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 1306-
195 BOLT; BRKT
(D) M10X20 FLANGE 		0-28651-020-0 02 1 1306-
234 NUT; PIPE CLIP,P/S
M8 FLANGE 		0-91180-108-0 01 1 1306-
256 NUT; UNION
M22 		0-91111-522-0 01 1 1306-
256 NUT; UNION
M22 		0-91111-522-0 01 1 1306-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1306-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1306-
262 CLIP; P/S PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 1306-
263 BRACKET; P/S PIPE 1-47476-483-2 01 1 1306-
264 BOLT; PIPE BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1306-
266 UNION; OIL PIPE,P/S
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1306-
277 BOLT; HOSE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
277 BOLT; HOSE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
287 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1306-
288 BRACKET; CLIP,P/S 1-47479-521-0 02 1 1306-

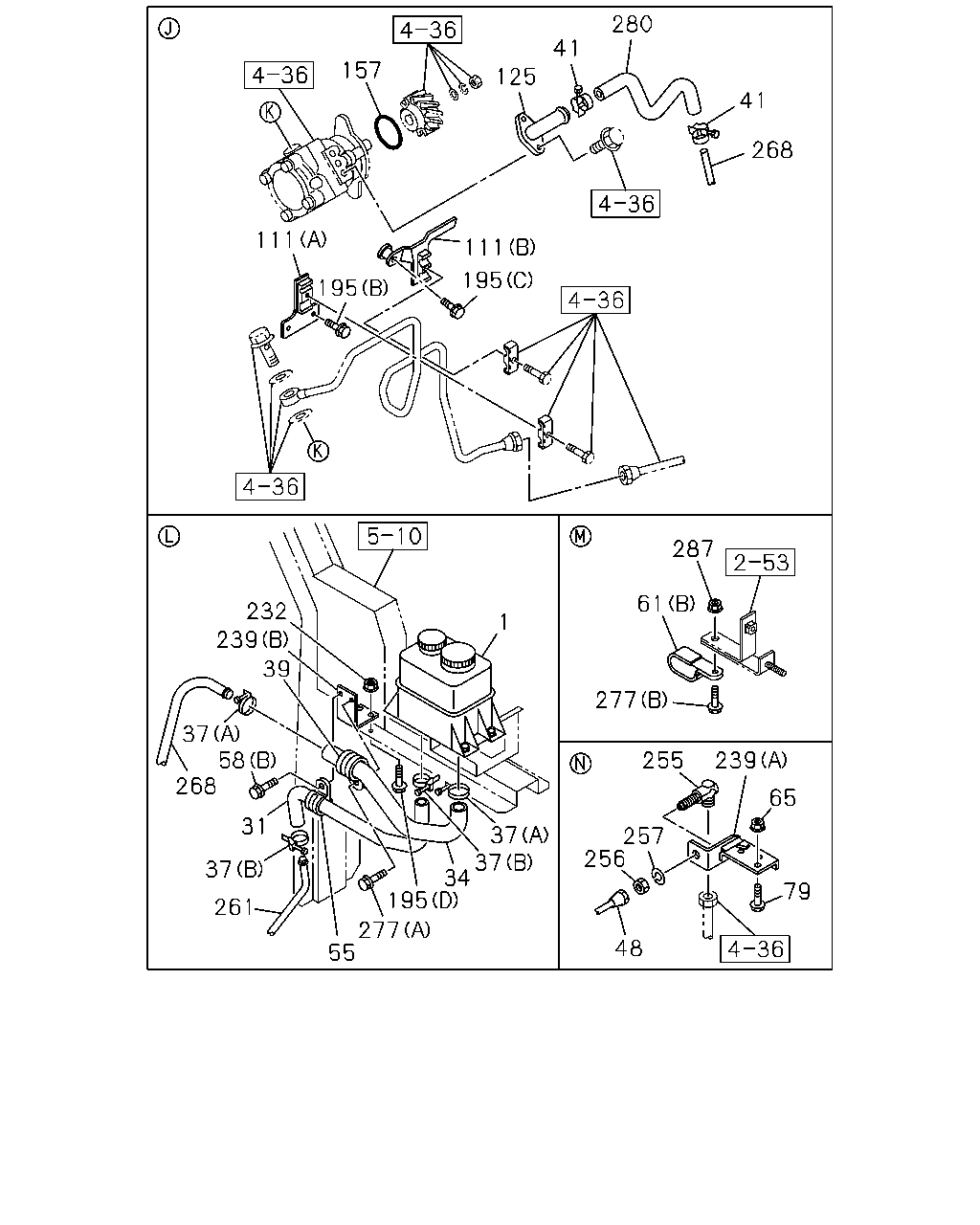

çizim 367012
239 65 255 277 61 287 257 256 48 79 37 37 34 195 277 55 261 37 268 31 58 37 39 239 232 1 195 111 195 111 157 125 41 280 41 268
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-235-1 01 1 1306-
31 HOSE; P/S OIL TANK,INL 8-98203-561-0 01 1 1306-
34 HOSE; P/S OIL TANK,OUTLET 8-98127-737-0 01 1 1306-
37 CLIP; HOSE,P/S
(A) ID=38 		9-09915-041-1 02 1 1306-
37 CLIP; HOSE,P/S
(B) ID=28 		9-09915-672-1 02 1 1306-
39 CLIP; FLEX HOSE
ID=37 L=35 		1-09701-109-0 01 1 1306-
41 CLIP; HOSE,P/S
ID=38 		9-09915-041-1 02 1 1306-
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-98233-229-0 01 1 1306-
55 CLIP; P/S RUBBER HOSE
ID=28 L=32 		1-09701-107-1 01 1 1306-
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
58 BOLT; CLIP
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1306-
61 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-535-0 01 1 1306-
61 CLIP; OIL PIPE
(B) ID=16X2 L=20 		0-95325-535-0 01 1 1306-
61 CLIP; OIL PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 1306-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
79 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
111 BRACKET; OIL PIPE
(A) 		1-13345-186-0 01 1 1306-
111 BRACKET; OIL PIPE
(B) 		1-13345-187-0 01 1 1306-
125 CONNECTOR; P/S PUMP 1-13313-532-0 01 1 1306-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6 		1-09623-421-0 01 1 1306-
195 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1306-
195 BOLT; BRKT
(C) M10X35 FLANGE 		0-28151-035-0 01 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 1306-
195 BOLT; BRKT
(D) M10X20 FLANGE 		0-28651-020-0 02 1 1306-
232 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
239 BRACKET; FLEX HOSE
(B) 		1-21464-780-0 01 1 1306-
239 BRACKET; FLEX HOSE
(A) 		8-98144-458-1 01 1 1306-
255 UNION; FLEX HOSE
M22 & M22 ELBOW 		1-09650-375-1 01 1 1306-
256 NUT; UNION
M22 		0-91111-522-0 01 1 1306-
256 NUT; UNION
M22 		0-91111-522-0 01 1 1306-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1306-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1306-
261 PIPE; OIL,UNION TO HOSE 8-98233-230-0 01 1 1306-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98226-736-0 01 1 1306-
277 BOLT; HOSE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
277 BOLT; HOSE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
280 HOSE; P/S OIL PUMP,INL 1-21117-831-0 01 1 1306-
287 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1306-
