4-10 — FRONT AXLE (#123208) — 90 parça

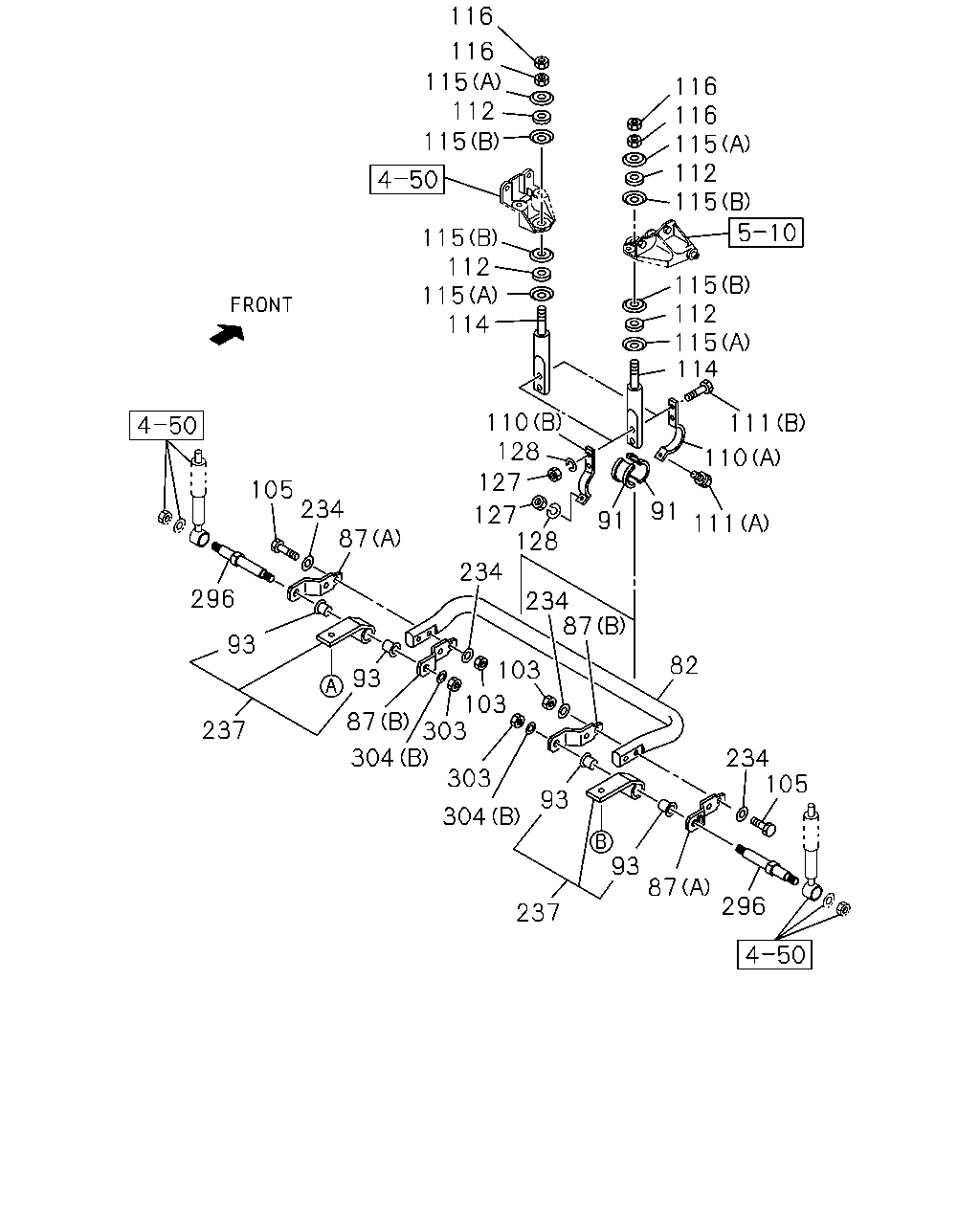

116 116 115 112 115 115 112 115 114 110 128 127 127 128 234 234 87 82 234 105 87 234 105 296 93 237 93 87 304 303 103 103 303 304 93 237 93 87 296 91 91 111 110 111 114 115 112 115 115 112 115 116 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-136-1	01	1	1306-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1306-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1306-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	1306-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1306-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1306-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1306-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1306-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1306-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1306-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1306-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	1306-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	1306-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	1306-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	1306-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1306-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1306-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1306-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1306-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1306-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1306-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1306-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1306-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1306-

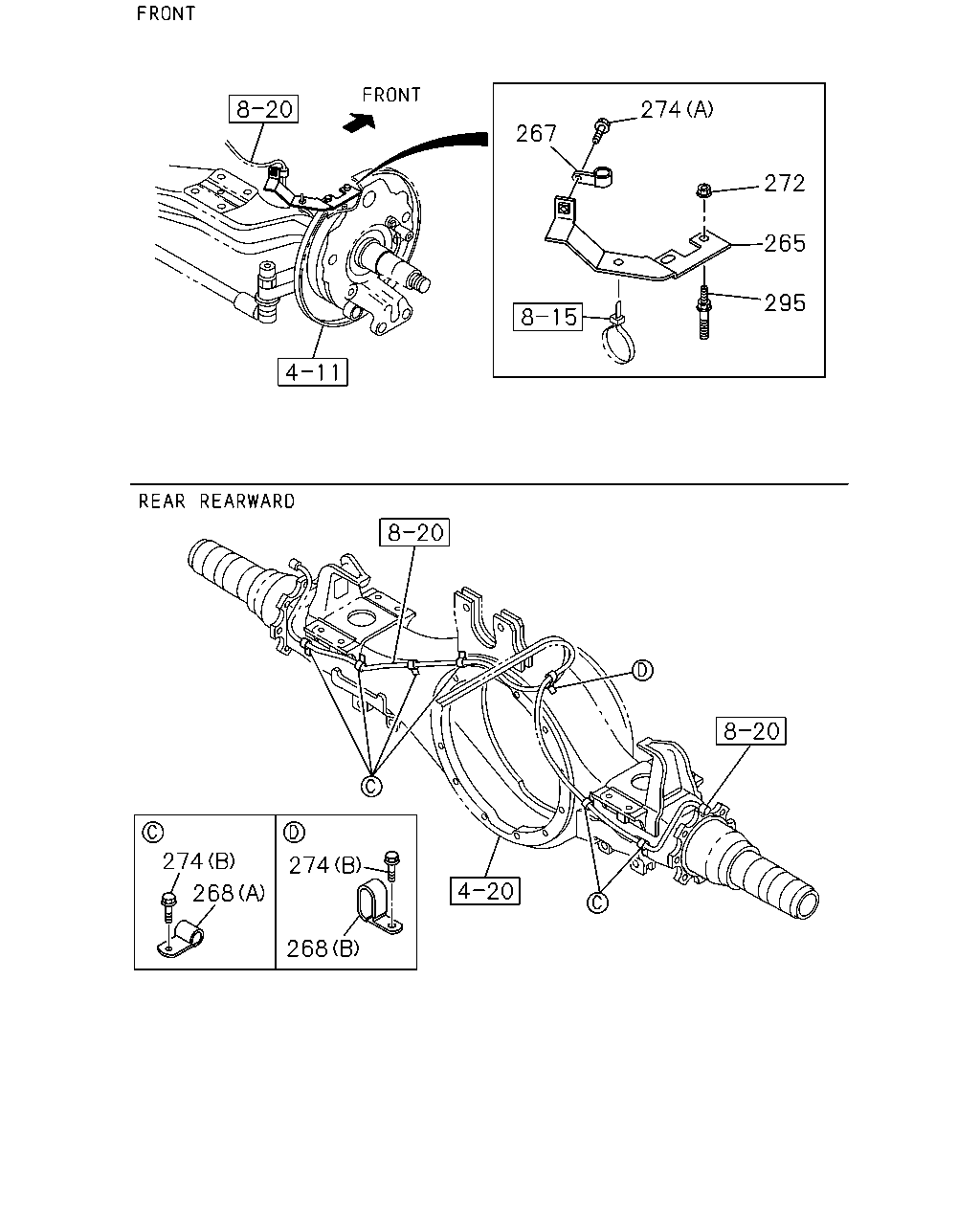

267 274 272 265 295 274 268 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1306-
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1306-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1306-
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	06	1	1306-
268	CLIP; HARNESS (B) ID=11X2 L=20	1-09700-871-0	01	1	1306-
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	1306-
274	BOLT; CLIP (B) M8X10 FLANGE	0-28050-810-0	07	1	1306-
274	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1306-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1306-

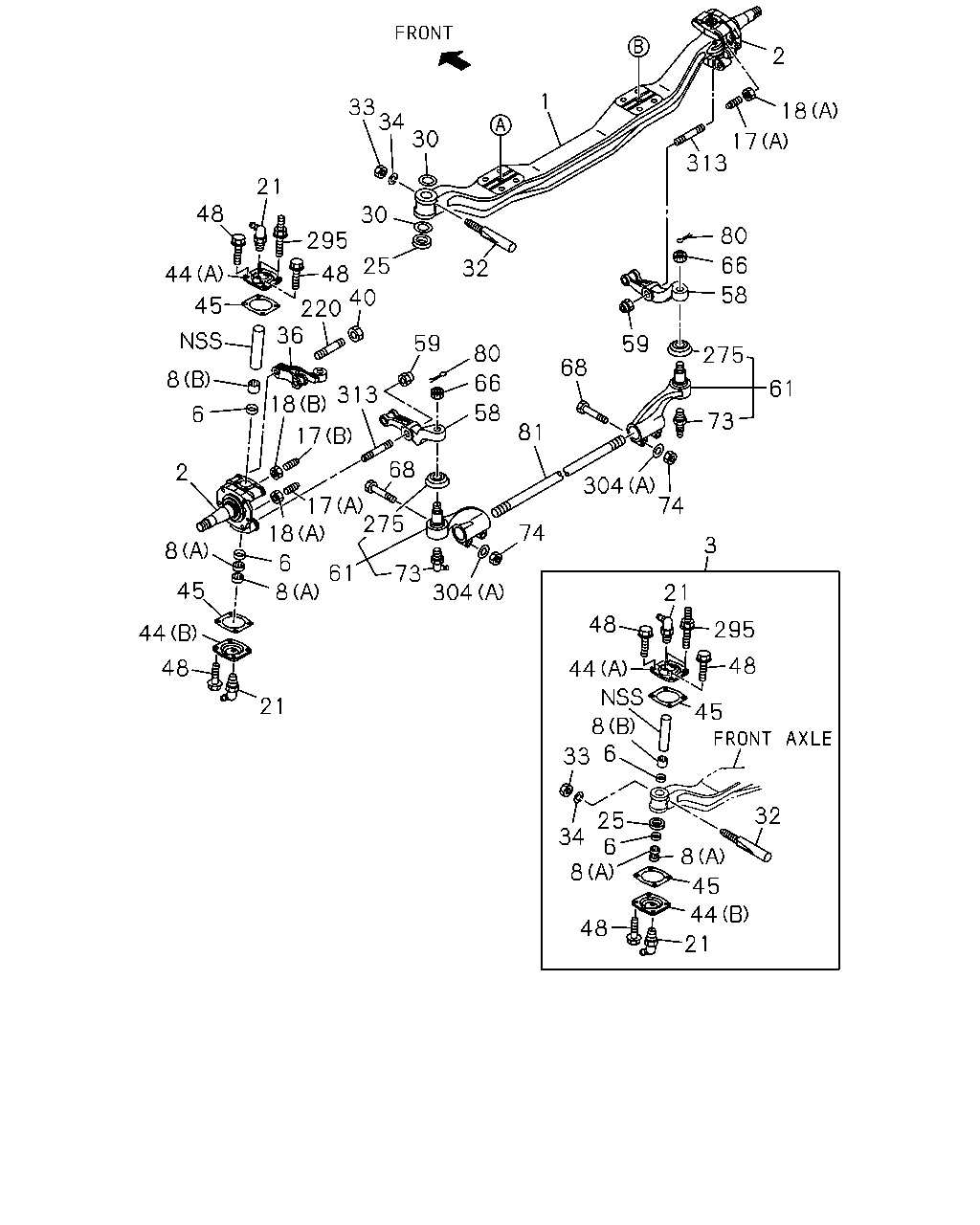

1 2 18 17 313 80 66 58 59 275 61 73 68 81 304 74 3 21 48 44 8 6 33 25 34 8 6 48 21 44 45 8 32 45 48 295 30 34 33 30 21 48 295 25 32 48 44 45 220 40 36 8 6 18 313 59 80 66 58 68 17 2 17 275 74 73 61 18 8 45 6 8 304 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-178-3	01	1	1306-
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1306-
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1306-
3	KING PIN SET	1-87831-349-3	02	1	1306-
6	SEAL; KING PIN	9-09926-024-0	04	1	1306-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1306-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1306-
17	BOLT; STOPPER KNUCKLE (B) M18X53	1-09009-066-0	01	1	1306-
17	BOLT; STOPPER KNUCKLE (A) M18X43	1-09009-190-0	02	1	1306-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1306-
18	NUT; STOPPER BOLT,KNUCKLE (B) OCTAGON M18	1-09469-011-1	01	1	1306-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1306-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1306-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1306-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1306-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1306-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1306-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1306-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1306-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1306-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1306-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1306-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1306-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1306-
58	ARM; TIE ROD	8-98145-593-0	01	1	1306-
58	ARM; TIE ROD	8-98145-592-0	01	1	1306-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1306-
61	ROD END; TIE ROD DISC WHEEL STEEL<SDN>	8-98096-753-0	01	1	1306-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD DISC WHEEL STEEL<SDN>	8-98096-754-0	01	1	1306-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1306-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1306-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1306-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1306-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1306-
81	ROD; TIE	8-98105-064-0	01	1	1306-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1306-
275	BOOT; ROD END,TIE DISC WHEEL STEEL<SDN>	1-43159-131-0	02	1	1306-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1306-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1306-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1306-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1306-
