◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11536 - EXZ LHD EURO2 WITH REFLECTOR ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#123204) — 220 parça

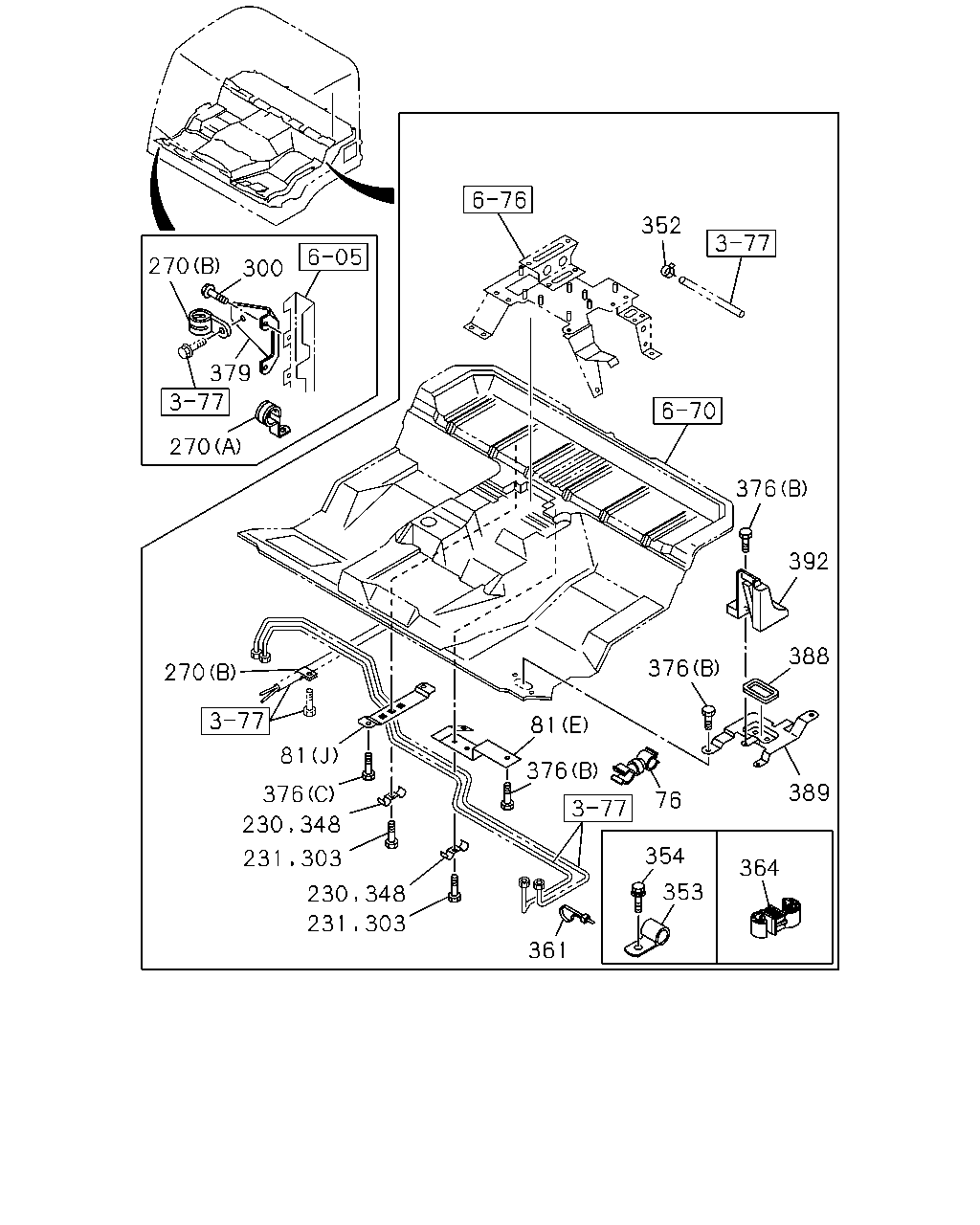

çizim 364366
270 300 379 270 352 376 392 388 389 376 364 354 353 76 361 376 81 303 231 230 348 303 231 230 348 376 81 270
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 01 1 1306-
81 BRACKET; CLIP
(A) L=150 		1-47471-217-0 02 1 1306-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 1306-
81 BRACKET; CLIP
(D) 		1-47478-113-0 01 1 1306-
81 BRACKET; CLIP
(E) 		1-79996-133-2 01 1 1306-
81 BRACKET; CLIP
(F) 		8-98052-412-0 01 1 1306-
81 BRACKET; CLIP
(G) 		8-98052-413-0 01 1 1306-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 1306-
81 BRACKET; CLIP
(I) 		8-98052-415-0 01 1 1306-
81 BRACKET; CLIP
(B) 		8-98061-758-0 02 1 1306-
81 BRACKET; CLIP
(J) 		1-79996-127-2 01 1 1306-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1306-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1306-
270 CLIP; NYLON TUBE
(B) ID=28 L=32 		1-09701-107-1 03 1 1306-
270 CLIP; NYLON TUBE
(C) ID=16 H=25 L=25 		1-09701-162-0 02 1 1306-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1306-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 1306-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1306-
353 CLIP; AIR PIPE
ID=9 L=16 		0-95234-822-0 01 1 1306-
354 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1306-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 1306-
364 CLIP; AIR PIPE
ID=8.3 & 10 		8-94176-792-0 01 1 1306-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1306-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1306-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 1306-
388 SEAL
L=215 		1-79738-794-1 01 1 1306-
389 BRACKET; UNION 1-79738-790-1 01 1 1306-
392 COVER; BRKT 1-73996-264-1 01 1 1306-

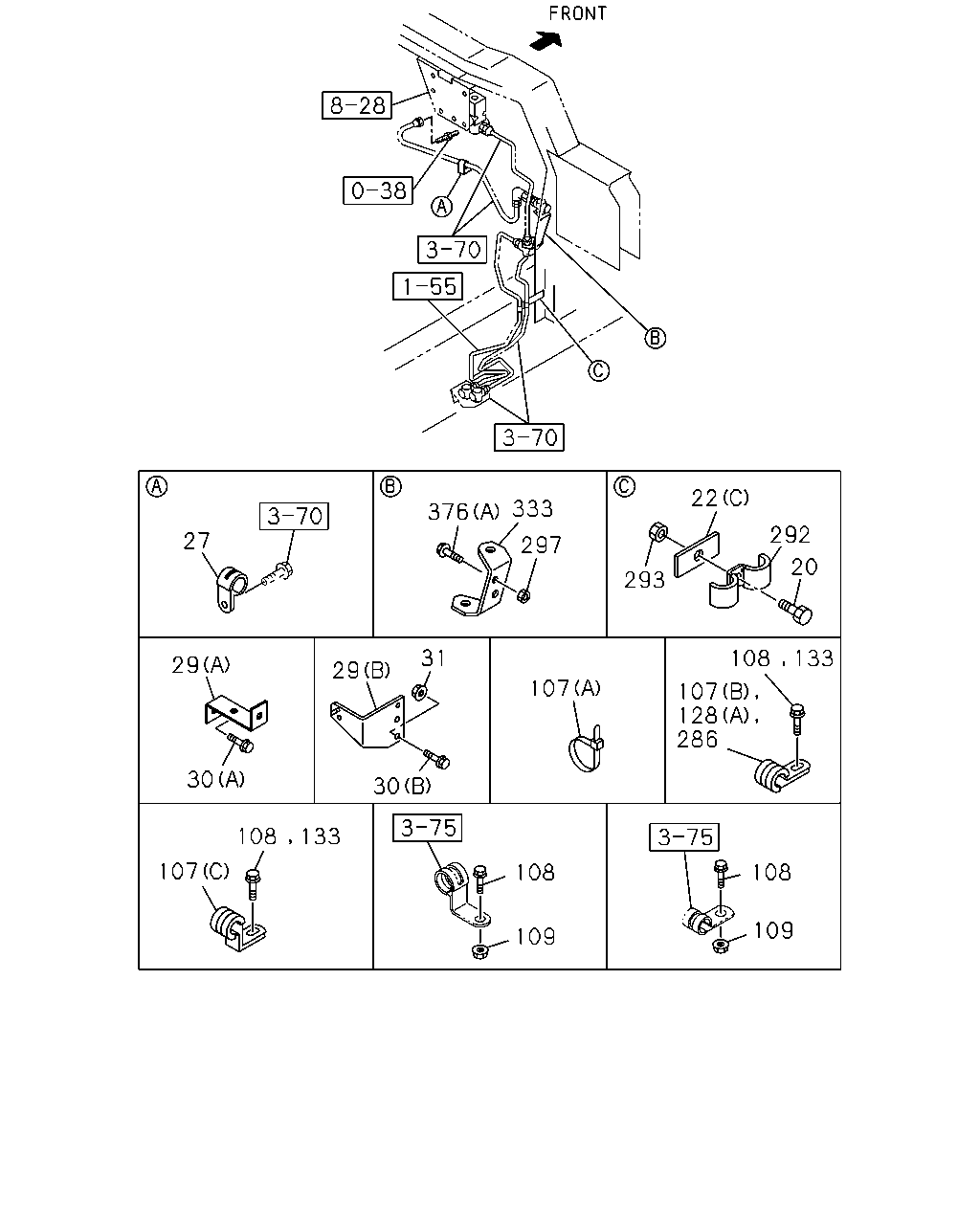

çizim 364429
27 29 30 108 107 133 30 29 31 108 109 109 108 286 128 107 133 107 20 292 22 293 297 333 376 108
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
22 BRACKET; CLIP
(A) 		1-46147-101-0 02 1 1306-
22 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1306-
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 02 1 1306-
22 BRACKET; CLIP
(E) 		1-47479-554-0 01 1 1306-
22 BRACKET; CLIP
(B) 		8-98174-901-0 01 1 1306-
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 1306-
29 BRACKET; CLIP,AIR PIPE
(A) 		1-47479-698-0 01 1 1306-
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98169-621-1 01 1 1306-
30 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1306-
30 BOLT; CLIP BRKT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1306-
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1306-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1306-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1306-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1306-
107 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 01 1 1306-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1306-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1306-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1306-
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1306-
107 CLIP; NYLON TUBE
(D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1306-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1306-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1306-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306-
128 CLIP; NYLON TUBE
(A) ID=24 L=27 		1-09700-809-0 01 1 1306-
128 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 1306-
128 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 10 1 1306-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1306-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1306-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1306-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1401-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
286 CLIP; NYLON TUBE
ID=15 L=28 		1-09701-216-0 01 1 1306-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1306-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1306-
333 BRACKET; BRK AIR PIPE 1-47477-045-0 01 1 1306-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1306-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1306-

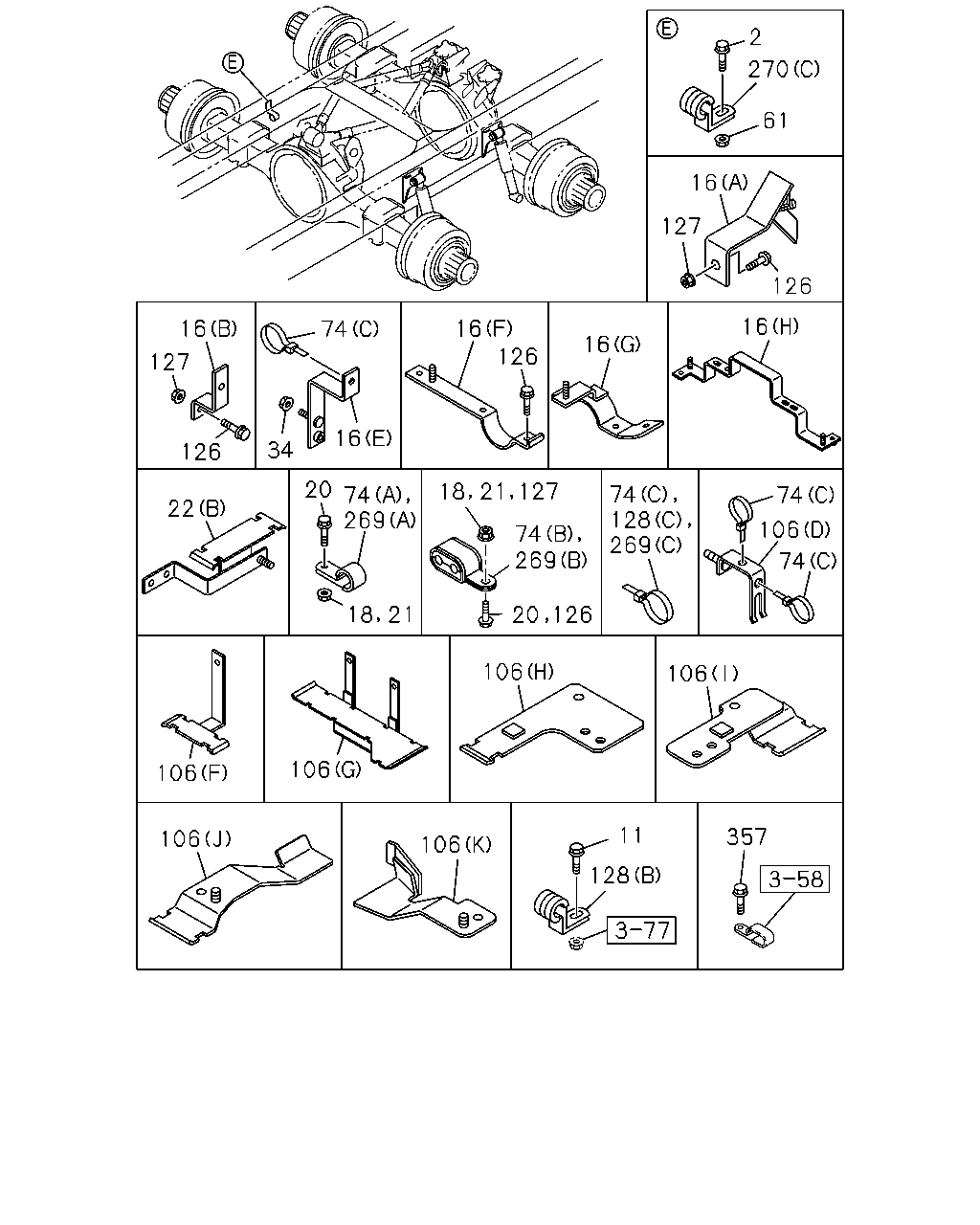

çizim 365730
2 61 270 127 16 126 16 127 126 74 16 34 16 126 16 16 22 20 18 74 269 21 18 21 127 74 269 20 126 74 269 128 74 106 74 106 106 106 106 106 106 11 128 357
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
16 BRACKET; PIPE CLIP
(A) 		1-47471-309-0 01 1 1306-
16 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 1306-
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 1306-
16 BRACKET; PIPE CLIP
(D) 		1-47479-554-0 01 1 1306-
16 BRACKET; PIPE CLIP
(E) 		1-47479-721-0 01 1 1306-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1306-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1306-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1306-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1306-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1306-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1306-
16 BRACKET; PIPE CLIP
(I) 		8-98054-389-0 01 1 1306-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1306-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1306-
22 BRACKET; CLIP
(A) 		1-46147-101-0 02 1 1306-
22 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1306-
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 02 1 1306-
22 BRACKET; CLIP
(E) 		1-47479-554-0 01 1 1306-
22 BRACKET; CLIP
(B) 		8-98174-901-0 01 1 1306-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1306-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1306-
74 CLIP; NYLON TUBE
(A) ID=13 		1-09701-030-1 04 1 1306-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 01 1 1306-
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 15 1 1306-
106 BRACKET; TUBE CLIP
(A) 		1-47471-108-0 01 1 1306-
106 BRACKET; TUBE CLIP
(C) 		1-47477-514-3 02 1 1306-
106 BRACKET; TUBE CLIP
(L) L=82 B=20 		1-47478-420-0 01 1 1306-1404
106 BRACKET; TUBE CLIP
(L) L=82 B=20 		8-98259-390-0 01 1 1405-
106 BRACKET; TUBE CLIP
(D) 		1-47479-381-2 02 1 1306-
106 BRACKET; TUBE CLIP
(E) 		1-47479-553-0 01 1 1306-
106 BRACKET; TUBE CLIP
(F) 		1-47479-870-0 01 1 1306-
106 BRACKET; TUBE CLIP
(H) 		8-98052-408-0 01 1 1306-1412
106 BRACKET; TUBE CLIP
(H) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(I) 		8-98052-409-0 01 1 1306-
106 BRACKET; TUBE CLIP
(J) 		8-98052-410-0 01 1 1306-
106 BRACKET; TUBE CLIP
(K) 		8-98052-411-0 01 1 1306-
106 BRACKET; TUBE CLIP
(B) 		8-98061-758-0 01 1 1306-
106 BRACKET; TUBE CLIP
(M) 		8-98224-856-1 01 1 1306-
106 BRACKET; TUBE CLIP
(G) 		8-98226-741-1 01 1 1306-1312
106 BRACKET; TUBE CLIP
(G) 		8-98251-771-0 01 1 1401-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1306-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1306-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1306-
128 CLIP; NYLON TUBE
(A) ID=24 L=27 		1-09700-809-0 01 1 1306-
128 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 1306-
128 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 10 1 1306-
269 CLIP; BAND,NYLON TUBE
(A) ID=13 		1-09701-030-1 05 1 1306-
269 CLIP; BAND,NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 04 1 1306-
269 CLIP; BAND,NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 1306-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1306-
270 CLIP; NYLON TUBE
(B) ID=28 L=32 		1-09701-107-1 03 1 1306-
270 CLIP; NYLON TUBE
(C) ID=16 H=25 L=25 		1-09701-162-0 02 1 1306-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 1306-

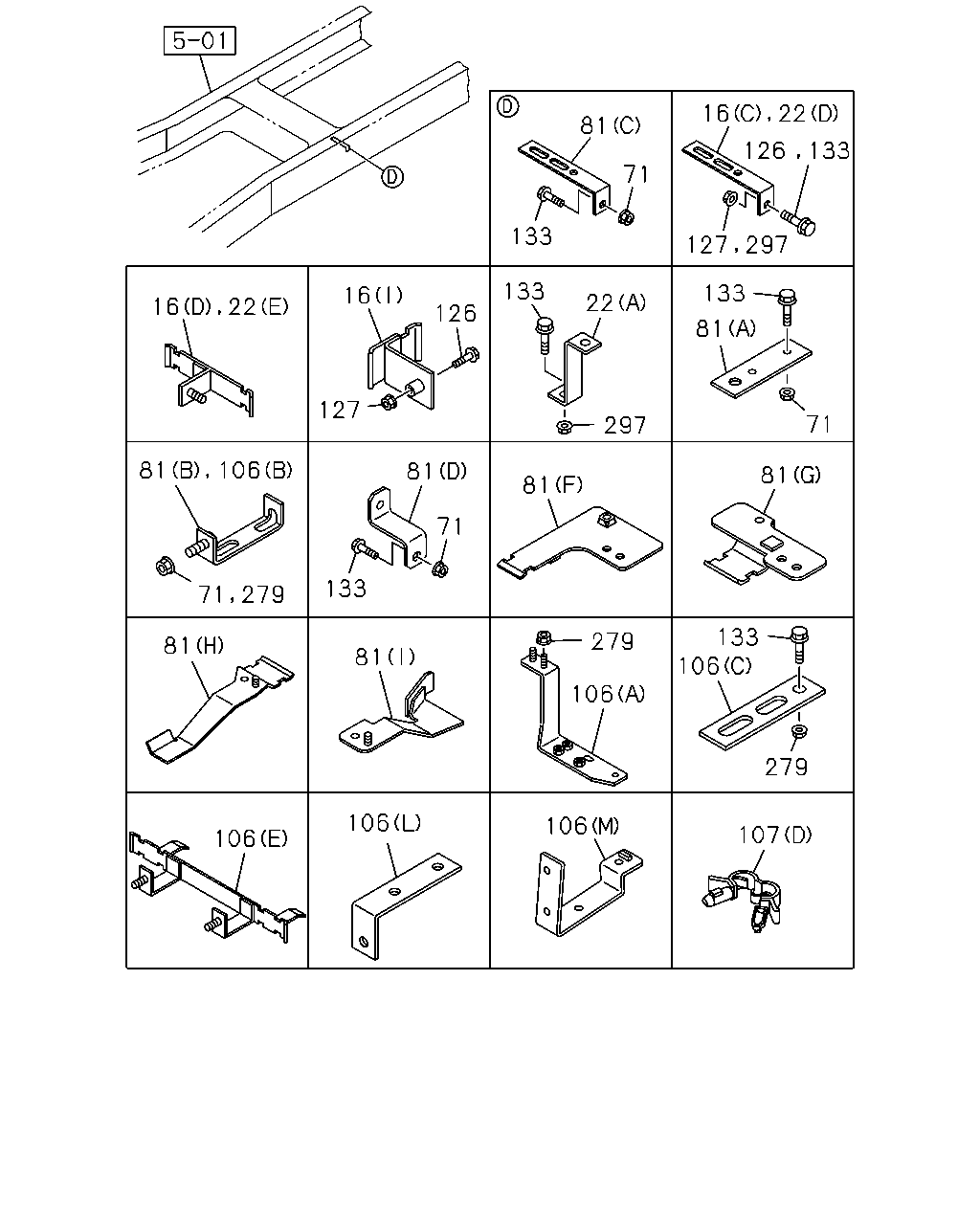

çizim 366264
81 71 133 16 127 297 133 126 22 16 22 16 126 127 133 22 297 133 81 71 81 106 71 279 81 133 71 81 81 81 81 279 106 133 106 279 107 106 106 106
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(A) 		1-47471-309-0 01 1 1306-
16 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 1306-
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 1306-
16 BRACKET; PIPE CLIP
(D) 		1-47479-554-0 01 1 1306-
16 BRACKET; PIPE CLIP
(E) 		1-47479-721-0 01 1 1306-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1306-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1306-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1306-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1306-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1306-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1306-
16 BRACKET; PIPE CLIP
(I) 		8-98054-389-0 01 1 1306-
22 BRACKET; CLIP
(A) 		1-46147-101-0 02 1 1306-
22 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1306-
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 02 1 1306-
22 BRACKET; CLIP
(E) 		1-47479-554-0 01 1 1306-
22 BRACKET; CLIP
(B) 		8-98174-901-0 01 1 1306-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1306-
81 BRACKET; CLIP
(A) L=150 		1-47471-217-0 02 1 1306-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 1306-
81 BRACKET; CLIP
(D) 		1-47478-113-0 01 1 1306-
81 BRACKET; CLIP
(E) 		1-79996-133-2 01 1 1306-
81 BRACKET; CLIP
(F) 		8-98052-412-0 01 1 1306-
81 BRACKET; CLIP
(G) 		8-98052-413-0 01 1 1306-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 1306-
81 BRACKET; CLIP
(I) 		8-98052-415-0 01 1 1306-
81 BRACKET; CLIP
(B) 		8-98061-758-0 02 1 1306-
81 BRACKET; CLIP
(J) 		1-79996-127-2 01 1 1306-
106 BRACKET; TUBE CLIP
(A) 		1-47471-108-0 01 1 1306-
106 BRACKET; TUBE CLIP
(C) 		1-47477-514-3 02 1 1306-
106 BRACKET; TUBE CLIP
(L) L=82 B=20 		1-47478-420-0 01 1 1306-1404
106 BRACKET; TUBE CLIP
(L) L=82 B=20 		8-98259-390-0 01 1 1405-
106 BRACKET; TUBE CLIP
(D) 		1-47479-381-2 02 1 1306-
106 BRACKET; TUBE CLIP
(E) 		1-47479-553-0 01 1 1306-
106 BRACKET; TUBE CLIP
(F) 		1-47479-870-0 01 1 1306-
106 BRACKET; TUBE CLIP
(H) 		8-98052-408-0 01 1 1306-1412
106 BRACKET; TUBE CLIP
(H) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(I) 		8-98052-409-0 01 1 1306-
106 BRACKET; TUBE CLIP
(J) 		8-98052-410-0 01 1 1306-
106 BRACKET; TUBE CLIP
(K) 		8-98052-411-0 01 1 1306-
106 BRACKET; TUBE CLIP
(B) 		8-98061-758-0 01 1 1306-
106 BRACKET; TUBE CLIP
(M) 		8-98224-856-1 01 1 1306-
106 BRACKET; TUBE CLIP
(G) 		8-98226-741-1 01 1 1306-1312
106 BRACKET; TUBE CLIP
(G) 		8-98251-771-0 01 1 1401-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1306-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1306-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1306-
107 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 01 1 1306-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1306-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1306-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1306-
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1306-
107 CLIP; NYLON TUBE
(D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1306-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1306-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1306-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1306-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1306-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1306-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1401-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1306-
279 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
