3-77 — BRAKE PIPING; AIR,REAR (#123203) — 128 parça

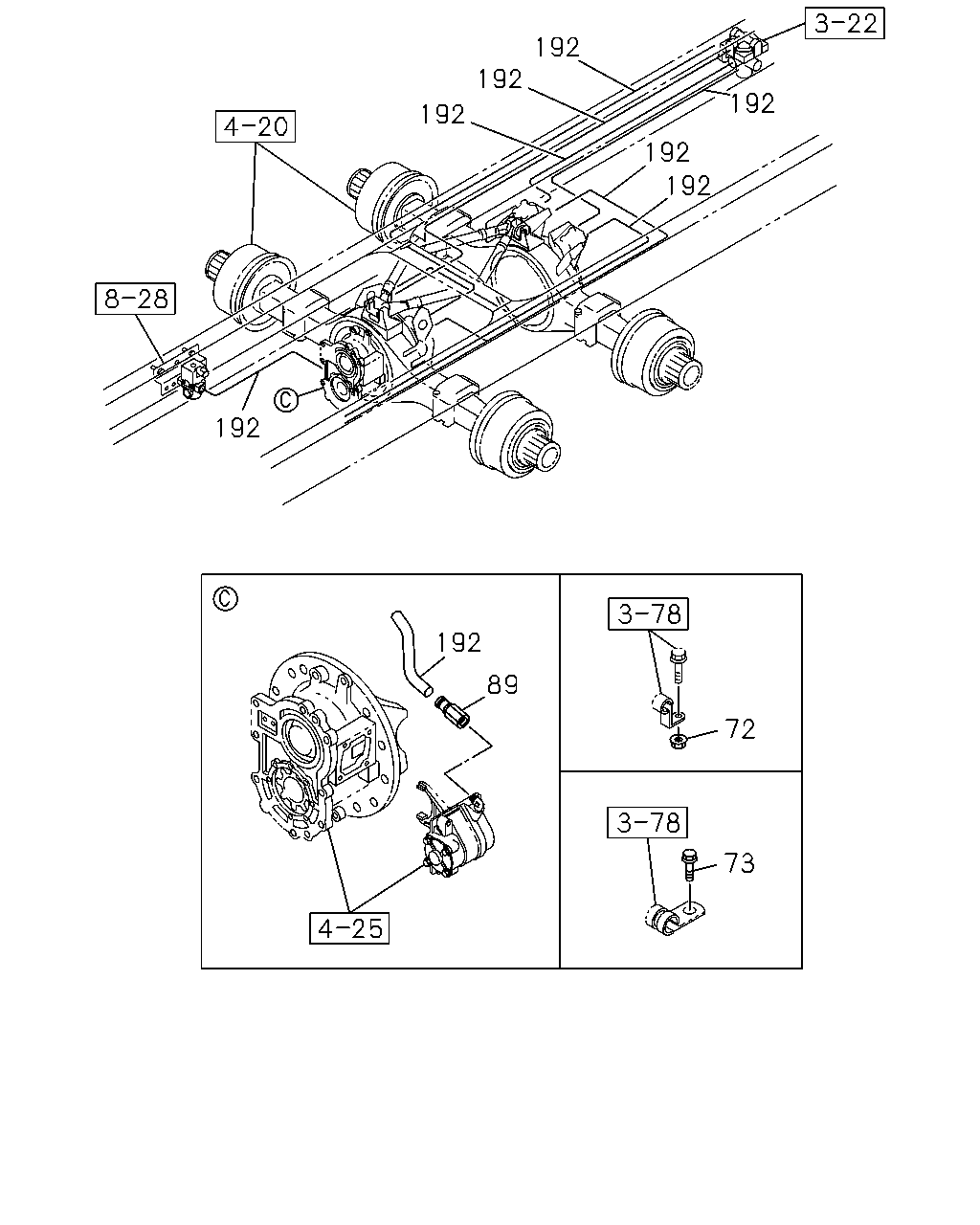

192 192 192 192 192 192 192 89 72 73 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
73	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-
89	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1306-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	08	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1306-

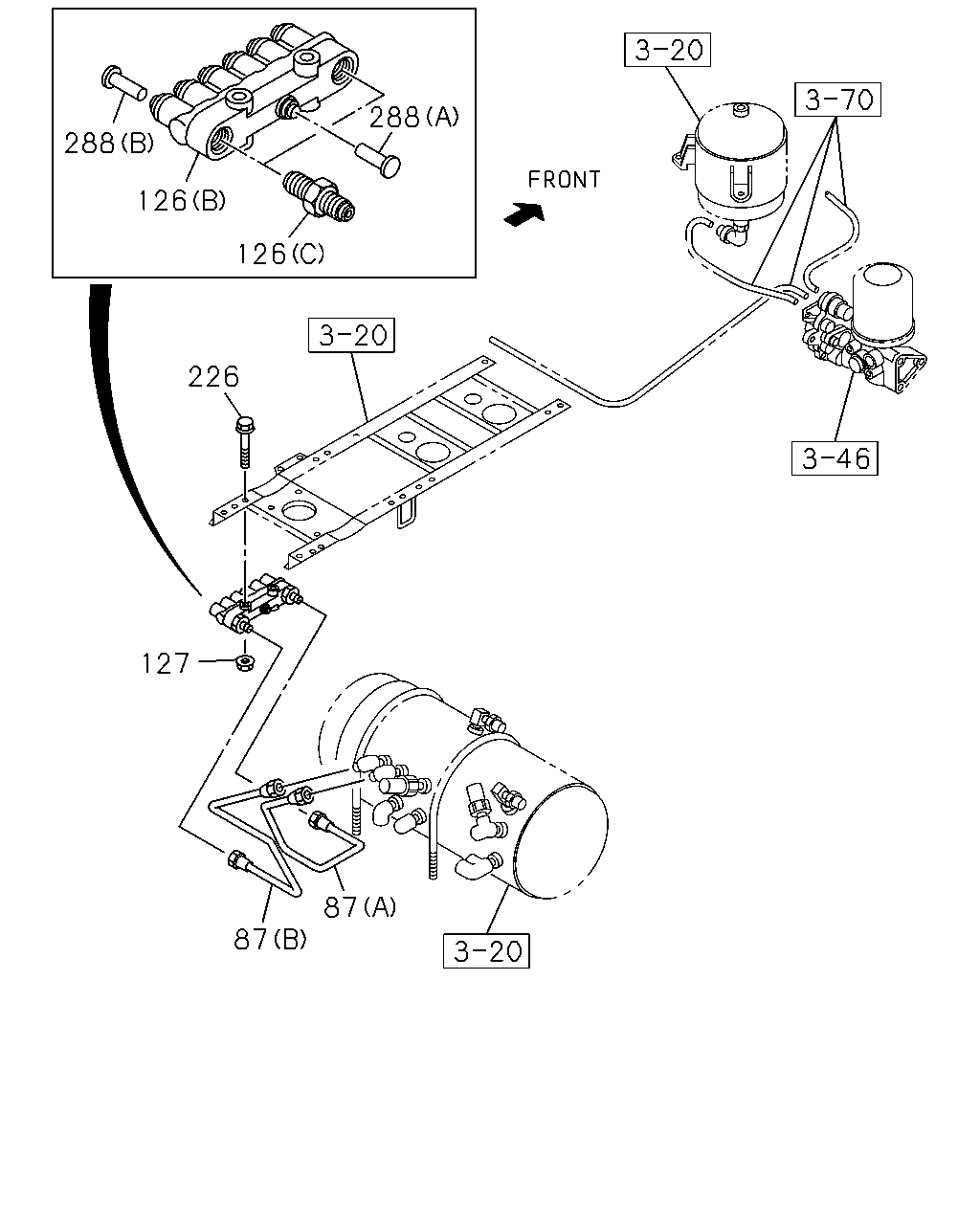

126 288 126 288 226 127 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
87	PIPE; AIR,AIR TANK TO UNION (B) L=429	8-98239-053-0	01	1	1306-
87	PIPE; AIR,AIR TANK TO UNION (A) L=543	8-98239-054-0	01	1	1306-
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1306-
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1306-
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	1306-
127	NUT; UNION M8 FLANGE	0-91180-108-0	01	1	1306-
127	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	1306-
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1306-
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1306-
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1306-
226	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	1306-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1306-
288	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	1306-
288	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1306-

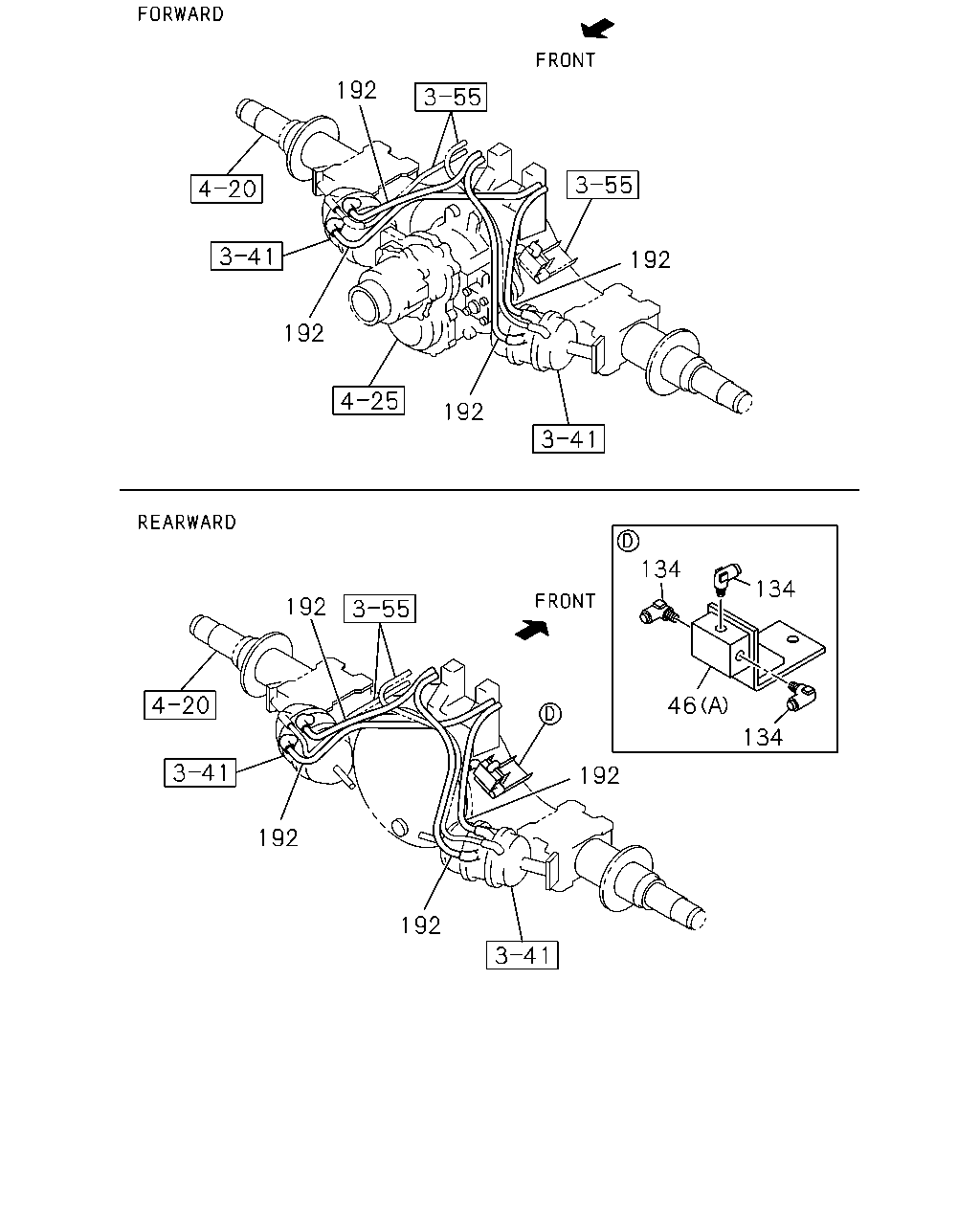

192 192 192 192 192 192 192 192 134 46 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	NIPPLE; AIR PIPE (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1306-
46	NIPPLE; AIR PIPE (C) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1306-
46	NIPPLE; AIR PIPE (A)	1-47471-156-0	01	1	1306-
134	CONNECTOR DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1306-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	08	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1306-

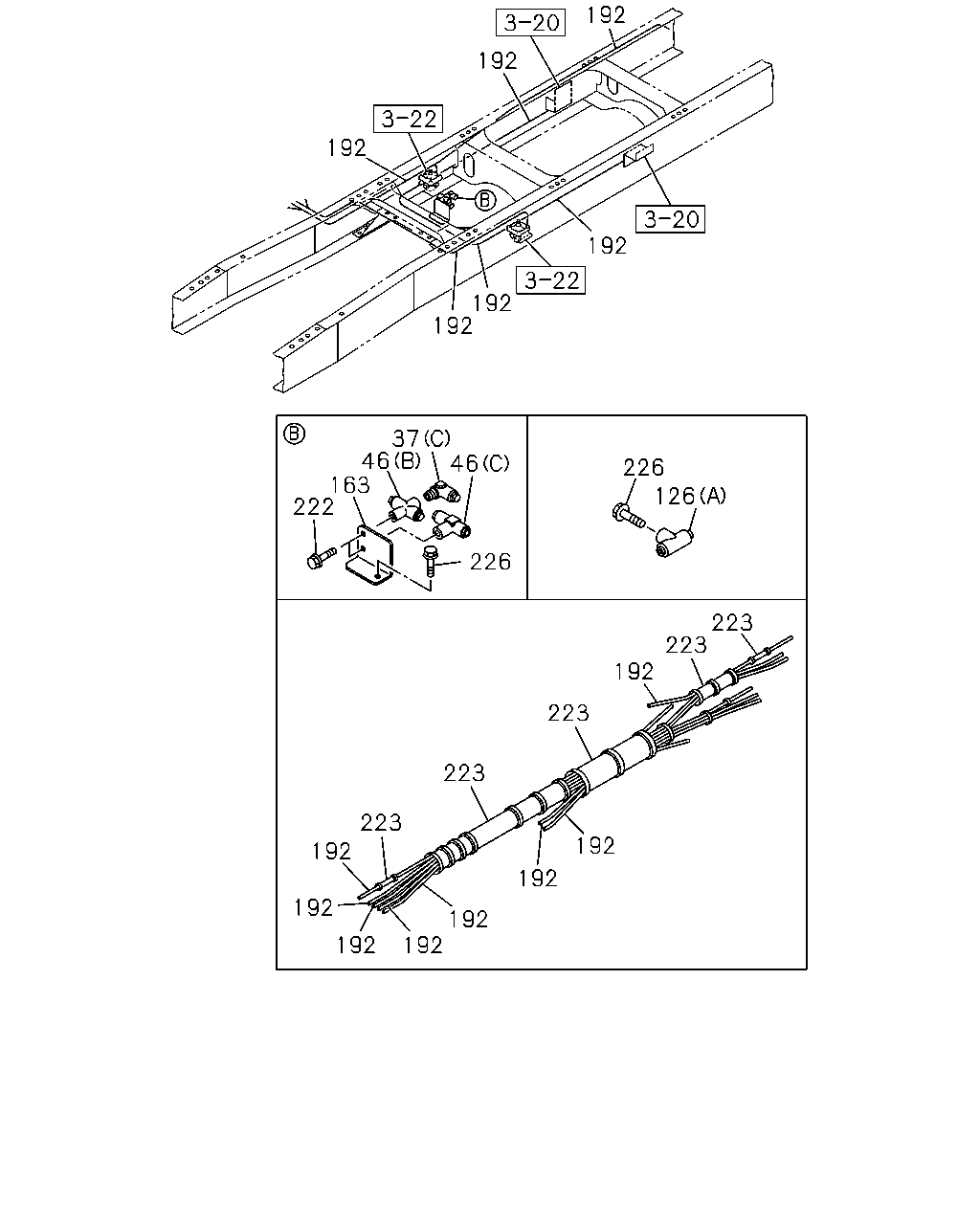

192 192 192 192 192 192 37 46 163 222 46 226 226 126 223 223 192 223 223 223 192 192 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (B) M16 & PT1/2 STRAIGHT	1-09650-222-1	01	1	1306-
37	UNION; AIR PIPE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1306-
37	UNION; AIR PIPE (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1306-
46	NIPPLE; AIR PIPE (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1306-
46	NIPPLE; AIR PIPE (C) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1306-
46	NIPPLE; AIR PIPE (A)	1-47471-156-0	01	1	1306-
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1306-
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1306-
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	1306-
163	BRACKET; FLEX HOSE	1-47471-145-0	01	1	1306-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	08	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1306-
222	BOLT; CONNECTOR M8X10 FLANGE	0-28050-810-0	02	1	1306-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1306-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1306-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1306-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1306-
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1306-
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1306-
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1306-
226	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	1306-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1306-

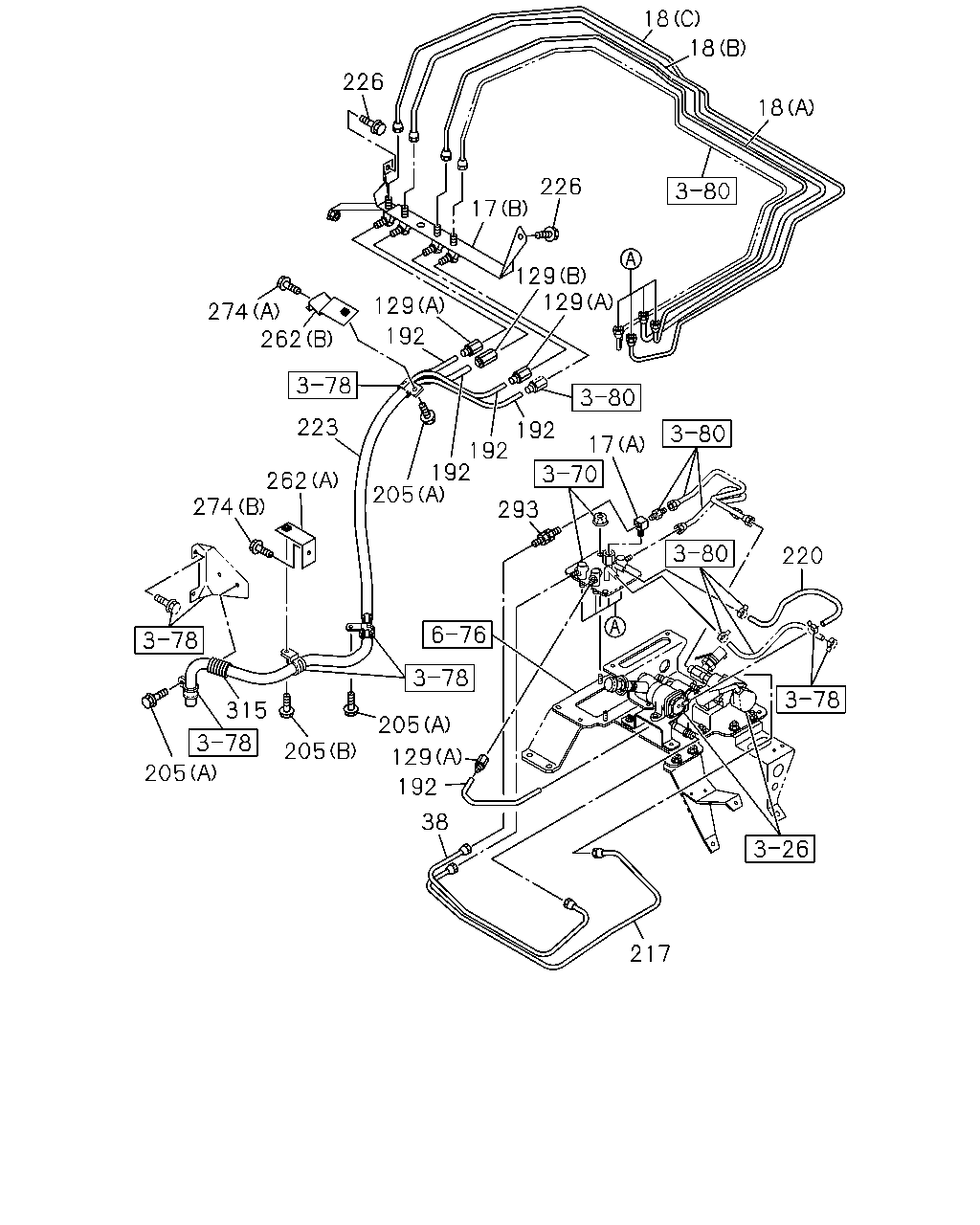

18 18 18 226 17 226 129 129 129 192 262 274 223 262 274 205 315 205 205 129 192 38 205 192 192 192 17 293 220 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	UNION; AIR PIPE (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1306-
17	UNION; AIR PIPE (B)	1-47470-656-0	01	1	1306-
18	PIPE; AIR,UNION TO UNION (A) L=1931 SERVICED BY L=1950	1-47428-854-0	01	1	1306-
18	PIPE; AIR,UNION TO UNION (C) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	1306-
18	PIPE; AIR,UNION TO UNION (B) L=2098 SERVICED BY L=2100	1-47428-882-0	01	1	1306-
38	PIPE; AIR,UNION TO MAG VLV	1-49122-879-0	01	1	1306-
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1306-
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1306-
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1306-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	08	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1306-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	02	1	1511-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1306-
205	BOLT; TUBE CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1306-
205	BOLT; TUBE CLIP (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1306-
217	PIPE; AIR,PARKING BRK VLV TO UNION	1-49123-172-0	01	1	1306-
220	HOSE; VINYL,EXH,PARKING BRK VLV L=350 SERVICED BY L=10000	9-09914-701-0	01	1	1306-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1306-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1306-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1306-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1306-
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1306-
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1306-
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1306-
226	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	1306-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1306-
262	BRACKET (A)	1-79996-143-0	01	1	1306-
262	BRACKET (B)	1-79996-258-1	01	1	1306-
274	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1306-
274	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1306-
293	VALVE; CHECK	1-48410-479-1	01	1	1306-
315	CLIP	8-97332-148-0	01	1	1306-

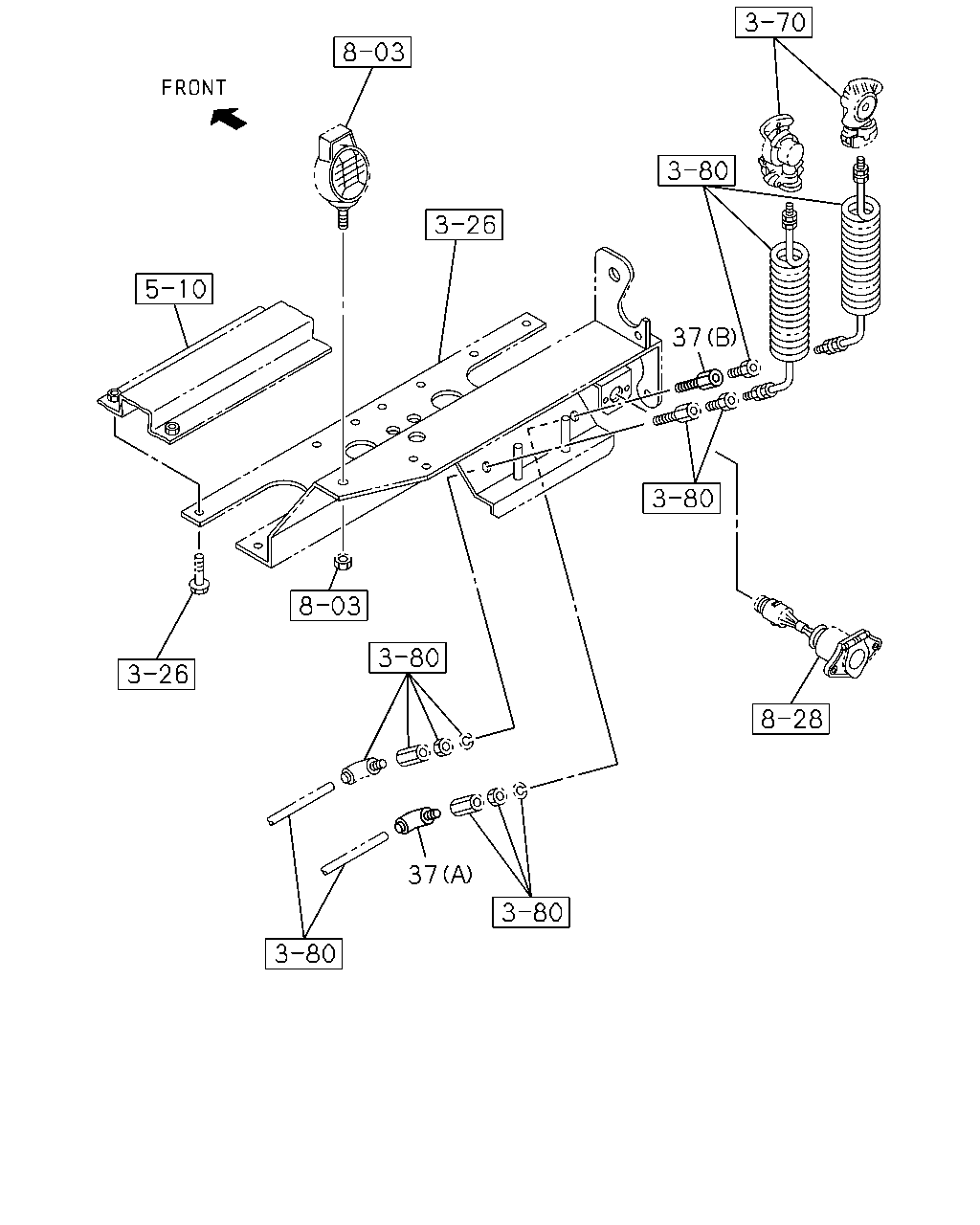

37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (B) M16 & PT1/2 STRAIGHT	1-09650-222-1	01	1	1306-
37	UNION; AIR PIPE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1306-
37	UNION; AIR PIPE (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1306-
