◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11536 - EXZ LHD EURO2 WITH REFLECTOR ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#123201) — 152 parça

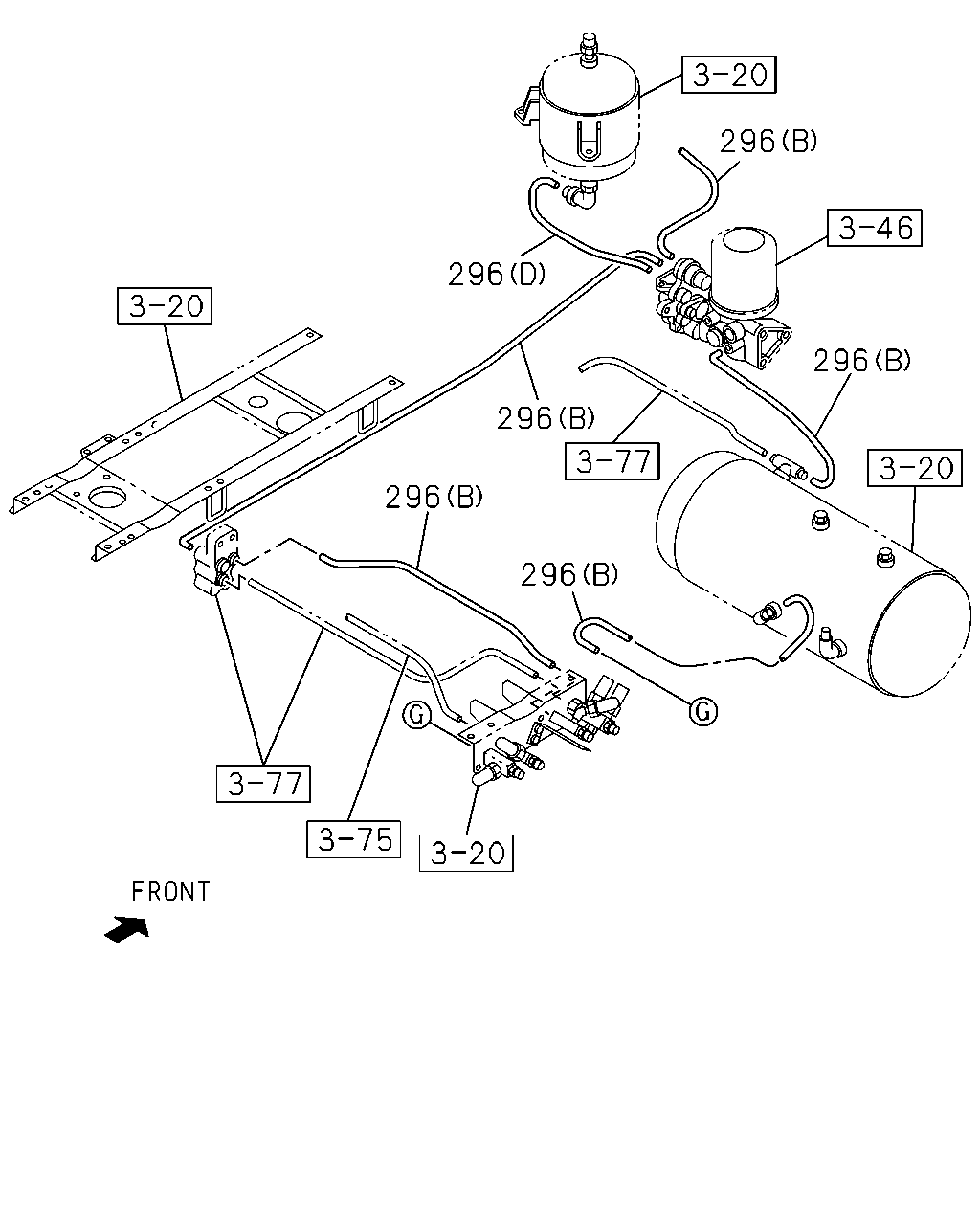

çizim 363606
296 296 296 296 296 296
BalonParca AdiParca NoAdetTipApplied Date
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(D) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
(C) 		8-98242-435-0 01 1 1306-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-

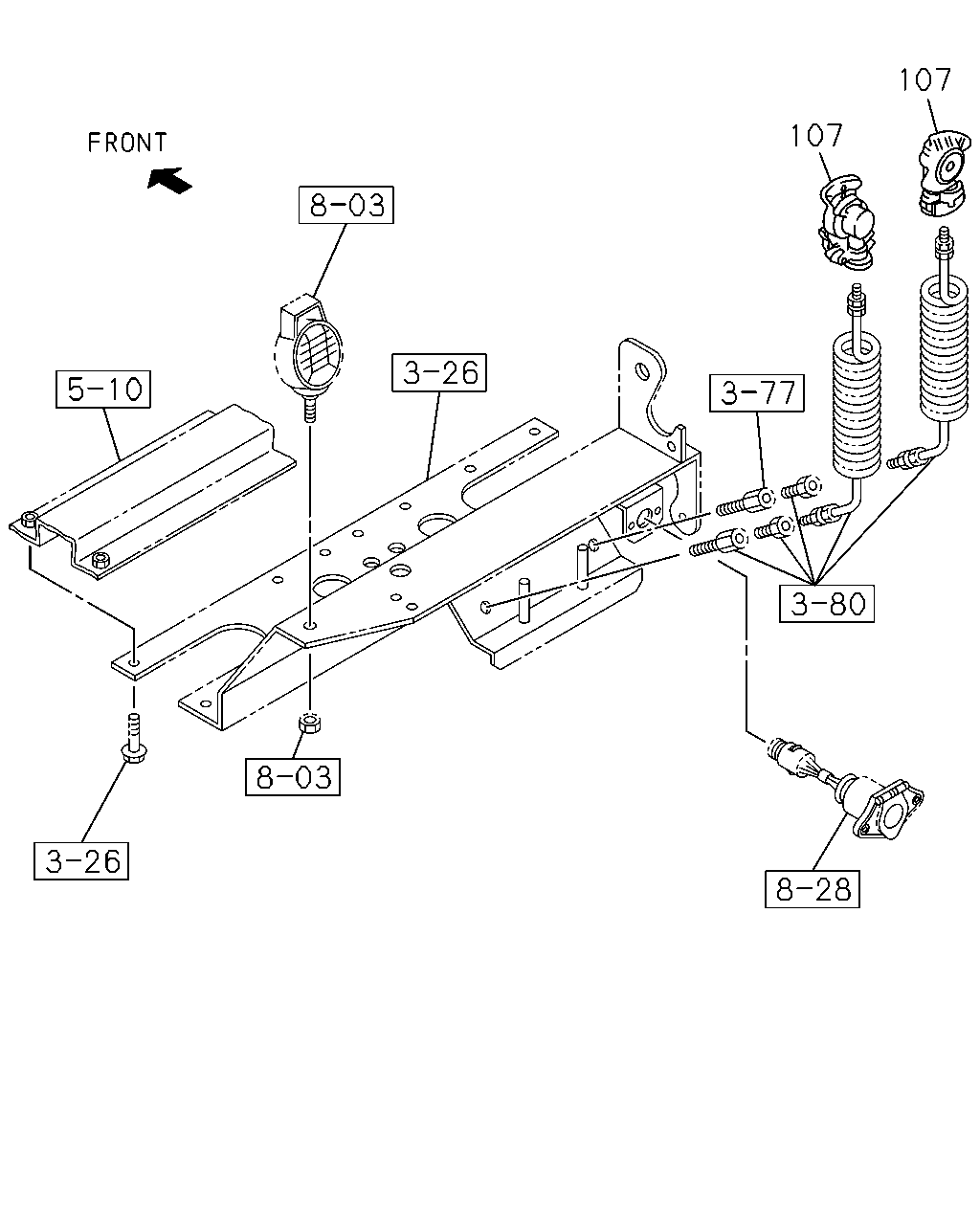

çizim 363609
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
EMERGENCY 		1-47478-210-0 01 1 1306-
107 COUPLING; SERVICE
SERVICE 		1-47478-211-0 01 1 1306-

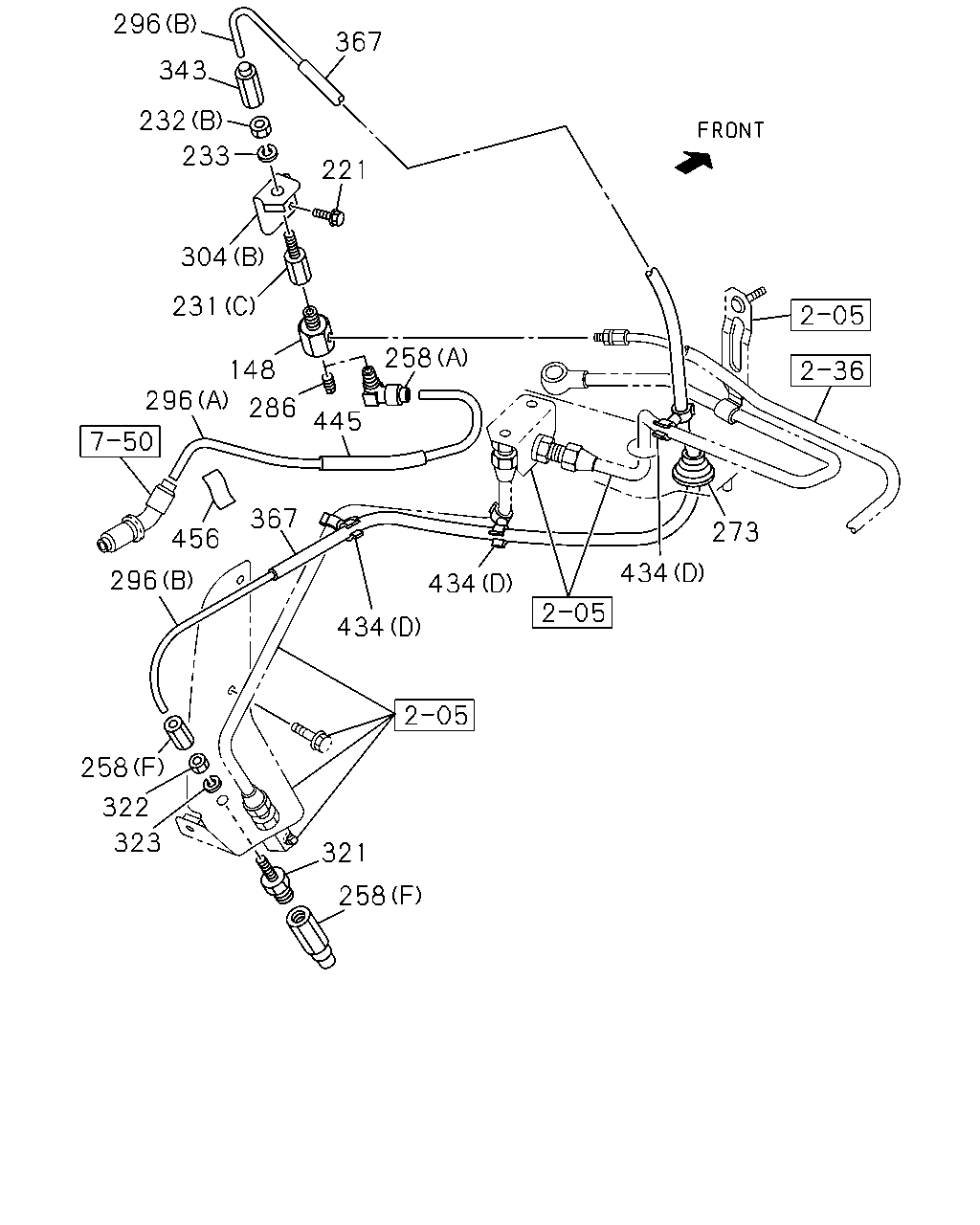

çizim 364400
258 321 323 322 258 296 434 434 434 273 258 445 286 367 456 296 148 231 304 233 221 367 232 343 296
BalonParca AdiParca NoAdetTipApplied Date
148 CONNECTOR; UNION 8-94338-417-0 01 1 1306-
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1306-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1306-
231 UNION; AIR PIPE
(C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1306-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1306-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1306-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 3WAY 		1-09661-300-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306-
273 GROMMET 1-09332-102-0 01 1 1306-
286 PLUG; AIR PIPE
RIGID SEAT W/ARM REST(SGC) 		9-09204-510-0 01 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(D) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
(C) 		8-98242-435-0 01 1 1306-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-
304 BRACKET; UNION
(B) 		1-71117-210-0 01 1 1306-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1306-
321 JOINT; FLEX HOSE
M12 L=66.5 		0-92113-306-0 01 1 1306-
322 NUT; JOINT,FLEX HOSE
M12 		9-09840-280-0 01 1 1306-
323 WASHER; LK,JOINT
ID=12.2 		0-91510-512-0 01 1 1306-
343 UNION; NYLON TUBE 1-09660-796-1 01 1 1306-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1306-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1306-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1306-
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1306-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-1 01 1 1306-
çizim 364484
434 337 232 330 337 231 334 231 343 330 232 343 297 372 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-655-0 01 1 1306-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1306-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1306-
231 UNION; AIR PIPE
(C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1306-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1306-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 02 1 1511-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 1306-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1306-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 1306-
343 UNION; NYLON TUBE 1-09660-796-1 01 1 1306-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1306-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1306-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1306-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1306-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1306-
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-

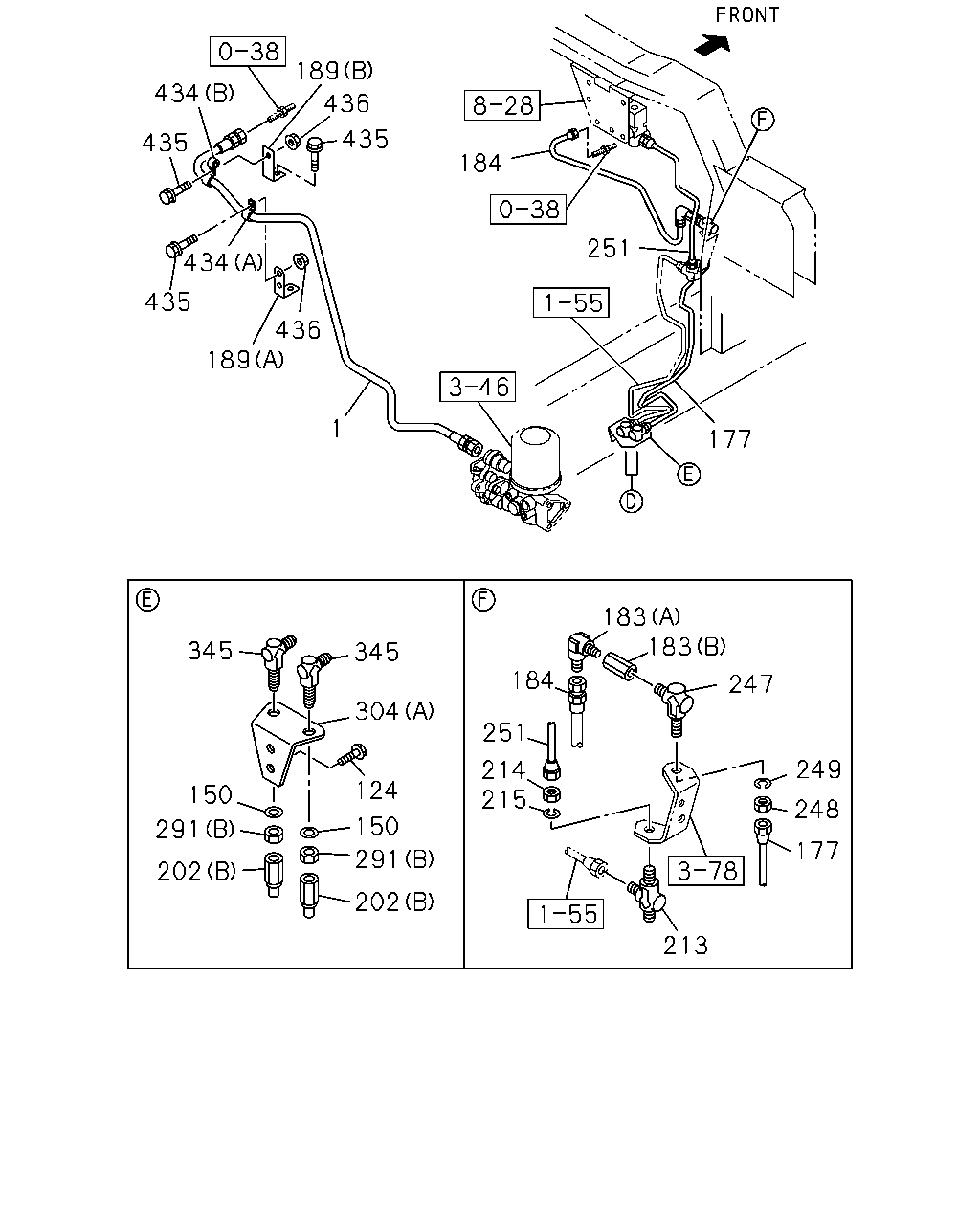

çizim 366474
434 189 436 435 435 434 435 436 189 184 251 177 1 345 345 304 124 291 150 202 150 291 202 251 214 215 184 183 247 183 249 248 177 213
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1480 		8-98169-578-0 01 1 1306-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1306-
177 PIPE; AIR,UNION TO UNION
L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1306-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1306-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1306-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1306-
189 BRACKET; FLEX HOSE
(A) 		1-47477-337-1 01 1 1306-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1306-
189 BRACKET; FLEX HOSE
(C) 		8-97645-648-0 01 1 1306-1308
189 BRACKET; FLEX HOSE
(C) 		8-97646-842-0 01 1 1309-
202 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
202 ADAPTER
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) M12 ELBOW 		0-92125-206-0 01 1 1306-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1306-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1306-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1306-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1306-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1306-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1306-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1306-
304 BRACKET; UNION
(B) 		1-71117-210-0 01 1 1306-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1306-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1306-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1306-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1306-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1306-
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1306-

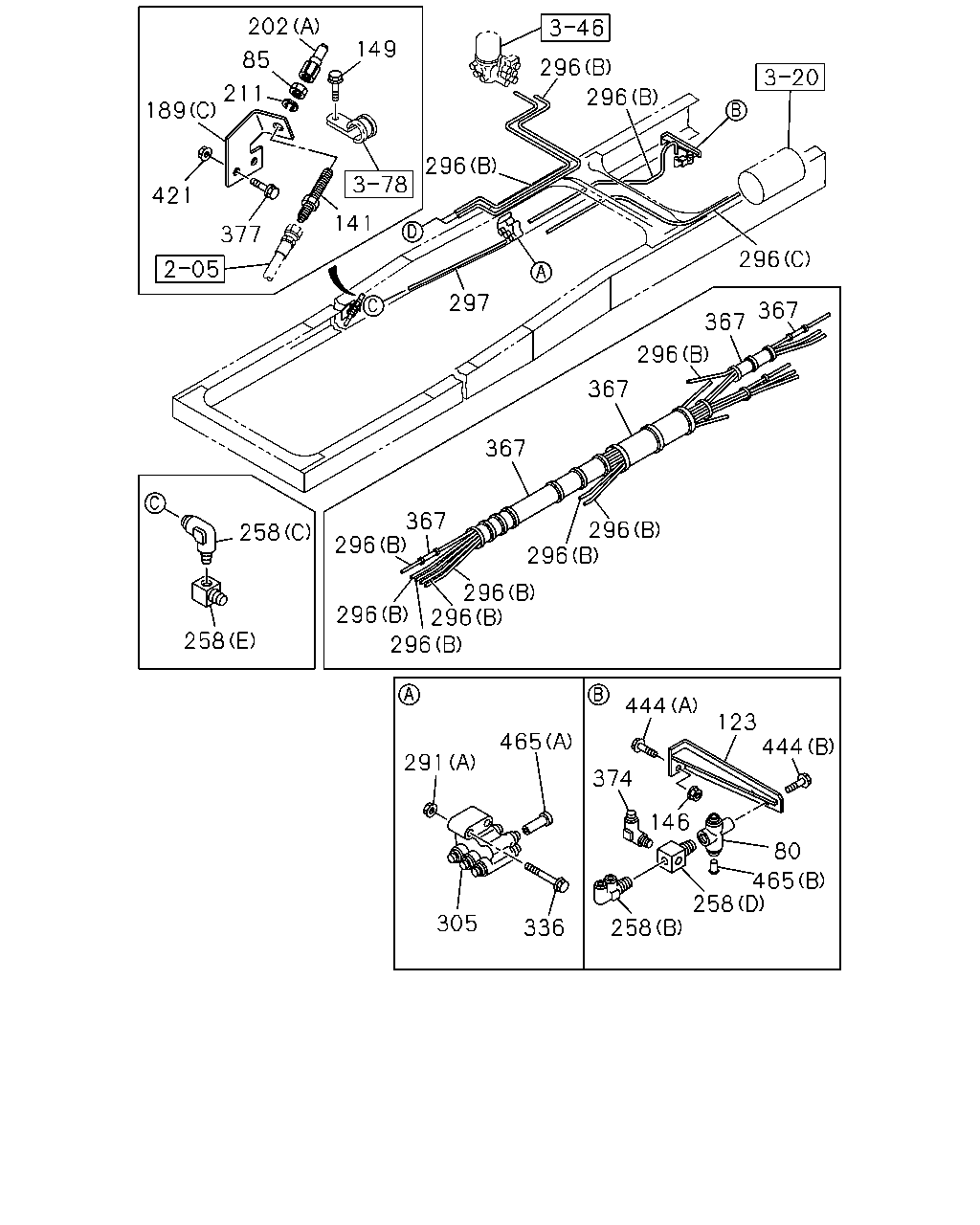

çizim 367059
202 85 189 421 377 149 141 296 297 296 296 296 367 367 296 367 367 367 296 258 258 296 296 296 296 296 296 291 465 444 123 444 258 336 305 258 465 80 146 374 211
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1306-
85 NUT; UNION
M12 		0-91111-512-0 01 1 1306-1308
85 NUT; UNION
M12 		9-09840-280-0 01 1 1309-
123 BRACKET; UNION 1-47479-401-0 01 1 1306-
141 UNION; FLEX HOSE
M12 L=66.5 		0-92113-306-0 01 1 1306-
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1306-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
189 BRACKET; FLEX HOSE
(A) 		1-47477-337-1 01 1 1306-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1306-
189 BRACKET; FLEX HOSE
(C) 		8-97645-648-0 01 1 1306-1308
189 BRACKET; FLEX HOSE
(C) 		8-97646-842-0 01 1 1309-
202 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
202 ADAPTER
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
211 WASHER; LK,UNION
ID=12.2 		0-91510-812-0 01 1 1306-1308
211 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 1309-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 3WAY 		1-09661-300-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(D) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
(C) 		8-98242-435-0 01 1 1306-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 02 1 1511-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1306-
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306-
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1306-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
444 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1306-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1306-
