Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#1232) — 239 parça

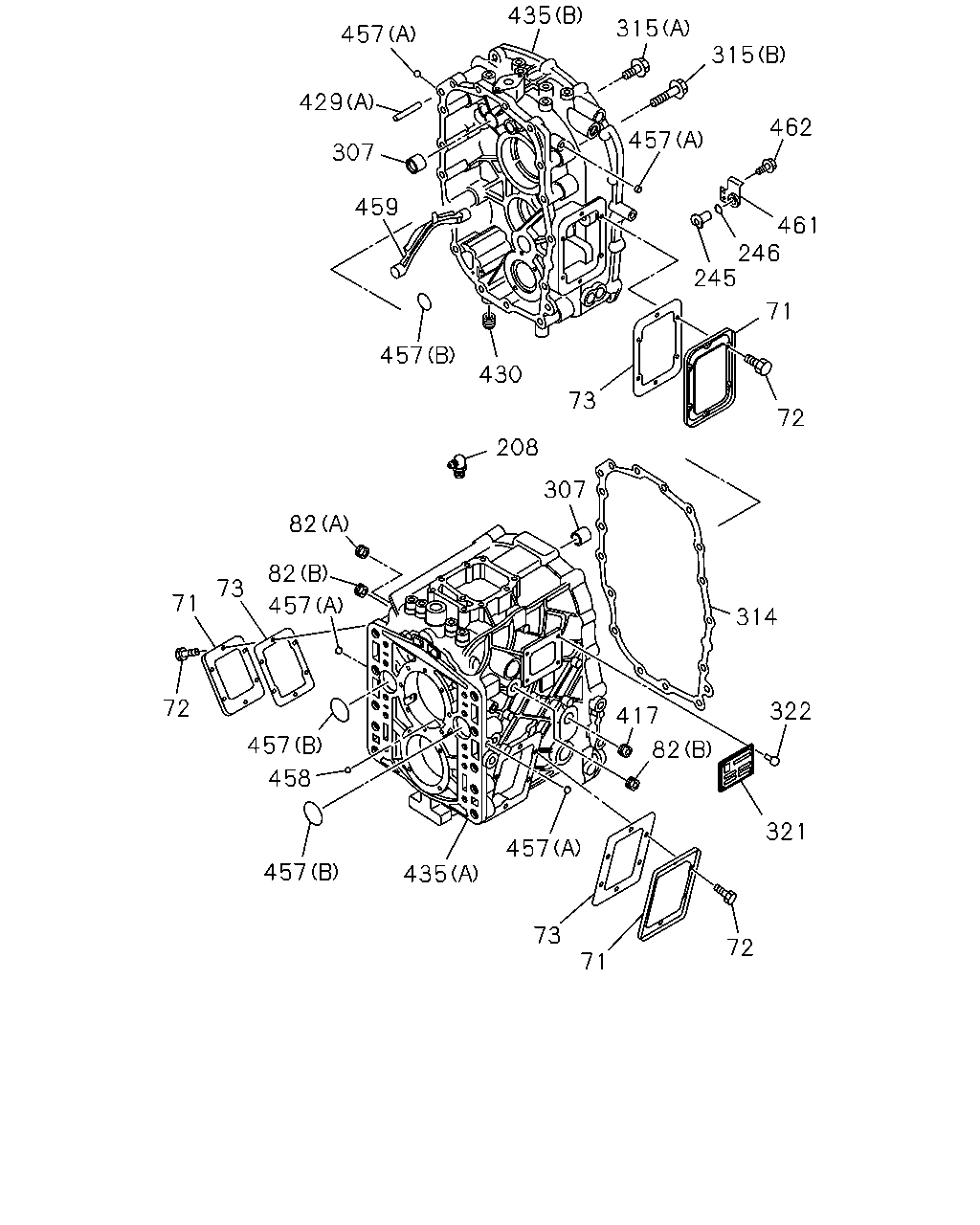

435 315 457 315 429 462 457 307 459 461 246 245 71 457 430 73 72 208 307 82 82 73 71 457 314 72 322 417 457 82 458 321 457 457 435 73 72 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9202-	●	●	●
71	COVER; SIDE,TRANS CASE	1-33119-235-0	03	1	9306-				●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●
72	BOLT; SIDE COVER	1-33119-236-0	18	1	9306-				●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9202-	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-237-0	03	1	9306-				●
82	PLUG; SCREW,CASE (A)	1-36119-003-0	01	1	9306-				●
82	PLUG; SCREW,CASE (B)	1-36259-018-0	03	1	9306-				●
208	NIPPLE; GREASE,CLU HSG PT1/8 ELBOW	9-09031-210-0	01	1	9306-				●
245	PIPE; OIL	1-33119-243-0	01	1	9306-				●
246	GASKET; OIL PIPE	1-33119-244-0	01	1	9306-				●
307	BUSHING; SHIFT FORK SHAFT	1-33119-232-0	02	1	9306-				●
314	GASKET; CASE	1-33119-238-0	01	1	9306-				●
315	BOLT; CASE (B) M8X70	1-33119-241-0	10	1	9306-				●
315	BOLT; CASE (A) M8X45	1-33119-242-0	06	1	9306-				●
321	PLATE; NAME	1-33119-233-0	01	1	9306-				●
322	RIVET; NAME PLATE	1-36119-006-0	04	1	9306-				●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9405	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●
417	PLUG; OIL FILLER,TRANS	1-36119-004-0	01	1	9306-				●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9202-	●	●	●
429	PIN; STRAIGHT (A)	1-33119-239-0	02	1	9306-				●
429	PIN; STRAIGHT (B)	1-33139-038-0	02	1	9306-				●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-	●	●	●
430	PLUG; OIL DRAIN	1-36119-014-0	01	1	9306-				●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204		●	●
435	CASE; TRANS	1-33111-235-0	01	1	9205-		●	●
435	CASE; TRANS	1-33111-194-1	01	1	9202-9204	●
435	CASE; TRANS	1-33111-236-0	01	1	9205-	●
435	CASE; TRANS (A)	1-33111-244-0	01	1	9306-				●
435	CASE; TRANS (B)	1-33111-245-0	01	1	9306-				●
457	CUP; SEALING,CASE (B)	1-33119-231-0	03	1	9306-				●
457	CUP; SEALING,CASE (A)	1-33119-234-0	07	1	9306-				●
458	BALL; CASE	1-38119-032-0	01	1	9306-				●
459	PLATE; OIL	1-33119-246-0	01	1	9306-				●
461	TUBE; OIL	1-33119-240-0	01	1	9306-				●
462	BOLT; TUBE M6X14	1-33119-245-0	02	1	9306-				●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

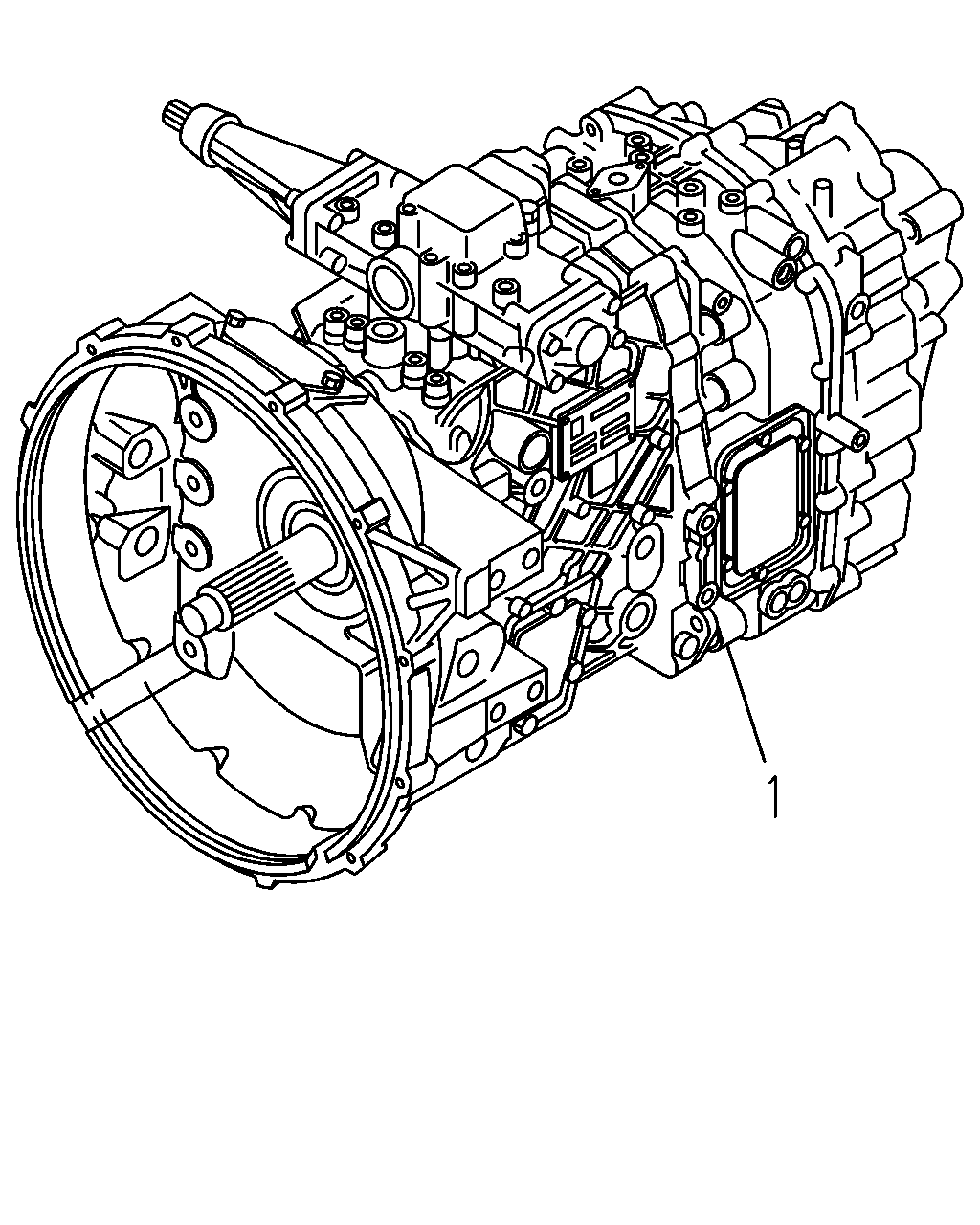

1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33033-958-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33033-932-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33034-011-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTER SHIFT CONTROL<WX8>	1-33033-984-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33035-763-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-607-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8>	1-33035-354-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-407-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33035-789-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33031-874-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 6SA1 STD ENG(06L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-633-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 6SA1 STD ENG(06L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33031-718-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-372-0	01	1	9505-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 37/8 17" EATON(W5A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-377-0	01	1	9505-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/9 16.5"(W4Q)	1-33038-779-1	01	1	9306-				●

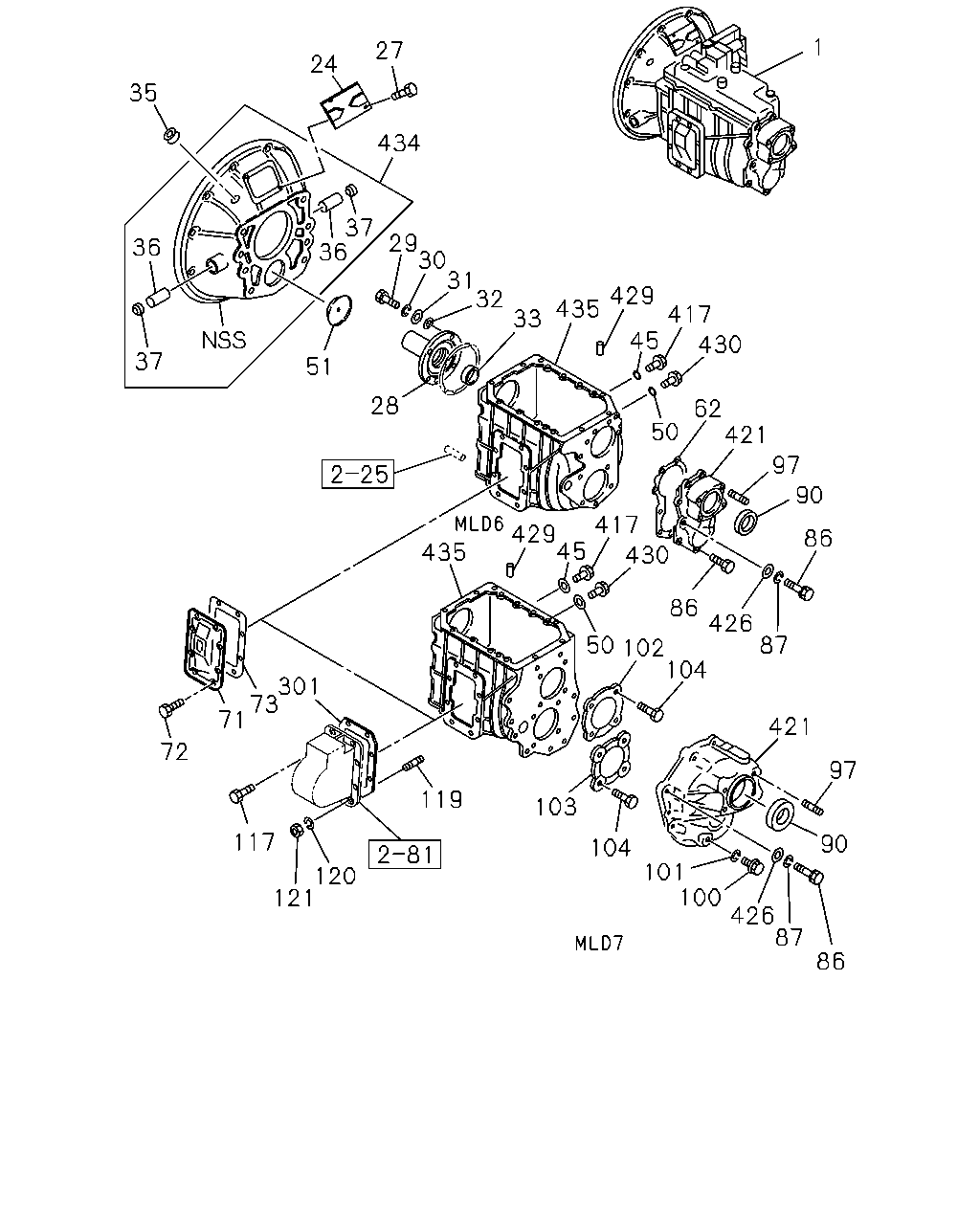

1 27 24 35 434 37 36 29 30 31 32 33 36 429 435 417 45 430 37 51 28 62 421 50 97 417 429 45 430 90 86 435 86 426 87 50 102 104 301 73 71 421 72 97 119 103 117 90 104 101 100 426 87 120 121 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33033-958-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33033-932-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33034-011-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTER SHIFT CONTROL<WX8>	1-33033-984-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33035-763-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-607-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8>	1-33035-354-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-407-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33035-789-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33031-874-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 6SA1 STD ENG(06L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-633-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 6SA1 STD ENG(06L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33031-718-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-372-0	01	1	9505-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 37/8 17" EATON(W5A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-377-0	01	1	9505-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/9 16.5"(W4Q)	1-33038-779-1	01	1	9306-				●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-	●	●	●
24	COVER; CHECK HOLE,DUST	1-31119-020-0	01	1	9306-				●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●
27	BOLT; COVER TO CLU HSG '92/6/1- M8X12 FLANGE	0-28080-812-0	02	1	9205-	●	●	●
27	BOLT; COVER TO CLU HSG	1-43319-018-0	02	1	9306-				●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-127-0	01	1	9306-				●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9202-9205	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9206-	●	●	●
29	BOLT; FRT COVER	1-33129-003-0	08	1	9306-				●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9202-9205	●	●	●
30	WASHER; LK,FRT COVER	1-36129-007-0	08	1	9306-				●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-101-0	01	1	9306-				●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9405	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9202-9402	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-	●	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-		●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33132-062-0	01	1	9306-				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33132-063-0	01	1	9306-				●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9202-	●	●	●
71	COVER; SIDE,TRANS CASE	1-33119-235-0	03	1	9306-				●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●
72	BOLT; SIDE COVER	1-33119-236-0	18	1	9306-				●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9202-	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-237-0	03	1	9306-				●
86	BOLT; RR COVER M12X65	9-01656-265-0	01	1	9202-9205		●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9206-		●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	08	1	9202-9205		●	●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9206-		●	●
86	BOLT; RR COVER M12X50	1-09020-137-0	02	1	9202-9205	●
86	BOLT; RR COVER M12X50	1-09044-085-0	02	1	9206-	●
86	BOLT; RR COVER M12X40	9-01991-240-0	09	1	9202-9205	●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9206-	●
86	BOLT; RR COVER (B) M8X45	1-33119-242-0	02	1	9306-				●
86	BOLT; RR COVER (A) M6X14	1-33119-245-0	03	1	9306-				●
86	BOLT; RR COVER (D) M8X60	1-33139-035-0	14	1	9306-				●
86	BOLT; RR COVER (C) M8X100	1-33139-036-0	01	1	9306-				●
86	BOLT; RR COVER (E) M12X70	1-33139-048-0	11	1	9306-				●
86	BOLT; RR COVER (F)	1-33139-051-0	04	1	9306-9504				●
86	BOLT; RR COVER FINAL GEAR 39/9 16.5"(W4Q) (F)	1-33139-051-0	04	1	9505-				●
86	BOLT; RR COVER FINAL GEAR 37/8 17" EATON(W5A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (F)	1-33139-051-0	04	1	9505-				●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9202-9205		●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	02	1	9202-9205	●
87	WASHER; LK,RR COVER	1-33139-049-0	11	1	9306-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9202-	●	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	01	1	9202-	●	●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 L=49	1-09302-099-0	03	1	9202-	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9202-	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	9202-	●
103	RETAINER; BRG	1-33151-037-0	01	1	9202-	●
104	BOLT; BRG RET M10X30 W/LK WASHER	0-50051-030-0	08	1	9202-9205	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9206-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28	0-50051-028-0	06	1	9202-9205	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9206-	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9202-	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	02	1	9202-9205	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	02	1	9202-9205	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	1-38119-013-0	01	1	9202-9408	●		●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-039-0	01	1	9409-	●		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9405	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●
417	PLUG; OIL FILLER,TRANS	1-36119-004-0	01	1	9306-				●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-		●	●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9202-	●
421	COVER; RR,TRANS (A)	1-33131-161-0	01	1	9306-				●
421	COVER; RR,TRANS (B)	1-33131-165-0	01	1	9306-9504				●
421	COVER; RR,TRANS FINAL GEAR 39/9 16.5"(W4Q) (B)	1-33131-165-0	01	1	9505-				●
421	COVER; RR,TRANS FINAL GEAR 37/8 17" EATON(W5A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33131-165-0	01	1	9505-				●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	01	1	9202-9205		●	●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	02	1	9202-9205	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9202-	●	●	●
429	PIN; STRAIGHT (A)	1-33119-239-0	02	1	9306-				●
429	PIN; STRAIGHT (B)	1-33139-038-0	02	1	9306-				●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-	●	●	●
430	PLUG; OIL DRAIN	1-36119-014-0	01	1	9306-				●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-	●	●	●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204		●	●
435	CASE; TRANS	1-33111-235-0	01	1	9205-		●	●
435	CASE; TRANS	1-33111-194-1	01	1	9202-9204	●
435	CASE; TRANS	1-33111-236-0	01	1	9205-	●
435	CASE; TRANS (A)	1-33111-244-0	01	1	9306-				●
435	CASE; TRANS (B)	1-33111-245-0	01	1	9306-				●

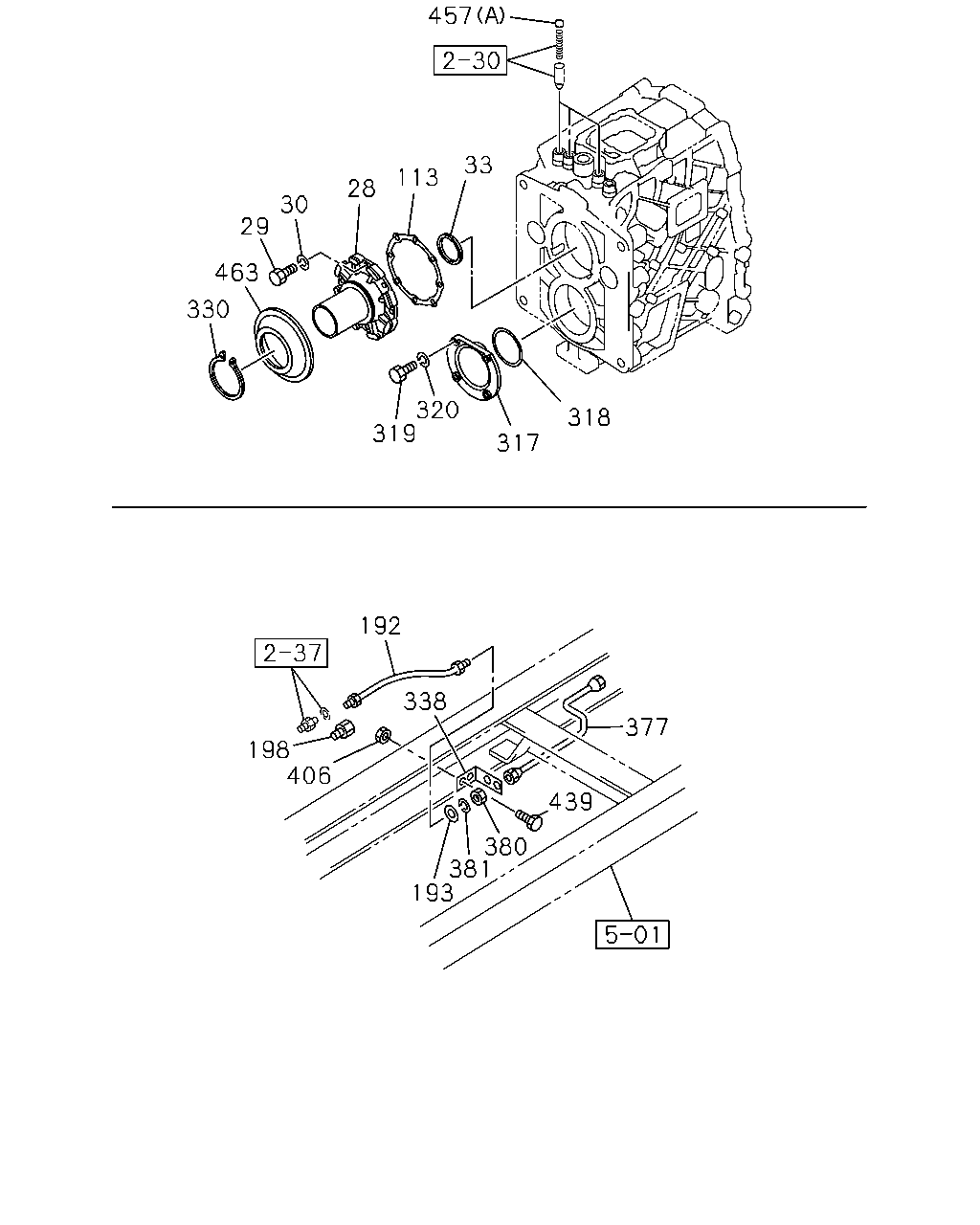

457 33 113 28 30 29 463 330 320 319 318 317 192 338 377 198 406 439 380 381 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-127-0	01	1	9306-				●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9202-9205	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9206-	●	●	●
29	BOLT; FRT COVER	1-33129-003-0	08	1	9306-				●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9202-9205	●	●	●
30	WASHER; LK,FRT COVER	1-36129-007-0	08	1	9306-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-101-0	01	1	9306-				●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-017-0	01	1	9306-				●
192	HOSE; FLEX,TRANS	0-07462-400-1	01	1	9305-				●
193	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9305-				●
198	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-416-0	01	1	9505-				●
317	COVER; CASE	1-33119-247-0	01	1	9306-				●
318	GASKET; COVER	1-33119-248-0	01	1	9306-				●
319	BOLT; COVER	1-33129-003-0	04	1	9306-				●
320	WASHER; COVER	1-36129-007-0	04	1	9306-				●
330	RING; RET	1-33129-005-0	01	1	9306-				●
338	BRACKET; FLEX HOSE	1-47476-032-1	01	1	9305-				●
377	PIPE; AIR,UNION TO FLEX L=493 SERVICED BY L=500	1-47426-376-0	01	1	9305-				●
380	NUT; FLEX HOSE M14	9-99110-414-0	01	1	9305-				●
381	WASHER; LK,FLEX HOSE ID=14.2	9-09150-514-0	01	1	9305-				●
406	NUT; BRKT M8	9-09110-408-0	02	1	9305-				●
439	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9305-				●
457	CUP; SEALING,CASE (B)	1-33119-231-0	03	1	9306-				●
457	CUP; SEALING,CASE (A)	1-33119-234-0	07	1	9306-				●
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	9306-				●

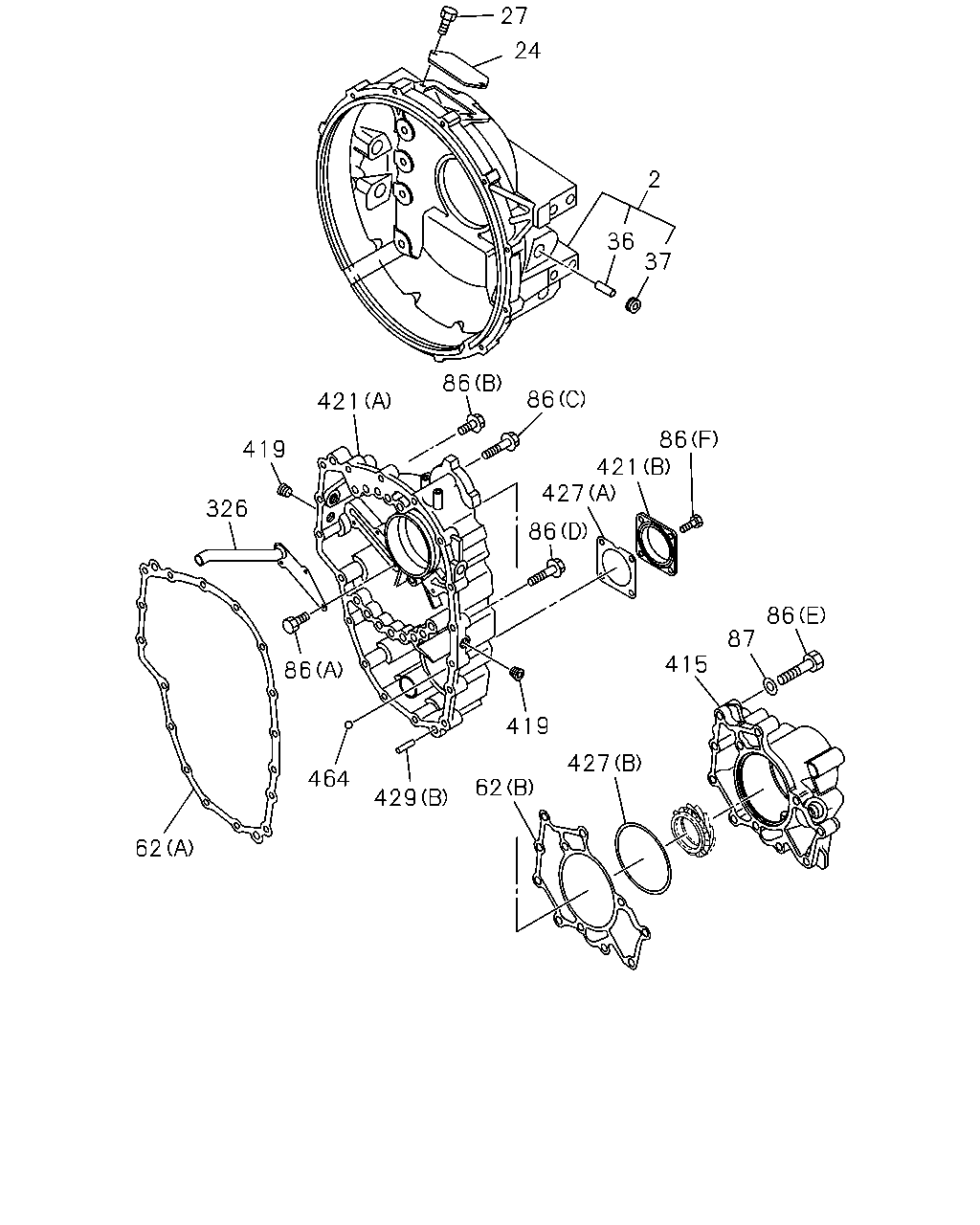

27 24 2 36 37 86 86 421 86 421 427 419 326 86 86 87 415 86 419 427 464 62 429 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOUSING; CLU	1-31111-170-0	01	1	9306-				●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-	●	●	●
24	COVER; CHECK HOLE,DUST	1-31119-020-0	01	1	9306-				●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●
27	BOLT; COVER TO CLU HSG '92/6/1- M8X12 FLANGE	0-28080-812-0	02	1	9205-	●	●	●
27	BOLT; COVER TO CLU HSG	1-43319-018-0	02	1	9306-				●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-	●	●	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-		●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33132-062-0	01	1	9306-				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33132-063-0	01	1	9306-				●
86	BOLT; RR COVER M12X65	9-01656-265-0	01	1	9202-9205		●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9206-		●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	08	1	9202-9205		●	●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9206-		●	●
86	BOLT; RR COVER M12X50	1-09020-137-0	02	1	9202-9205	●
86	BOLT; RR COVER M12X50	1-09044-085-0	02	1	9206-	●
86	BOLT; RR COVER M12X40	9-01991-240-0	09	1	9202-9205	●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9206-	●
86	BOLT; RR COVER (B) M8X45	1-33119-242-0	02	1	9306-				●
86	BOLT; RR COVER (A) M6X14	1-33119-245-0	03	1	9306-				●
86	BOLT; RR COVER (D) M8X60	1-33139-035-0	14	1	9306-				●
86	BOLT; RR COVER (C) M8X100	1-33139-036-0	01	1	9306-				●
86	BOLT; RR COVER (E) M12X70	1-33139-048-0	11	1	9306-				●
86	BOLT; RR COVER (F)	1-33139-051-0	04	1	9306-9504				●
86	BOLT; RR COVER FINAL GEAR 39/9 16.5"(W4Q) (F)	1-33139-051-0	04	1	9505-				●
86	BOLT; RR COVER FINAL GEAR 37/8 17" EATON(W5A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (F)	1-33139-051-0	04	1	9505-				●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9202-9205		●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	02	1	9202-9205	●
87	WASHER; LK,RR COVER	1-33139-049-0	11	1	9306-				●
326	NOZZLE; OIL,OUTLET	1-33139-040-0	01	1	9306-				●
415	COVER; BRG	1-33131-162-0	01	1	9306-				●
419	PLUG; RR COVER	1-36119-003-0	02	1	9306-				●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-		●	●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9202-	●
421	COVER; RR,TRANS (A)	1-33131-161-0	01	1	9306-				●
421	COVER; RR,TRANS (B)	1-33131-165-0	01	1	9306-9504				●
421	COVER; RR,TRANS FINAL GEAR 39/9 16.5"(W4Q) (B)	1-33131-165-0	01	1	9505-				●
421	COVER; RR,TRANS FINAL GEAR 37/8 17" EATON(W5A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33131-165-0	01	1	9505-				●
427	GASKET; RR COVER (A)	1-33132-054-0	01	1	9306-9504				●
427	GASKET; RR COVER FINAL GEAR 39/9 16.5"(W4Q) (A)	1-33132-054-0	01	1	9505-				●
427	GASKET; RR COVER FINAL GEAR 37/8 17" EATON(W5A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-33132-054-0	01	1	9505-				●
427	GASKET; RR COVER (B)	1-33132-064-0	01	1	9306-				●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9202-	●	●	●
429	PIN; STRAIGHT (A)	1-33119-239-0	02	1	9306-				●
429	PIN; STRAIGHT (B)	1-33139-038-0	02	1	9306-				●
464	BALL; RR COVER	1-33139-044-0	01	1	9306-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
