Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11536 - EXZ LHD EURO2 WITH REFLECTOR
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#123193) — 102 parça
◀
[326A] FIXING;CAB SIDE (21 parça)
[326A] FRAME SIDE (16 parça)
[326A] HAND CONT VALVE (30 parça)
[326A] REPAIR KIT;TRAILER CONT (1 parça)
[326A] REPAIR KIT;HAND CONT VALVE (1 parça)
[326A] HAND BRK VALVE (25 parça)
[326A] JUMPER CABLE (8 parça)
▶

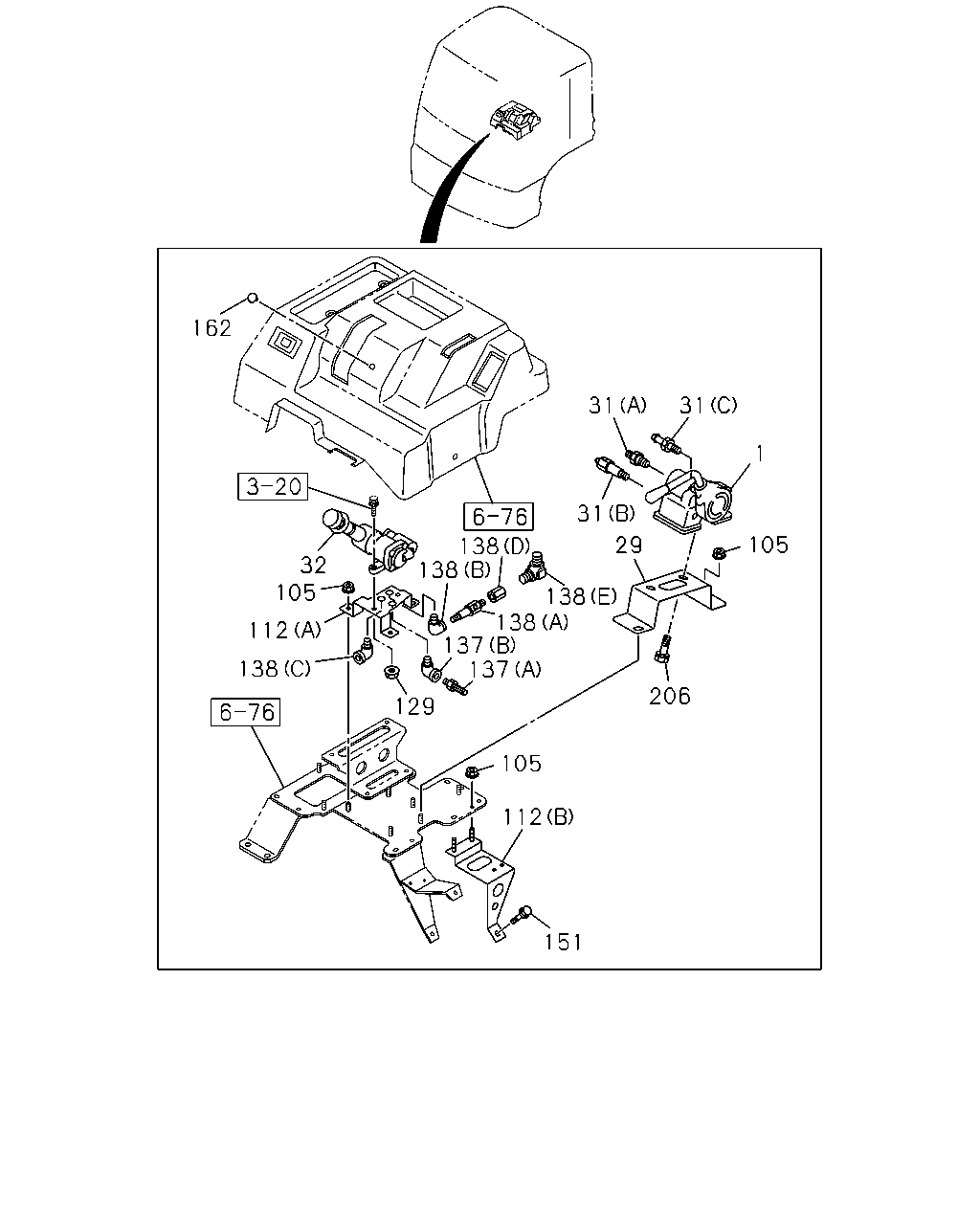

162
138
112
105
32
129
138
137
137
105
112
151
206
105
1
31
31
31
29
138
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; HAND BRK
1-48100-849-0
01
1
1306-
29
BRACKET; HAND BRK
1-79996-131-2
01
1
1306-
31
CONNECTOR; HAND BRK VLV
(A) M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
1306-
31
CONNECTOR; HAND BRK VLV
(B) M14
1-09656-391-2
01
1
1306-
31
CONNECTOR; HAND BRK VLV
(C) L=45
8-94338-874-0
01
1
1306-
32
VALVE; BRK,HAND CONT
1-48460-316-0
01
1
1306-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1306-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
1306-
112
BRACKET; CONT VLV
(A)
1-79996-112-2
01
1
1306-
112
BRACKET; CONT VLV
(B)
1-79996-113-2
01
1
1306-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
1306-
137
CONNECTOR; SUPPLY
(A) PT1/4 & M16 STRAIGHT
1-09650-352-1
01
1
1306-
137
CONNECTOR; SUPPLY
(B) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
1306-
138
CONNECTOR; DELIVERY
(E) M14 & PT1/4 ELBOW
1-09650-432-0
01
1
1306-
138
CONNECTOR; DELIVERY
(A) M14
1-09656-391-2
01
1
1306-
138
CONNECTOR; DELIVERY
(B) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
1306-
138
CONNECTOR; DELIVERY
(D) M20 & RC1/4 STRAIGHT
1-09660-880-0
01
1
1306-
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1306-
151
BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
1306-
162
SWITCH; PARKING BRK VLV
1-72447-390-0
01
1
1306-
206
BOLT; HAND BRK VALVE
M10X20 W/LK WASHER
0-50541-020-0
02
1
1306-

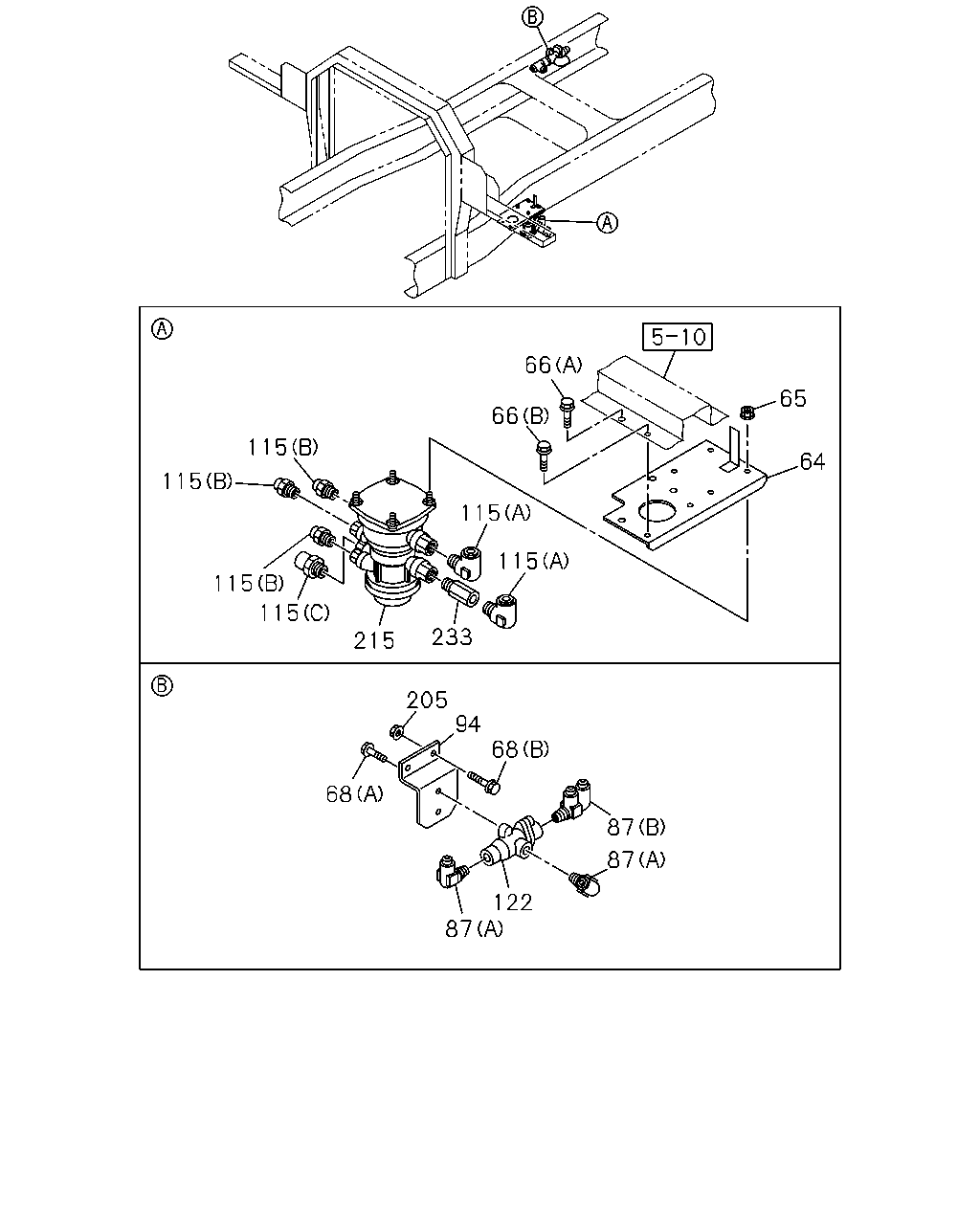

115
115
115
115
215
233
115
115
64
65
66
66
205
94
68
87
87
122
87
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
BRACKET; RELAY VLV
1-48495-216-0
01
1
1306-
65
NUT; RELAY VLV
M8 FLANGE
0-91180-108-0
04
1
1306-
66
BOLT; VLV BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1306-
66
BOLT; VLV BRKT
(B) M10X25 FLANGE
0-28651-025-0
02
1
1306-
68
BOLT; DOUBLE CHECK VLV
(A) M8X14 FLANGE
0-28080-814-0
02
1
1306-
68
BOLT; DOUBLE CHECK VLV
(B) M8X30 FLANGE
0-28650-830-0
02
1
1306-
87
CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
1306-
87
CONNECTOR; DBL CHECK VLV
(B) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
1306-
94
BRACKET; CHECK VLV
8-97614-381-0
01
1
1306-
115
CONNECTOR; DUAL RELAY VLV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1306-
115
CONNECTOR; DUAL RELAY VLV
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
03
1
1306-
115
CONNECTOR; DUAL RELAY VLV
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1306-
122
VALVE ASM; DOUBLE CHECK
1-48410-531-1
01
1
1306-
205
NUT; DOUBLE CHECK VLV
M8 FLANGE
0-91180-108-0
02
1
1306-
215
VALVE; TRAILER CONT
8-98091-694-0
01
1
1306-
233
ADAPTER; VLV
PT3/8
1-48319-058-0
01
1
1306-

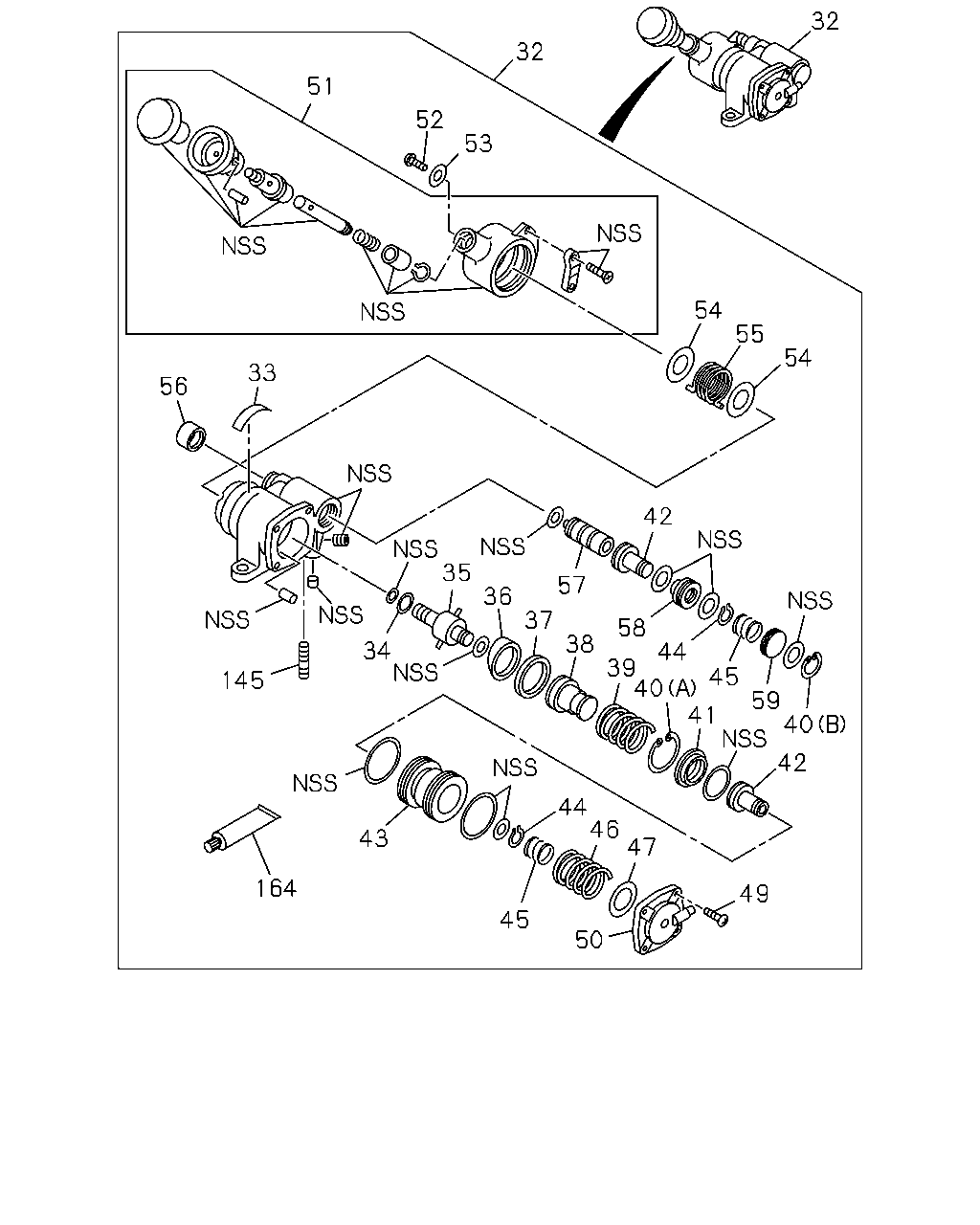

51
52
53
32
32
54
55
54
56
33
145
164
43
34
35
36
37
38
39
44
45
46
47
50
49
42
41
40
44
45
59
58
57
42
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-316-0
01
1
1306-
33
PLATE; CAUTION
1-48469-121-0
01
1
1306-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1306-
35
HOLDER; CAM
1-48469-054-0
01
1
1306-
36
RING; CAM
1-48469-056-0
01
1
1306-
37
GUIDE; CAM RING
1-48469-058-0
01
1
1306-
38
SEAT; EXH VLV
1-48469-057-0
01
1
1306-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1306-
40
RING; SNAP
(A)
1-48469-067-0
01
1
1306-
40
RING; SNAP
(B)
1-48469-079-0
01
1
1306-
41
SEAT; FEED VLV
1-48469-066-0
01
1
1306-
42
VALVE; FEED
1-48469-065-0
02
1
1306-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1306-
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
1306-
45
SPRING; FEED VLV
1-48469-070-0
02
1
1306-
46
SPRING; MAIN,PISTON
1-48469-119-0
01
1
1306-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1306-
49
SCREW; COVER
1-48469-120-0
04
1
1306-
50
COVER; HAND BRK VLV
1-48469-073-0
01
1
1306-
51
HANDLE ASM; HAND BRK VLV
1-48469-060-0
01
1
1306-
52
SCREW; HANDLE
1-48469-062-0
01
1
1306-
53
WASHER; HANDLE
1-48469-061-0
01
1
1306-
54
SEAT; SPRING
1-48469-082-0
02
1
1306-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1306-
56
BOOT; PLUNGER
1-48469-080-0
01
1
1306-
57
PLUNGER; HAND BRK VLV
1-48469-076-0
01
1
1306-
58
HOLDER; FEED VLV
1-48469-077-0
01
1
1306-
59
HOLDER; SPRING
1-48469-078-0
01
1
1306-
145
STUD; HAND BRK VLV
1-48469-069-0
01
1
1306-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1306-
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
180
REPAIR KIT; RELAY VLV
1-85576-449-0
01
1
1306-

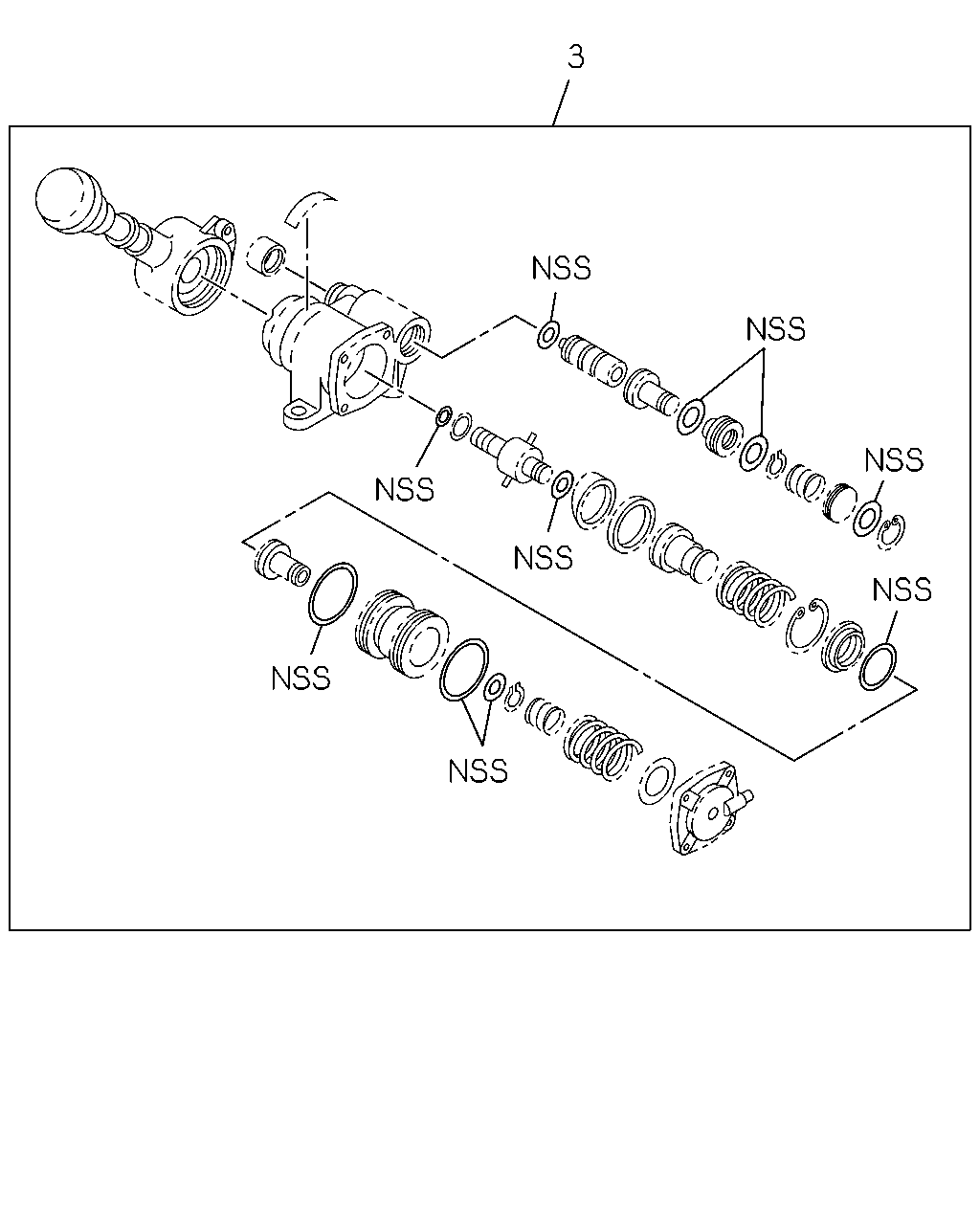

3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
W/GREASE
1-48469-083-0
01
1
1306-

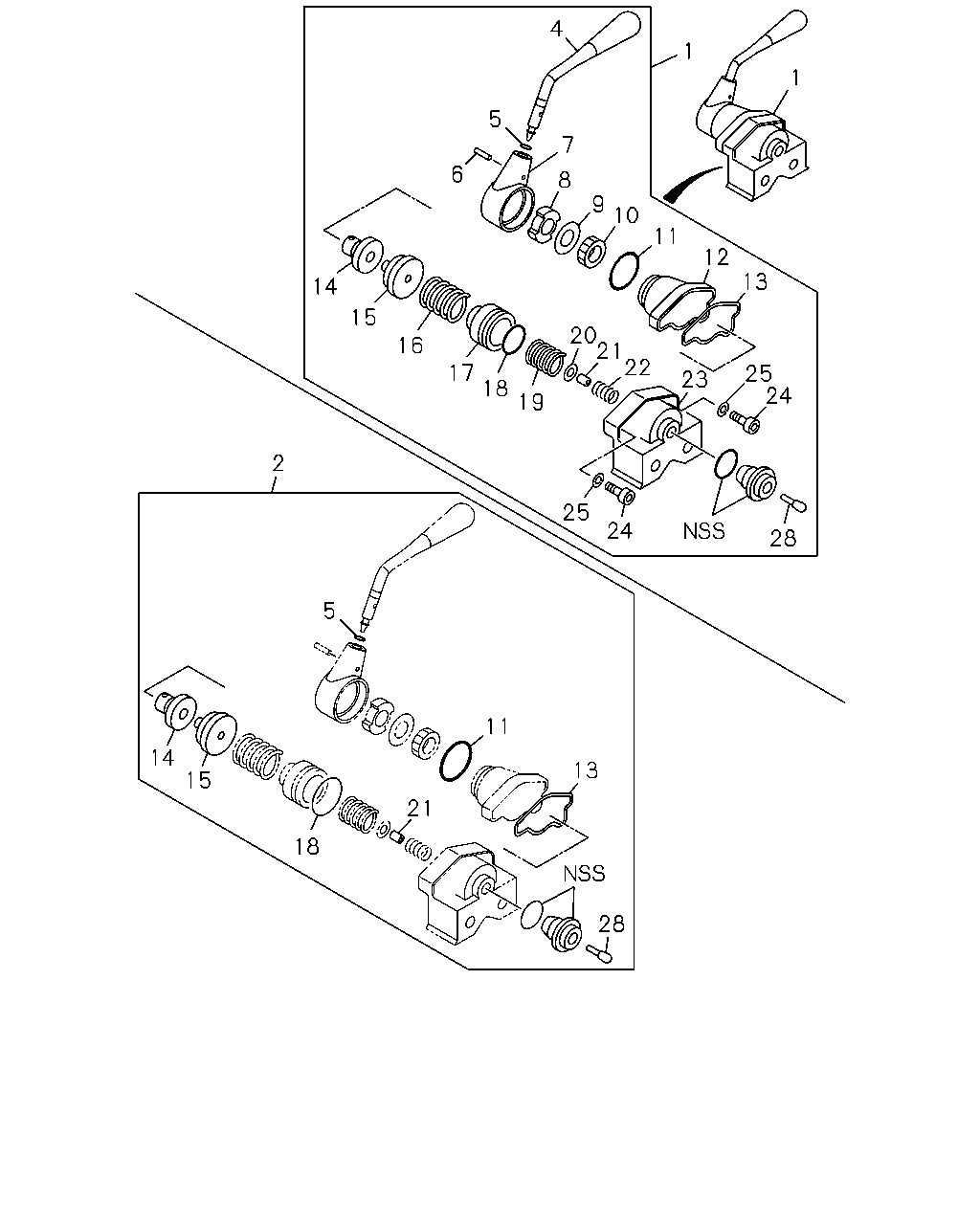

14
15
17
16
18
19
6
5
8
7
4
9
20
10
21
22
25
24
23
11
1
1
12
13
25
24
28
14
15
2
5
18
21
11
13
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; HAND BRK
1-48100-849-0
01
1
1306-
2
REPAIR KIT; HAND BRK VLV
1-85576-180-0
01
1
1306-
4
HANDLE ASM; BRK VLV
1-48119-517-0
01
1
1306-
5
GASKET; HANDLE
1-48119-128-0
01
1
1306-
6
PIN; SPR
1-48119-143-0
01
1
1306-
7
HEAD; BRK VLV
1-48119-131-1
01
1
1306-
8
STOPPER; BRK VLV
1-48119-136-0
01
1
1306-
9
WASHER; LK,ADJ
1-48119-123-0
01
1
1306-
10
RING; ADJ
1-48119-122-0
01
1
1306-
11
GASKET; HD TO COVER
1-48119-130-0
01
1
1306-
12
COVER; BRK VLV
1-48129-097-1
01
1
1306-
13
GASKET; BODY TO COVER
1-48119-120-0
01
1
1306-
14
FOLLOWER; CAM
1-48129-109-0
01
1
1306-
15
CAM; FOLLOWER
1-48129-110-0
01
1
1306-
16
SPRING; GRUDUATING
1-48129-101-0
01
1
1306-
17
PISTON; SPR
1-48129-095-0
01
1
1306-
18
GASKET; BODY
1-48129-096-0
01
1
1306-
19
SPRING; PISTON
1-48129-094-0
01
1
1306-
20
GUIDE; VLV
1-48129-090-0
01
1
1306-
21
VALVE; IN & EXH
1-48121-017-0
01
1
1306-
22
SPRING; VLV
1-48123-024-0
01
1
1306-
23
BODY; BRK VLV
1-48111-060-1
01
1
1306-
24
BOLT; EXH VLV
1-48129-092-0
02
1
1306-
25
WASHER; LK,EXH VLV
1-48129-093-0
02
1
1306-
28
STEM ASM; BRK VLV
1-48129-089-0
01
1
1306-

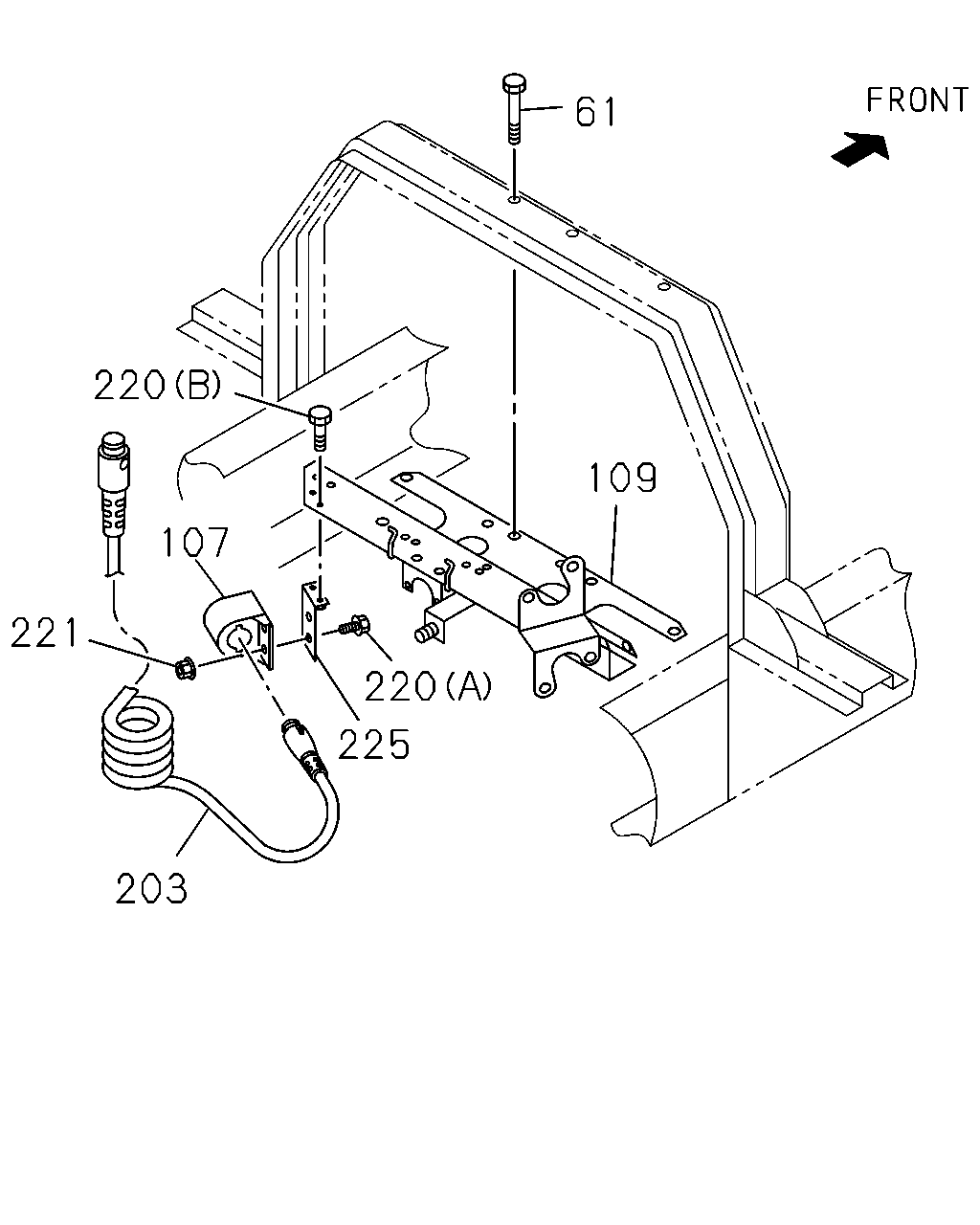

61
220
107
221
203
225
220
109
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
BOLT; STEP BOARD
M10X30 FLANGE
0-28651-030-0
06
1
1306-
107
HANGER; JUMPER HOSE
1-57550-022-2
01
1
1306-
109
BRACKET; HOSE HANGER
8-98146-281-1
01
1
1306-
203
CABLE; JUMPER
L=5500
8-98107-178-0
01
1
1306-
220
BOLT; HANGER
(A) M6X16 FLANGE
0-28650-616-0
02
1
1306-
220
BOLT; HANGER
(B) M8X25 FLANGE
0-28650-825-0
02
1
1306-
221
NUT; HANGER
M6 FLANGE
0-91180-106-0
02
1
1306-
225
BRACKET; HANGER
1-82698-002-0
01
1
1306-
