Isuzu WW
▶
TRUCKS
▶
EXR
▶
11502 - EXR RHD EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#123173) — 34 parça
◀
[825A] CAB SIDE NO.2 (8 parça)
[825A] CAB SIDE NO.3 (5 parça)
[825A] CAB SIDE NO.1 (12 parça)
[825A] FRAME SIDE NO.2 (4 parça)
[825A] FRAME SIDE NO.1 (5 parça)
▶

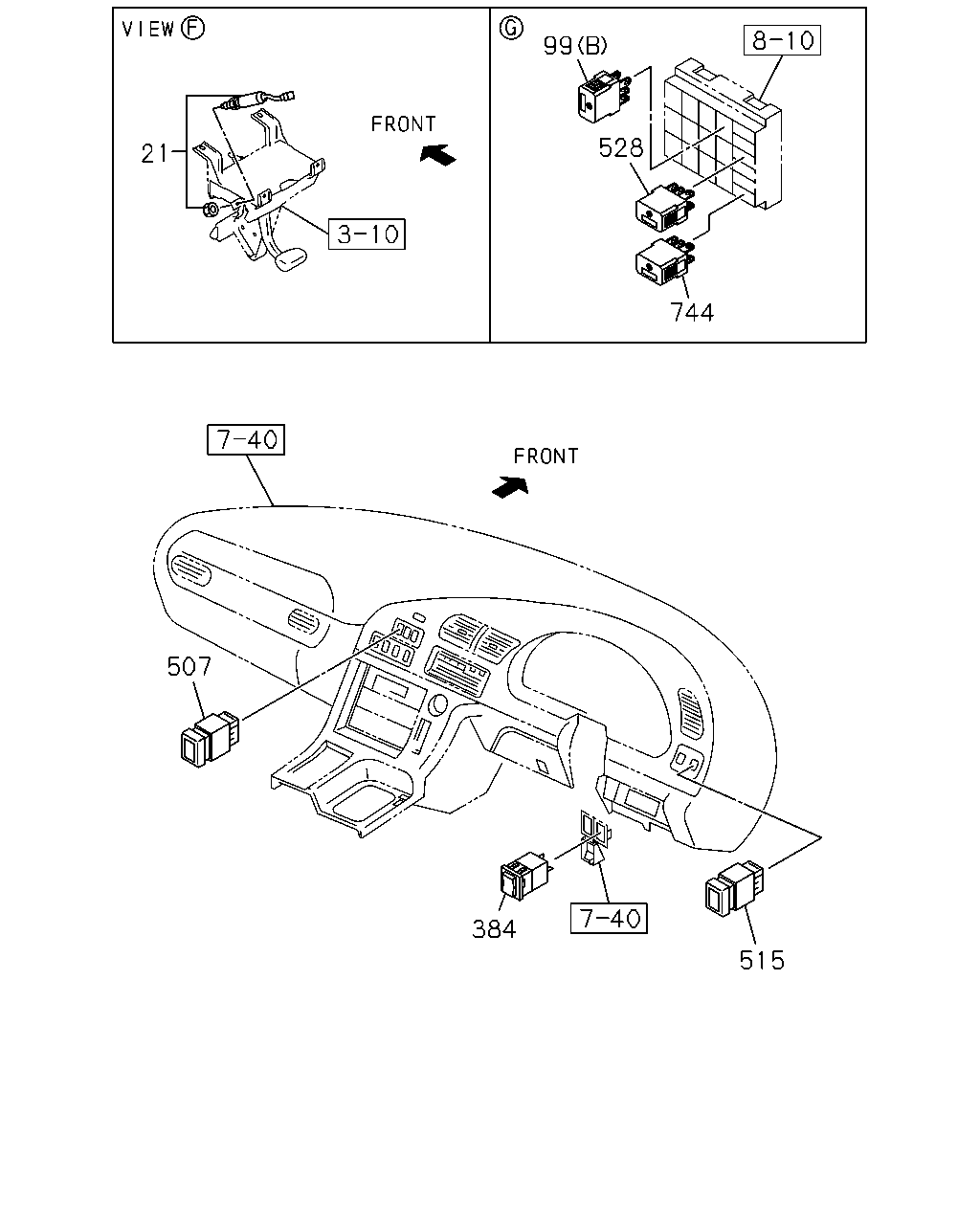

99
528
744
21
507
384
515
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
SWITCH; CLU
1-82380-114-3
01
1
1306-
99
RELAY; FOG LAMP
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1306-
99
RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
1306-
507
SWITCH; MIRROR HEATER
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>
8-97386-924-3
01
1
1306-
515
SWITCH; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93>
8-97386-917-2
01
1
1306-
528
RELAY; BUZZER
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
744
RELAY; TILT,LID OPEN
24V 10A PANASONIC
8-97173-035-1
01
1
1306-

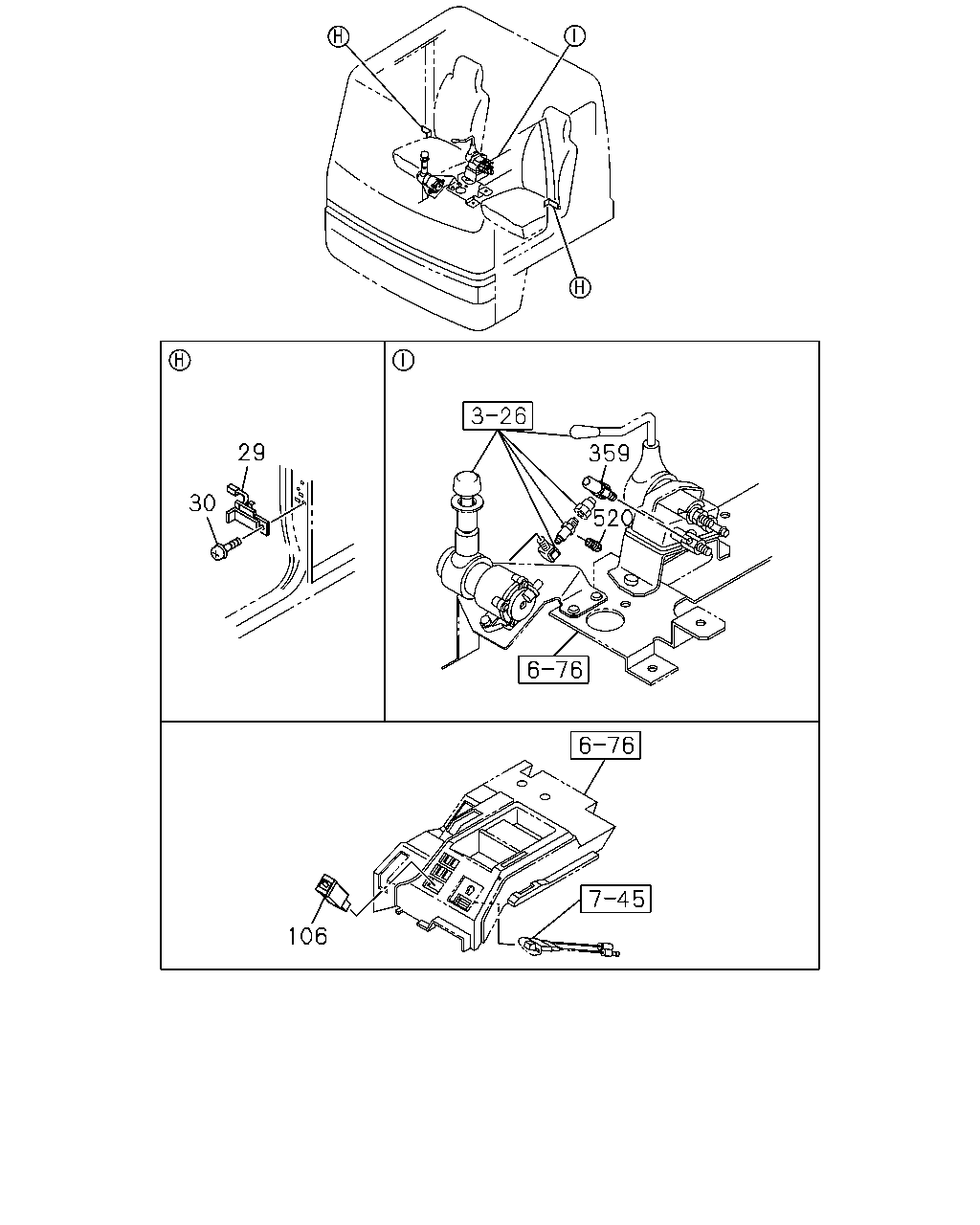

29
30
359
520
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
02
1
1306-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
1306-
106
SWITCH; REMOTE CONT MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>
1-82350-223-0
01
1
1306-
359
SWITCH; TRAILER BRAKE
STAMP 0.3
8-98010-857-0
01
1
1306-
520
PLUG; CONNECTOR
GENERAL EXPORT EQUIPMENT(TAA) PT1/4
9-99204-513-0
01
1
1504-

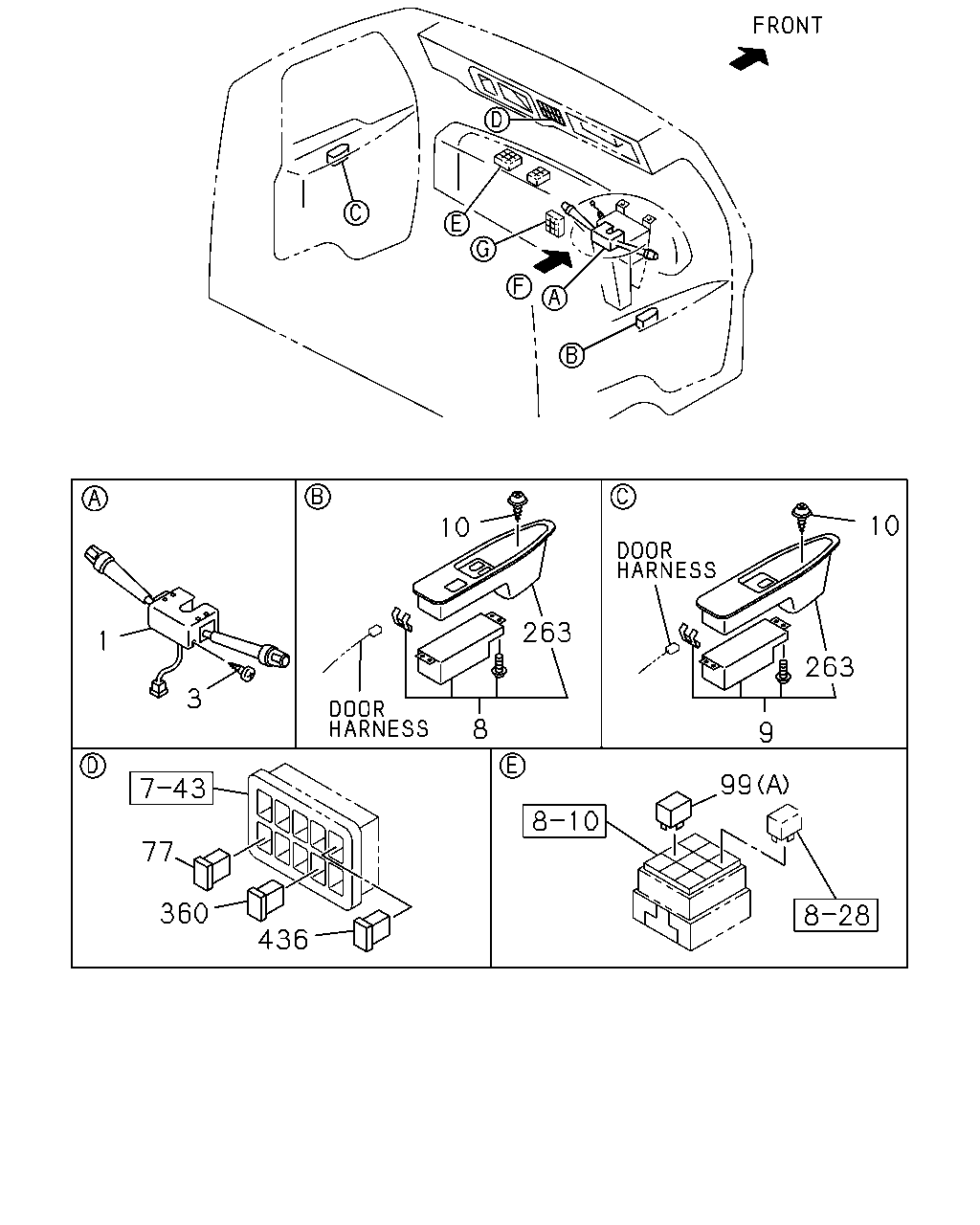

10
263
10
263
99
77
360
436
1
3
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
8-98152-592-0
01
1
1306-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
1306-
8
SWITCH; POWER WINDOW
DRIVER SIDE
1-82380-166-2
01
1
1306-
9
SWITCH; POWER WINDOW
PASSENGER SIDE
1-82380-167-1
01
1
1306-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
1306-
77
SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97386-993-4
01
1
1306-
99
RELAY; FOG LAMP
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1306-
99
RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
263
COVER; SW
DRIVER SIDE
1-82385-005-2
01
1
1306-
263
COVER; SW
PASSENGER SIDE
1-82385-006-3
01
1
1306-
360
SWITCH ASM; DIFF LK
DIFF LOCK(C3N)
8-98222-521-1
01
1
1306-
436
SWITCH; HEADLAMP LEVELING
8-97386-981-2
01
1
1306-

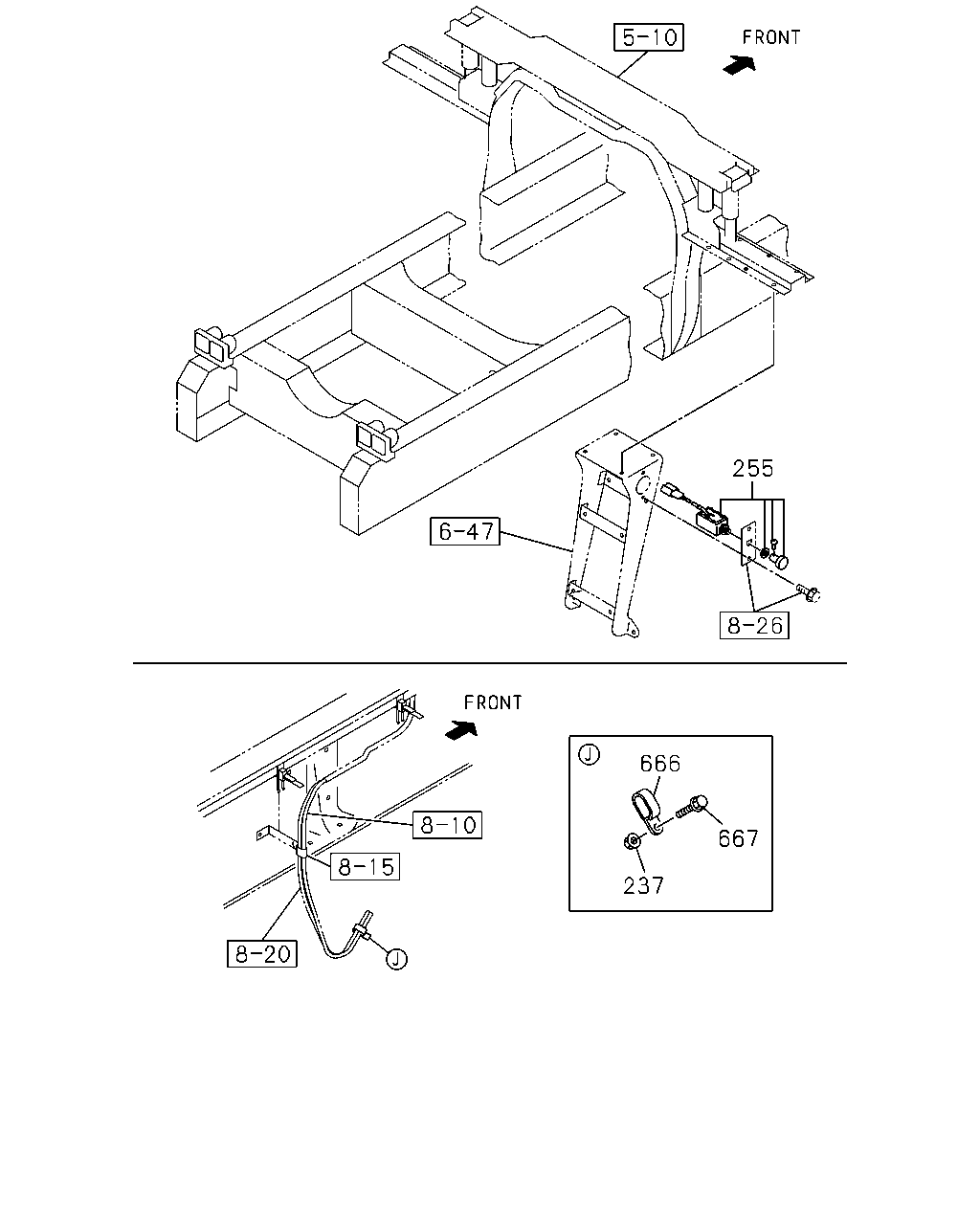

255
666
667
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
237
NUT
M8 FLANGE
0-91180-108-0
01
1
1306-
255
SWITCH; SEARCH LIGHT
8-98106-483-0
01
1
1306-
666
CLIP; AXLE HARNESS
ID=11X2 L=16
0-95325-025-0
01
1
1306-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1306-

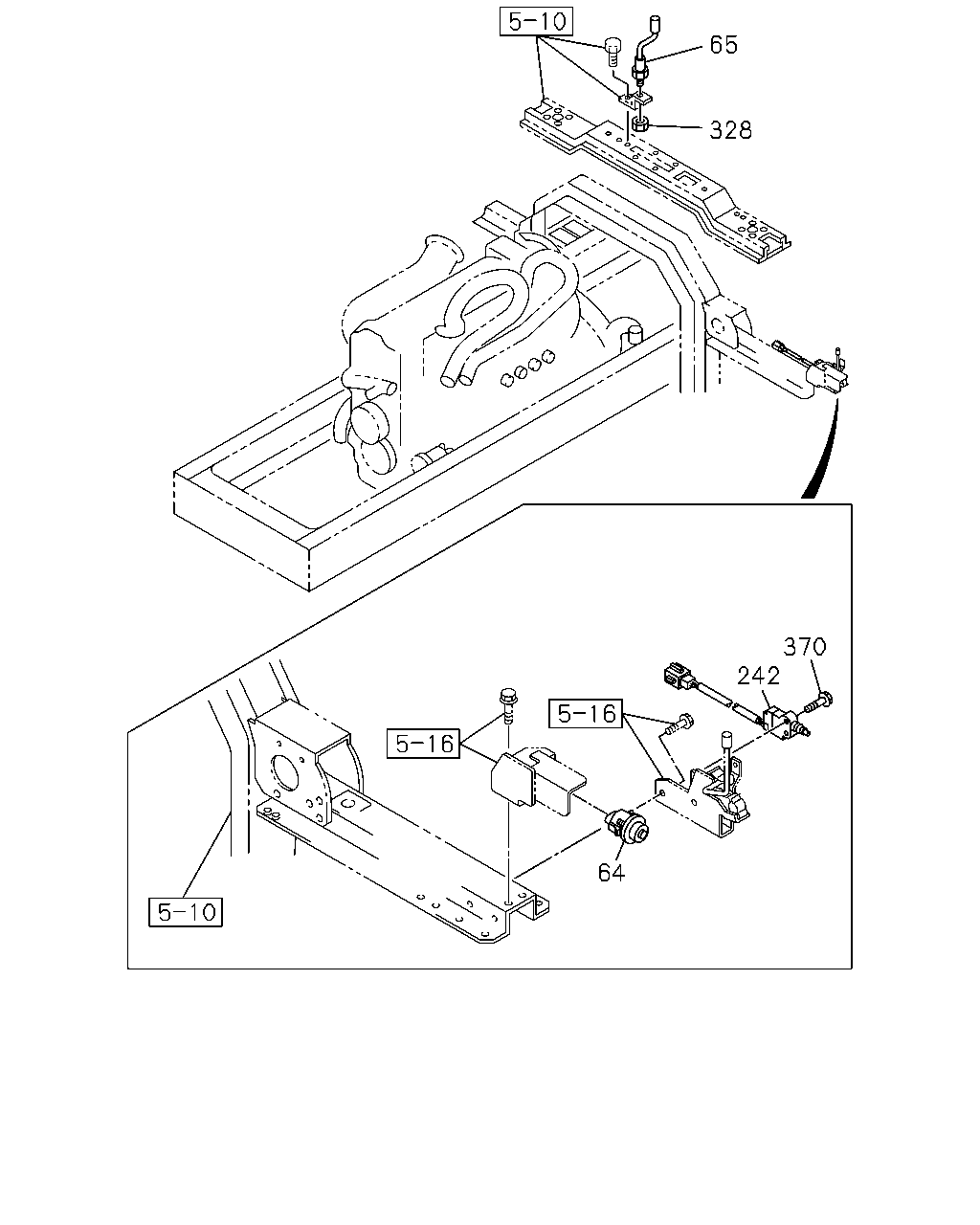

65
328
370
242
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
1306-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
1306-
242
SWITCH
STAMP NO
1-82380-172-1
01
1
1306-
328
NUT; SW
M16
0-91110-516-0
01
1
1306-
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
1306-
