Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#123170) — 288 parça

340 423 119 515 294 219 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1306-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1306-
219	NUT M8 FLANGE	0-91180-108-0	07	1	1306-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1306-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1306-
294	NUT M8 FLANGE	0-91180-108-0	02	1	1306-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1306-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1306-
294	NUT M8 FLANGE	0-91180-108-0	03	1	1306-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	1306-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1306-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	1306-

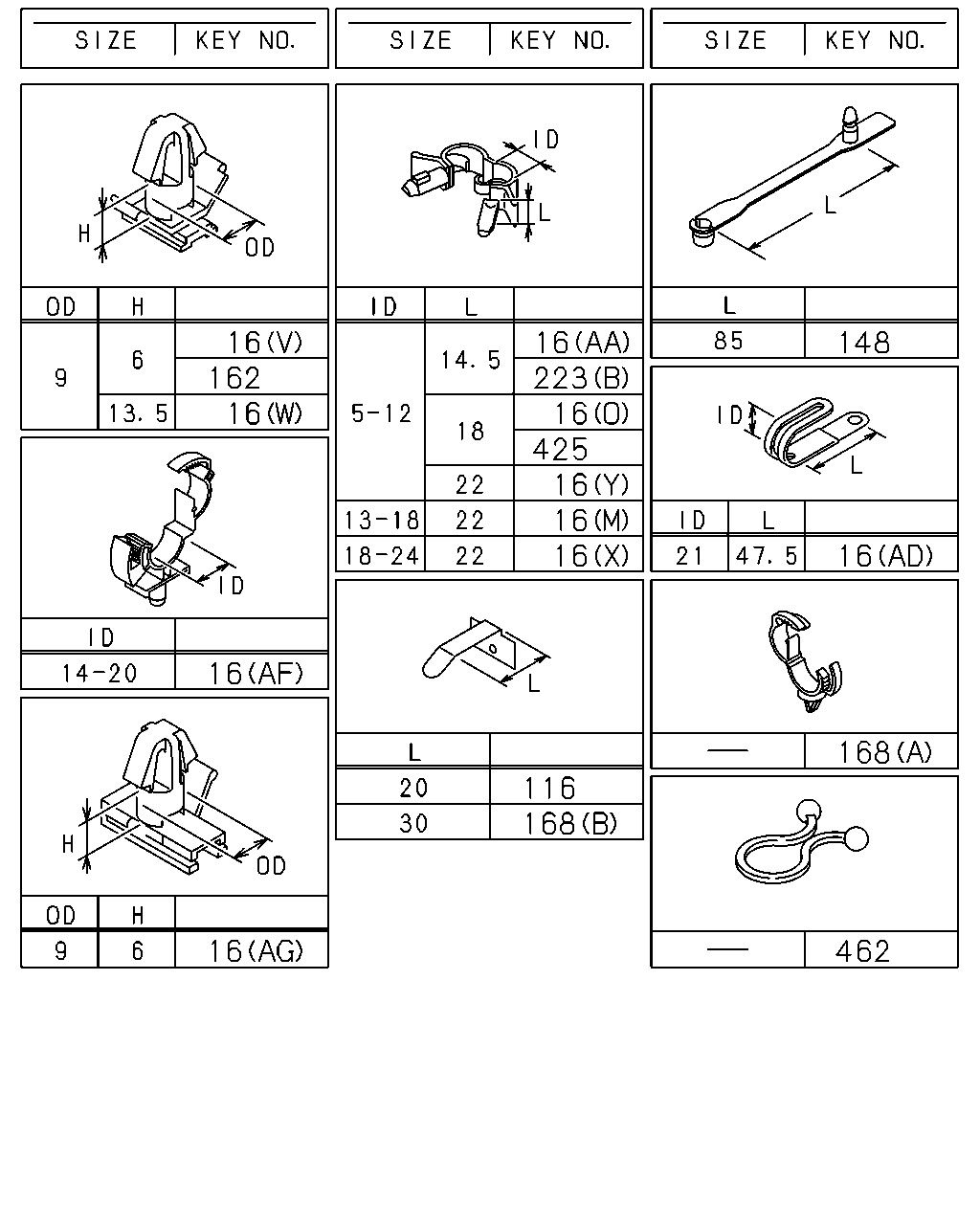

16 16 16 16 16 16 16 16 16 16 162 223 425 116 168 462 168 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (C) ID=11 L=16	0-95235-025-0	02	1	1306-
16	CLIP; HARNESS (A) B=14 ID=11 L=20	0-95235-032-0	01	1	1306-
16	CLIP; HARNESS (A) B=18 ID=11 L=20	0-95235-035-0	02	1	1306-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1306-
16	CLIP; HARNESS (D) B=14 ID=19 L=20	0-95235-832-0	01	1	1306-
16	CLIP; HARNESS (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1306-
16	CLIP; HARNESS (F) ID=31 L=35	1-09700-329-1	01	1	1306-
16	CLIP; HARNESS (G) ID=28 L=58	1-09700-400-0	01	1	1306-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	01	1	1306-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	13	1	1306-
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	1306-
16	CLIP; HARNESS (K) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1306-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	02	1	1306-
16	CLIP; HARNESS (I) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-
16	CLIP; HARNESS (P) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1306-
16	CLIP; HARNESS (U) W/SPONGE RUBBER	1-09709-150-0	01	1	1306-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	03	1	1306-1506
16	CLIP; HARNESS (W) OD=9 H=13.5	1-09709-180-0	01	1	1306-
16	CLIP; HARNESS (Y) ID=5-12 L=22	1-09709-288-0	04	1	1306-
16	CLIP; HARNESS (M) ID=13-18 L=22	1-09709-292-0	01	1	1306-
16	CLIP; HARNESS (X) ID=18-24 L=22	1-09709-295-0	01	1	1306-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	04	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	05	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	1306-
16	CLIP; HARNESS (AD) ID=21 L=47.5	8-94178-108-0	02	1	1306-
16	CLIP; HARNESS (AF) ID=14-20	8-97061-603-0	03	1	1306-
16	CLIP; HARNESS (N) ID=19 H=70 L=25	8-97360-209-0	01	1	1306-
16	CLIP; HARNESS (AG) OD=9 H=6	8-97368-793-0	02	1	1306-
16	CLIP; HARNESS (AE) ID=14 L=44	9-09917-427-0	02	1	1306-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	03	1	1306-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	05	1	1306-
16	CLIP; HARNESS DIFF LOCK(C3N) (O) ID=5-12 L=18	1-09709-287-0	02	1	1306-
16	CLIP; HARNESS FULL FLOATING CAB(W16) (H) ID=11 L=41	1-09700-403-0	02	1	1306-1411
16	CLIP; HARNESS MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20	0-95235-035-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (B) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) ID=16 L=40	0-95235-576-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	06	1	1306-1506
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AC) L=140	5-09707-031-1	03	1	1306-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350	1-09707-183-0	01	1	1306-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1306-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	1306-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1306-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	05	1	1306-
168	CLIP; DASH HARNESS HEATER & DEFROSTER(C41) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	1306-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1306-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1306-
425	CLIP; MODULATOR ID=5-12 L=18	1-09709-287-0	01	1	1306-
462	CLIP; HARNESS,HTR HEATER & DEFROSTER(C41) ID=20	1-09709-068-0	02	1	1306-

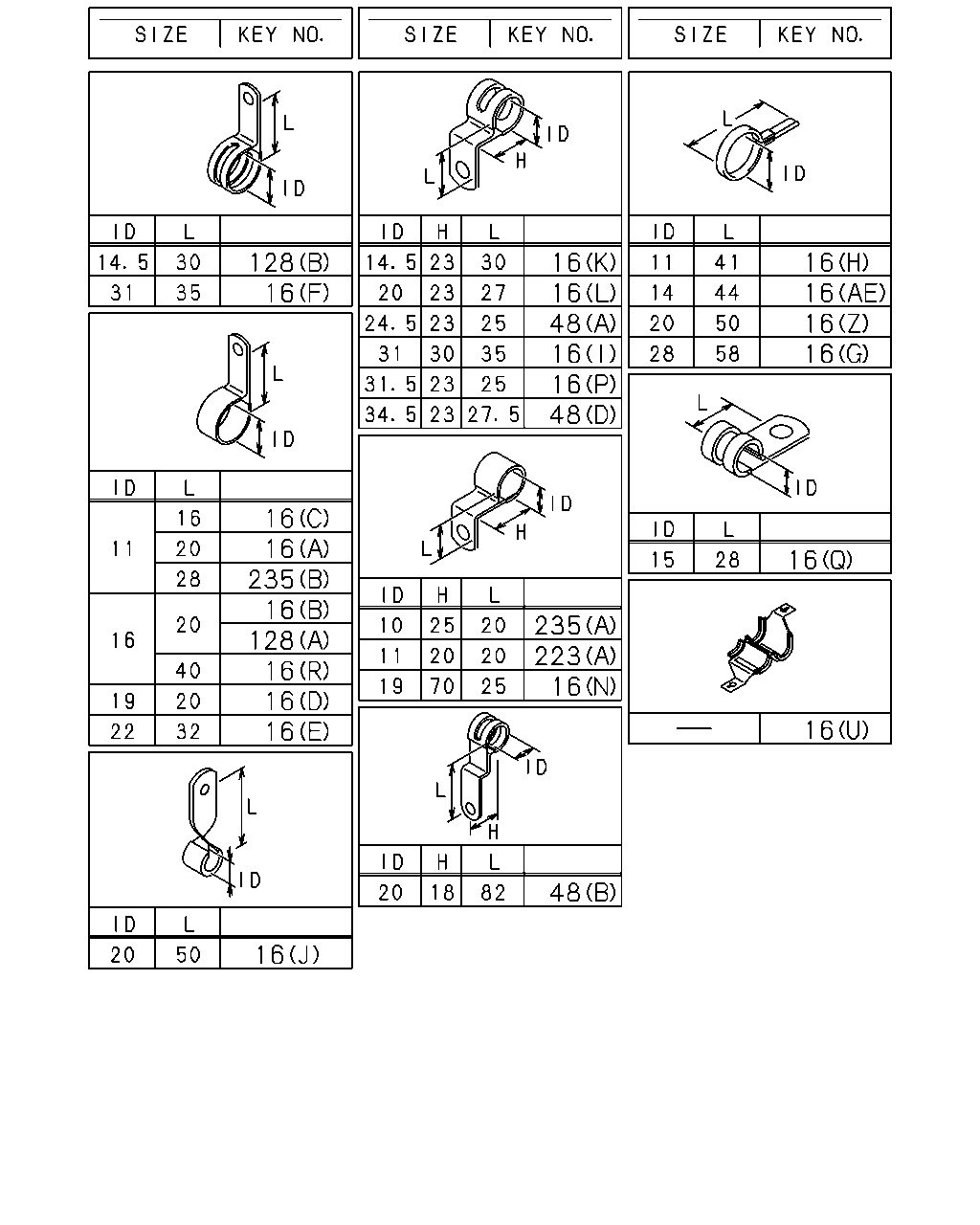

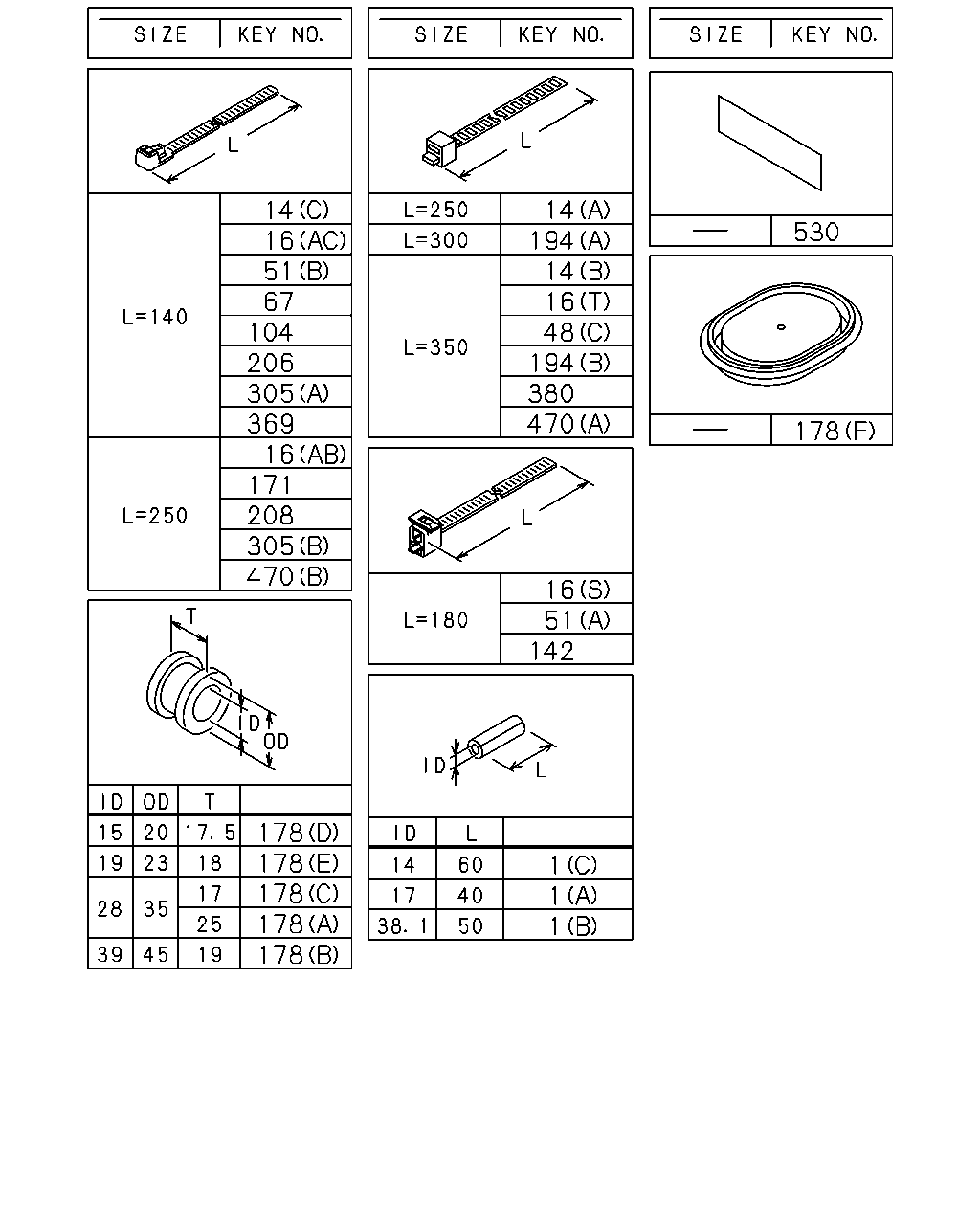

16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 128 235 128 48 48 235 223 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (C) ID=11 L=16	0-95235-025-0	02	1	1306-
16	CLIP; HARNESS (A) B=14 ID=11 L=20	0-95235-032-0	01	1	1306-
16	CLIP; HARNESS (A) B=18 ID=11 L=20	0-95235-035-0	02	1	1306-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1306-
16	CLIP; HARNESS (D) B=14 ID=19 L=20	0-95235-832-0	01	1	1306-
16	CLIP; HARNESS (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1306-
16	CLIP; HARNESS (F) ID=31 L=35	1-09700-329-1	01	1	1306-
16	CLIP; HARNESS (G) ID=28 L=58	1-09700-400-0	01	1	1306-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	01	1	1306-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	13	1	1306-
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	1306-
16	CLIP; HARNESS (K) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1306-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	02	1	1306-
16	CLIP; HARNESS (I) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-
16	CLIP; HARNESS (P) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1306-
16	CLIP; HARNESS (U) W/SPONGE RUBBER	1-09709-150-0	01	1	1306-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	03	1	1306-1506
16	CLIP; HARNESS (W) OD=9 H=13.5	1-09709-180-0	01	1	1306-
16	CLIP; HARNESS (Y) ID=5-12 L=22	1-09709-288-0	04	1	1306-
16	CLIP; HARNESS (M) ID=13-18 L=22	1-09709-292-0	01	1	1306-
16	CLIP; HARNESS (X) ID=18-24 L=22	1-09709-295-0	01	1	1306-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	04	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	05	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	1306-
16	CLIP; HARNESS (AD) ID=21 L=47.5	8-94178-108-0	02	1	1306-
16	CLIP; HARNESS (AF) ID=14-20	8-97061-603-0	03	1	1306-
16	CLIP; HARNESS (N) ID=19 H=70 L=25	8-97360-209-0	01	1	1306-
16	CLIP; HARNESS (AG) OD=9 H=6	8-97368-793-0	02	1	1306-
16	CLIP; HARNESS (AE) ID=14 L=44	9-09917-427-0	02	1	1306-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	03	1	1306-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	05	1	1306-
16	CLIP; HARNESS DIFF LOCK(C3N) (O) ID=5-12 L=18	1-09709-287-0	02	1	1306-
16	CLIP; HARNESS FULL FLOATING CAB(W16) (H) ID=11 L=41	1-09700-403-0	02	1	1306-1411
16	CLIP; HARNESS MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20	0-95235-035-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (B) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) ID=16 L=40	0-95235-576-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	06	1	1306-1506
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AC) L=140	5-09707-031-1	03	1	1306-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350	1-09707-183-0	01	1	1306-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1306-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1306-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1306-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1306-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1306-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1306-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1306-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1306-
235	CLIP; HARNESS,SPD SENSOR,SSPS MJT7S M/T(Y3E) (A) ID=10 H=25 L=20	1-09700-519-0	01	1	1306-
235	CLIP; HARNESS,SPD SENSOR,SSPS MJX16P M/T(Y3Z) (B) ID=11 L=28	9-09917-544-0	01	1	1306-

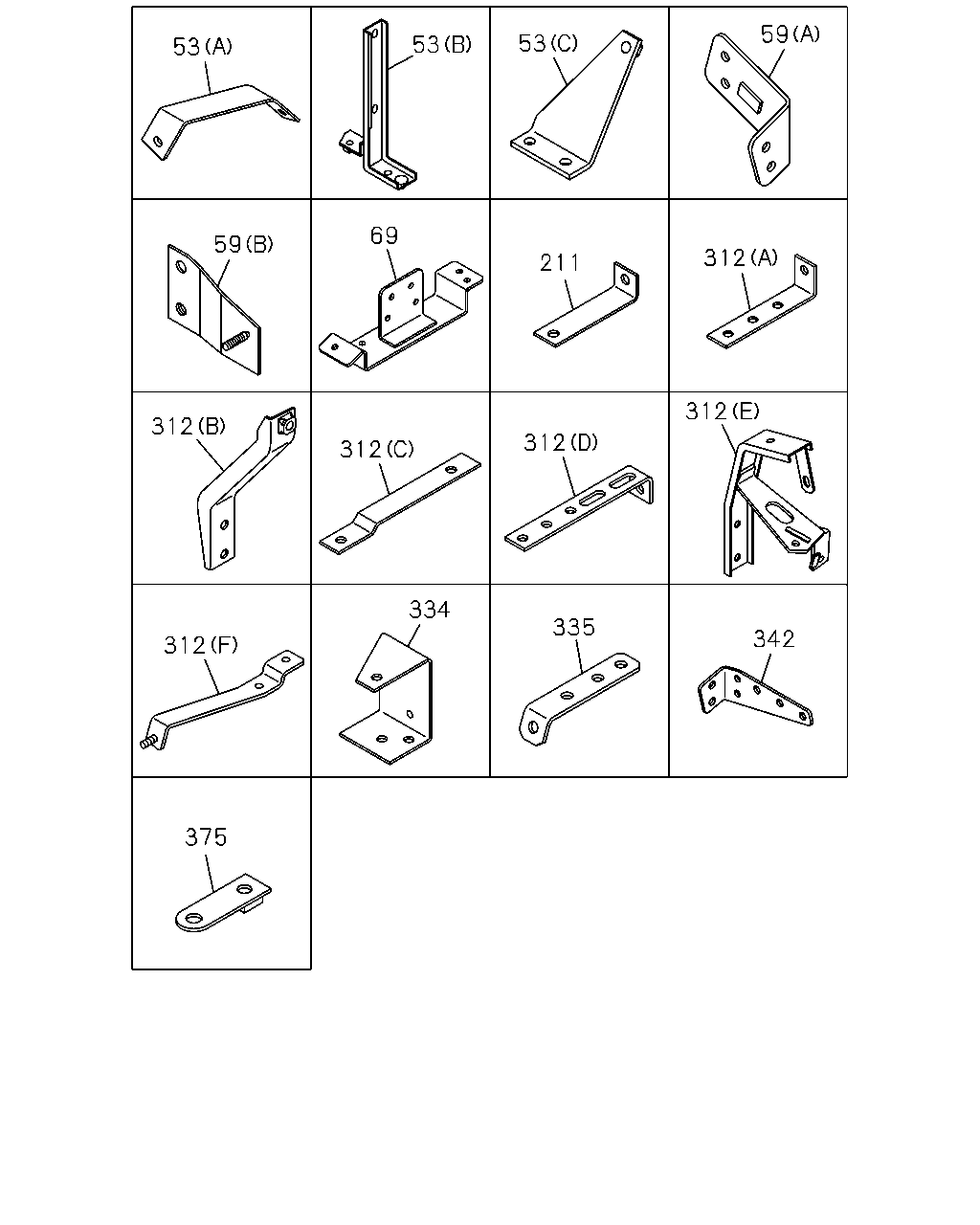

342 335 334 312 375 312 312 312 312 312 211 69 59 53 53 53 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (A)	1-47479-537-0	02	1	1306-
53	BRACKET; HARNESS (A)	1-47479-537-0	02	1	1306-
53	BRACKET; HARNESS (B)	8-98227-138-0	01	1	1306-
53	BRACKET; HARNESS (C)	8-98227-141-0	01	1	1306-
59	BRACKET; FRAME HARNESS (A)	8-97639-069-0	01	1	1306-
59	BRACKET; FRAME HARNESS (B)	8-98061-135-1	01	1	1306-
69	BRACKET; CLIP	8-98171-829-0	01	1	1306-
211	BRACKET; AXLE HARNESS L=95	1-82699-085-0	02	1	1306-
312	BRACKET; CLIP HARNESS (A) L=120 H=35	1-82698-088-0	01	1	1306-
312	BRACKET; CLIP HARNESS (B)	8-97636-868-1	01	1	1306-
312	BRACKET; CLIP HARNESS (C)	8-98035-927-1	01	1	1306-
312	BRACKET; CLIP HARNESS (D) L=160 H=30	1-47479-759-0	01	1	1306-
312	BRACKET; CLIP HARNESS (E)	8-97638-177-0	01	1	1306-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-98254-842-0	01	1	1311-
334	BRACKET	1-53457-153-2	01	1	1306-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1306-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	1306-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1306-

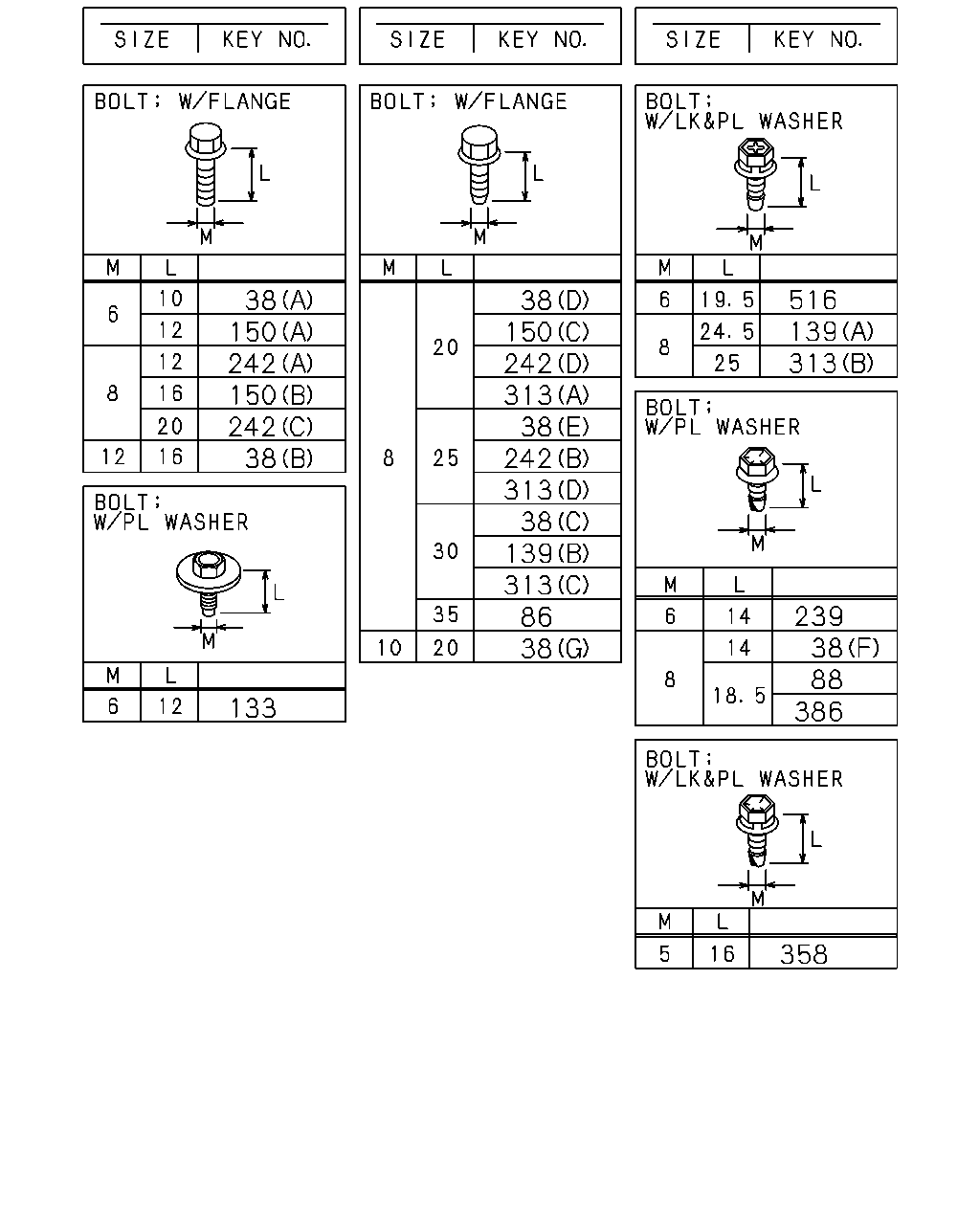

38 150 242 150 242 38 133 38 150 242 313 38 242 313 38 139 313 86 38 516 139 313 239 38 88 386 358

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	1306-
38	BOLT; CLIP,HARNESS (B) M12X16 FLANGE	0-28051-216-0	01	1	1306-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1306-
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E) (D) M8X20 FLANGE	0-28650-820-0	02	1	1306-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	04	1	1306-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	06	1	1306-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1306-
38	BOLT; CLIP,HARNESS (C) M8X30 FLANGE	0-28650-830-0	01	1	1306-
38	BOLT; CLIP,HARNESS (C) M8X30 FLANGE	0-28650-830-0	04	1	1306-
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	1306-
38	BOLT; CLIP,HARNESS (F) M8X14 W/PL WASHER	8-98164-837-0	03	1	1306-
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) (D) M8X20 FLANGE	0-28650-820-0	05	1	1306-
86	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-
88	BOLT; DOOR HARNESS EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1306-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1306-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1306-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1306-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1306-
139	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1306-
150	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	02	1	1306-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	03	1	1306-
150	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1306-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1306-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1306-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	1306-
242	BOLT; BRKT,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1306-
242	BOLT; BRKT,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1306-
313	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) M8X25 FLANGE	0-28650-825-0	01	1	1311-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1306-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1306-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	1306-
313	BOLT; BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	1306-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1306-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1306-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-

178 530 1 1 1 142 51 16 470 380 194 48 16 14 194 14 14 16 51 67 104 206 305 369 16 171 208 305 470 178 178 178 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1306-
1	SLEEVE; RUBBER (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	1306-
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	1306-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1306-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	03	1	1306-
14	CLIP; BAND,HARNESS (C) L=140	5-09707-031-1	01	1	1306-
16	CLIP; HARNESS (C) ID=11 L=16	0-95235-025-0	02	1	1306-
16	CLIP; HARNESS (A) B=14 ID=11 L=20	0-95235-032-0	01	1	1306-
16	CLIP; HARNESS (A) B=18 ID=11 L=20	0-95235-035-0	02	1	1306-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1306-
16	CLIP; HARNESS (D) B=14 ID=19 L=20	0-95235-832-0	01	1	1306-
16	CLIP; HARNESS (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1306-
16	CLIP; HARNESS (F) ID=31 L=35	1-09700-329-1	01	1	1306-
16	CLIP; HARNESS (G) ID=28 L=58	1-09700-400-0	01	1	1306-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	01	1	1306-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	13	1	1306-
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	1306-
16	CLIP; HARNESS (K) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1306-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	02	1	1306-
16	CLIP; HARNESS (I) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-
16	CLIP; HARNESS (P) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1306-
16	CLIP; HARNESS (U) W/SPONGE RUBBER	1-09709-150-0	01	1	1306-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	03	1	1306-1506
16	CLIP; HARNESS (W) OD=9 H=13.5	1-09709-180-0	01	1	1306-
16	CLIP; HARNESS (Y) ID=5-12 L=22	1-09709-288-0	04	1	1306-
16	CLIP; HARNESS (M) ID=13-18 L=22	1-09709-292-0	01	1	1306-
16	CLIP; HARNESS (X) ID=18-24 L=22	1-09709-295-0	01	1	1306-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	04	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	05	1	1306-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	1306-
16	CLIP; HARNESS (AD) ID=21 L=47.5	8-94178-108-0	02	1	1306-
16	CLIP; HARNESS (AF) ID=14-20	8-97061-603-0	03	1	1306-
16	CLIP; HARNESS (N) ID=19 H=70 L=25	8-97360-209-0	01	1	1306-
16	CLIP; HARNESS (AG) OD=9 H=6	8-97368-793-0	02	1	1306-
16	CLIP; HARNESS (AE) ID=14 L=44	9-09917-427-0	02	1	1306-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	03	1	1306-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	05	1	1306-
16	CLIP; HARNESS DIFF LOCK(C3N) (O) ID=5-12 L=18	1-09709-287-0	02	1	1306-
16	CLIP; HARNESS FULL FLOATING CAB(W16) (H) ID=11 L=41	1-09700-403-0	02	1	1306-1411
16	CLIP; HARNESS MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20	0-95235-035-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (B) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) ID=16 L=40	0-95235-576-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	06	1	1306-1506
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AC) L=140	5-09707-031-1	03	1	1306-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350	1-09707-183-0	01	1	1306-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1306-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1306-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1306-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1306-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1306-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1306-
67	CLIP; BAND,HARNESS,CLU SW MJX M/T<Y9N> L=140	5-09707-031-1	01	1	1306-
104	CLIP; HEADLAMP HARNESS L=140	5-09707-031-1	02	1	1306-
142	CLIP; HARNESS,ENG L=180	8-98216-427-0	02	1	1306-
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	03	1	1306-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1306-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1306-
178	GROMMET; HARNESS (B) ID=39 OD=45 T=19	1-09332-077-0	01	1	1306-
178	GROMMET; HARNESS (D) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1306-
178	GROMMET; HARNESS (F)	1-82698-551-0	01	1	1306-
178	GROMMET; HARNESS (E) ID=19 OD=23 T=18	9-09956-130-1	01	1	1306-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	03	1	1306-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	03	1	1306-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1306-
194	CLIP; BAND (B) L=350	1-09707-183-0	05	1	1306-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1306-
208	CLIP; HARNESS,MAG VLV L=250	5-09707-030-1	01	1	1306-
305	CLIP; ENG HARNESS (B) L=250	5-09707-030-1	03	1	1306-
305	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	01	1	1306-
369	CLIP; BAND EDS HARNESS L=140	5-09707-031-1	01	1	1306-
380	CLIP; EARTH HARNESS L=350	1-09707-183-0	01	1	1306-
470	CLIP; HARNESS,LICENSE LAMP (A) L=350	1-09707-183-0	01	1	1306-
470	CLIP; HARNESS,LICENSE LAMP (B) L=250	5-09707-030-1	04	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	13	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1306-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
