Isuzu WW
▶
TRUCKS
▶
EXR
▶
11502 - EXR RHD EURO2
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#123163) — 128 parça
◀

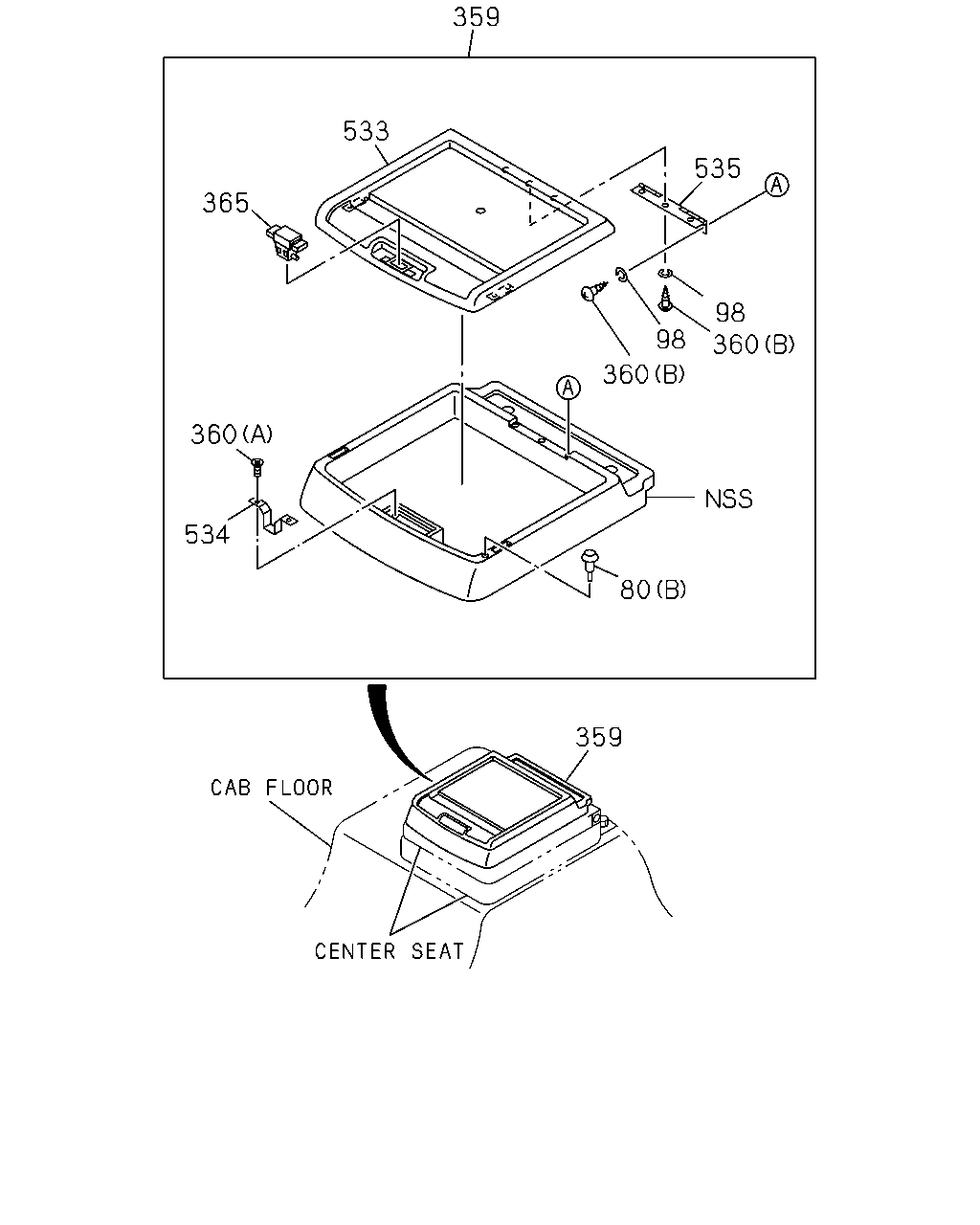

[750A] COMPONENT;PARCEL BOX (11 parça)

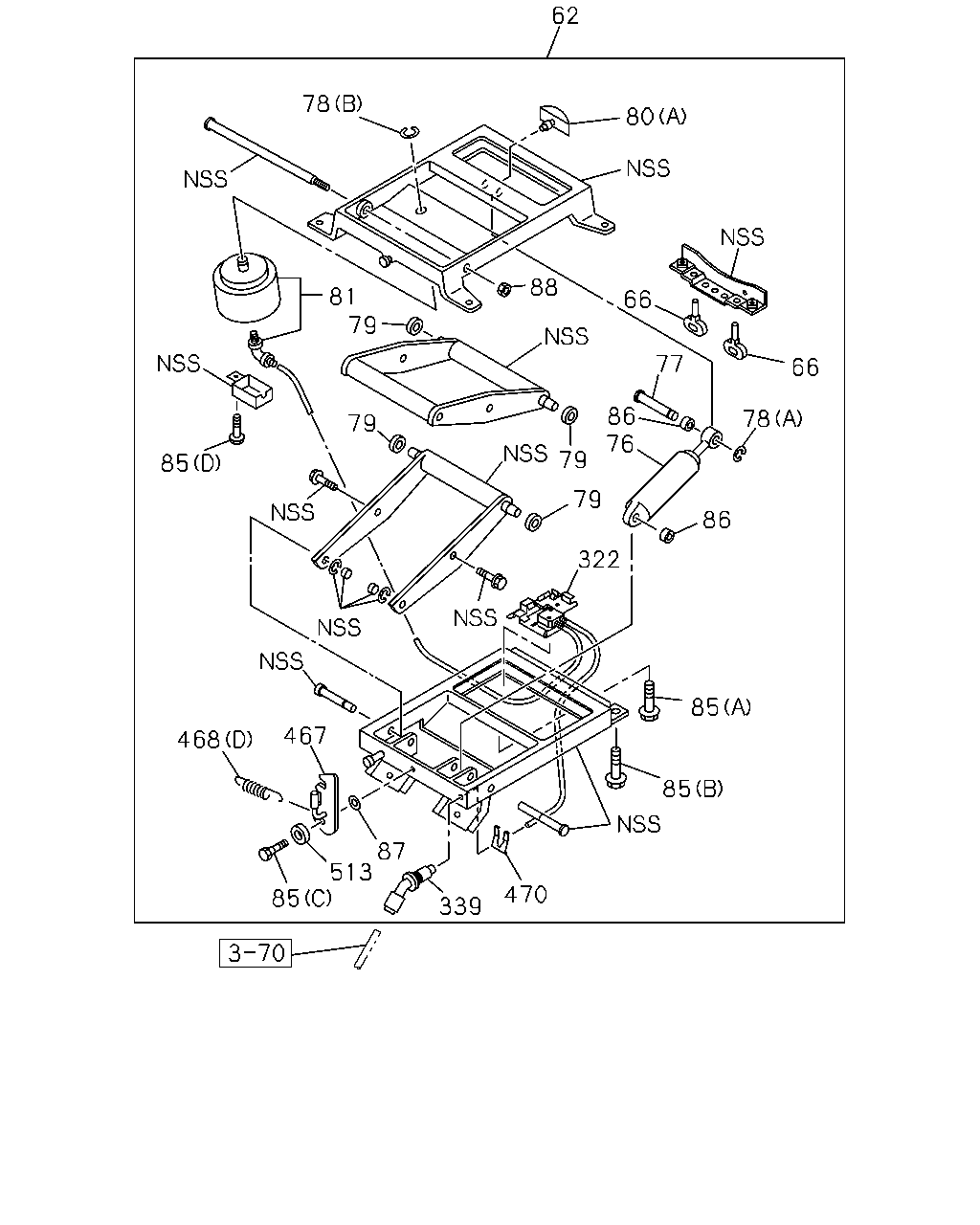

[750A] COMPONENT;DAMPER (30 parça)
[750A] CENTER (13 parça)

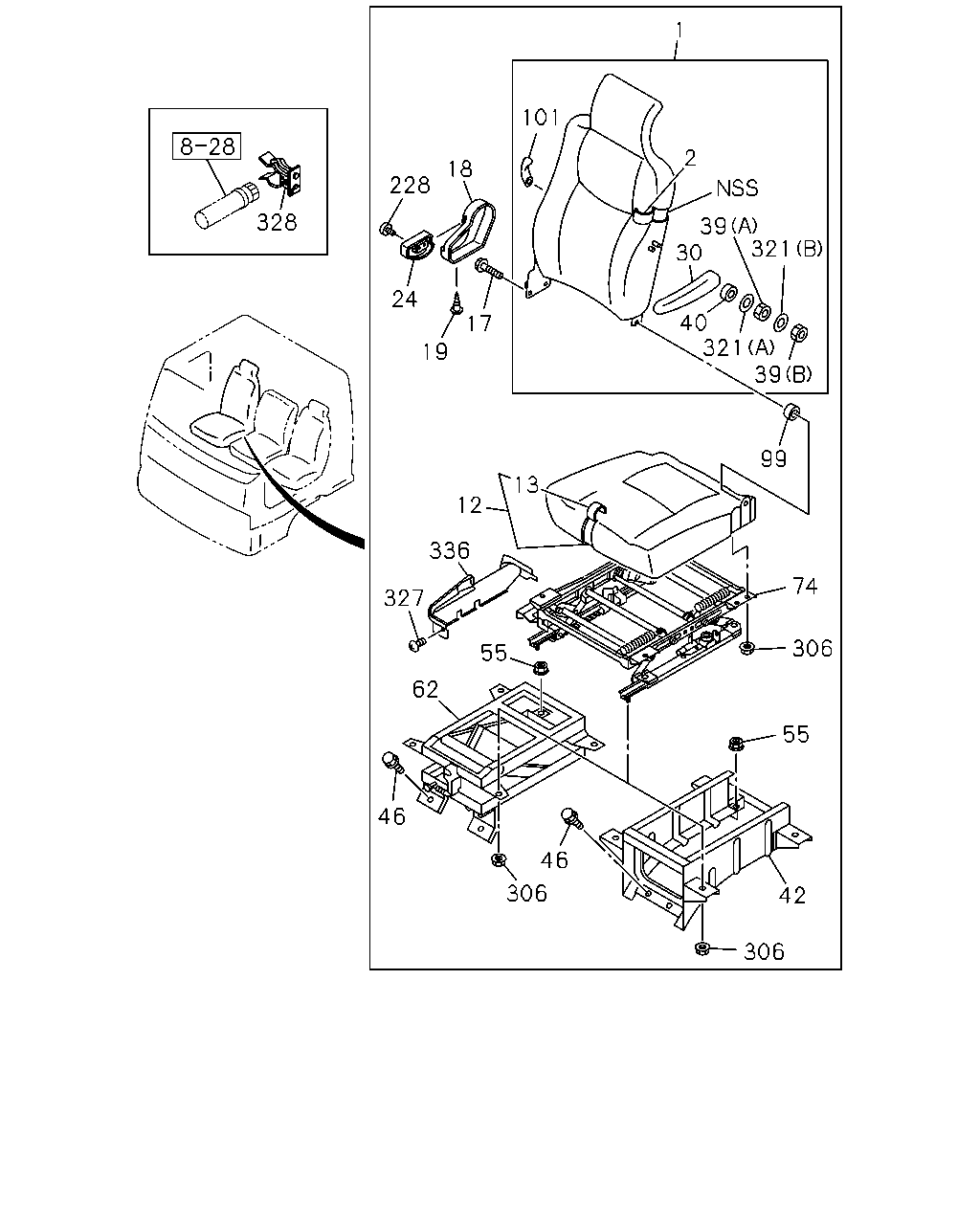

[750A] DRIVER (28 parça)

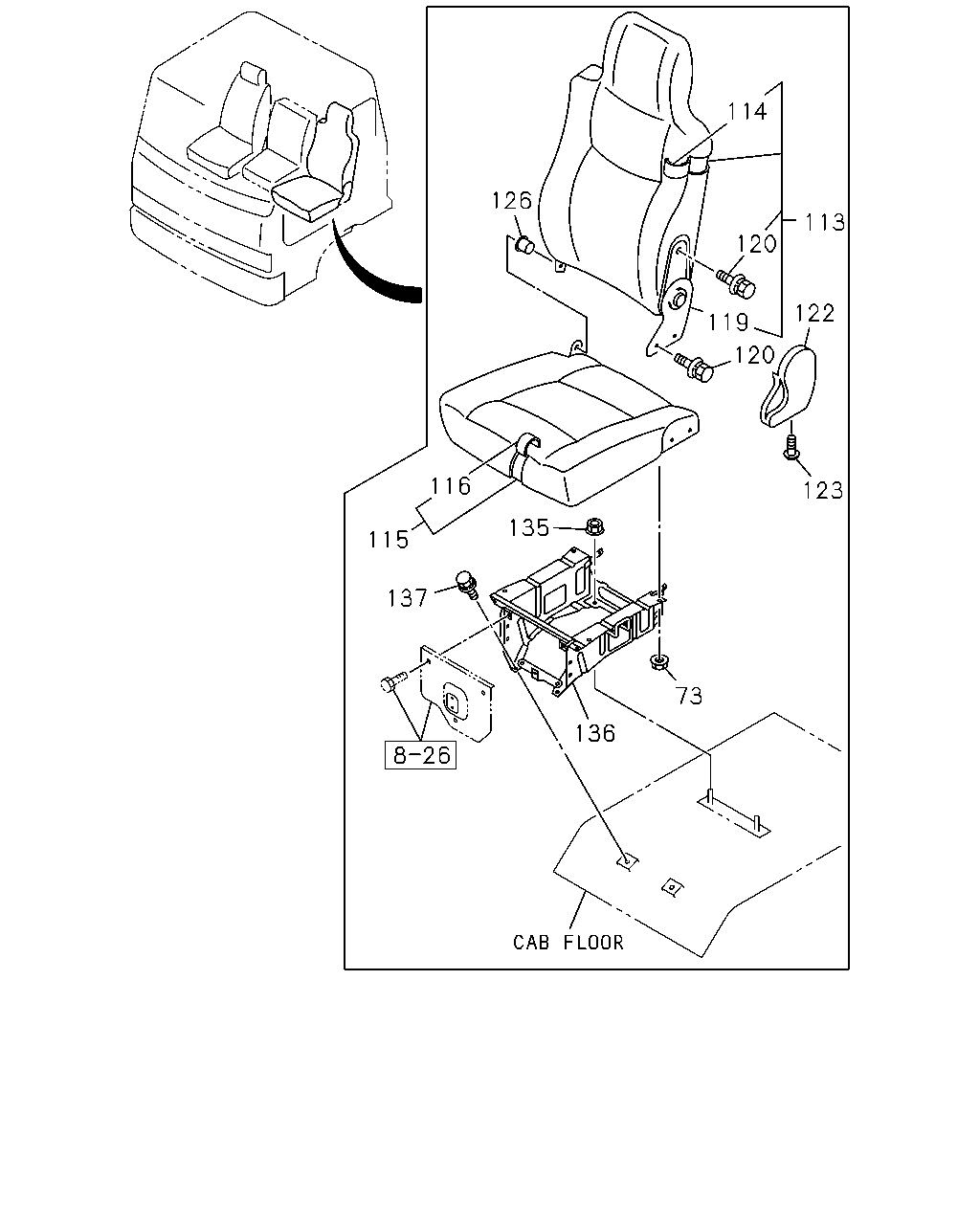

[750A] PASSENGER (13 parça)
[750A] COMPONENT;HEIGHT CONT ADJUSTER (33 parça)
▶
535
359
533
365
360
534
360
98
98
360
80
359
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
RUBBER; STOPPER
CENTER SEAT(SA1) (B)
1-72538-187-0
02
1
1306-
80
RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)
1-09987-123-0
01
1
1306-
98
WASHER; HINGE
CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK
9-09152-704-0
06
1
1306-
359
BOX; PARCEL
CENTER SEAT(SA1)
8-98145-114-0
01
1
1306-
360
SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD
0-70040-514-0
02
1
1306-
360
SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16
0-70080-416-0
06
1
1306-
360
SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
04
1
1306-
365
LOCK ASM; SEAT
CENTER SEAT(SA1)
1-72538-180-0
01
1
1306-
533
LID; PARCEL BOX
CENTER SEAT(SA1)
8-98145-118-0
01
1
1306-
534
STRIKER; PARCEL BOX
CENTER SEAT(SA1)
1-72538-190-0
01
1
1306-
535
HINGE; PARCEL BOX
CENTER SEAT(SA1)
1-72447-391-1
01
1
1306-
470
339
85
85
86
78
66
66
88
80
62
78
81
79
79
85
79
79
76
86
77
322
87
467
513
85
468
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75537-262-8
01
1
1306-1403
62
DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
8-98261-449-0
01
1
1404-
66
RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75538-145-0
02
1
1306-
76
DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75537-230-2
01
1
1306-
77
PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75538-138-2
01
1
1306-
78
RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8
9-09185-408-0
01
1
1306-
78
RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15
9-09185-415-0
01
1
1306-
79
ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75538-159-0
04
1
1306-1403
79
ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
8-98261-489-0
04
1
1404-
80
RUBBER; STOPPER
CENTER SEAT(SA1) (B)
1-72538-187-0
02
1
1306-
80
RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)
1-09987-123-0
01
1
1306-
81
SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75538-151-2
01
1
1306-1312
81
SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
8-98242-816-0
01
1
1401-
85
BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER
8-98243-394-0
01
1
1401-
85
BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)
1-09980-577-1
01
1
1306-
85
BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12
1-75538-208-1
02
1
1306-
85
BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER
1-75538-209-0
03
1
1306-1312
85
BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER
1-75538-209-0
02
1
1401-
86
BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY
1-09983-173-1
02
1
1306-
87
WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2
0-91510-508-0
01
1
1306-
88
NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10
1-75537-273-1
01
1
1306-
322
VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75538-186-3
01
1
1306-
339
UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75538-131-3
01
1
1306-
467
LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75538-134-0
01
1
1306-
468
SPRING; RETURN
(A)
1-75518-206-0
01
1
1306-
468
SPRING; RETURN
(B)
1-75518-207-0
01
1
1306-
468
SPRING; RETURN
(C)
1-75518-208-0
02
1
1306-
468
SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)
1-75538-132-0
01
1
1306-
470
CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75538-137-0
01
1
1306-
513
SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75538-133-0
01
1
1306-
403
179
182
403
188
188
189
359
506
360
175
176
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
ADJUSTER ASM; RECLINING
CENTER SEAT(SA1)
1-75418-062-1
01
1
1306-
175
BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1)
8-98168-329-1
01
1
1306-
176
COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1)
8-98168-332-0
01
1
1306-
179
COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1)
8-98168-326-0
01
1
1306-
182
CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1)
8-98168-318-2
01
1
1306-
188
BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE
1-75198-053-0
04
1
1306-
189
BUSHING; HINGE,CENTER SEAT BACK
CENTER SEAT(SA1)
8-97854-900-0
01
1
1306-
359
BOX; PARCEL
CENTER SEAT(SA1)
8-98145-114-0
01
1
1306-
360
SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD
0-70040-514-0
02
1
1306-
360
SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16
0-70080-416-0
06
1
1306-
360
SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
04
1
1306-
403
NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE
0-91180-108-0
04
1
1306-
506
CAP; PARCEL BOX
CENTER SEAT(SA1)
1-09983-180-3
02
1
1306-
74
306
55
42
306
306
46
46
62
55
13
12
336
327
99
39
321
40
30
321
39
2
1
101
18
17
19
24
228
328
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
8-98168-072-0
01
1
1306-
2
COVER; TRIM,FRT SEAT,BACK
8-98168-089-0
01
1
1306-
12
CUSHION; SEAT,FRT
8-98168-048-0
01
1
1306-
13
COVER; TRIM,FRT SEAT,CUSHION
8-98168-081-0
01
1
1306-
17
BOLT; RECLINING
M8X20
8-97255-906-0
02
1
1306-
18
COVER; RECLINING
DARK GRAY
8-97867-020-0
01
1
1306-
19
SCREW; COVER
M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
1306-
24
KNOB; RECLINING,FRT,SEAT
1-75418-066-0
01
1
1306-
30
REST ASM; ARM,FRT SEAT
8-98168-091-0
01
1
1306-
39
NUT; ARM REST
(B) M8
1-75147-657-0
01
1
1306-
39
NUT; ARM REST
(A) M10
9-09110-410-0
01
1
1306-
40
SPACER; ARM REST
8-94285-921-0
02
1
1306-
42
STAND; DRIVER SEAT
RIGID SEAT W/ARM REST(SGC)
1-75558-604-2
01
1
1306-
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
1306-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
0-91180-110-0
02
1
1306-
62
DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
1-75537-262-8
01
1
1306-1403
62
DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
8-98261-449-0
01
1
1404-
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-330-3
01
1
1306-1502
74
ADJUSTER; FRT SEAT,HEIGHT CONT
8-98291-644-0
01
1
1503-
99
BUSHING; SEAT BACK
8-97854-087-0
01
1
1306-
101
LEVER ASM; LUMBAR
5-75190-138-0
01
1
1306-
228
SCREW; KNOB
M4
8-98062-662-0
01
1
1306-
306
NUT; SEAT ADJ
M8 FLANGE
1-75538-207-0
14
1
1306-
321
WASHER; PL,ARM REST
(A) ID=10.5 OD=22
9-09160-610-0
01
1
1306-
321
WASHER; PL,ARM REST
(B) ID=8.4 OD=22
9-09164-708-0
01
1
1306-
327
CLIP; COVER
1-09987-273-0
02
1
1306-
328
CLIP; HANDY WARNING
1-72537-239-0
01
1
1306-
336
COVER; DRIVER SEAT
1-75518-303-0
01
1
1306-
114
126
120
113
122
119
120
123
135
116
115
137
136
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
04
1
1306-
113
BACK ASM; SEAT
8-98168-280-0
01
1
1306-
114
COVER; TRIM,PASSENGER SEAT,BACK
8-98168-295-0
01
1
1306-
115
CUSHION ASM; PASSENGER SEAT
8-98168-131-0
01
1
1306-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
8-98168-270-0
01
1
1306-
119
ADJ; SEAT RECLINING,ASSIST SIDE
1-75417-597-0
01
1
1306-
120
BOLT; RECLINING ADJ
M8X20
8-97255-906-0
04
1
1306-
122
COVER; ADJ,RECLINING
1-75417-598-0
01
1
1306-
123
SCREW; COVER,RECLINING
M6X12
9-03490-612-0
01
1
1306-
126
BUSHING; HINGE,RECLINING
8-97854-087-0
01
1
1306-
135
NUT; SEAT STAND
M10 FLANGE
0-91180-110-0
02
1
1306-
136
STAND; PASSENGER SEAT
8-98242-290-0
01
1
1306-
137
BOLT; STAND
M10X20 FLANGE
0-28451-020-0
02
1
1306-
74
468
468
51
512
51
532
51
512
51
532
278
302
518
543
518
471
158
158
551
201
306
63
63
306
201
551
551
72
518
302
518
302
518
302
518
72
302
551
302
518
543
302
543
543
302
543
468
529
468
518
518
518
278
278
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
51
SCREW; COVER
1-75518-325-1
04
1
1306-
63
ADJUSTER; SEAT SLIDE
(A)
1-75518-199-1
01
1
1306-
63
ADJUSTER; SEAT SLIDE
(B)
1-75518-323-0
01
1
1306-
72
SPACER; SEAT ADJ
1-75518-334-1
02
1
1306-1502
72
SPACER; SEAT ADJ
8-98291-668-0
02
1
1503-
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-330-3
01
1
1306-1502
74
ADJUSTER; FRT SEAT,HEIGHT CONT
8-98291-644-0
01
1
1503-
158
BUSHING; LINK ARM
1-75518-209-0
02
1
1306-
201
CABLE; ADJ
(A) L=667
1-75518-288-0
01
1
1306-
201
CABLE; ADJ
(B) L=605
1-75518-289-1
01
1
1306-
278
COLLAR; FRT SEAT
1-75518-244-0
03
1
1306-
302
BOLT; ADJ,HEIGHT CONT
(C)
1-75518-266-2
02
1
1306-
302
BOLT; ADJ,HEIGHT CONT
(A)
1-75518-270-1
04
1
1306-1502
302
BOLT; ADJ,HEIGHT CONT
(A)
8-98291-667-0
04
1
1503-
302
BOLT; ADJ,HEIGHT CONT
(B)
1-75518-336-1
02
1
1306-
306
NUT; SEAT ADJ
M8 FLANGE
1-75538-207-0
14
1
1306-
468
SPRING; RETURN
(A)
1-75518-206-0
01
1
1306-
468
SPRING; RETURN
(B)
1-75518-207-0
01
1
1306-
468
SPRING; RETURN
(C)
1-75518-208-0
02
1
1306-
468
SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)
1-75538-132-0
01
1
1306-
471
LEVER; SEAT ADJ
8-98107-869-0
01
1
1306-
512
COVER; LEVER
1-75518-243-1
02
1
1306-
518
NUT; TILT ADJ
(A)
1-75518-263-0
01
1
1306-
518
NUT; TILT ADJ
(C) M8
1-75518-264-0
04
1
1306-
518
NUT; TILT ADJ
(D) M6 LOCK NUT
5-09984-020-0
02
1
1306-
518
NUT; TILT ADJ
(B) M8 FLANGE
8-94152-886-0
04
1
1306-
529
PIN; LINK
1-75518-262-0
01
1
1306-
532
LEVER ASM; TILT
(A)
1-75518-203-0
01
1
1306-
532
LEVER ASM; TILT
(B)
1-75518-204-1
01
1
1306-
543
WASHER; HEIGHT ADJUSTER
(A)
1-75518-335-0
02
1
1306-1502
543
WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19
8-98291-669-0
02
1
1503-
543
WASHER; HEIGHT ADJUSTER
(B) ID=8.4
9-09160-508-0
04
1
1306-
551
SLIDER; HEIGHT ADJ
1-75518-265-0
04
1
1306-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
