7-40 — INSTRUMENT PANEL AND BOX (#123160) — 98 parça

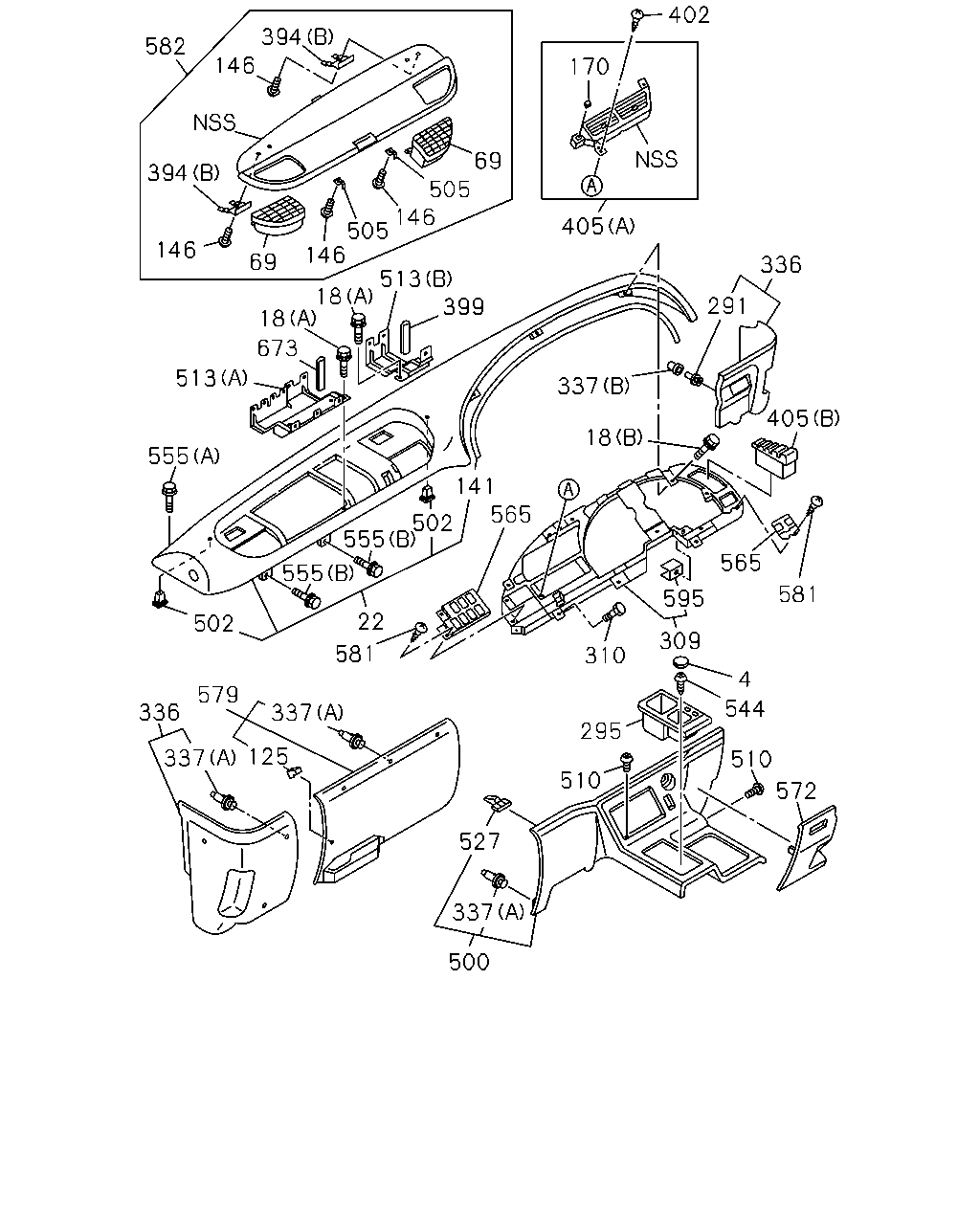

çizim 365988
402 170 394 582 394 146 146 146 505 69 505 69 513 405 18 18 399 513 673 555 141 337 291 336 405 18 581 565 595 555 555 502 22 565 337 579 336 337 125 337 500 527 510 295 310 572 544 510 4 309 502 581 146
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 1306-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1306-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1306-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1306-
22 PAD; INST 1-72317-372-1 01 1 1306-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 1306-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 1306-
125 CLIP; INST PANEL 8-97217-066-0 01 1 1306-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 10 1 1306-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 1306-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1306-
170 COVER; HOLE 1-76367-068-0 01 1 1306-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 1306-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 1306-
309 PANEL; SW,INST 1-72418-009-6 01 1 1306-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1306-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 1306-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 1306-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 1306-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1306-
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) GENERAL EXPORT EQUIPMENT(TAA) (A) 		1-72438-124-2 02 1 1306-1408
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-72438-124-2 02 1 1409-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1306-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1306-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 1306-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1306-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 1306-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 1306-
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) GENERAL EXPORT EQUIPMENT(TAA) 		1-72437-619-0 01 1 1306-1408
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72437-619-0 01 1 1409-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1306-
505 LOCK; LID 1-72558-024-2 02 1 1306-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1306-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 1306-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 1306-
527 CLIP; INST CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) GENERAL EXPORT EQUIPMENT(TAA) 		8-97217-066-0 04 1 1306-1408
527 CLIP; INST CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97217-066-0 04 1 1409-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1306-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1306-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 1306-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 1306-
572 COVER; INSPECTION 1-72437-634-0 01 1 1306-
579 COVER; INST PNL 1-72437-626-0 01 1 1306-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1306-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 1306-
595 NUT; HOOK 1-72418-013-0 11 1 1306-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1306-

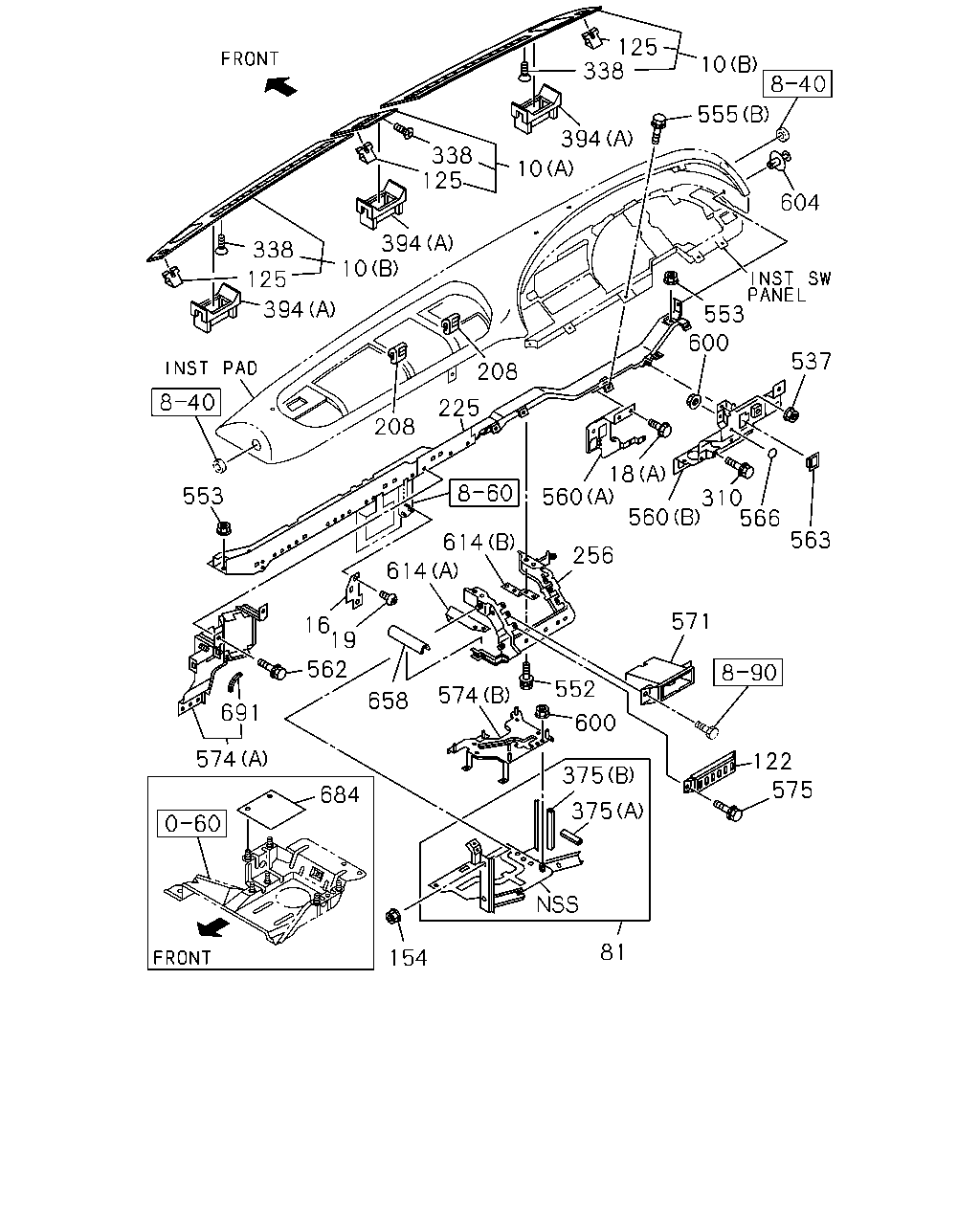

çizim 366236
125 10 555 604 338 394 10 338 125 394 10 338 125 394 208 225 208 18 560 310 566 563 537 553 60 571 560 256 614 600 575 122 552 81 375 375 154 574 562 658 691 553 614 16 19 574 684
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) CENTER 		1-72437-540-6 01 1 1306-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-601-6 01 1 1306-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-600-7 01 1 1306-
16 BRACKET; INST PNL 1-73908-023-2 01 1 1306-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1306-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1306-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1306-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1306-
81 BRACKET; ELEC CONT UNIT 1-73907-689-4 01 1 1306-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1306-
125 CLIP; INST PANEL 8-97217-066-0 01 1 1306-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 10 1 1306-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1306-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 1306-
225 FRAME; FACIA 1-65671-725-8 01 1 1306-
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 1306-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1306-
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94279-325-0 17 1 1306-
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1306-
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1306-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1306-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1306-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1306-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1306-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1306-
560 BRACKET
(A) 		1-65681-197-2 01 1 1306-
560 BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-65671-772-4 01 1 1306-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
563 BEZEL; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72448-410-3 01 1 1306-
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306-
571 BEZEL; POCKET 1-72438-151-3 01 1 1306-
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1306-
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 1306-1411
574 PANEL; RELAY BOX
CAB SUSPENSION-FULL FLOATING(SMK) (B) 		1-73907-690-2 01 1 1412-
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 1306-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1306-
604 CLIP; INST PAD 1-09983-123-0 01 1 1306-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 1306-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 1306-
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1306-
684 RUBBER; HARNESS 1-82698-417-1 01 1 1306-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1306-

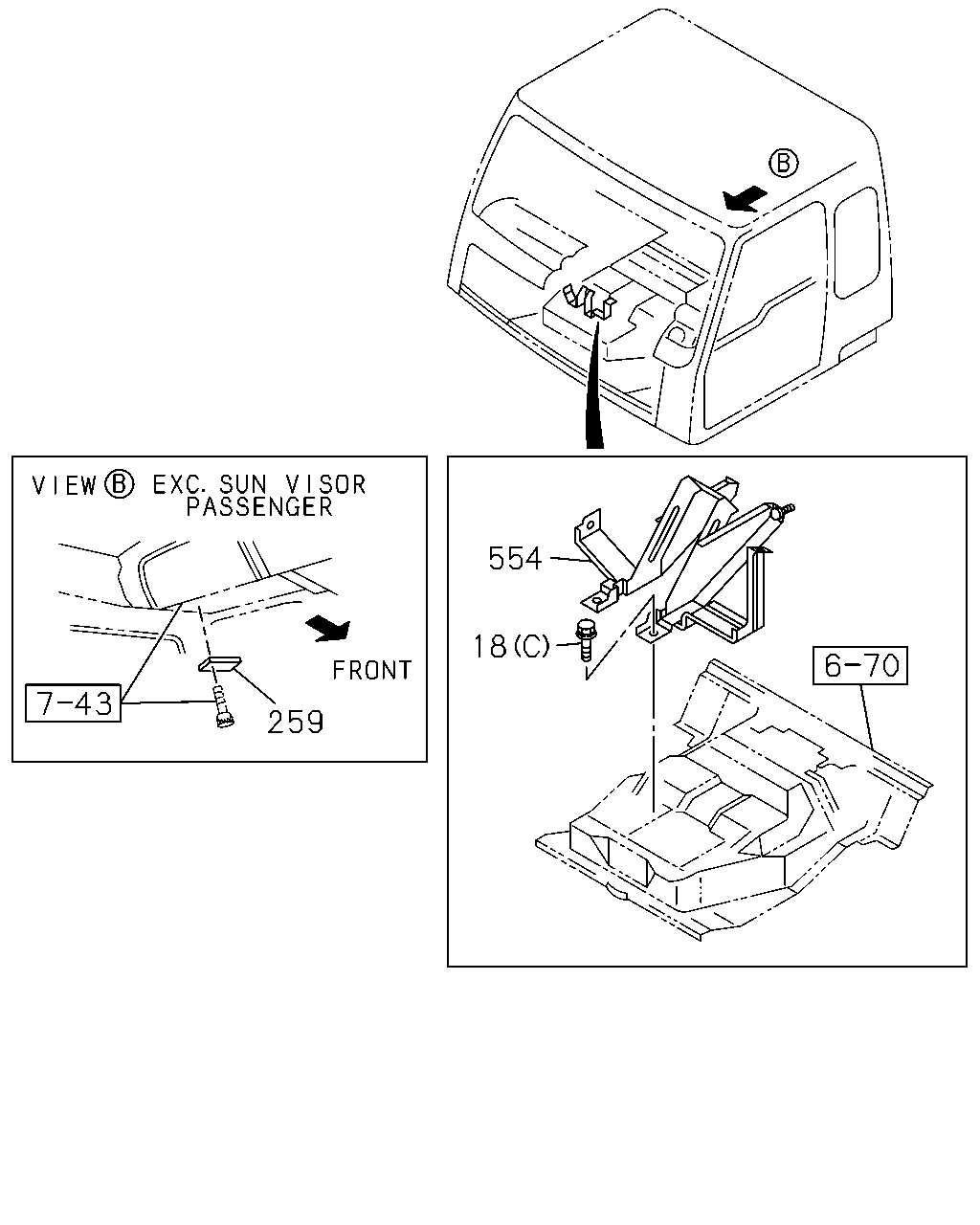

çizim 367098
554 18 259
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1306-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1306-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1306-
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 1306-
554 BRACKET; CENTER BEZEL 1-65671-826-0 01 1 1306-
