7-20 — MIRROR AND MIRROR STAY (#123158) — 150 parça

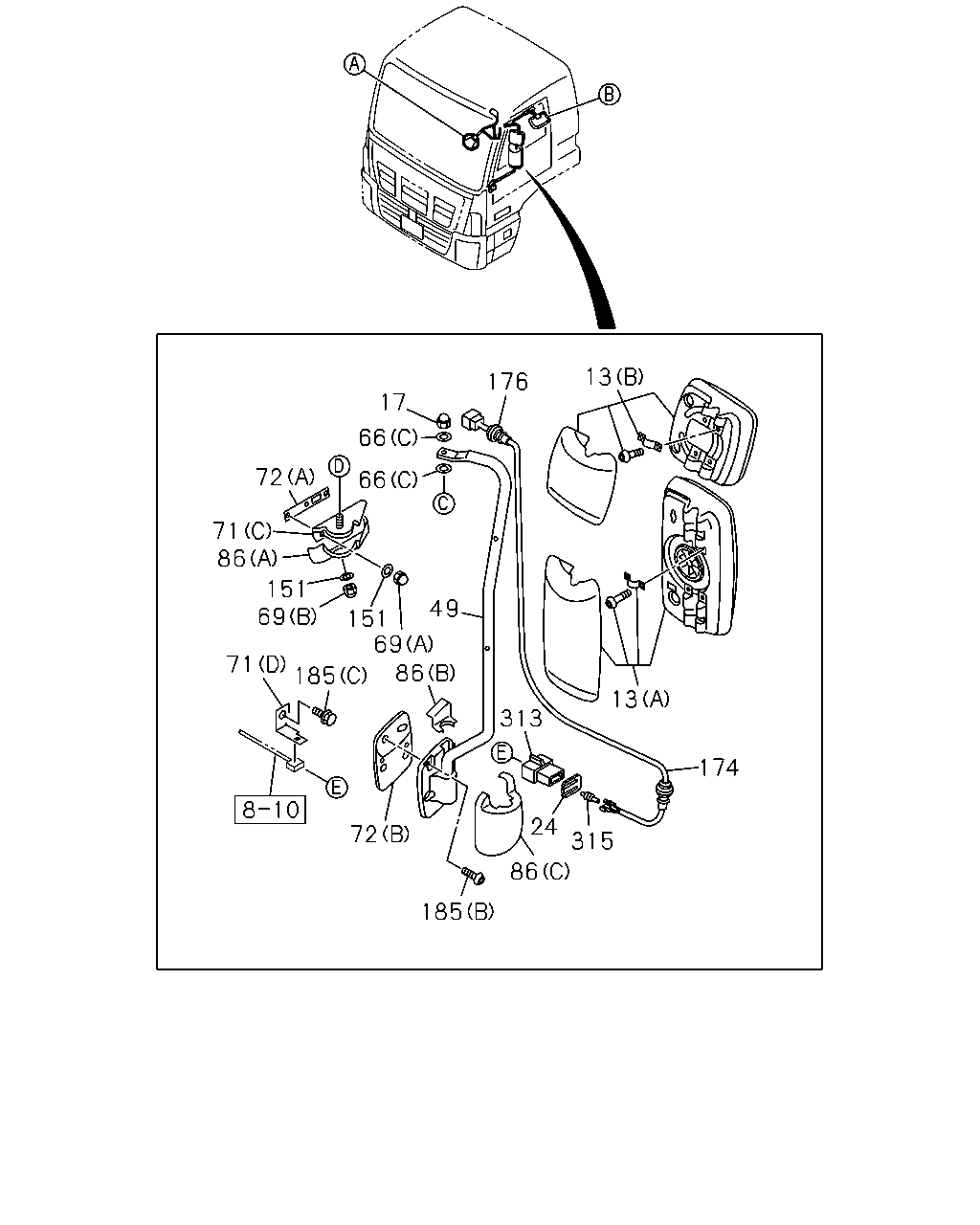

72 71 86 151 69 71 185 72 185 24 86 313 86 151 69 315 174 13 13 176 17 66 66 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98162-676-1	02	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98043-176-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98043-060-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98055-992-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98055-991-1	01	1	1306-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1306-
24	HOLDER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-94447-536-0	02	1	1306-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98222-325-0	01	1	1306-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98222-324-0	01	1	1306-
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98138-909-1	01	1	1306-1310
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98234-648-0	01	1	1311-
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98138-906-1	01	1	1306-1310
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98234-647-0	01	1	1311-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1306-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1306-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	1306-
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1306-
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1306-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-255-2	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D)	8-98039-277-2	02	1	1306-
72	SHEET (A)	8-98147-891-0	02	1	1306-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98101-865-0	01	1	1306-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98101-864-0	01	1	1306-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98116-605-0	01	1	1306-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98116-604-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1306-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1306-
174	HARNESS; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-97644-030-0	02	1	1306-
176	GROMMET; HARNESS MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	1-82699-906-0	02	1	1306-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1306-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE	0-28050-816-0	02	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1306-
313	CONNECTOR; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-94447-532-0	02	1	1306-
315	RUBBER ASM; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	1-82691-026-0	02	1	1306-

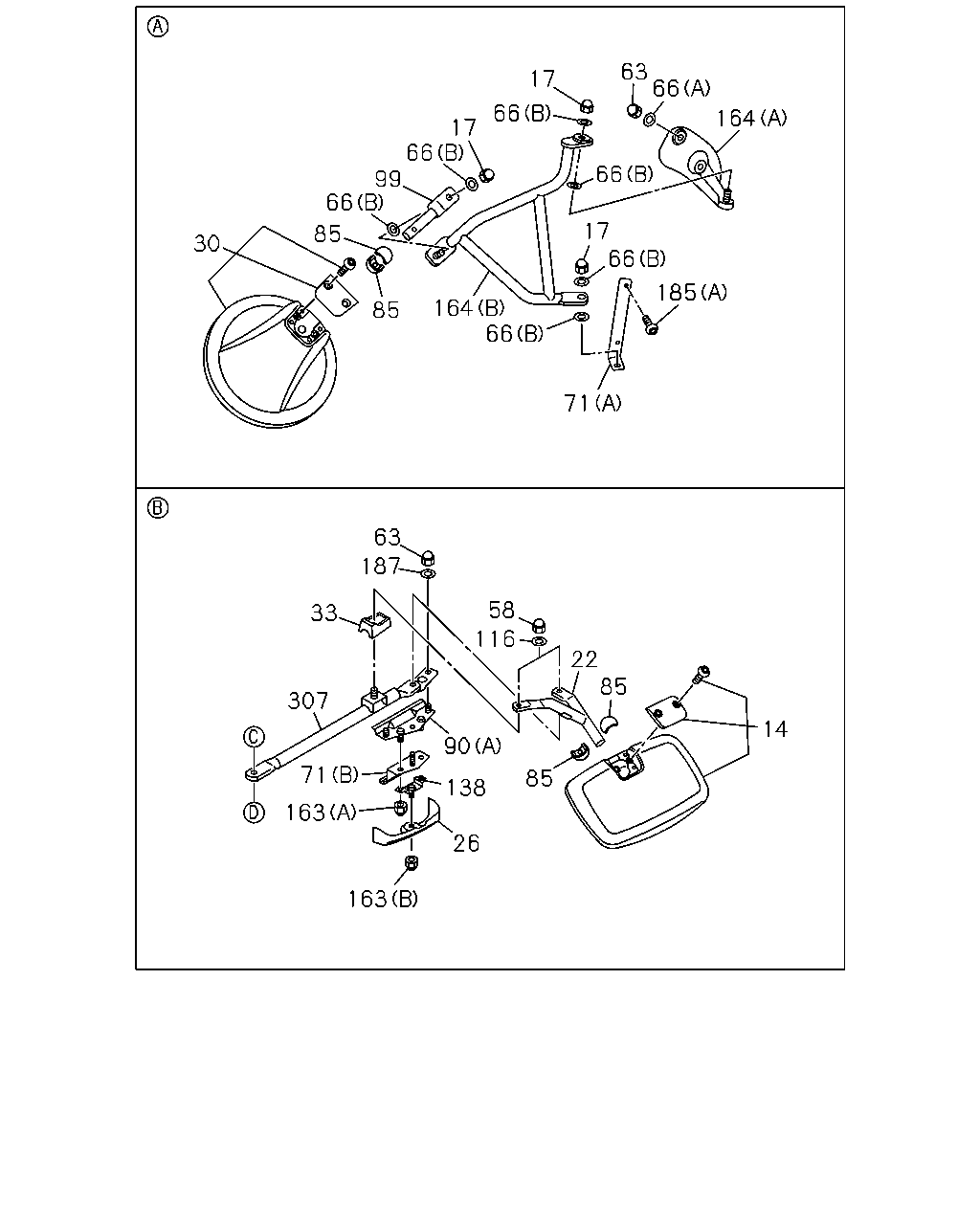

164 66 63 17 66 17 66 99 66 17 185 66 71 66 164 85 85 66 30 14 85 22 58 63 33 116 187 85 90 307 71 138 26 163 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	MIRROR ASM; OUTSIDE	8-98043-065-0	01	1	1306-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1306-
22	STAY; OUTSIDE MIRROR	8-98221-664-0	01	1	1306-
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1306-
30	MIRROR; UNDER	8-98055-994-0	01	1	1306-1504
30	MIRROR; UNDER	8-98309-725-0	01	1	1505-
33	COVER; MIRROR	8-98171-925-0	01	1	1306-
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1306-
63	NUT; STAY M8	1-09984-187-0	07	1	1306-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1306-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1306-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	1306-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-255-2	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D)	8-98039-277-2	02	1	1306-
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1306-
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1306-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1306-
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1306-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1306-
99	STAY; MAIN UNDER MIRROR	8-98092-493-0	01	1	1306-
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1306-
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1306-
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1306-
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1306-
164	STAY; ROOF (A)	1-71707-248-2	01	1	1306-
164	STAY; ROOF (B)	8-98221-665-0	01	1	1306-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1306-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE	0-28050-816-0	02	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1306-
187	WASHER; LK,BRKT ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1306-
307	STAY; MIRROR SUPPORT	8-98222-310-0	01	1	1306-
307	STAY; MIRROR SUPPORT	8-98222-309-0	01	1	1306-

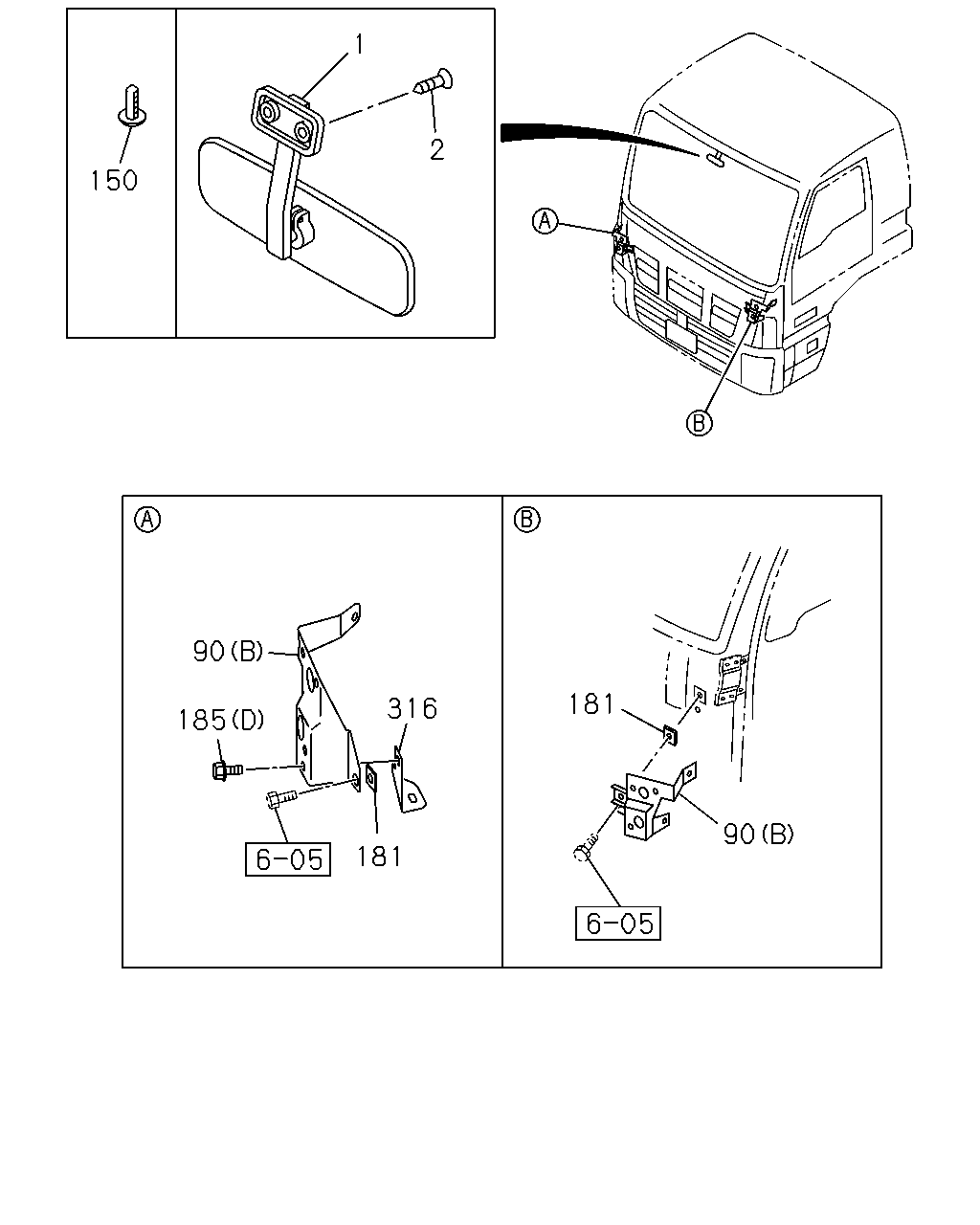

150 1 2 90 185 316 181 181 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM RR VIEW MIRROR<D31>	1-73117-033-1	01	1	1306-
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X20	1-09981-310-0	02	1	1306-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1306-
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1306-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1306-
150	PLUG; MIRROR HOLE EXC. RR VIEW MIRROR<D31> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1306-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1306-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1306-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE	0-28050-816-0	02	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1306-
316	BRACKET; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	1-71798-896-1	01	1	1306-

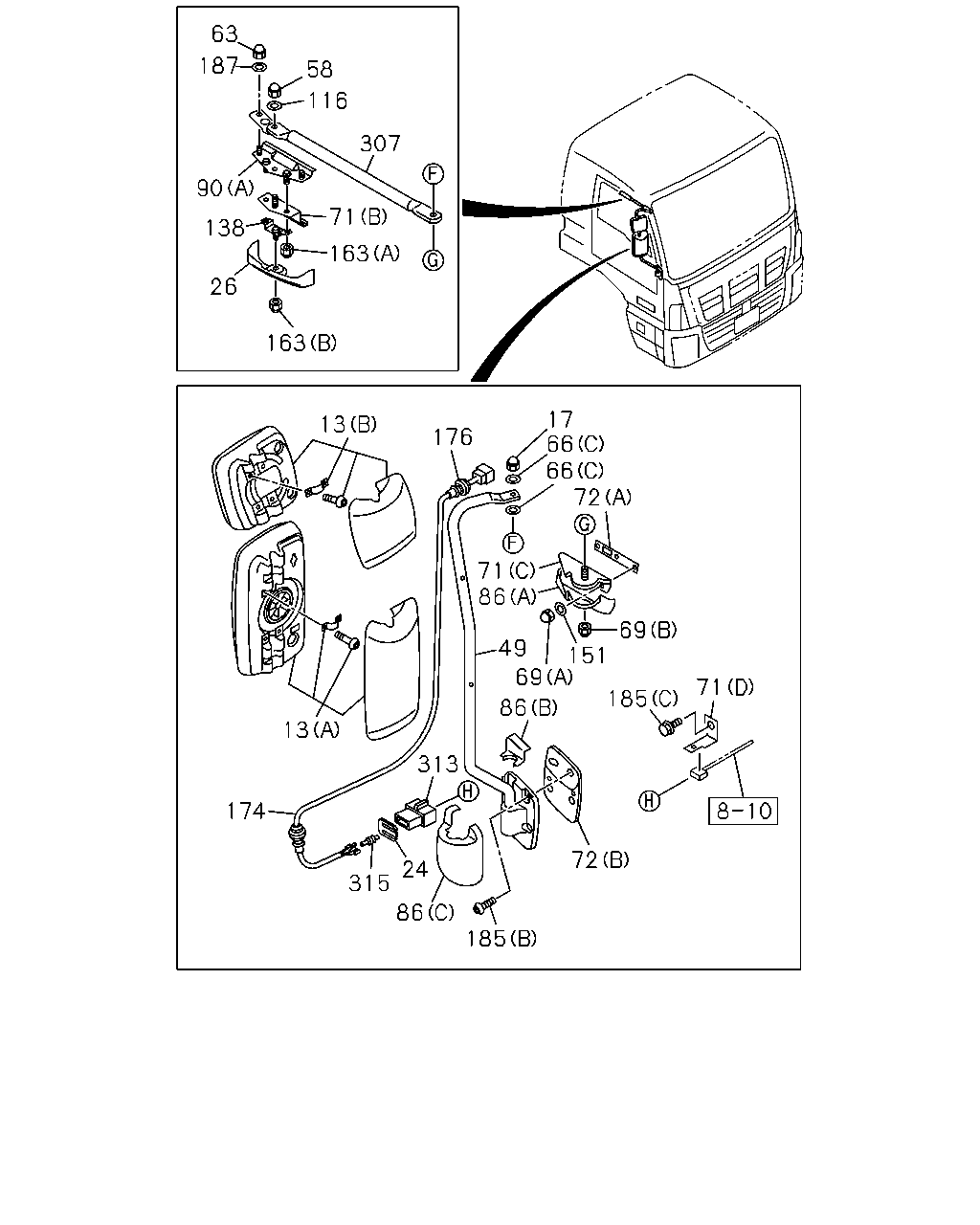

63 90 187 58 307 116 71 138 26 163 163 13 176 17 66 66 72 71 86 69 151 49 69 86 185 72 71 313 24 315 86 185 174 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98162-676-1	02	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98043-176-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98043-060-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98055-992-1	01	1	1306-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98055-991-1	01	1	1306-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1306-
24	HOLDER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-94447-536-0	02	1	1306-
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1306-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98222-325-0	01	1	1306-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98222-324-0	01	1	1306-
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98138-909-1	01	1	1306-1310
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98234-648-0	01	1	1311-
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98138-906-1	01	1	1306-1310
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-98234-647-0	01	1	1311-
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1306-
63	NUT; STAY M8	1-09984-187-0	07	1	1306-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1306-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1306-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	1306-
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1306-
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1306-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-255-2	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1306-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D)	8-98039-277-2	02	1	1306-
72	SHEET (A)	8-98147-891-0	02	1	1306-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98101-865-0	01	1	1306-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98101-864-0	01	1	1306-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98116-605-0	01	1	1306-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98116-604-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1306-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1306-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1306-
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1306-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1306-
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1306-
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1306-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1306-
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1306-
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1306-
174	HARNESS; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-97644-030-0	02	1	1306-
176	GROMMET; HARNESS MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	1-82699-906-0	02	1	1306-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1306-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (C) M8X16 FLANGE	0-28050-816-0	02	1	1306-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1306-
187	WASHER; LK,BRKT ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1306-
307	STAY; MIRROR SUPPORT	8-98222-310-0	01	1	1306-
307	STAY; MIRROR SUPPORT	8-98222-309-0	01	1	1306-
313	CONNECTOR; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	8-94447-532-0	02	1	1306-
315	RUBBER ASM; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>	1-82691-026-0	02	1	1306-
