7-10 — CAUTION PLATE AND LABEL (#123157) — 93 parça

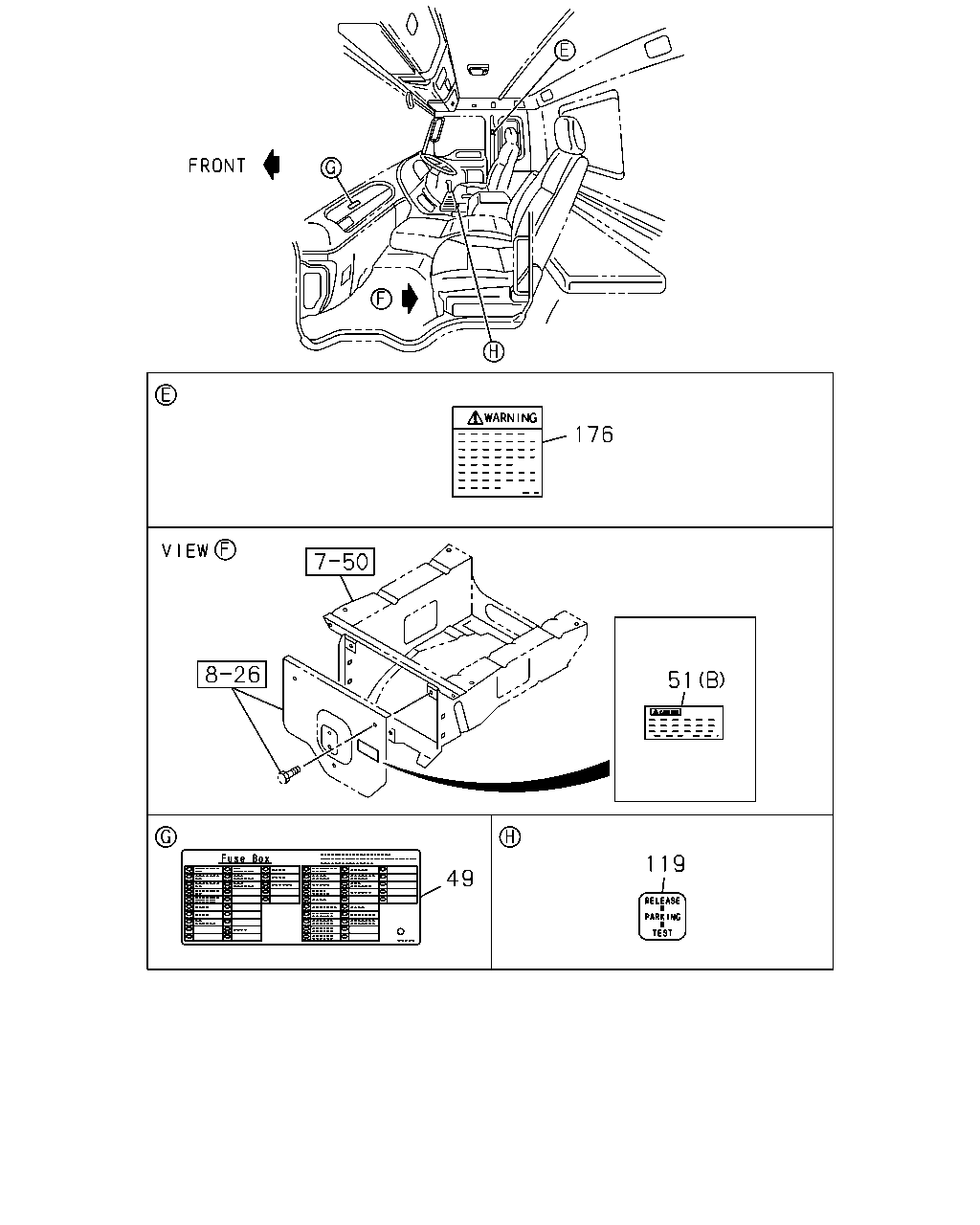

176 51 119 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	8-97646-256-0	01	1	1306-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8>	8-97623-001-0	01	1	1306-
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	8-97646-257-0	01	1	1306-
49	PLATE; CAUTION,FUSE BOX CAUTIONS PORTUGUESE<NAT>	8-97646-255-0	01	1	1306-
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	8-97646-258-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-787-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (A)	1-85880-777-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-786-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (A)	8-98161-460-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (A)	1-85880-785-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ARABIAN<WJ7> (B)	8-97624-052-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ENGLISH<RR8> (B)	1-85878-544-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS FRENCH<WJ8> (B)	8-97633-742-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS PORTUGUESE<NAT> (B)	8-98162-838-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS SPANISH<YN1> (B)	8-97613-336-0	01	1	1306-
51	PLATE; CAUTION,WARNING EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-85878-571-0	01	1	1306-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ARABIAN<WJ7>	1-85881-980-0	01	1	1306-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ENGLISH<RR8>	1-85881-791-0	01	1	1306-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS FRENCH<WJ8>	1-85881-943-0	01	1	1306-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS PORTUGUESE<NAT>	8-98161-152-0	01	1	1306-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS SPANISH<YN1>	1-85881-942-0	01	1	1306-
176	LABEL; SEAT BELT CAUTIONS ENGLISH<RR8> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	1-85878-486-0	01	1	1306-

51 181 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-787-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (A)	1-85880-777-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-786-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (A)	8-98161-460-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (A)	1-85880-785-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ARABIAN<WJ7> (B)	8-97624-052-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ENGLISH<RR8> (B)	1-85878-544-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS FRENCH<WJ8> (B)	8-97633-742-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS PORTUGUESE<NAT> (B)	8-98162-838-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS SPANISH<YN1> (B)	8-97613-336-0	01	1	1306-
51	PLATE; CAUTION,WARNING EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-85878-571-0	01	1	1306-
181	PLATE; CAUTION,AIR CLEANER (A)	1-85886-796-1	01	1	1306-
181	PLATE; CAUTION,AIR CLEANER (B)	1-85886-813-1	01	1	1306-

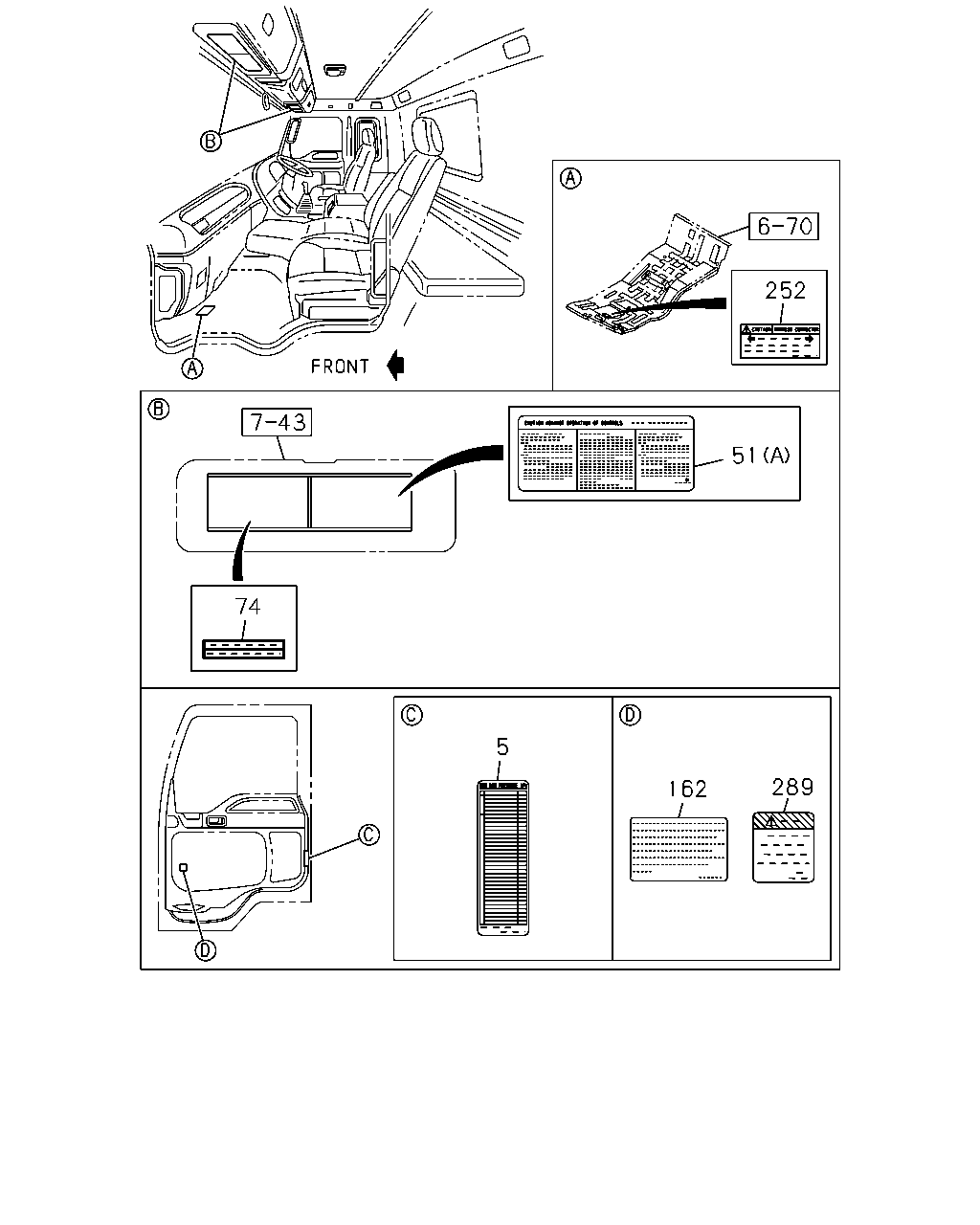

252 51 162 289 5 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	LABEL; TIRE AIR PRESSURE	1-85880-778-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-787-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (A)	1-85880-777-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-786-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (A)	8-98161-460-0	01	1	1306-
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (A)	1-85880-785-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ARABIAN<WJ7> (B)	8-97624-052-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ENGLISH<RR8> (B)	1-85878-544-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS FRENCH<WJ8> (B)	8-97633-742-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS PORTUGUESE<NAT> (B)	8-98162-838-0	01	1	1306-
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS SPANISH<YN1> (B)	8-97613-336-0	01	1	1306-
51	PLATE; CAUTION,WARNING EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-85878-571-0	01	1	1306-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z)	8-98118-493-0	01	1	1306-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ARABIAN<WJ7>	8-98124-445-0	01	1	1306-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ENGLISH<RR8>	1-85881-836-0	01	1	1306-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS FRENCH<WJ8>	1-85881-970-0	01	1	1306-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS PORTUGUESE<NAT>	8-98164-667-0	01	1	1306-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS SPANISH<YN1>	1-85881-946-0	01	1	1306-
162	PLATE; CAUTION,FUEL CAUTIONS ENGLISH<RR8>	8-97623-712-0	01	1	1306-
162	PLATE; CAUTION,FUEL CAUTIONS FRENCH<WJ8>	8-97621-140-0	01	1	1306-
162	PLATE; CAUTION,FUEL CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7>	8-98083-160-0	01	1	1306-
162	PLATE; CAUTION,FUEL CAUTIONS SPANISH<YN1>	8-97635-806-0	01	1	1306-
252	PLATE; CAUTION,HARNESS CAUTIONS ARABIAN<WJ7>	8-97623-996-0	01	1	1306-
252	PLATE; CAUTION,HARNESS CAUTIONS ENGLISH<RR8>	1-85878-488-1	01	1	1306-
252	PLATE; CAUTION,HARNESS CAUTIONS FRENCH<WJ8>	1-85878-560-0	01	1	1306-
252	PLATE; CAUTION,HARNESS CAUTIONS PORTUGUESE<NAT>	8-97636-218-0	01	1	1306-
252	PLATE; CAUTION,HARNESS CAUTIONS SPANISH<YN1>	1-85878-559-0	01	1	1306-
289	PLATE; CAUTION,DRIVING CAUTIONS ARABIAN<WJ7>	8-98093-472-0	01	1	1306-

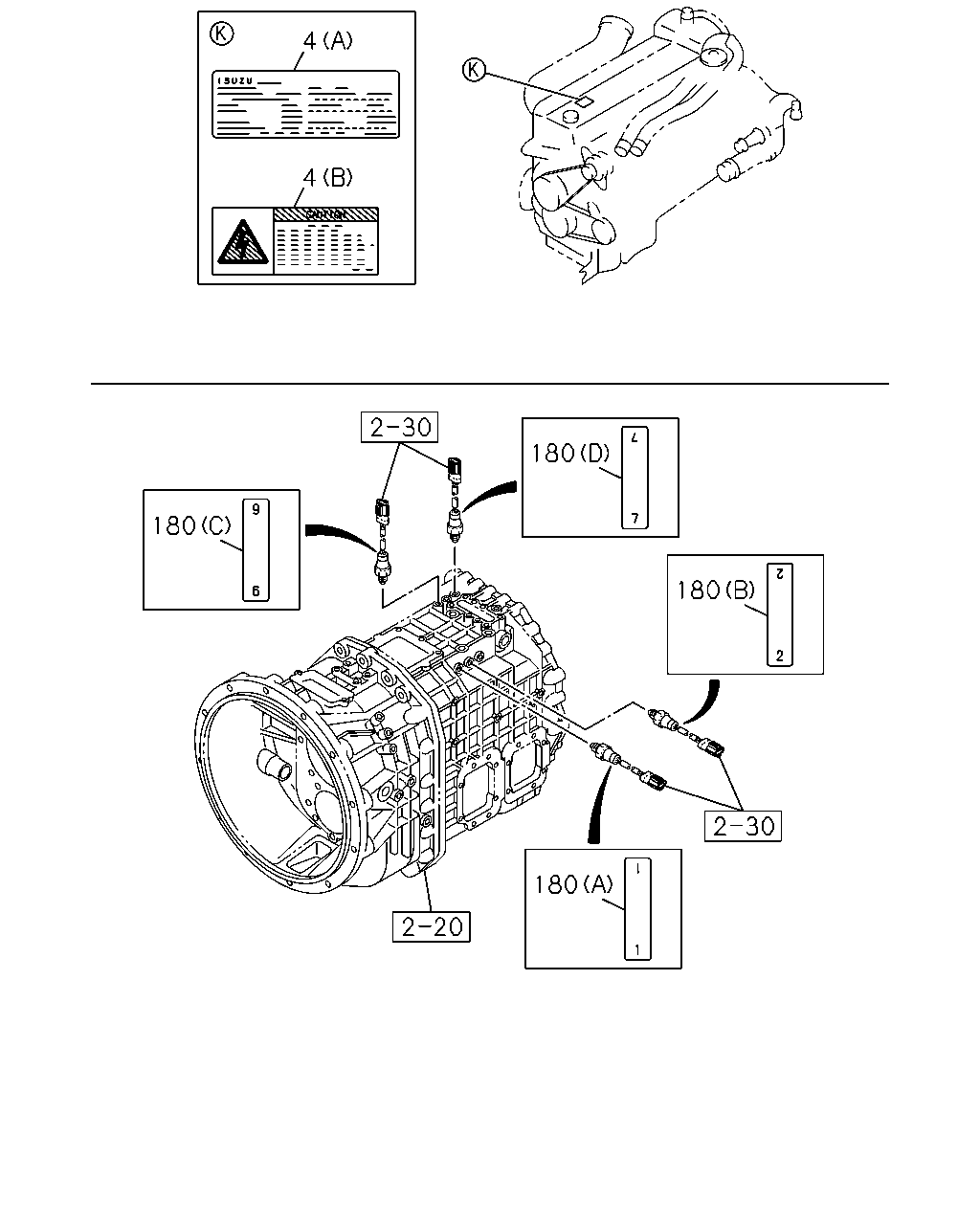

4 4 180 180 180 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE CAUTIONS ARABIAN<WJ7> (B)	8-98088-627-0	01	1	1306-
4	LABEL; ENG MAINTENANCE CAUTIONS ARABIAN<WJ7> (A)	8-98088-630-0	01	1	1306-
4	LABEL; ENG MAINTENANCE CAUTIONS ENGLISH<RR8> (B)	8-94391-524-0	01	1	1306-
4	LABEL; ENG MAINTENANCE CAUTIONS ENGLISH<RR8>,CAUTIONS SPANISH<YN1> (A)	1-85875-462-1	01	1	1306-
4	LABEL; ENG MAINTENANCE CAUTIONS FRENCH<WJ8> (A)	8-98160-129-0	01	1	1306-
4	LABEL; ENG MAINTENANCE CAUTIONS FRENCH<WJ8> (B)	8-98160-132-0	01	1	1306-
4	LABEL; ENG MAINTENANCE CAUTIONS PORTUGUESE<NAT> (A)	8-98160-127-0	01	1	1306-
4	LABEL; ENG MAINTENANCE CAUTIONS PORTUGUESE<NAT> (B)	8-98160-131-0	01	1	1306-
4	LABEL; ENG MAINTENANCE CAUTIONS SPANISH<YN1> (B)	8-98160-130-0	01	1	1306-
180	PLATE; CAUTION,SWITCH MJX16P M/T(Y3Z) (C)	1-85881-880-0	01	1	1507-
180	PLATE; CAUTION,SWITCH MJX16P M/T(Y3Z) (D)	1-85881-881-0	01	1	1507-
180	PLATE; CAUTION,SWITCH MJX16P M/T(Y3Z) (A)	1-85881-871-0	01	1	1306-1506
180	PLATE; CAUTION,SWITCH MJX16P M/T(Y3Z) (B)	1-85881-872-0	01	1	1507-

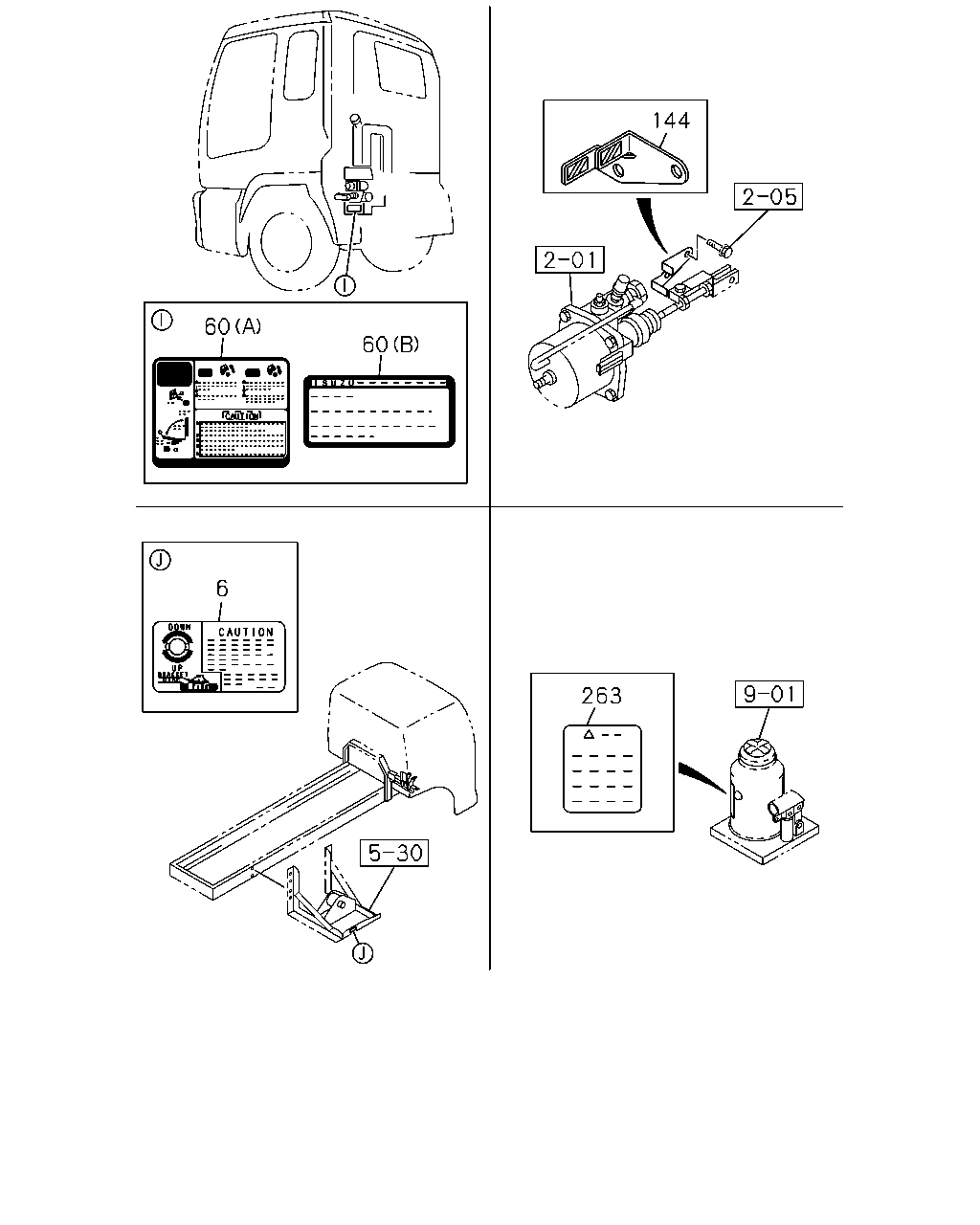

263 144 60 60 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE CAUTIONS ARABIAN<WJ7>	8-98082-441-0	01	1	1306-
6	PLATE; CAUTION,SPARE TIRE CAUTIONS ENGLISH<RR8>	8-98082-437-0	01	1	1306-
6	PLATE; CAUTION,SPARE TIRE CAUTIONS FRENCH<WJ8>	8-98082-440-0	01	1	1306-
6	PLATE; CAUTION,SPARE TIRE CAUTIONS PORTUGUESE<NAT>	1-53639-045-0	01	1	1306-
6	PLATE; CAUTION,SPARE TIRE CAUTIONS SPANISH<YN1>	8-98082-439-0	01	1	1306-
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7> (A)	8-98192-182-0	01	1	1306-
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7> (B)	8-98192-184-0	01	1	1306-
60	PLATE; CAUTION,CAB TILT CAUTIONS ENGLISH<RR8> (A)	8-98174-581-0	01	1	1306-
60	PLATE; CAUTION,CAB TILT CAUTIONS ENGLISH<RR8> (B)	8-98174-582-0	01	1	1306-
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8> (A)	8-98237-661-0	01	1	1306-
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8> (B)	8-98237-663-0	01	1	1306-
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT> (A)	8-98237-662-0	01	1	1306-
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT> (B)	8-98237-664-0	01	1	1306-
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1> (A)	8-98192-183-0	01	1	1306-
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1> (B)	8-98192-185-0	01	1	1306-
144	PLATE; CAUTION,CLU MJX16P M/T(Y3Z)	1-85878-345-0	01	1	1306-
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS ARABIAN<WJ7>	8-98094-561-0	01	1	1306-
