Isuzu WW
▶
TRUCKS
▶
EXR
▶
11502 - EXR RHD EURO2
▶
5 - Frame, Cab Mounting
▶

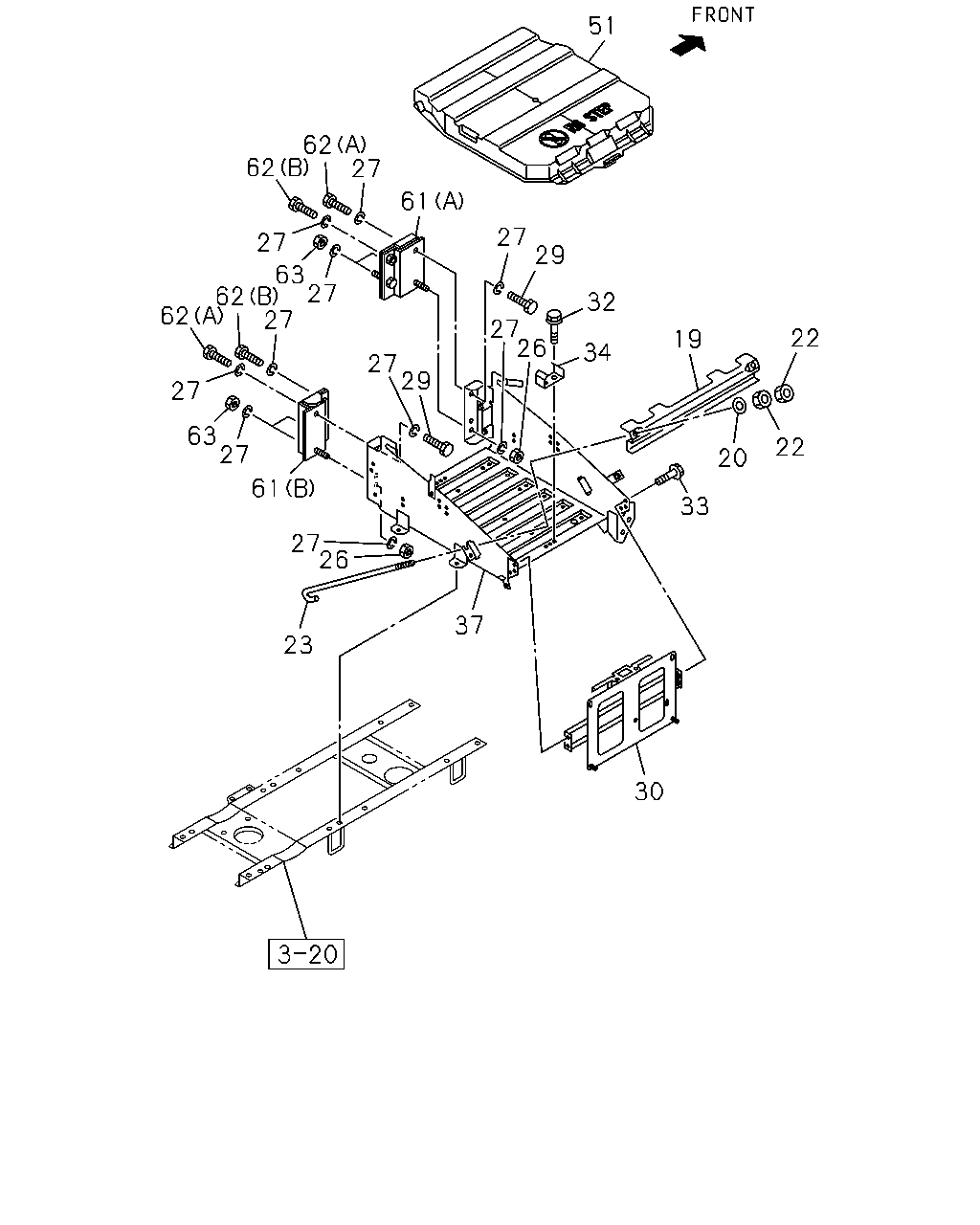

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#123131) — 19 parça
51
29
27
61
27
62
62
27
27
63
27
62
62
27
27
63
61
27
27
29
26
32
34
27
26
37
30
23
33
22
22
20
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
1-53618-039-2
01
1
1306-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
1306-
22
NUT; STAY
M8
0-91110-508-0
04
1
1306-
23
BOLT; STAY
L=250
1-53616-108-0
02
1
1306-
26
NUT; BRKT
M14
0-91110-514-0
02
1
1306-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
12
1
1306-
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
1306-
30
PLATE; BATTERY
8-97635-039-2
01
1
1306-
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
1306-
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1306-
34
SPACER; BATTERY BRKT
BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
1306-
37
BRACKET; BATTERY
8-98218-501-2
01
1
1306-
51
COVER; BATTERY
8-98097-715-3
01
1
1306-
61
DISTANCE; BRKT,BATTERY
(B)
1-53613-505-0
01
1
1306-
61
DISTANCE; BRKT,BATTERY
SILENCER SINGLE VERTICAL<N28> (A)
8-97623-013-0
01
1
1306-
61
DISTANCE; BRKT,BATTERY
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-53613-504-0
01
1
1306-
62
BOLT; DIST TO FRAME,BATTERY
(A) M14X45
1-09000-764-0
02
1
1306-
62
BOLT; DIST TO FRAME,BATTERY
(B) M14X60
1-09000-778-0
02
1
1306-
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
1306-
