5-01 — FRAME AND OTHER PARTS
(#123126) — 60 parça
◀

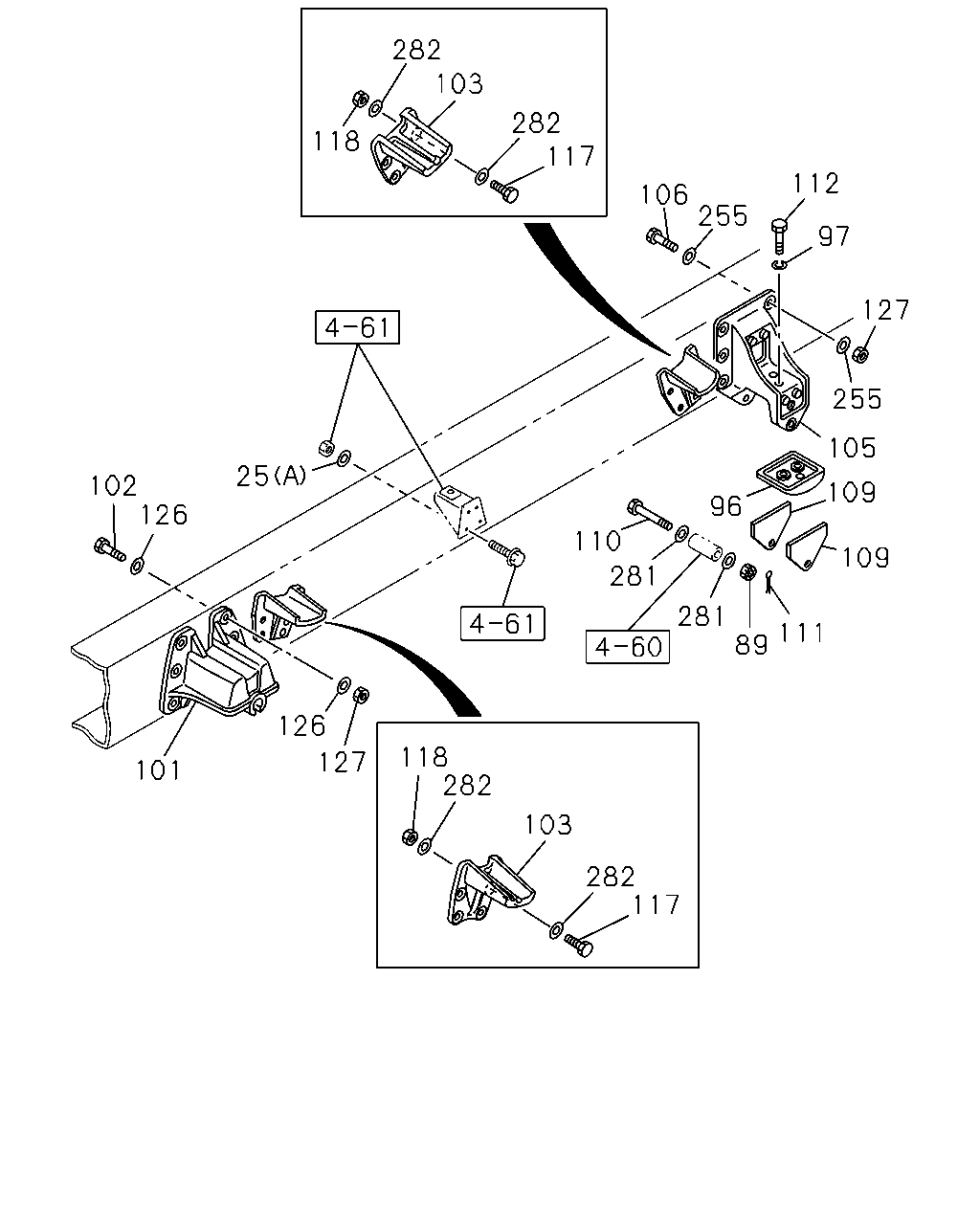

[501A] BRACKET REAR (22 parça)

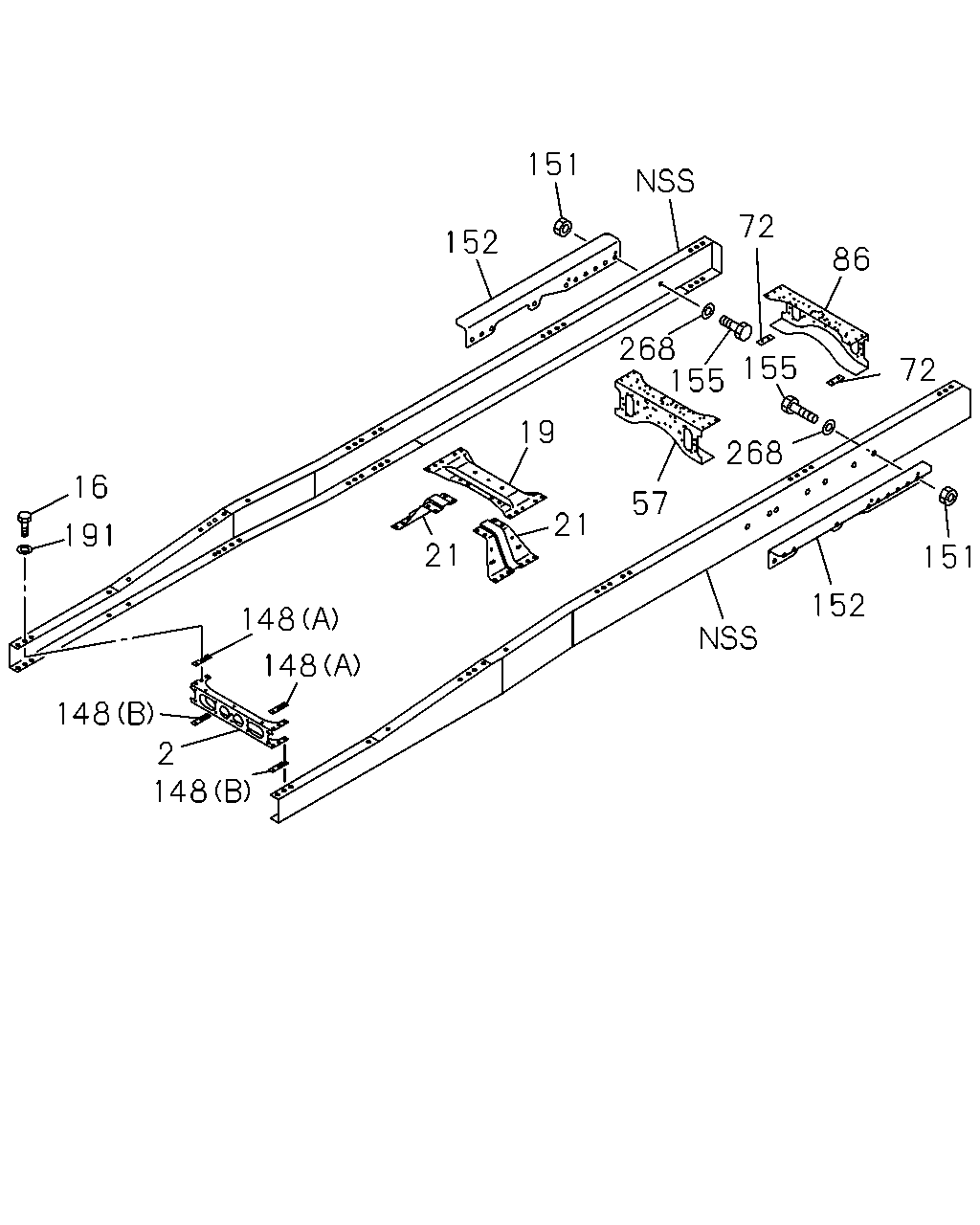

[501A] CROSS MEMBER AND OUTRIGGER (16 parça)

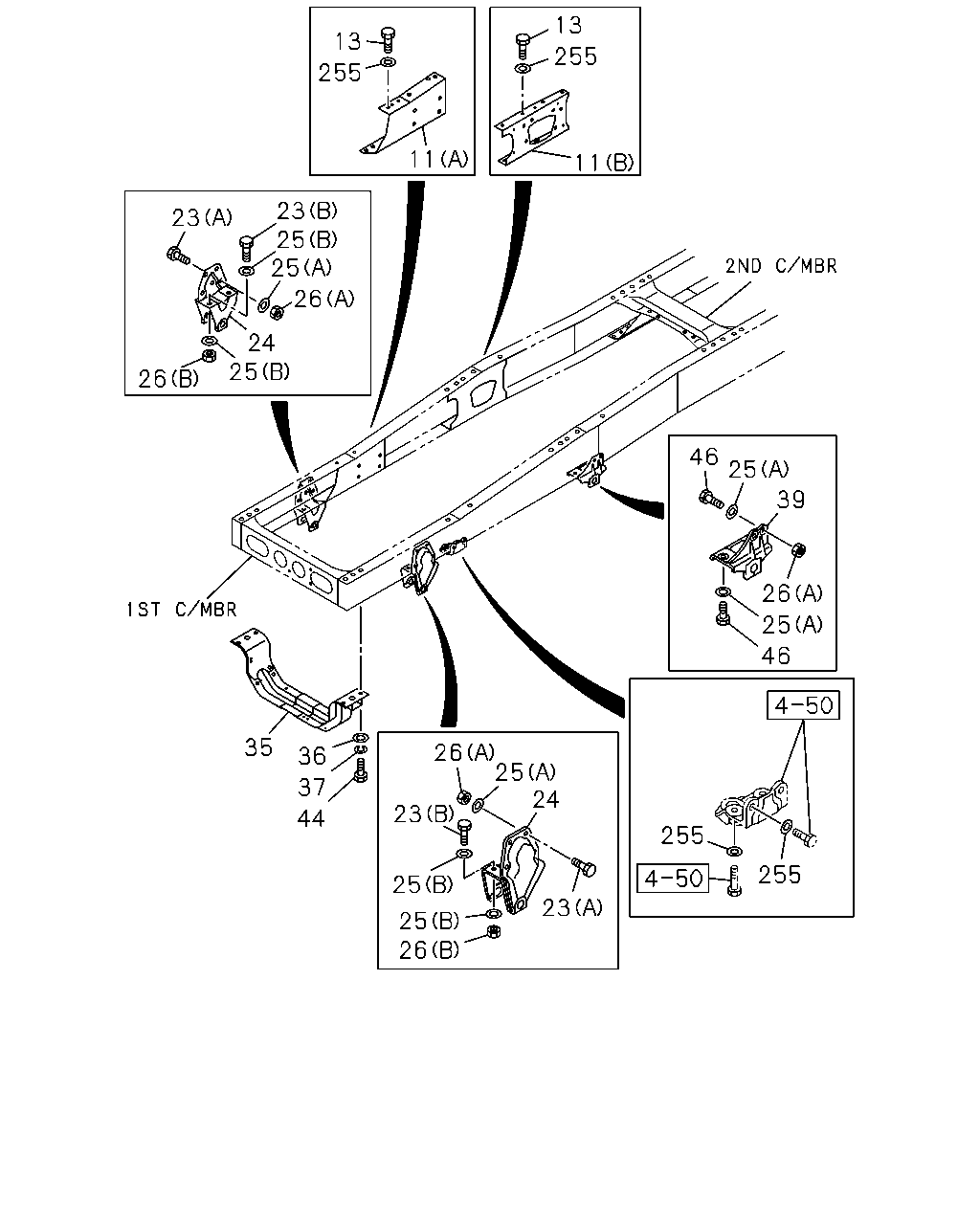

[501A] BRACKET FRONT AND UNDER MEMBER (22 parça)
▶
112
127
97
255
105
109
109
96
111
89
281
281
110
255
106
117
282
103
282
118
25
126
127
282
103
282
117
118
102
101
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1306-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1306-
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
1306-
96
PAD; RR SPR
1-53359-047-0
02
1
1306-
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
04
1
1306-
101
BRACKET; RR SPR,FRT
1-53353-081-2
02
1
1306-
102
BOLT; BRKT,RR SPR
M14X50
0-20951-450-0
12
1
1306-
103
STOPPER; SUB SPR
1-53356-057-0
04
1
1306-
105
BRACKET; RR SPR,RR
1-53354-066-2
02
1
1306-
106
BOLT; BRKT
M14X50
0-20951-450-0
12
1
1306-
109
SHIM; RR SPR
T=4.5
1-53359-061-1
02
1
1306-
109
SHIM; RR SPR
T=3.2
1-53359-062-1
02
1
1306-
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
02
1
1306-
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
1306-
112
BOLT; PAD
M14X35
0-20951-435-0
04
1
1306-
117
BOLT; STOPPER
M14X40
0-20951-440-0
16
1
1306-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1306-
126
WASHER; PL,BRKT
ID=15
8-98010-627-1
24
1
1306-
127
NUT; BRKT
M14
0-91110-514-0
24
1
1306-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
32
1
1306-
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
04
1
1306-
282
WASHER; PL,STOPPER
ID=15
8-98010-627-1
16
1
1306-
151
152
268
155
86
72
72
155
268
152
151
57
19
21
21
148
148
16
191
148
2
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-98232-274-1
01
1
1306-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20951-640-0
02
1
1306-
19
MEMBER; CROSS,2ND
8-98098-303-0
01
1
1306-
21
GUSSET; 2ND CROSS
8-98202-399-0
01
1
1306-
21
GUSSET; 2ND CROSS
8-98202-398-0
01
1
1306-
57
MEMBER; CROSS,RR SUSP FRT
8-97625-336-0
01
1
1306-
72
SPACER; TRUNNION
8-98191-613-0
02
1
1306-
86
MEMBER; CROSS,RR SUSP RR
8-97625-336-0
01
1
1306-
148
SPACER; C/MBR
(A)
8-98118-884-2
02
1
1306-
148
SPACER; C/MBR
(B)
8-98118-885-0
02
1
1306-
151
NUT; OUTRIGGER
M16
0-91110-516-0
22
1
1306-
152
OUTRIGGER
8-97632-285-0
01
1
1306-
152
OUTRIGGER
8-97632-284-0
01
1
1306-
155
BOLT; OUTRIGGER
M16X40
0-20951-640-0
22
1
1306-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-316-0
02
1
1306-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
22
1
1306-
13
13
255
255
11
11
25
46
39
26
25
46
255
255
25
24
26
23
23
25
25
26
37
44
35
36
23
23
25
26
25
24
25
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
1306-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
1306-
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
1306-
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
1306-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
04
1
1306-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
08
1
1306-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
1306-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
1306-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
1306-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1306-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1306-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
1306-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1306-
35
MEMBER; UNDER
1-53174-263-2
01
1
1306-
36
WASHER; PL,UNDER MBR
ID=17
0-91614-516-0
04
1
1306-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
1306-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
1306-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
1306-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
1306-
46
BOLT; BRKT FIX
M14X40
0-20951-440-0
04
1
1306-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
04
1
1306-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
32
1
1306-
